Planet IGUP-1205AT User manual

Industrial 100/1000X to 10/100/1000T 802.3bt PoE++
Media Converter series
IGUP-1205AT/IGUP-2205AT
User's Manual

Table of Contents
1. Package Contents................................................................................. 3
2. ProductSpecications ........................................................................... 4
3. Hardware Introduction .......................................................................... 7
3.1 Three-View Diagram....................................................................... 7
 3.2 LEDDenition: ............................................................................ 10
3.3 Wiring the Power Inputs............................................................... 11
3.4 Wiring the Alarm Contact ............................................................. 12
3.5 Grounding the Device................................................................... 13
4. Hardware Installation.......................................................................... 14
4.1 DIN-rail Mounting Installation ....................................................... 14
4.2 Wall-mount Plate Mounting ........................................................... 14
5. Fiber and PoE Installation.................................................................... 16
Customer Support.................................................................................... 17

3
1. Package Contents
Thank you for purchasing PLANET compact industrial 100/1000X to
10/100/1000T 802.3bt PoE++ Media Converter series, IGUP-1205AT and
IGUP-2205AT. In the following sections, the term “Industrial PoE++ Media
Converter” means the IGUP-1205AT or IGUP-2205AT.
Open the box of the Industrial PoE++ Media Converter and carefully unpack it.
Theboxshouldcontainthefollowingitems:
Industrial PoE++ Media
Converter x 1 QR code sheet x 1 Wall-mount Kit x 1
DIN-rail Kit x 1 RJ45 Dust Cap
(1205AT x 1/2205AT x 2) SFP Dust Cap x 2
If any of these are missing or damaged, please contact your dealer
immediately; if possible, retain the carton including the original packing
material, and use them again to repack the product in case there is a need to
return it to us for repair.

4
2.ProductSpecications
Model IGUP-1205AT IGUP-2205AT
HardwareSpecications
Copper Port 1 x 10/100/1000BASE-T 2 x 10/100/1000BASE-T
SFP Slot 2 x 1000BASE-SX/LX/BX SFP interface
Compatible with 100BASE-FX SFP
Flow Control Back pressure for half duplex mode
IEEE 802.3x pause frame for full duplex mode
Maximum Frame Size 9K
LED
System:
PWR1 (Green), PWR12 (Green), Alarm (Red)
PoEUsage:
1205AT:30W/60W/90W(Amber)
2205AT:60W/120W/180W(Amber)
Fiber:
100BASE-X:LNK/ACT(Amber)
1000BASE-X:LINK/ACT(Green)
TP:
10/100/1000BASE-T:LNK/ACT(Green)
PoE-in-Use (Amber)
Dimensions
(W x D x H) 55 x 85 x 135 mm
Weight 622 g 630 g
Power Requirements 12-56V DC, supports reverse polarity protection
Power Consumption
System ON without
loading
12VDC:2.64W
56VDC:2.8W
Full loading with PoE
12VDC:79.56W
56VDC:100.24W
System ON without
loading
12VDC:4.2W
56VDC:2.8W
Full loading with PoE
12VDC:79.44W
56VDC:187.6W
DIP Switch Standard/Legacy mode

5
Enclosure IP30 metal case
Installation DIN-rail kit and wall-mount ear
ESD Protection 6KV DC
Cables
10/100/1000BASE-T:
2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100
meters)
EIA/TIA-568 100-ohm STP (maximum 100 meters)
100BASE-FX/1000BASE-SX/LX:
Multi-mode:50/125μmor62.5/125μmopticalber
Single-mode:9/125μmopticalber
Power Over Ethernet
PoE Standard IEEE 802.3bt Power over Ethernet Plus Plus
Backward compatible with IEEE 802.3at PoE+
PoE Power Output Standard(BT)mode:90W
Legacy(PoH)mode:95W
PoE Power Supply
Type End-span + Mid-span
Power Pin
Assignment
End-span:1/2(-),3/6(+);
Mid-span:4/5(+),7/8(-)
PoE Power Budget 95 watts 190 watts
Standards Conformance
Regulatory
Compliance FCC Part 15 Class A, CE
Protocols and
Standards
Compliance
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet over Fiber Optic
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
IEEE802.3azEnergyEcientEthernet(EEE)

6
Stability Testing
IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Environment
Temperature Operating:-40~75degreesC
Storage:-40~85 degreesC
Humidity Operating:5~90%(non-condensing)
Storage:5~90%(non-condensing)

7
3. Hardware Introduction
3.1 Three-View Diagram
The three-view diagram of the Industrial PoE++ Media Converter consists
of Ethernet interfaces and one removable 6-pin terminal block. The LED
indicators are also located on the front panel.
50.00 [1.97]
87.80 [3.46]
97.10 [3.82]
48.80 [1.92]47.30 [1.86] 38.90 [1.53]
135.00 [5.31]
9.20 [0.36]
56.00 [2.20]
107.00 [4.21]
28.00 [1.10]
18.00 [0.71]
40.00 [1.57]
50.00 [1.97]
18.00 [0.71]
40.00 [1.57]
50.00 [1.97]
48.80 [1.92]
50.00 [1.97]
163.00 [6.42]
P1 P2 Alarm
30W 60W 90W
3
2
1
IGUP-1205AT
802.3bt PoE++
LNK ACT
PoE-in-Use
LNK ACT
LNK
1000
100 ACT
Standard Legacy
Top View
Side View Front View
Mounting Kit
Mounting Kit
DIN-Rail Kit
Side View Rear View
Unit: mm
Bottom View
V1+ V2+
PWR1 PWR2Alarm
DC Input: 12-56V , 6A max.
Max. Fault Alarm Loading: 24V, 1A
Figure 1: IGUP-1205AT Three-View Diagram

8
50.00 [1.97]
87.80 [3.46]
97.10 [3.82]
48.80 [1.92]47.30 [1.86] 38.90 [1.53]
135.00 [5.31]
9.20 [0.36]
56.00 [2.20]
107.00 [4.21]
28.00 [1.10]
18.00 [0.71]
40.00 [1.57]
50.00 [1.97]
18.00 [0.71]
40.00 [1.57]
50.00 [1.97]
48.80 [1.92]
50.00 [1.97]
163.00 [6.42]
P1 P2 Alarm
60W 120W 180W
4
3
1
IGUP-2205AT
802.3bt PoE++
LNK ACT
PoE-in-Use
LNK ACT
LNK
1000
100 ACT
Standard Legacy
2
Top View
Side View Front View
Mounting Kit
Mounting Kit
DIN-Rail Kit
Side View Rear View
Unit: mm
Bottom View
V1+ V2+
PWR1 PWR2Alarm
DC Input: 12-56V , 6A max.
Max. Fault Alarm Loading: 24V, 1A
Figure 2: IGUP-2205AT Three-View Diagram

9
Front View
P1 P2 Alarm
30W 60W 90W
3
2
1
IGUP-1205AT
802.3bt PoE++
LNK ACT
PoE-in-Use
LNK ACT
LNK
1000
100 ACT
Standard Legacy
P1 P2 Alarm
60W 120W 180W
4
3
1
IGUP-2205AT
802.3bt PoE++
LNK ACT
PoE-in-Use
LNK ACT
LNK
1000
100 ACT
Standard Legacy
2
Figure 3: IGUP-1205AT/IGUP-2205AT Front View

10
3.2 LEDDenition:
System
LED Color Function
P1 Green Lights to indicate DC power input 1 has power.
P2 Green Lights to indicate DC power input 2 has power.
Alarm Red Lights to indicate that DC power has failed.
PoE Usage Amber
IGUP-1205AT (30W, 60W, 90W)
Lights to indicate the system consumes over 30-/60-
/90-watt PoE power budget.
Blinks to indicate the system consumes less than
30-/60-/90-watt PoE power budget.
IGUP-2205AT (60W, 120W, 180W)
Lights to indicate the system consumes over 60-/120-
/180-watt PoE power budget.
Blinks to indicate the system consumes less than
60-/120-/180-watt PoE power budget.
Gigabit TP Interface
LED Color Function
TP LNK/ACT Green
Lights to indicate that the copper port is successfully
connecting to the network at 10/100/1000Mbps.
Blinks to indicate the copper port is receiving or
sending data.
PoE-in-Use Amber
Lights to indicate that the port is providing inline
power to remote powered device.
Otoindicatethattheportisnotprovidinginline
power to remote powered device.

11
■GigabitFiberInterface
LED Color Function
Fiber
LNK/ACT
Green
Lightstoindicatethattheberopticportis
successfully connecting to the network at 1000Mbps.
Blinkstoindicatetheberopticportisreceivingor
sending data.
Amber
Lightstoindicatethattheberopticportis
successfully connecting to the network at 100Mbps.
Blinkstoindicatetheberopticportisreceivingor
sending data.
3.3 Wiring the Power Inputs
The 6-contact terminal block connector on the top panel of Industrial PoE++
Media Converter is used for two 12-56V DC redundant power inputs. Please
follow the steps below to insert the power wire.
Caution
When performing any of the procedures like inserting the wires
or tightening the wire-clamp screws, make sure the power is
OFF to prevent from getting an electric shock.
1. Insert positive and negative DC power wires into contacts 1 and 2 for
POWER 1, or 5 and 6 for Power 2.
V1+ V2+
PWR1 PWR2Alarm
DC Input:
12-56V , 6A max.
Max. Fault Alarm Loading: 24V, 1A
1 2 3 4 5 6

12
2. Tighten the wire-clamp screws for preventing the wires from loosening.
123456
Power 1 Alarm Power 2
+ - + -
Note
1. The wire gauge for the terminal block should be in the range
between 12 and 24 AWG.
2. The DC power input range is 12-56V DC.
Caution
PWR1 and PWR2 must provide exactly the same DC voltage
for power load balance while operating with dual power input.
3.4 Wiring the Alarm Contact
The alarm contacts are in the middle of the terminal block connector as the picture shows
below. Inserting the wires, the Industrial Ethernet Extender will detect the fault status
of the power failure and then forms an open circuit. The following illustration shows an
application example for wiring the fault alarm contacts.
Fault Alarm Contacts
The Fault Alarm Contacts are
energized (CLOSE) for normal
operation and will OPEN when
failure occurs
Alarm
Insert the wires into the fault alarm contacts

13
Note
1. The wire gauge for the terminal block should be in the range
between 12 and 24 AWG.
2. Alarm relay circuit accepts up to 24V, max. 1A currents.
3.5 Grounding the Device
Users MUST complete grounding wired with the device; otherwise, a sudden
lightning could cause fatal damage to the device. EMD (Lightning) DAMAGE IS
NOT COVERED UNDER WARRANTY.
V1+ V2+
PWR1 PWR2Alarm
DC Input:
12-56V , 6A max.
Max. Fault Alarm Loading: 24V, 1A
1 2 3 4 5 6
Earth Ground

14
4. Hardware Installation
This section describes the functionalities of the Industrial PoE++ Media
Converter’s components and guides you to installing it on the DIN rail and
wall. Please read this chapter completely before continuing.
Note
This following picture tells the user how to install the device,
and the device is not IGUP-1205AT or IGUP-2205AT.

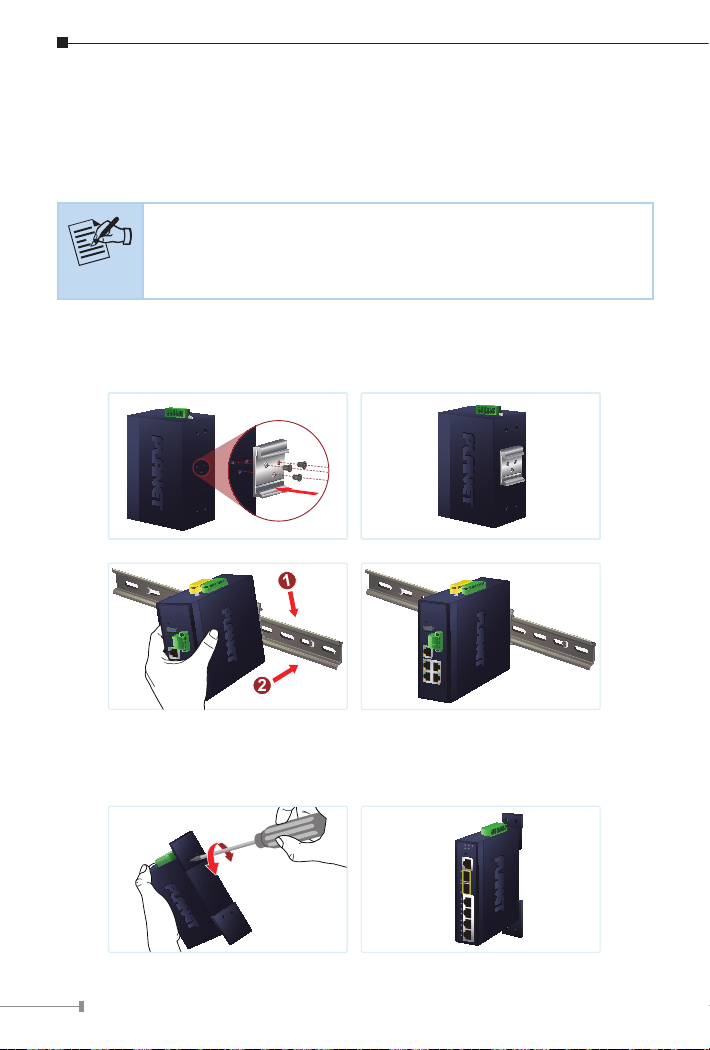

4.1 DIN-rail Mounting Installation
1
2
4.2 Wall-mount Plate Mounting

15
Caution
You must use the screws supplied with the wall-mounting
brackets. Damage caused to the parts by using incorrect screws
would invalidate your warranty.

16
5. Fiber and PoE Installation
The IGUP-1205AT/IGUP-2205AT is exible enough to extend the distance
from 550m to 120km. It depends on the 1000BASE-X or 100BASE-FX SFP
transceivers. The SFP transceivers are hot-pluggable and hot-swappable. You
can plug in and out the transceiver to/from any SFP port without having to
power down the Industrial 802.3bt PoE++ Media Converter.
If there is any IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt devices needed to
power on, the IGUP-1205AT/IGUP-2205AT can provide you a way to supply
power for this Ethernet device conveniently and easily.
The IGUP-1205AT/IGUP-2205AT needs 12-56V DC input and it injects the DC
power into the pin of the twisted-pair cable (Pins 1, 2, 3 and 6).
DC Power Line (DC)
1000BASE-SX/LX Fiber-optic
1000
PoE
1000BASE-T UTP with PoE
100m
550m / 120km550m / 120km
IGUP-1205AT
Power
Data
Power
Data
Data
PoE
IP Speed Dome
Wi-Fi AP
Monitoring
Center
IGUP-2205AT
1000
Fiber Switch
PoE
PoE
PoE
DC 12~56V
Power
DC
DC 12~56V
Power
DC
1000
Digital Signage

17
Customer Support
Thank you for purchasing PLANET products. You can browse our online FAQ
resource on PLANET web site rst to check if it could solve your issue. If you
need more support information, please contact PLANET support team.
PLANETonlineFAQs:
http://www.planet.com.tw/en/support/faq.php
Supportteammailaddress:
[email protected]
Copyright © PLANET Technology Corp. 2022.
Contents are subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp.
All other trademarks belong to their respective owners.
