Planet IXT-705AT User manual

Industrial 10G/5G/2.5G/1G/100M Copper to
10GBASE-X SFP+ Media Converter
IXT-705AT
User’s Manual

Trademarks
Copyright © PLANET Technology Corp. 2018.
Contents are subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. All other
trademarks belong to their respective owners.
Disclaimer
PLANET Technology does not warrant that the hardware will work
properly in all environments and applications, and makes no warranty
and representation, either implied or expressed, with respect to
the quality, performance, merchantability, or tness for a particular
purpose.
PLANET has made every effort to ensure that this User’s Manual is
accurate; PLANET disclaims liability for any inaccuracies or omissions
that may have occurred.
Information in this User’s Manual is subject to change without notice
and does not represent a commitment on the part of PLANET. PLANET
assumes no responsibility for any inaccuracies that may be contained in
this User’s Manual. PLANET makes no commitment to update or keep
current the information in this User’s Manual, and reserves the right
to make improvements to this User’s Manual and/or to the products
described in this User’s Manual, at any time without notice.
If you nd information in this manual incorrect, misleading, or
incomplete, we would appreciate your comments and suggestions.
FCC Warning
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the Instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area
is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.

CE Mark Warning
This is a Class A product. In a domestic environment, this product may
cause radio interference, in which case the user may be required to
take adequate measures.
WEEE Warning
To avoid the potential effects on the environment and human
health as a result of the presence of hazardous substances
in electrical and electronic equipment, end users of electrical
and electronic equipment should understand the meaning of
the crossed-out wheeled bin symbol. Do not dispose of WEEE as
unsorted municipal waste and have to collect such WEEE separately.
Revision
PLANET Industrial 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+
Media Converter User’s Manual
FOR MODELS: IXT-705AT
REVISION: 1.0 (JANUARY, 2018)
Part No: EM-IXT_705AT_v1.0 (2350-AH1250-000)

Table of Contents
1. Introduction.............................................................................. 5
1.1 Package Contents ............................................................... 5
1.2 Product Overview................................................................ 6
1.3 Product Features................................................................. 7
1.4 Product Specications ......................................................... 8
2. Hardware Description................................................................10
2.1 Physical Dimensions ...........................................................10
2.2 Converter Front Panel and LED Indicators ............................11
2.3 Converter Upper Panel .......................................................11
3. Installation ..............................................................................12
3.1 Quick Installation Steps......................................................12
3.2 Mounting Installation..........................................................13
3.2.1DIN-rail Mounting.......................................................13
3.2.2Wall-mount Plate Mounting .........................................14
3.3 Wiring the Power Inputs.....................................................15
3.4 Wiring the Fault Alarm Contact ...........................................16
3.5 Cable Connection...............................................................17
4. Troubleshooting........................................................................20
APPENDIX A: Approved PLANET SFP+ Transceivers...........................21
APPENDIX B: Networking Connection...............................................22
B.1 Converter’s RJ45 Pin Assignments........................................22
B.2 RJ45 Cable Pin Assignments................................................23

5
1. Introduction
1.1 Package Contents
Thank you for purchasing PLANET Industrial 10G Media Converter, In
the following section, unless specied, the term “Industrial Media
Converter” mentioned in this manual refers to the IXT-705AT.
Open the box of the Industrial Media Converter and carefully unpack it.
The box should contain the following items:
Industrial Media
Converter x 1 User’s Manual x 1 DIN-rail Kit x 1
Wall-mount Kit x 1 SFP+ Dust Cap x 1 RJ45 Dust Cap x 1
If any of these are missing or damaged, please contact your dealer
immediately; if possible, retain the carton including the original packing
material, and use them again to repack the product in case there is a
need to return it to us for repair.

6
1.2 Product Overview
Flexible, Reliable and Industrial-grade Network Distance
Extension Solution
PLANET IXT-705AT Industrial Media Converter is equipped with one
100/1000/2500/5000/10000BASE-T auto-negotiation port and
one 10GBASE-X SFP+ slot. It supports 10Gigabit Ethernet media
conversion from copper 10GBASE-T to ber multi-mode or single-mode,
utilizing 10GBASE-SR or 10GBASE-LR SFP+ transceiver installed
in the SFP+ slot to extend distances to servers, switches and patch
panels. The deployment distance can be extended from 300 meters
(multi-mode) to up to 60 kilometers (single-mode).They are well
suited for applications within the factory data centers and distributions.
Also, designed for use in network environments where the ultra-high
bandwidth provided by 10Gigabit Ethernet is required, for example,
data center cloud computing, enterprise backbones, campus networks,
and carrier infrastructure.
High Performance 10Gbps Ethernet Capacity
The IXT-705AT offers wire-speed packets transfer performance without
risk of packet loss. The high data throughput of the device makes it
ideal for most Gigabit environments. With a 20Gbps internal fabric and
featuring auto negotiation support in its 10 Gigabit port, the IXT-705AT
Industrial Media Converter can handle large amounts of data in a
secure topology linking to a backbone or high capacity servers.
Environmentally Hardened Design
The IXT-705AT is equipped with the slim-type IP30 metal case for
easy deployment in heavy Industrial demanding environments. With
IP30 industrial case protection, the IXT-705AT provides a high level
of immunity against electromagnetic interference and heavy electrical
surges which are usually found on plant oors or in curbside trafc
control cabinets. Being able to operate under the temperature range
from -40 to 75 degrees C, the IXT-705AT can be placed in almost
any difcult environment. The IXT-705AT also allows either DIN rail or
wall mounting for efcient use of cabinet space.
Convenient and Reliable Power System
To enhance the operation reliability and exibility, the IXT-705AT is

7
equipped with two DC power input connectors for redundant power
supply installation. It also possesses an integrated power supply source
with wide-ranging voltages (12 to 48V DC or 24V AC) for worldwide
high availability applications requiring dual or backup power inputs,
incorporated into customer’s automation network to enhance system
reliability and uptime.
1.3 Product Features
IXT-705AT Physical Port
1-port 10000/5000/2500/1000/100BASE-T RJ45 interface with
auto MDI/MDI-X function
1-port 10GBASE-X SFP+ slot interface
Layer 2 Features
IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant
Supports auto-negotiation and 100Mbps half/full duplex and
1/2.5/5/10Gbps full duplex mode
Prevents packet loss with back pressure (half-duplex) and IEEE
802.3x pause frame ow control (full-duplex)
16K jumbo frame size support
Automatic address learning and address aging
Industrial Case and Installation
Slim-type IP30 metal case
DIN rail and wall-mount design
Redundant power design
12 to 48V DC, redundant power with polarity reverse protect
function
AC 24V power adapter acceptable
Supports 6000 VDC Ethernet ESD protection
100 meters over Cat 6A at 10Gbps
-40 to 75 degrees C operating temperature
Plug and Play installation

8
1.4 ProductSpecications
Model IXT-705AT
Hardware Specications
Copper Interface 1 x 10000/5000/2500/1000/100 BASE-T RJ45
Auto-MDI/MDI-X, auto-negotiation
Fiber Optic Interface 1 10GBASE-SR/LR SFP+ interface
Connector
Removable 6-pin terminal block
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin
5/6 for Power 2
Alarm
Provides one relay output for power failure
Alarm relay current carry capacity: 1A @ DC
24V
LED
System:
Fault Alert (Red), PWR (Green)
10000/5000/2500/1000/100 BASE-T RJ45
Interfaces
1/10G LNK (Orange)
5000/2500/100M LNK (Green)
ESD Protection 6KV DC
Enclosure IP30 type metal case
Installation DIN rail kit and wall mount ear
Dimensions
(WxDxH) 32 x 87 x 135mm
Weight 458g
Power Requirements DC 12~48V or 24V AC
Converter Specications
Flow Control Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Fabric 20Gbps
Throughput
(packet per second) 2.48Mpps@64bytes

9
Address Table 9K entries, automatic source address learning
and aging
Jumbo Frame 16K
Network Cables
10000/5000/2500/1000/100 BASE-T:
Cat5e, 6, 6A, 7 UTP cable (100 meters,
max.)
EIA/TIA-568 100-ohm STP (100 meters,
max.)
10GBASE-LR/SR/BX:
50/125μm or 62.5/125μm multi-mode ber
optic cable, up to 300m
9/125μm single-mode ber optic cable, up to
60km
Standards Conformance
Standards
Compliance
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5G/5GBASE-T
IEEE 802.3an 10GBASE-T
IEEE 802.3ae 10Gbps Ethernet
IEEE 802.3x full-duplex ow control
Regulatory
Compliance FCC Part 15 Class A, CE
Stability Testing
IEC60068-2-32(Free fall)
IEC60068-2-27(Shock)
IEC60068-2-6(Vibration)

10
2. Hardware Description
2.1 Physical Dimensions
IXT-705AT dimensions (W x D x H): 32 x 87 x 135mm
Dimensions ( unit = mm )
Top View
Side View
Front View
Mounting Kit Mounting Kit DIN-Rail Kit
Side View Rear View
Bottom View
Input DC12~48V, AC 24V
V1+ 1A@24VV1-
DC1
V2+ V2-
DC2
Fault
10G SFP+
10GBASE-T
P1 P2 FAULT
IXT-705AT
2.5G 10G/1G
5G/100

11

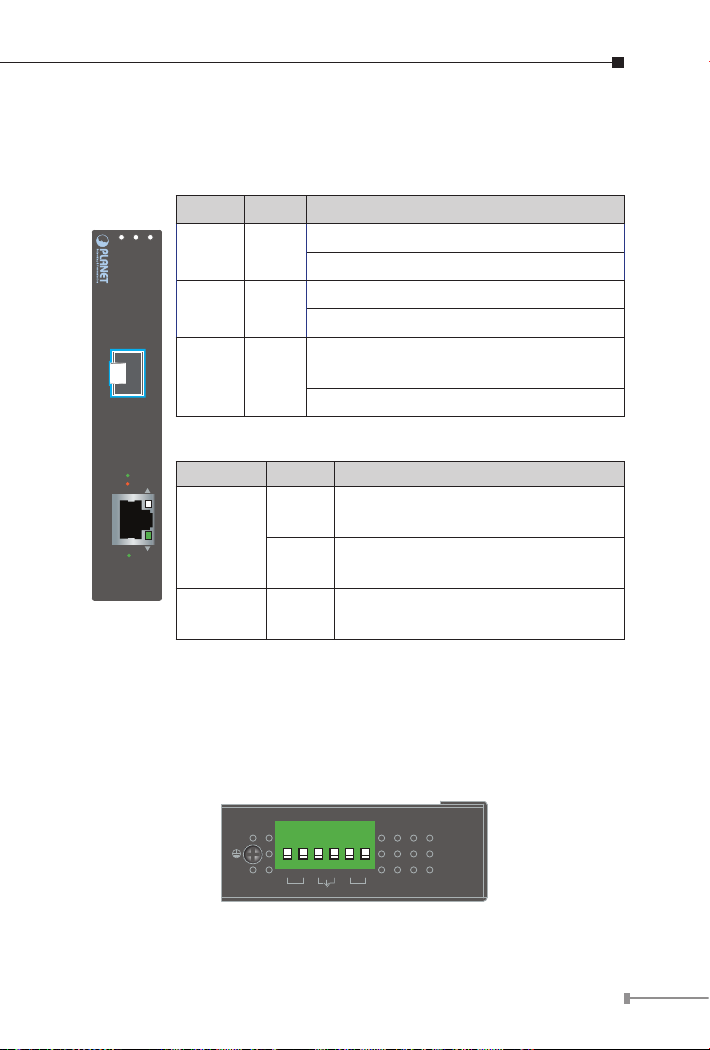

2.2 Converter Front Panel and LED Indicators
Figure 2-1 shows the front panels of the Industrial Media Converter.
10G SFP+
10GBASE-T
P1 P2 FAULT
IXT-705AT
2.5G
10G/1G
5G/100
System
LED Color Function
P1 Green Lit: Power 1 is active
Off: Power 1 is inactive
P2 Green Lit: Power 2 is active
Off: Power 2 is inactive
FAULT Red
Lit: indicates either power 1 or power 2
has no power.
Off: No failure
Per 10000/5000/2500/1000/100BASE-T Port
LED Color Function
10/2.5/1G
Green Lit: To indicate that the port is
operating at 2.5Gbps.
Orange Lit: To indicate that the port is
operating at 10/1Gbps.
5G/100M Green Lit: To indicate that the port is
operating at 5Gbps/100Mbps.
Figure 2-1: IXT-705AT Front Panel
2.3 Converter Upper Panel
The upper panel of the IXT-705AT consists of one terminal block
connector within two DC power inputs. Figure 2-2 shows the upper
panel of the IXT-705AT.
Input
DC12~48V, AC 24V
V1+ 1A@24VV1-
DC1
V2+ V2-
DC2
Fault
1 2 3 4 5 6
Figure 2-2: IXT-705AT Upper Panel

12
3. Installation
This section describes the functionalities of the Industrial Media
Converter’s components and guides you to how to install it on the
desktop. Basic knowledge of networking is assumed. Please read this
chapter completely before continuing.
3.1 Quick Installation Steps
Step 1: Unpack the Industrial Media Converter.
Step 2: Check whether the DIN-rail is screwed on the Industrial
Media Converter. (Please refer to DIN-rail Mounting section
for DIN-rail installation if the DIN-rail is not screwed on
the Industrial Media Converter). If you want to wall-mount
the Industrial Media Converter, then please refer to the
Wall-mount Plate Mounting section for wall-mount plate
installation.
Step 3: To hang the Industrial Media Converter on the DIN-rail track
or wall, please refer to the Mounting Installation section.
Step 4: Power on the Industrial Media Converter. (Please refer to
the Wiring of the Power Inputs section for power input) The
power LED on the Industrial Media Converter will light up.
Please refer to the LED Indicators section for the functions of
LED lights.
Step 5: Prepare the twisted-pair, straight-through Category
5e/6/6A/7 UTP cable for Ethernet connection.
Step 6: Insert one side of Category 5e/6/6A/7 cable into the
Industrial Media Converter Ethernet port (RJ45 port) while
the other side of Category 5e/6/6A/7 cable into the network
devices’ Ethernet port (RJ45 port), e.g., switch, PC or server.
The UTP port (RJ45) LED on the Industrial Media Converter
will light up when the cable is connected with the network
device. Please refer to the LED Indicators section for the
functions of LED lights.
Step 7: When all the connections are all set and LED lights all show
normally, the installation is complete.

13
3.2 Mounting Installation
This section describes how to install the Industrial Media Converter and
makes connections to it. Please read the following topics and perform
the procedures in the order being presented.
Note
In the installation steps below, this Manual uses
IGS-801 (PLANET 8-port Industrial Gigabit Switch) as
the example. However, the steps for PLANET Industrial
Switch and Industrial Media Converter are similar.
3.2.1 DIN-rail Mounting
The DIN rail is screwed on the Industrial Media Converter when is out
of factory. When replacing the wall-mount application with DIN-rail
application on Industrial Media Converter, please refer to the following
gures to screw the DIN rail on the Industrial Media Converter. To hang
the Industrial Media Converter, follow the following steps:
Step 1: Screw the DIN rail on the Industrial Media Converter.
Step 2: Lightly insert the DIN rail into the track.
1
2

14
Step 3: Make sure the DIN rail is tightly secured on the track.
Step 4: Please refer to the following procedures to remove the
Industrial Media Converter from the trac
1
2
Step 5: Lightly pull out the bottom of the DIN rail from the track to
remove.
3.2.2 Wall-mount Plate Mounting
To install the Industrial Media Converter on the wall, please follow the
instructions described below.
Step 1: Remove the DIN rail from the Industrial Media Converter;
loosen the screws to remove the DIN rail.

15

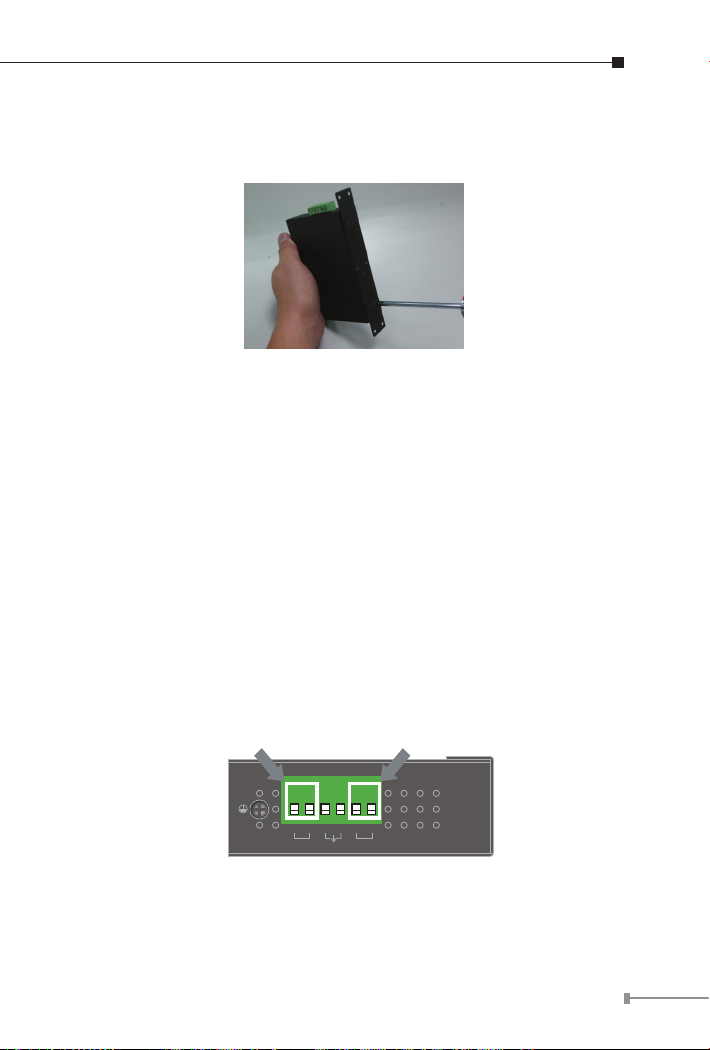

Step 2: Place the wall-mount plate on the rear panel of the Industrial
Media Converter.
Step 3: Use the screws to screw the wall-mount plate on the
Industrial Media Converter.
Step 4: Use the hook holes at the corners of the wall-mount plate to
hang the Industrial Media Converter on the wall.
Step 5: To remove the wall-mount plate, reverse the steps above.
3.3 Wiring the Power Inputs
The 6-contact terminal block connector on the top panel of Industrial
Media Converter is used for two DC redundant power inputs.Please
follow the steps below to insert the power wire.
1. Insert positive / negative DC power wires into Contacts 1 and 2 for
power 1 or 5 and 6 for power 2.
Input
DC12~48V, AC 24V
V1+ 1A@24VV1-
V1+ V1-
DC1
V2+ V2-
V2+ V2-
DC2Fault
1 2 3 4 5 6

16
2. Tighten the wire-clamp screws for preventing the wires from loos-
ening.
1 2 3 4 5 6
Power 1 Fault Power 2
+ - + -
Note
The wire gauge for the terminal block should be in the
range between 12 and 24 AWG.
3.4 Wiring the Fault Alarm Contact
The fault alarm contacts are in the middle of the terminal block
connector as the picture shows below. When inserting the wires, the
Industrial Media Converter will detect the fault status of the power
failure and then forms an open circuit. The following illustration shows
an application example for wiring the fault alarm contacts.
123456
Fault Alarm Contacts
The Fault Alarm Contacts are
energized (CLOSE) for normal
operation and will OPEN when
failure occurs
Fault
Insert the wires into the fault alarm contacts

17
Note
The wire gauge for the terminal block should be in the
range between 12 and 24 AWG.
3.5 Cable Connection
Installing the SFP+ Transceiver
The sections describe how to insert an SFP+ transceiver into an SFP+
slot.
The SFP+ transceivers are hot-pluggable and hot-swappable. You can
plug in and out the transceiver to/from any SFP+ port without having
to power down the Industrial Media Converter
MTB Series
Transceiver

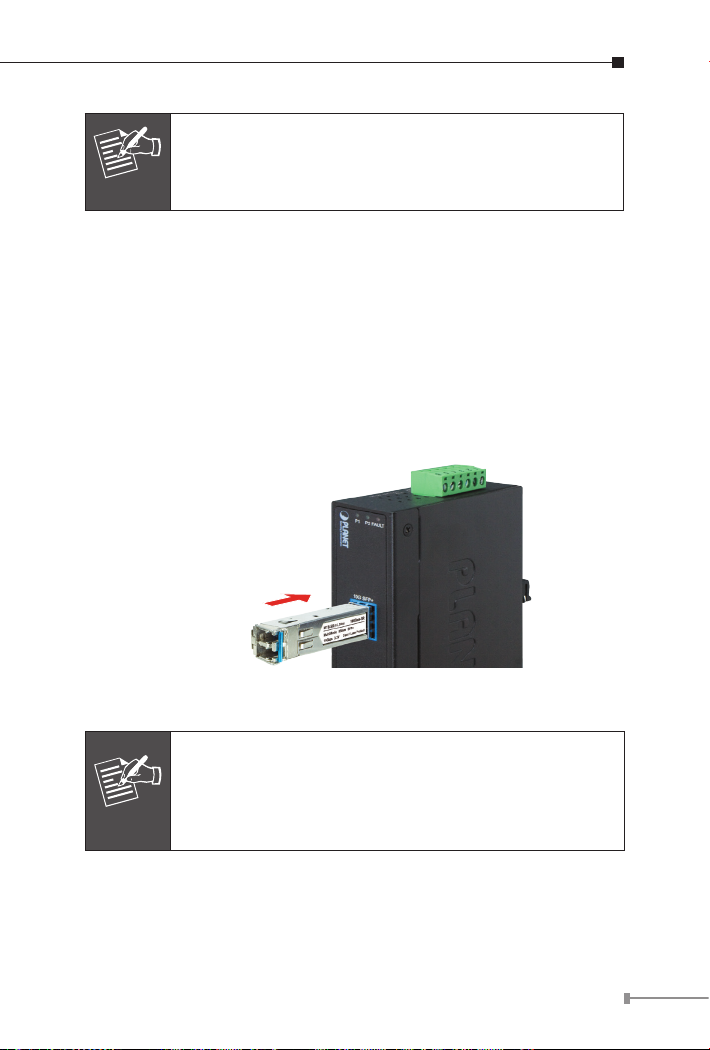

Figure 3-1: Plug in the SFP+ Transceiver
Note
It is recommended to use PLANET SFP+s on the Indus-
trial Media Converter. If you insert an SFP+ transceiver
that is not supported, the Industrial Media Converter will
not recognize it.
10GBASE-X SR/LR:
Before connecting the other switches, workstation or Media Converter,
please do the following:

18
1. Make sure both sides of the SFP+ transceiver are with the same
media type; for example, 10GBASE-SR to 10GBASE-SR, 10GBASE-LR
to 10GBASE-LR.
2. Check whether the ber-optic cable type matches the SFP+ trans-
ceiver model.
To connect to 10GBASE-SR SFP+ transceiver, use the multi-mode
ber cable with one side being the male duplex LC connector type.
To connect to 10GBASE-LR SFP+ transceiver, use the single-mode
ber cable with one side being the male duplex LC connector type.
Connecting the ber cable
1. Attach the duplex LC connector on the network cable to the SFP+
transceiver.
2. Connect the other end of the cable to a device, switches with SFP+
installed, ber NIC on a workstation or a Media Converter.
Removing the Transceiver Module
1. Make sure there is no network activity by consulting or checking with
the network administrator. Or through the management interface of
the switch/converter (if available) to disable the port in advance.
2. Remove the Fiber Optic Cable gently.
3. Turn the lever of the MTB module to a horizontal position.
4. Pull out the module gently through the lever.
MTB Series
Transceiver
12

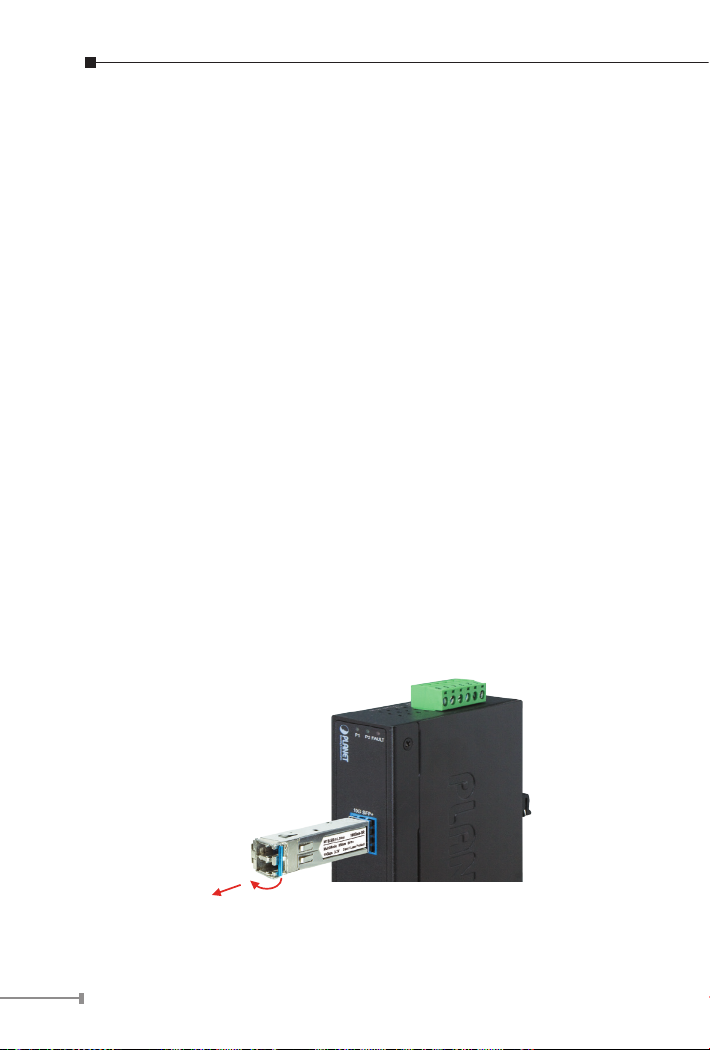

Figure 3-2: Pulling Out from the Transceiver

19
Note
Never pull out the module without pulling the lever or
the push bolts on the module. Directly pulling out the
module with effort could damage the module and SFP+
module slot of the Industrial Media Converter.
100/1000/2500/5000/10000BASE-T
The 100/1000/2500/5000/10000BASE-T port comes with auto-
negotiation capability. It automatically supports 100BASE-TX,
1000BASE-T, 2500BASE-T, 5000 BASE-T and 10000 BASE-T
networks. Users only need to plug a working network device into
the 100/1000/2500/5000/10000BASE-T port, and then turn on
the Industrial Media Converter. The port will automatically run at
100Mbps, 1000Mbps, 2500Mbps or 5000Mbps and 10000Mbps after the
negotiation with the connected device.
Connecting the UTP Cable
The 100/1000/2500/5000/10000BASE-T port uses RJ45 socket
-- similar to phone jack -- for connection of unshielded twisted-
pair cable (UTP). The 802.3u/802.3ab/802.3bz/802.3ae Ethernet
standard requires Category 5 UTP for 100Mbps 100BASE-TX.
1000/2500/5000/10000BASE-T uses Cat5e/6/6A/7 UTP (see table
below). Maximum distance is 100 meters (328 feet).
Standard Transfer Speed Cable requirement 100M
10GBASE-T 10000Mbit/s Cat 6A/7
5GBASE-T 5000Mbit/s Cat 6/6A/7
2.5GBASE-T 2500Mbit/s Cat 5e/6/6A/7
1000BASET 1000Mbit/s Cat 5e/6/6A/7
100BASE-TX 100Mbit/s Cat 5/5e/6/6A/7
Note
Be sure the connected network devices support MDI/
MDI-X. If it does not support,then use the crossover
Category 5e cable.

20
4. Troubleshooting
This chapter contains information to help you solve issues. If the
Industrial Media Converter is not functioning properly, make sure the
Industrial Media Converter is set up according to instructions in this
manual.
The per port LED is not lit
Solution:
Check the cable connection of the Industrial Media Converter.
Performance is bad
Solution:
Check the speed duplex mode of the partner device. The Industrial
Media Converter is run at auto-negotiation mode and if the partner is
set to half duplex, then the performance will be poor.
Per port LED is lit, but the trafc is irregular
Solution:
Check that the attached device is not set to dedicate full duplex. Some
devices use a physical or software switch to change duplex modes.
Auto-negotiation may not recognize this type of full-duplex setting.
Why the Industrial Media Converter doesn’t connect to the
network
Solution:
Check per port LED on the Industrial Media Converter. Make sure the
cable is installed properly. Make sure the cable is the right type. Turn
off the power. After a while, turn on the power again.
Can I install MTB-SR or the other SFP+ module with non wide
temperature feature into the SFP+ slot of Industrial Media
Converter?
Solution:
Yes, you can. However, the MTB-SR and the other SFP+ module with
non wide temperature feature cannot operate under -40 to 75 degrees
C.
