Planet POE-151 User manual

IEEE 802.3at / af Power over Ethernet Injectors
Injecteurs Ethernet la norme IEEE 802.3at / af
IEEE 802.3at / af Strom über Ethernet Injektoren
Power over Ethernet Injectors IEEE 802.3at / af
IEEE 802.3at / af Energia para Injectores Ethernet
через Power over Ethernet IEEE 802.3at / af Инжекторы
Inyectores IEEE 802.3at / af Energía sobre Ethernet
POE-151 / POE-152 / POE-161
User’s Manual

Table of Contents
English
1. Overview .................................................................................. 1-1
2. Package Contents...................................................................... 1-1
3. Product Outlook ........................................................................ 1-2
4. LED Indication .......................................................................... 1-2
5. Hardware Installation................................................................. 1-3
6. ProductSpecication ................................................................. 1-6
Française
1. Vue d’ensemble......................................................................... 2-1
2. Contenu du lot.......................................................................... 2-1
3. Détail du produit ....................................................................... 2-2
4. Voyant DEL............................................................................... 2-2
5. Installation du matériel .............................................................. 2-3
6. Caractéristiques du produit......................................................... 2-6
Deutsch
1. Überblick .................................................................................. 3-1
2. Packungsinhalt .......................................................................... 3-1
3. Produkt Ansicht......................................................................... 3-2
4. LED Anzeige ............................................................................. 3-2
5. Hardware Installation................................................................. 3-3
6. ProduktSpezikation ................................................................. 3-6

Italiano
1. Informazioni generali ................................................................. 4-1
2. Contenuto della confezione......................................................... 4-1
3. Vista del Prodotto...................................................................... 4-2
4. LED di stato.............................................................................. 4-2
5. Installazione ............................................................................. 4-3
6. SpecichedelProdotto .............................................................. 4-6
Português
1. Apresentação ............................................................................ 5-1
2. Conteúdos da Embalagem.......................................................... 5-1
3. Apresentação do Produto ........................................................... 5-2
4. Indicação LED ........................................................................... 5-2
5. Instalação do equipamento ........................................................ 5-3
6. EspecicaçãodoProduto............................................................ 5-6
Pусский
1. Обзор ...................................................................................... 6-1
2. Вкомплектвходят ................................................................... 6-1
3. Внешнийвидпродукта............................................................. 6-2
4. Светодиоднаяиндикация.......................................................... 6-2
5. Установкаоборудования .......................................................... 6-3
6. Характеристикипродукта ......................................................... 6-7

Español
1. Información general................................................................... 7-1
2. Contenido del paquete ............................................................... 7-1
3. Vista general del Producto.......................................................... 7-2
4. Indicación LED .......................................................................... 7-2
5. Instalación del hardware ............................................................ 7-3
6. EspecicacióndeProducto ......................................................... 7-7

1-1
English
1. Overview
Thank you for purchasing PLANET IEEE 802.3at / af Power over
Ethernet Injectors. These PoE injectors will work with any Power Device
(PD) that also supports the IEEE 802.3af / at standards. The models
bellowed are included:
Model PoE Standard Max. PoE
Out
Power
In
Pass-thru.
Speed
POE-151 IEEE 802.3af 15.4 Watts 48V DC 10/100Mbps
POE-152 IEEE 802.3af 15.4 Watts 48V DC 10/100/1000Mbps
POE-161 IEEE 802.3at / af 30 Watts 56V DC 10/100/1000Mbps
Unless specied, terms of “PoE Injector” in the following sections
means the model listed above.
2. Package Contents
Upon open the box of the PoE Injector and carefully unpack it. The box
should contain the following items:
POE-151 / POE-152 POE-161
The 802.3af PoE Injectorl
x 1
User’s Manual x 1l
DC 48V Power Adapter x 1l
The 802.3at High Power over Ethernetl
Injector x 1
User’s Manual x 1l
DC 56V Power Adapter x 1l
Power Cord x 1l
Note
If any of these pieces are missing or damaged, please
contact your dealer immediately. If possible, retain the
carton including the original packing material, and use
them again to repack the product in case of a need to
return for repair.

1-2
English
3. Product Outlook
POE-151 / POE-152
There are two RJ-45 Twisted-Pair jack, one DC 48V Power socket and
two LED indicators.
48V DC
Ethernet
Power over Ethernet Injector
IEEE 802.3af
PoE
PWR Ethernet+DC
PoE-IEEE 802.3af
Ready Power in-use
Figure 1: POE-151 / POE-152
POE-161
There are two RJ-45 Twisted-Pair jack, one DC 56V Power socket and
two LED indicators.
Figure 2: POE-161 Overview
4. LED Indication
LED Description
Power Lights to indicate that the PoE Injector has power
from AC-DC adapter.
PoE In-use Lights to indicate the PoE Injector is providing DC
in-line power.

1-3
English
5. Hardware Installation
This section describes the hardware features of PoE Injector. Before
connecting any network device to the PoE Injector,refertothischapter
carefully.
5.1 Before Installation
Before your installation, it is recommended to check your network
environment. The PLANET PoE Injector is with an AC-DC adapter and
inject the DC power into the pin of the twisted pair cable follow the IEEE
standard,thepowerandpinassignmentrelationshipisthetablebelow:
Model Required AC-DC adapter
Spec. PoE Pin Assignment
POE-151 Input: 100~240V AC
Output: 48V DC
4/5(+),7/8(-)
POE-152 1/2(+),3/6(-)
POE-161 Input: 100~240C AC
Output: 56V DC 4/5(+),7/8(-)
Category 5/5e/6 UTP/STP cable that with 8-wire are required for the
installation. UTP cable with 4-wire (pin 1/2, 3/6) can not work with
POE-151/161 and only can work with POE-152 in 10/100Base-TX
Ethernet.
Note
PLANET PoE Injector and PLANET PoE Splitter (ex.
POE-151S, POE-152S and POE-162S) can be installed
in pair. Use of third-party device is allowed if the device
complied with IEEE 802.3at or IEEE 802.3af standard.
5.2 PoE Injector Installation
1.Connect a standard network cable from Switch/workstation to
“Ethernet” port of PoE Injector.
2.Connect the long cable that will be used to connect to the remote
device to the port “Ethernet+DC”.
3. Connect the AC adapter to “DC 48V” of POE-151/POE-152. The
power LED will be steady on. Connect the AC adapter to “DC 56V” of
POE-161. The power LED will be steady on.

1-4
English
4.Connect with IEEE 802.3af devices. Base on IEEE 802.3af standard,
the POE-151/POE-152 can directly connect with any IEEE 802.3af
end-nodes like wireless access point, VoIP phones and IP camera that
support IEEE 802.3af Power over Ethernet interface.
Note
ForPOE-161,baseonIEEE802.3atstandard,thePOE-161
can directly connect with any IEEE 802.3at end-nodes such
as PTZ (Pan, Tilt & Zoom) IP camera, Speed Dome, high
power consumption wireless LAN access point that support
IEEE 802.3at Power over Ethernet port.
Ethernet Switch
100 meters
PoE IP Camera
POE-151/152
PoE Injector
Power
Power Line (DC)
100Base-TX UTP
100Base-TX UTP with PoE
PoE
DC
Power Line (AC)
AC
PoE
Power
Data
Data
DC
PoE
PWR Ethernet+DC
PoE-IEEE 802.3af
Ready
Power in-use
48V DC
Ethernet
AC

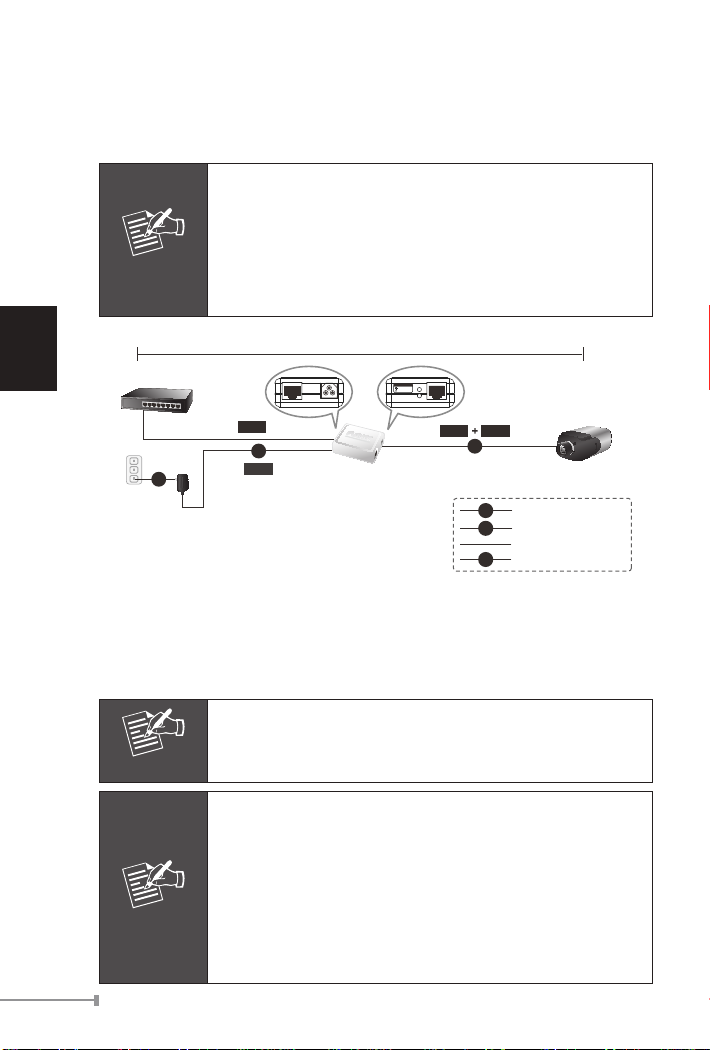

Figure 3: Connection to IEEE 802.3af Device
5.Once POE-151/POE-152 detects the existence of an IEEE 802.3af
device, the LED indicator will be steady ON to shows it is providing
power. The same to POE-161 that detects the existence of an IEEE
802.3at / af device.
Note
If the connected device is not fully complying with IEEE
802.3af standard, the LED indicator of POE-151/POE-152
will not be steady on.
Note
1. Since the POE-161 PoE port supports 56V DC PoE
power output, please check and assure the Powered
Device (PD) acceptable DC power range is from 52 to
56V DC. Otherwise, it will damage the Powered Device
(PD).
2. If the connected device is not fully complying with IEEE
802.3at / af Power over Ethernet, the LED indicator of
POE-161 will not be steady on.

1-5
English
5.3 PoE Injector and PoE Splitter Installation
FornonPoEremotedeviceorEthernetequipment,thePoE Injector and
PoE SplittercanrunsinpairtoprovideDCPowerforthosedevices,the
table below shows the model of PLANET PoE Splitters:
Model PoE Standard DC Power Out Pass-thru. Speed
POE-151S IEEE 802.3af 5V / 12V DC 10/100Mbps
POE-152S IEEE 802.3af 5V / 12V DC 10/100/1000Mbps
POE-162S IEEE 802.3at 12V / 24V DC 10/100/1000Mbps
1.Followstep1,step2andstep3ofSection5.2fortheconnection.
2. Connect the UTP cable in the package from “Ethernet” of the PoE
splitter to the RJ-45 port of remote device.
3. Connect proper DC plug from “DC OUT” of PoE Splitter to the remote
device.
100 meters
DC
100Base-TX UTP
DC Power Line (DC)
AC Power Line (AC)
PoE 100Base-TX UTP with PoE
Data
Power
Data
Wireless AP
PoE
Power
Data
Ethernet Switch
POE-151/152
PoE Injector
POE-151S
PoE Splitter
PoE
Ethernet+DC
PoE-IEEE 802.3af
Ready
Power in-use
DC OUT
Ethernet 5V 12V
Power
DC
AC
Figure 4: Connection Architecture via PoE Injector and PoE Splitter
Note
Please ensure the PoE Splitter output voltage is correct
before applying power to remote device otherwise, it may
damage the remote device.

1-6
English
6.ProductSpecication
Product POE-151 POE-152 POE-161
HardwareSpecication
Interface
“Data” Input Port 1 x RJ-45 STP
“PoE
(Data+Power)”
Output Port
1 x RJ-45 STP
DC Input power
socket 1 x 48V DC 1 x 56V DC
LED Indicator System: Power x 1 (Yellow)
PoE Port: PoE in Use x 1 (Green)
System:
Power x 1 (Green)
PoE Port:
PoE in Use x 1
(Green)
Network Cable UTPCat.5/5e/6,upto100m(328ft)
Data Rate 10/100Mbps 10/100/1000Mbps 10/100/1000Mbps
Dimension (W x D x H) 73 x 55 x 24 mm 73 x 55 x 24 mm 95 x 70 x 25 mm
Weight 50g 50g 83g
Unit Input Voltage DC48V,0.4A DC48V,0.4A DC56V,0.53A
Power Requirement 100-240VAC,50/60Hz
Power Consumption 15.4 Watts max. 15.4 Watts max. 30 Watts max.
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet / PSE
IEEE 802.3at / af
Power over Ethernet
/ PSE
PoE Power Output DC 48V / 15.4 Watts DC 56V / 30 Watts
PoE Power supply Type Mid-Span End-Span Mid-Span
Power Pin Assignment 4/5(+),7/8(-) 1/2(+),3/6(-) 4/5(+),7/8(-)
Standards Conformance
IEEE 802.3 10Base-T Ethernet
  
IEEE 802.3u 100Base-TX
Fast Ethernet
  
IEEE 802.3ab 1000Base-T
Gigabit Ethernet -
 
IEEE 802.3af Power over Ethernet
  
IEEE 802.3at Power over Ethernet - -

Regulation Compliance FCCClassB,CE
mark
FCCClassB,CE
mark
FCCClassA,CE
mark
Environment
Operating Temperature 0 ~ 50 Degree C
Storage Temperature -10 ~ 70 Degree C
Humidity 5 ~ 90% (Non-condensing)
