Planet IFGS-1022HPT User manual

Industrial 8-Port 10/100TX 802.3at PoE+
+ 2-Port Gigabit TP/SFP Combo Ethernet Switch
IFGS-1022HPT
User’s Manual

Table of Contents
1. Package Contents........................................................................................ 3
2. Hardware Introduction ................................................................................. 4
2.1 Physical Dimensions .............................................................................. 4
2.2 Switch Front Panel ................................................................................ 5
2.3 LED Indicators ...................................................................................... 7
2.4 Switch Upper Panel ............................................................................... 8
2.5 Wiring the Power Inputs ........................................................................ 8
2.6 Wiring the Fault Alarm Contact............................................................... 9
2.7 Product Features..................................................................................10
2.8 ProductSpecications...........................................................................11
3. Installation ................................................................................................14
3.1 DIN-rail Mounting Installation................................................................14
3.2 Wall-mount Plate Mounting ...................................................................16
3.3 Installing the SFP Transceiver................................................................17
3.4 Removing the Transceiver Module..........................................................18
4. Troubleshooting..........................................................................................19
APPENDIX A: Networking Connection................................................................20
A.1 PoE RJ45 Port Pin Assignments (End-span).............................................20
A.2 Switch’s RJ45 Pin Assignments ..............................................................20
A.3 RJ45 Cable Pin Assignments..................................................................21
A.4 Fiber Optic Cable Connection Parameter .................................................22
APPENDIX B: Approved PLANET SFP Transceivers ..............................................23

3
1. Package Contents
Thank you for purchasing PLANET industrial 8-Port 10/100TX 802.3at PoE+ + 2-Port
Gigabit TP/SFP combo Ethernet Switch, IFGS-1022HPT. In the following section, the
term “Industrial PoE+ Switch” means the IFGS-1022HPT.
Open the box of the Industrial PoE+ Switch and carefully unpack it. The box
should contain the following items:
Industrial PoE+ Switch x 1 User’s Manual x 1
DIN Rail Kit x 1 Wall-mount Kit x 1
If any of these are missing or damaged, please contact your dealer immediately;
if possible, retain the carton including the original packing material, and use them
again to repack the product in case there is a need to return it to us for repair.

4
2. Hardware Introduction
2.1 Physical Dimensions
Dimensions (W x D x H): 161 x 107 x 72mm
Side View
Front View
Dimensions ( unit = mm )
Side View
Top View
Bottom View
Input DC 48V~56V
DC1 DC2
Fault
1A@24V
IFGS-1022HPT
7
5
3
1
P1 P2 FAULT
Extended Standard
910
8
6
4
2
LNK
PoE In-Use
ACT
802.3at PoE+
109
Long Reach Mode
ACT
1000
LNK
1
2
3
4 5 6 7 8
DIP ON

5
2.2 Switch Front Panel
The front panel of the Industrial PoE+ Switch consists of 8 10/100/BASE-TX ports
featuring 30-watt 802.3at PoE+, and 2 additional Gigabit copper/SFP combo
interfaces for Gigabit Ethernet extension and video uplink. The LED indicators are
also located on the front panel of the Industrial PoE+ Switch.
Figure 2-1 shows the front panel of Industrial PoE+ Switch.
IFGS-1022HPT
7
5
3
1
P1 P2 FAULT
Extended Standard
910
8
6
4
2
LNK
PoE In-Use
ACT
802.3at PoE+
109
Long Reach Mode
ACT
1000
LNK
1
2
3
4 5 6 7 8
DIP ON
Figure 2-1: IFGS-1022HPT Front Panel
Fast Ethernet TP interfaces (Port 1 to port 8)
10/100BASE-TX copper, RJ45 twisted-pair: Up to 100 meters.
Gigabit TP Interfaces (Port 9 to port 10 TP/SFP Combo Interfaces)
10/100/1000BASE-T copper, RJ45 twisted-pair: Up to 100 meters.
Gigabit SFP Slots (Port 9 to port 10 TP/SFP Combo Interfaces)
1000BASE-SX/LX mini-GBIC slot, SFP (Small Factor Pluggable) transceiver
module:From550meters(multi-modeber)to10/20/30/40/50/60/70/120kilo-
meters(single-mode ber).

6
DIP Switch
The Industrial PoE+ Switch has a built-in solid DIP switch that provides
“Standard” and “Extend” operation modes. The Industrial PoE+ Switch operates
as a normal IEEE 802.af/at PoE+ Switch in the “Standard” operation mode.
In the “Extend” operation mode, the Industrial PoE+ Switch operates on a per-
port basis at 10Mbps full duplex operation but can support 30-watt PoE power
output over a distance of up to 250 meters overcoming the 100m limit on Ethernet
UTP cable. With this brand-new feature, the Industrial PoE+ Switch provides an
additional solution for 802.3af/at PoE+ distance extension.
Default PoE Mode
PoE IP
Camera
PoE
100 meters (328 feet)
PoE
100BASE-TX UTP with PoE
P1 P2 FAULT
Extended Standard
Long Reach Mode
1
2
3
4 5 6 7 8
DIP ON
Extended PoE Mode
PoE IP
Camera
PoE
250 meters (820 feet)
P1 P2 FAULT
Extended Standard
Long Reach Mode
1
2
3
4 5 6 7 8
DIP ON

7
2.3 LED Indicators
System
LED Color Function
P1 Green Lit: indicates power 1 has power.
P2 Green Lit: indicates power 2 has power.
FAULT Red Lit: indicates neither power 1 or power 2 has no power.
Per 802.3at PoE+ 10/100BASE-TX Interface (Port 1 to Port 8)
LED Color Function
LNK/
ACT Green
Lit: indicates the link through that port is successfully
established at 10Mbps or 100Mbps.
Blinking: indicates that the switch is actively sending or
receiving data over that port.
PoE
In-Use Orange
Lit: indicates the port is providing DC in-line power.
Off: indicates the connected device is not a PoE powered device
(PD).
Per 10/100/1000BASE-T Interface (Shared with Port 9 to Port 10)
LED Color Function
LNK/
ACT Green
Lit: indicates the link through that port is successfully
established at 10/100/1000Mbps.
Blinking: indicates that the switch is actively sending or
receiving data over that port.
1000 Orange
Lit: indicates the link through that port is successfully
established at 1000Mbps.
Off: indicates the link through that port is successfully
established at 10/100Mbps.
Per 1000X SFP Slot (Shared with Port 9 to Port 10)
LED Color Function
LNK/
ACT Green
Lit: indicates the link through that port is successfully
established at 1000Mbps.
Blinking: indicates that the switch is actively sending or
receiving data over that port.
1000 Orange
Lit: indicates the link through that port is successfully
established at 1000Mbps.
Off: indicates the link through that port is not established.

8
2.4 Switch Upper Panel
The upper panel of the Industrial PoE+ Switch consists of one terminal block
connector within two DC power inputs.
Figure 2-2 shows the upper panel of the Industrial PoE+ Switch.
Input DC 48V~56V
DC1 DC2
Fault
1A@24V
1 2 3 4 5 6
Figure 2-2: Industrial PoE+ Switch Upper Panel
2.5 Wiring the Power Inputs
The 6-contact terminal block connector on the top panel of Industrial PoE+ Switch
is used for two DC redundant power inputs. Please follow the steps below to insert
the power wire.
When performing any of the procedures like inserting the wires or
tightening the wire-clamp screws, make sure the power is OFF to
prevent from getting an electric shock.
1. Insert positive and negative DC power wires into contacts 1 and 2 for POWER 1,
or 5 and 6 for POWER 2.
Input DC 48V~56V
DC1 DC2
Fault
1A@24V
1 2 3 4 5 6

9
2. Tighten the wire-clamp screws for preventing the wires from loosening.
1 2 3 4 5 6
Power 1 Fault Power 2
+ - + -
Note
1. The wire gauge for the terminal block should be in the range
between 12 and 24 AWG.
2. The DC power input range is 48V ~ 56V DC.
2.6 Wiring the Fault Alarm Contact
The fault alarm contacts are in the middle of the terminal block connector as the
picture shows below. Inserting the wires, the Industrial PoE+ Switch will detect
the fault status of the power failure and then forms an open circuit. The following
illustration shows an application example for wiring the fault alarm contacts.
Fault Alarm Contacts
The Fault Alarm Contacts are
energized (CLOSE) for normal
operation and will OPEN when
failure occurs
Fault
Insert the wires into the fault alarm contacts
Note
1. The wire gauge for the terminal block should be in the range
between 12 and 24 AWG.
2. Alarm relay circuit accepts up to 30V, max. 3A currents.

10
2.7 Product Features
Physical Port
Eight 10/100BASE-TX Fast Ethernet RJ45 ports with IEEE 802.3at/af
PoE+ Injector (Port-1 to Port-8)
Two 10/100/1000BASE-T Gigabit Ethernet RJ45 ports (Port-9 and Port-10)
Two 1000BASE-X mini-GBIC/SFP slots for SFP type auto detection (Port-9
and Port-10)
Power over Ethernet
Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
Backward compatible with IEEE 802.3af Power over Ethernet
Up to 8 ports of IEEE 802.3af/802.3at devices powered
240-watt PoE budget
Supports PoE power up to 30 watts for each PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100 meters
Industrial Case and Installation
IP30 metal case
DIN rail and wall-mount design
48~56V DC, redundant power with polarity reverse protect function
Supports 6000V DC Ethernet ESD protection
-40 to 75 degrees C operating temperature
Switching
Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-
negotiation and auto MDI/MDI-X
Features Store-and-Forward mode with wire-speed ltering and forwarding
rates
IEEE 802.3x ow control for full duplex operation and back pressure for half
duplex operation
16K MAC address table size
10K jumbo frame
IEEE 802.1Q VLAN transparency
Hardware DIP switch for “Standard” and “Extend” mode selection; the
“Extend” mode features 30-watt PoE transmit distance of 250m at speed of
10Mbps
Automatic address learning and address aging
Supports CSMA/CD protocol

11
2.8 ProductSpecications
Product IFGS-1022HPT
HardwareSpecications
Fast Ethernet Copper Ports Eight 10/100BASE-TX RJ45 auto-MDI/MDI-X ports
(Port-1 to Port-8)
Gigabit Ethernet Copper Ports Two 10/100/1000BASE-T RJ45 auto-MDI/MDI-X
ports (shared with Port-9 and Port-10)
SFP/mini-GBIC Slots Two 1000BASE-SX/LX/BX SFP interfaces (shared
with Port-9 and Port-10)
PoE Injector Port Eight ports with 802.3af/802.3at PoE+ injector
function (Port-1 to Port-8)
Switch Architecture Store-and-Forward
Switch Fabric 5.6Gbps/non-blocking
Switch Throughput@64 bytes 4.1Mpps @64 bytes
MAC Address Table 16K entries
Shared Data Buffer 4Mb SRAM
Flow Control IEEE 802.3x pause frame for full-duplex. Back
pressure for half-duplex
Jumbo Frame 10 Kbytes
DIP Switch (Port 1 to port 8)
Standard mode: 30-watt PoE transmit distance of
100m at speed of 10/100Mbps
Extend mode: 30-watt PoE transmit distance of
250m at speed of 10Mbps
LED
3 x LED for System and Power:
Green: DC Power 1
Green: DC Power 2
Red: Power Fault Alarm
2 x LED for PoE Copper Port (Port-1~Port-8):
Green: LNK/ACT (10/100Mbps)
Orange: PoE-In-Use
2 x LED for 10/100/1000T Copper Port
(Port-9~Port-10):
Green: LNK/ACT
Orange: 1000
2 x LED for per mini-GBIC interface
(Port-9~Port-10)
Green: LNK/ACT
Orange: 1000

12
Connector
Removable 6-pin terminal block
Pin 1/2 for Power 1
Pin 3/4 for power fault alarm
Pin 5/6 for Power 2
Alarm One relay output for power failure.
Alarm relay current carry ability: 1A @ 24V AC
Power Requirements 48~56V DC, 5.5A (max.)
(>51V DC for PoE+ output recommended)
Power Consumption/
Dissipation
19 watts, 64BTU (Standby without PoE function)
at DC 56V power input
23 watts, 78BTU (Full loading without PoE
function) at DC 56V power input
244 watts, 832BTU (Full loading with PoE function)
at DC 56V power input
Dimensions (W x D x H) 72 x 107 x 161 mm
Weight 1034g
ESD Protection 6KV DC
Enclosure IP30 aluminum case
Installation DIN-rail kit and wall-mount kit
Power over Ethernet
PoE Standard IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type End-span
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Output
IEEE 802.3af Standard
- Per port 48V~51V DC (depending on the power
supply), max. 15.4 watts
IEEE 802.3at Standard
- Per port 51V~56V DC (depending on the power
supply), max. 30 watts
PoE Power Budget Dual power input: maximum 240W (depending on
power input)
Max. Number of Class 2 PDs 8
Max. Number of Class 3 PDs 8
Max. Number of Class 4 PDs 8
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE

13
Stability Testing
IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Standards Compliance
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
Environment
Operating Temperature -40 ~ 75 degrees C
Storage Temperature -40 ~ 85 degrees C
Humidity 5 ~ 95% (non-condensing)

14
3. Installation
This section describes the functionalities of the Industrial PoE+ Switch’s
components and guides how to install it on the DIN-rail and wall. Basic knowledge
of networking is assumed. Please read this chapter completely before continuing.
Note
This following picture is telling the user how to install the device,
and the device is not IFGS-1022HPT.

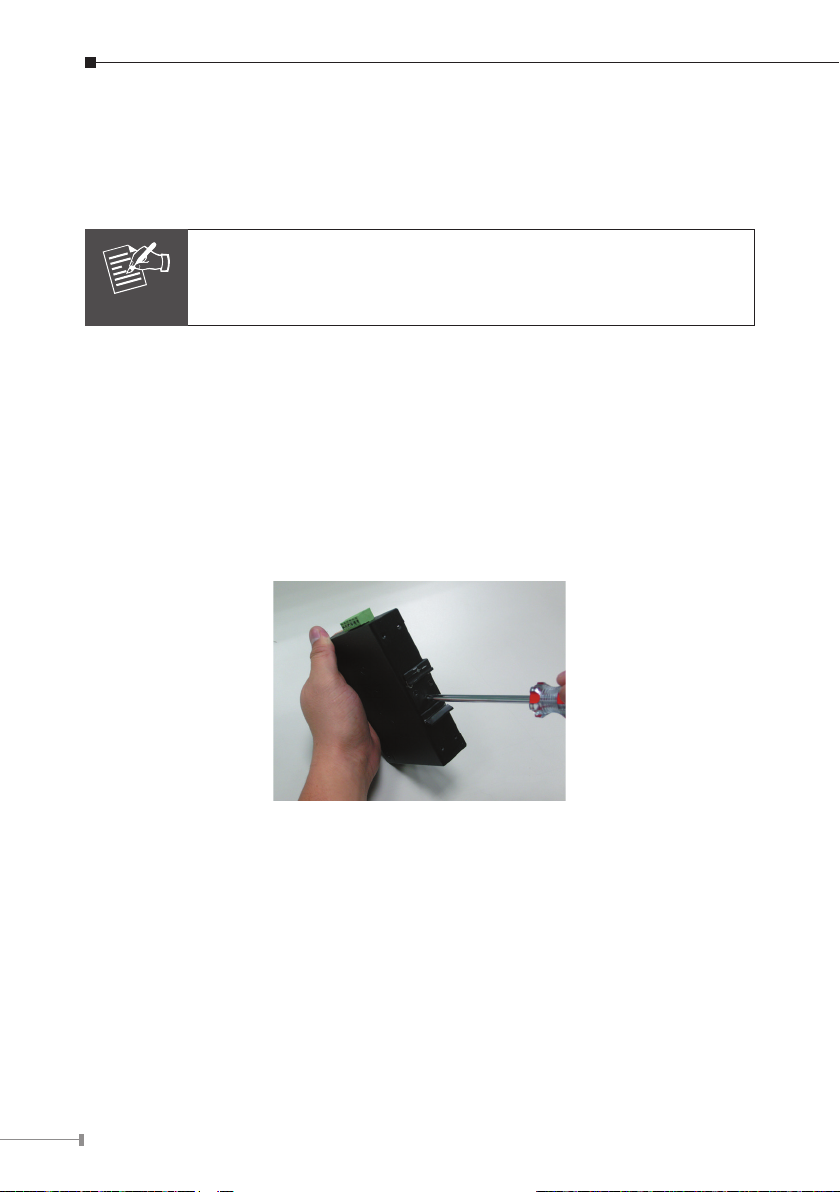

3.1 DIN-rail Mounting Installation
The DIN-rail is screwed on the Industrial PoE+ Switch when out of factory. When
replacing the wall-mount application with DIN-rail application, Industrial PoE+
Switch is needed. Please refer to the following gures to screw the DIN-rail on the
Industrial PoE+ Switch. To hang the Industrial PoE+ Switch, follow the following
steps:
Step 1: Screw the DIN-rail on the Industrial PoE+ Switch.

15
Step 2: Lightly insert the bottom of the switch into the track.
1
2
Step 3: Make sure if the DIN-rail is tightly secured on the track.
Step 4: Please refer to the following procedures to remove the Industrial PoE+
Switch from the track.
1
2
Step 5: Lightly pull out the bottom of the switch for removing it from the track.

16
3.2 Wall-mount Plate Mounting
To install the Industrial PoE+ Switch on the wall, please follow the instructions
described below.
Step 1: To remove the DIN-Rail from the Industrial PoE+ Switch, loosen the
screws to remove the DIN-rail.
Step 2: Place the wall mount plate on the rear panel of the Industrial PoE+
Switch.
Step 3: Use the screws to screw the wall mount plate on the Industrial PoE+
Switch.
Step 4: Use the hook holes at the corners of the wall mount plate to hang the
Industrial PoE+ Switch on the wall.
Step 5: To remove the wall mount plate, reverse the steps above.

17
3.3 Installing the SFP Transceiver
The sections describe how to insert an SFP transceiver into an SFP slot.
The SFP transceivers are hot-pluggable and hot-swappable. You can plug in and
out the transceiver to/from any SFP port without having to power down the
Industrial PoE+ Switch as Figure 2-3 shows.
MGB Series
Transceiver
Figure 2-3: Plug-in the SFP Transceiver
PLANET Industrial PoE+ Switch supports 1000Mbps mode with both single mode
and multi-mode SFP transceivers.
1. Before we connect Industrial PoE+ Switch to the other network device, we have
to make sure both sides of the SFP transceivers are with the same media type,
for example, 1000BASE-SX to 1000BASE-SX, 1000BASE-LX to 1000BASE-LX.
2.Check whether the ber-optic cable type matches with the SFP transceiver
requirement.
To connect to 1000BASE-SX SFP transceiver, please use the multi-mode
bercablewithonesidebeingthemaleduplexLCconnectortype.
To connect to 1000BASE-LX or 1000BASE-BX SFP transceiver, please
use the single-mode ber cable with one side being the male duplex LC
connector type.
Connect the Fiber Cable
1. Insert the duplex LC connector into the SFP transceiver.
2. Connect the other end of the cable to a device with SFP transceiver installed.
3. Check the LNK/ACT LED of the SFP slot on the front of the Industrial PoE+
Switch. Ensure that the SFP transceiver is operating correctly.

18
4. Check the Link mode of the SFP port if the link fails.
Note
It is recommended to use PLANET SFPs on the Industrial PoE+
Switch. If you insert an SFP transceiver that is not supported, the
Industrial PoE+ Switch will not recognize it.
3.4 Removing the Transceiver Module
1. Make sure there is no network activity by consulting or checking with the
network administrator. Or through the management interface of the switch/
converter (if available) to disable the port in advance.
2. Remove the Fiber Optic Cable gently.
3. Turn the lever of the MGB series module to a horizontal position.
4. Pull out the module gently through the lever.
MGB Series
Transceiver
Figure 2-4: Pull Out from the Transceiver
Note
Never pull out the module without pulling the lever or the push
bolts on the module. Directly pulling out the module with force
could damage the module and the SFP module slot of the Industrial
PoE+ Switch.

19
4. Troubleshooting
This chapter contains information to help you solve issues. If the Industrial PoE+
Switch is not functioning properly, make sure the Industrial PoE+ Switch was set
up according to instructions in this manual.
Q1: The per port LED is not lit
Solution:
Check the cable connection of the Industrial PoE+ Switch.
Q2 :Per port LED is lit, but the trafc is irregular
Solution:
Check whether the attached device is not set to dedicated full duplex. Some
devices use a physical or software switch to change duplex modes. Auto-
negotiation may not recognize this type of full-duplex setting.
Q3: Why the Industrial POE+ Switch doesn’t connect to the network
Solution:
Check each port LED on the Industrial PoE+ Switch. Try another port on the
Industrial PoE+ Switch. Make sure the cable is installed properly and the right
type. Turn off the power. After a while, turn on the power again.
Q4: Can I install MGB-SX or other non wide temperature SFP module into
SFP slot of Industrial PoE+ Switch?
Solution:
Yes, you can. However, the MGB-SX and the other non wide temperature SFP
module cannot operate under -40 to 75 degrees C.

20
APPENDIX A: Networking Connection
A.1 PoE RJ45 Port Pin Assignments (End-span)
1 2 3 4 5 6 7 8
PIN NO RJ45 POWER ASSIGNMENT
1Power +
2Power +
3Power -
6Power -
A.2 Switch’s RJ45 Pin Assignments
1000Mbps, 1000BASE-T
Contact MDI MDI-X
1BI_DA+ BI_DB+
2BI_DA- BI_DB-
3BI_DB+ BI_DA+
4BI_DC+ BI_DD+
5BI_DC- BI_DD-
6BI_DB- BI_DA-
7BI_DD+ BI_DC+
8BI_DD- BI_DC-
10/100Mbps, 10/100BASE-TX
RJ45 Connector Pin Assignment
Contact MDI
Media Dependent Interface
MDI-X
Media Dependent Interface - Cross
1Tx + (transmit) Rx + (receive)
2Tx - (transmit) Rx - (receive)
3Rx + (receive) Tx + (transmit)
4, 5 Not used
6Rx - (receive) Tx - (transmit)
7, 8 Not used
