Planet POE-1200 User manual

Trademarks
Copyright © PLANET Technology Corp. 2005.
Contents subject to which revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. All other trade-
marks belong to their respective owners.
Disclaimer
PLANET Technology does not warrant that the hardware will work properly in
all environments and applications, and makes no warranty and representa-
tion, either implied or expressed, with respect to the quality, performance,
merchantability, or tness for a particular purpose.
PLANET has made every effort to ensure that this User’s Manual is accurate;
PLANET disclaims liability for any inaccuracies or omissions that may have
occurred.
Information in this User’s Manual is subject to change without notice and does
not represent a commitment on the part of PLANET. PLANET assumes no re-
sponsibility for any inaccuracies that may be contained in this User’s Manual.
PLANET makes no commitment to update or keep current the information
in this User’s Manual, and reserves the right to make improvements to this
User’s Manual and/or to the products described in this User’s Manual, at any
time without notice.
If you nd information in this manual that is incorrect, misleading, or incom-
plete, we would appreciate your comments and suggestions.
FCC Warning
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment gen-
erates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the Instruction manual, may cause harmful interfer-
ence to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be
required to correct the interference at whose own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause
radio interference, in which case the user may be required to take adequate
measures.
Revision
PLANET IEEE802.3af Power over Ethernet Injector Hub User’s Manual
FOR MODELS: POE-1200/POE-2400
Part No.: 2010-000041-000

Table of Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 How to Use This Manual 1
1.3 Product Features 2
1.4 Product Specifications 3
Chapter 2 Installation 5
2.1 Product Description 5
2.2 Installing the Injector 6
Chapter 3 Console Configuration 9
3.1 Connect to PC's RS-232 serial port 9
3.2 Change IP Address 11
3.3 Change Password 11
3.4 Show Port Status 13
3.5 Enable/Disable port 13
3.6 Show PD Power Classification 14
3.7 Show PD Power Current Usage 15
3.8 Show PD Power Usage 15
3.9 Show Power Provision Priority 15
3.10 Set Power Provision Priority 16
3.11 View System Information 17
3.12 Restore System to Factory Default Settings 17
Chapter 4 Web Configuration 19
4.1 Manin Menu 19
4.2 Port Status 20
4.3 PoE Power Class 20
4.4 Current Usage 21
4.5 Power Consumption 22
4.6 Port Configuration 22
4.7 Port Priority 23
4.8 System Setup 23
4.9 Password Setting 24
4.10 Default Setting 24
4.11 Firmware Update 25

Chapter 5 The Poe Provision Process 27
5.1 Line Detection 27
5.2 Classification 27
5.3 Start-up 27
5.4 Operation 28
5.5 Power Disconnection Scenarios 28
Appendix A 29
A.1 MDI Settings 29
A.2 Power Device Classification values 29

1
This page is intentionally left blank

1
Chapter 1
INTRODUCTION
1.1 Package Contents
Check the contents of your package for following parts:
• IEEE802.3af Power over Ethernet Injector Hub x1
• Manual x1
• Quick installation guide x1
• 19” rack mounting kit x1
• Power cord x1
• Rubber feet x 4
If any of these are missing or damaged, please contact your dealer immediately, if
possible, retain the carton including the original packing material, and use them against
to repack the product in case there is a need to return it to us for repair.
1.2 How to Use This Manual
This Web Smart Gigabit Ethernet Switch User Manual is structured as follows:
Chapter 2, Installation
It explains the functions of POE-1200/2400 and how to physically install the
POE-1200/2400.
Chapter 3, Console Configuration
It contains information about the console Smart function of POE-1200/2400.
Chapter 4, Web Configuration
It contains information about the web Smart function of POE-1200/2400.
Chapter 5, PoE power Provision Process
It contains specifications of POE-1200/2400.
Appendices
It contains cable information of POE-1200/2400.
In the following section, terms Injector with upper case mean the two injectors, i.e. POE-
1200 or POE-2400. Terms with lower case injector means any 802.3af power injectors.
PD means the abbreviated from 802.3af powered device.

2
3
1.3 Product Features
• 12/24-Port 802.3af in-line mid-span power injector box
• Complies with IEEE802.3, IEEE802.3u, 10/100Base-TX
• Complies with IEEE802.3af, 48VDC power over unused twisted-pair wires.
• Full power support for per PoE port
• Auto detect powered device and consumption levels
• Circuit protection prevent power interference between ports
• 19-inch rack mountable; 1U height
• LED indicators for PoE ready and PoE activity
• 100~240VAC, 50/60Hz, universal power supply
• Smart feature for PD on/off/by-pass, PD detection, power level, PD status and
PD powering priority
• 100~240VAC, 50~60Hz universal Power input
• FCC, CE class A compliant

2
3
1.4 Product Specications
Model POE-1200 POE-2400
Hardware Specification
PoE Network ports
24 x RJ-45 STP
Data: 12
Data + Power out: 12
48 x RJ-45 STP
Data: 24
Data + Power out: 24
Number of 802.3af de-
vice can be powered 12 24
PoE Power supply Type Mid-span
PoE Power Type Per port 48VDC @ 270mA maximum
Management port 1 x RJ-45; 10/100Base-TX, auto-negotiation, auto-
MDI
Network Cable
10BASET: 2-pair UTP Cat. 3, 4, 5 (100 m), EIA/TIA-
568 100-ohm STP (100 m)
100BASE-TX: 2-pair UTP Cat. 5 (100 m), EIA/TIA-568
100-ohm STP (100 m)
Console Port 1 x RS-232; DB-9
Flow Control Back pressure for half duplex, IEEE 802.3x Pause
Frame for full duplex
Dimensions (mm) 440 x 200 x 44 (1U height)
Weight 2.7kg 3.3kg
Power Requirement 100-240V AC, 50-60 Hz
Power consumption 130 watts max. 260 watts max.
Standards Conformance
Network Standards
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100 Base-TX Fast Ethernet
IEEE 802.3af, Power over Ethernet
Operating Temperature 0ºC ~ 50ºC
Storage Temperature -40ºC ~ 70ºC
Humidity 5% to 95% (Non-condensing)
Regulation Compliance FCC Part 15 Class A, CE

4
5
This page is intentionally left blank

4
5
Chapter 2
INSTALLATION
This chapter describes the functionalities of the Switch's components and guides how to
install it on the desktop or shelf. Basic knowledge of networking is assumed. Please read
this chapter completely before continuing.
2.1 Product Description
The PLANET POE-1200 / POE-2400 are 12 / 24-Port IEEE802.3af Power over Ethernet
injector hub complies with IEEE802.3, IEEE802.3u and IEEE802.3af standards. It is
equipped with 12 / 24 10/100BASE-TX Fast Ethernet ports that support full 48VDC
power for any remote IEEE802.3af powered device (PD) like Wireless LAN Access Point,
IP phone, LAN Camera or any other network devices. With support for 130 / 260 watts
power supply, POE-1200 / POE-2400 should provide the sufcient power to the 12 / 24
remote devices.
2.1.1 Product Overview
There are 24 / 48 RJ-45 STP ports on the front panel of hub, 12 / 24 of them on lower
stack are “Data” port and the other 12 / 24 ports on upper stack are “Data + Power
output” port. Each of the “Data + Power output” port on upper stack functions as an
injector which inserts DC Voltage into the CAT 5 cable allowing the cable between the
Injector and Splitter to transfer data and power simultaneously.
To manage your powered devices, POE-1200 / POE-2400 provides both Web and Console
management interfaces in which administrators can manage functions such as port
Enable/Disable, port priority, system conguration, and Password changing and with
smart feature for powered device, the Hub can auto detect the power status on each port
and show massages on both Web and Console management interface. These features
also provide a cost-effective way to manage the devices from Internet whenever you are
at work or at home.
2.1.2 Injector Front Panel
Figure 2-1 & 2-2 shows a front panel of the POE-1200 / POE-2400.
Figure 2-1 POE-1200 front panel
Figure 2-2 POE-2400 front panel

6
7

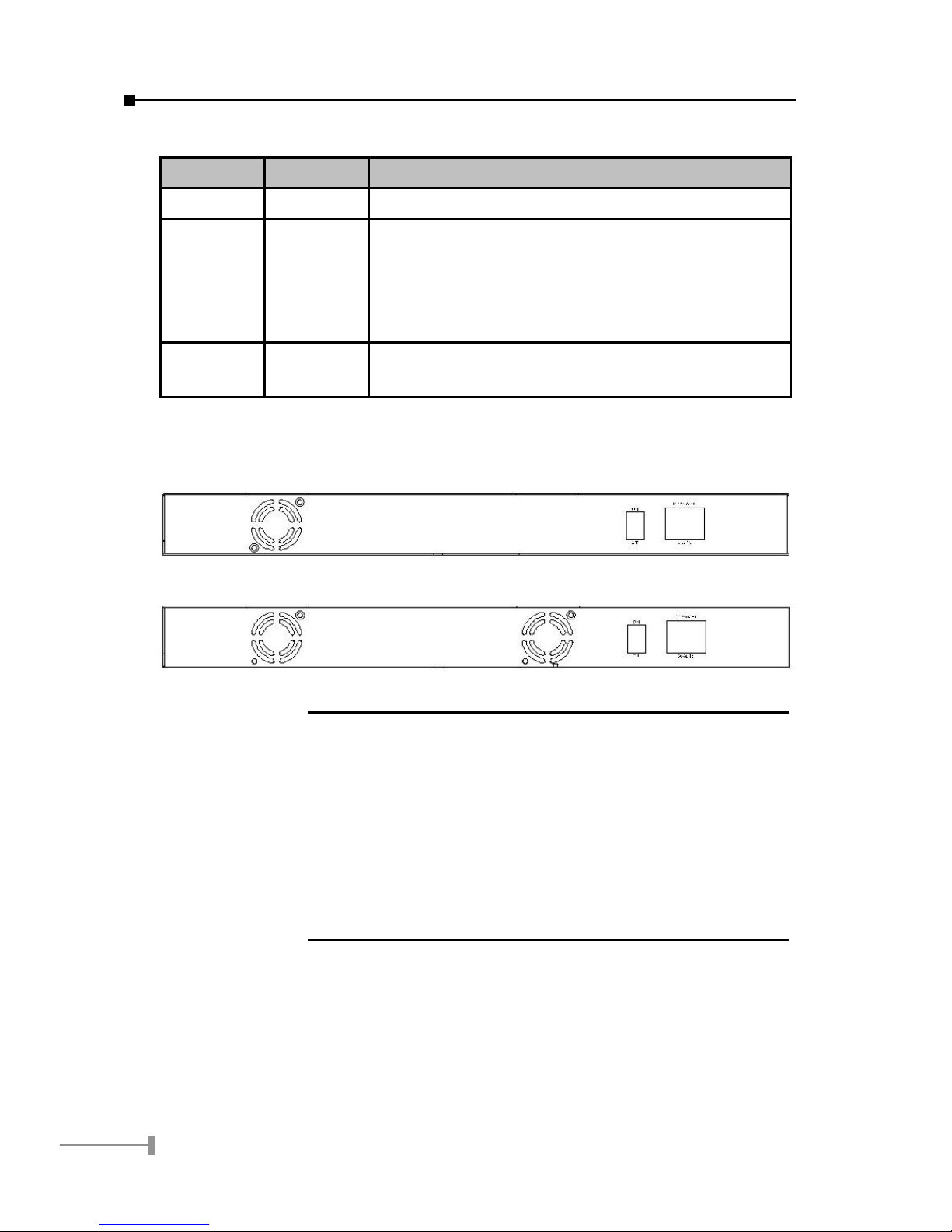

2.1.3 LED Indicators
LED Color Function
POWER Green Lights to indicate power on.
Manage Amber and
Green
Light (both amber and green indicators) to indicate
the management port Linked.
Blink to indicate that the port is transmitting data
in 10Mbps (Amber) or 100Mbps (Green) speed re-
spectively.
PoE In-use Green Lights to indicate that the port is in use and supply-
ing 48V DC power
2.1.4 Injector Rear Panel
The rear panel of the Injector indicates an AC inlet power socket, which accepts input
power from 100 to 240VAC, 50-60Hz.
Figure 2-3 POE-1200 Rear Panel
Figure 2-4 POE-2400 Rear Panel
 Power
Notice:
1. The device is a power-required device, it means, it will not
work till it is powered. If your networks should active all
the time, please consider using UPS (Uninterrupted Power
Supply) for your device. It will prevent you from network
data loss or network downtime.
2. In some area, installing a surge suppression device may
also help to protect your switch from being damaged by
unregulated surge or current to the Injector or the power
adapter.
2.2 Installing the Injector
This section describes how to install your POE-1200/POE-2400 802.3af Power over
Ethernet Injector and make connections to the Injector. Please read the following topics
and perform the procedures in the order being presented. To install the Switch on a
desktop or shelf, simply complete the following steps.

6
7
2.2.1 Desktop Installation
To install an Injector on a desktop or shelf, simply complete the following steps:
Step1: Attach the rubber feet to the recessed areas on the bottom of the Injector.
Step2: Place the Injector on a desktop or shelf near an AC power source.
Step3: Keep enough ventilation space between the Injector and the surrounding
objects.
 Note:
When choosing a location, please keep in mind the envi-
ronmental restrictions discussed in Chapter 1, Section 4, in
Specification.
Step4: Connect your Injector to network 802.3af powered devices (PD) and
Switch.
A. Connect one end of a standard network cable to the upper stack 10/100 RJ-45
ports on the front of the Injector.
B. Connect the other end of the cable to the 802.3 powered devices (PD) such as
IP phone, wireless access point, IP camera, splitter, or switch etc.
C. Connect the one end of a standard network cable to the relative lower stack
10/100 RJ-45 port on the front of the Injector.
D. Connect the other end of the cable to the port of Switch.
 Note:
Connection to the Switch requires UTP Category 5 network
cabling with RJ-45 tips. For more information, please see the
Cabling Specification in Appendix A.
Step5: Supply power to the Switch.
A. Connect one end of the power cable to the Injector.
B. Connect the power plug of the power cable to a standard wall outlet.
When the Injector receives power, the Power LED should remain solid Green.
2.2.2 Rack Mounting
To install the switch in a 19-inch standard rack, follow the instructions described below.
Step1: Place your Injector on a hard flat surface, with the front panel positioned
towards your front side.
Step2: Attach a rack-mount bracket to each side of the Injector with supplied screws
attached to the package. Figure 2-5 shows how to attach brackets to one
side of the Injector.

8
9
Figure 2-5 Attaching the brackets to the POE-1200/POE-2400
Caution:
You must use the screws supplied with the mounting brack-
ets. Damage caused to the parts by using incorrect screws
would invalidate your warranty.
Step3: Secure the brackets tightly.
Step4: Follow the same steps to attach the second bracket to the opposite side.
Step5: After the brackets are attached to the Injector, use suitable screws to se-
curely attach the brackets to the rack, as shown in Figure 2-6
Figure 2-6 Mounting the Injector in a Rack
Step6: Proceeds with the steps 4 and steps 5 of session 2.2.1 Desktop Installation
to connect the network cabling and supply power to your Injector.

8
9
Chapter 3
CONSOLE CONFIGURATION
Unlike the one-port 802.3af Power over Ethernet power injector, the POE-1200/POE-2400
performs series smart functions that make the Injector operate more effectively. This
Chapter describes the common usage of the Injector's Smart Conguration.
When you are ready to congure the smart functions of the Switch, make sure you had
connected the supplied RS-232 serial cable to the RS-232 port at the front panel of your
POE-1200/2400 Switch and your PC.

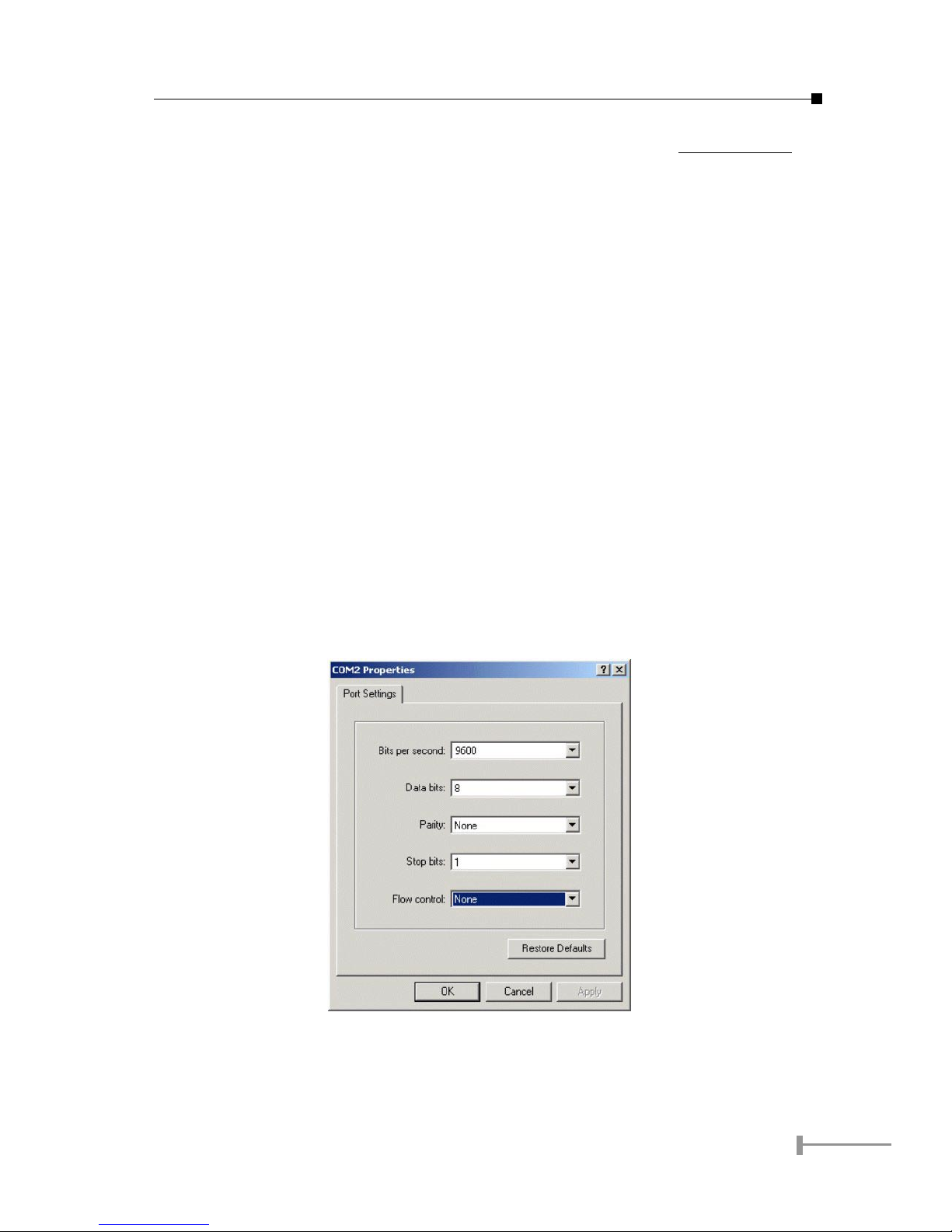

3.1 Connect to PC's RS-232 serial port
Hyper Terminal
In Windows 98/2000/XP, launch HyperTerminal , create a new connection, and adjust
settings as below:
• Baud per second: 9600
• Data bits: 8
• Parity: None
• Stop bits: 1
• Flow Control: None
Once the terminal has connected to the device, power on the POE-1200/2400, the
terminal will display that it is running testing procedures. After boot, the following screen
displayed.

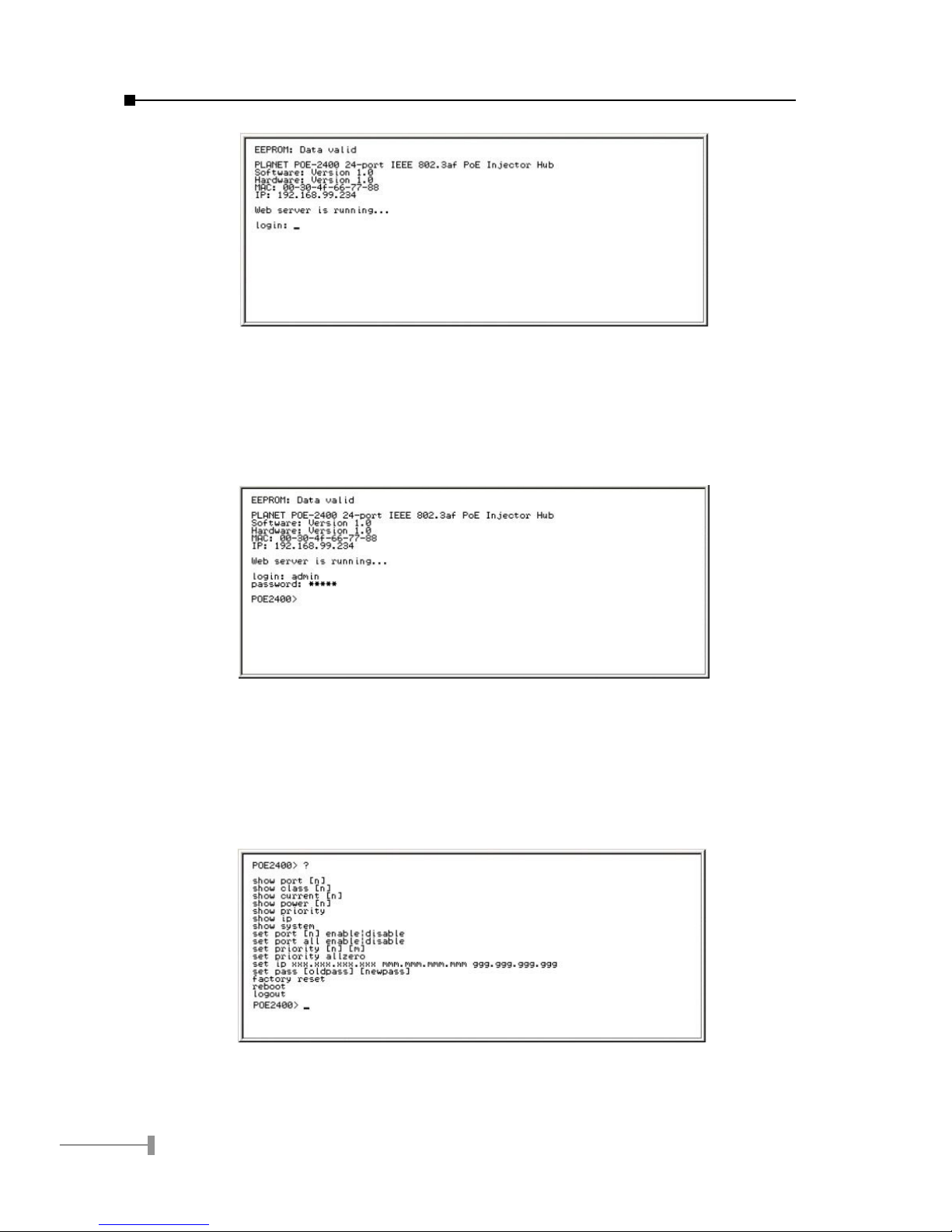

10
11
Figure 3-1 Console Main Screen of POE-1200/2400
1. Enter default username admin and password admin to login POE-1200/
2400. As show in Figure 3-2.
Login: admin
Password: *****
Figure 3-2 Login POE-1200/2400 screen
2. After login successfully, the prompt will become POE2400> (In case of POE-
1200, the prompt will become POE-1200> ).On POE2400> prompt, enter
help or ? command to list all commands available for console management.
As show in Figure 3-3.
POE2400> ?
Figure 3-3 Help screen

10
11
3.2 Change IP Address
1. Enter set ip A.B.C.D E.F.G.H I.J.K.L to add a new IP address. Note that
A.B.C.D is your new IP address, E.F.G.H is the subnet mask and I.J.K.L is the
default gateway. For example, enter set ip 192.168.99.123 255.255.255.0
192.168.99.254 will add a new IP address to POE-1200/2400. As show in
Figure 3-4.
POE2400> set ip 192.168.99.123 255.255.255.0 192.168.19.254
Figure 3-4 Change IP screen
2. Enter show ip to check if the IP address is changed correctly. As show in Fig-
ure 3-5.
POE2400> show ip
Figure 3-5 Show IP address
3.3 Change Password
1. Enter set pass old_pass new_pass to change your admin password. Note
that old_pass is your old password and new_pass is the new password. For
example, enter set pass admin 12345 will change the old password admin to
12345 . As show in Figure 3-6.
POE2400> set pass admin 12345

12
13
Figure 3-6 Change password
2. Enter logout to exit. The prompt POE2400 will change to login: and ask for
login.
3. Enter username admin with old password to check if the password is changed.
As show in Figure 3-7.
Figure 3-7 Login with old password screen
4. Enter username admin with new password, it will login successful. As show in
Figure 3-8.
Figure 3-8 Login with new password screen

12
13
3.4 Show Port Status
To show port status, enter show port . It will show all ports that are using PoE or not.
On means that the POE-1200/2400 is supplying 48VDC to the port and Off means
the power is stop provision to the port. You can also gure out the single port status by
entering show port [n] , where [n] is the port number that you want to check. As show
in Figure 3-9
POE2400> show port
Figure 3-9 Show port status screen
3.5 Enable/Disable port
To do power management, you can enable/disable power provision on each port of the
POE-1200/2400. Enter set port [n] enable/disable to enable/disable single port number
n power provision, enter set port all enable/disable to enable/disable all port power
provision at a time. As show in Figure 3-10, 3-11 and 3-12
POE2400> set port 3 disable
Figure 3-10 Disable single port screen

14
15
POE2400> set port all disable
Figure 3-11 Disable all ports screen
POE2400> set port all enable
Figure 3-12 Enable all ports screen
3.6 Show PD Power Classication
To view the power classication of Power Device (PD), enter show class [n] view the
single PD power classication which connected on port n, and show class to view all PD
power classication connected on POE-1200/2400. As show in Figure 3-13
POE2400> show class
Figure 3-13 Show Class screen
Please refer to chapter 5 for more information about the Class.

14
15
3.7 Show PD Power Current Usage
To view the power current usage of Power Device (PD), enter show current [n] view the
single PD power current usage which connected on port n, and show current to view all
PD power current usage connected on POE-1200/2400. As show in Figure 3-14
POE2400> show current
Figure 3-14 Show current screen
3.8 Show PD Power Usage
To view the power current usage of Power Device (PD), enter show current [n] view the
single PD power current usage which connected on port n, and show current to view all
PD power current usage connected on POE-1200/2400. As show in Figure 3-14
POE2400> show power
Figure 3-15 Show Power screen
3.9 Show Power Provision Priority
To view the power provision priority to Power Device (PD), enter show priority [n] view
the single PD power provision priority to port n, and show priority to view all PD power
provision priority to each port of POE-1200/2400. As show in Figure 3-15
POE2400> show priority

16
17
Figure 3-16 Show Priority screen
3.10 Set Power Provision Priority
To set the power provision priority to Power Device (PD), enter set priority [n] [m] to
view the single PD power provision priority to port n with priority m, and set priority all
zero to set all PD power provision priority to default value to all ports. For example, if
you want the PD connected in port 15 to have a lowest priority, the command will be set
priority 15 11 . As show in Figure 3-16 and 3-17
POE2400> set priority 15 11
Figure 3-17 Set Priority to a single port screen
POE2400> set priority all zero
Figure 3-18 Set Priority to all ports screen
 Note:
The priority level is ranged from 0 to 11, 0 is the highest and
11 is the lowest.
