Planet IGS-504HPT User manual

Industrial Gigabit Switch
With 4 Port 802.3at PoE+
IGS-504HPT / IGS-624HPT
User's Manual

Trademarks
Copyright © PLANET Technology Corp. 2014.
Contents are subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. All other trademarks
belong to their respective owners
Disclaimer
PLANET Technology does not warrant that the hardware will work properly in all
environments and applications, and makes no warranty and representation, either
implied or expressed, with respect to the quality, performance, merchantability, or
tness for a particular purpose.
PLANET has made every effort to ensure that this User’s Manual is accurate;
PLANET disclaims liability for any inaccuracies or omissions that may have
occurred.
Information in this User’s Manual is subject to change without notice and does not
represent a commitment on the part of PLANET. PLANET assumes no responsibility
for any inaccuracies that may be contained in this User’s Manual. PLANET makes
no commitment to update or keep the current information in this User’s Manual,
and reserves the right to make improvements to this User’s Manual and/or to the
products described in this User’s Manual, at any time without notice.
If you nd information in this manual incorrect, misleading, or incomplete, we
would appreciate your comments and suggestions.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the Instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.

CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
WEEE Warning
To avoid the potential effects on the environment and human health as a
result of the presence of hazardous substances in electrical and electronic
equipment, end users of electrical and electronic equipment should
understand the meaning of the crossed-out wheeled bin symbol. Do not
dispose of WEEE as unsorted municipal waste; they should be collected separately
Revision
User’s Manual of PLANET Industrial Gigabit Switch with 4-port 802.3at PoE+
For Model: IGS-504HPT / IGS-624HPT
Revision: 1.1 (August, 2014)
Part No: EM-IGS-504HPT_624HPT_v1.1 (2350-AH0600-001)

Table Of Contents
1. Introduction ............................................................................................... 5
1.1 Package Contents ................................................................................ 5
1.2 How to Use This Manual....................................................................... 5
1.3 Product Features ................................................................................. 6
1.4 Product Specications .......................................................................... 7
1.5 Physical Dimensions............................................................................10
2. Installation ...............................................................................................12
2.1 Product Description.............................................................................12
2.1.1 Switch Front Panel ....................................................................13
2.1.2 LED Indicators ..........................................................................14
2.1.3 Switch Upper Panel ...................................................................15
2.1.4 Wiring the Power Inputs ............................................................16
2.1.5 Wiring the FaultyAlarm Contact .................................................17
2.1.6 Cabling.....................................................................................17
2.1.7 Redundancy Overview................................................................23
2.2 Mounting Installation ..........................................................................24
2.2.1 DIN-Rail mounting.....................................................................24
2.2.2 Wall Mount Plate Mounting .........................................................26
3. Applications...............................................................................................27
4. Switch Operation .......................................................................................29
4.1 Address Table.....................................................................................29
4.2 Learning ............................................................................................29
4.3 Forwarding & Filtering .........................................................................29
4.4 Store-and-Forward..............................................................................29
4.5 Auto-Negotiation ................................................................................30
5. Troubleshooting .........................................................................................31
6. Cable Connection Parameters......................................................................32
APPENDIX A: Networking Connection................................................................33
A.1 PoE RJ45 Port Pin Assignments (End-Span)............................................33
A.2 Switch’s RJ45 Pin Assignments..............................................................33
A.3 RJ45 Cable Pin Assignments .................................................................34

5
1. Introduction
Thank you for purchasing PLANET Industrial Gigabit Switch with 4-Port 802.3at
PoE+, IGS-504HPT/IGS-624HPT. The descriptions of these models are as follows:
IGS-504HPT : Industrial 5-Port Gigabit Switch with 4-Port 802.3at PoE+ (-40~75
degrees C)
IGS-624HPT : Industrial 4-Port 10/100/1000T 802.3at PoE+ 2-Port 100/1000X
SFP Ethernet Switch (-40~75 degrees C)
In this user’s manual, the term “Industrial Gigabit PoE+ Switch” means the
IGS-504HPT and IGS-624HPT.
1.1 Package Contents
Open the box of the Industrial Gigabit PoE+ Switch and carefully unpack it. The
box should contain the following items:
lIndustrial Gigabit PoE+ Switch x 1
lUser's Manual x 1
lDIN Rail Kit x 1
lWall Mount Kit x 1
If any of these are missing or damaged, please contact your dealer immediately;
if possible, retain the carton including the original packing material, and use them
again to repack the product in case there is a need to return it to us for repair.
1.2 How to Use This Manual
This Industrial Gigabit PoE+ Switch User Manual is structured as follows:
Chapter 2 Installation
The chapter explains the feature, functionality and the physical installation of the
Industrial Gigabit PoE+ Switch.
Chapter 3 Application
The chapter explains the Industrial Gigabit PoE+ Switch application.
Chapter 4 Switch operation
The chapter explains the Industrial Gigabit PoE+ Switch transmit operation.
Chapter 5 Troubleshooting
The chapter explains the troubleshooting of the Industrial Gigabit PoE+ Switch.

6
Chapter 6 Cable Connection Parameters
The chapter contains the cable connection parameters of the Industrial Gigabit
PoE+ Switch.
Appendix A
This chapter contains cable information of the Industrial Gigabit PoE+ Switch.
1.3 Product Features
Physical Port
IGS-504HPT
5-Port 10/100/1000Base-T RJ45 with 4-Port IEEE 802.3af/802.3at PoE+
injector
IGS-624HPT
4-Port 10/100/1000Base-T RJ45 with IEEE 802.3af/802.3at PoE+ Injector
2 SFP interfaces, 100/1000Base-X dual mode (DIP switch control)
Power over Ethernet
Complies with IEEE 802.3af/IEEE 802.3at Power over Ethernet Plus End-Span
PSE
Up to 4 IEEE 802.3af/802.3at devices powered
Supports PoE Power up to 30.8 watts for each PoE port
Provides 52V DC power over RJ45 Ethernet cable to PD with Ethernet port
Auto-detection of IEEE 802.3af/at equipments and protects devices from being
damaged by incorrect installation
Remote power feeding up to 100m
Layer 2 Features
Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full
duplex mode
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause
frame ow control (half-duplex)
Automatic address learning and address aging
Industrial Case/Installation
IP30 aluminum metal case protection
DIN rail and wall-mount design

7
48V DC redundant power with polarity reverse protect function and connective
removable terminal block for master and slave power
Supports EFT protection 6000V DC for power line
Supports 6000V DC Ethernet ESD protection
-40 to 75 degrees C operating temperature
Fiber Port Redundancy (IGS-624HPT Only)
Dual SFP ports with auto link redundancy
Auto-detects link status and redundant dual ports with the same connector
type
Only Primary Port is active at a time; the Backup Port is blocked
 When Primary Port link fails, the trafc swaps to Backup Port automatically.
 Once the Primary Port status is connected, the trafc swaps from Backup Port
to Primary Port
1.4 ProductSpecications
Model IGS-504HPT IGS-624HPT
Hardware Specications
Copper Ports
5 x 10/100/1000Base-T
RJ45 TP
Auto-MDI/MDI-X,
auto-negotiation
4 x 10/100/1000Base-T
RJ45 TP
Auto-MDI/MDI-X,
auto-negotiation
SFP/mini-GBIC Slots ―
2 x SFP interfaces
Supports 1000Base-SX/
LX and 100Base-FX SFP
transceivers
DIP Switch ―
DIP-1: SFP Port 5
1000Base-X (default) /
100Base-FX
DIP-2: SFP Port 6
1000Base-X (default) /
100Base-FX
DIP-3: Switch (default) /
ber redundant mode
Connector
Terminal Block
Pin 1/2 for Power 1; Pin 3/4 for alarm; Pin 5/6 for
Power 2
Alarm Provides one relay output for power failure
Alarm relay current carry ability: 1A @ 24V DC

8
LED
3 x LED for System and Power:
Green: DC Power 1
Green: DC Power 2
Green: Power Fault
2 x LED for each copper port (Port-1~Port-4):
Green: 1000 LNK/ACT, Orange: 100 LNK/ACT
Orange: PoE In-use
1 x LED for each mini-GBIC interface (IGS-624HPT
Port-5 and Port-6):
Green: LNK/ACT
1 x LED for Per copper port (IGS-504HPT):
Green: 1000 LNK/ACT
Orange: 100 LNK/ACT
4 x LED for PoE Power Usage (W):
Orange: 30, 60, 90 and 120W
ESD Protection 6KV DC
EFT Protection 6KV DC
Enclosure IP30 type metal case
Installation DIN rail kit and wall mount ear
Dimensions 152 x 107 x 72mm
Weight 1478g 1539g
Power Requirement 48V DC, 5A max.
Redundant power with polarity reverse protection
Power Consumption/
Dissipation
134.1 watts /
451 BTU 135.1 watts / 461 BTU
Cable
Twisted-Pair
10Base-T: 2-Pair UTP CAT. 3, 4, 5, up to 100 meters
100Base-TX: 2-Pair UTP CAT. 5, 5e up to 100 meters
1000Base-T: 4-Pair UTP CAT. 5e, 6 up to 100 meters
Fiber-Optic Cable
1000Base-SX :
50/125μm or 62.5/125μm multi-mode ber optic
cable, up to 550m
1000Base-LX :
9/125μm single-mode ber optic cable, up to
10/20/30/40/50/70/120 kilometers (varies on SFP
module)
100Base-FX :
50/125μm or 62.5/125μm multi-mode ber optic
cable, up to 2 kilometers
9/125μm single-mode ber optic cable, up to
20/40/60 kilometers (varies on SFP module)

9
Switch Specications
Switch Processing Scheme Store-and-Forward
Address Table 1K entries
Flow Control Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Switch fabric 10Gbps 12Gbps
Throughput
(packet per second) 7.44Mpps@64bytes 8.93Mpps@64bytes
Maximum Transmit Unit 9216 bytes
Speed
TP: 10/20Mbps, 100/200Mbps, 2000Mbps
SX/LX: 2000Mbps (full-duplex)
FX: 200Mbps (full-duplex)
Power over Ethernet
PoE Standard IEEE 802.3af/IEEE 802.3at Power over Ethernet/PSE
PoE Power Supply Type End-Span
PoE Power Output
Per port 52V DC, 275mA. Max. 15.4 watts (IEEE
802.3af)
Per port 52V DC, 535mA. Max. 30 watts (IEEE
802.3at)
Power Pin Assignment 1/2(+), 3/6(-)
Max. number of Class 4 PD 4
Standards Conformance
Standards Compliance
IEEE 802.3 Ethernet/10Base-T
IEEE 802.3u Fast Ethernet/100Base-TX
IEEE 802.3ab Gigabit Ethernet/1000Base-T
IEEE 802.3z Gigabit Ethernet/1000Base-SX/LX
IEEE 802.3x full-duplex ow control
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
Regulation Compliance FCC Part 15 Class A, CE
Stability Testing
IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Environment
Temperature Operating: -40~75 degrees C
Storage: -40~75 degrees C
Humidity Operating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)

10

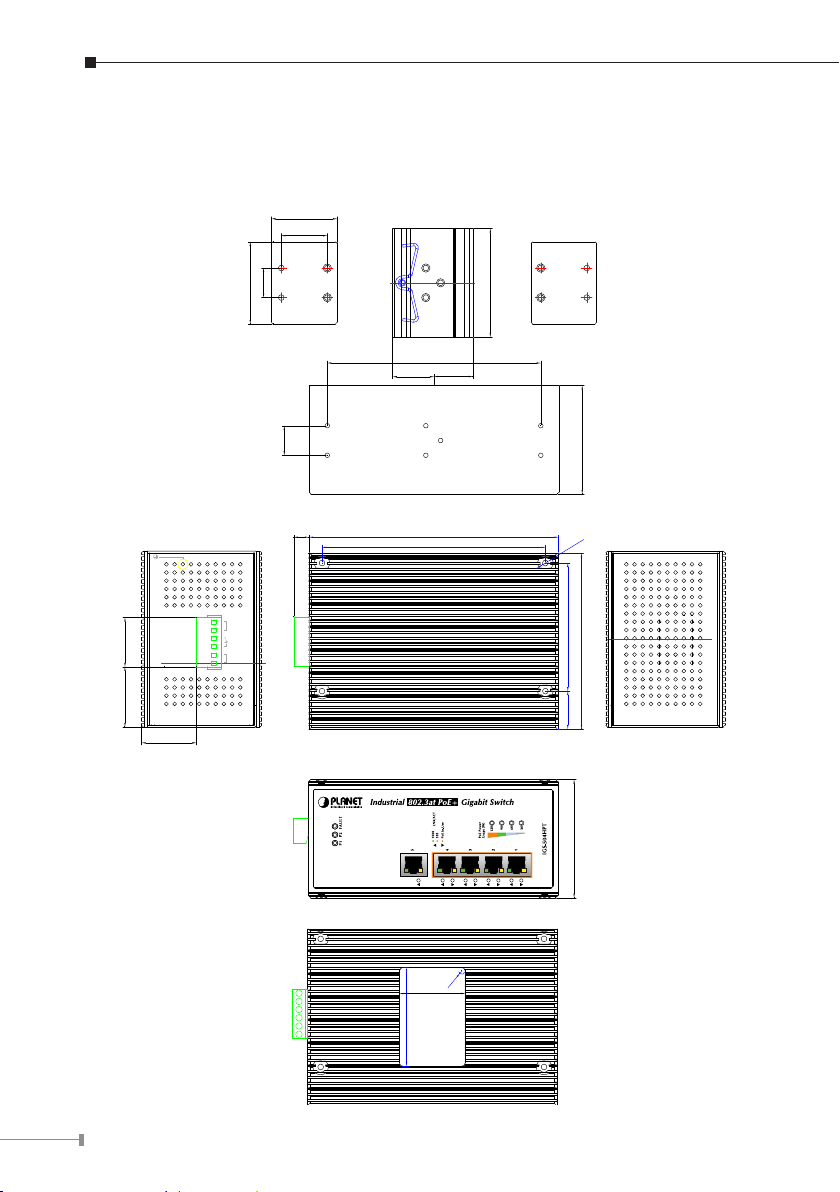

1.5 Physical Dimensions
IGS-504HPT Industrial Gigabit PoE+ Switch dimensions (W x D x H): 161 x 107
x 72 mm
72
60
R2
152
107
136
23 78
�
3.5-4
18
130
25.2 23.6
33.38
36.55
9.2
30
50
40
66
66
40
28
18
Input DC 48V
V1- V1+
PWR1
V2- V2+
PWR2
Fault
1A@24V

11
IGS-624HPT Industrial Gigabit PoE+ Switch dimensions (W x D x H): 161 x 107
x 72 mm
72
60
R2
152
107
136
23 78
�
3.5-4
18
130
25.2 23.6
9.2
50
40
66
66
40
28
18
IGS-624HPT
4
5 6
LNK/ ACT
SFP
LNK/ ACT
SFP
3 2 1
P1 P2 FAULT
1000
LNK/ACT
100
PoE In-Use
Industrial 802.3at PoE+ Gigabit Switch
120
PoE Power Usage (W)
90 60 30
RedundantSwitch
1000 1000
100 100
FiberMode
Port6 Port5
1 2 3
ON
33.38
36.55 30
Input DC 48V
V1- V1+
PWR1
V2- V2+
PWR2
Fault
1A@24V

12
2. Installation
This section describes the functionalities of the Industrial Gigabit PoE+ Switch’s
components and guides how to install it on the desk. Basic knowledge of
networking is assumed. Please read this chapter completely before continuing.
2.1 Product Description
High Power PoE for Security and Public Service Applications
To fulll the demand of High Power PoE for network applications with Gigabit speed
transmission under wide temperature, the IGS-504HPT and IGS-624HPT provide 4
10/100/1000Mbps ports featuring both IEEE 802.3af and IEEE 802.3at Power over
Ethernet Plus (PoE+) that combine up to 30-watt power output and data per port
over one Cat.5E / 6 Ethernet cable.
With a total of up to 120 watts of PoE output capability, the IGS-504HPT and IGS-
624HPT are designed specically to satisfy the growing demand of higher power
consuming network PDs (powered devices) such as PTZ (Pan, Tilt & Zoom) speed
dome network cameras, multi-channel (802.11a / b / g / n) wireless LAN access
points and other PoE network devices by providing double PoE power, rather than
the current conventional 802.3af PoE.
Environmentally Hardened Design
The IGS-504HPT and IGS-624HPT are equipped with rugged IP30 metal case for
easy deployment in heavy Industrial demanding environments. With IP30 metal
case protection, the IGS-504HPT and IGS-624HPT provide a high level of immunity
against electromagnetic interference and heavy electrical surges which are usually
found on plant oors or in curb side trafc control cabinets. Being able to operate
in the temperature range from -40 to 75 degrees C, the IGS-504HPT and IGS-
624HPT can be placed in almost any difcult environment. The IGS-504HPT and
IGS-624HPT allows either DIN rail or wall mounting for efcient use of cabinet
space.
Adjustable 6-Port Switch Mode or 4 + 2 Fiber Redundant Mode
Via the built-in DIP switch, the IGS-624HPT can be congured as 6-Port Ethernet
switch or 4+2 ber redundant mode. With the 6-port switch mode, the IGS-
624HPT can operate in Store-and-Forward mechanism with high performance; on
the other hand, when in the 4+2 ber redundant mode, it provides rapid ber
redundancy of link for highly critical Ethernet applications. The redundant-mode
also supports auto-recovering function, if the destination port of a packet is link
down, it will forward the packet to the other port of the backup pair.

13
2.1.1 Switch Front Panel
Figure 2-1 shows the front panels of IGS-504HPT and IGS-624HPT Industrial
Gigabit PoE+ Switches.
IGS-624HPT
4
5
6
LNK/
ACT
SFP
LNK/
ACT
SFP
3
2
1
P1 P2 FAULT
1000
LNK/ACT
100
PoE In-Use
120
PoE Power
Usage (W)
90
60
30
RedundantSwitch
1000
1000
100
100
Fiber Mode
Port 6
Port 5
Industrial
802.3at PoE+ Gigabit Switch
1 2 3
ON
Figure 2-1: IGS-504HPT & IGS-624HPT Front Panels
PoE Power Usage LED
The front panel of the Industrial Gigabit PoE+ Switch has four LEDs which indicate
“PoE Power Usages (W)” of 30W, 60W, 90W and 120W. With these LED
indications, you can monitor current PoE power in use status of Industrial Gigabit
PoE+ Switch easily and efciently.
120
PoE Power
Usage (W)
90
60
30

14
DIP Switch
The front panel of the IGS-624HPT provides one 3-DIP Switch which is for
conguring 100 or 1000X ber support and ber redundant function.
Refer to the table below to know about the 3-DIP switch settings and descriptions:
For more information about the ber redundancy function, please refer to the
chapter 2.1.7 Redundancy Overview.
1 2 3
ON
OFF ON
Fiber Redundant (DIP 3) Switch Fiber Redundant
Port 6 (DIP 2) 1000X 100FX
Port 5 (DIP 1) 1000X 100FX
2.1.2 LED Indicators
System
LED Color Function
P1 Green Light: indicates power 1 has power.
P2 Green Light: indicates power 2 has power.
FAULT Green Light: indicates either power 1 or power 2 has no power.
10/100/1000Base-T Interfaces
LED Color Function
LNK/ACT
Green
Light: indicates the Switch is successfully connecting to
the network at 1000Mbps.
Blink: indicates that the Switch is actively sending or
receiving data over that port.
Off: indicates that the Switch is inactively sending or
receiving data over that port.
Orange
Light: indicates the Switch is successfully connecting to
the network at 10Mbps or 100Mbps.
Blink: indicates that the Switch is actively sending or
receiving data over that port.
Off: indicates that the Switch is inactively sending or
receiving data over that port.
PoE In-Use
(Port 1~4) Orange
Light: indicates the port is providing 52V DC in-line
power.
Off: indicates the connected device is not a PoE Powered
Device (PD).

15
100/1000Base-X SFP Interfaces (IGS-624HPT)
LED Color Function
LNK/ACT Green
Light: indicates the Switch is successfully connecting to the
network at 100/1000Mbps.
Blink: indicates that the Switch is actively sending or
receiving data over that port.
OFF: indicates that the Switch is inactively sending or
receiving data over that port.
Per PoE Power Usage (Unit : Watts) (Lower LED to upper LED)
LED Color Function
30
Orange
Light: indicates the system is providing >30/60/90/120W
PoE power usage.
Blink: indicates the system is providing 30/60/90/120W PoE
power usage.
25 < X < 30, 30W LED ash; X >= 30, 30W LED light;
55 < X < 60, 60W LED ash; X >= 60, 60W LED light;
85 < X < 90, 90W LED ash; X >= 90, 90W LED light;
100 < X < 115, 120W LED ash; 115 < X < 120, 120W
LED ash fast; X >= 120, 120W LED light.
60
90
120
2.1.3 Switch Upper Panel
The upper panel of the Industrial Gigabit PoE+ Switch consists of one terminal
block connector within two DC power inputs. Figure 2-2 shows the upper panel of
the Switch.
Figure 2-2 shows upper panel of Industrial Gigabit PoE+ Switch.
1 2 3 4 5 6
Figure 2-2: Industrial Gigabit PoE Switch Upper Panel.

16
2.1.4 Wiring the Power Inputs
The 6-contact terminal block connector on the top panel of Industrial Gigabit PoE+
Switch is used for two DC redundant powers input. Please follow the steps below
to insert the power wire.
1. Insert positive/negative DC power wires into contacts 1 and 2 for Power 1, or 5
and 6 for power.
1 2 3 4 5 6
V1- V1+ V2 - V2+
2. Tighten the wire-clamp screws for preventing the wires from loosening.
123456
Power 1 Fault Power 2
- + - +
Note
The wire gauge for the terminal block should be in the range
between 12 and 24 AWG.

17

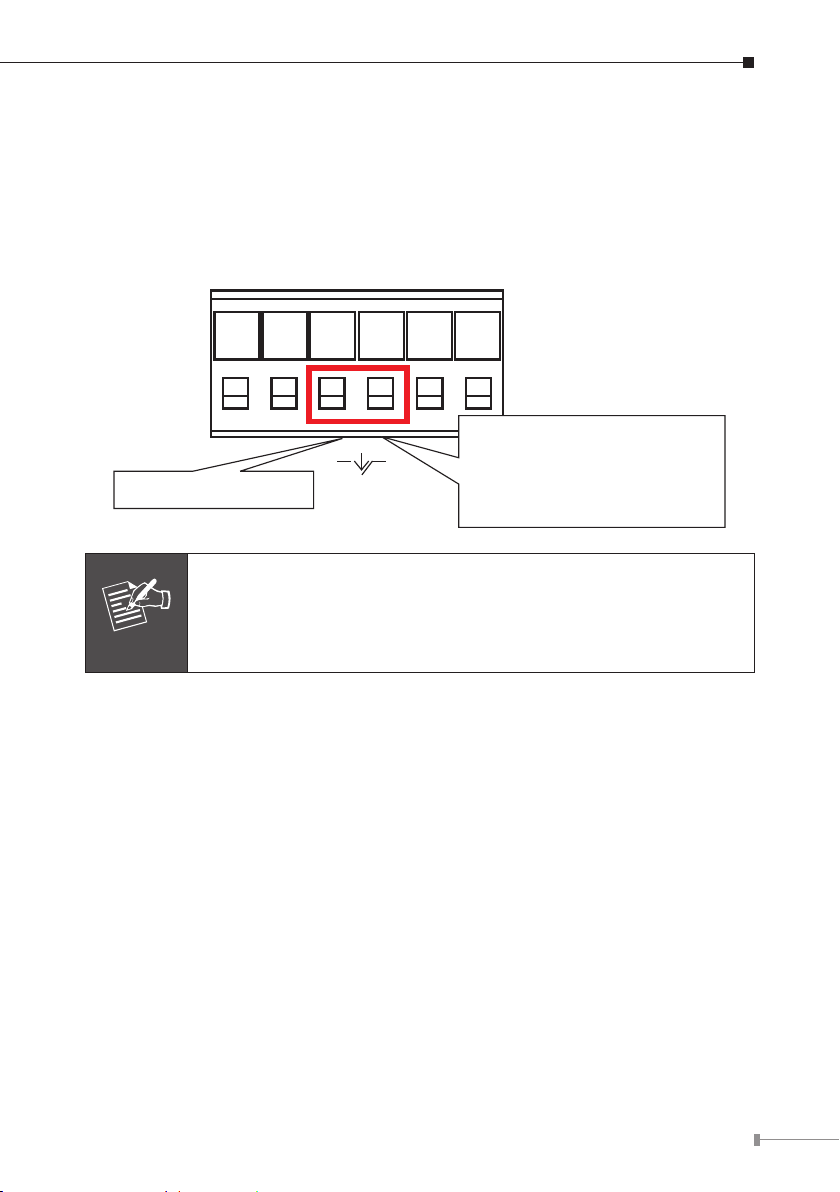

2.1.5 Wiring the Faulty Alarm Contact
The faulty alarm contacts are in the middle of the terminal block connector as
the picture shows below. Inserting the wires, the Industrial Gigabit PoE+ Switch
will detect the fault status of the power failure, or port link failure (available for
managed model) and then forms an open circuit. The following illustration shows
an application example for wiring the faulty alarm contacts.
Faulty Alarm Contacts
The Faulty Alarm Contacts are
energized (CLOSE) for normal
operation and will OPEN when
failure occurs
Fault
1 2 3 4 5 6
Note
1. The wire gauge for the terminal block should be in the range of
12 ~ 24 AWG.
2. Alarm relay circuit accepts up to 30V, max. 3A currents.
2.1.6 Cabling
10/100/1000Base-T
All 10/100/1000Base-T ports come with Auto-Negotiation capability. They
automatically support 1000Base-T, 100Base-TX and 10Base-T networks. Users only
need to plug a working network device into one of the 10/100/1000Base-T ports,
and then turn on the Industrial Gigabit PoE+ Switch. The port will automatically
runs in 10Mbps, 20Mbps, 100Mbps or 200Mbps and 1000Mbps or 2000Mbps after
the negotiation with the connected device.
100Base-FX/1000Base-SX/LX
The IGS-624HPT Industrial Gigabit PoE+ Switch has two SFP interfaces that
support 100/1000 dual speed mode (optional multi-mode/single-mode 100Base-
FX/1000Base-SX/LX SFP module) through DIP switch setting.
Cabling
Each 10/100/1000Base-T port uses RJ45 sockets -- similar to phone jacks -- for
connection of unshielded twisted-pair cable (UTP). The IEEE 802.3/802.3u/802.3ab

18
Fast/Gigabit Ethernet standard requires Category 5 UTP for 100Mbps 100Base-TX.
10Base-T networks can use Cat.3, 4, 5 or 1000Base-T uses 5/5e/6 UTP (see table
below). Maximum distance is 100 meters (328 feet). The 100Base-FX/1000Base-
SX/LX SFP slot is used as LC connector with optional SFP module. Please see table
below and know more about the cable’s specication.
Port Type Cable Type Connector
10Base-T Cat 3, 4, 5, 2-pair RJ45
100Base-TX Cat.5 UTP, 2-pair RJ45
1000Base-T Cat.5/5e/6 UTP, 4-pair RJ45
100Base-FX 50/125µm or 62.5/125µm multi-mode
9/125µm single-mode LC (multi/single mode)
1000Base-SX/
LX
50/125µm or 62.5/125µm multi-mode
9/125µm single-mode LC (multi/single mode)
Any Ethernet devices like hubs/PCs can be connected to the Industrial Gigabit
PoE+ Switch by using straight-through wires. The four 10/100/1000Mbps ports are
auto-MDI/MDI-X and can be used on straight-through or crossover cable.

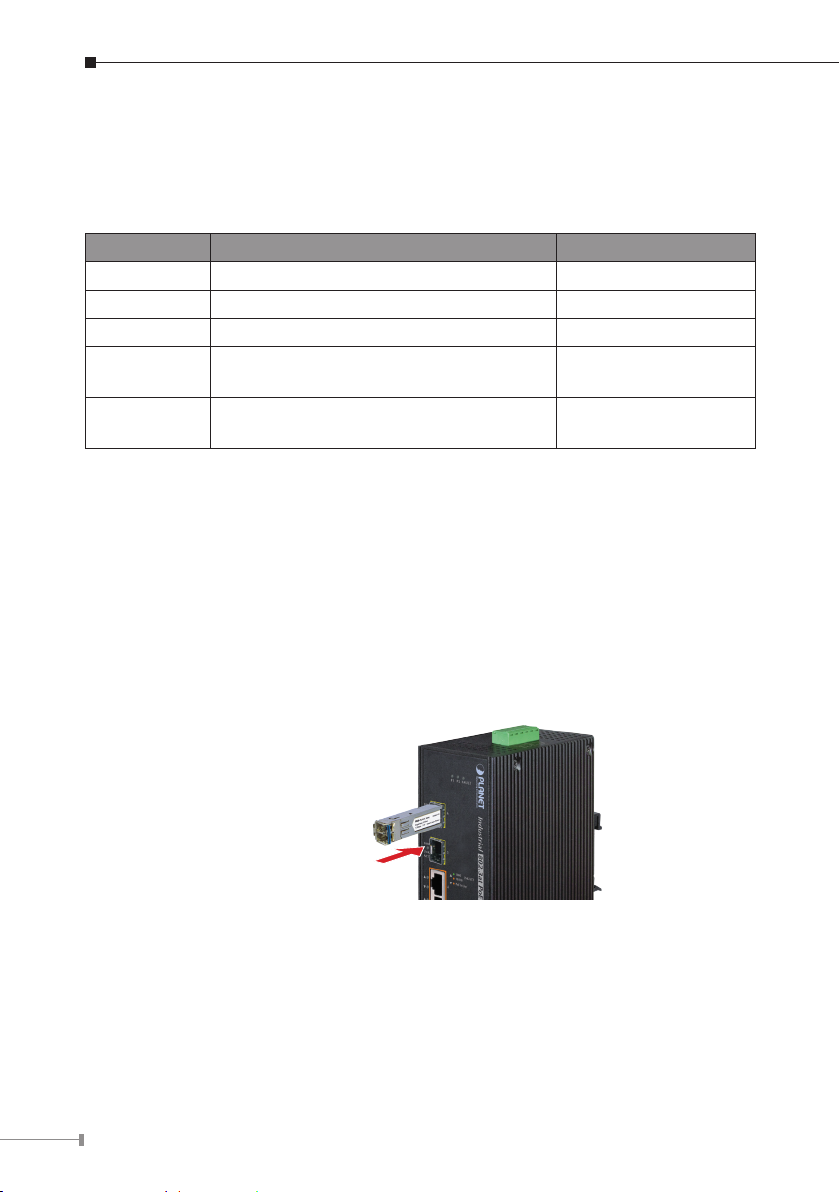

2.1.6.1 Installing the SFP transceiver
The sections describe how to insert an SFP transceiver into the IGS-624HPT SFP
slot.
The SFP transceivers are hot-pluggable and hot-swappable. You can plug in and
out the transceiver to/from any SFP port without having to power down the
Industrial Gigabit PoE+ Switch as the Figure 2-3 appears.
MGB / MFB
Series
Transceiver
Figure 2-3: Plug-in the SFP transceiver
Approved PLANET SFP Transceivers
PLANET Industrial Gigabit PoE+ Switch supports both single mode and multi-mode
SFP transceivers. The following list of approved PLANET SFP transceivers is correct
at the time of publication:

19
Fast Ethernet Transceiver (100Base-X SFP)
Model Speed
(Mbps)
Connector
Interface Fiber Mode Distance Wavelength (nm)
Operating
Temp.
MFB-FX 100 LC Multi Mode 2km 1310nm 0 ~ 60°C
MFB-F20 100 LC Single Mode 20km 1310nm 0 ~ 60°C
MFB-F40 100 LC Single Mode 40km 1310nm 0 ~ 60°C
MFB-F60 100 LC Single Mode 60km 1310nm 0 ~ 60°C
MFB-F120 100 LC Single Mode 120km 1550nm 0 ~ 60°C
MFB-TFX 100 LC Multi Mode 2km 1310nm -40 ~ 75°C
MFB-TF20 100 LC Single Mode 20km 1550nm -40 ~ 75°C
Fast Ethernet Transceiver (100Base-BX, Single Fiber Bi-Directional SFP)
Model Speed
(Mbps)
Connector
Interface
Fiber
Mode Distance Wavelength (TX)
Wavelength
(RX)
Operating
Temp.
MFB-FA20
MFB-FB20 100 WDM (LC) Single Mode 20km 1310nm 1550nm 0 ~ 60°C
1550nm 1310nm
MFB-TFA20
MFB-TFB20 100 WDM (LC) Single Mode 20km 1310nm 1550nm -40 ~ 75°C
1550nm 1310nm
MFB-TFA40
MFB-TFB40 100 WDM (LC) Single Mode 40km 1310nm 1550nm -40 ~ 75°C
1550nm 1310nm
Gigabit Ethernet Transceiver (1000Base-X SFP)
Model Speed
(Mbps)
Connector
Interface Fiber Mode Distance Wavelength (nm)
Operating
Temp.
MGB-GT 1000 Copper -- 100m -- 0 ~ 60°C
MGB-SX 1000 LC Multi Mode 550m 850nm 0 ~ 60°C
MGB-SX2 1000 LC Multi Mode 2km 1310nm 0 ~ 60°C
MGB-LX 1000 LC Single Mode 10km 1310nm 0 ~ 60°C
MGB-L30 1000 LC Single Mode 30km 1310nm 0 ~ 60°C
MGB-L40 1000 LC Single Mode 40km 1550nm 0 ~ 60°C
MGB-L50 1000 LC Single Mode 50km 1550nm 0 ~ 60°C
MGB-L70 1000 LC Single Mode 70km 1550nm 0 ~ 60°C

20
MGB-L120 1000 LC Single Mode 120km 1550nm 0 ~ 60°C
MGB-TSX 1000 LC Multi Mode 550m 850nm -40 ~ 75°C
MGB-TLX 1000 LC Single Mode 10km 1310nm -40 ~ 75°C
MGB-TL30 1000 LC Single Mode 30km 1310nm -40 ~ 75°C
MGB-TL50 1000 LC Single Mode 50km 1550nm -40 ~ 75°C
Gigabit Ethernet Transceiver (1000Base-BX, Single Fiber Bi-Directional SFP)
Model Speed
(Mbps)
Connector
Interface
Fiber
Mode Distance Wavelength (TX)
Wavelength
(RX)
Operating
Temp.
MGB-LA10
MGB-LB10 1000 WDM (LC) Single Mode 10km 1310nm 1550nm 0 ~ 60°C
1550nm 1310nm
MGB-LA20
MGB-LB20 1000 WDM (LC) Single Mode 20km 1310nm 1550nm 0 ~ 60°C
1550nm 1310nm
MGB-LA40
MGB-LB40 1000 WDM (LC) Single Mode 40km 1310nm 1550nm 0 ~ 60°C
1550nm 1310nm
MGB-LA60
MGB-LB60 1000 WDM (LC) Single Mode 60km 1310nm 1550nm 0 ~ 60°C
1550nm 1310nm
MGB-TLA10
MGB-TLB10 1000 WDM (LC) Single Mode 10km 1310nm 1550nm -40 ~ 75°C
1550nm 1310nm
MGB-TLA20
MGB-TLB20 1000 WDM (LC) Single Mode 20km 1310nm 1550nm -40 ~ 75°C
1550nm 1310nm
MGB-TLA40
MGB-TLB40 1000 WDM (LC) Single Mode 40km 1310nm 1550nm -40 ~ 75°C
1550nm 1310nm
MGB-TLA60
MGB-TLB60 1000 WDM (LC) Single Mode 60km 1310nm 1550nm -40 ~ 75°C
1550nm 1310nm
Note
It is recommended to use PLANET SFP transceivers on the Indus-
trial Gigabit PoE+ Switch. If you insert an SFP transceiver that is
not in the supported list, the Industrial Gigabit PoE+ Switch might
not recognize it.
