Planet SGS-6340-24T4S User manual

L3 Multi-Port Full Gigabit Stackable Managed Switch
SGS-6340-24T4S / SGS-6340-24P4S /
SGS-6340-20S4C4X / SGS-6340-48T4S / SGS-6340-16XR
Quick Installation Guide

Table of Contents
1. Package Contents ....................................................................................... 3
2. Switch Management.................................................................................... 4
3. Requirements ............................................................................................. 5
4. Terminal Setup ........................................................................................... 6
5. Logon to the Console .................................................................................. 7
6. ConguringIPAddress................................................................................ 8
7. Setting100BASE-FXforSFPPort(SGS-6340-20S4C4XOnly) ......................... 9
8. Setting1000BASE-XforSFP+Port
 (SGS-6340-16XR,SGS-6340-20S4C4XOnly) ...............................................10
9. UsingCopperInterfaceonComboPort (SGS-6340-20S4C4XOnly) ................11
10.SavingtheConguration ...........................................................................12
11.StartingWebManagement.........................................................................13
12.LoggingintotheManagedSwitch..............................................................14
13.SavingCongurationviatheWeb...............................................................15
14. Customer Support.....................................................................................16

3
1. Package Contents
Thank you for purchasing PLANET L3 Multi-Port Full Gigabit Stackable Managed
Switch, SGS-6340-24T4S/SGS-6340-24P4S/SGS-6340-20S4C4X/SGS-6340-48T4S/
SGS-6340-16XR.Thedescriptionsofthesemodelsareasfollows:
SGS-6340-24T4S Layer324-Port10/100/1000T+4-Port1000XSFP
StackableManagedSwitch
SGS-6340-24P4S Layer324-Port10/100/1000T802.3atPoE+4-Port
1000XSFPStackableManagedSwitch/370W
SGS-6340-20S4C4X Layer320-Port100/1000XSFP+4-PortGigabitTP/SFP
+4-Port10GSFP+StackableManagedSwitch
SGS-6340-48T4S Layer348-Port10/100/1000T+4-Port1000XSFP
StackableManagedSwitch
SGS-6340-16XR Layer316-Port10GBASE-SR/LRSFP+Stackable
ManagedSwitch(100~240VAC,48~60VDC)
Unless specied, “Managed Switch” mentioned in this Quick Installation Guide
referstotheabovefourmodels.
Open the box of the Managed Switch and carefully unpack it. The box should
containthefollowingitems:
zTheManagedSwitchx1
zQuickInstallationGuidex1
zRJ45-to-DB9ConsoleCablex1
zPowerCordx1
zRubberFeetx4
zTwoRack-mountingBracketswithAttachmentScrewsx1
zSFPDustCap(Pleaserefertotablebelow)
SFPDustCap ModelName
4SGS-6340-24T4S/24P4S/48T4S
16 SGS-6340-16XR
28 SGS-6340-20S4C4X
If any item is found missing or damaged, please contact your local reseller for
replacement.

4
2. Switch Management
To set up the Managed Switch, the user needs to congure the Managed Switch
fornetwork management.The ManagedSwitchprovides twomanagement options:
Out-of-Band ManagementandIn-Band Management.
Out-of-Band Management
Out-of-band management is the management through Console interface.
Generally, the user will use out-of-band management for the initial switch
conguration,orwhenin-bandmanagementisnotavailable.
Important
The Managed Switch is shipped without IP address assigned by
default. User must assign an IP address to the Managed Switch via
the Console interface to be able to remotely access the Managed
Switch through Telnet or HTTP.
In-Band Management
In-band management refers to the management by logging in to the Managed
Switchusing Telnetor HTTP, orusingSNMP managementsoftwareto congurethe
Managed Switch. In-band management enables the management of the Managed
SwitchtoattachsomedevicestotheSwitch.Thefollowingproceduresarerequired
toenableIn-bandmanagement:
1. Logon to console
2.Assign/CongureIPaddress
3. Create a remote login account
4.EnableHTTPorTelnetserverontheManagedSwitch
In case in-band management fails due to Managed Switch conguration changes,
out-of-band management can be used for conguring and managing the Managed
Switch.

5
3. Requirements
zWorkstations running Windows XP/2003/Vista/7/8/2008/10, MAC OS X or later,
Linux,UNIX,orotherplatformsarecompatiblewithTCP/IPprotocols.
zWorkstationsareinstalledwithEthernetNIC(NetworkInterfaceCard)
zSerialPortConnection(Terminal)
 The above Workstations come with COM Port (DB9) or USB-to-RS232
converter.
 The above Workstations have been installed with terminal emulator, such as
Tera Term or PuTTY.
 Serial cable -- one end is attached to the RS232 serial port, while the other
endtotheconsoleportoftheManagedSwitch.
zEthernetPortConnection
 Networkcables--Usestandardnetwork(UTP)cableswithRJ45connectors.
 The above PC is installed with Web browser and JAVA runtime environment
plug-in.
Note
It is recommended to use Internet Explore 8.0 or above to access
the Managed Switch. If the Web interface of the Managed Switch
is not accessible, please turn off the anti-virus software or firewall
andthentryitagain.

6
4. Terminal Setup
To congure the system, connect a serial cable to a COM port on a PC or
notebook computer and to serial (console) port of the Managed Switch. The
console port of the Managed Switch is DCE already, so that you can connect the
consoleportdirectlythroughPCwithouttheneedofNullModem.
Managed Switch
PC / Workstation
with
Terminal Emulation Software
Serial Port
RS232 to RJ45 Cable
Console Port
RJ45
Figure 4-1 Managed Switch Console Connectivity
Note
Let’stakeSGS-6340-48T4Sforexample.
A terminal program is required to make the software connection to the Managed
Switch. Tera Term program may be a good choice. The Tera Term can be accessed
fromtheStart menu.
1. Click STARTmenu,thenPrograms,andthenTera Term.
2.When the following screen appears, make sure that the COM port should be
conguredas:
Baud: 9600
Parity: None
Databits: 8
Stopbits: 1
Flowcontrol: None
Figure 4-2 Tera Term COM Port Conguration

7
5. Logon to the Console
Once the terminal is connected to the device, power on the Managed Switch, and
theterminalwilldisplay“running testing procedures”.
Then, the following message asks for the login user name and password. The
factory default user name and password are as follows as the login screen in
Figure5-1appears.
Username:admin
Password:admin
Figure 5-1 Managed Switch Console Login Screen
The user can now enter commands to manage the Switch. For a detailed
descriptionofthecommands,pleaserefertothefollowingchapters.
Note
1.Forsecurity reason,please changeandmemorize thenewpass-
wordafterthisfirstsetup.
2.Only accept command in lowercase letter under console inter-
face.

8
6.ConguringIPAddress
The IP address conguration commands for VLAN1 interface are listed below.
Before using in-band management, the Managed Switch must be congured with
an IP address by out-of-band management (i.e. console mode). The conguration
commandsareasfollows:
SGS-6340-48T4S#cong
SGS-6340-48T4S(cong)# interface vlan 1
SGS-6340-48T4S(cong-if-Vlan1)#ip address 192.168.1.254 255.255.255.0
ThepreviouscommandwouldapplythefollowsettingsfortheManagedSwitch.
IPv4 Address: 192.168.1.254
Subnet Mask: 255.255.255.0
Figure 6-1 Conguring IPv4 Address Screen
To check the current IP address or modify a new IP address for the Managed
Switch,pleaseusetheproceduresasfollows:
Show the current IP address
1.On “SGS-6340-48T4S#” prompt,enter“show ip interface brief”.
2.Thescreendisplays the currentIP address, SubnetMaskand Gatewayasshown
inFigure6-2.
Figure 6-2 Showing IP Information Screen
If the IP is successfully congured, the Managed Switch will apply the new IP
address setting immediately. You can access the Web interface of Managed Switch
throughthenewIPaddress.
Note
Ifyouarenotfamiliarwithconsolecommandortherelatedparam-
eter,enter“help”anytimeinconsoletogetthehelpdescription.

9
7.Setting100BASE-FXforSFPPort(SGS-6340-
20S4C4XOnly)
The Managed Switch supports both 1000BASE-X and 100BASE-FX SFP
transceiver by manual setting and the default SFP port speed is set to 1000Mbps.
To establish the ber connection with 100BASE-FX SFP transceiver, the following
commandcongurationisrequired:
SGS-6340-20S4C4X#cong
SGS-6340-20S4C4X(cong)#interface ethernet 1/0/1-20
SGS-6340-20S4C4X(cong-if-port-range)#speed-duplex force100-fx
module-type auto-detected
SGS-6340-20S4C4X(cong-if-port-range)#exit
SGS-6340-20S4C4X(cong)#interface ethernet 1/0/21-24
SGS-6340-20S4C4X(cong-if-port-range)#media-type ber
SGS-6340-20S4C4X(cong-if-port-range)#speed-duplex force100-fx
module-type auto-detected
SGS-6340-20S4C4X(cong-if-port-range)#
Figure 7-1 Setting 100BASE-FX Screen

10
8.Setting1000BASE-XforSFP+Port(SGS-6340-16XR,
SGS-6340-20S4C4XOnly)
The Managed Switch supports both 1000BASE-X and 10GBASE-X SFP transceiver
bymanual settingand thedefaultSFP+ portspeed isset to10Gbps. Forexample,
to establish the ber connection with 1000BASE-X SFP transceiver in the ethernet
1/0/1,thefollowingcommandcongurationisrequired:

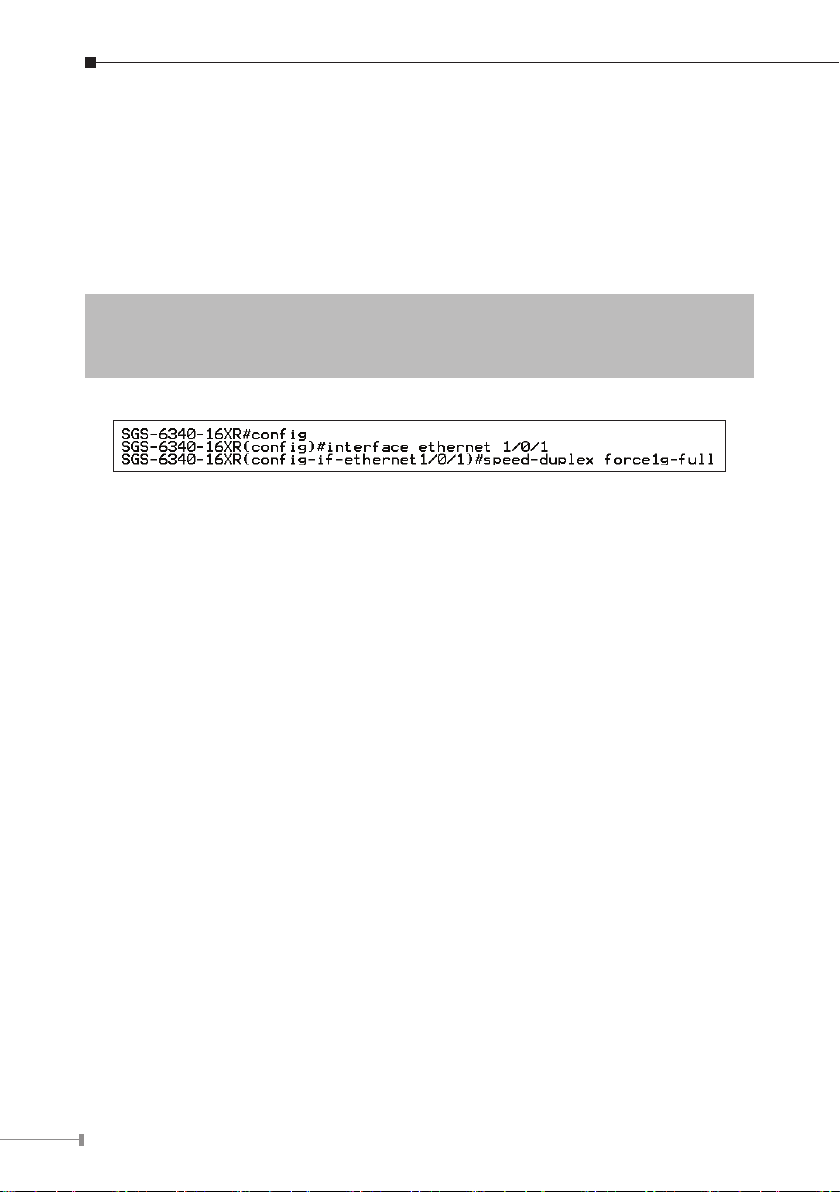

SGS-6340-16XR#cong
SGS-6340-16XR(cong)#interface ethernet 1/0/1
SGS-6340-16XR(cong-if-ethernet1/0/1)#speed-duplex force1g-full
Figure 8-1 Setting 1000BASE-FX Screen

11
9.UsingCopperInterfaceonComboPort(SGS-6340-
20S4C4XOnly)
The Managed Switch’s combo port has SFP and copper interface and the default
combo port type is SFP port only. To establish the combo port connection with
copperinterface,thefollowingcommandcongurationisrequired:
SGS-6340-20S4C4X#cong
SGS-6340-20S4C4X(cong)#interface ethernet 1/0/21-24
SGS-6340-20S4C4X(cong-if-port-range)#media-type copper
Figure 9-1 Using Copper Interface Screen

12
10.SavingtheConguration
In Managed Switch, the running conguration le stores in the RAM. In the
current version, the running conguration sequence running-cong can be saved
from the RAM to FLASH by write command or copy running-cong startup-
congcommand,sothattherunningcongurationsequencebecomesthestart-up
congurationle,whichiscalledcongurationsave.

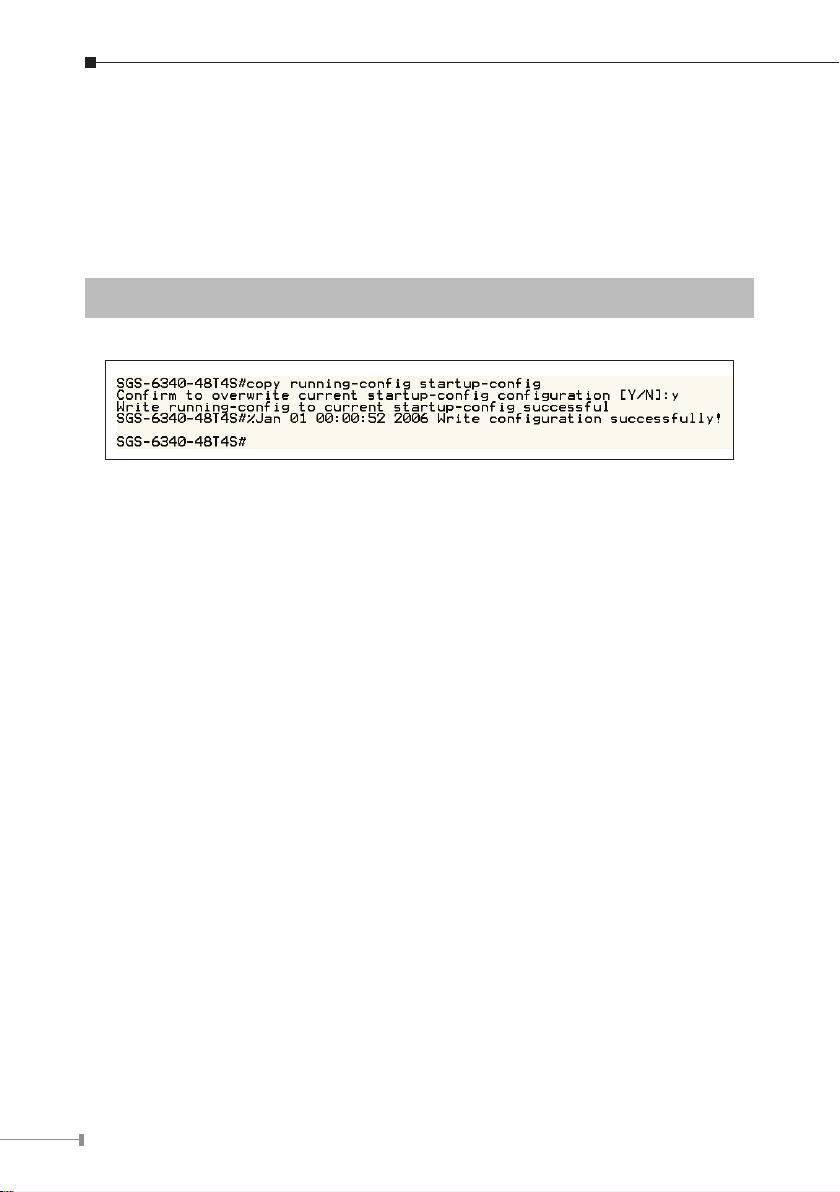

SGS-6340-48T4S#copy running-cong startup-cong
Figure 10-1 Copying Running-cong Startup-cong Screen

13
11.StartingWebManagement
The Managed Switch provides a built-in browser interface. You can manage it
remotely by having a remote host with Web browser, such as Microsoft Internet
Explorer,MozillaFirefox,GoogleChromeorAppleSafari.
PC / Workstation
with Web Browser
192.168.0.x
Managed Switch
RJ45/UTP Cable
IP Address:
192.168.0.100
Figure 11-1 IP Management Diagram
The following shows how to start-up the Web Management of the Managed
Switch. Please note the Managed Switch is congured through an Ethernet
connection. Please make sure the manager PC must be set on the same IP
subnet address.
For example, the IP address of the Managed Switch is congured with
192.168.0.100, then the manager PC should be set at 192.168.0.x (where x
is a number between 1 and 253, except 100), and the default subnet mask is
255.255.255.0.
Thefactorydefaultusernameandpasswordareasfollows:
Username:admin
Password:admin

14
12.LoggingintotheManagedSwitch
1.Use Internet Explorer 8.0 or above Web browser and enter IP address
http://192.168.1.254 (that you have just set in console) to access the Web
interface.
2.When the following dialog box appears, please enter the congured username
“admin”and password“admin”(or theusername/passwordyou havechanged
viaconsole).TheloginscreeninFigure11-1appears.
Figure 12-1 Login Screen
3.Afterenteringthepassword,themainscreenappearsasshowninFigure12-2.
Figure 12-2 Web Main Screen of Managed Switch
4.The Switch Menu on the left of the Web page lets you access all the commands
andstatisticstheSwitchprovides.
Now, you can use the Web management interface to continue the Switch
management or manage the Managed Switch by console interface. Please refer to
theusermanualformore.

15
13.SavingCongurationviatheWeb
In the Managed Switch, the running conguration le stores in the RAM. In the
currentversion, therunningconguration sequenceofrunning-cong canbe saved
from the RAM to FLASH by “Save current running-congurations” function,
so that the running conguration sequence becomes the startup conguration le,
whichiscalledcongurationsave.
To save all applied changes and set the current conguration as a startup
conguration, the startup-conguration le will be loaded automatically across a
systemreboot.
1. Click “Switch basic conguration > Switch basic conguration > Save
current running-conguration” to login “Save current running-conguration”
Page.
2. Press the “Apply” button to save current running-conguration to start up
conguration.

16
14. Customer Support
Thank you for purchasing PLANET products. You can browse our online FAQ
resource at the PLANET Web site rst to check if it could solve your issue. If you
needmoresupportinformation,pleasecontactPLANETswitchsupportteam.
PLANETonlineFAQ:
http://www.planet.com.tw/en/support/faq.php?type=1
Switchsupportteammailaddress:
[email protected]
SGS-6340SeriesUser’sManual
http://www.planet.com.tw/en/support/download.php?type1=1&model=&type=3#list
(Please select your switch model name from the drop-down menu of Product
Models.)
Copyright © PLANET Technology Corp. 2016.
Contents are subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their
respective owners.
