Planet WGS-5225-8UP2SV User manual

Industrial L2+ 8-Port 10/100/1000T 802.3bt
PoE + 2-Port 1G/2.5G SFP Wall-mount
Managed Switch with LCD Touch Screen
WGS-5225-8UP2SV
Quick Installation Guide

Table of Contents
1. Package Contents ....................................................................................... 3
2. Requirements ............................................................................................. 4
3. Hardware Installation .................................................................................. 5
3.1 Wall Mount Installation......................................................................... 5
3.2 Wall Hanging Installation...................................................................... 6
3.3 Grounding the Device .......................................................................... 6
4. Wiring the Power Inputs.............................................................................. 7
4.1 Terminal Block Connector Pinout ........................................................... 8
4.2 Wiring Completed in Three Steps.......................................................... 8
4.3 Wiring the Alarm Contact ..................................................................... 9
5. Web Login.................................................................................................10
5.1 Starting Web Management ..................................................................10
 5.2 SavingCongurationviatheWeb ........................................................12
6. SSH Login.................................................................................................13

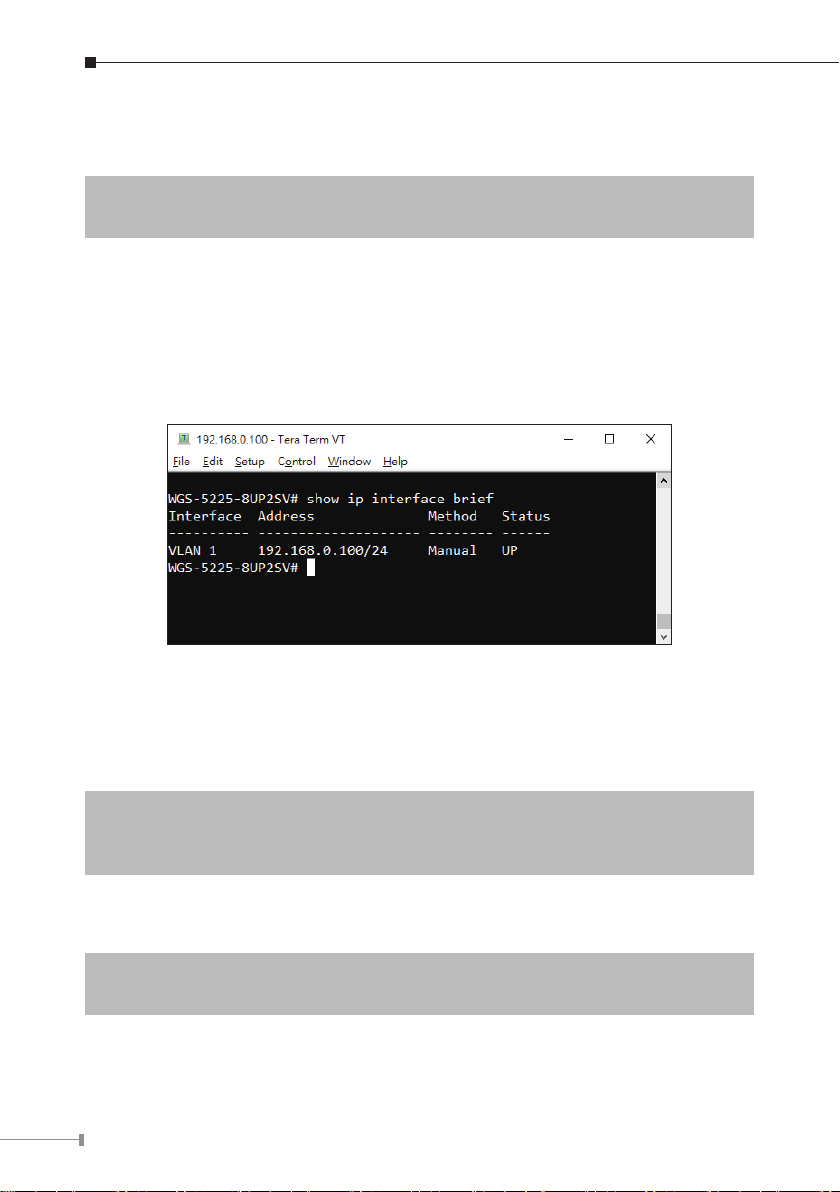

 6.1 ConguringIPAddress........................................................................14

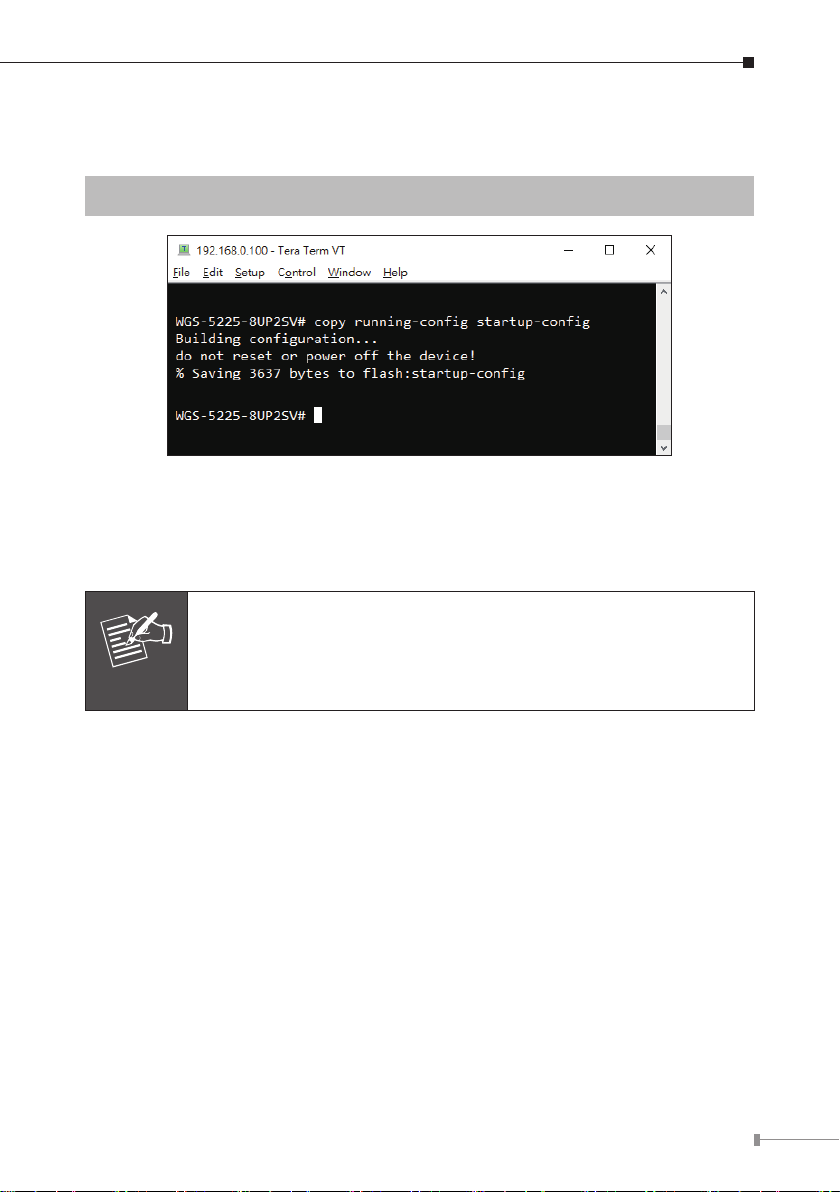

6.2 StoringtheCurrent Switch Conguration ..............................................15
7. RecoveringBacktoDefaultConguration.....................................................16
8. LCD Touch Screen......................................................................................17
9. Customer Support .....................................................................................19

3

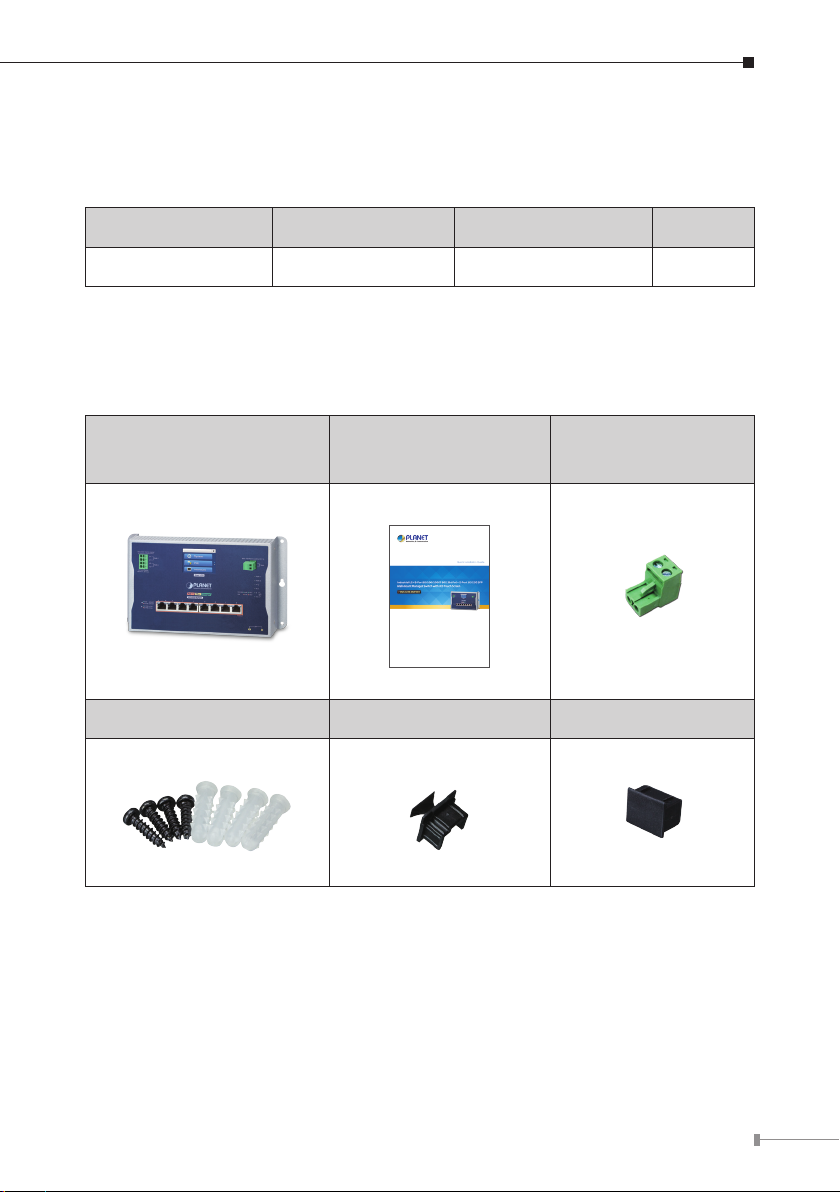

1. Package Contents
Thank you for purchasing PLANET Industrial Wall-mount Managed Gigabit Switch,
WGS-5225-8UP2SV. The table below shows the model with the number of ports:
Model Name Copper Port Fiber Port 2.4 LCD
WGS-5225-8UP2SV 8 x 10/100/1000T 2 x 100/1000/2500X 
In the following sections, unless specied, the term “Wall-mount Managed
Switch” mentioned in this quick installation guide refers to the above model.
Open the box of the Wall-mount Managed Switch and carefully unpack it. The box
should contain the following items:
The Wall-mount Managed
Switch x 1
Quick Installation Guide
x 1
2-pin Terminal Block
Connector x 1
Wall-mounted Kit x 1 set RJ45 Dust Cap x 8 SFP Dust Cap x 2
If any item is found missing or damaged, please contact your local reseller for
replacement.

4
2. Requirements
zAat-bladescrewdriver
zWorkstations running Windows XP/2003/Vista/7/8/2008/10, MAC OS X or later,
Linux, UNIX, or other platforms are compatible with TCP/IP protocols.
zWorkstations are installed with Ethernet NIC (Network Interface Card)
zEthernet Port Connection
Network cables -- Use network (UTP) cables with RJ45 connectors.
The above Workstations is installed with Web browser.
The above Workstations have been installed with SSH and telnet client soft-
ware, such as Tera Term or PuTTY.
Note
It is recommended to use Internet Explorer 8.0 or above to access
the Wall-mount Managed Switch. If the Web interface of the Wall-
mount Managed Switch is not accessible, please turn off the anti-
virus software or firewall and then try it again.

5
3. Hardware Installation
3.1 Wall Mount Installation
To install the Wall-mount Managed Switch on the wall, simply follow the following
steps:
Step 1: Drill 4 holes with 8mm diameter on the wall. The horizontal and vertical
distances between the 2 holes are 230mm and 124mm, respectively.
230mm
124mm
Ø4mm
6mm
Ø8mm
Step 2: Hammer the four anchors into the four holes.
1 2
Step 3: Then the four given screws are screwed into the anchors to nish the
wall-mount installation, as shown below.
ACTLNK
ACTLNK
1G/2.5G
100
1000 LNK/ACT
10/100 LNK/ACT
bt PoE-in-Use
at PoE-in-Use
R.O.
Ring
PWR 2
PWR 1
SFP
9
10
PWR 1
V1
V1+
PWR 2
V2
V2+
3 421 7 865
WGS-5225-8UP2SV
Managed
Fiber
SFP
910
Alarm
Smart LCD
DC Input Range
48-54V
, 8A max.
PoE++
Dual power input is required
for maximum PoE loading.
Max. Fault Alarm Loading: 24V,1A
230mm
124mm

6

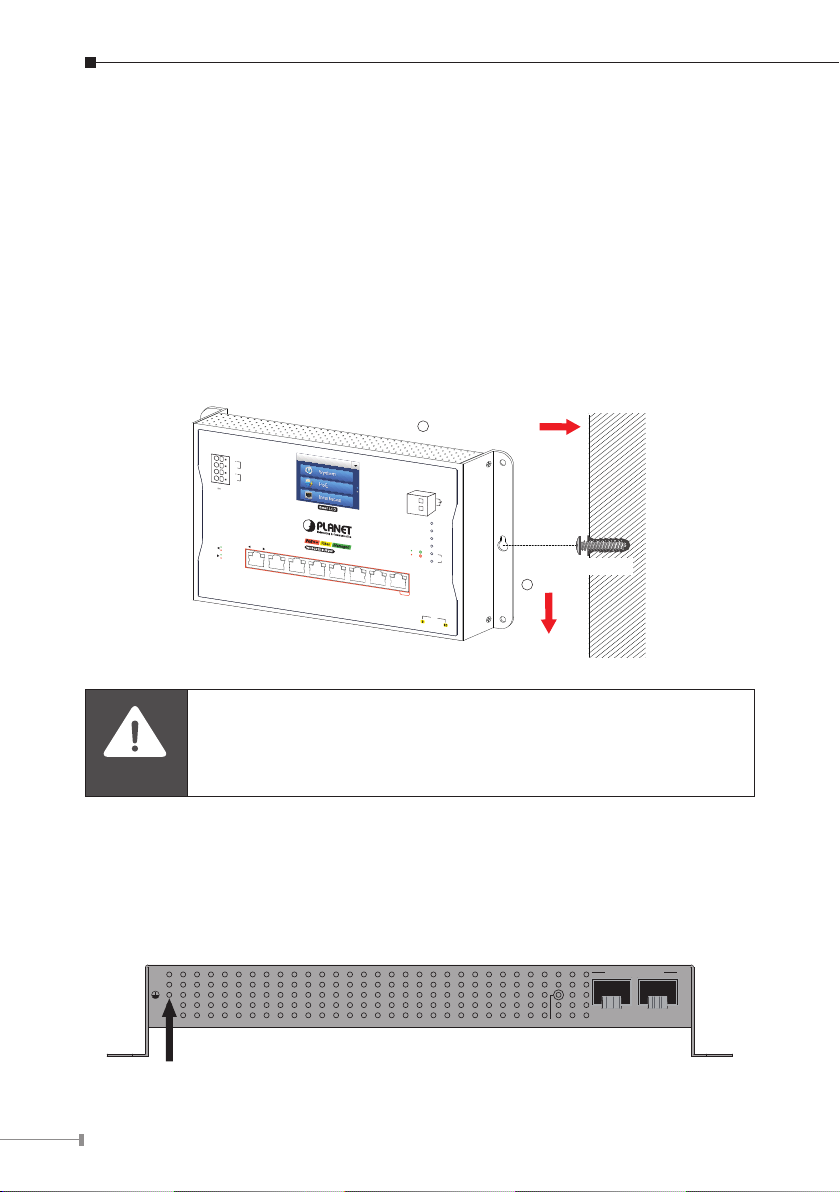

3.2 Wall Hanging Installation
To hang the Wall-mount Managed Switch on the wall, simply follow the following
steps:
Step 1: Drill 2 holes (one hole on each side) with 8mm diameter on the wall; the
distance between the 2 holes is 230 mm and the line through them must
be horizontal.
Step 2: Place two anchors inside the hole by hammering them. Then screw the
two screws leaving a space of 2mm apart as shown in the circled diagram
below.
Step 3: The switch, shown in the picture below, can now be hung on the wall.
ACTLNK
ACTLNK
1G/2.5G
100
1000 LNK/ACT
10/100 LNK/ACT
bt PoE-in-Use
at PoE-in-Use
R.O.
Ring
PWR 2
PWR 1
SFP
9
10
PWR 1
V1
V1+
PWR 2
V2
V2+
3 421 7 865
WGS-5225-8UP2SV
Managed
Fiber
SFP
910
Alarm
Smart LCD
DC Input Range
48-54V
, 8A max.
PoE++
Dual power input is required
for maximum PoE loading.
Max. Fault Alarm Loading: 24V,1A
1Place against a wall
2Hang up
4mm Screw
Caution
Make sure the equipment is securely wall-mounted as strong vibra-
tion could cause it to drop or break.
3.3 Grounding the Device
User MUST complete grounding wired with the device; otherwise, a sudden
lightning could cause fatal damage to the device. EMD (Lightning) DAMAGE IS NOT
CONVERED UNDER WARRANTY.
9
100 /1G /2.5G SFP
10
Reset
Earth Ground

7
4. Wiring the Power Inputs
The Wall-mount Managed Switch features a strong dual power input system
incorporated into customer’s automation network to enhance system reliability and
uptime.
Power Input
Range
Model
PWR1 PWR2
WGS-5225-8UP2SV DC 48-54V, 8A max DC 48-54V, 8A max
Note: Maximum power requirements also rely on the real site application.
ACTLNK
ACTLNK
1G/2.5G
100
1000 LNK/ACT
10/100 LNK/ACT
bt PoE-in-Use
at PoE-in-Use
R.O.
Ring
PWR 2
PWR 1
SFP
9
10
PWR 1
V1
V1+
PWR 2
V2
V2+
3 421 7 865
WGS-5225-8UP2SV
ManagedFiberPoE++
SFP
9 10
Alarm
Smart LCD
DC Input Range
48-54V
, 8A max.
PoE++
Dual power input is required
for maximum PoE loading.
Max. Fault Alarm Loading: 24V,1A
10/100/1000BASE-T 802.3bt PoE++ RJ45 Port
4-pin Spring Terminal Block
V1
V1+
V2
V2+
DC Input Range
48-54V
, 8A max.
Note
Dual power input is required for maximum PoE loading
Single power input: Max. 360 watts PoE budget@52-54V DC
Dual power input: Max. 720 watts PoE budget@52-54V DC
Caution
PWR1 and PWR2 must provide exactly same DC voltage for
power load balance while operating with dual power input.

8
4.1 Terminal Block Connector Pinout
The Front Panel of the Wall-mount Managed Switch consists of one spring
terminal block connector within 4 contacts. Please follow the steps below to
insert the power wire.
PWR 1
V1
V1+
PWR 2
V2
V2+
Insert positive/negative DC power wires into Contacts V1+ and V1- for Power 1, or
Contacts V2+ and V2- for Power 2.

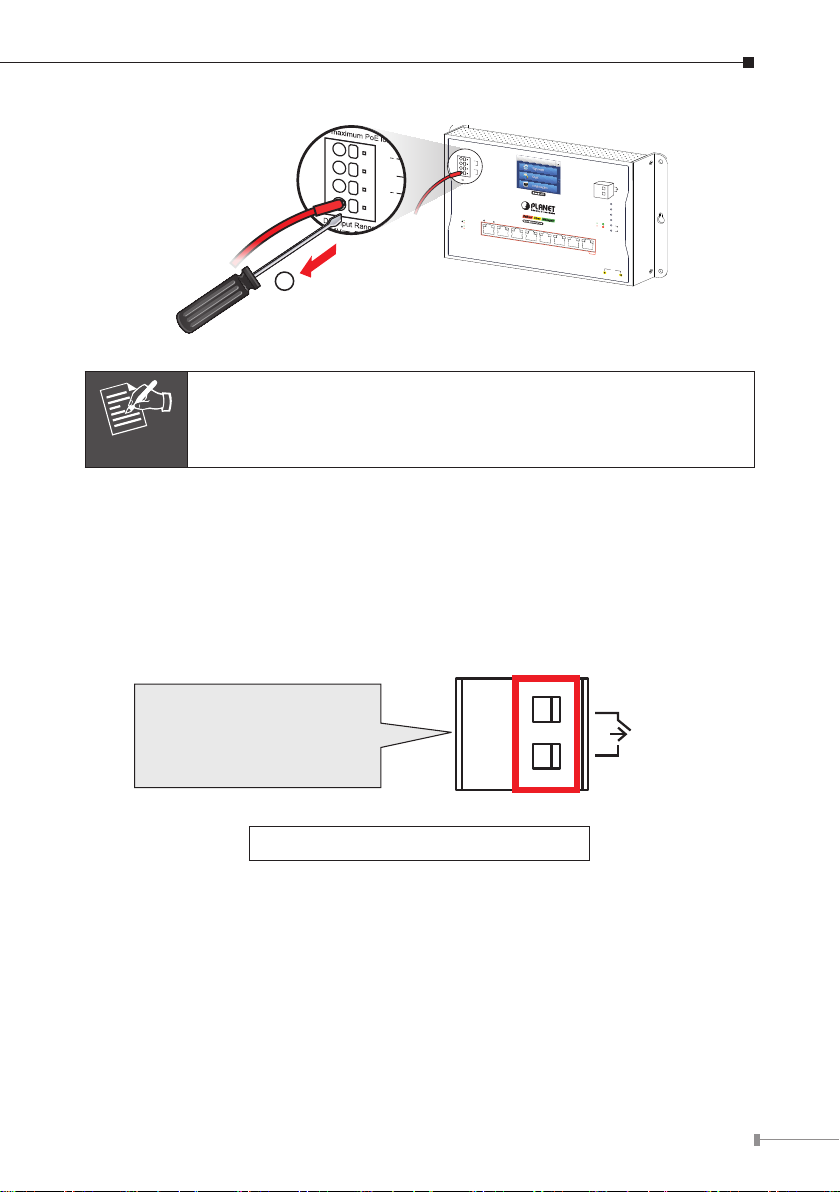

4.2 Wiring Completed in Three Steps
Step 1: Presstheat-bladescrewdriverdiagonallyintothereleasehole.
Step 2: Leave the at-blade screwdriver pressed into the release hole and insert
the wire into the terminal hole.
Step 3: Removetheat-bladescrewdriverfromthereleasehole.
After you connect the wires, pull gently on the wire to make sure that it
willnotcomeoandthewireissecurelyfastenedtotheterminalblock.
ACTLNK
ACTLNK
1G/2.5G
100
1000 LNK/ACT
10/100 LNK/ACT
btPoE-in-Use
atPoE-in-Use
R.O.
Ring
PWR 2
PWR 1
SFP
9
10
PWR 1
V1
V1+
PWR 2
V2
V2+
3 421 7 865
WGS-5225-8UP2SV
Managed
Fiber
SFP
910
Alarm
Smart LCD
DC Input Range
48-54V
, 8A max.
PoE++
Dual power input is required
for maximum PoE loading.
Max. FaultAlarm Loading: 24V, 1A
1
2
Wire
Flat-blade screwdriver
V1
V1+
V2
V2+

9
ACTLNK
ACTLNK
1G/2.5G
100
1000 LNK/ACT
10/100 LNK/ACT
btPoE-in-Use
atPoE-in-Use
R.O.
Ring
PWR 2
PWR 1
SFP
9
10
PWR 1
V1
V1+
PWR 2
V2
V2+
3 421 7 865
WGS-5225-8UP2SV
Managed
Fiber
SFP
910
Alarm
Smart LCD
DC Input Range
48-54V
, 8A max.
PoE++
Dual power input is required
for maximum PoE loading.
Max. FaultAlarm Loading: 24V, 1A
3
V1
V1+
V2
V2+
Wire
Flat-blade screwdriver
Note
The wire gauge should be in the range from 12 to 16 AWG.
4.3 Wiring the Alarm Contact
The alarm contacts are in the middle of the terminal block connector as the picture
shows below. Inserting the wires, the Wall-mount Managed Switch will detect the
event status of the port or power failure and then forms an open circuit. The
following illustration shows an application example for wiring the alarm contacts.
The Fault Alarm Contacts are
energized (CLOSE) for normal
operation and will OPEN when
failure occurs
Alarm
Insert the wires into the fault alarm contacts.

10
5. Web Login
5.1 Starting Web Management
The following shows how to start up the Web Management of the Wall-mount
Managed Switch. Note the Wall-mount Managed Switch is congured through an
Ethernet connection. Please make sure the manager PC must be set to the same
IP subnet address.
For example, the default IP address of the Wall-mount Managed Switch is
192.168.0.100, then the manager PC should be set to 192.168.0.x (where x
is a number between 1 and 254, except 100) and the default subnet mask is
255.255.255.0. PC / Workstation
with Web Browser
192.168.0.x
Managed Switch
RJ45/UTP Cable
IP Address: 192.168.0.100

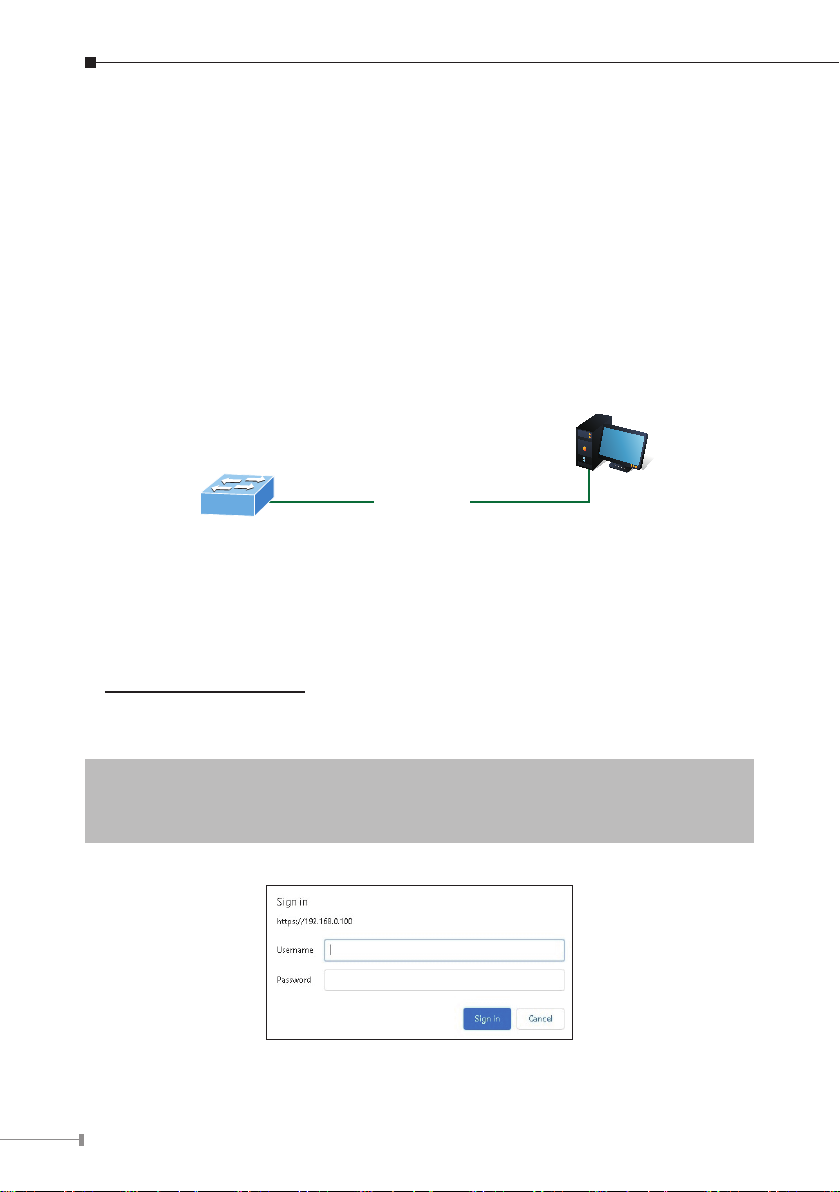

Figure 5-1: IP Management Diagram
Logging in to the Wall-mount Managed Switch
1. Use Internet Explorer 8.0 or above Web browser and enter IP address
https://192.168.0.100 to access the Web interface.
2. When the following dialog box appears, please enter “admin” in both the
defaultusernameandpasswordelds.TheloginscreeninFigure5-2appears.
Default IP Address: 192.168.0.100
Default Username: admin
Default Password: admin
Figure 5-2: Web Login Screen

11
3. After entering the password, the main screen appears as Figure 5-3 shows.

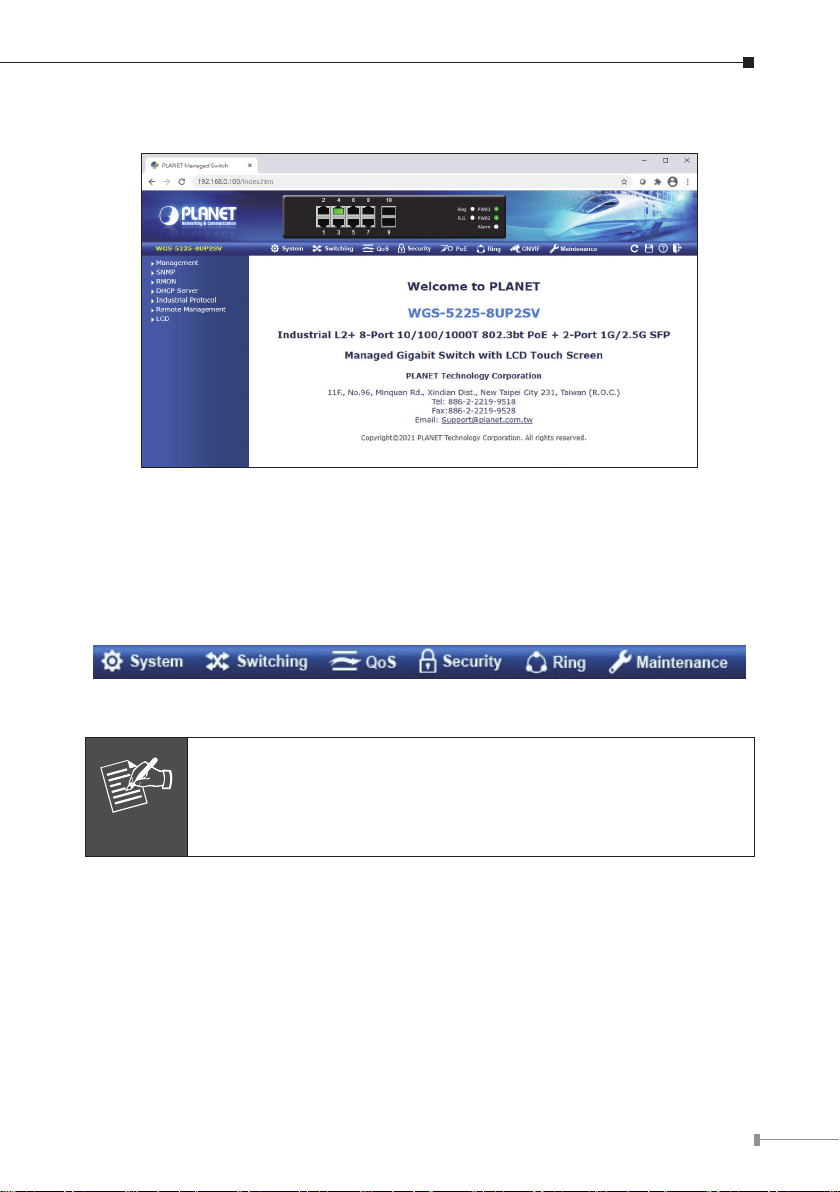

Figure 5-3: Web Main Screen of Wall-mount Managed Switch
The Switch Menu on the top of the Web page lets you access all the commands
and statistics the Wall-mount Managed Switch provides. The Switch Menu always
contains one or more buttons, such as “System”, “Switching”, “Routing”, “QoS”,
“Security”, “Ring” and “Maintenance”.
Figure 5-4: Switch Menu
Note
If you are not familiar with Switch functions or the related param-
eter, press “Help icon” anytime on the Web page to get the help
description.

12
5.2 SavingCongurationviatheWeb
To save all applied changes and set the current conguration as a startup
conguration, the startup-conguration le will be loaded automatically across a
system reboot.
1. Click the Save icon on the top Switch Menu bar.
2. Press the “Save Conguration” button.
3. Or the other way to save the setting is to Click Maintenance, Save Startup
Cong.

13
6. SSH Login
The Wall-mount Managed Switch also supports SSHv2 for remote management.
The switch asks for user name and password for remote login when using SSHv2
client software; please use “admin” for both username and password.
Default IP address: 192.168.0.100
Username: admin
Password: admin
Figure 6-1: Wall-mount Managed Switch SSHv2 Login Screen
The user can now enter commands to manage the Wall-mount Managed Switch.
For a detailed description of the commands, please refer to the following chapters.
Note
1. For security reason, please change and memorize the new
password after this first setup.
2. Only accept command in lowercase letter under console inter-
face.

14
6.1 ConguringIPAddress
The Wall-mount Managed Switch is shipped with default IP address shown below:
IP Address: 192.168.0.100
Subnet Mask: 255.255.255.0
To check the current IP address or modify a new IP address for the Switch, please
use the procedure as follows:
Display of the Current IP Address
1. At the “#” prompt, enter “show ip interface brief”.
2. The screen displays the current IP address shown in Figure 6-2.
Figure 6-2: IP Information Screen
CongurationoftheIPAddress
3. At the “#” prompt, enter the following command and press <Enter> as shown
in following
WGS-5225-8UP2SV# congure terminal
WGS-5225-8UP2SV(cong)#interface vlan 1
WGS-5225-8UP2SV(cong-if-vlan)# ip address 192.168.1.100 255.255.255.0
The previous command would apply the following settings for the Wall-mount
Managed Switch.
IP Address: 192.168.1.100
Subnet Mask: 255.255.255.0
4. Repeat step 1 to check if the IP address has changed.

15
6.2 StoringtheCurrentSwitchConguration
At the “#” prompt, enter the following command and press <Enter>.
# copy running-cong startup-cong
Figure 6-3: Saving Current Conguration Command Screen
If the IP is successfully congured, the Wall-mount Managed Switch will apply the
new IP address setting immediately. You can access the Web interface of the Wall-
mount Managed Switch through the new IP address.
Note
If you are not familiar with the command line interface(CLI) or the
related parameter, enter “help” anytime in CLI to get the help
description.

16

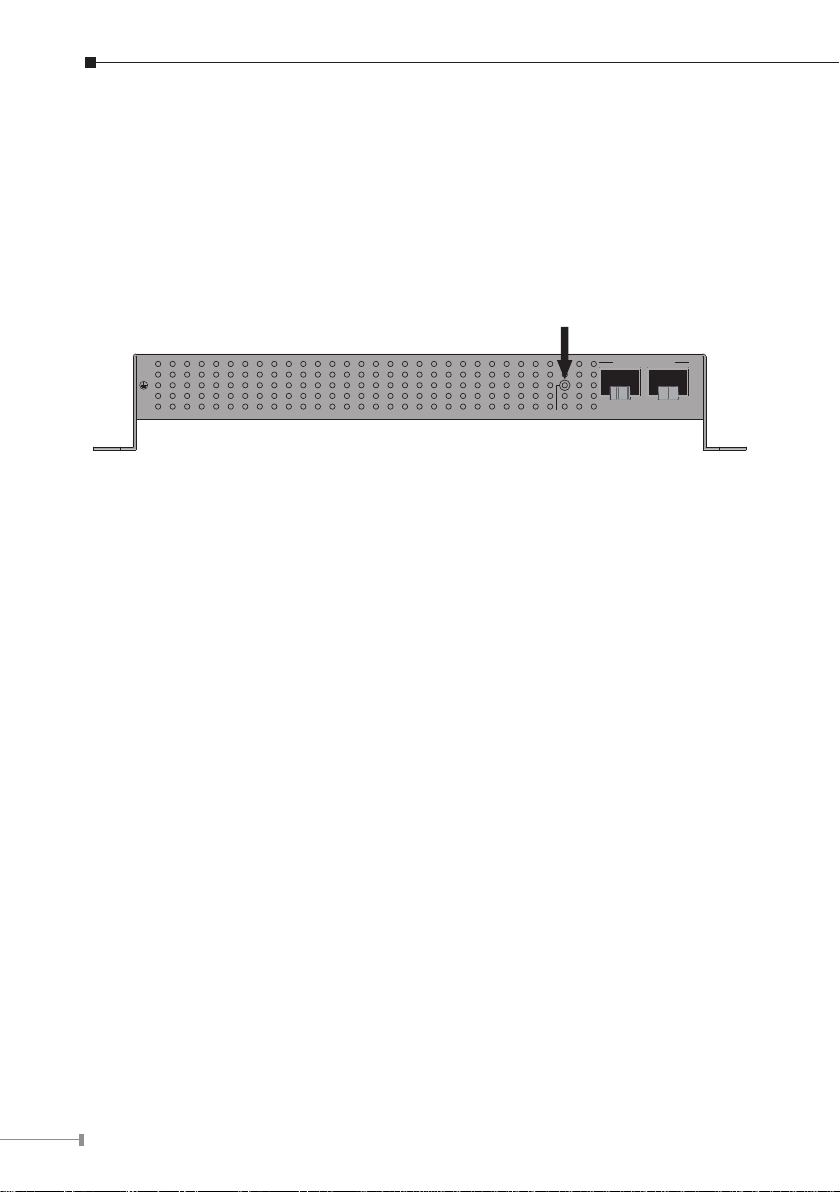

7.RecoveringBacktoDefaultConguration
IP Address has been changed or admin password has been forgotten –
To reset the IP address to the default IP address “192.168.0.100” or reset the
login password to default value, press the reset button on the front panel for
about 5 seconds. After the device is rebooted, you can log in the Web interface
management within the same subnet of 192.168.0.xx.
9
100 /1G /2.5G SFP
10
Reset
Reset Button
Figure 7-1: WGS-5225-8UP2SV Reset Button-

17
8. LCD Touch Screen
The WGS-5225-8UP2SV has a 2.4-inch color LCD touch screen with management
functions. Tap the LCD touch screen to wake the LCD touch screen.
Figure 8-1: To wake the LCD touch screen
ThefactorydefaultLCDcongurationsareshownasfollows.
Default LCD: Enable
Default Touch Screen: Enable
Default Backlight Timeout: Enable
Default Backlight Timeout Time: 300
Default Read Only Mode: Disable
Default Screen: Main Menu
Default Time Interval: 10
Default Color Scheme: Dark
Default Pin Number: 1234

18
You can use the Web management interface and click LCD, and then in the LCD
Management,changeLCDconguration.
Please refer to the user’s manual for more.

19
9. Customer Support
Thank you for purchasing PLANET products. You can browse our online FAQ
resourceand User’sManualonPLANET Website rsttocheck ifit couldsolveyour
issue. If you need more support information, please contact PLANET support team.
PLANET online FAQs:
https://www.planet.com.tw/en/support/faq
Support team mail address:
[email protected]
WGS-5225-8UP2SV User’s Manual:
https://www.planet.com.tw/en/support/downloads?&method=keyword&keyword=w
gs-5225-8up2sv&view=3#list
Copyright © PLANET Technology Corp. 2021
Contents are subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp.
All other trademarks belong to their respective owners.
