Chapter1. Introduction
1-1About theSwitch
Congratulations on purchasing the ChassisSwitch FGSW-008. The
Switchis acombination of 8slot host cabinetwhichcanoptional a
lot of kinds of media modules to fityour networking needs. A
maximum64X 10/100 Base-TXswitched ports can be achieved
using 8X 8 port 10/100Base-TX switchmodule.
Byproviding 8G-Link bus interfacesinthe base unit, theuser has
the freedomto arrange anymodule in anyslot giving the ultimate in
flexibility.Switchfeatures store-and-forward switching scheme.
Everymodule has itsown12K-entryMAC address to store source
address. The backplane of theSwitch canreach up to 19.2Gbps as to
improving network performance.
Figure 1-1. The Switch

Gigabit Chassis Switch
2
This chapter gives an overviewof the Switch and it covers the
following items:
n About the switch
n Features
n Package contents
1-2 Feature
The 8-expansion slotscan flexible configure your network.It can be
64 ports 10/100Base-TXswitch, 32 ports 100Base-FX(SC/ST)
switch, 64 ports 100Base-FX(MT-RJ/VF-45) switchor 8ports
Gigabit Switch. Redundant Hot-Swap power supplysupport.
Install our Gigabit Module and saygoodbyeto data bottlenecks. The
Gigabit Module catapults your 10 and 100Mbps signals to afull
1000Mbps for unparalleled uplink data capacity.
The Switch has following features:
n Conformsto the IEEE 802.3, 802.3u, 802.3z &802.3x, 802.3ab
standards
n 8 expansion slots
n Support different optional modules include:
8-port 10/100Base-TX N-way Switch Module
2-port 100Base-FX Fiber Module ( ST/SC/MT-RJ/VF-45 )
4-port 100Base-FX Fiber Module ( ST/SC/MT-RJ/VF-45 )
8- port 100Base-FX Fiber Module ( MT-RJ/VF-45 )

FGSW-008 User's Manual 3
one-port 1000Base-SX Gigabit Fiber Module
one-port 1000Base-LX Gigabit Fiber Module
one-port 10/100/1000Base-T Gigabit copper Module
n Store-and-Forward technology is used
n Redundant Hot Swap Power Supplysupport
n Plug-and-Play,self-learns network configuration
n Supports both half and full-duplex modes
1-3 Package Contents
n The Switch
n One Power Cord
n Rack-Mount Kit
n 4 Rubber Feet
n User s Manual
Compare the contents of your FGSW switchpackagewiththe
standard checklist above. Ifany itemismissing or appears damaged,
please keep the cartonand original packaging materials if possible in
case you need to return the switch for repair.
Figure1-2. The Package contentsof Switch

Gigabit Chassis Switch
4
This page is intentionally left blank

FGSW-008 User's Manual 5
Chapter2. Hardware Description
This chapter mainlydescribes the hardware of the Switch:
2-1 PhysicalDescription
The Switch is amodular unit,and its chassiscontains 8expansions.
The LEDs are located on the front panel of the Switchto allowyou
to monitor the operation and performance at a glance.
The Physical Dimensions of the Switch are:
440mmX 266mmX 133mm (3U height)
2-2 Front & RearPanel
The front panel of Switch displayed in Figure 2-1 is shownwith
8-port 10/100Base-TX Modules, 100Base-FX Modules and Fiber
Gigabit Modules.
The 3-pronged power plug and On/off switched are located at the
Rear Panel of the Switchdisplayed in Figure 2-2. The Switch will
work with AC in the range 100-240VAC, 50-60Hz.
Figure 2-1. Front Panel

Gigabit Chassis Switch
6
Figure 2-2. Rear Panel
2-3 ModuleLED Indicators
AllLED status indicators arelocated on the FRONT panel ofthe
switches. Theyprovide areal-time indication ofsystemand
operational status. The portsfor connections to other devices and
networks are also on the front panels. The following sections provide
descriptions of the LED indicators and ports.
2-4 Dual PowerLEDs
There are four LEDs located on the front panel of the Switch. The
LEDs are to indicate dual power supplystatus (Good or Fail ).
PowerNotice:
1. The device is apower-requireddevice, it means, it will not work
till it is powered. If your networks should active all thetime,
please consider use anUPS (Uninterrupted Power Supply)for
your device. It willpreventyoufromnetwork data loss or
network downtime.
2. In some area, installing asurge suppressiondevicemayalso help
to protect your hub frombeing damaged byunregulated surge or
current to the Switch or the power adapter.

FGSW-008 User's Manual 7
Chapter3. Modules
This chapter contains the following topics:
n Optional Modules
n Installing Optional Modules
3-1OptionalModules
Amodule familyconsisting of either 8 x 10/100Base-TX ports;
1x1000Base-SX/LX port, 1x10/100/1000Base-Tport, 2x
100Base-FX ports; 4x100Base-FX ports, 8x100 Base-FX
ports allowsthe user to choose moduleswhichoptimize
network performance while reducing cost and complexity.
Byproviding 8G-Link bus interfaces inthe base unit, the user
has the freedomto arrange anymodule in any slot giving the
ultimate in flexibility.The integration of10/100Mbps and
1000Mbps technology isnowasimple matter of slotting inthe
desired module. Bymixing different modules in the same
cabinet, the user ensures network performance and budget
requirements are easilymet.
3-28-port10/100 N-Way Switch Module
FGSW-8TP(V.x)
Figure 3-1. 8-port 10/100 N-WayModule Front View

Gigabit Chassis Switch
8
Note:
Please make surethe version of the module before
slide-in it to the slot.
Use of module FGSW-8TPcould cause LED indication
abnormal in FGSW-008. The accepted one is version 2
or
above. The version number can be found besides the
serial number withformat: FGSW-8TP(V.x).
3-2-1Features:
n 8X10/100Mbps N-Wayauto-negotiation switch ports
n Up to 2.4Gbps Backplane forwarding rate
n 2MB memorybuffer
n 12K-entryMAC Address Table
n Store-and-forward technology for abnormal packet filtering
n Half-duplex and full-duplex modes supported
n DIP-switches to set the first 4ports for Auto-negotiation,
100M Full-duplex, or 10M Full-duplexmodes
n LED-indicators for 100M, LK/ACT, FD/COLstatus
3-2-2DIP-Switchwith LinkMode
The 8-port 10/100-TX switch module provides DIP-switches from1st
to 4th to adjust link mode with other network devices. There are three
types of link mode can be chosen, which include Auto-negotiation,
100Mbps/Full-duplexand 10Mbps/Full-duplex. The last 4ports was
not designed DIP-switchestodo anylink mode setting, but these
ports support auto-negotiation protocol only.

FGSW-008 User's Manual 9

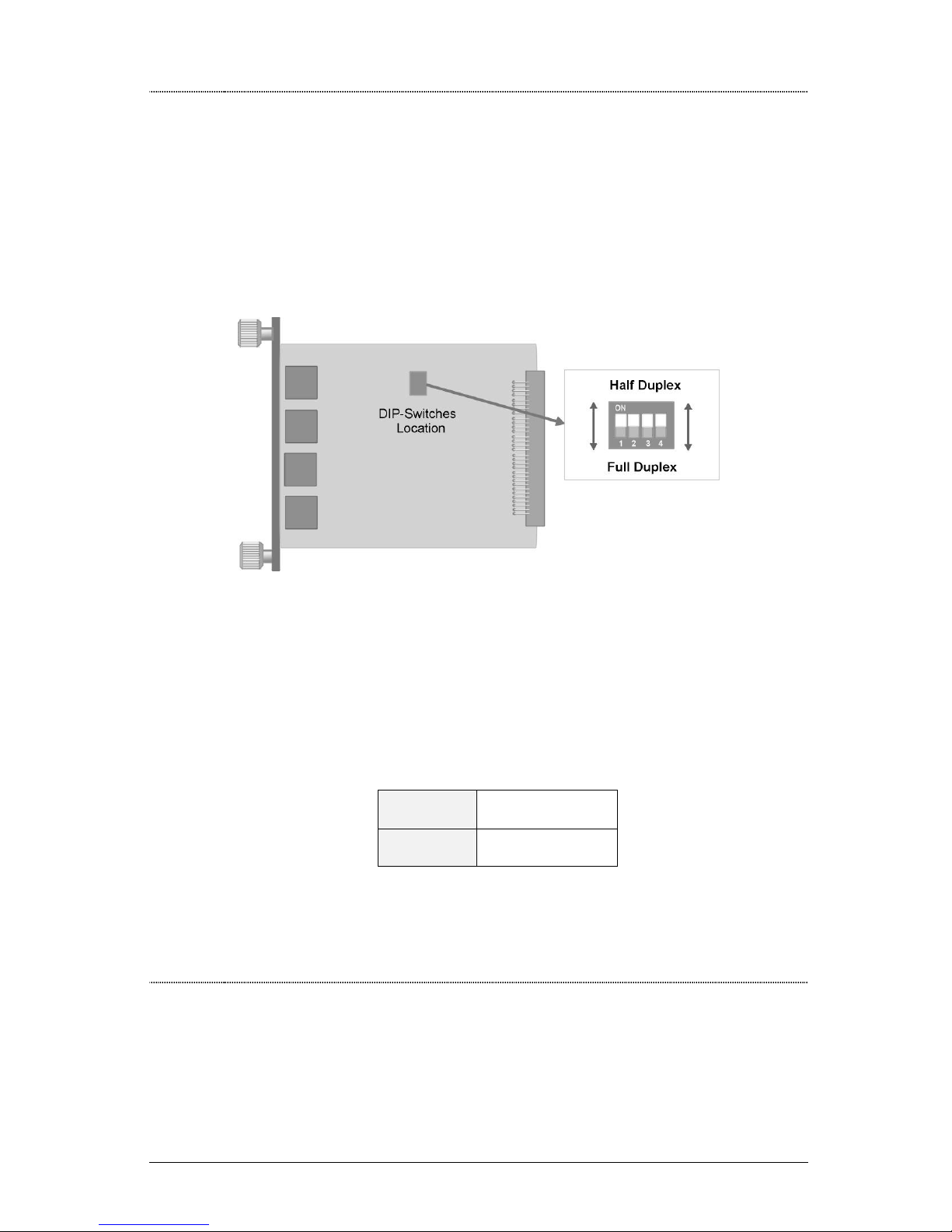

Figure 3-2 DIP-Switch for 8-port 10/100 N-WayModule
If you set DIPto Auto-negotiation, thenthe other DIPfor 100Mbps
and 10Mbps is invalid. If youset DIPto Full-duplex, thento set the
other DIPbetween 100Mbps and 10Mbps mode.
3-2-3LEDIndicators
There are three types of LED indicators for each of the RJ-45 Ports.
If there is no connection to aport, the corresponding LED indicators
are not lit.
n 100M The LED indicator is green whenthe corresponding
port is connected to a100Mbps devices. This LED indicator is
not lit when the corresponding port is connected to a 10Mbps.
n LK/ACT The LED indicator is green whenthere is a
connectionsecured to adevice (Link )to the corresponding
port .This LED indicator blinks whenthere is adata
transmission ( Activity) taking place at the corresponding port.
n FD/COL The LED indicator is yellow whenthe
corresponding port is operating in Full-duplex mode. When the
corresponding port is operating inHalf-duplex mode, the LED
indicator is not lit. When collisions are occurring atthe
corresponding port, the LED indicator blinks.

Gigabit Chassis Switch
10
3-32/4-Port 100Base-FX( SC/ST)Switch Module
FGSW-4SC / FGSW-4ST
3-3-1Features:
n 2/4 X 100Mbps fiber ports (SC/ST connectors)
n Up to 2.4Gbps Backplane forwarding rate 2MB memorybuffer
n 12K-entryMAC Address Table
n Store-and-forward technology for abnormal packet filtering
n Half-duplex and full-duplex modes supported
n DIP-switches to set between 100M Full-duplex and 100M
Half-duplexmodes
n LED-indicators for LK/ACT, FD/COLstatuses
n For establishing fiber links cable distance up to 2Km
(multi-mode)
Figure 3-3. 4 port 100Base-FX ( SC ) Module Front View
Figure 3-4. 4 port 100Base-FX ( ST) Module Front View

FGSW-008 User's Manual 11
3-3-2DIP-Switchwith LinkMode
An ST/SC/MT-RJ/VF-45 connector provides the link to the
multi-mode fiber or singlemode fiber cabling, and twoLED
indicators showthe status of the Module at aglance. ADIP-switch
sets the operating mode to half-duplex or full-duplex ( default ).
Figure 3-5. DIP-switch location and setting mode of FGSW-4ST/4SC
The following Table lists the port's operating modes based on the
DIP- switch position.
ON Half-Duplex
OFF Full-Duplex
3-3-3LEDIndicators
There are twoLED indicators for each of the Fiber connection ports.
If there is no connection to aport, the corresponding LED indicators
are not lit.
OFF
ON

Gigabit Chassis Switch
12
n LK/ACT The LED indicator is green whenthere is a
connectionsecured to adevice (Link )to the corresponding
port .This LED indicatorblinks whenthere is adata
transmission ( Activity) taking place at the corresponding port.
n FD/COL The LED indicator is yellow whenthe
corresponding port is operating in Full-duplex mode. When the
corresponding port is operating inHalf-duplexmode, the LED
indicator is not lit. When collisions are occurring atthe
corresponding port, the LED indicator blinks.
3-44/8-Port100Base-FX (MT/VF) Switch Module
FGSW-4MT/FGSW-4VF
Figure 3-7. 4-port 100Base-FX (VF-45) Module Front View
Figure 3-6. 4-port 100Base-FX (VF-MT) Module Front View

FGSW-008 User's Manual 13
3-4-1Features
n 2/4/8 X 100Mbps fiber ports ( MT-RJ connectors )
n Up to 2.4Gbps Backplane forwarding rate
n 2MB memorybuffer
n 12K-entryMAC Address Table
n Store-and-forward technology for abnormal packet filtering
n Half-duplex and full-duplex modes supported
n DIP-switches to set between 100M Full-duplex and 100M
Half-duplexmodes
n LED-indicators for LK/ACT, FD/COLstatuses
n For establishing fiber links cable distance up to 2Km
(multi-mode)
3-4-2DIP-Switchwith LinkMode
An ST/SC/MT-RJ/VF-45 connector provides the link to the
multi-mode fiber or singlemode fiber cabling, and twoLED
indicators showthe status of the Module at aglance. ADIP-switch
sets the operating mode to half-duplex or full-duplex ( default ).
Figure 3-8. DIP-switch location and setting mode of FGSW-4MT/4VF

Gigabit Chassis Switch
14
The following Table lists theport'soperating modes basedon the
DIP- switch position.
ON Half-Duplex
OFF Full-Duplex
3-4-3LEDIndicators
There are twoLED indicators for each of the Fiber connection ports.
If there is no connection to aport, the corresponding LED indicators
are not lit.
n LK/ACT The LED indicator is green whenthere is a
connectionsecured to adevice (Link )to the corresponding
port .This LED indicatorblinks whenthere is adata
transmission ( Activity) taking place at the corresponding port.
n FD/COL The LED indicator is yellow when the
corresponding port is operating in Full-duplex mode. When the
corresponding port is operating in Half-duplexmode, the LED
indicator is not lit. When collisions are occurring at the
corresponding port, the LED indicator blinks.

FGSW-008 User's Manual 15
3-5Gigabit1000Base-SX/LX Switch Modules
FGSW-1SX/FGSW-1LX
Figure 3-9 . Gigabit 1000Base-SX/LX Module Front View
3-5-1Features
n 1 X 1000Mbps fiber port ( SX/LX connectors )
n Up to 2.4Gbps Backplane forwarding rate
n 2MB memorybuffer
n Dynamic address learning with 12K-entry
n Store-and-forward technology for abnormal packet filtering
n Half-duplex and full-duplex modes supported
n DIP-switches to set 1000M N-way,1000M Full Duplex or Half
Duplex modes
n LED-indicators for LK, ACT, FD, COLstatuses
n For establishing fiber links cable distanceup to 500 m(multi-
mode), 10Km( LX single mode).
3-5-2DIPSwitchwith LinkMode
If you set DIPswitchto Enable N-way,then the other DIPfor
Half-Duplex and FullDuplex isinvalid. If you setDIPswitchto
Disable N-way,thento set the other DIPbetween Half-Duplex and
Full-Duplex.

Gigabit Chassis Switch
16
Figure 3-10. DIP-switch location and setting mode of Gigabit Fiber Module
3-5-3LEDIndicators
The are four LED indicators for one GigabitFiber connection port. If
there is no connectionto aport, the corresponding LED indicators
are not lit.
n LK The LED indicator is green whenthere is aconnection
securely to a device ( Link ) tothe corresponding port.
n ACT This LED indicator blinks green when there is adata
transmission ( Activity) taking place at the corresponding port.
n FD The LED indicator is yellow whenthe corresponding port
is operating in Full-duplex mode. When the corresponding port
is operating in Half-duplex mode, the LED indicator is not lit.
n COL The LED indicator blinks yellow whencollisions are
occurring at the corresponding port

FGSW-008 User's Manual 17
3-6Gigabit10/100/1000Base-T Switch Module
FGSW-1GT
Figure 3-11. Gigabit 1000Base-TSwitch Module Front View
3-6-1Features
n Compliant Gigabit Media Independent Interface (GMII)
n 1 X 10/100/1000Mbps N-Way auto-negotiation switch port
n Automatic MDI crossover function
n Up to 2.4Gbps Backplane forwarding rate
n 2MB memorybuffer sharing
n 12K-entryMacAddress Table
n Store-and-forward technology for abnormal packet filtering
n Half-duplex and full-duplex modes supported
n LED-indicators for 1000M Link, 100M Link, Activity,and
Full-duplex statuses
