1. Package Contents
Thank you for purchasing PLANET Industrial Wall-mount Managed Gigabit
Switch, WGS-804HPT or WGS-4215 series. The table below shows the models
with the number of ports:
Model Name 10/100/1000T
Copper Ports 802.3atPoEPorts 100/1000 SFP Fiber Optic Interface
WGS-4215-8T 8 _ _
WGS-4215-8T2S 8 _ 2
WGS-804HPT 8 4 _
WGS-4215-8P2S 8 8 2
WGS-4215-16P2S 16 16 2
In the following sections, unless specied, the term “Wall-mount Managed
Switch” mentioned in this quick installation guide refers to the above models.

4
Open the box of the Wall-mount Managed Switch and carefully unpack it. The
box should contain the following items:
The Wall-mount Managed
Switch x 1
Quick Installation
Guide Sheet x 1 pc DIN-rail Kit x 1 set
(Vary on the model)
Wall-mounted Kit x 1 set Magnet Kit x 1 set 3-pin Terminal Block
Connector x 1 pc
RJ45 Dust Cap x 8 pcs SFP Dust Cap x 2 pcs
(x16 for WGS-4215-
16P2S only)
(WGS-4215-8T2S/WGS-4215-8P2S/
WGS-4215-16P2S only)
If any item is found missing or damaged, please contact your local reseller for
replacement.

5
2. Requirements
zWorkstations running Windows XP/2003/Vista/7/8/2008/10/11, MAC OS X
or later, Linux, UNIX, or other platforms are compatible with TCP/IP proto-
cols.
zWorkstations are installed with Ethernet NIC (Network Interface Card).
zEthernet Port Connection
Network cables -- Use standard network (UTP) cables with RJ45 connec-
tors.
The above PC is installed with Web browser.
It is recommended to use Google Chrome or above to access
the Wall-mount Managed Switch. If the Web interface of the
Wall-mount Managed Switch is not accessible, please turn off
the anti-virus software or firewall and then try it again.

6
3. Wiring the Power Inputs
The Wall-mount Managed Switch features a strong dual power input system
(terminal block and DC jack) incorporated into customer’s automation network
to enhance system reliability and uptime.
Power Input
Range
Model
3-pin Terminal Block DC Jack
WGS-4215-8T 12~48VDC,24VAC 12~48VDC,24VAC
WGS-4215-8T2S 12~48VDC,24VAC 12~48V DC
WGS-804HPT 48~54V DC 48~54V DC
WGS-4215-8P2S 48~54V DC 48~54V DC
WGS-4215-16P2S 48~54V DC 48~54V DC
Maximum power requirements also rely on the real site applica-
tion.
3 421
7 865
Data+ Power
Data
120W
PoE Usage
90W
60W
30W
PWR
ACTLNK
1000
ACTLNK
PoE-in-Use
V+
Ground
DC Input Range
Gigabit 802.3at PoE+ Port
10/100/1000BASE-T RJ45 Port
Power LED
PoE Power Usage
3-pin Terminal Block
DC Plug-in
V+
Ground
DC Input Range

7

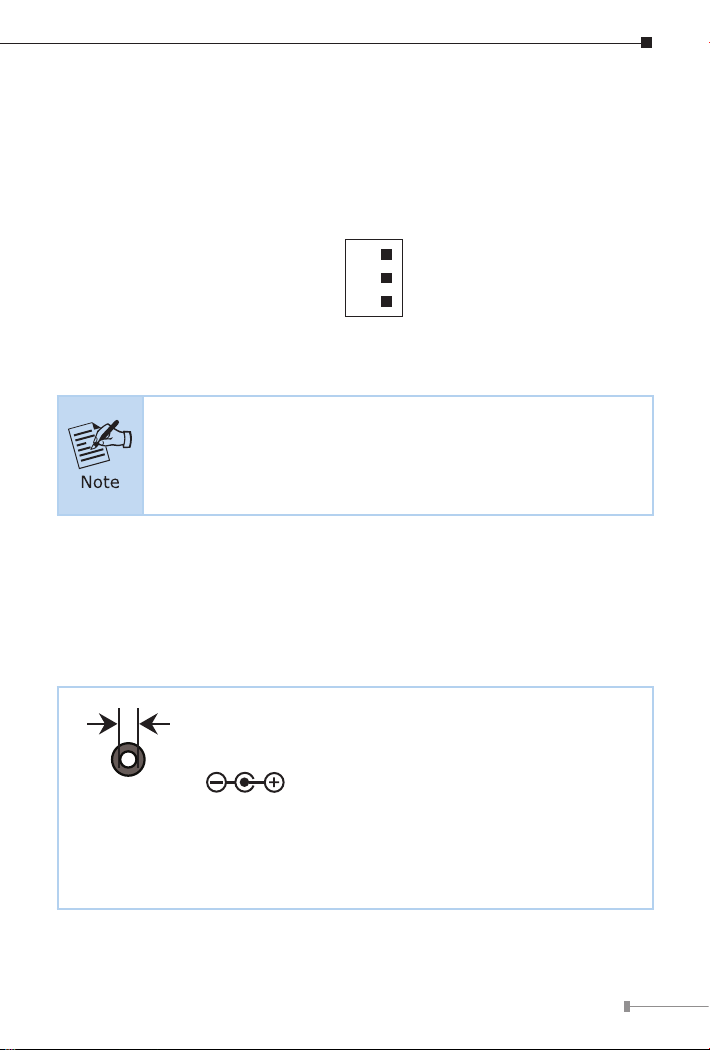

3.1 Terminal Block Connector Pinout
To install the 3-pin Terminal Block Connector on the Wall-mount Managed
Switch, simply follow the following steps:
Step 1: Insert positive DC power wire into V+, negative DC power wire into
V-, and grounding wire into Ground.
V+
V
-
Ground
Step 2: Tighten the wire-clamp screws for preventing the wires from
loosening and plug into the Wall-mount Managed switch.
1.Thewiregaugeshouldbeintherangefrom12to24AWG
2. The device must be grounded.
3.2 DC Power Jack
The WGS-804HPT/WGS-4215 PoE models requires DC 48V~54V power input,
and the WGS-4215-8T/WGS-4215-8T2S requires DC 12~48V power input.
Should you have the issue of power connection, please contact your local sales
representative.
2.1mm
DC Receptacle 2.1mm
DC receptacle is 2.1mm wide that conforms to the WGS-4215 series
2.1mm DC jack's central post. Do not install any improper power
adaptor.

8
4. Hardware Installation
4.1 Wall-mount Installation
To install the Wall-mount Managed Switch on the wall, simply follow the
following steps:

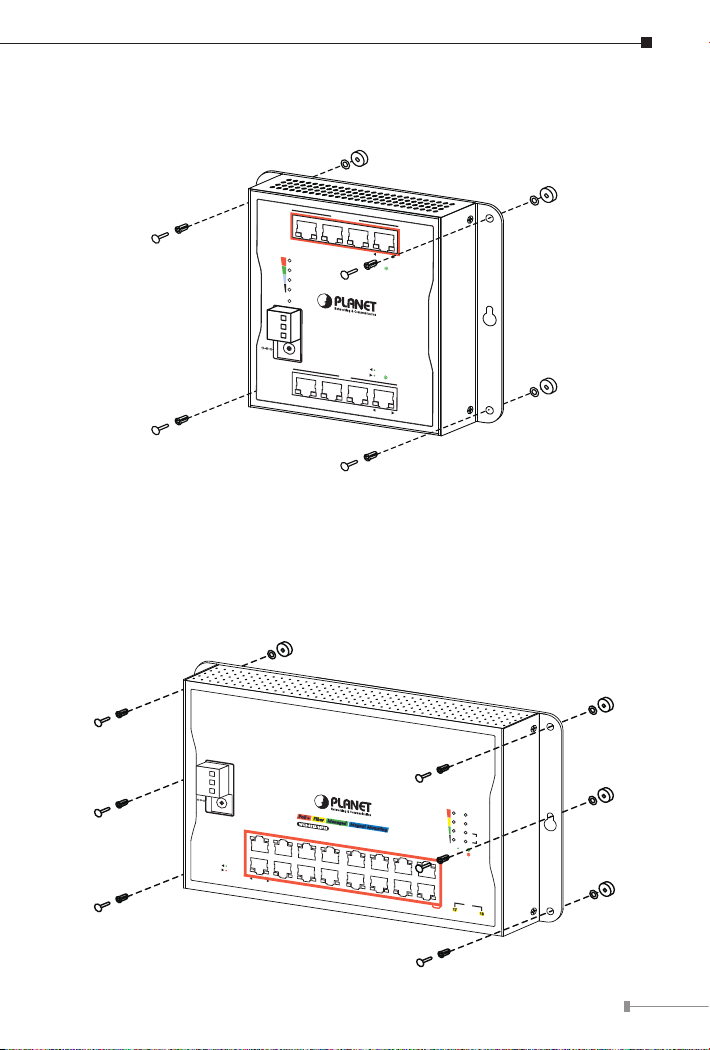

Step 1: Drive four 8mm diameter holes into the wall horizontally with
the distance between the 2 holes is 133mm (WGS-804HPT/
WGS-4215-8T), 163mm (WGS-4215-8T2S/WGS-4215-8P2S) and
230mm (WGS-4215-16P2S) Refer to the table below.
Step 2: Lightly hammer the wall anchors into the four holes.
Step 3: Place the unit on the wall where there are four holes, and screw the
boltsintothewallanchorstonishtheinstallation.
3 421
7 865
Data+ Power
Data
120W
PoE Usage
90W
60W
30W
PWR
ACTLNK
1000
ACTLNK
PoE-in-Use
V+
Ground
W
D
Hole sizes for mounting
Distance (mm) 8-port 8+2S 16+2S
W133 163 230
D118 118 124

9
4.2 Magnet Installation
To install the Wall-mount Managed Switch on a magnetic surface, simply follow
the following diagram:
3 421
7 865
Data+ Power
Data
120W
PoE Usage
90W
60W
30W
PWR
ACTLNK
1000
ACTLNK
PoE-in-Use
V+
Ground
4.2.1 Magnet Installation of WGS-4215-16P2S
There are six holes on the unit, using six round magnets to install. Please refer
to the following.
Step 1: Turn the switch to the back and place the six round magnets with
holes on the back of the switch where the holes are.
ACTLNK
ACTLNK
1000
100
SYS
PWR
180W
240W
SFP
17
18
120W
60W
5 731
6 842
13 15119
14 161210
PoE
SFP
17 18
WGS-4215-16P2S
Managed
Fiber
PoE+ Magnet Mounting
PoE-in-Use
LNK/ACT
PoE Usage
V+
Ground

10

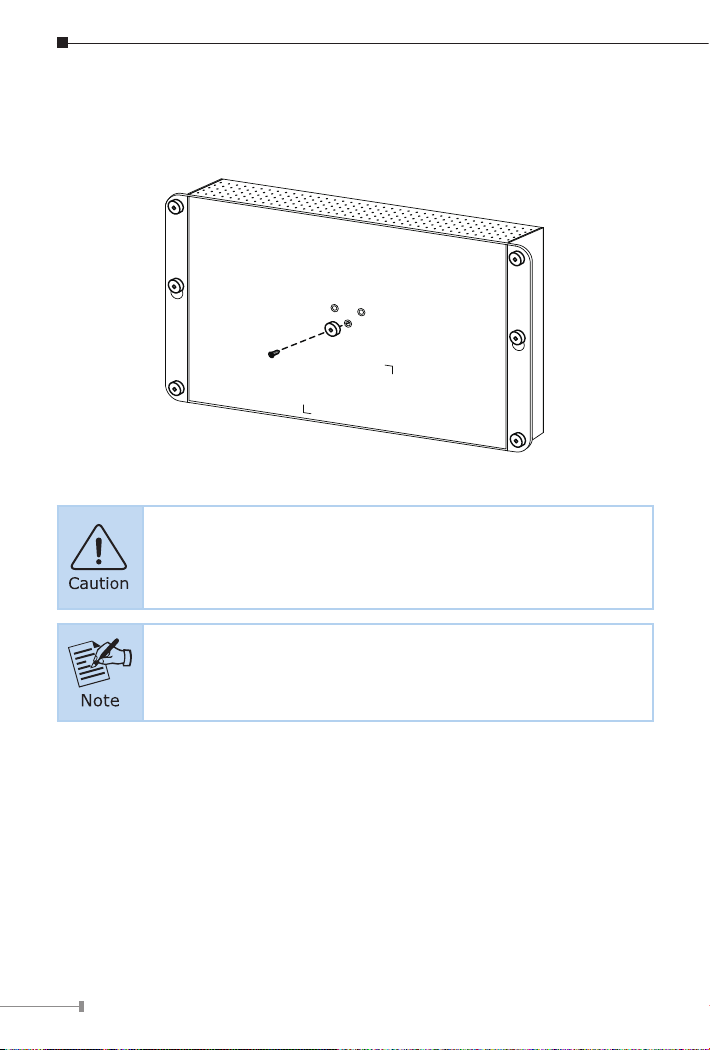

Step 2: Turn the switch to front and push the plastic bolts into the holes to
secure the magnets.
Step 3: Onelastroundmagnetshouldbexedinthemiddleoftheswitch.
Step 4: Now the you can place the switch on to any magnetic surface.
As the magnetic mounting is not securely fixed, be aware that
the switch will not fall or break due to vibration when installing
the switch.
Please use the screw from the magnet kit to avoid breaking the
device.

11

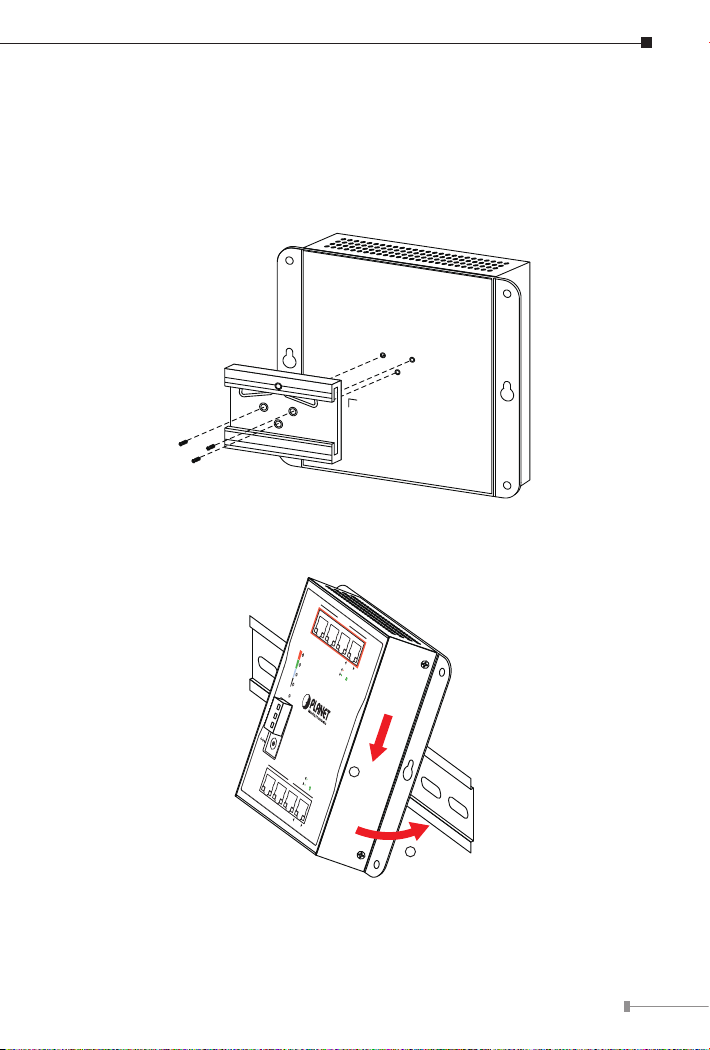

4.3 DIN-rail Mounting
The DIN-rail kit is included in the package for wall mounting. Refer to the
following gures to screw the DIN-rail on the Wall-mount Managed Switch. To
hang up the Wall-mount Managed Switch, follow the steps below:
Step 1: Screw the DIN-rail on the Wall-mount Managed Switch.
Step 2: Lightly insert the DIN-rail into the track.
3 421
7 865
Data+ Power
Data
120
PoE Power
Usage (W)
90
60
30
PWR
8-Port Gigabit Ethernet Switch
with 4-Port PoE+
ACTLNK
1000
ACTLNK
PoE In-Use
1Push
2Click
3 421
7 865
Data+ Power
Data
120W
PoE Usage
90W
60W
30W
PWR
ACTLNK
1000
ACTLNK
PoE-in-Use
V+
Ground

12

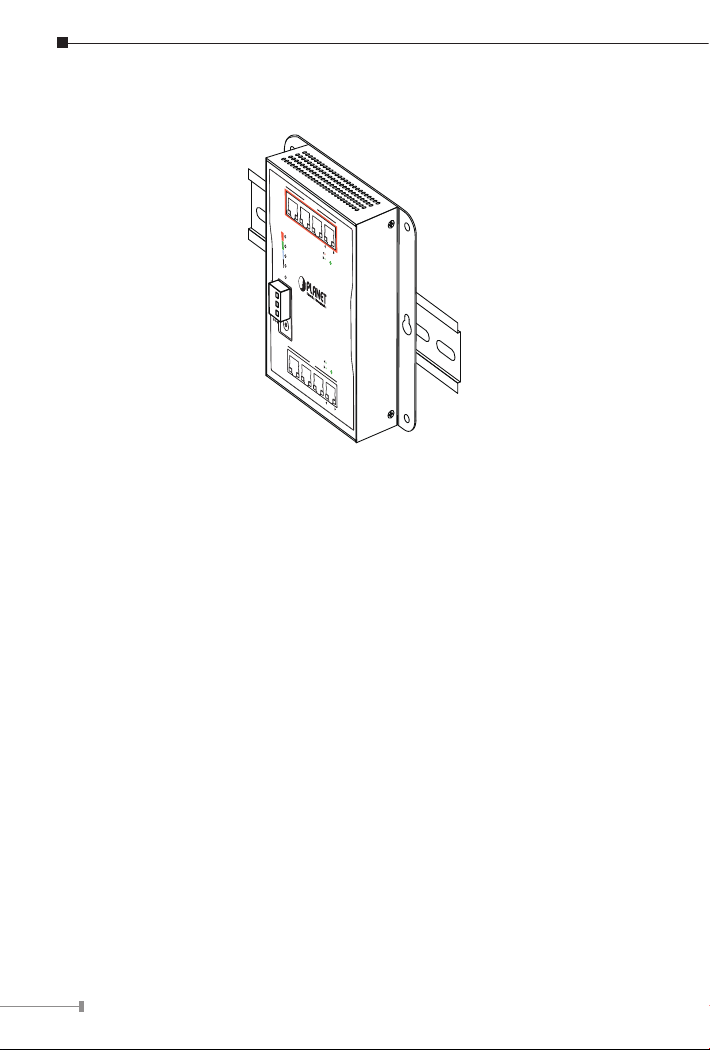

Step 3: Check whether the DIN-rail is tightly on the track.
3 421
7 865
Data+ Power
Data
120
PoE Power
Usage (W)
90
60
30
PWR
8-Port Gigabit Ethernet Switch
with 4-Port PoE+
ACTLNK
1000
ACTLNK
PoE In-Use
3 421
7 865
Data+ Power
Data
120W
PoE Usage
90W
60W
30W
PWR
ACTLNK
1000
ACTLNK
PoE-in-Use
V+
Ground

13
5. Web Login
5.1 Starting Web Management
The following shows how to start up the Web Management of the Wall-
mount Managed Switch. Note the Wall-mount Managed Switch is congured
through an Ethernet connection. Please make sure the manager PC must be
set to the same IP subnet address.
For example, the default IP address of the Wall-mount Managed Switch is
192.168.0.100, then the manager PC should be set to 192.168.0.x (where x
is a number between 1 and 254, except 100) and the default subnet mask is
255.255.255.0.

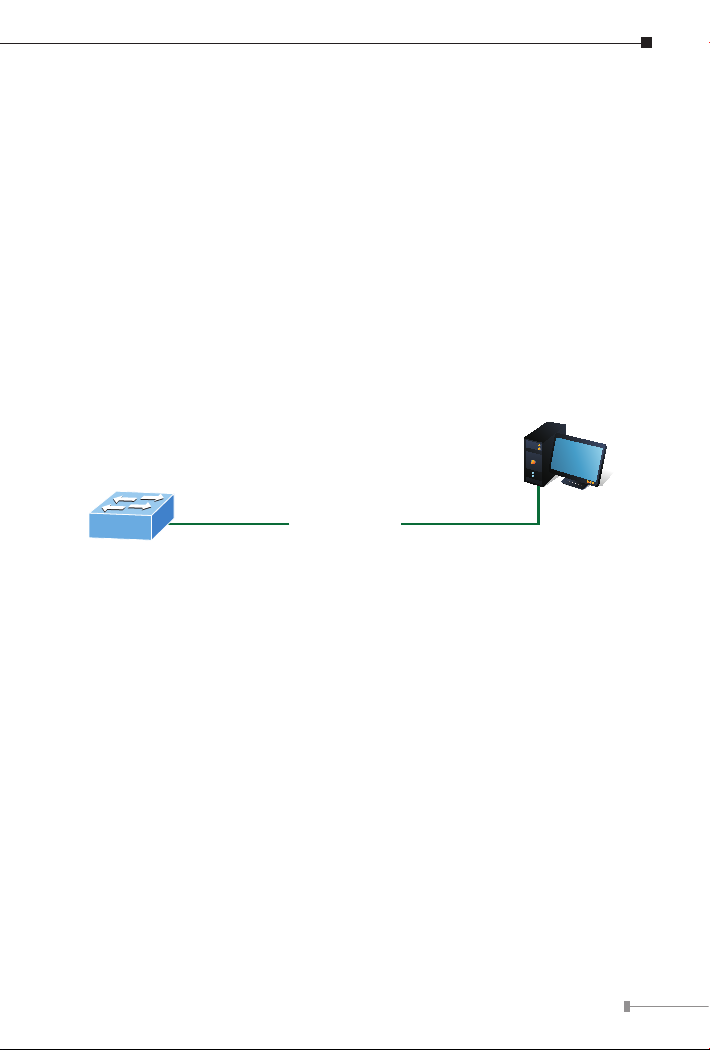

PC / Workstation
with Web Browser
192.168.0.x
Managed Switch
RJ45/UTP Cable
IP Address:
192.168.0.100
Figure 5-1: IP Management Diagram

14
Logging in to the Wall-mount Managed Switch
1. Use Google Chrome or above Web browser and enter IP address
http://192.168.0.100 to access the Web interface.
2. When the following dialog box appears, please enter “admin” in both the
default user name and password elds. The login screen in Figure 5-2
appears.
DefaultIPAddress:192.168.0.100
Default Username: admin
Default Password: admin
Figure 5-2: Web Login Screen
3.Afterenteringthepassword,themainscreenappears asFigure5-3shows.
The following web screen is based on the WGS-4215-8T2S.
The display of the WGS-4215-8T2S is the same as those of
the WGS-804HPT and WGS-4215-8T/WGS-4215-8P2S/WGS-
4215-16P2S.

15
Figure 5-3: Web Main Screen of Wall-mount Managed Switch
The Switch Menu on the top of the Web page lets you access all the
commands and statistics the Industrial Managed Switch provides. The Switch
Menu always contains one or more buttons, such as “System”, “Switching”,
“QoS”, “Security”, “Ring” and “Maintenance”.

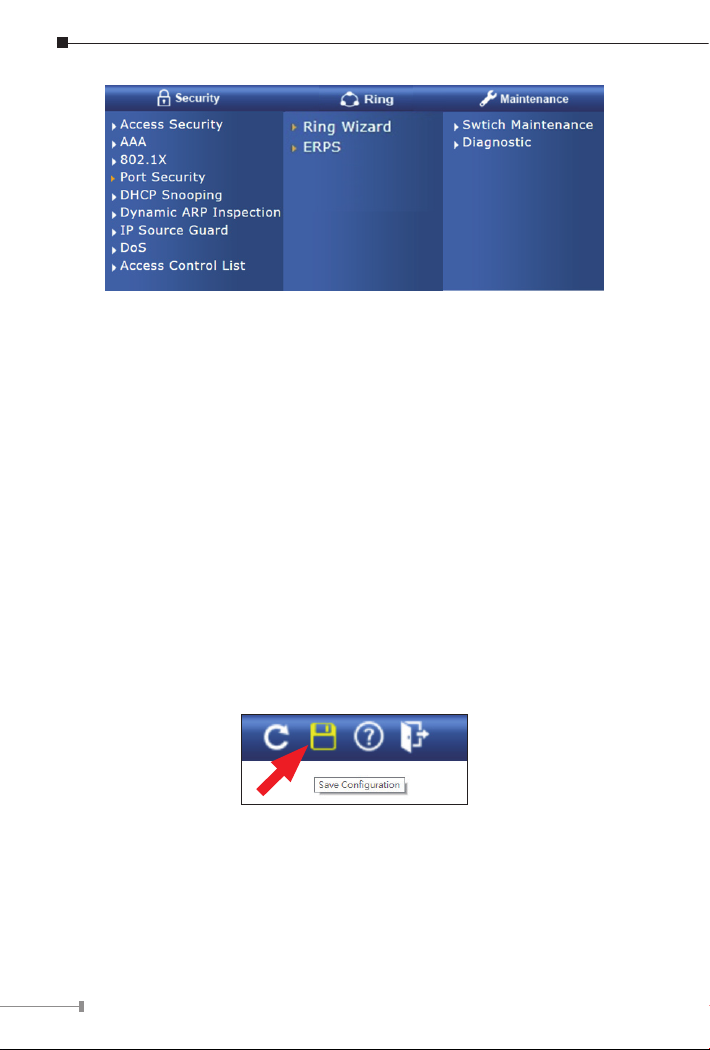

Figure 5-4: Switch Menu
Figure 5-5: Switch Sub-menu

16
Figure 5-6: Switch Sub-menu
Now, you can use the Web management interface to continue the Switch
management. Please refer to the user’s manual for more.
5.2 SavingCongurationviatheWeb
In the Wall-mount Managed Switch, the running conguration le stores in the
RAM. In the current version, the running conguration sequence of running-
cong can be saved from the RAM to FLASH by “Save Congurations to
FLASH” function, so that the running conguration sequence becomes the
startupcongurationle,whichiscalledcongurationsave.
To save all applied changes and set the current conguration as a startup
conguration, the startup-conguration le will be loaded automatically across
a system reboot.
1. Click “Save > Save Congurations to FLASH” to log in “Conguration
Manager” Page.

17

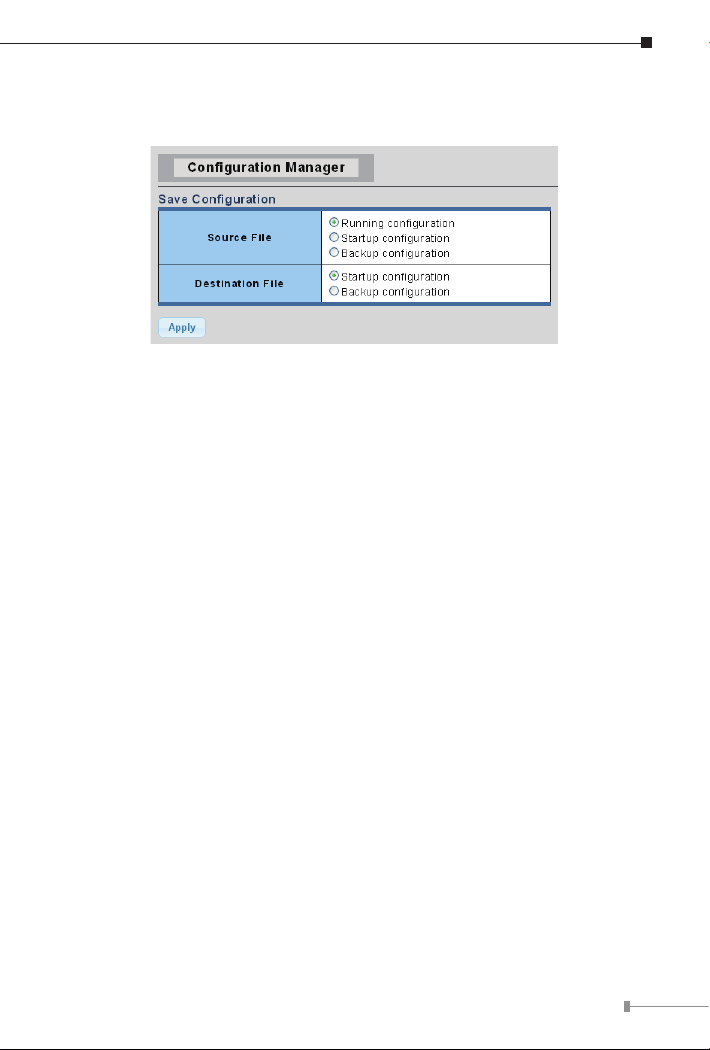

2. Press the “Apply” button to save running conguration to start up congu-
ration.

18

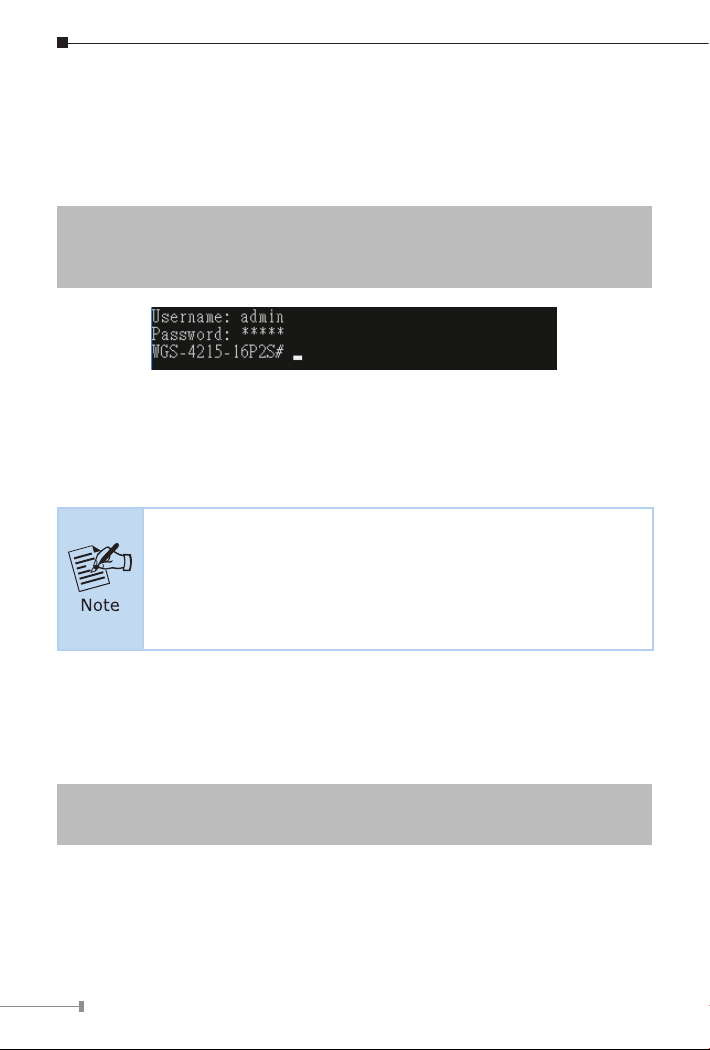

6. SSH Login
The Wall-mount Managed Switch also supports SSHv2 for remote
management. The switch asks for user name and password for remote login
when using Telnet; please use “admin” for both username and password.
Default IP address: 192.168.0.100
Username: admin
Password: admin
Figure 6-1: Wall-mount Managed Switch SSH Login Screen
The user can now enter commands to manage the Wall-mount Managed
Switch. For a detailed description of the commands, please refer to the
following chapters.
1. For security reason, please change and memorize the
new password after this first setup.
2. Only accept command in lowercase letter under console inter-
face.
6.1 ConguringIPAddress
The Wall-mount Managed Switch is shipped with default IP address shown
below:
IPAddress:192.168.0.100
Subnet Mask: 255.255.255.0
To check the current IP address or modify a new IP address for the Switch,
please use the procedure as follows:

19
DisplayoftheCurrentIPAddress
1.Atthe“#” prompt, enter “show ip”.
2. The screen displays the current IP address shown in Figure 6-2.
Figure 6-2: IP Information Screen
CongurationoftheIPAddress
3.At the “#” prompt, enter the following command and press <Enter> as
shown in Figure 6-3.
WGS-4215-16P2S#congure
WGS-4215-16P2S(cong)#ip address 192.168.1.100 mask 255.255.255.0
WGS-4215-16P2S(cong)#ip default gateway 192.168.1.254
The previous command would apply the following settings for the Wall-mount
Managed Switch.
IPAddress:192.168.1.100
Subnet Mask: 255.255.255.0
Gateway: 192.168.1.254
Figure 6-3: Conguring IP Address Screen
4. Repeat step 1 to check if the IP address has changed.

20
6.2 StoringtheCurrentSwitchConguration
Atthe“#” prompt, enter the following command and press <Enter>.
# copy running-cong startup-cong
Figure 6-4: Saving Current Conguration Command Screen
If the IP is successfully congured, the Wall-mount Managed Switch will apply
the new IP address setting immediately. You can access the Web interface of
the Wall-mount Managed Switch through the new IP address.
If you are not familiar with the Telnet command or the related
parameter, enter “?” anytime in console to get the help descrip-
tion.
