Planet XGS-6320-8X8TR User manual

L3 Multi-port 10Gigabit Managed Ethernet Switch
XGS-6320-8X8TR/XGS-6320-12X4TR
Quick Installation Guide

Table of Contents
1. Package Contents ....................................................................................... 3
2. Requirements ............................................................................................. 4
3. Terminal Setup ........................................................................................... 5
3.1 Logging on to Console ......................................................................... 6
 3.2 ConguringIPAddress......................................................................... 7
 3.3 StoringCurrentSwitchConguration..................................................... 9
4. Starting Web Management .........................................................................10
 4.1 LoggingintotheManagedSwitch .......................................................10
 4.2 SavingConguration...........................................................................13
5. RecoveringBacktoDefaultConguration.....................................................14
6. Customer Support .....................................................................................15

3
1. Package Contents
Thank you for purchasing PLANET Multi-port 10Gigabit Managed Ethernet Switch,
XGS-6320-8X8TR/XGS-6320-12X4TR. The descriptions of these models are shown
below:
XGS-6320-8X8TR L38-Port10GBASE-XSFP++8-Port10GBASE-TManaged
EthernetSwitch
XGS-6320-12X4TR L312-Port10GBASE-XSFP++4-Port10GBASE-TManaged
EthernetSwitch
“ManagedSwitch”isusedasanalternativenameinthisQuickInstallationGuide.
Open the box of the Managed Switch and carefully unpack it. The box should
contain the following items:
L3ManagedSwitchx1 QuickInstallationGuidex1 Rack-mountingKits
SFPDust Capsx12or8 DB9 to RS232 Cable x 1 ACPowerCordx1
If any item is found missing or damaged, please contact your local reseller for
replacement.

4
2. Requirements
zWorkstations running Windows 10/10/XP/2003/Vista/7/8/2008, MAC OS X or
later,Linux,UNIX,orotherplatformsarecompatiblewithTCP/IPprotocols.
zWorkstationsareinstalledwithEthernet NIC(NetworkInterfaceCard).
zSerial Port Connection(Terminal)
The above Workstations come with COM Port (DB9) or USB-to-RS232
converter.
TheaboveWorkstationshavebeeninstalledwith terminal emulator,suchas
TeraTerm,PuTTYorHyperTerminalincludedinWindowsXP/2003.
Serial cable -- one end is attached to the RS232 serial port, while the other
endtotheconsoleportoftheManagedSwitch.
zEthernet Port Connection
Networkcables--Usestandardnetwork(UTP)cableswithRJ45connectors.
TheabovePCisinstalledwithWebbrowser.
Note
It is recommended to use Chrome 98.0.xxx or above to access the
ManagedSwitch. Ifthe Web interface of the ManagedSwitch isnot
accessible, please turn off the anti-virus software or firewall and
then try it again.

5
3. Terminal Setup
To congure the system, connect a serial cable to a COM port on a PC or
notebookcomputerandtoRJ45typeofserialportoftheManagedSwitch.
Managed Switch
PC / Workstation
with
Terminal Emulation Software
Serial Port
RS232 to RJ45 Cable
Console Port
RJ45

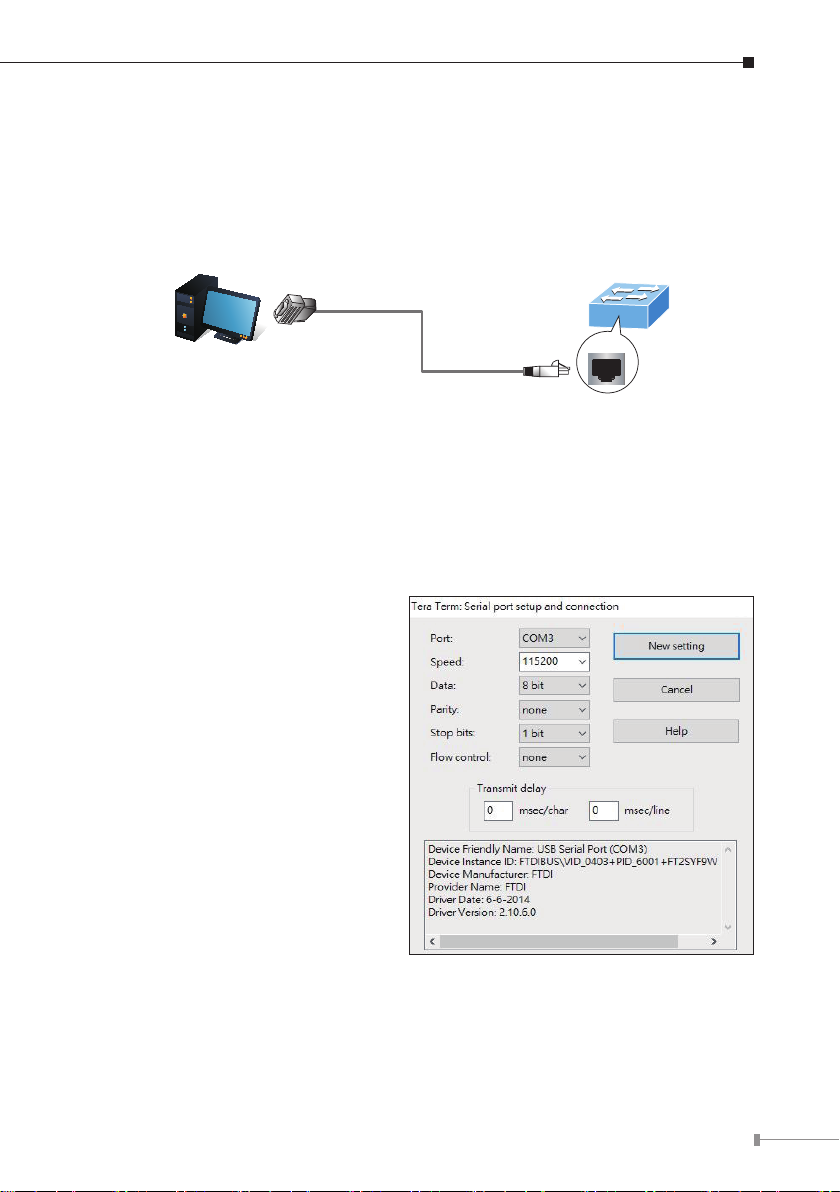

Figure 3-1: Managed Switch Console Connectivity
A terminal program is required to make the software connection to the Managed
Switch.
1. Run terminal program on the OS.
2.When the following screen appears, make sure that the COM port should be
conguredas:
zSpeed:115200
zData:8bit
zParity:None
zStop bits: 1 bit
zFlowcontrol:None
Figure 3-2: COM Port Conguration

6
3.1 Logging on to Console
Once the terminal is connected to the device, power on the Managed Switch, and
the terminal will display “running testing procedures”. Then, the following message
asks to log in user name and password. The factory default user name and
passwordareshownasfollowsandtheloginscreeninFigure3-3appears.
Username:admin
Password:admin
Note
Thefollowing consolescreen based on the XGS-6320-8X8TRwill be
thesameasthatoftheXGS-6320-12X4TR.
Figure 3-3: Managed Switch Console Login Screen
The user can now enter commands to manage the Managed Switch. For a detailed
descriptionofthecommands,pleaserefertothefollowingchapters.
Note
1. For security reason, please change and memorize the new pass-
wordafterthisfirstsetup.
2.Only accept command in lowercase letter under console inter-
face.

7
3.2 ConguringIPAddress
TheManagedSwitchisshippedwithdefaultIPaddressshownbelow.
IPAddress:192.168.0.100
Subnet Mask: 255.255.255.0
To check the current IP address or modify a new IP address for the Switch, please
usetheproceduresasfollows:
 Show the current IP Address
1.Atthe“#”prompt,enter“show ip interface brief”.
2.ThescreendisplaysthecurrentIPaddressasshowninFigure3-4.
Figure 3-4: IP Information Screen

8
 Conguring IP Address
3.At the “#” prompt, enter the following command and press <Enter> as shown
inFigure3-5.
XGS-6320-8X8TR#congure terminal
XGS-6320-8X8TR(cong)#interface vlan 1
XGS-6320-8X8TR(cong-if-vlan)#ip address 192.168.1.100 255.255.255.0
ThepreviouscommandwouldapplythefollowingsettingsfortheManagedSwitch.
IPAddress: 192.168.1.100
Subnet Mask: 255.255.255.0

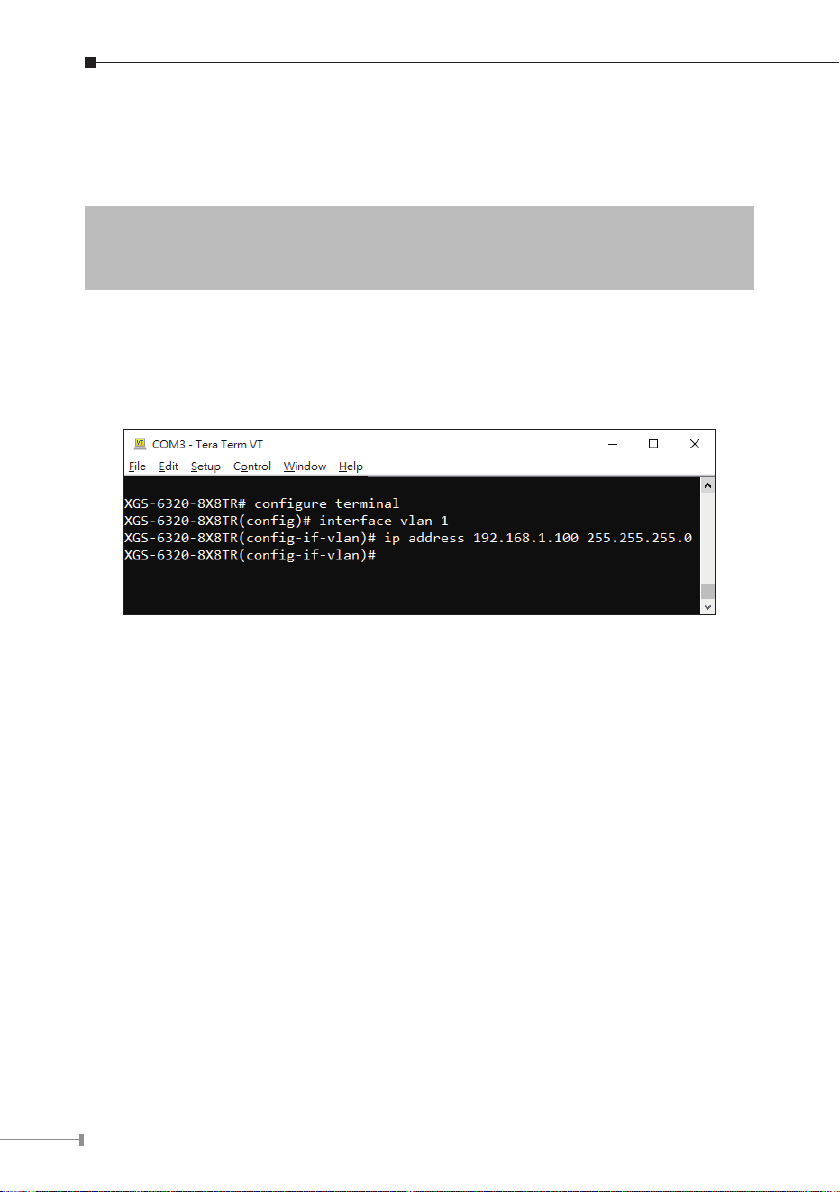

Figure 3-5: Conguring IP Address Screen
4.Repeatstep1tocheckiftheIPaddresshaschanged.
If the IP is successfully congured, the Managed Switch will apply the new IP
address setting immediately. You can access the Web interface of the Managed
SwitchthroughthenewIPaddress.

9
3.3 StoringCurrentSwitchConguration
In the Managed Switch, the running conguration sequence running-cong can
be saved from the RAM to FLASH by “copy” command, so that the running
conguration sequence becomes the start-up conguration le, which is called
congurationsave.
Atthe“#”prompt,enterthefollowingcommandandpress<Enter>.
# copy running-cong startup-cong
Figure 3-6: Saving Current Conguration Command Screen
Note
If you are not familiar with the console command or the related
parameter, enter “help” anytime in console to get the help
description.

10
4. Starting Web Management
The following shows how to start up the Web Management of the Managed
Switch. Note the Managed Switch is congured through an Ethernet connection.
Please make sure the manager PC must be set to the same IP subnet address.
Forexample, thedefaultIPaddress oftheManagedSwitchis 192.168.0.100,then
the manager PC should be set to 192.168.0.x (where x is a number between 1
and254,except100),andthedefaultsubnetmaskis255.255.255.0.
PC / Workstation
with Web Browser
192.168.0.x
Managed Switch
RJ45/UTP Cable
IP Address: 192.168.0.100
Figure 4-1: IP Management Diagram
4.1 Logging in to the Managed Switch
1.Use Internet Explorer 8.0 or above Web browser and enter IP address
https://192.168.0.100 (the factory default IP address or the one that you
havejustchangedinconsole)toaccesstheWebinterface.
2.When the following dialog box appears, please enter the default user name and
password “admin” (or the password you have changed via console). The login
screeninFigure4-2appears.
DefaultIPAddress:192.168.0.100
DefaultUsername:admin
DefaultPassword:admin
Figure 4-2: Login Screen
