Plantronics Discovery 975 User manual

iii
Plantronics Discovery®975
Getting Started / Para Comenzar /
Pour commencer / Introdução
Earpiece Features and Accessories
* To order accessories, please
contact your Plantronics supplier
or go to www.plantronics.com.
* Mobile Charging Kit:
Vehicle Power Charger
and USB Charger
#81291-01
* USB Lanyard
#74948-01
Volume Control Button:
Volume up/down
Mute on/off
Online indicator
on/off
Eartip
Vents and screens
for microphones
Charging Jack
Call Control Button:
Call answer/end/
reject/redial
Power on/off
Pairing to phone
Transfer call
to/from phone
Reconnect when
back in range
Plantronics, Inc.
345 Encinal
Santa Cruz, CA 95060
United States
Tel: [phone]
www.plantronics.com
©2009 Plantronics, Inc. All rights reserved. Plantronics, the logo design, and Plantronics Discovery are trademarks
or registered trademarks of Plantronics, Inc. The Bluetooth®word mark and logos are owned by the Bluetooth SIG,
Inc. and any use of such marks by Plantronics, Inc. is under license. All other trademarks are the property of their
respective owners.
Patents US 5,210,791; 5,712,453; Patents Pending
©2009 Plantronics, Inc. Reservados todos los derechos. Plantronics, el diseño del logotipo, y Plantronics Discovery
son marcas comerciales o registradas de Plantronics, Inc. El nombre y los logotipos de Bluetooth®son propiedad de
Bluetooth SIG, Inc. y Plantronics, Inc. los utiliza bajo licencia. Todas las demás marcas registradas son propiedad de
sus respectivos propietarios.
Patents US 5,210,791; 5,712,453; Patents Pending
81617-03 (07/09)

iv v
CHARGING TIME
1.5 hours ......Full charge using
AC or case
30 minutes....Minimum charge
before first use
Charging Your Earpiece Checking Battery Level Recharging Your Charging Case
1
Option A
1
2
Insert
Eject
Option B
2
1
CHARGING TIME
1.5 hours..... Full charge
using AC
BATTERY INDICATOR
Bars Battery Level
3 Full battery
2 1/3 to 2/3 full
1 Less than 1/3 full
2

1
Adjusting the Fit
Correct Fit
Incorrect Fit
2
1Stabilizer loop
Speaker housing
Pairing Your Earpiece
2
SETTINGS
SETTINGS
Tim e and D ate
Phone Settings
Bluetooth
Sou nd Se tting s
Network Services
Security
Res et Se tti ngs
1
3
4
SETTINGS
SETTINGS
Timeand Date
Phone Settings
Bluetooth
Sound Settings
Network Services
Security
Reset Settings
SETTINGS
SETTINGS
Timeand Date
Phone Settings
9xxPlantronics
Sound Settings
Network Services
Security
Reset Settings
SETTINGS
SETTINGS
Timeand Date
Phone Settings
0000
Sound Settings
Network Services
Security
Reset Settings

2
3
en
Welcome
Thank you for purchasing the Plantronics
Discovery®975 earpiece. This guide
contains instructions for setting up and
using your new earpiece. For a detailed User
Guide, including troubleshooting tips, please
visit www.plantronics.com/documentation.
Before using this product, please refer
to the For Your Safety guide for important
product safety and charging information.
Getting Assistance
The Plantronics Technical Assistance Center
is ready to assist you. Visit www.plantronics.
com/support or call 1-866-363-BLUE
(2583).
Registering Your Product
Visit www.plantronics.com/
productregistration to register your product
online so we can provide you with the best
service and technical support.
Charging Your Earpiece
Your new earpiece performs best when fully
charged. While your earpiece is charging, the
indicator light slowly flashes red. When your
earpiece is fully charged, the indicator light turns
off. This applies to all charging options.
Never charge the battery where the temperature
may fall below 0°C (32°F) or rise above 40°C
(104°F). Do not use your earpiece while it is
connected to the charger.
Option A: Using the AC Charger
1 Plug the AC charger into a power outlet.
2 Connect the AC charger to the charging
jack on the earpiece.
Option B: Using the Charging Case
1 Open the cover of the case. Align the
charging jack on the earpiece with the
micro USB connection in the case.
2 Gently push the earpiece onto the micro
USB connection until you feel it click into
place.
3 Once charged, gently press the ejection
button with your thumb to release the
earpiece.

4
5
en
Charging Your Earpiece
Checking the Battery Level of Your Earpiece
The LCD display on the charging case will
indicate battery level of the earpiece when
earpiece is inserted into case.
NOTE The Bluetooth icon on the case indicates
the earpiece is connected to your phone. You can
receive calls when charging.
LOW BATTERY WARNINGS
Battery Level Tone Voice Prompt
30 minutes of
talk time remaining
(this alert only
occurs during
an active call)
Double high
tone every
15 minutes
“Battery Low”
repeats every
30 minutes
10 minutes
of talk time
remaining
Triple high
tone every
30 seconds
“Recharge
Battery” repeats
every 3 minutes
Automatic Battery Status Alerts
When the battery charge is very low, a tone and
voice prompt in English will automatically occur.
Recharging Your Charging Case
Recharging the Battery Inside the Case
The charging case provides two full charges to your earpiece before the battery within the case
requires recharging.
1 To check the battery status of the case, refer to the LCD display.
If the battery icon is flashing, or the display is blank, you have to recharge the case before you can
use it to charge your earpiece.
2 Plug the AC charger to power source before connecting to the charging jack on the side
of the case.
While the case is recharging, the LCD battery icon (above the case image) flashes to indicate charge
level.

6 7

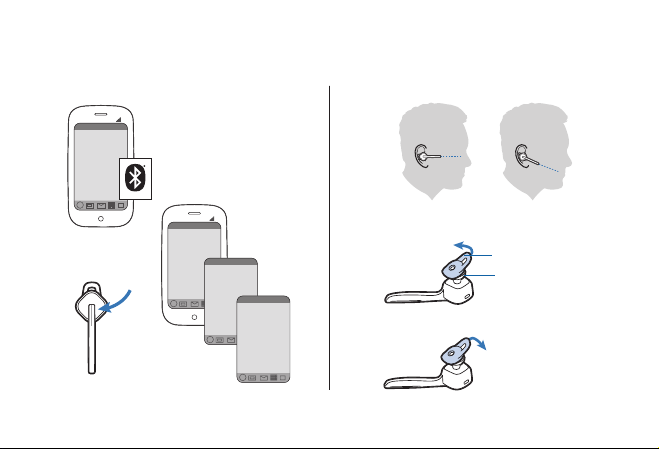

Pairing Your Earpiece
How to Pair Your Phone with Your Earpiece
for the First Time
1 Turn on the Bluetooth feature on your phone.
2 Turn the earpiece on.
Press and hold the call control button until the
indicator flashes red/white.
3 Use the commands on your phone to
locate and select your earpiece.
9xxPlantronics.
4 If prompted for the PIN code or Passkey,
enter 0000.
Pairing is successful when the indicator on
your earpiece flashes white.
For optimal voice clarity, point the boom towards
the corner of your mouth. The eartip can also
be rotated on speaker housing to better fit the
contours of your ear. If the earpiece still feels
unstable, then change the eartip to a different size.
How to Install a Different Gel Eartip
1 To remove the eartip, gently pull the
stabilizer loop of eartip off of the speaker
housing.
2 To fit a new eartip, position the eartip over
the speaker housing and gently press
down on the eartip.
Adjusting the Fit
Action Light Tone
Turn on the
earpiece Press the call control button for 2 seconds. Glows white. 4 ascending tones.
Turn off the
earpiece Press the call control button for 4 seconds. Glows red. 4 descending tones.
Answer a call Tap the call control button once. Flashes white. Single low tone followed by
low-low-high tones.
NOTE Wait until you hear the ring in your earpiece to answer the call.
End a call Tap the call control button once. 1 white flash. 1 low tone.
Make a call Enter the phone number on your
phone and press send. The call
automatically transfers to your
paired and connected earpiece.
None Single low tone followed by
low-low-high tones.
Transfer a call
between earpiece
and phone
While on a call, press the call
control button for 2 seconds. None Single low tone followed by double low tone.
Earpiece Controls and Indicators
DURATION: TAP is under 1 second. PRESS is 1-4 seconds as directed.

8
9
en
Earpiece Controls and Indicators
Action Light Tone
Enabling or
disabling mute
(during an active
call)
Press volume button
for 2 seconds.
None Mute on: sequence starts with the
low-high tones plus voice prompt
“Mute On” (in English). 15 minutes
later just the low-high tones advise
status. Full sequence repeats
every 30 minutes until Mute is
de-activated.
Mute off: high-low tones followed
by voice prompt “Mute Off” (in
English).
Adjust the
volume (during an
active call)
Tap the volume button once for
each volume increment. After
reaching max volume, tapping again
will drop the volume to the lowest
setting.
One white flash for
every volume level
change.
One low tone for each volume
increment change; 2 low tones at
maximum volume.
WARNING Do not use the earpiece at high volumes for an extended period of time. Doing so can cause
hearing loss. Always listen at moderate levels. See www.plantronics.com/healthandsafety for more information
on earpieces and hearing.
DURATION: TAP is under 1 second. PRESS is 1-4 seconds as directed.
Action Light Tone
Check if earpiece
is powered on
Tap any button. 1 white flash. 1 tone.
Incoming call None 3 white flashes
every 2 seconds.
3 rapid low tones every
2 seconds.
NOTE If your headset is docked with the charging case, the headset icon (bottom left) and
the display backlight on the case will flash when you have an incoming call. Remove the
earpiece from the case to answer the call.
Call in progress None 1 white flash every
2 seconds.
None
Missed call None 3 pink flashes
every 10 seconds
for 5 minutes.
None
Turn the online
indicator on or off
While the earpiece is powered on,
press and hold the volume button
for 4 seconds.
Turning on: White
light brightens
over 2 seconds.
Turning off: White
light dims over 2
seconds.
Single low tone.
Earpiece Controls and Indicators
DURATION: TAP is under 1 second. PRESS is 1-4 seconds as directed.

10 11
Product Specifications
Talk Time* Battery enables up to 5 hours
Standby Time* Battery enables up to 7 days with multipoint feature OFF
Battery enables up to 4 days with multipoint feature ON
Earpiece Weight 8 grams
Battery Type Earpiece: Lithium ion polymer
Charging Case: Lithium ion polymer
Storage/Usage
Temperature
32-104ºF (0-40ºC)
Bluetooth Version 2.1 + EDR (Enhanced Data Rate) + eSCO + Secure Simple Pairing (SSP) for pairing
earpiece without entering PIN code/Passkey
Bluetooth Profiles Headset Profile (HSP) for talking on the phone
Hands-free Profile (HFP) for talking on the phone and operating the phone
* Performance may vary by device.
This warranty covers defects in materials and workmanship of products manufactured, sold or certified by
Plantronics which were purchased and used in the United States and Canada.
The warranty lasts for one year from the date of purchase of the products.
This warranty extends to you only if you are the end user with the original purchase receipt.
We will, at our option, repair or replace the products that do not conform to the warranty. We may use functionally
equivalent reconditioned/refurbished/remanufactured/pre-owned or new products or parts.
To obtain service in the U.S., contact Plantronics at 1-866-363-BLUE (2583). To obtain service in Canada call (800)
540-8363.
THIS IS PLANTRONICS’ COMPLETE WARRANTY FOR THE PRODUCTS.
This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.
Please contact your dealer or our service center for the full details of our limited warranty, including items not
covered by this limited warranty.
Limited Warranty

1
es
Bienvenido
Gracias por comprar el audífono Discovery®
975 de Plantronics. Esta guía contiene
instrucciones para configurar y utilizar su
nuevo audífono.
Antes de usar este producto, consulte
la guía por su seguridad, donde encontrará
información importante acerca de la
seguridad y la carga del producto.
Asistencia técnica
Si necesita ayuda, tiene a su disposición el
Centro de asistencia técnica de Plantronics.
Visite www.plantronics.com/support o llame
al teléfono 1-866-363-BLUE (2583).
Registro del producto
Visite www.plantronics.com/
productregistration para registrar su
producto por Internet, de modo que
podamos proporcionarle el mejor servicio y
asistencia técnica posibles.
El nuevo audífono funciona mejor cuando está
totalmente cargado. Mientras el auricular se
está cargando, la luz indicadora roja parpadea
lentamente. Cuando el audífono está totalmente
cargado, la luz indicadora se apaga. Esto ocurre
con todas las opciones de carga.
Nunca cargue la batería cuando la temperatura
pueda caer por debajo de 0°C (32°F) o elevarse
por encima de 40°C (104°F). No use el audífono
mientras está conectado al cargador.
Opción A: con el cargador de CA
1 Conecte el cargador de CA a una toma de
corriente.
2 Conecte el cargador de CA a la entrada
de carga del auricular.
Carga del audífono
Opción B: Uso del estuche de carga
1 Abra la cubierta del estuche. Alinee la
entrada de carga del audífono con la
conexión micro USB del estuche.
2 Presione suavemente el audífono para
que entre en la conexión micro USB
hasta que escuche un clic.
3 Una vez cargado, oprima suavemente
el botón de expulsión con el pulgar para
liberar el audífono.

2
3
es
Carga del audífono
Comprobación de la carga de la batería
del audífono
La pantalla LCD del estuche de carga indicará
el nivel de batería del audífono cuando éste se
haya insertado en el estuche.
NOTA El icono de Bluetooth del estuche indica
que el audífono está conectado al teléfono.
Puede recibir llamadas mientras está cargando.
ADVERTENCIAS DE BATERÍA BAJA
Nivel de la batería Tono Mensaje de
advertencia
Quedan 30 minutos de
conversación (esta alerta
sólo ocurre durante una
llamada activa)
Tono alto
doble cada
15 minutos
“Recharge
Battery” (cargar
pila) se repite
cada 30 minutos
Quedan 10 minutos
de tiempo de
conversación
Triple tono
alto cada
30 segundos
“Recharge
Battery” (cargar
pila) se repite
cada 3 minutos
Alertas automáticas del nivel de carga de
la batería
Cuando la batería está a punto de agotarse, se escucha
automáticamente un tono y un mensaje en inglés.
Recargar de su estuche de carga
Carga de la batería dentro del estuche
El estuche de carga proporciona dos cargas completas al audífono antes de que la batería del
estuche tenga que volver a cargarse.
1 Para comprobar el estado de la batería del estuche, consulte la pantalla LCD.
Si está parpadeando el icono de la batería o la pantalla está en blanco, debe volver a cargar el
estuche antes de que pueda usarlo para cargar el audífono.
2 Enchufe el cargador de CA a la fuente de alimentación antes de conectarlo a la entrada
de carga que está a un lado del estuche.
Mientras el estuche se carga, el icono de batería de la pantalla LCD (encima de la imagen del
estuche) parpadea para indicar el nivel de carga.
