Plantronics Blackwire C710 User manual

Blackwire®C710™/C720™
Corded USB headset with Bluetooth®
User guide

2
ContentsContents
Welcome 3
What’s in the package 4
Headset features 5
Accessories/Spares 6
Using your headset 7
Inline controls 7
Wearing the headset 8
Connect, charge and make a mobile phone call 9
Connect headset to PC 9
Charge your headset 9
Make a mobile phone call 9
Make a PC call 12
Advanced features 14
Plantronics Spokes software 18
Useful tips 21
Troubleshooting 22

3
Welcome
Congratulations on purchasing your new Plantronics product. This user guide contains
instructions for setting up and using your Blackwire C710/C720 Bluetooth headset.
Please refer to the separate safety instructions for important product safety information prior
to installation or use of the product.
Blackwire C710/C720 next generation technology.
Featured highlights and Smart Sensor™technology:
• Auto answers calls by simply putting on your headset.
• Auto transfers calls between mobile phone and headset
• Softphone presence can be automatically updated.
• Integrated A2DP (Advanced Audio Distribution Profile for Bluetooth) lets you listen to media
audio.
• Voice prompts announce power on/off, battery level, connection status and more.
System requirements
Computer
• Supported Operating Systems:
Windows XP®SP3 or later,
Windows Vista® SP1 or later,
Windows® 7 SP1 or later recommended
MAC OS X 10.6.8 or later
• Processor: 400 MHz Pentium® processor or equivalent (Minimum); 1 GHz Pentium processor or
equivalent (Recommended)
• RAM: 96 MB (Minimum); 256 MB (Recommended)
• Hard disk: 280 MB (Minimum); 500 MB (Recommended)
Browser
• Internet Explorer® V6 or better must be on the user’s system (Required)
Registering your product online
Visit plantronics.com/productregistration to register your product online
so we can provide you with the best possible service and technical support.
Technical assistance
Visit our website at plantronics.com/support for technical support including frequently asked
questions, compatibility and accessibility information.

4
What’s in the package
1 Blackwire C710 Headset with inline controller (monaural) or
2 Blackwire C720 Headset with inline controller (stereo)
3 Blackwire C710/C720 USB cable
4 Carrying case
12
3
OR
4

5
Headset features
1 Right ear cushion
2 Adjustable headband
3 Left ear cushion
4 Noise-cancelling microphone
5 Mobile talk and Bluetooth on/off button
6 Volume up/volume down bar
7 Inline controller
8 Mute/unmute button
9 PC talk button
10 USB cable/connector
23
4
6
7
9 8 5
10
1

6
Accessories/Spares
(Sold separately)
Carrying case
Foam ear cushions Leatherette ear cushions
Blackwire C710/C720 USB cable
NOTE For more information on accessories and spares, please visit us at
plantronics.com/accessories.

7
Inline controls
Mobile talk button Can be used to answer or end a call directly from the headset with
a single press. LED will rapid flash blue when a call is coming in and
slow flash blue when on a call. Can be used to manually turn on or off
the Bluetooth radio with very long press; Bluetooth status will stay in
last known state.
PC talk button Can be used to answer or end a call directly from the headset with a
single press. LED will rapid flash green when a call is incoming and
slow flash green when on a call. Can also be used to put a caller on
hold with medium press.
Volume Volume up and down are available by pushing the bar up and down.
Mute A single press of the mute button will mute the microphone. A red LED
will be on when you are muted. Pressing this button again will take
the microphone off mute.
CAUTION For your safety, do not use the headset at high volumes for extended periods
of time. Doing so can cause hearing loss. Always listen at moderate levels. For more
information on headsets and hearing visit: plantronics.com/healthandsafety.
Using your headset

8

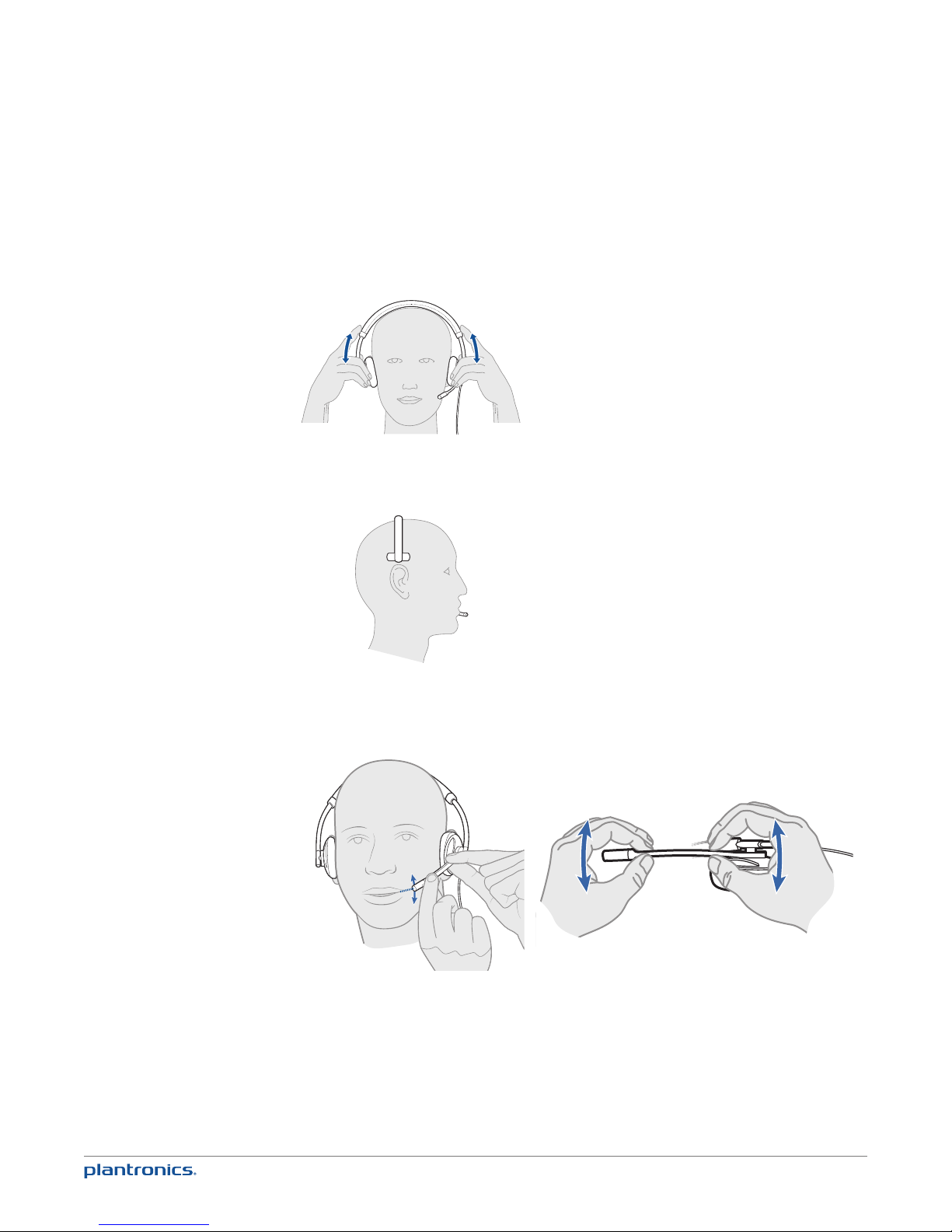

Wearing the headset
1 To adjust the headband, lengthen or shorten the band until it fits comfortably. Position the
headset receivers so that the cushions sit comfortably over the centre of your ears.
2 For the C710 headset, position the stabiliser T-bar above your ear.
3 Once the headset is positioned on your head, adjust the flexible boom so the tip of the boom
points to the corner of your mouth. The boom can be shaped to follow the curvature of your
face.
NOTE The headset is designed for the boom to be worn on the left side of your face. To wear the
headset so the boom is on the right side, rotate the microphone boom upwards until it aligns with
the right corner of your mouth. Left and right audio channels will be switched.

9
Connect headset to PC
1 Connect the USB cable to the PC and the inline controller.
The first time you connect your headset to the PC, the mobile talk button on the headset will
flash red and blue indicating the initial pairing process of your mobile phone.
NOTE If you do not want to pair your mobile phone now, press and hold the mobile talk button
more than five seconds to power off the bluetooth radio. The LED will turn solid red for two seconds.
See Other features for more information.
Charge your headset
NOTE Your new headset has enough power to make a few mobile calls before charging is needed.
When your headset is connected to the PC the mobile talk button will be solid red when charging and
off when fully charged.
1 Plug in your headset and place it on a flat non-metallic surface. The sensors in your headset
fully calibrate while charging.
A full charge will take approximately two hours. When fully charged, the LED goes off.
NOTE Always charge at near room temperatures; never charge the battery at temperatures below 0º
C (32ºF) or above 40º C (104ºF).
Headset battery levels
With Plantronics Spokes® software installed, a headset icon will appear in your system tray,
displaying battery status. The Plantronics battery status will notify you of four different battery
levels (25%, 50%, 75% and 100%). Fully charge the headset at least once to properly calibrate
the battery status.
Make a mobile phone call
1 Activate the Bluetooth feature on your phone, then use the phone’s settings to add/search/
discover new Bluetooth devices.
BlackBerry® Settings/options > Bluetooth: On > Search for devices.
iPhone Settings > General > Bluetooth > On (starts the search for devices)
Android™Phone Settings > Wireless > Bluetooth: On > Scan for devices.
Other Consult phone manual
Connect, charge and make a mobile phone call

10
NOTE For detailed pairing instructions for popular mobile phones visit plantronics.com/easytopair
Blackwire C700

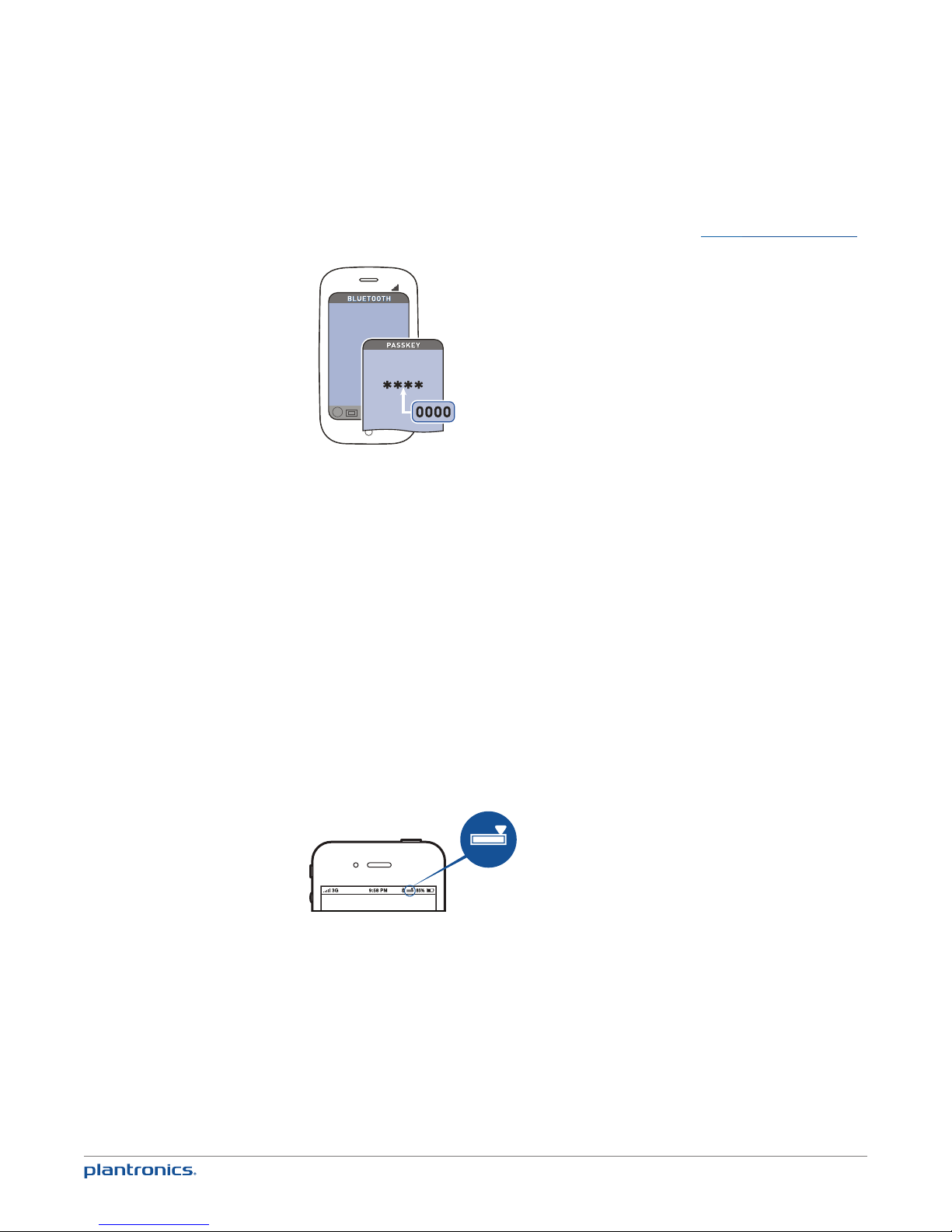

2 If prompted by the mobile phone, type 0000 as the passcode.
The mobile talk button will stop flashing when the headset has an active connection with the
mobile phone.
3 While wearing your headset, make a test call from your mobile phone.
During an active call, the mobile talk button will flash blue.
4To use the mobile phone away from the PC, disconnect the USB cable from the inline controller.
NOTE When a fully charged headset is disconnected from the PC there is enough power to make
four to five hours of mobile calls before charging is needed. Reconnect the headset to the PC and
the mobile talk button will be solid red when the headset is charging, and off when fully charged.
5End the call by pressing the mobile talk button.
TIP For iPhone users, the headset battery level is displayed on the iPhone home screen. The headset
must be connected to the iPhone.
The call does not end if you remove your headset without pressing the mobile talk button. See
Advanced features.
NOTE For call control and other features, download Plantronics Spokes software at
plantronics.com/software.

11
Placing a call with your headset and Bluetooth mobile phone
Place a call Dial number on your mobile phone keypad.
Redial last number* Double press the mobile talk button. There will be a double low tone
on each press. A low-low-high tone indicates the last number has been
redialled.
Activate voice dialling* Press and hold the mobile talk button for two seconds. You will hear a
tone followed by a second tone which indicates voice dial is activated.
* Only available on mobile phones that support these features.
Answering and ending calls with your headset and Bluetooth mobile phone
Answer a call Short press the mobile talk button.
Answer a call when already on
an active PC softphone call
Short press the PC talk button to end the PC softphone call. Then press
the mobile talk button to answer the mobile phone call.
End a call Short press the mobile talk button.
Reject a call Press the mobile talk button for two seconds until you hear a second
long single low tone.
Transfer a call from your
mobile phone to your
headset
While on a call, press the mobile talk button for two seconds until you
hear a single tone followed by a long low tone.
Transfer a call from your
headset to your mobile phone
While on a call, press the mobile talk button for two seconds until you hear
a long low tone followed by low-low-high tones. Or, if using smart sensors,
remove the C710/C720 headset to transfer audio to your mobile phone.
* Only available on mobile phones that support this feature.
Mobile talk button behaviour with PC and mobile connected (not on a call)
Redials last number on
mobile phone*
Double press the mobile talk button.
Starts voice dialling on
mobile phone*
Press the mobile talk button for 2 seconds.
* Only available on mobile phones that support this feature.
NOTE For call control and other features, download Plantronics Spokes software at
plantronics.com/software.
Mobile talk button LED indicators
Incoming call Rapid flash blue
Active call Slow flash blue
Media audio Slow flash blue
Pairing mode Flash red and blue
Powering on Solid blue (two seconds)
Power off Solid red (two seconds)

12
1Load Plantronics Spokes software by visiting plantronics.com/software and clicking
"Download".
2Reconnect USB cable to the inline controller and the PC if disconnected.
3Confirm the speaker and microphone settings for your PC softphone are set to Plantronics
Blackwire C710/C720 as shown below:

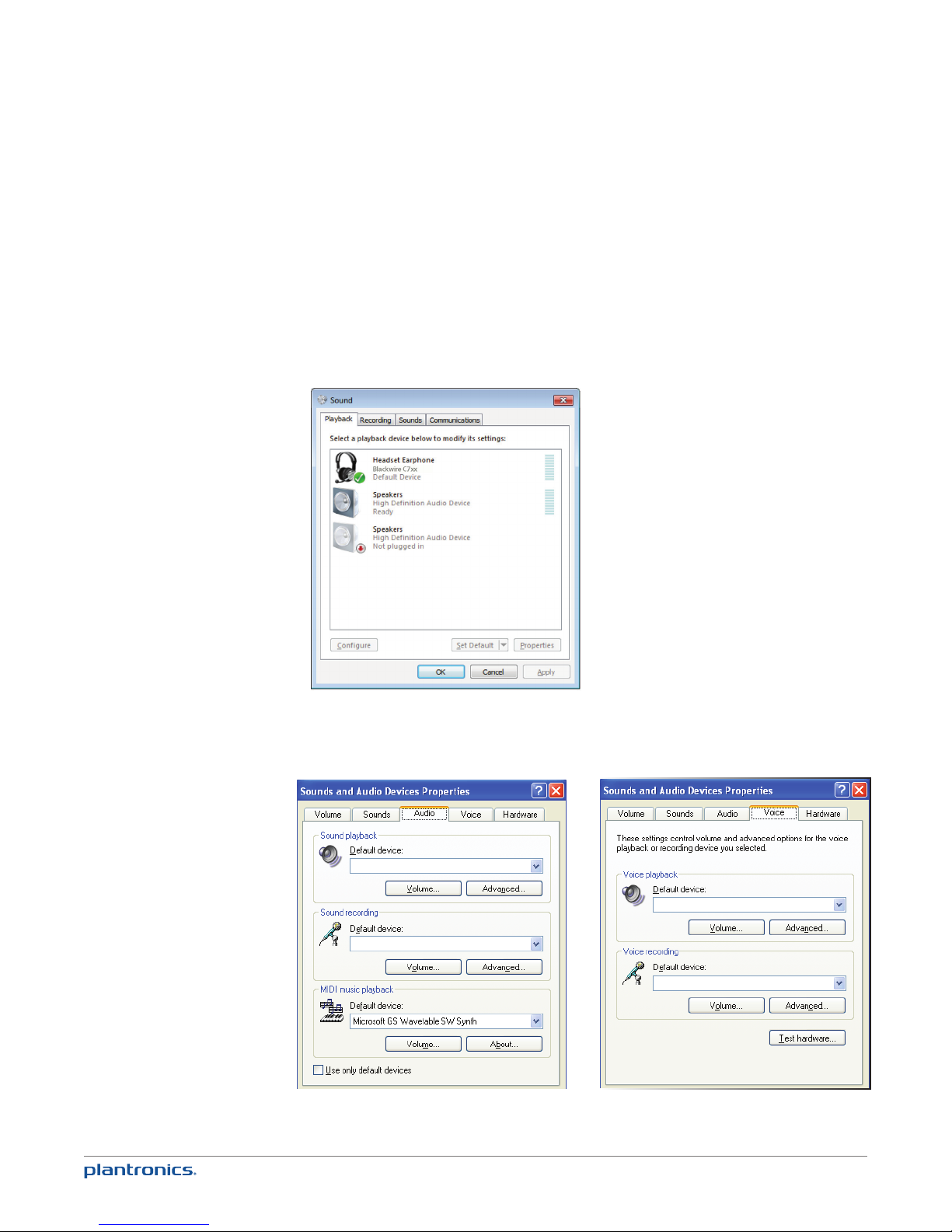

PC audio setup for Windows 7 (To reach this screen: Control Panel > Sound)
Default setting: All PC sounds and audio is played in the headset.
PC audio setup for Windows XP (To reach this screen: Start > Control Panel> Sound and Audio
Devices)
Blackwire C7xx
Blackwire C7xx
Blackwire C7xx
Blackwire C7xx
Default setting: All PC sounds and audio is played in the headset.
4 Place a call from your PC softphone. During an active call, the PC talk button will slow flash
green.
Make a PC call

13
NOTE If you choose to NOT install Spokes software, your headset will still function as a standard
audio device but the inline control buttons may not work with your softphone.
Placing a call with your headset and PC Softphone
To place a call Dial the number from your PC softphone.
Answering and ending calls with your headset and PC Softphone
To answer a call Short press the PC talk button.
To answer a call when already
on an active mobile phone call
Short press the mobile talk button to end the mobile phone call. Then
press the PC talk button to answer the softphone call.
To end a call Short press the PC talk button.
PC talk button LED indicators
Incoming call Rapid flash green
Active call Slow flash green
Media audio Slow flash green

14
Smart Sensor technology
Sensors detect whether or not you are wearing the headset. Sensors are located in the speaker
capsule on the microphone boom side.
Auto answer call:
When you are not wearing your headset.
When you have an incoming call on your mobile
or PC softphone, put on the headset and the call
will be answered automatically. You do not have
to press the call button.
Auto pause media:
When you are listening to media audio.
When you are listening to media audio from
your mobile phone, remove the headset and the
audio pauses. Place your headset back on and
the audio resumes.
Note If the media player has been playing
less than 10 seconds you will have to
manually restart the media player.
Note If the audio remains paused for more
than 5 minutes you will have to manually
restart the media player.
Note Auto pause media feature is only
available with your mobile phone. PC media
audio does not auto pause.
Auto transfer call:
Whether you are wearing your headset or not.
If you are not wearing your headset and you
answer an incoming call on your mobile phone,
the audio will be routed to the mobile phone.
When you put the headset on, the audio will be
automatically transferred to the headset.
If you are already wearing your headset and
there is an incoming call, the audio will be
routed to the headset and you will need to
press the mobile talk button to answer the call.
NOTE These features are enabled by default and can be disabled in the Plantronics Control Panel.
The Plantronics Spokes software must be downloaded to access the Control Panel. Changes to the
settings require that you are connected to the PC. Load Plantronics Spokes software by visiting
plantronics.com/software and clicking "Download".
Other features
Auto connect
When you are wearing your headset
Automatically connects headset to mobile
phone when Bluetooth headset is turned on
and within range of devices. Voice prompt will
announce you are connected.
Manual pairing If powered on, press and hold the mobile talk
button for more than five seconds to power off
the bluetooth radio.
If powered off, press and hold the mobile talk
button until the button flashes red and blue.
Advanced features

15
Simultaneous call handling behaviour (PC & mobile)
You can be on a call using a PC softphone application and receive a mobile phone call. The
ringtone for the mobile phone call is heard in the headset. Tapping the PC call button on the
headset will end the PC softphone call. Tapping the mobile call button will answer the mobile
phone call.
NOTE Answering the call on your mobile phone sends the audio to the mobile phone and leaves the
PC softphone call active on the headset.
You can be on a mobile phone and receive a call on your PC softphone. The ringtone for the PC
softphone call is heard in the headset during the call.
Tapping the mobile talk button on the headset ends the mobile phone call. Tapping the PC talk
button answers the PC softphone call.
If you receive a PC softphone call and mobile call at the same time, tapping the mobile or PC
talk button will answer the respective call.
Listening to Audio via A2DP
(Advanced Audio Distribution Profile for Bluetooth)
Your Blackwire C710/C720 headset can play media files (music, podcasts etc.) from any A2DP-
enabled mobile device.
Play/Pause
See Auto pause media in the Smart Sensor features table.
Customise
Make it more personal
Visit plantronics.com/myheadset to update and customise your headset with features like:
• Language options for voice prompts
• Disable/enable the sensors
• Disable/enable "Mute off" voice prompt
• Set "Mute on" reminder voice prompt
• Firmware updates as they are released
• Plantronics apps to improve your hands-free experience
NOTE You may hear unexpected voice prompts and tones when updating your headset.
Transmission range
If you are on a mobile call, you will hear the audio degrade as you move out of range of
your mobile phone. If you stay out of range, active calls will be suspended. Calls will be re-
established when you walk back into range.
Your Blackwire C710/C720 allows you to roam as far as 30 feet between devices before the call
is dropped. You will hear a voice prompt "Lost Connection" when the link is dropped.

16
Headset controls, indicators and voice prompts
Action LED Tone Voice prompt
Incoming PC call
alert
N/A Rapid green flash Programmable
ringtone
N/A
PC Call answer/end Short press the PC
Talk button
Short green flash Answer: Single low
tone followed by low-
low-high tones End:
Single low tone
N/A
PC Call “Flash” Two second Press
the PC Talk Button
Short green flash Low Tone N/A
Adjust the listen
volume (during a
call)
Press volume up/
volume down bar
Single PC LED
flash
Tone at each change
in volume. Double
tone when min/max
volume level reached
N/A
Muting your
microphone
Press and release
the Mute Button
On: Mute LED On
Off: Mute LED Off
On: Low-High Tones
Off: High-Low Tones
On: “Mute On”
Off: “Mute Off”
Mobile (Bluetooth)
Power on/off
Press the Mobile
Talk button for 5
seconds
On: solid blue for
2 seconds
Off: solid red for 2
seconds
N/A On: "Power on"
followed by "Phone
Connected",
"No Phone is
connected", or
"Pairing".
Off: "Power off"
Check if Mobile
(Bluetooth) is
powered on
Short press the
Mobile Talk button
Short blue flash Short Low Tone N/A
Incoming Mobile
call alert
N/A Rapid blue flash Programmable
ringtone
N/A
Mobile Call
answer/end
Short press the
Mobile Talk button
Short blue flash Answer: Single low
tone followed by low-
low-high tones
End: Single low tone
N/A
Reconnect Mobile
Phone after leaving
range for more
than 30 seconds
Short press the
Mobile Talk button
Single blue flash Single low tone "Phone connected"
Mobile redial last
number *
Double Press the
Mobile Talk button
Two blue flashes Two low tones
followed by low-low-
high tones
N/A
Mobile Activate
Voice Dialling *
Press and hold the
Mobile Talk button
for 2 seconds
Single blue flash Short low tone,
followed by long low
tone
N/A

17
Action LED Tone Voice prompt
Mobile Reject Call * Press and hold the
Mobile Talk button
for 2 seconds
Single blue flash Short low tone,
followed by long low
tone
N/A
Transfer Call Audio
to/from Mobile
Phone *
Press and hold the
Mobile Talk button
for 2 seconds
Single blue flash Short low tone,
followed by long low
tone. When a call is
transferred to the
headset you will also
hear the low-low-
high indicating it is
connected.
N/A
Mobile (Bluetooth)
Pairing Mode
With Bluetooth
powered off, press
and hold the
Mobile Talk button
for 5 seconds.
Red/Blue Flashing Short Low Tone "Power on"
followed by
"Pairing".
* Only available on mobile phones that support this feature.

18
Plantronics Control Panel
User preferences and device settings that affect the performance of your headset can be
changed using the Plantronics Control Panel.
To access the Plantronics Control Panel, load Plantronics Spokes software by visiting
plantronics.com/software and clicking on the download button.
To start this utility, click Start > Programs > Plantronics > Plantronics Control Panel.
Devices settings
Select your Blackwire C7xx from the pull-down menu then select Device Settings to configure
settings for your headset system.
Plantronics Spokes Software

19
Applications tab
Displays the status of Plantronics support for various applications such as softphones and
media players.
Preferences tab
Allows you to set preferences for the media player as well as other general settings.

20

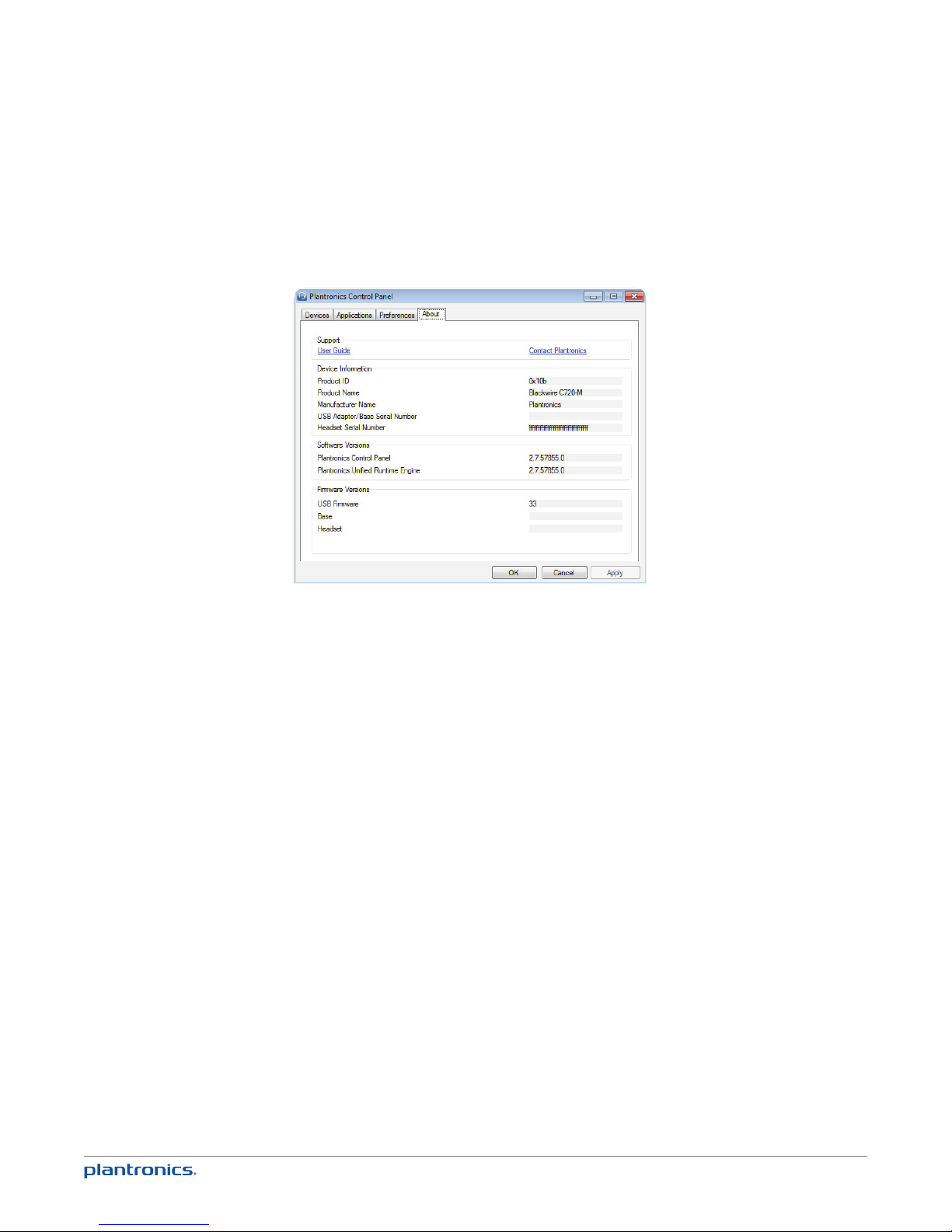

About tab
Provides online access to the user guide and support and displays your headset system’s
information.
Plantronics Update Manager
Check for updates automatically
By enabling this tick box, you will activate a periodic automatic check for available software
updates.
Check for updates now
You can choose to check for available software updates at any time by clicking on the Check
For Updates Now button in Update Manager: From the Start menu, click Programs, then
Plantronics, then open Plantronics Update Manager.
Install ticked updates
Following an AUTOMATIC or MANUAL CHECK FOR UPDATES, this field will be populated with
any applicable software updates and the INSTALL CHECKED UPDATES will begin installation.
