Plantronics CS50 Instruction Manual

HFEA-CS50AT900 (071807) Page 1 of 2
Air Talk 900™ Wireless Intercom
TIPS FOR INSTALLING THE PLANTRONICS CS50
Introduction
Air Talk 900™ wireless audio consoles have integrated support for the Plantronics CS50
Wireless Office Headset System. This system offers crystal clear, secure
communications. The headsets, with integrated battery, offer up to 8 hours of wireless,
hands-free talk time and up to 300 feet of roaming distance.

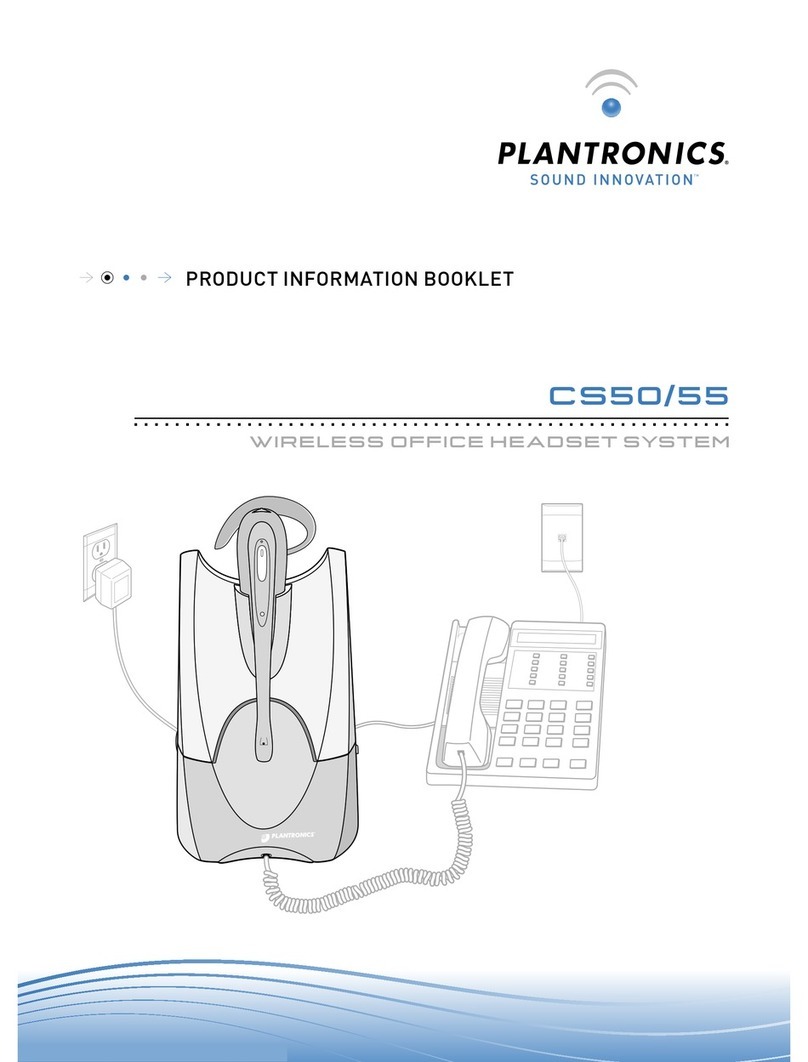

Making the Connections to the CS50
1. Connect the AC Power Adapter to the power jack on the bottom of the CS50.
2. Connect the provided short handset cable between the back of the
Air Talk 900™
audio console and the bottom of the CS50.
a. There are two handset jacks on the bottom of the CS50; you must use the
one with the
complete picture of the telephone, not just the picture of the
telephone handset.
Initial Setup of the CS50
1. There is a Configuration Dial on the left side of the CS50 – set this dial so that the
number “1” is facing to the right.
2. Set the Master Speak Volume (outgoing volume) located on the bottom of the CS50
to the “B” position.
3. Set the Master Listen Volume (incoming volume) located on the back of the CS50 to
the number “1” position.
Fine Tuning the CS50 Volumes
1. Fine tune the outgoing speaker volume by using the up (+) and down (-) buttons on
the back of the CS50 base.
2. Fine tune the incoming listen volume by using the small up and down button control
located at the very back end of the boom portion of the teller headset.
Other Hints When Using the CS50

HFEA-CS50AT900 (071807) Page 2 of 2
1. When adjusting the volumes for the CS50 it is always best to
first adjust the Air Talk
900™
system without the CS50’s installed. This will ensure that the volumes are
normal and reasonable for the wireless headset system.
2. To switch between using the CS50 wireless headset and using the speaker and
microphone located on the audio console, select the wireless button located on the
console keypad. The wireless LED will light indicating when the unit is operating in
CS50 headset mode. When operating in headset mode the local speaker and
microphone are disabled.
3. Keep the CS50 wireless base-station as far away from the
Air Talk 900™ wireless
console antenna as possible to avoid unnecessary interference between the two
systems.
4. For most users, the CS50 will work best with the
Air Talk 900™ system when the
headset is worn so the microphone boom is below the chin rather than in front of
the user’s mouth.
