Plantronics Explorer®240 & 395
User Guide

ii
Welcome
Thank you for purchasing the Plantronics Explorer 240 or 395 headset.
This guide contains instructions for setting up and using your new headset.
Before using this product, please refer to the For Your Safety booklet
for important safety, charging, battery and regulatory information.
Getting Assistance
The Plantronics Technical Assistance Center is ready to assist you.
You can find answers to frequently asked questions, ask a question
using e-mail, receive service over the Internet, or speak directly
with a representative. Visit www.plantronics.com/support or call your
country support line mentioned at the back of this user guide.
NOTE If you are considering returning this headset, please contact
the Technical Assistance Center first.
Registering Your Product
Visit www.plantronics.com/productregistration to register your product
online so we can provide you with the best service and technical support.
NOTE For pairing your headset, your PIN code/Passkey is 0000.

iii
Contents
Package Contents and Features...........................................................iv
Charging Your Headset......................................................................... 1
Using the AC charger ..................................................................1
What is Bluetooth®? ............................................................................. 2
Plantronics QuickPair®Technology .............................................. 2
Range (the distance between headset and phone) ...................... 2
Pairing Your Headset ............................................................................ 3
Adjusting the Fit.................................................................................... 4
Headset Controls and Indicators........................................................... 6
Troubleshooting.................................................................................... 9
Product Specifications........................................................................ 10

iv
Package Contents and Features
Headset Front*
AC Charger 100–240V
Headset Back
Volume Control Button
Call Control Button
Status Light
Power On/Off Switch
Swivel Earloop [fits either ear]
Microphone
Speaker/Eartip
Micro USB Charging Jack
Power On/Off Switch
NOTE Your headset may look different than the illustration, but will still
work as described.
* For illustration purposes only; designs will vary by model number.

1
Charging Your Headset
Your new headset performs best when it is fully charged. While your
headset is charging, the indicator light glows red. When your headset
is fully charged, the indicator light turns blue. Do not use your headset
while it is connected to the charger.
How to Charge Your Headset Using the AC Charger
1 Plug the charger into a power outlet.
2 Connect the charger cable to the headset.
NOTE Never charge the battery where the temperature may fall below
0°C (32°F) or rise above 40°C (104°F) – for example, in an unattended
motor vehicle. Do not charge the battery while it is unattended.
2
1
CHARGING TIME
2 hours ....................... Full charge
1 hour ......................... Minimum charge
before first use
2
1

2
What Is Bluetooth?
Bluetooth wireless technology provides a way for devices, like headsets
and phones, to communicate with each other without wires. Pairing is
the set-up process of introducing your headset to your phone.
Before using your headset for the first time, you must pair it with
your Bluetooth-enabled phone.
Plantronics QuickPair™Technology
To simplify the Bluetooth setup process, your new headset uses
Plantronics QuickPair technology. This process is shown on the next page.
• The first time you turn your headset on, your headset
automatically enters pairing mode for 10 minutes (the indicator
light flashes red and blue).
•
Until you successfully pair your headset with a Bluetooth-
enabled phone, every time you turn it on it will enter pairing mode.
• To later pair to a new phone, turn on the headset, then press
and hold the Call Control button until red then blue flashing
appears, which indicates pairing mode status.
Range (the distance between headset and phone)
• To maintain the connection, keep your headset within 10 meters
(33 feet) of your phone.
• For the least amount of interference place the headset and
phone on the same side of your body.
If you move too far from your phone and lose the Bluetooth connection:
•
the headset may reconnect automatically within 60 seconds when
you move closer to your phone (you will hear a low tone), OR
• you may have to tap the Call Control button to reconnect (you
will hear a low tone), OR
• if neither of the above options work, you may have to
reconnect to your headset using your phone’s Bluetooth menu.

3
1
How to Pair Your Phone With Your Headset for the First Time
1 Turn on the Bluetooth feature on your phone.
For most phones, select Settings/Tools > Connections >
Bluetooth > On. See your phone’s user guide for more information.
2 Turn the headset on.
Turn on your headset by sliding the Power On/Off Switch toward the
microphone. Wait until the indicator light flashes red then blue.
If you don’t see the red then blue flashes, turn the headset off, then
turn it on again. Press and hold the Call Control button until you see
the red then blue flashes that indicate pairing mode status.
3 Set your Bluetooth phone to ‘discover’ to locate the headset.
This usually involves going to ‘setup’, ‘connect’ or ‘Bluetooth’ menu
on your phone and selecting the option to ‘discover’ or ‘add a
device’.
4 Once available headsets are listed, select your headset (for
example 2XXPlantronics or 3XXPlantronics). If prompted for a
passkey, enter 0000.
When pairing is successful, the indicator on your headset flashes
blue. Your phone will also confirm when pairing is complete.
Pairing Your Headset
32
4
SETTINGS
SETTINGS
Time and Date
Phone Settings
Bluetooth
Sound Settings
Networ k Services
Security
Reset Settings
BLUETOOTH
BLUETOOTH
Discover/
Search
BLUETOOTH
BLUETOOTH
2XXPlantronics
PASSKEY
0000

4
The headset comes out of the box with the earloop in place to wear on
your right ear.
1 Place the earloop behind your ear.
Rotate the headset so that the speaker rests comfortably in your ear.
2 Align the microphone with the corner of your mouth.
Callers can hear you best when you point the microphone towards
the corner of your mouth.
Adjusting the Fit
1
2

5

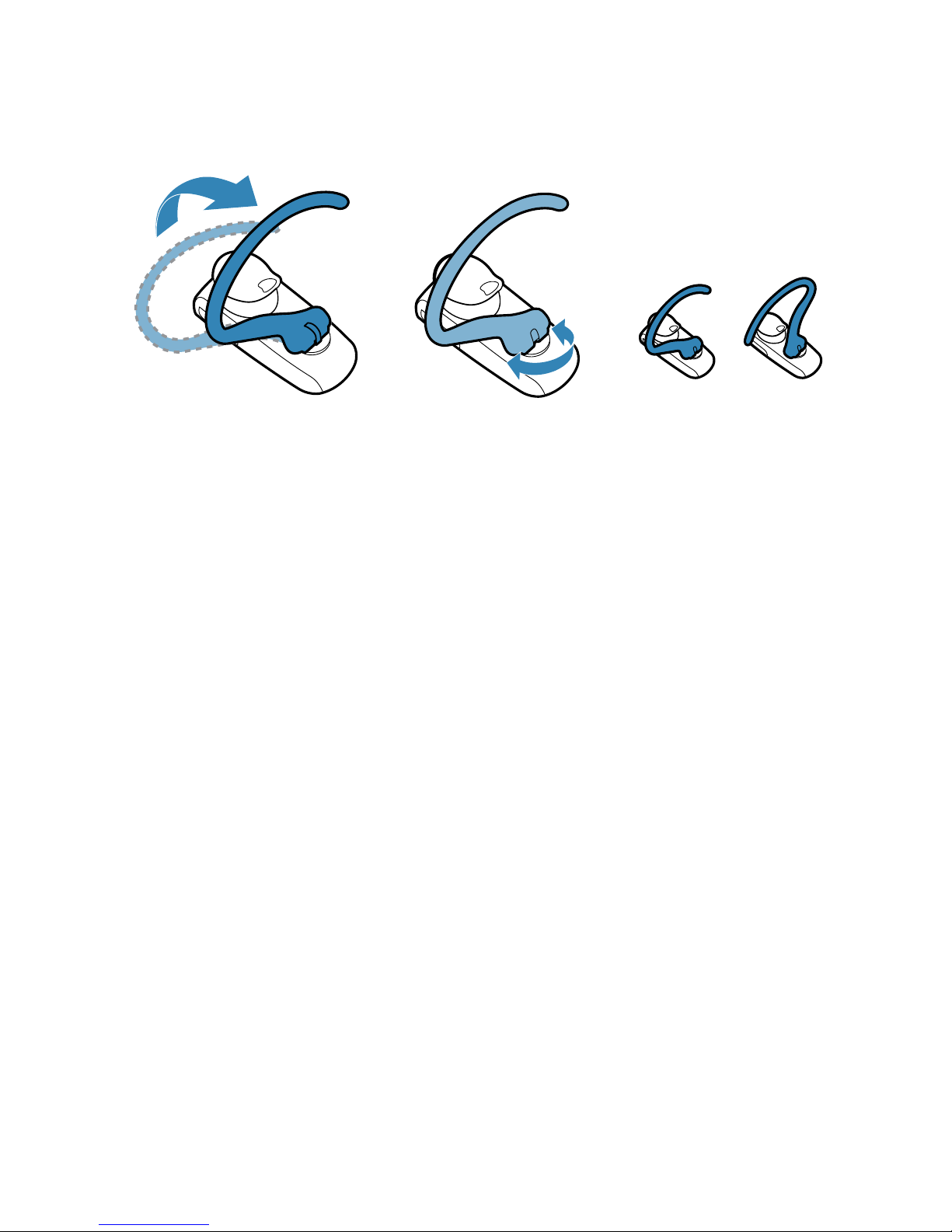

It’s easy to move the earloop to fit on your left ear.
1 Lift the earloop.
2 Swivel the earloop to the right and push it back down.
Adjusting the Fit
1
2
Right Left

Headset Controls and Indicators
Action Indicator Light Tone
Turn the headset on or off
On: Slide the Power Switch
to the “On” position.
Off: Slide the Power Switch
to the “Off” position.
On: Short blue flash Off: Long red flash,
then turns off
On: Four rising tones Off: Four descending
tones
Answer/end a call
Tap the Call Control button. None Brief low tone at the
beginning or end of the call.
Reject an incoming call
Press and hold the Call Control button until you hear a low tone.
None Low tone
Missed call indicator
Briefly press any button to cancel the indicator light.
Two simultaneous red/ blue flashes, a pause, then two more red/blue flashes (repeating for 5 minutes or until cancelled).
None
6

7
Headset Controls and Indicators
Action Indicator Light Tone
Make a call Enter the number on your
phone and press send.
Blue flash every 2 seconds until the call is ended.
Ringing
Battery level To check, simultaneously
press and hold both the Call Control and Volume buttons for about 2 seconds. The indicator light flashes to show the charge level.
Red flashes Battery level 1 More than 2/3 full 2 1/3 - 2/3 full 3 Less than 1/3 full
None when checking level. Low battery tone indication: 3 tones when under 5 minutes talk time is remaining.
Adjust the volume (during call)
Tap the Volume button to increase through 4 levels; tap at top level to return to lowest volume setting.
Single blue flash for every volume level change.
Low tone at every volume level change. (Two tones at maximum volume level.)
WARNING Do not use headphones/headsets at high volumes for an extended period of time. Doing so
can cause hearing loss. Always listen at moderate levels. See www.plantronics.com/healthandsafety for more information on headsets and hearing.

8
Headset Controls and Indicators
Action Indicator Light Tone
Voice Dial Press and hold the Call
Control button until you hear a tone.
None Single low tone;
phone may prompt with “Name please” or tones.
Redial last number Tap the Call Control
button twice.
None Two brief low tones
Transfer a call from headset to phone, or from phone to headset
While the call is in progress, press and hold the Call Control button until you hear a tone.
None Long low tone when
moving to phone; short low tone when moving to headset.

9
Troubleshooting
My headset
does not work
with my phone
Your headset may not have been in pairing mode
when your phone was searching for it. Repeat the
pairing process on page 3.
You may have made incorrect menu selections
on your phone while pairing. Repeat the pairing
process on page 3.
Callers cannot hear
me, or I cannot
hear callers/dialing
tone
Make sure the headset Power Switch is in the
ON position.
Your headset may be out of Bluetooth range
or experiencing interference. Move the headset
closer to your phone, and make sure your
headset and phone are on the same side of your
body. See Range on page 2.
Your headset battery is drained. Recharge the
battery using the supplied AC power adapter.
The listening volume is too low. Tap the Volume
button to increase the headset volume.
My headset is
flashing red then
blue
Your headset is in Pairing mode. If you are not
trying to pair the headset, reset it by simply
turning headset off then on again. Otherwise,
see Pairing on page 3.

10
Product Specifications
Talk Time* Up to 5 hours
Standby Time* Up to 7 days
Charge Time 2 hours
Range Up to 10 meters (33 feet)
Power Requirements 5V DC – 180 mA
Battery Type Rechargeable, non-replaceable,
lithium ion polymer
Storage/Usage/
Charging Temperature
0º C - 40º C (32º F - 104º F)
Bluetooth version 2.1 + EDR (Enhanced Data Rate)
Supports your phone’s Bluetooth Hands-free
(HFP), Headset (HSP) and Secure Simple
Pairing (SSP) profiles.
* Battery enabled. Performance may vary by device.

11
For safety information, see the separate “For Your Safety” booklet.
For warranty information, see the separate “2 Year Warranty” leaflet
or visit www.plantronics.com
Plantronics Ltd
Wootton Bassett, UK
Tel: [phone]
www.plantronics.com
Czech Republic
www.plantronics.com
Danmark
Tel: [phone]
Plantronics GmbH
Hürth, Deutschland
Kundenservice:
Deutschland 0800 9323 400
Österreich 0800 242 500
Schweiz 0800 932 340
www.plantronics.com
Για περισσότερες
πληροφορίες:
Plantronics Iberia, S.L.
Madrid, España
Tel: [phone]
Finland
Tel: [phone]
Plantronics Sarl
Noisy-le-Grand
France
Plantronics BV
Regus House
Harcourt Centre
Harcourt Road
Dublin 2
Ireland
Service ROI: 1800 551 896
:רתאב רקב ,ףסונ עדימל
www.plantronics.com
További információk:
www.plantronics.com
Plantronics Acoustics
Italia Srl
Milano, Italia
Numero Verde: 800 950934
Plantronics B.V.
Hoofddorp, Nederland
Tel: (0)0800 Plantronics
0800 7526876 (NL)
00800 75268766 (BE/LUX)
Norge
Tel: [phone]
Aby uzyskać więcej
informacji:
www.plantronics.com
Portugal
Tel: [phone]
Pentru informaţii
www.plantronics.com
Дополнительная
информация:
www.plantronics.com
Sverige
Tel: [phone]
Daha fazla bilgi için:
www.plantronics.com
en
cs
da
de
el
es
fi
fr
ga
he
hu
it
nl
ar
no
pl
pt
ro
sv
tr
ru

Plantronics B.V.
Scorpius 140
2132 LR Hoofddorp
Netherlands
www.plantronics.com
© 2010 Plantronics, Inc. All rights reserved. Plantronics, the logo design, Plantronics
Explorer, QuickPair and Sound Innovation are trademarks or registered trademarks
of Plantronics, Inc. The Bluetooth name and the Bluetooth trademarks are owned by
Bluetooth SIG, Inc., and are used by Plantronics, Inc. under license. All other trademarks
are the property of their respective owners.
U.S. Patents Pending
83240-03 Rev A
МЛ05
