PMV Mounts PMVSHORTTHROW User manual

Attach Projector Mount to Wall
1
ŸREAD THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLING YOUR EQUIPMENT.
ŸINSTALL THE MOUNT IN A SUITABLE LOCATION USING FIXING WHICH ARE APPROPRIATE FOR THE
WALL MATERIAL AND STRUCTURE. CONSULT A QUALIFIED BUILDER IF YOU ARE IN ANY DOUBT AS
TO THE STRUCTURAL INTEGRITY OF THE WALL.
ŸDO NOT ATTEMPT TO ALTER OR MODIFY ANY PART OF THE WALL MOUNT OR IT'S ATTACHMENTS.
ŸDO NOT USE IF ANY PARTS ARE BROKEN OR APPEAR TO BE DAMAGED.
Ÿ TIGHTEN ALL BOLTS AND FIXINGS SECURELY. ONLY USE FIXINGS PROVIDED WITH THIS BRACKET.
Ÿ DO NOT MOUNT YOUR PROJECTOR NEAR TO SOURCES OF HEAT OR MOISTURE.
Ÿ ALWAYS HAVE A MINIMUM OF TWO PERSONS TO INSTALL THE PROJECTOR ONTO THE MOUNT.
MOUNTING INSTRUCTIONS FOR
UNIVERSAL SHORT THROW PROJECTOR MOUNT
MODEL No.
PMVSHORTTHROW
SVPMST0001
AVPMSTSHORT
Max Weight Loading 15kgs
1

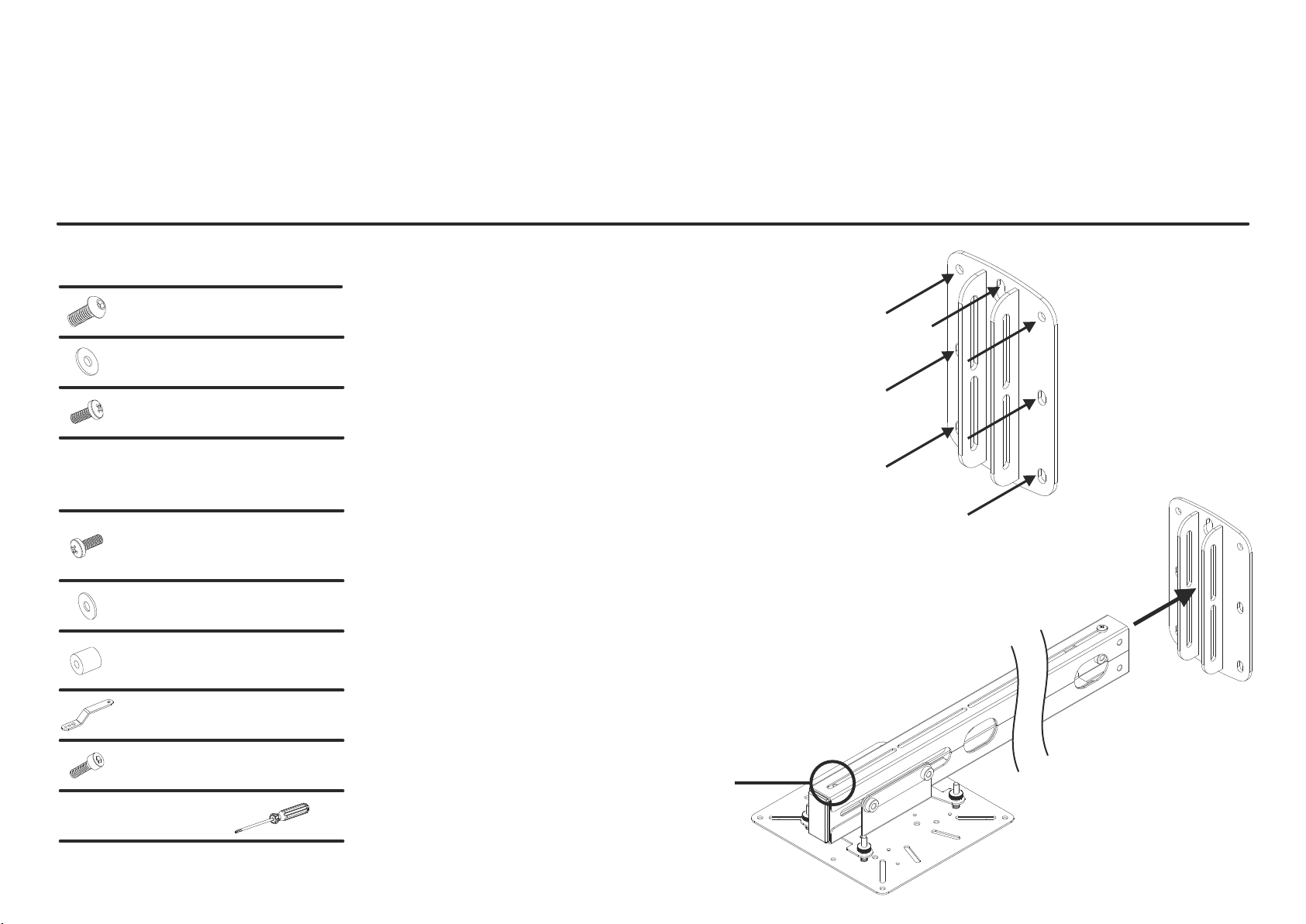

Secure Boom Arm To Wall Plate
2
For ease of installation mount bracket on wall using position 1
and mark other positions using a spirit level. Then remove
fixing from position 1, remove bracket and drill other positions
Use Fixings suitable for your type of wall construction.
Use All available fixing points.
If in any doubt of the suitability of the wall, it's construction or
what type of fixings to use, consult a qualified builder or installer.
CAUTION NOTE!
This mount is designed to take projectors up to a
weight of 15Kgs. For safety reasons the mount
has been tested with a dead weight loading of
75Kgs. It is recommended that if the installation is
at risk of being subjected to greater loads then
you should additionally tether the mount to the
ceiling using the tether point (highlighted below).
The tether point uses an M6 thread which can
accept any M6 fixing such as an eye bolt or hook.
Tether Point
a
Universal Projector Fixing Kit
D - M3 x 10mm
F - M4 x 10mm
H - M5 x 10mm
J - M6 x 10mm
L - M3 Washer
N - M4 Washer
E - M3 x 25mm
G - M4 x 25mm
I - M5 x 25mm
K - M6 x 25mm
M - M5 Washer
O - M6 Washer
P - M5 x 10mm
Q - M5 x 5mm
R - M6 x 15mm
Also Required
S - Extension Arm
T - M5 x 10mm
x4
x4
x4
x4
x4
Projector Mount Assembly Kit
C - M6 x 12mm x2
A - M8 x 16mm
B - M8 / M6
x4
x4/x3

b
Secure Boom Arm To Wall Plate Adjust Length of Mount
Attach Projector Fixing Arms if Required and Attach Projector
2 3
4
Ax4
Bx4
NOTE:
Attach boom arm to wall plate at required height.
To adjust height once the mount is installed refer to Stage 5
FIRST REMOVE
TRANSIT SCREW
Cx2
Bx3
To Projector
T
S
D~K
P~R
Fine Adjust Position
5aTo fine tune the length and tilt of the mount, loosen
bolts, slide mount to required position and re-tighten
bolts.
bTo fine tune the level of the projector use the four
adjustment thumb wheels on the spring loaded cradle.
Do not fully unwind the thumb wheels.
cTo fine tune height position of the projector, loosen
the boom assembly screws and slide the projector to
required position. Then re-tighten all four screws.
dThe integrated level indicates that the mount arm
is at 0°.
This does not necessarily mean the projector is level
with the screen so other adjustments may need to be
made.
a
b
c
d
