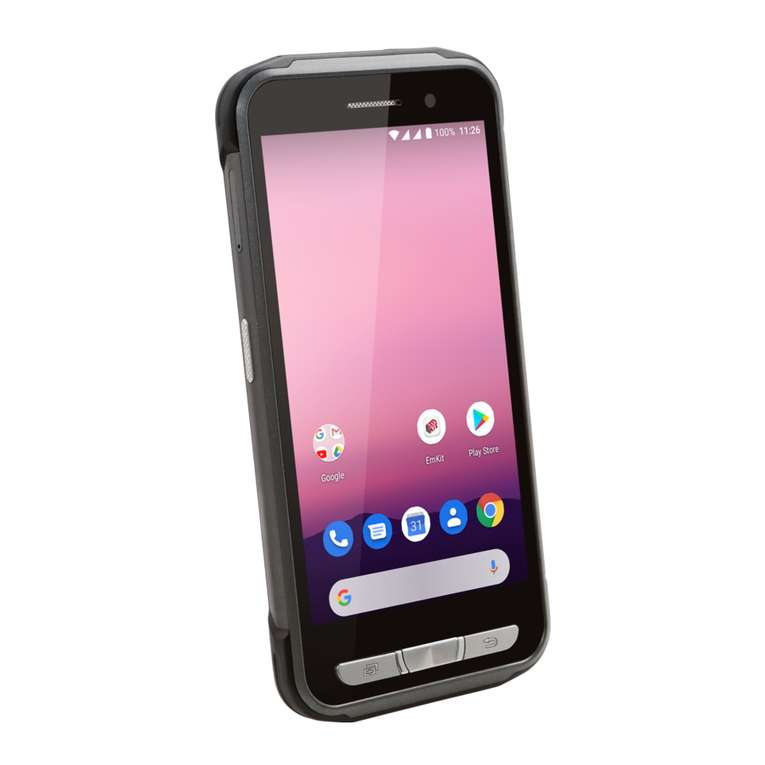

Point Mobile PM45 User manual

Enterprise Mobility
PM45
User Manual
For AndroidTM 7.1.2
Google, Android, Google Play and other marks are
trademarks of Google LLC.
Copyright © 2006 – 2018
Point Mobile Co., Ltd. All rights reserved

PM45 Android 7.1.2 User Manual
1
©2006 –2018 POINTMOBILE Co., Ltd. All rights reserved
User Manual
Please note your phone is battery-embedded design with removable battery and battery cover. Unauthorized
personnel are strictly prohibited from disassembling the phone. Make sure to use only the power adapter (5V
2A Output AC/DC) that came with PM45.
In case your phone does not work as expected, you are strongly recommended to restart it by pressing and
holding the power button for at least 8 seconds until the startup screen appears. If your phone has
encountered a serious error and cannot be recovered, you should reset your phone to factory settings by using
the menu, either “Backup & Reset”, or “Factory Reset”. For more details, please refer to “Factory data reset”
section on page 90
Note: Please be cautious while performing the factory data reset. Because this will erase personalized
settings and data saved in your phone, such as SMS, Contacts, Music, etc.
Body-worn Operation
This device was tested for typical body-worn operations with the front
& back of the phone kept 0.2 inches (0.5 cm) between the user’s body
and the front & back of the phone. A minimum separation distance of
0.2 inches (0.5 cm) must be maintained between the user’s body and
the front & back of the phone. Any belt clips, holsters, and similar
accessories containing metallic components may not be used. Body-
worn accessories that cannot maintain 0.2 inches (0.5 cm) separation
distance between the user's body and the front & back of the phone,
and have not been tested for typical body-worn operations should be
avoided.
PROTECT YOUR HEARING
To prevent possible hearing damage, do not listen at high volume
levels for long periods. Exercise caution when holding your device near
your ear while the loudspeaker is in use.
Rev 01

PM45 Android 7.1.2 User Manual
2
©2006 –2018 POINTMOBILE Co., Ltd. All rights reserved
Table of Contents
User Manual..........................................................................................................................................................................1
Table of Contents.................................................................................................................................................................2
Getting Started...................................................................................................................................................................... 4
Major Parts........................................................................................................................................................................ 4
Accessary..........................................................................................................................................................................5
Setup PM45.......................................................................................................................................................................7
Charge PM45..................................................................................................................................................................11
Turn On/Off PM45..........................................................................................................................................................12
Learning the basics............................................................................................................................................................13
Use a keypad..................................................................................................................................................................13
Use a touch screen........................................................................................................................................................15
Setup Wizard...................................................................................................................................................................17
Home Screen, Apps and Widget..................................................................................................................................25
Status & Notifications Icons..........................................................................................................................................36
Set a Lock screen...........................................................................................................................................................38
Manage a display...........................................................................................................................................................40
Make a call......................................................................................................................................................................45
Add to a contact..............................................................................................................................................................47
Send a message.............................................................................................................................................................51
Change a SIM card settings.........................................................................................................................................54
Connect to your Wi-Fi network.....................................................................................................................................57
Make a Wi-Fi hotspot.....................................................................................................................................................59
Connect with Bluetooth device.....................................................................................................................................62
Use a Camera.................................................................................................................................................................65
Manage files and folders...............................................................................................................................................68
MTP connection with PC...............................................................................................................................................75
Change a Touch Sensitivity..........................................................................................................................................78
Use a Google Assistant.................................................................................................................................................82
OS Update...........................................................................................................................................................................85
OS Image update from a Storage................................................................................................................................85
OS Image update from the FOTA................................................................................................................................87

PM45 Android 7.1.2 User Manual
3
©2006 –2018 POINTMOBILE Co., Ltd. All rights reserved
Factory data reset..............................................................................................................................................................90
Factory data reset from Settings..................................................................................................................................90
Force Factory data reset...............................................................................................................................................92
EmKit....................................................................................................................................................................................96
EmKit Secure..................................................................................................................................................................97
EmKit Remote...............................................................................................................................................................100
EmKit Tools...................................................................................................................................................................108
EmKit Demos................................................................................................................................................................116

PM45 Android 7.1.2 User Manual
4
©2006 –2018 POINTMOBILE Co., Ltd. All rights reserved
Getting Started

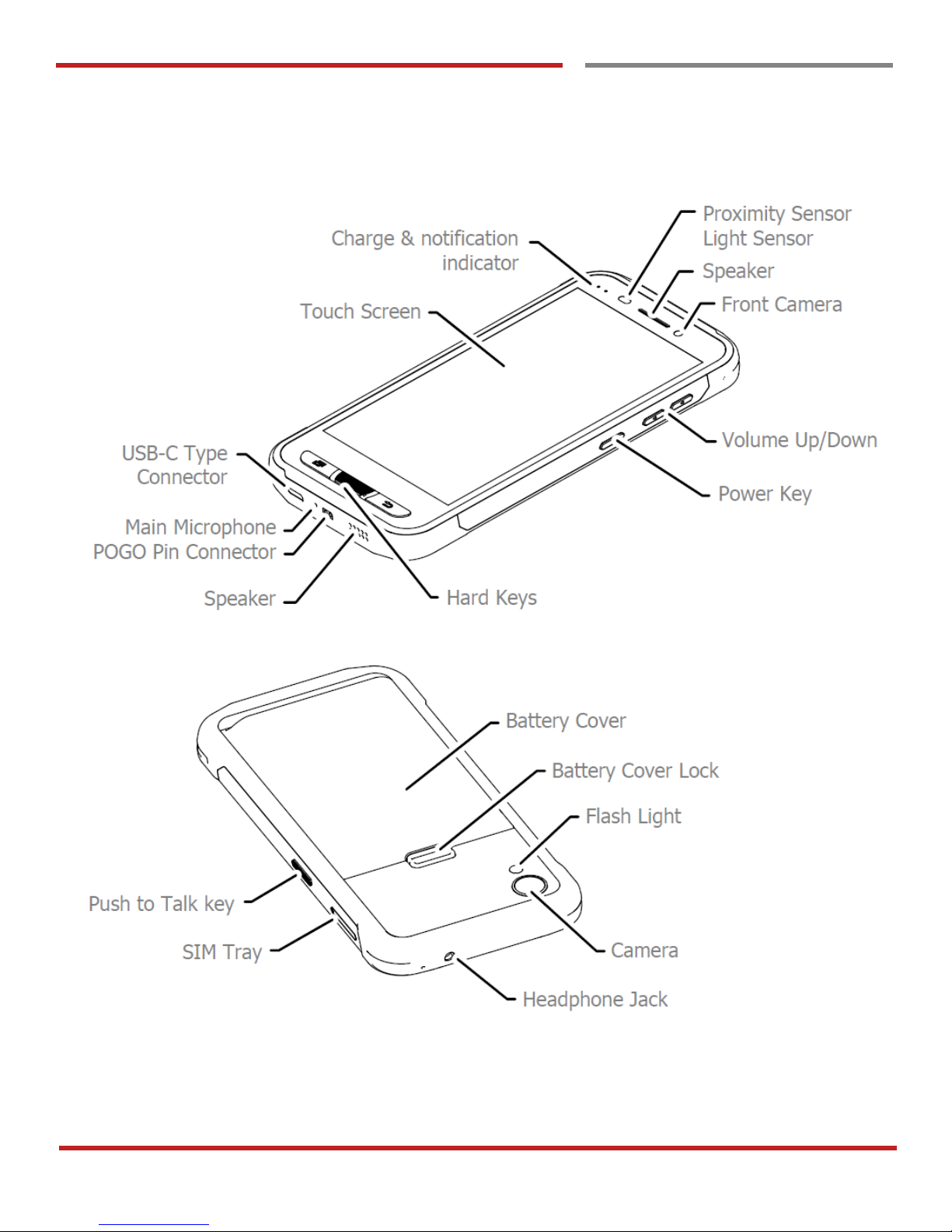

Major Parts
Major Parts
Getting Started

PM45 Android 7.1.2 User Manual
5
©2006 –2018 POINTMOBILE Co., Ltd. All rights reserved
Getting Started
Accessary
Accessary
Getting Started
AC/DC adapter (5V2A) Plug (US/ EU/UK)
USB Type-C cable Standard Battery (2,900mAh)
SIM Tray Eject Pin Extended Battery (5,800mAh)

PM45 Android 7.1.2 User Manual
6
©2006 –2018 POINTMOBILE Co., Ltd. All rights reserved
Accessary
Accessary
Getting Started

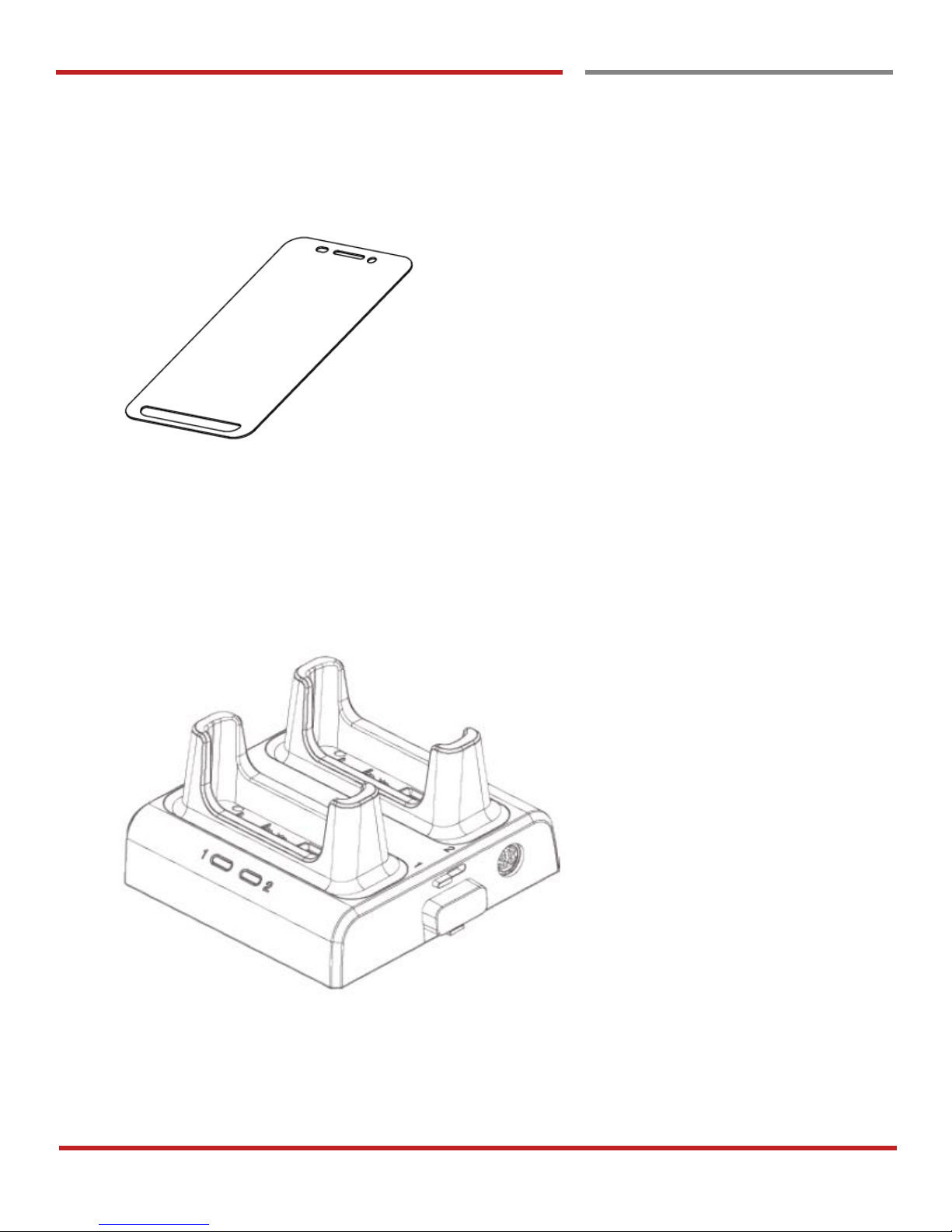

LCD Protection Film
Optional Accessories
2 Slot Cradle
(Up to three 2 slot Cradles can be linked to charge 6 devices at a time

PM45 Android 7.1.2 User Manual
7
©2006 –2018 POINTMOBILE Co., Ltd. All rights reserved
Started
Setup PM45
Setup PM45
Getting Started

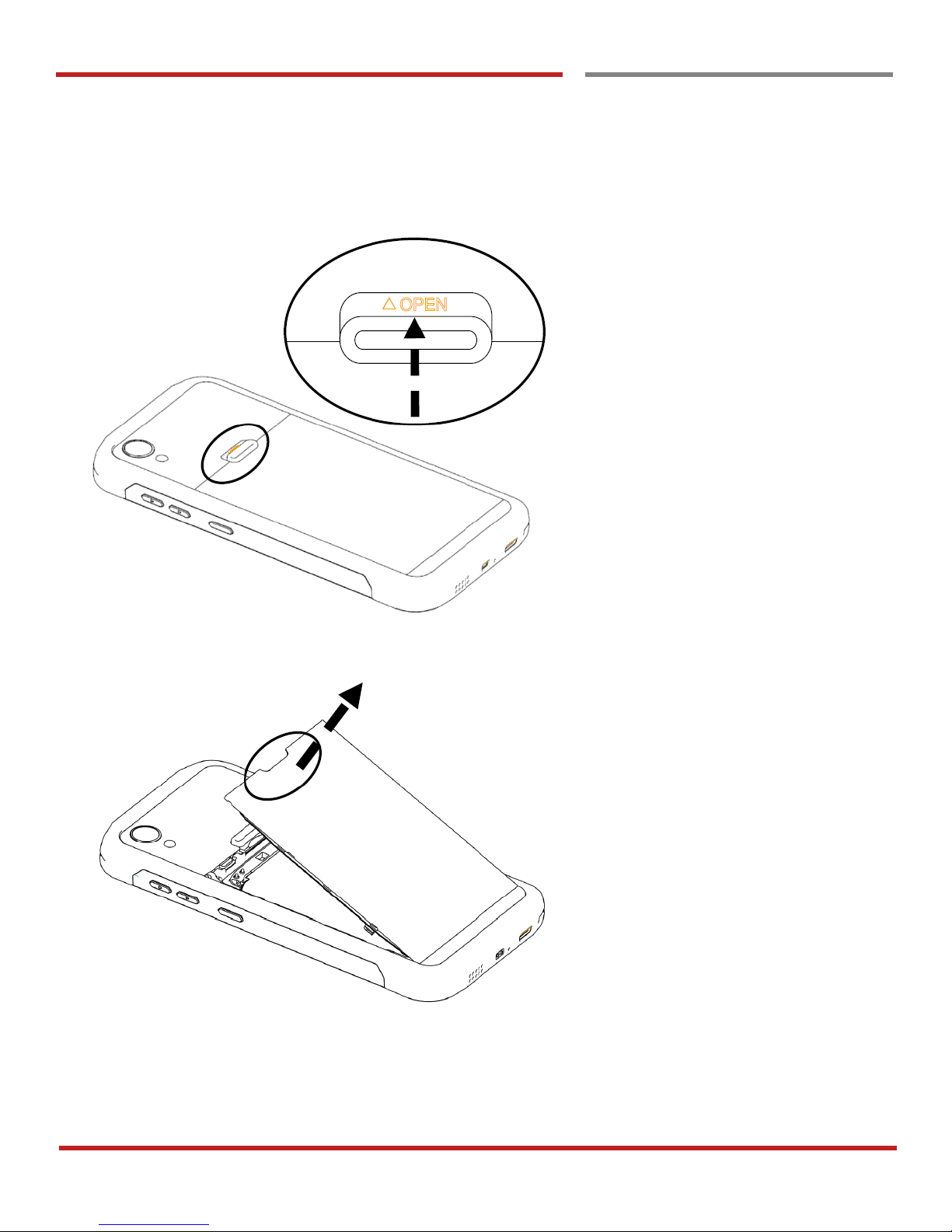

Remove the Battery Cover
1. Push up the Battery Cover Lock
2. Lift up the Battery Cover Lock
3. Remove the Battery Cover Lock

PM45 Android 7.1.2 User Manual
8
©2006 –2018 POINTMOBILE Co., Ltd. All rights reserved
Getting `Started
Setup PM45
Getting Started

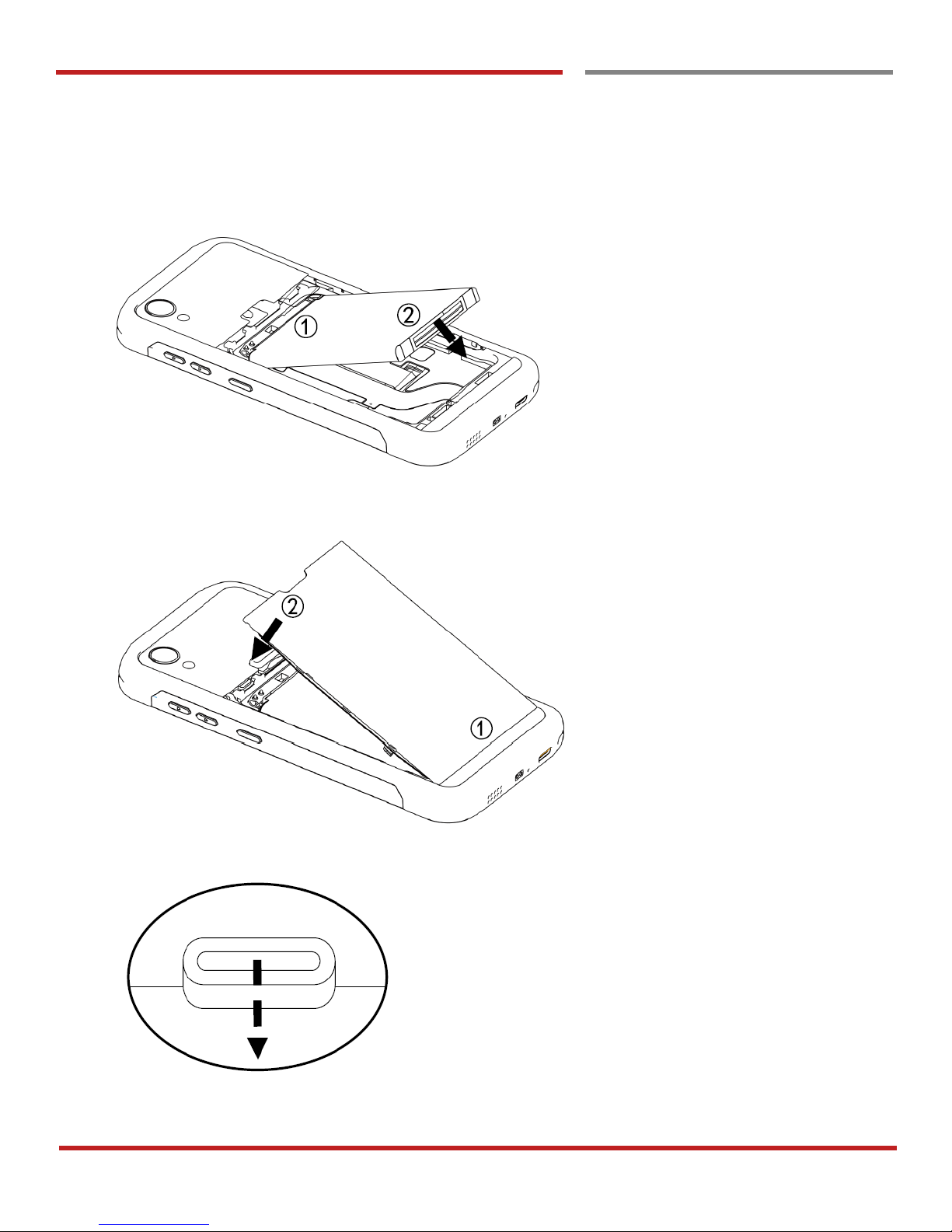

Insert the Battery
1. Insert Battery from the top first, and then put in the bottom
2. Insert the battery cover from the bottom first
3. Push down the battery cover lock

PM45 Android 7.1.2 User Manual
9
©2006 –2018 POINTMOBILE Co., Ltd. All rights reserved
Getting `Started
Setup PM45
Getting Started

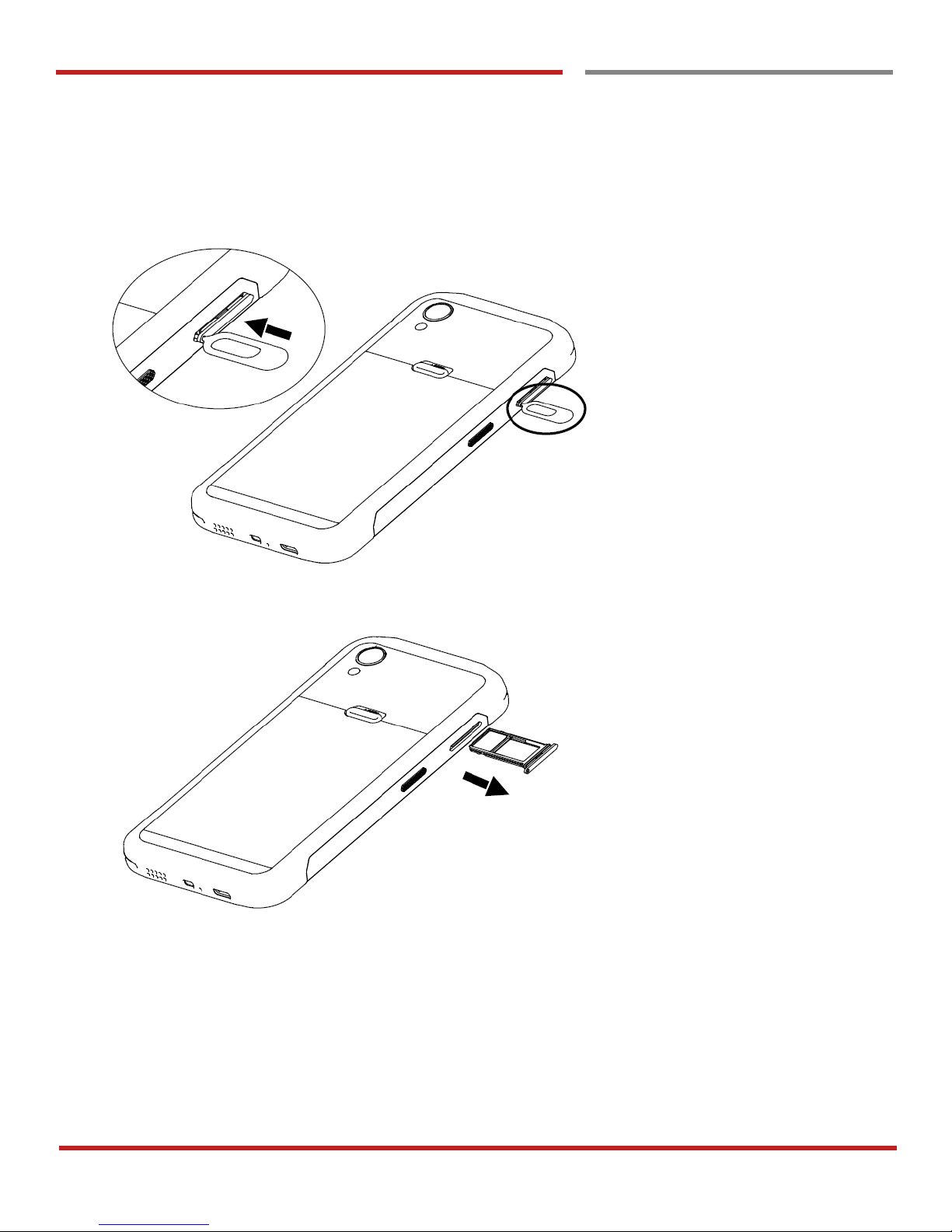

Install SIM card / microSD card
1. Insert the SIM Tray Eject Pin into the tray eject hole.
2. Push the pin all the way into the hole until the tray ejects, and then pull the tray out

PM45 Android 7.1.2 User Manual
10
©2006 –2018 POINTMOBILE Co., Ltd. All rights reserved
Getting `Started
Setup PM45
Getting Started

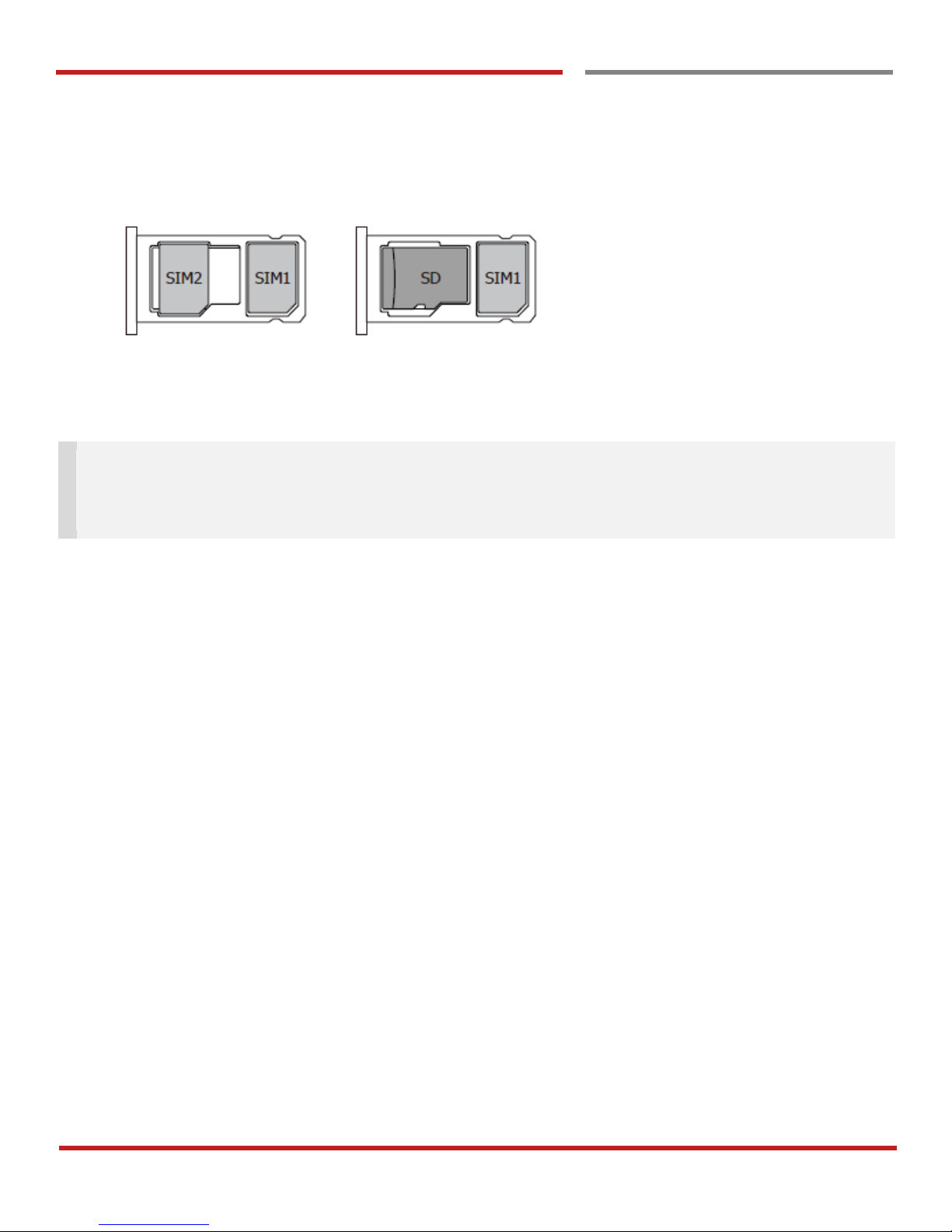

3. Insert the SIM/micro SD card into the slot. Please insert SIM card and SD Card as shown below.
(PM45 is Dual SIM Dual Standby model)
Gold contacts should face down
Note: Your device only supports the Nano SIM cards. Do not insert a modified card which is thicker than
the standard Nano SIM card. Modified card may damage the card slot.
PM45 supports up to 32GB microSD card
4. Press on the cover of the tray to close it tightly.

PM45 Android 7.1.2 User Manual
11
©2006 –2018 POINTMOBILE Co., Ltd. All rights reserved
Charge PM45
Getting started
Charge PM45
Getting Started
1. Insert USB Type-C cable into the adapter and connect to an electrical socket to charge first. Connect
another side USB cable to the PM45. (You can also charge the PM45 with optional accessory such as
cradle)
2. LED indicator will display charging status.
Steady Red
Battery is charging or Battery level is low
Blinking Red
Battery level is critical low
Steady Green
Battery is fully charged
Standard Battery
2,900mAh 3.85V
Backup Battery
5,800mAh 3.85V
Charging time
Standard Battery : About 4 hours
Extend Battery : About 6 hours
Note: Always use an original charger and cable from the Point Mobile. Other chargers and cables may
damage PM45. In addition, make sure connector, charger, cables are not wet.

PM45 Android 7.1.2 User Manual
12
©2006 –2018 POINTMOBILE Co., Ltd. All rights reserved
Turn On/Off PM45
Getting started
Turn On/Off PM45
Getting Started
Turn On
1. Press and hold the “Power Key”for a few seconds.
2. When PM45 enter to the boot mode, it will display “SMART BEYOND RUGGED” logo
3. Release the “Power Key” and wait until PM45 finish booting
Note: If you cannot turn on your PM45, try below steps
- To turn on PM45, battery needs to be charged certain level. Please charge first
- Press and hold the “Power key” for over 8 seconds to force reboot

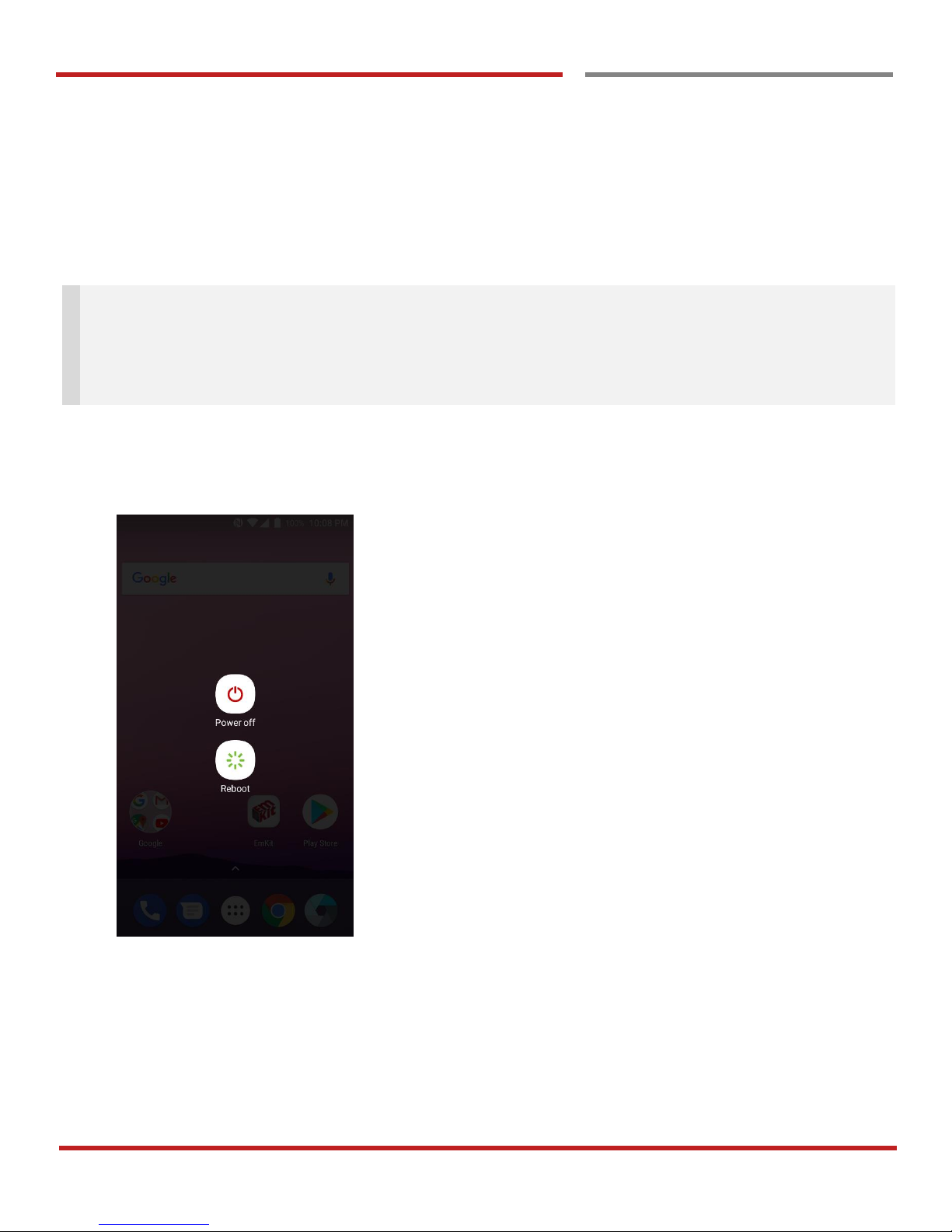

Turn Off
1. Press and hold the “Power Key” until you see the power menu
2. Touch “Power Off”

PM45 Android 7.1.2 User Manual
13
©2006 –2018 POINTMOBILE Co., Ltd. All rights reserved
Learning the basics
Use ak eypad
Use a keypad
Learning the basics
Power key
Press
- Lock the screen / Light up the screen.
Press and hold
- Display the power menu “Power Off / Restart / Airplane mode”
Press and hold for over 8 seconds
- Forced to reboot
Press and hold the “Power” key and “Volume Down” key together
- Screen capture
Volume keys
In general
- Adjusts the ringtone volume or “Mute” the ringtone of an incoming call.
In call mode
- Adjusts the earpiece or headset volume.
In Music / Video / Streaming
- Adjusts the media volume.
In camera preview
- Take the photo by pressing Volume Up or Down key.
Push to Talk key (Programable Key)
In general
- Run Push to Talk service
- Programable key
Please set function in EmKit –Program Buttons. Please find details on page 99

PM45 Android 7.1.2 User Manual
14
©2006 –2018 POINTMOBILE Co., Ltd. All rights reserved
Learning the basics
Use a keypad
Learning the basics
Front panel
Recent Apps key
- Press to see recently used apps.
Home key
- From any apps or screens, press to return to the Home screen.
Back key
- Press to go back to the previous screen, or to close a dialog box, options menu, notification panel,
etc.

PM45 Android 7.1.2 User Manual
15
©2006 –2018 POINTMOBILE Co., Ltd. All rights reserved
Learning the basics
Use at ouch screen
Use a touch screen
Learning the basics
Touch
One-finger press
Double touch
One-finger press, lift, one-finger press, lift for “Zoom in”
Long press
One-finger press, wait, lift for “Select an item”
Drag, Swipe, or Fling
One-finger press, move, lift for “Scroll”or “Tilt”
Long-press drag
One-finger press, wait, move, lift for “Pick up and move” or “select multiple items”

PM45 Android 7.1.2 User Manual
16
©2006 –2018 POINTMOBILE Co., Ltd. All rights reserved
Learning the basics
Use a touch screen
Learning the basics
Scroll
Vertical or horizontal swipe in a single direction
Pinch Open & Close
Two-finger press, move outwards and inwords, lift for “Zoom in and out”
Rotate
When PM45 is turning sideways, screen orientation is changing

PM45 Android 7.1.2 User Manual
17
©2006 –2018 POINTMOBILE Co., Ltd. All rights reserved
Learning the basics
SetupW izard
Setup Wizard
Learning the basics

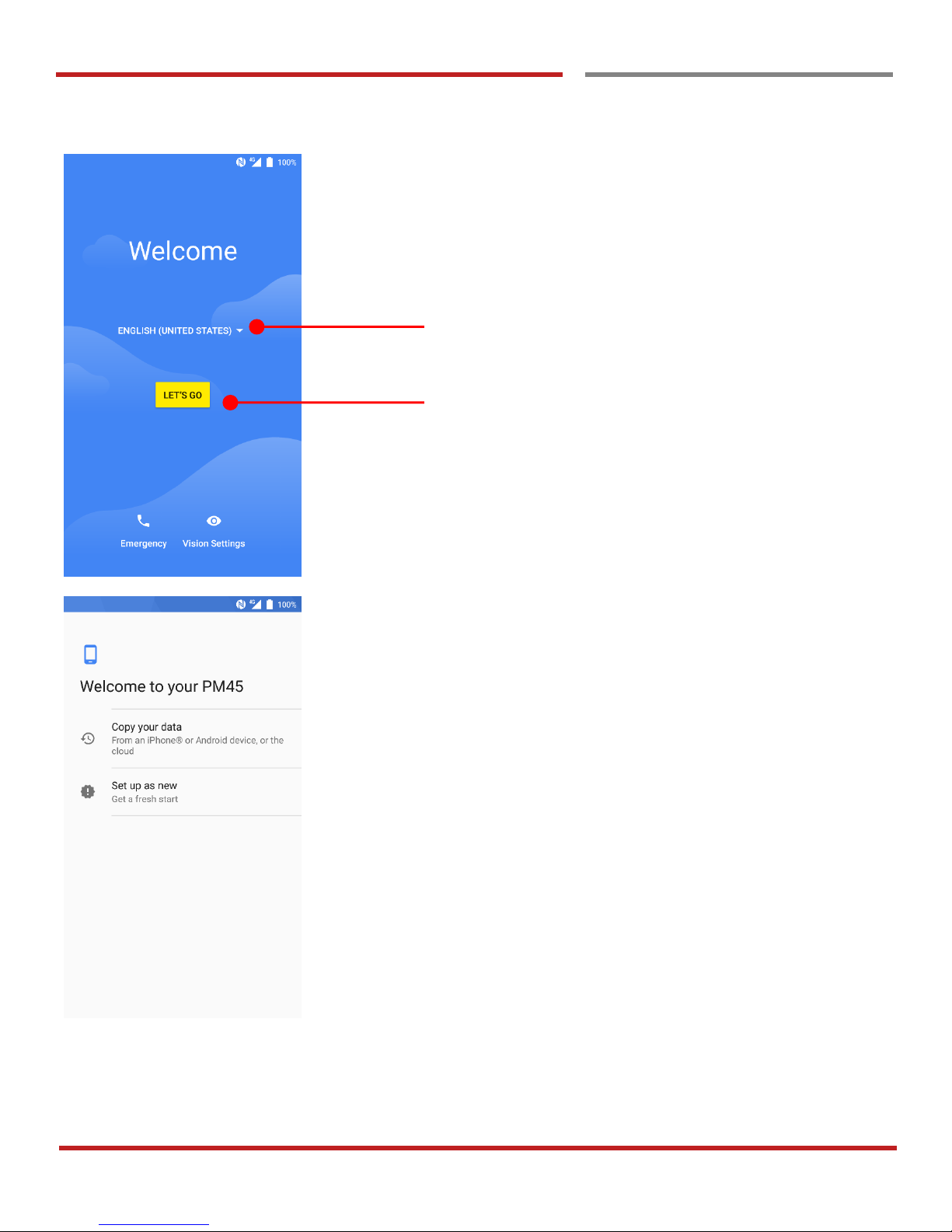

When you power on your device very first time or boot after
factory reset, you need to setup your device
Language Selection
- Choose your language during setup process.
Touch here to start setup your device
You can copy other device’s settings to your PM45 or setup
as a new device

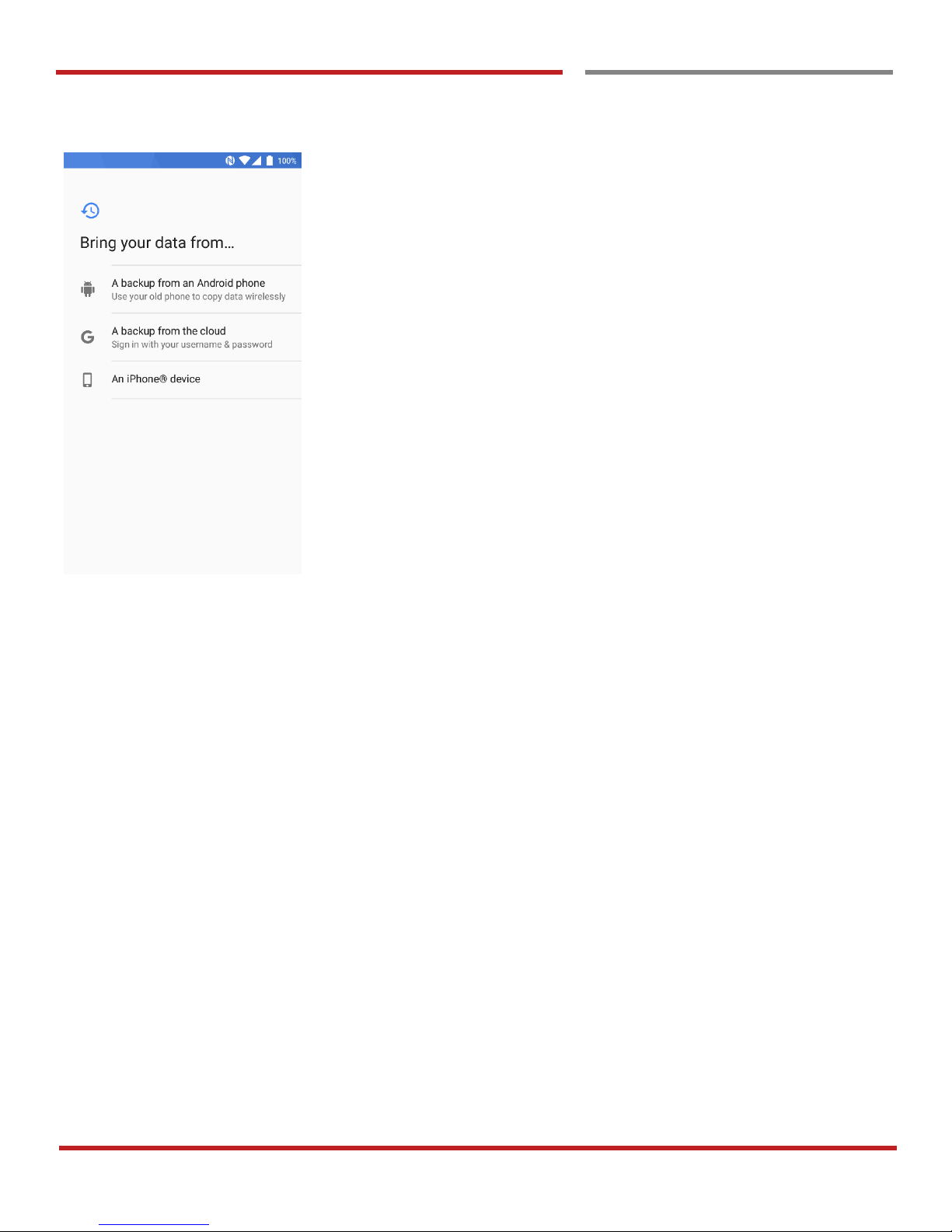

Copy your data
- You can copy your settings from other Android
phone or Google account or iPhone
Set up as new
- Set your PM45 as your new device

PM45 Android 7.1.2 User Manual
18
©2006 –2018 POINTMOBILE Co., Ltd. All rights reserved
SetupW izard
Setup Wizard
Learning the basics
Copy your data
To copy your settings, please connect your PM45 to Wi-Fi
network
Please select Wi-Fi network and input the password (If
required)
Icon means: Open Wi-Fi network. You don’t need
to enter the password
Icon means: Secured Wi-Fi network. To connect
this Wi-Fi, you need to enter the password

PM45 Android 7.1.2 User Manual
19
©2006 –2018 POINTMOBILE Co., Ltd. All rights reserved
SetupW izard
Setup Wizard
Learning the basics
Choose the device or cloud where you want to copy the
settings.
