Power Fist 8571762 User manual

3/8 in. dr Angle
Air Drill

3/8 in. dr Angle
Air Drill

V4.0 3/8 in. dr Angle Air Drill 8571762

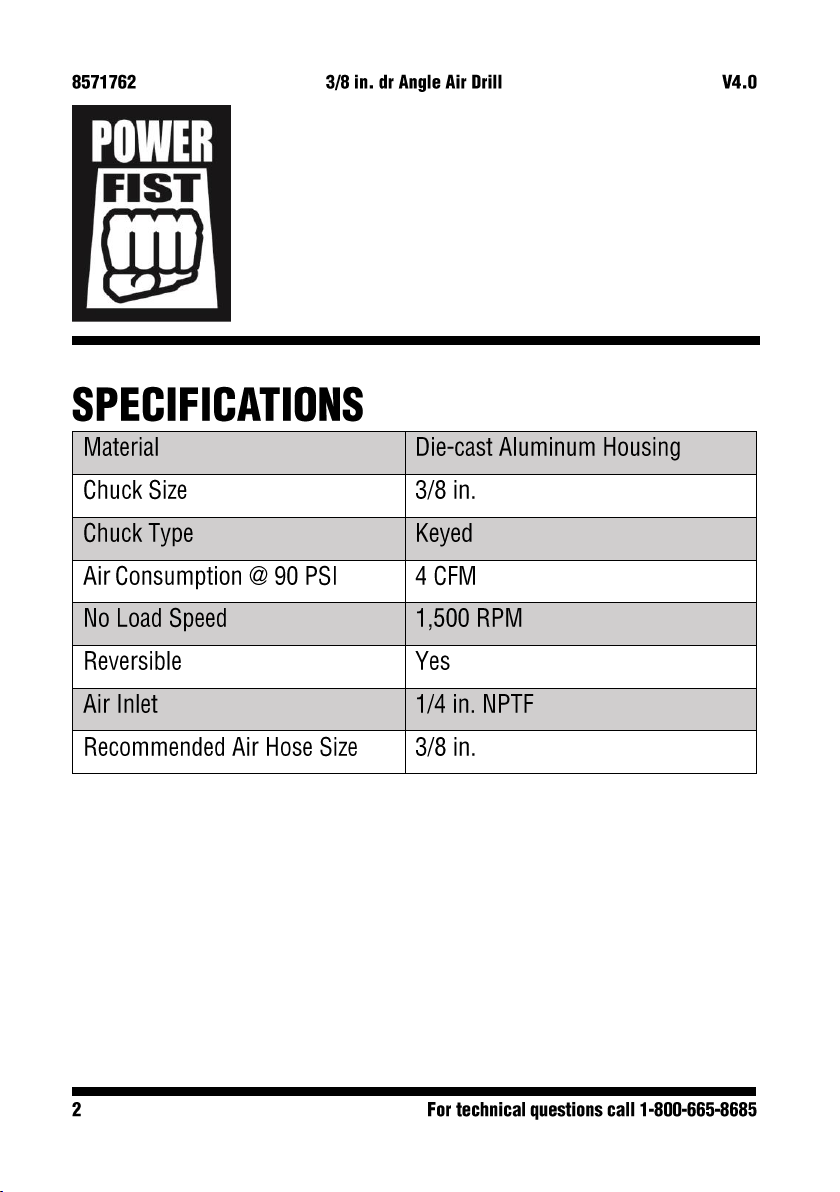

SAFETY
WARNING! Read and understand all instructions before using this tool.
The operator must follow basic precautions to reduce the risk of
personal injury and/or damage to the equipment.
Keep this manual for safety warnings, precautions, operating or
inspection and maintenance instructions.
HAZARD DEFINITIONS
Please familiarize yourself with the hazard notices found in this manual. A
notice is an alert that there is a possibility of property damage, injury or
death if certain instructions are not followed.
DANGER! This notice indicates an immediate and specific hazard
that will result in severe personal injury or death if the
proper precautions are not taken.
WARNING! This notice indicates a specific hazard or unsafe practice
that could result in severe personal injury or death if the
proper precautions are not taken.
CAUTION! This notice indicates a potentially hazardous situation that
may result in minor or moderate injury if proper practices
are not taken.
NOTICE! This notice indicates that a specific hazard or unsafe
practice will result in equipment or property damage, but
not personal injury.
WORK AREA
1. Operate in a safe work environment. Keep your work area clean, well
lit and free of distractions.
2. Keep anyone not wearing the appropriate safety equipment away
from the work area.
Visit www.princessauto.com for more information
3

8571762 3/8 in. dr Angle Air Drill V4.0

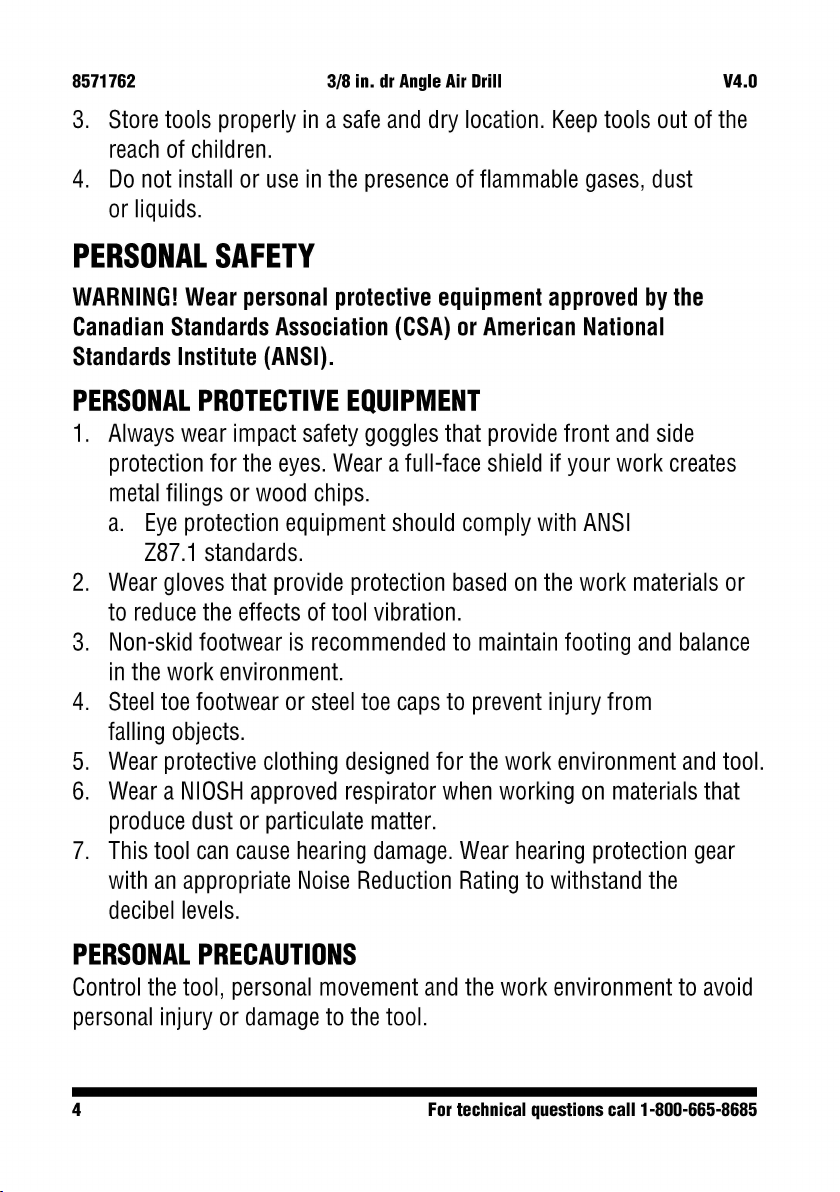

3. Store tools properly in a safe and dry location. Keep tools out of the
reach of children.
4. Do not install or use in the presence of flammable gases, dust
or liquids.
PERSONAL SAFETY
WARNING! Wear personal protective equipment approved by the
Canadian Standards Association (CSA) or American National
Standards Institute (ANSI).
PERSONAL PROTECTIVE EQUIPMENT
1. Always wear impact safety goggles that provide front and side
protection for the eyes. Wear a full-face shield if your work creates
metal filings or wood chips.
a. Eye protection equipment should comply with ANSI
Z87.1 standards.
2. Wear gloves that provide protection based on the work materials or
to reduce the effects of tool vibration.
3. Non-skid footwear is recommended to maintain footing and balance
in the work environment.
4. Steel toe footwear or steel toe caps to prevent injury from
falling objects.
5. Wear protective clothing designed for the work environment and tool.
6. Wear a NIOSH approved respirator when working on materials that
produce dust or particulate matter.
7. This tool can cause hearing damage. Wear hearing protection gear
with an appropriate Noise Reduction Rating to withstand the
decibel levels.
PERSONAL PRECAUTIONS
Control the tool, personal movement and the work environment to avoid
personal injury or damage to the tool.
4 For technical questions call1·800-665-8685

V4.0 3/8 in. dr Angle Air Drill 8571762

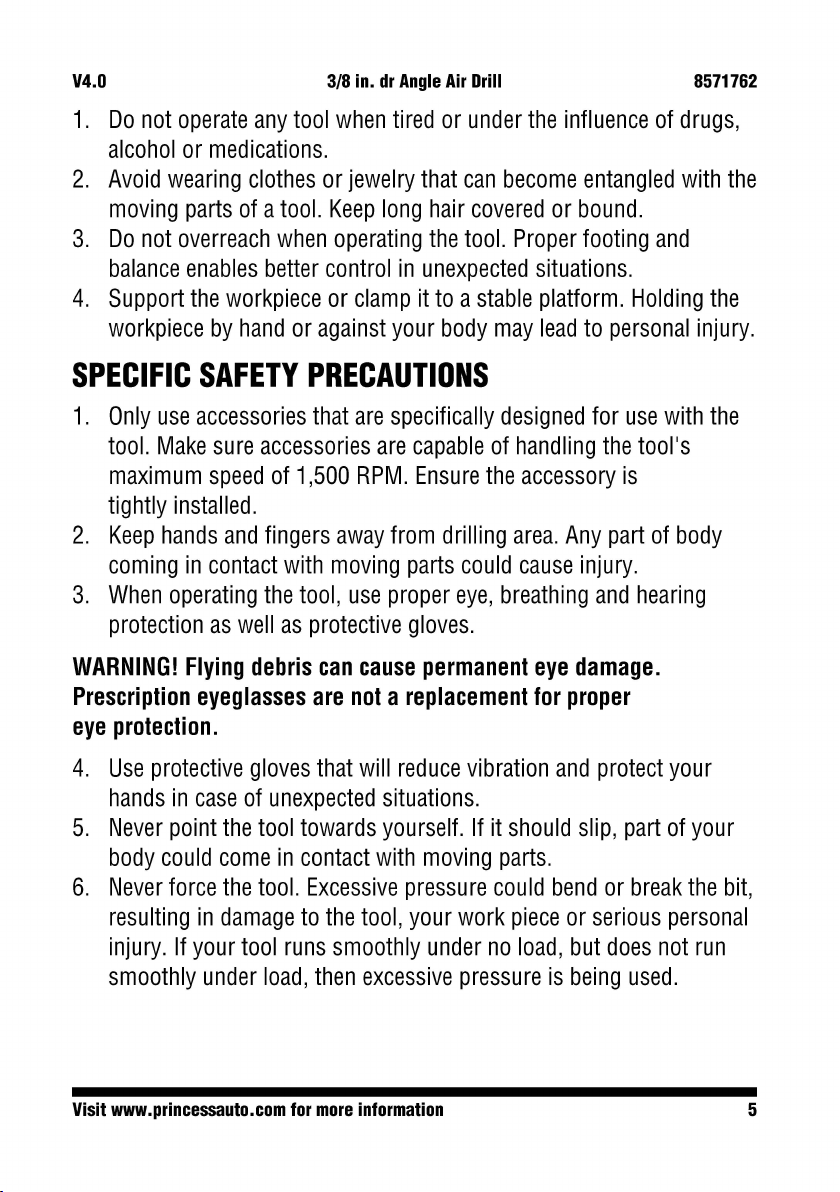

1. Do not operate any tool when tired or under the influence of drugs,
alcohol or medications.
2. Avoid wearing clothes or jewelry that can become entangled with the
moving parts of a tool. Keep long hair covered or bound.
3. Do not overreach when operating the tool. Proper footing and
balance enables better control in unexpected situations.
4. Support the workpiece or clamp it to a stable platform. Holding the
workpiece by hand or against your body may lead to personal injury.
SPECIFIC SAFETY PRECAUTIONS
1. Only use accessories that are specifically designed for use with the
tool. Make sure accessories are capable of handling the tool's
maximum speed of 1,500 RPM. Ensure the accessory is
tightly installed.
2. Keep hands and fingers away from drilling area. Any part of body
coming in contact with moving parts could cause injury.
3. When operating the tool, use proper eye, breathing and hearing
protection as well as protective gloves.
WARNING! Flying debris can cause permanent eye damage.
Prescription eyeglasses are not a replacement for proper
eye protection.
4. Use protective gloves that will reduce vibration and protect your
hands in case of unexpected situations.
5. Never point the tool towards yourself. If it should slip, part of your
body could come in contact with moving parts.
6. Never force the tool. Excessive pressure could bend or break the bit,
resulting in damage to the tool, your work piece or serious personal
injury. If your tool runs smoothly under no load, but does not run
smoothly under load, then excessive pressure is being used.
Visit www.princessauto.com for more information
5

8571762 3/8 in. dr Angle Air Drill V4.0
7. This tool will not stop moving immediately. Do not lay the tool down
or leave it unattended until it has come to a complete stop. A part that
is moving could make the tool jump or grab a surface and pull the
tool out of your control.
8. Use an appropriate dust res pi rat or when working for an extended
period of time. This will help prevent breathing in the fine dust
created while working.
WARNING! Dust that is created by power sanding, sawing, grinding,
drilling, and other construction activities may contain chemicals that
are known to cause cancer, birth defects, or other genetic
abnormalities. The level of risk from exposure to these chemicals
varies, according to how often this type of work is performed. In order
to reduce exposure to these chemicals, work in a well-ventilated area,
and use approved safety equipment, such as a dust mask that is
specifically designed to filter out microscopic particles.
9. Always make sure the work surface is free from nails and other
foreign objects. Cutting into a nail can cause the bit and tool to jump
and damage the bit.
10. After changing the bits and accessories or making adjustments , make
sure the chuck and any other adjustment devices are securely
tightened. Loose adjustment devices will be violently thrown.
11. Always use the correct chuck size. If the chuck size is larger than the
accessory shank size it will not grip the shank properly, leading to
possible injury to the operator , damage to the tool or work piece.
12. Always check accessory bits, etc. for damage before each use.
Damaged accessories can break during use and cause serious injury.
13. Never use dull or damaged bits. Sharp bits must be handled with
care. Damaged bits can snap during use. Dull bits require more force
to push the tool, possibly causing the bit to break.
14. Never touch the bit during or immediately after use. After use, the bit
will be too hot to be touched by bare hands.
6 For technical questions call1-800·665·8685

V4.0 3/8 in. dr Angle Air Drill 8571762
15. If devices are used for the connection of dust extraction and
collection facilities, ensure these are connected and properly used.
Use of a dust collection system reduces dust-related hazards.
AIR TOOL PRECAUTIONS
1. Extended exposure to air tool noise may cause hearing loss. Ear
protection gear can reduce or eliminate the noise level.
2. Inspect the tool's air line for cracks, fraying or other faults before
each use. Discontinue use if the air line is damaged or hissing is
heard from the air line or connectors, while operating the tool.
Replace the defective component/air line.
3. Do not allow people, mobile equipment or vehicles to pass over the
unprotected air line. Position the air line away from high traffic areas,
in a reinforced conduit or place planks on both sides of the airline to
create a protective trench.
4. Prevent damage to the air line by observing the following:
a. Never carry the tool by the air line.
b. Keep the air line behind the tool and out of the tool's work path.
c. Keep the air line away from heat, oil, sharp edges or
moving parts.
d. Do not wrap the air line around the tool as sharp edges may
pierce or crack the airline. Coil the air line when storing.
5. A damaged or disconnected air line under pressure may whip around
and inflict personal injury or damage the work area. Secure the
compressor's air line to a fixed or permanent structure with clamps
or cable ties.
6. Install an in-line shutoff valve or regulator to allow immediate control
over the air supply in an emergency, even if a hose is ruptured.
Visit www.princessauto.com for more information 7

8571762 3/8 in. dr Angle Air Drill V4.0

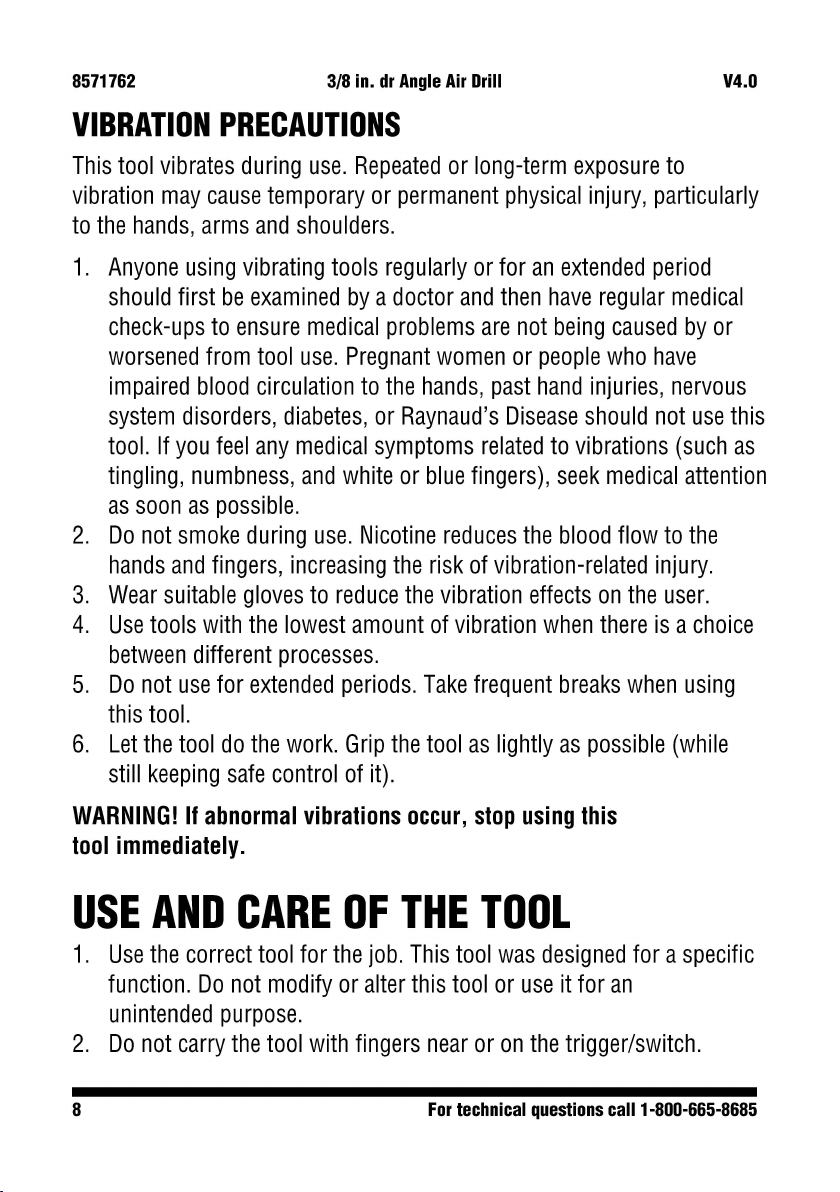

VIBRATION PRECAUTIONS
This tool vibrates during use. Repeated or long-term exposure to
vibration may cause temporary or permanent physical injury, particularly
to the hands, arms and shoulders.
1. Anyone using vibrating tools regularly or for an extended period
should first be examined by a doctor and then have regular medical
check-ups to ensure medical problems are not being caused by or
worsened from tool use. Pregnant women or people who have
impaired blood circulation to the hands, past hand injuries, nervous
system disorders, diabetes, or Raynaud's Disease should not use this
tool. If you feel any medical symptoms related to vibrations (such as
tingling, numbness, and white or blue fingers), seek medical attention
as soon as possible.
2. Do not smoke during use. Nicotine reduces the blood flow to the
hands and fingers, increasing the risk of vibration-related injury.
3. Wear suitable gloves to reduce the vibration effects on the user.
4. Use tools with the lowest amount of vibration when there is a choice
between different processes.
5. Do not use for extended periods. Take frequent breaks when using
this tool.
6. Let the tool do the work. Grip the tool as lightly as possible (while
still keeping safe control of it).
WARNING! If abnormal vibrations occur, stop using this
tool immediately.
USE AND CARE OF THE TOOL
1. Use the correct tool for the job. This tool was designed for a specific
function. Do not modify or alter this tool or use it for an
unintended purpose.
2. Do not carry the tool with fingers near or on the trigger/switch.
8
For technical questions call1·800-665-8685

V4.0 3/8 in. dr Angle Air Drill 8571762
3. Avoid unintentional starts. Be sure that the regulator/throttle switch is
in the neutral or OFF position when not in use and before connecting
it to any air source.
4. Remove adjusting keys and wrenches from the tool before operation
or connecting it to a power source. A wrench or key that is left
attached to a rotating part of the tool increases the risk of
personal injury.
INSTALLING AIR QUICK COUPLER
Prepare a standard 1/4 in. NPT male air quick coupler for use with
your tool.
1. Wrap the external threads of the male quick coupler with sealant tape.
a. Wrap the tape in a clockwise direction so it will not unravel.
b. Do not tape all the threads. Leave several leading threads
unwrapped for easier alignment.
2. Screw the quick coupler into the tool's air inlet and tighten with a
wrench until snug.
3. Run the compressor at a low volume and check the connection for air
leaks. Do not use the tool until all air leaks are repaired or the faulty
component is replaced.
UNPACKING
1. Carefully remove the tool from the package.
a. Retain the packing material until you have carefully inspected and
satisfactorily installed or operated the tool.
2. Inspect the parts carefully to make sure the tool was not damaged
while shipping.
WARNING! Do not operate the tool if any part is missing. Replace the
missing part before operating. Failure to do so could result in a
malfunction and serious personal injury.
Visit www.princessauto.com for more information
9

8571762 3/8 in. dr Angle Air Drill
OPERATION
NOTE: Vibration may cause failure if a
quick coupler is connected directly to the
air drill. To overcome this, connect a
leader hose to the drill. A quick coupler
may then be used to connect the leader
hose to the air line hose.
ATTACHING DRILL BITS
Regularly check the drill bit and always
change if worn, cracked or
otherwise damaged.
WARNING! Disconnect the drill from the air
supply before placing adrill bit into
the chuck.
Open or close the chuck jaws to a point
where the opening is slightly larger than the
V4.0
QUICK........_
CHANGE ........._ , "'
COUPLING
~
drill or tool bit to be used. Also raise the front of the drill slightly to
prevent the drill bit from falling out of the chuck jaws. Insert the drill bit
into the chuck as far as it will go. Place the chuck key in one of the chuck
holes and tight the chuck securely.
10 For technical questions call1·800-665-8685

V4.0 3/8 in. dr Angle Air Drill 8571762
CHANGING DIRECTION OF ROTATION
CAUTION! Disconnect the drill from the air supply before changing the
rotation of the drill. Damage to the drill may occur.
1. The change over button is located on the opposite side of the drill
body from the throttle.
2. To change the direction of rotation of the chuck, push the change
over button inwards and rotate clockwise until it locks into place.
DRILLING
CHANGE OVER
BUTTON
1. Connect the drill to the air supply.
PUSH ROTATE
CLOCKWISE
2. Hold the tool firmly and place the drill bit tip to the point to be drilled.
3. Depress the throttle to start the drill. Move the drill bit into the
workpiece applying only enough pressure to keep the bit cutting.
CAUTION! Do not force or apply side pressure to elongate the hole.
4. If the material to be drilled is free standing it should be secured in a
vice or with clamps to keep it from turning as the drill bit rotates.
NOTE: When drilling metals, use alight oil on the drill bit to keep from
overheating. Oil will prolong the drill bit life and improve the
drilling action.
Visit www.princessauto.com for more information 11

8571762 3/8 in. dr Angle Air Drill V4.0
NOTE: For hard smooth surfaces, use a centre punch to mark the
desired hole location. This will prevent the drill bit from slipping as
drilling commences.
5. A pilot hole may be necessary to assist the final drill size through the
workpiece. Insert a smaller drill bit into the chuck. Follow steps 1
through 3 above and drill a pilot hole in the middle of the centre
punch mark where the final hole is to be drilled. Insert the final sized
drill bit in the chuck. Hold the drill firmly and place the bit at the
entrance of the pilot hole and depress the trigger.
WARNING! Be prepared for drill bit binding on breakthrough. When
these situations occur, the drill has a tendency to grab and kick in the
opposite direction which could cause loss of control. If you are not
prepared, this loss of control can result in damage and/or
personal injury.
6. If the drill bit jams in the workpiece or if the drill stalls, release the
throttle immediately. Remove the drill bit from the workpiece and
determine the reason for jamming.
MAINTENANCE
1. Make sure the throttle lever is in the OFF position and the air source
is removed from the tool before performing any inspection,
maintenance, or cleaning.
2. Before each use: Check the general condition of the tool. Check for
misalignment or binding of moving parts, cracked or broken parts,
damaged hoses, and any other conditions that may affect the safe
operation of the tool. If abnormal noise or vibration occurs, have the
problem corrected before further use. Do not use
damaged equipment.
12 For technical questions call1·800-665-8685

V4.0 3/8 in. dr Angle Air Drill 8571762
3. Daily maintenance: Use a soft, dry cloth to remove all dirt, grease,
and debris from the exterior of the tool. Do not use solvents to clean
the tool.
4. When servicing, use only identical replacement parts. Use
accessories that are only intended for use with this tool. Replace
damaged parts immediately.
5. If repairs are required, bring your tool to an authorized service center.
WARNING! Only qualified service personnel should repair the tool. An
improperly repaired tool may present a hazard to the user
and/or others.
LUBRICATION
Only use air tool oil to lubricate the tool. Other lubricants may not be
suitable and could damage the tool or cause a malfunction during use.
1. It is very important that the tool be properly lubricated. Without
proper lubrication, the tool will not work properly and parts will wear
prematurely. Manually dropping a drop or two of air tool oil once a
day into the tool's oil inlet is better than using an automatic in-line
lubricator, which should only be required when there are multiple
users of the same tool.
2. Keep the air line lubricator filled and correctly adjusted. The in-line
lubricator should be regularly checked and filled with air tool oil.
Proper adjustment of the in-line lubricator is performed by placing a
sheet of paper next to the exhaust ports and holding the throttle open
approximately 30 seconds. The lubricator is properly set when a light
stain of oil collects on the paper. Excessive amounts of oil should
be avoided.
Visit www.princessauto.com for more information 13

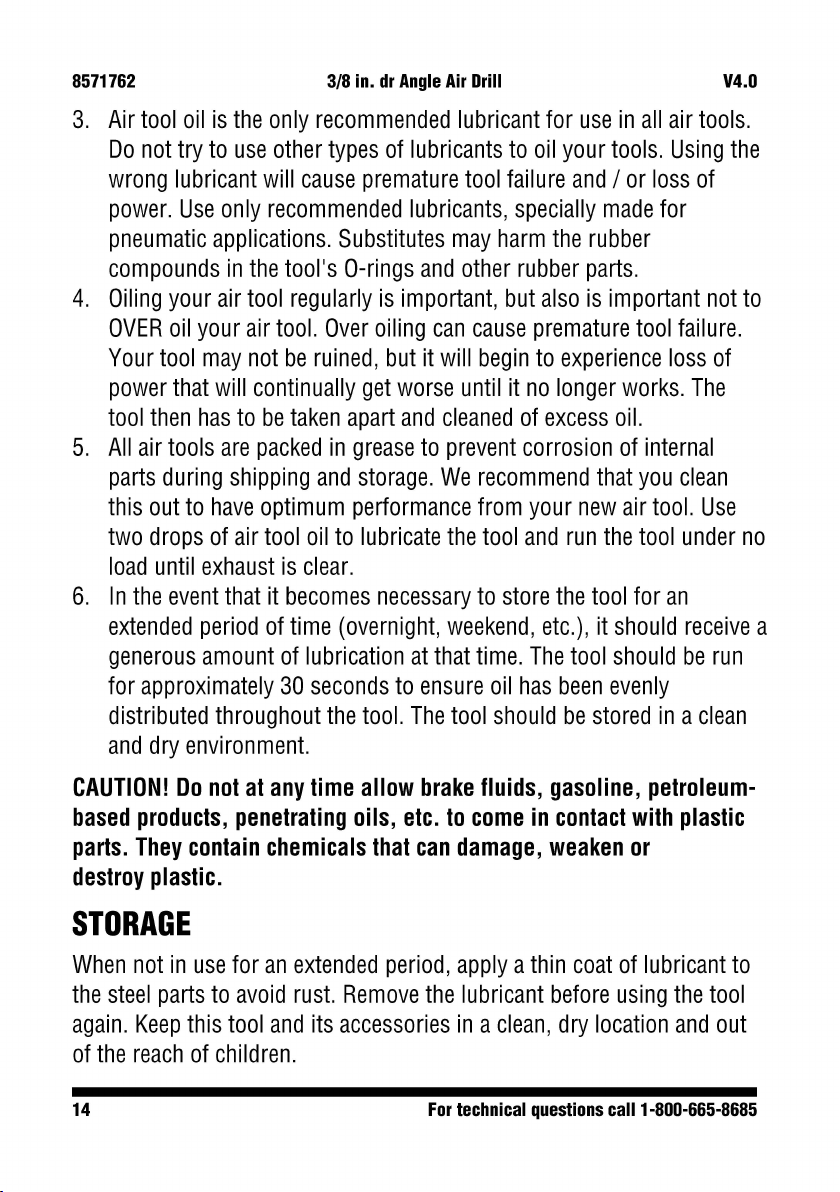

8571762 3/8 in. dr Angle Air Drill V4.0
3. Air tool oil is the only recommended lubricant for use in all air tools.
Do not try to use other types of lubricants to oil your tools. Using the
wrong lubricant will cause premature tool failure and I or loss of
power. Use only recommended lubricants, specially made for
pneumatic applications. Substitutes may harm the rubber
compounds in the tool's 0-rings and other rubber parts.
4. Oiling your air tool regularly is important, but also is important not to
OVER oil your air tool. Over oiling can cause premature tool failure.
Your tool may not be ruined, but it will begin to experience loss of
power that will continually get worse until it no longer works. The
tool then has to be taken apart and cleaned of excess oil.
5. All air tools are packed in grease to prevent corrosion of internal
parts during shipping and storage. We recommend that you clean
this out to have optimum performance from your new air tool. Use
two drops of air tool oil to lubricate the tool and run the tool under no
load until exhaust is clear.
6. In the event that it becomes necessary to store the tool for an
extended period of time (overnight, weekend, etc.), it should receive a
generous amount of lubrication at that time. The tool should be run
for approximately 30 seconds to ensure oil has been evenly
distributed throughout the tool. The tool should be stored in a clean
and dry environment.
CAUTION! Do not at any time allow brake fluids, gasoline, petroleum-
based products, penetrating oils, etc. to come in contact with plastic
parts. They contain chemicals that can damage, weaken or
destroy plastic.
STORAGE
When not in use for an extended period, apply a thin coat of lubricant to
the steel parts to avoid rust. Remove the lubricant before using the tool
again. Keep this tool and its accessories in a clean, dry location and out
of the reach of children.
14 For technical questions call1·800-665-8685

V4.0 3/8 in. dr Angle Air Drill 8571762
DISPOSAL
If your tool has become damaged beyond repair, do not throw it out.
Bring it to the appropriate recycling facility.
TROUBLESHOOTING
Contact Princess Auto Ltd. for a solution if the tool does not function
properly or parts are missing. If unable to do so, have a qualified
technician service the tool.
Problem(s) Possible cause(s)
Suggested
solution(s)
Tools will not run.
0-rings throttle valve Have a qualified
Air flows freely dislodged from seat technician replace
from exhaust. inlet valve.
the 0-ring.
Damage to, or Bring to
excessive wearing of
service centre.
internal parts.
Tool will not 0-rings throttle valve Have a qualified
shut off. dislodged from seat technician replace
inlet valve.
the 0-ring.
Tool runs slowly.
Excessive air tool oil in Run tool under no
Air flows slightly
tool or build of load for short
from exhaust.
shipping grease. periods of time until
exhaust clears.
Visit www.princessauto.com for more information 15

8571762 3/8 in. dr Angle Air Drill V4.0
Problem(s) Possible cause(s) Suggested sol uti on ( s)
Tool runs slowly. Motor parts 1. Check air inlet filter
Air flows slightly jammed with for blockage.
from exhaust.
dirt particles.
2. Pour air tool oil into air
inlet as per instructions.
3. Operate tool in short
bursts quickly reversing
rotation back and forth
where applicable.
4. Disconnect supply.
Free motor by rotating
drive shank manually
where applicable.
5. Repeat above as
needed. If this fai Is, bring
to service center.
Loss of power
Excessive drain on
Check the air supply .
or erratic
the air line .
Ensure tool is connected
performance . Mo i sture or to a3/8 in . I.D . or larger
restriction in the air hose w ith no kinks or
air hose . Incorrect restrictions and that the
si ze or type of fittings are
hose connectors .
connected properly.
Air compressor
Ensure tool is connected
has to a compressor w hose
insufficient flo w. rated flo w matches
the tool.
16 For technical questions call1-800·665·8685

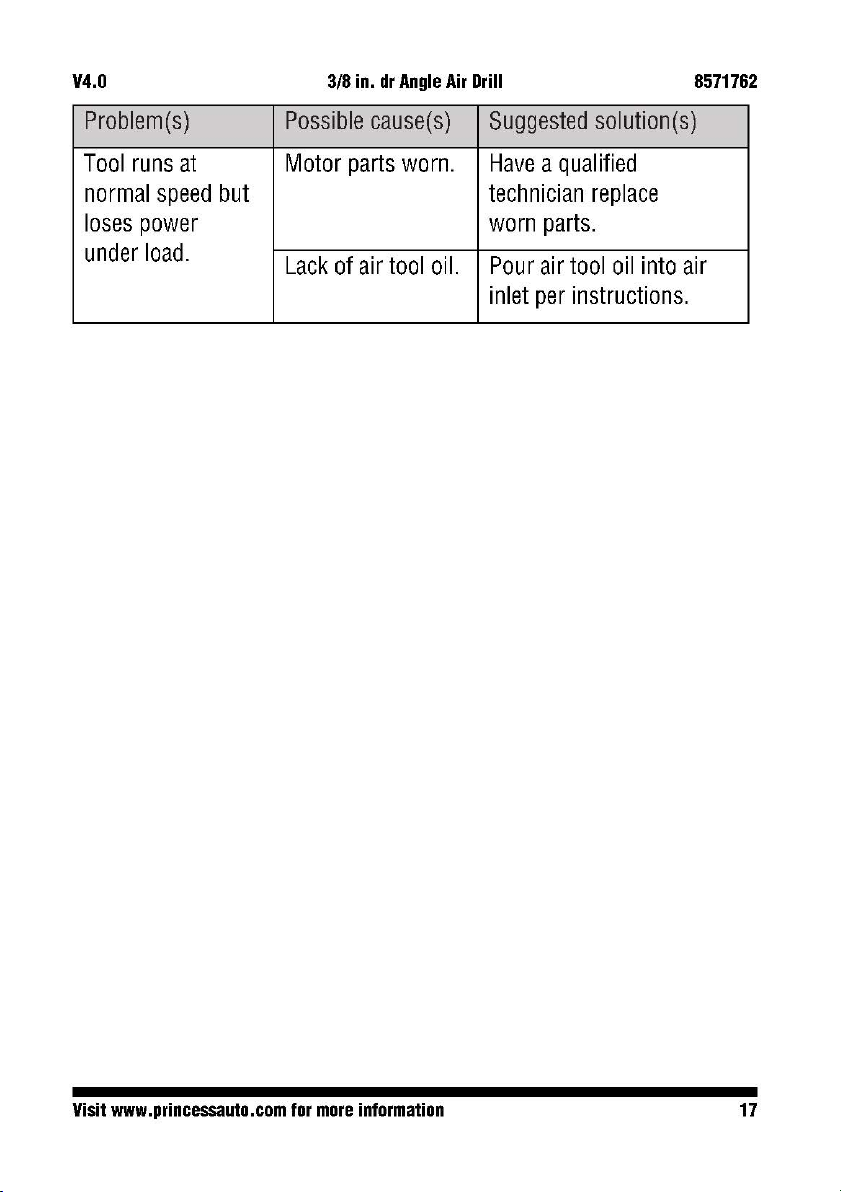

V4.0 3/8 in. dr Angle Air Drill 8571762
Problem(s) Possible cause(s) Suggested sol uti on ( s)
Tool runs at
Motor parts worn. Have a qualified
normal speed but technician replace
loses power worn parts.
under load.
Lack of air tool oil. Pour air tool oil into air
inlet per instructions.
Visit www.princessauto.com for more information
17

...
co
"'1"1
~
-
CD
n
=-
::::1
c:;·
!!!..
..c:z
c
CD
~
c;·
::I
Cll
n
!!!..
c:io
Cl Cl
=
en
Ul
c:io
en co
Ul
12
9
6
~
4
~
2
1\
~
----
28
27
26
s~
----
8.
4
SO"
------
40
-
41 43 44
47
;g
co
Ul
......
...
......
:a en
N
.....
en
m
:a
m
:.::-
37
=-=
c:l
~
=
~·
5!-
:e
z
6"
u:::z
CD'
~ ~ ~
i::::t

V4.0 3/8 in. dr Angle Air Drill 8571762
PARTS LIST
No. Part No. Description
Qty.
1 GB/T819.1-2000 M5x18-LH Screw 1
2
BQ04A-01-B01
3/8 in. Drill Chuck 1
3 G
B/T893.1-1986 32 Snap Ring 1
4
WFG-1015-11
Woodruff Key 1
5
WFD-1 051-01
Driver Shaft 1
6 G
B- T276-1994 16002-2Z Bearing
1
7
WFD-1 051-02
Bevel Gear 1
8 G
B/T276-1 004 626-2Z Bearing
2
9
GB 896-86 5 Retainer Ring
1
10
WFD-1 051-03 Drill Housing
1
11
WFG-1 015-07
Oil Inlet 1
12
WFD-1 051-04
Bevel Gear 1
13
GB/T276-1994 6001-2Z Bearing
1
14
WFD-1 051-05
Gear Shaft 1
15
WFD-1 051-06 Location Ring
1
16
WFR-1 060-12 Planet Cage
1
17
WFR-1 060-11
Pin
3
18
WFR-1 060-10
Planet Gear
3
19
WFD-1 051-07
Gear Ring 1
20
WFD-1 050-15
V-Gasket 1
Visit www.princessauto.com for more information 19

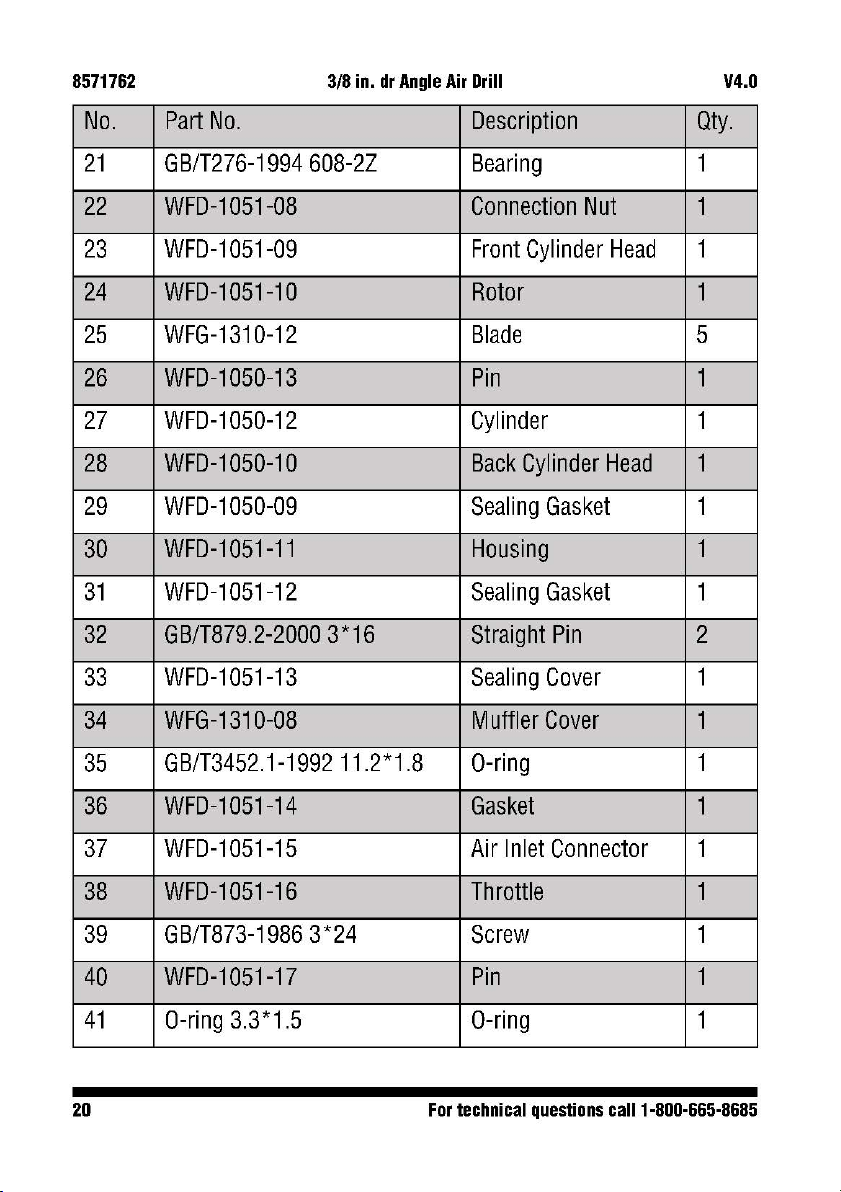

8571762 3/8 in. dr Angle Air Drill V4.0
No . Part No.
Description Qty.
21 G B/T276-1994 608-2Z Bearing 1
22
WFD-1 051-08 Connection Nut 1
23
WFD-1051-09
Front Cylinder Head 1
24
WFD-1 051-10
Rotor 1
25 WFG-131 0-12 Blade 5
26
WFD-1 050-13 Pin 1
27
WFD-1 050-12 Cylinder
1
28
WFD-1 050-1 0
Back Cylinder Head
1
29 WFD-1 050-09 Sealing Gasket 1
30 WFD-1051-11 Housing 1
31
WFD-1051-12 Sealing Gasket
1
32
GB/T879 . 2-2000 3*16 Straight Pin
2
33
WFD-1051-13
Sealing Cover 1
34
WFG-1310-08
Muffler Cover 1
35
GB/T3452.1-199211.2*1.8 0-ring 1
36
WFD-1051-14
Gasket
1
37
WFD-1051-15
Air Inlet Connector 1
38
WFD-1 051-16
Throttle 1
39 GB/T873-1986 3*24 Screw 1
40 WFD-1051-17 Pin 1
41
0-ri ng 3.3 * 1.5 0-ring
1
20 For technical questions call1-800·665·8685
