Power House M 8534B User manual

Distributed by Altronic Distributors Pty. Ltd. altronics.com.au Revision Date: 8/12/22.
6V/12V 6A / 14.4V 4.5A Automotive Battery Charger
Operating Instructions
M 8534B
Features
• Short circuit and reverse polarity protected • Overheating protection
• Includes car accessory socket lead, battery clamps and ring terminal lead
• Suits 6V and 12V cells • Defective cell detection • Trickle charge function • IP65 rated

2
THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS,
PLEASE SAVE THESE INSTRUCTIONS, KEEP WITH OR NEAR CHARGER AT ALL TIMES
1. WARNING: RISK OF EXPLOSIVE GASES. Working in the vicinity of a lead-acid battery can
be dangerous. Batteries generate explosive gases during normal battery operation. For this
reason it is of the utmost importance that prior to each use of your charger, you read and
follow the instructions provided exactly. The appliance is not intended for use by young
children or Inrm persons without supervision. Young children should be supervised to
ensure that they do not play with the appliance.
2. To reduce risk of a battery explosion, follow these instructions and those marked on the
battery.
3. NEVER smoke or allow an open spark or ame in the vicinity of the battery or engine bay
where battery is installed.
4. CAUTION: To reduce the risk of injury, use the charger for charging rechargeable lead-acid
batteries only. It is not intended to supply power to a low-voltage electrical system or to
charge dry-cell batteries, Charging dry-cell batteries may cause them to burst and cause
injury to persons and damage to property
5. Do not expose the charger to moisture, rain or snow. Use in a well ventilated and dry
area.
6. Use of an attachment not recommended or sold by the battery charger manufacturer may
result in a risk of re, electric shock, or injury to persons.
7. To reduce risk of damage to electric plug and cord, pull by plug rather than cord when
disconnecting the charger.
8. Make sure cord is located so that it cannot be stepped on, tripped over, or otherwise
subjected to damage or stress.
9. Study all the battery manufacturers specic precautions such as removing or not removing
cell caps while charging and recommended rates of charge.
10. Do not use the battery charger unless the battery voltage matches the output voltage
rating of the charger.
11. Do not operate the charger in a closed-in area or restrict ventilation in any way.
12. Do not operate the charger with a damaged cord or plug.
13. Do not operate the charger if it has received a sharp blow, been dropped, or damaged in
any way, Take it to a qualied repair station or return to place of purchase for evaluation.
14. Do not disassemble the charger, take it to a qualied repair station or local dealer when
service or repair is required. Incorrect reassembly may result in a risk of electric shock or
re.
15. To reduce risk of electric shock, unplug the charger from an outlet before attempting any
maintenance or cleaning.
M 8534B 6V/12V 6A / 14.4V 4.5A Automotive Battery Charger

3
IMPORTANT: DO NOT use other DC output cords other than the one supplied or use
an extension cord as it could result in damage to the unit which will not be covered
by warranty.
PERSONAL PRECAUTIONS:
• Someone should be within range of your voice or close enough to come to your aid when
you work near a lead-acid battery.
• Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing, or
eyes.
• Wear complete eye protection and clothing protection, Avoid touching eyes while
working near battery.
• If battery acid contacts skin or clothing, wash immediately with soap and water. If acid
enters an eye, immediately ood eye with running cold water for at least 10 minutes and
get medical attention Immediately.
• NEVER smoke or allow a spark or ame in vicinity of battery or engine bay where battery
is installed.
• Be extra cautious to reduce risk of dropping a metal tool onto battery. It might spark or
short-circuit battery or other electrical part that may cause an explosion.
• Remove personal metal items such as rings, bracelets, necklaces, and watches when
working with a lead-acid battery. A lead-acid battery can produce a short-circuited current
high enough to weld a ring or like to metal, causing a severe burn.
• It is not intended to supply power to a low-voltage electrical system or to charge dry-
cell batteries. Charging dry-cell batteries may cause them to burst and result in injury to
persons and/or damage to property.
• NEVER charge a frozen battery.
PREPARING TO CHARGE
1. If it is necessary to remove battery from vehicle to charge it, always remove grounded
terminal from battery rst. Make sure all accessories in the vehicle are off in order to
prevent an arc.
2. Be sure area around battery is well ventilated while battery is being charged, Explosive gas
can be forcefully blown away by using a piece of cardboard or other nonmetallic material
as a fan
3. Clean battery terminals. Be careful to keep corrosion from coming in contact with eyes
4. If battery is not sealed add distilled water in each cell until battery acid reaches level
specied by Battery manufacturer. This helps purge excessive gas from cells. Do not
overll. For a sealed battery without cell caps. Carefully follow manufacturers recharging
instructions.
5. Study all battery manufacturers’ specic precautions such as removing or not removing
cell caps while charging and recommended rates of charge.
M 8534B 6V/12V 6A / 14.4V 4.5A Automotive Battery Charger

4
6. Determine voltage of battery by referring to vehicle owner’s manual and make sure it
matches output rating of the battery charger.
LOCATING CHARGER
• Locate the charger as far away from battery as the DC cables permit.
• Never place the charger directly above or below the battery being charged. Gases or uids
from the battery will corrode and damage the charger.
• Never allow battery acid to drip on the charger when maintaining or lling battery.
• Do not operate charger in a closed-in area or restrict ventilation in any way.
• Do not set a battery on top of charger.
CONNECTION PRECAUTIONS
Connect and disconnect DC output clips only after setting the charger power switch to off
position and remove the plug from AC electric outlet. Never allow clips to touch each other.
Follow these steps when battery is installed in a vehicle:
A spark near battery may cause a battery explosion. To reduce risk of a spark near battery.
1. Position AC and DC cords to reduce risk of damage by bonnet, vehicle door or any
moving engine.
2. Stay clear of fan blades, belts, pulleys, and other parts that can cause injury.
3. Check polarity of battery posts. A positive (pos, +) battery post may have a larger
diameter than a negative (neg -) post.
4. Determine which post of battery is grounded (connected) to the chassis. If negative post
is grounded to the chassis (as in most vehicles), see step 5. If positive post is grounded to
the chassis, see step 6.
5. For a negative-grounded vehicle, connect the positive (red) clip from the battery charger
to the positive (pos,+) post of battery rst. Connect the negative (black) clip from the
battery charger to the vehicle chassis of engine block remote from the battery and fuel
line. Do not connect the clip to carburetor, fuel lines, or sheet-metal body parts. connect
to a heavy gauge metal part of the frame or engine block.
6. For a positive-grounded vehicle, connect the negative (black) clip from the battery charger
to negative (neg,-) post of battery rst. Connect the positive (red) clip from the battery
charger to the vehicle chassis or engine block remote from the battery and fuel line. Do
not connect clip to carburetor, fuel lines, or sheet-metal body parts, Connect to a heavy
gauge metal part of the frame or engine block.
7. If using permanently mounted eyelet lead SAE connector, simply connect this to charger
output lead.
8. Connect charger AC supply cord to a mains electric outlet.
M 8534B 6V/12V 6A / 14.4V 4.5A Automotive Battery Charger

5
9. When disconnecting the charger, disconnect AC cord, remove clip from vehicle chassis,
and then remove clip from battery terminal.
Follow these steps when battery is outside the vehicle:
A spark near the battery may cause a battery explosion. To reduce risk of a spark near battery.
1. Check polarity of battery posts. A positive (pos, +) battery post may have larger diameter
than a negative (neg, -) post.
2. Attach at least a 1.8m long 0.75mm insulated battery output cable from the charger to
the negative (neg, -) battery post.
3. Connect the positive (red) clip from the battery charger to the positive (pos, + ) post of
battery.
4. Position yourself and the free end of the cable as far away from battery as possible, then
connect the negative (black) clip from the battery charger to free end of cable.
5. Do not face battery when making nal connection.
6. Connect charger AC supply cord to a mains electric outlet.
7. When disconnecting the charger, always do so in sequence of connecting procedure and
break rst connection while standing as far away from battery as practical.
NOTE: A marine (boat) battery must be removed and charged on shore. To charge it on a boat
requires equipment specially designed for marine use.
OPERATING INSTRUCTIONS

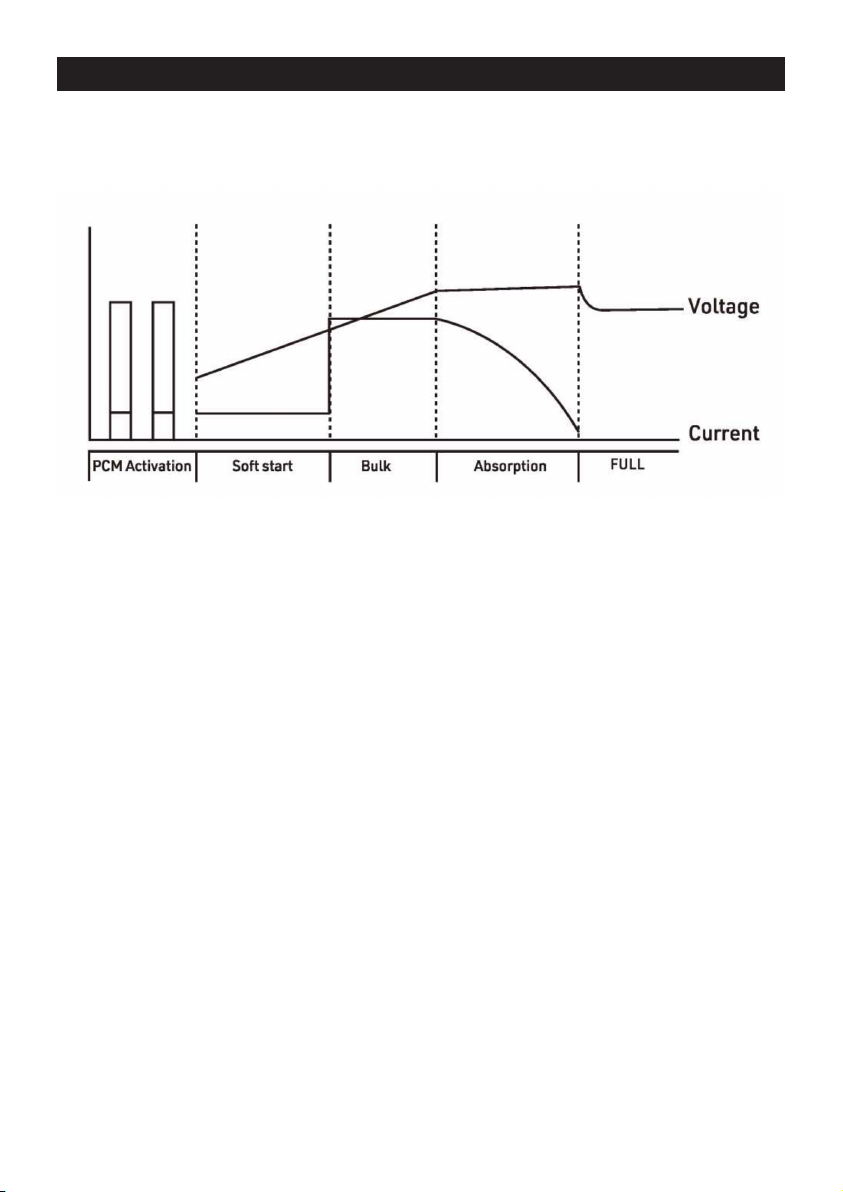

AUTOMATIC OPERATION - Your new battery charger is completely automatic and can be left
plugged into mains power. The charger output depends on the condition of the battery it is
charging. When the battery is fully charged, the display will indicate “good” and show battery
level at 100%. The charger will switch itself to a storage charge mode. It will automatically
monitor and maintain the battery at full charge.

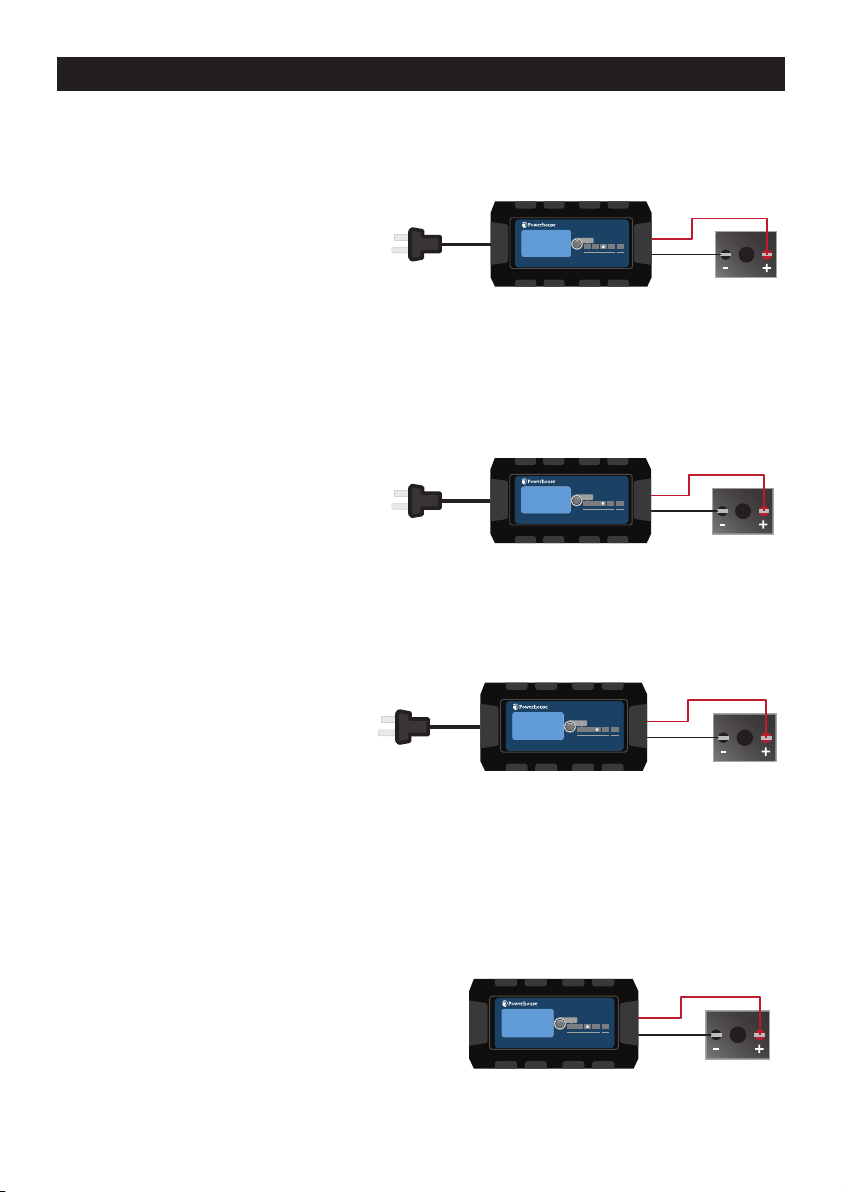

CABLE CONNECTIONS - Your new battery charger is equipped with two output leads, a
red positive lead, and a black negative clip lead. Plus an eyelet lead suitable for permanent
connection to battery terminals. Always connect or disconnect the output leads before
plugging into AC power.
For all battery types: Connect the red positive (+) lead to the positive terminal of the battery.
Connect the black negative (-) lead to the negative terminal of the battery.
Note: If the charger is left connected to a lead acid battery for long periods of time, check
water levels periodically as directed by the battery manufacturer to ensure electrolyte is
maintained at a proper level.
ATTENTION: THE BATTERY CHARGER HAS SPARK FREE, POLARITY & SHORT CIRCUIT
PROTECTION BUILT IN. HOWEVER AS GOOD PRACTICE NEVER ALLOW THE TWO CLIPS
TOUCH EACH OTHER. CHARGE ONLY ONE BATTERY AT A TIME.
M 8534B 6V/12V 6A / 14.4V 4.5A Automotive Battery Charger

6
MINIMUM VOLTAGE - The charger will not produce voltage (turn on) until it recognizes at
least three volts from the battery. The battery charger clips must be clipped to a battery in the
correct polarity to initiate output voltage and begin charging when in lead acid (Pb) charge
mode.
When in Lead Acid (Pb) charge mode if the charger is hooked up in reverse polarity, the Fault
symbol will turn on indicating that the connection has been made in reverse of the polarity of
the battery and a charge has not been initiated.
Clips must be re-connected in the proper polarity to start the charger, Red to Positive (+ to +)
and Black to Negative (- to -).
NOTE: DO NOT TURN YOUR BATTERY CHARGER ON AND OFF REPEATEDLY (Plug and Unplug)
WITHIN A SHORT PERIOD. IF THIS HAPPENS, UNPLUG BATTERY CHARGER FROM AC POWER,
WAIT FOR ONE MINUTE AND THEN CONNECT THE CHARGER AGAIN.
ESTIMATED TIME TO CHARGE
To calculate your approximate time to complete charging your battery use the following
formula:
Battery Capacity ÷ Charger Current = Hours to charge.
or
Amp Hours (Ah) ÷ Amps = Hours to charge.
For example you if you have a 60Ah battery and the charger delivers 4.5A current, you can
nd the number of hours by dividing 60 by 4.5 = 13.3 hours.
If you have a high capacity battery it can take more than 24 hours to reach full capacity. For
faster charging, purchase a higher current output charger.
FULLY DISCHARGED BATTERIES - Lead Acid (Pb) Charge Mode:
If your battery is totally discharged (below 2 volts), the charger circuitry will not start due to its
internal safety circuit. The internal safety circuit of the battery charger must sense more than
2 volts in the battery before it will allow the charging circuit to turn on. In this case (battery
voltage between 0.5V-2.0V) the Fault symbol will ash, which means charging has not been in
initiated. If the battery voltage is less than 0.5V, the charger will be return to standby mode.
Note: Unless the battery was rapidly discharged most 12 Volt lead acid batteries that retain a
state of charge of less than 9 volts are likely to be worn out or defective.
72-HOUR SAFETY FEATURE
A 72 hour safety timer will commence anytime the charger is on. This feature is designed to
protect marginal batteries from over charging. If the battery voltage reaches the proper level
within 72 hours. the charger will automatically switch to maintenance mode. If your battery is
M 8534B 6V/12V 6A / 14.4V 4.5A Automotive Battery Charger

7
marginal defective, the battery charger will stop all the charging processes in order to protect
the marginal battery from over charging. Please check battery condition as it could also
indicate that a very large (high capacity) battery in good condition that is not yet fully charged.
When this happens, the display will show “BAD BAT”.
VISUAL GUIDE TO YOUR BATTERY CHARGER
HOW TO CONNECT
The charger can be connected in different ways for different charging purposes.
Standard 12V Lead Acid Charging
AC power is connected with the wall
socket properly. Press “MODE” key. The
LCD will show “STD”, the charger is
switched to standard battery mode (GEL,
VRLA, SLA). Correctly connect the charger
output leads (Red”+”,Black”-”) to battery
positive and negative.
12V AGM Battery Charging
A.C Power is connected with the wall
socket properly. Press “MODE”key twice.
The LCD will show “AGM”, the charger
is switched to AGM battery mode (AGM).
Correctly connect the charger output leads
(Red”+”,Black”-”) to battery positive and
negative.
M 8534B 6V/12V 6A / 14.4V 4.5A Automotive Battery Charger
MODE
AGMLeadAcid LiFePO4
6V/12V 4.5A
Battery Charger & Maintainer
M 8534B
STD
12V Modes
AGM LI
LowTemp. LeadAcid
6V
6V Mode
M 8534B
Mains Power
from GPO
STD
12V Lead Acid
(GEL, SLA) Battery
MODE
AGMLeadAcid LiFePO4
6V/12V 4.5A
Battery Charger & Maintainer
M 8534B
STD
12V Modes
AGM LI
LowTemp. LeadAcid
6V
6V Mode
12V AGM Type Battery
M 8534B
Mains Power
from GPO
AGM

8
Low Temperature Lead Acid Charging
When the ambient temperature is below
-10°C, Press “MODE”key three times.
The LCD will show“❄”. This mode can
be set for battery charging to facilitate
the rapid recovery of the battery capacity.
12V LEAD ACID STANDARD AND AGM
ONLY.
LiFePO4 Battery Charging
A.C Power is connected with the wall
socket properly. Press “MODE”key four
times. The LCD will show “LI”, the charger
is switched to LiFePO4 battery mode
(LiFePO4). Correctly connect the charger
output leads (Red”+”,Black”-”) to battery
positive and negative.
Standard 6V Lead Acid Charging
A.C Power is connected with the wall
socket properly. Press “MODE” key
ve times. The LCD will show “6V”.
The charger is switched to 6V standard
battery mode (GEL, VRLA, SLA).
Correctly connect the charger output
leads (Red “+”, Black”-”) to battery
positive and negative.
12V Battery Tester Mode
The charger can be used for testing your
battery status. Correctly connect your
battery positive and negative with the
charger leads, without the AC power
connected. The LCD will indicate battery
capacity 20-100% or ”BAT LOW”.
12V BATTERIES ONLY.
MODE
AGMLeadAcid LiFePO4
6V/12V 4.5A
Battery Charger & Maintainer
M 8534B
STD
12V Modes
AGM LI
LowTemp. LeadAcid
6V
6V Mode
12V Lead Acid
(GEL, SLA) Battery
M 8534B
Mains Power
from GPO

MODE
AGMLeadAcid LiFePO4
6V/12V 4.5A
Battery Charger & Maintainer
M 8534B
STD
12V Modes
AGM LI
LowTemp. LeadAcid
6V
6V Mode
12V LiFePO4 Battery
M 8534B
Mains Power
from GPO
LI
MODE
AGMLeadAcid LiFePO4
6V/12V 4.5A
Battery Charger & Maintainer
M 8534B
STD
12V Modes
AGM LI
LowTemp. Lead Acid
6V
6V Mode
M 8534B
Mains Power
from GPO
6V
6V Lead Acid
(GEL, SLA) Battery
MODE
AGMLeadAcid LiFePO4
6V/12V 4.5A
Battery Charger & Maintainer
M 8534B
STD
12V Modes
AGM LI
LowTemp. LeadAcid
6V
6V Mode
M 8534B
NO MAINS
POWER
NEEDED
12V Battery
M 8534B 6V/12V 6A / 14.4V 4.5A Automotive Battery Charger

LCD INDICATORS - 6/12V STANDARD/AGM/LOW TEMP MODES.
M 8534B 6V/12V 6A / 14.4V 4.5A Automotive Battery Charger
9

M 8534B 6V/12V 6A / 14.4V 4.5A Automotive Battery Charger
LiFePO4 BATTERY CHARGING MODE
BATTERY TESTER MODE
The charger can be used for testing your battery capacity. Simply correctly connect your battery
positive and negative with the charger leads whilst the AC power is disconnected. The LCD
will indicate battery 20-100%. ”BAT LOW” will be indicated while the battery voltage is LOW.
10
