Power Max TAC-230 User manual

TAC-230
Treadmill User Manual
OWNER’S MANUAL
Read all instructions carefully before using this product. Retain this owner's manual
for the future's reference. Product may be slightly different with photos, it is subject
to actual product. Thank you for purchasing the product.

www.powermaxfitness.net
2
TABLE OF CONTENTS
WARRANTY
02
PRODUCT BRIEF
03
SECURITY PRECAUTIONS AND WARNINGS
04
INSTALLATION INSTRUCTIONS
07
USING INSTRUCTIONS
09
TRANSLATION OF ERROR CODES
13
ROUTINE MAINTENANCE
14
1 YEAR LIMITED WARRANTY
PowerMax Fitness warrants to the original purchaser that this product is free from defects in
material and workmanship when used for the purpose intended, under the conditions that it has
been installed and operated in accordance with PowerMax Fitness's Owner's Manual. PowerMax
Fitness's obligation under this warranty is limited to replacing or repairing, free of charge, any
parts which may prove to be defective under normal home use. This warranty does not include
any damage caused by improper operation, misuse or commercial application. From the date of
purchase, the frame is warranted to be free from defects for 1(one) year*.
Customer Care
Phone: [phone]
Email: [e-mail]
Support / Complaint Generation: support.powermaxfitness.net
This warranty is extended only to the original owner and is not transferable.
When ordering replacement parts please have the following information ready:
1. Owner's Manual
2. Model Number
3. Description of Parts
4. Part Number
5. Date of Purchase
* Terms and Conditions Apply. For T&C visit www.powermaxfitness.net

www.powermaxfitness.net
3
1. PRODUCT BRIEF
Home Use Treadmill.
Main Parameters and Parts List
Main Technical Parameters
No.
Parameters Names
Description
1
Rated voltage
220-240V
2
Rated frequency
50-60Hz
3
Speed
0.8-14 km/h
4
Running surface
1220*460 mm
5
Net weight
55kg
6
Expand dimensions
1635*735*1280 mm

www.powermaxfitness.net
4
Parts Number List
No.
Name
unit
Qty
No.
Name
unit
Qty
1.
Complete machine
set
1
3
Accessory bag
set
1
2.
Protective cover
set
1
Accessory Bag List
NO.
Name
QTY
NO.
Name
QTY
1
Screw M8*22
2
7
Safety key
1
2
Screw M8*42
2
8
Silicon oil
1
3
Screw M8*25
2
9
User manual
1
4
Inner hexagon spanner 5mm
1
10
MP3 Cable
1
5
Inner hexagon spanner 6mm
1
11
Skid proof sticker
2
6
Combination wrench
1
2. SECURITY PRECAUTIONS AND WARNINGS
Tips: Before folding the treadmill, make sure that the gradient is "zero".
Notice: Please read the instructions carefully before use.
•Indoor using and storing the treadmill, avoid dampness, and cannot be spilled by water.
•Please wear suitable clothes and sneakers before exercise. Prohibited to exercise on the
treadmill barefoot.
•High power plug must be grounded, electric outlet should have a dedicated circuit, do not
share with other electrical equipment.
•Keep children away from the machine to avoid accidents.
•Avoid too long time and overload operation, otherwise will cause motor and controller
damaged, and will accelerate the deterioration of bearing, running belt and running board.
Should maintain machine on a regular basis.
•Keep machine away from dust to avoid strong static.
•Please cut the electric power off after using.
•Please maintain good ventilation when running.
•Please clamp security lock cable on your clothing to make sure the machine stops at
emergency condition.
•If you feel not very well when using this machine, please stop and consult a doctor.

www.powermaxfitness.net
5
•Silicone oil must be kept away from children after use.
•If power cord is damaged, please contact our qualified maintenance personnel for service
rather than disassemble it at your own discretion.
Forbidden
•Don't use the machine in the status of the shell break in or break off （the internal structure
exposed）or under the condition of welding-parts may fall off.
---- Otherwise an accident or injury may happen.
•Don't jump up and down in the process of movement.
•---- May be injuries caused by the fall.
•Don't keep machine in or near moist space such as the bathroom.
•Don’t place machine in direct sunlight, or high temperature places such as near a stove
or a heating appliance.
----Otherwise may cause the leakage and burst into flames.
•Don't use when the power cord is damaged or power plug pin is loose.
----Otherwise will lead to an electric shock, short circuit or fire.
•Don't damage or bent by force or reverse the power cord. Don’t place heavy objects on
machine, don't clamp the power line.
----Otherwise will cause fire or get an electric shock.
•Don't use machine for more than 2 people at the same time, and don't get close to the
machine when it is in use.
---- Or it may be an accident or injury due to falls.
•People who can ’t express their consciousness or can ’t operate the machine by
themselves cannot use the treadmill.
----May occur accident or injury.
•Avoid drinking water or pouring water when operation.
---- May cause electric shock and fire. Forbidden!
•People who seldom do exercise shouldn't suddenly do intense exercise.
•After eating or when feel tired, do not use machine.
---- May lead damage to your health.
•This product is suitable for family use, does not apply to schools, gymnasium and so on. -
----There is the danger of injury.
•Don’t use when hard objects are in pants pockets.
----May cause accident or injury.

www.powermaxfitness.net
6
•Don’t use when the power plug is on the needle, garbage, or water.
----May cause electric shock, short circuit, or fire. Do not use with wet hands!
•when not in use, pull out the power plug from the socket.
•----The dust and moisture can age the insulation, and result in leakage fire.
•This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved, children shall not play with the appliance,
cleaning and user maintenance shall not be made by children without supervision.
Ground Protection System
•This product must be grounded. If the machine is dysfunctional, grounding will provide a
good channel for electric current in order to reduce the electric shock risk.
•This product is equipped with power plug with grounding conductor and plug. Completely
insert the plug to standard socket.
•If the equipment grounding conductor’s connection is improper, it will cause electric
shock. If you have doubts about whether your product is grounded correct or not, please
entrust professional to check.
•Please use the socket which has the same shape with the grounding plug. Don’t use plug
adapter.
•If the supply cord is damaged, it must be replaced by the manufacturer or its service agent
or a similar qualified person in order to avoid a hazard.
----This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
----Children should be supervised to ensure that they do not play with the appliance.

www.powermaxfitness.net
7
3. INSTALLATION INSTRUCTIONS
When installing, simple fix all screws first, then tighten screws when the installation of frame is
done.
1. Put the machine flat on the ground. And stand the upright columns and console as bellow:
2. Use 5# inner hexagon wrench and M8*42 to lock washers and nuts through the column. Then
fix the column on the base with screw M8*22.
M8*22
M8*42

www.powermaxfitness.net
8
3. Hold left& right columns, use 6# inner hexagon wrench to lock the console frame on the
columns with screw M8*25.
4. Lock the protective covers on the base with screw M5*14 and tighten all screws in above steps.
5. Put safety key on the right position to make sure the treadmill starts normally.
NOTE: please confirm that all screws are locked uniformly according to the requirements after
installation, and check no part is left out before plugging electricity.
Screw
M8*25
M5*14
Note: Safety
key
is
in
red
Colour.It
is
put
in
a
plastic
bag
together
with
screws
and
tools.
Please
place
it
on
the
yellow
area
of
the
console
to
start
the
treadmill.

www.powermaxfitness.net
9

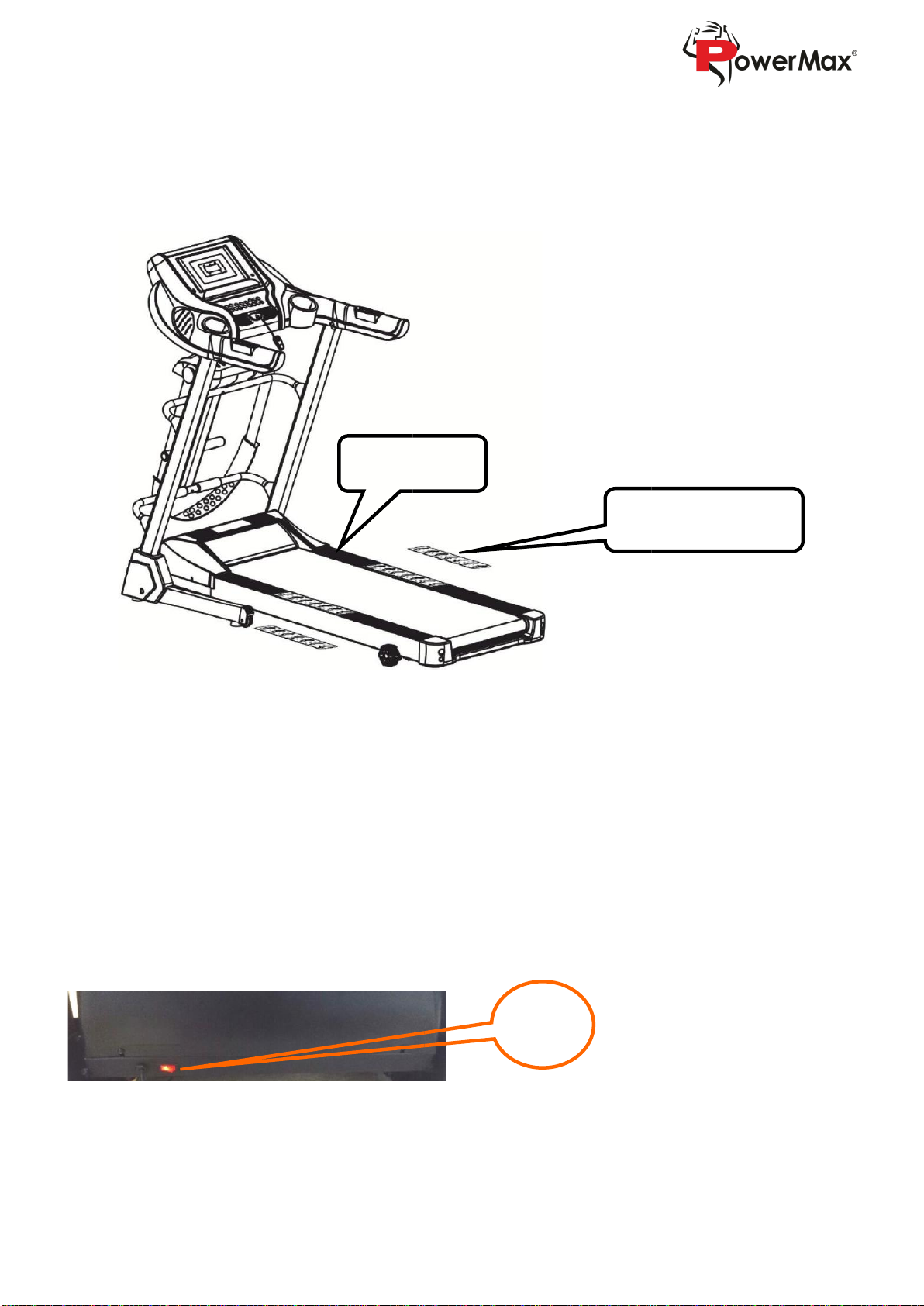

Skid Proof Sticker
Please find the skid proof stickers in the carton, and stick it on the middle part of side rail on both
sides.
4. USING INSTRUCTIONS
Using treadmill
1) Insert the power plug properly and turn on the switch (in red colour)
When the light is on, there will be a beep sound, and then the screen will be light up (Systems
with TFT screen takes more time to enter the start interface).
2) Safety key instruction
Side
rail
Skid
proof
sticker
1

www.powermaxfitness.net
10
The treadmill can only start when the safety key is put on the yellow area of the console. Clip
the safety key on clothes when using the treadmill to prevent accidents.
3) Folding Instructions
•Fold the treadmill:
It will save space when the treadmill is folded.

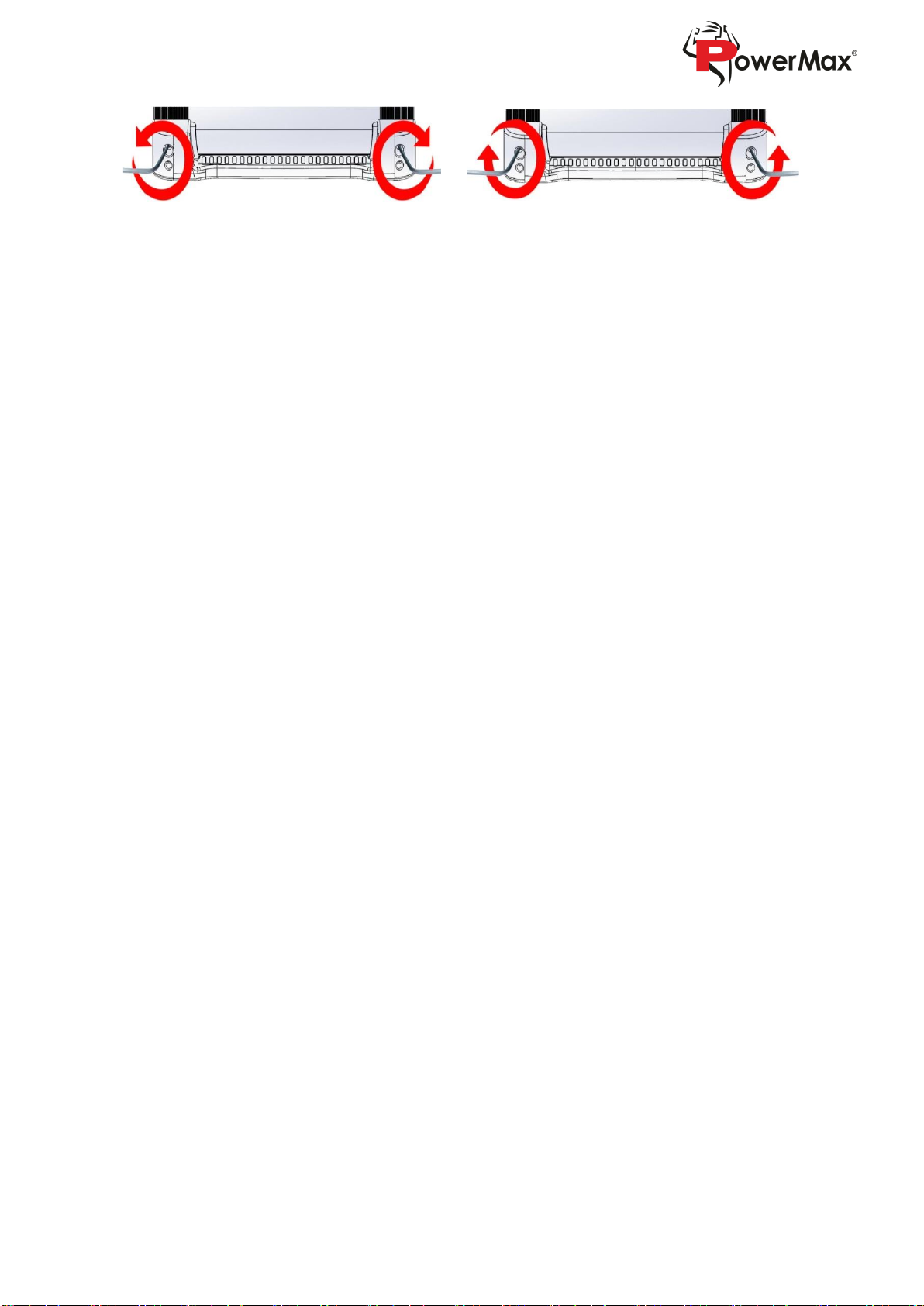

Please turn off the switch and pull out the power plug before folding. Lift the running deck
until it is held.
•Unfold the treadmill:
Kick the pressure rod, hold the running deck and then let the running deck to fall gradually.
4) Console Instructions
•Buttons
•Start-up
Normally start after 5 seconds of countdown.
•Amount of programs
3 manual programs, 12 automatic programs.
Kick
this
part
to
lower
the
running
deck.

www.powermaxfitness.net
11
•Safety lock function
Disconnect the security lock, "E7" shows on the screen. The treadmill stops immediately, and a Di
alarm sound is let out. Put the safety key back, all the data will be cleared in 2 seconds.
KEY FUNCTION
Start button, Stop button：
When the power is on, press the start button to start the treadmill. Stop key: when the treadmill
is in running state, press the stop button, all data will be cleared, and the treadmill gradually
comes into a complete stop and returns to the manual mode.
Program key
In standby mode, pressing this key can cycle the options from manual mode to P1 to P12
automatic programs. Manual mode is the system defaulting running mode.
Mode key
In standby mode, press this key can cycle the options of 3 different countdown running mode:
time countdown running mode, distance countdown running mode and calorie countdown
running mode.
Voice + - key:
Press volume+ to turn the volume up and press volume- to turn the volume down. If there’s no
sound, please press volume+ for a while and the volume will be turned on.
Speed + - key:
Use these keys to adjust the speed of the treadmill. Press speed+ to increase the speed and press
speed- to decrease the speed.
Speed quick keys:
When the treadmill is on running state, press these keys to change the speed directly to 3/6/9/12
km/h.

www.powermaxfitness.net
12
Incline+ -key:
When the treadmill is in running state, use these keys to adjust the incline of the treadmill. Press
incline+ to increase the incline and press incline- to decrease the incline.
Incline quick keys:
When the treadmill is on running state, press these keys to change the incline directly to 3/6/9%.
DISPLAY FUNCTION
•Speed Display
Display the current running speed value.
•Time Display
Display the time of manual mode and the countdown time under automatic modes and
programs.
•Distance Display
Display cumulative distance under manual mode and programs. Display the distance
countdown in automatic mode. Calorie display
Display cumulative calorie under manual mode and programs. Display the calorie countdown in
automatic mode.
•Heart Rate Display
Heart rate signal will be detected, and the heart-shaped mark flashes while testing
THE RANGE OF THE DATA THAT EACH WINDOW DISPLAYS:
❖TIME：5:00 –99.59(MIN)
❖DISTANCE: 1.0 –99.9(KM)
❖CALORIES: 20.0 –999 (C)
❖PULSE: 50 –199 (BPM)
HEART RATE MEASURE FUNCTION
In the case that the treadmill is energized, hold the heartbeat sensor piece for a while and the
heart rate will be shown on the screen. This data is for reference only, it cannot be considered as
medical data. Automatic programs
Each program is divided into 10 segments, and the running time of each segments is evenly divided. The time and
speed distribution of each running program are as follows:

www.powermaxfitness.net
13
TRANSLATION OF ERROR CODES
Fault Code
Failure Description
Fault Handling
E1
Communication Abnormal:
when the power is on, the
connection between lower
controller and the console is
abnormal.
Check the cable connection between the console
and the control border to ensure that each core
is fully plugged in. Replace the connection cable
if it is damaged.
E2
No detection of motor
Possible Cause:
Check the motor cable to see whether it is
connected well or not, if not, connect the motor
wire again.
Check the motor cable, replace it if it is damaged
or has a burnt smell.
E5
Over current protection:
In working, the lower
controller detects the
current to be over 6A for
more than 3 seconds.
Possible Cause:
Overloading leads to excessive current, and the
system stop out of self-protection, or some part
is stuck, causing the motor to stop. Adjust the
treadmill and restart it. Check if there is liquid or
burnt smell while the motor is running, if yes,
replace the motor; check if the controller has a
burnt smell, if yes, replace the controller; check
the power supply voltage, if it does not match
the specifications, change into correct voltage
and test the machine again.
E6
Explosion-proof impact
protection: the abnormal
voltage or motor cause the
faulty of circuit that drive
the motor.
Possible Cause:
Check if the power supply voltage is 50% lower
than normal voltage ，use the correct voltage
and test the machine again；check if the
controller has a burnt smell and replace the
controller; Check if the motor cable is connected
and connect the motor wire again.
E7
No safety key
Put the safety key on the right place.

www.powermaxfitness.net
14
ROUTINE MAINTENANCE
Warning: Before cleaning or maintaining products, please be sure the power plug of the
treadmill is pulled out.
Cleaning: Comprehensive cleaning will extend the using life of the electric treadmill.
Remove dust periodically in order to keep the parts clean. Be sure to clean running belt with both
sides of the exposed portion, which will reduce the accumulation of impurities. Make sure to wear
clean athletic shoes to avoid carrying the dirty matters into running board and belt. Treadmill
belts shall be cleaned by a damp cloth with soap. And please pay attention to avoid too wet the
electrical components and running belt.
Warning: Make sure power plug disconnect before moving motor cover away, clean the motor
at least once a year.
Running Belt Specialized Lubricant
This electric treadmill’s running board and running belt has been lubricated in factory. Friction
between the running belt and running board has a great influence to the using life and the
performance of the electric treadmill, therefore regular applying of lubricant is needed. We advise
you to check the board regularly. If the board’s surface is damaged, please contact our customer
service centre.
We advise using lubricant between running belt and running board with following schedule:
Lightweight user (use less than 3 hours a week) once per month;
Heavyweight use (use more than 7 hours a week) once every half month.
1. In order to better safeguard your electric treadmill and extend the life of the machine, it is
recommended that after your continued use of two hours, turn off the machine and let it rest for
10 minutes before using again.
2. If the treadmill belt is too loose, there will be skid phenomenon’s while running; if it’s too
tight, it may reduce motor performance and harden the abrasion of roller and the running belt.
You can lift two sides of the running belt for 50-75mm when the tightness is appropriate.
Running Belt Alignment
⚫Put electric treadmill flat on the ground.
⚫Make the electric treadmill run at a speed of about 6-8km/hour.
⚫If the running belt is closer to the right, rotate the right adjusting bolt with 1/2 turn
clockwise, then rotate the left adjusting bolt with 1/2 turn counter-clockwise. (Picture A)
⚫If the running belt is closer to the left, rotate the left adjusting bolt with 1/2 turn clockwise,
then rotate the right adjusting bolt with 1/2 turn counter-clockwise. (Picture B)

www.powermaxfitness.net
15
Picture A Picture B
Multi-wedge Belt Tension Adjusting
When you use the treadmill for a long time, the multi-wedge belt becomes loose because of the
abrasion, then you have to do some appropriate adjustment to facilitate the safe use.
Judgment: the feeling of running with the occasional pause phenomenon, which indicating that
the treadmill belt or multi-wedge belt are a little loose and further affirmation need to be made.
Method of judging which part is loose: Remove the four screws on protective cover, make the
treadmill run at a speed of 1 km/h, and then stand on the running belt, grip the armrests, and
tread the treadmill belt slightly. (we advise treading the treadmill belts with the user's own weight)
A. The instantaneous step cannot stop the belt, the tightness is appropriate.
B. If your instantaneous step stops the running belt, but the multi-wedge belt and former roller
is still running, it indicates that the running belt is loose and appropriate adjustments must be
made to facilitate the safe use
C. If you observe that the instantaneous step makes the treadmill belt and multi-wedge belt stop,
but the motor is still running, it indicates that the multi-wedge belt is loose and appropriate
adjustments must be made to facilitate the safe use
Step 2: Use a wrench to adjust the screws on the motor base according the condition. Meanwhile,
gently flip the multi-wedge belt between the motor shaft and the front roller, if it is too loose,
you can flip the multi-wedge belt by 100%; if it is too tight, the degree for you to flip the belt is
very limited. It is appropriate to flip the multi-wedge belt by 80% after adjustment. Please adjust
the tightness of the multi-wedge belt into the state that it could be flipped by 80%.
Step 3: Finally lock the motor base, install the front cover.
