Power Max TAC-330 User manual

TAC-330
Semi-Commercial Treadmill User Manual
OWNER’S MANUAL
Read all instructions carefully before using this product. Retain this owner's manual
for the future's reference. Product may be slightly different with photos, it is subject
to actual product. Thank you for purchasing the product.

www.powermaxfitness.net
2
TABLE OF CONTENTS
WARRANTY 2
CAUTION 3
SPECIAL ATTENTION 3
ASSEMBLY INSTRUCTION 5
PACKING LIST 5
EXPLODED VIEW 7
PART LIST 8
INSTALLATION STEPS 9
INSTRUCTIONS 12
DIRECTION FOR USE 14
TROUBLESHOOTING OF CIRCUIT FAULT 18
1 YEAR LIMITED WARRANTY
PowerMax Fitness warrants to the original purchaser that this product is free from defects in
material and workmanship when used for the purpose intended, under the conditions that it has
been installed and operated in accordance with PowerMax Fitness's Owner's Manual. PowerMax
Fitness's obligation under this warranty is limited to replacing or repairing, free of charge, any
parts which may prove to be defective under normal home use. This warranty does not include
any damage caused by improper operation, misuse or commercial application. From the date of
purchase, the frame is warranted to be free from defects for 1(one) year*.
Customer Care
Phone: [phone]
Email: [email protected]
Support / Complaint Generation: support.powermaxfitness.net
This warranty is extended only to the original owner and is not transferable.
When ordering replacement parts please have the following information ready:
1. Owner's Manual
2. Model Number
3. Description of Parts
4. Part Number
5. Date of Purchase
* Terms and Conditions Apply. For T&C visit www.powermaxfitness.net

www.powermaxfitness.net
3
Thank You for Purchasing the Product. You Will Be Healthier After Using.
1. CAUTION
We considered a lot of security problems when we design the product, if you do not use the
machine in the right way and get in trouble, we will not be responsible for it, so please use the
product correctly according to the directions.
In order to ensure your safety and avoid accidents, please read the instructions carefully. Indoor
using and storing the treadmill, avoid dampness, and cannot be spilled by water. Please wear
suitable clothes and sneakers before exercise. Prohibited to exercise on the treadmill barefoot.
The high-power plug must be grounded, the electric outlet should have a dedicated circuit, do
not share with other electrical equipment. Avoid the too long time and overloading operation,
otherwise, it will cause damage to the motor and controller, and will accelerate the deterioration
of bearing, running belt, and running board. Should maintain the machine on a regular basis.
2. SPECIAL ATTENTION
Keep the machine away from dust to avoid strong static. Please cut electric power off after using.
Please maintain good ventilation when running. Please clamp the security lock cable on your
clothing to make sure the machine stops at emergency condition. If you feel not very well when
using this machine, please stop and consult a doctor. Silicone oil must be kept away from children
after use. If the supply cord is damaged, it must be replaced by the manufacturer or its service
agent, or a similarly qualified person in order to avoid a hazard.
----This appliance is not intended for use by persons (including children) with reduced physical,
Sensory or mental capabilities, or lack of experience and knowledge unless they have been
Supervision or instruction concerning the use of the appliance by a person responsible for their
safety.
----Children should be supervised to ensure that they do not play with the appliance. Don' t. Use
the machine in the status of the shell break in or break off (the internal structure exposed) or
under the condition of we may fall off.
----Otherwise, an accident or injury may happen. Don't jump up and down in the process of
movement.
----May cause injury by the fall. Don't keep machines in or near moisture space, such as the
bathroom. Don't place machines in places with direct sunlight, or high temperatures, such as near
a stove or a heating appliance.
----Otherwise may cause leakage and burst into flames. Don't use it when the power cord is
damaged or the power plug pin is loose, otherwise will lead to electric shock, short circuit, or fire.

www.powermaxfitness.net
4
Don't damage or bent by force or reverse the power cord. Don't place heavy objects on the
machine, don't clamp the power line.
----Otherwise will cause fire or get an electric shock. Don't use the machine for more than 2 people
at the same time, and don't be close to the machine when it is in use.
----Or it may be an accident or injury due to Falls. People who can't express their consciousness
or operate the machine by themselves cannot
Use the treadmill.
----Accident or injury may occur. Avoid drinking water or pouring water when operating.
----May cause electric shock and fire. Forbidden!
People who seldom do exercise shouldn't suddenly do intense exercise. After eating or when
feeling tired, do not use the machine.
----May lead to damage to your health. This product is suitable for family use, does not apply to
schools, gymnasium and so on.
----There are the dangers of injury. Don' t use when hard objects are in clothes' pockets.
----May cause accident or injury. Don' t use when the power plug is on the needle, garbage, or
water.
----May cause electric shock, short circuit or fire. Do not use with wet hands! When not in use, pull
out the power plug from the socket.
----The dust and moisture can age the insulation which may lead to leakage and fire.
GROUND PROTECTION SYSTEM!
This product must be grounded. If the machine is dysfunctional, grounding will provide a good
channel for electric current in order to reduce the risk of electric shock
This product is equipped with power plug with grounding conductor and plug. Complete insert
the plug to standard socket.
If the equipment' s grounding conductor connection is improper, it will cause electric shock.
If you have doubts about whether your product is grounded correct or not, please entrust
professional to check.
Please use the socket with the same shape with the grounding plug. Don' t use plug adapter.
If power cord is damaged, please contact our qualified maintenance personnel for service
rather than disassemble it at your own discretion.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent
This appliance is not intended for use by persons (including children) with reduced physical,
sensor your mental capabilities, or lack of experience and knowledge, unless they have been

www.powermaxfitness.net
5
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
ASSEMBLY INSTRUCTION
Please read the installation carefully before installing
Remove all the items and put them on the ground
Check the accessories according to the packing list
When you are carrying something, please pay attention to the whole
Install the product according to the instructions
The product must be approved by the installation, if necessary, please professional to install
Do not damage the product
PACKING LIST

www.powermaxfitness.net
6

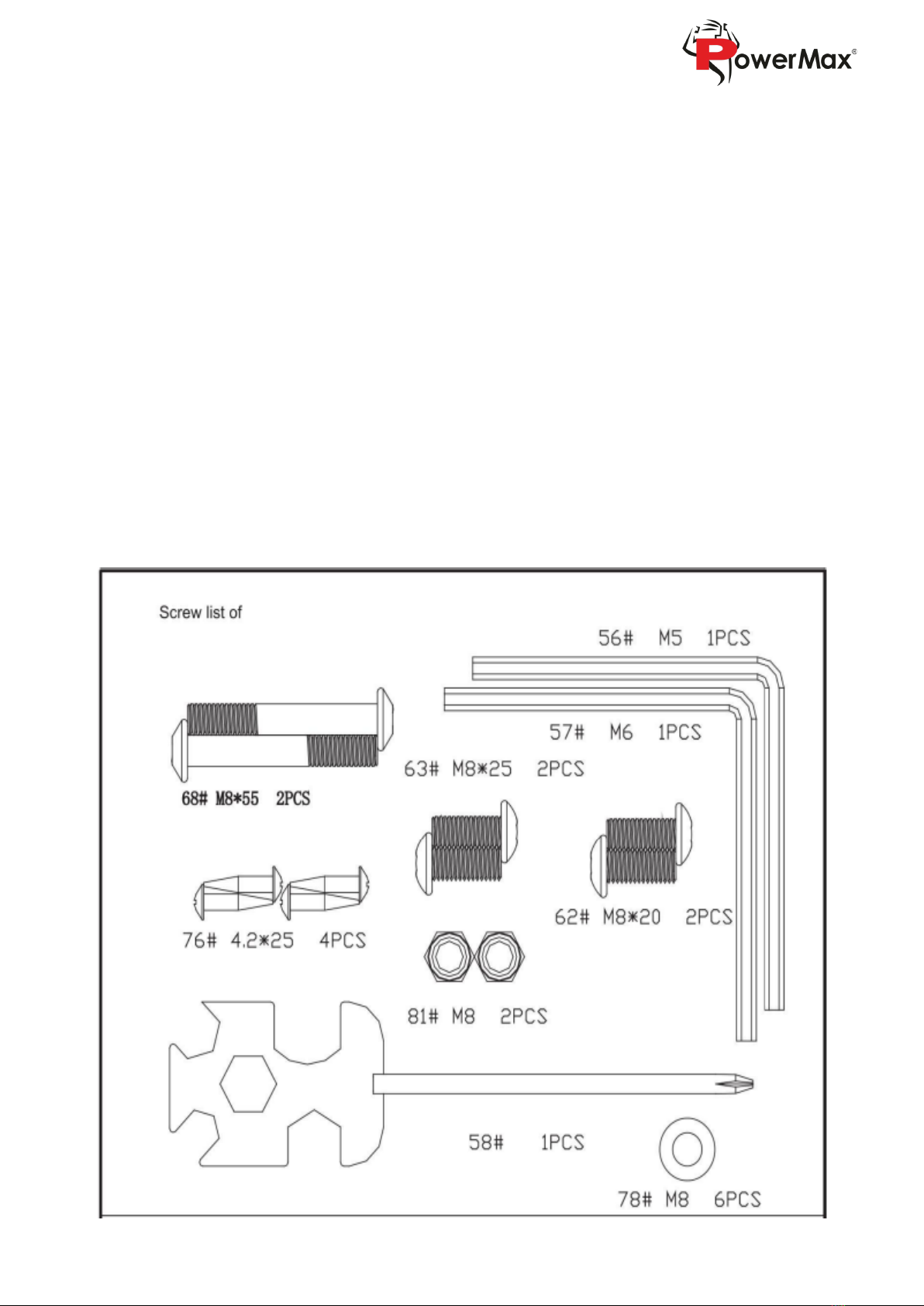

Packing List Simple Function
Machine + Operation Panel
Tool Bag
21. Safety Sky
25. Line for Mp3
84. Oil
85. Manual
25
40 - 41 Left-Right Cover
21

www.powermaxfitness.net
7
EXPLODED VIEW
All the parts are showed in the following picture

www.powermaxfitness.net
8
SPARE PART LIST
1 Pedestal 45 Floor mat
2 Upright post 46 Wheel
3 Control holder 47 Rubber sleeve
4 Incline holder 48 Button
5 Motor holder 49 Round cushion
6 Main frame 50 Round cushion
7 Stator 51 Pipe stopper
8 52 Pipe stopper
53 Sponge sheath
10 Running board 54 Button of the power cord
11 Running belt 55 Pipe stopper of wheel
12 The front roller 56 Allen wrench 5mm L
13 The rear roller 57 Allen wrench 6mm L
14 Belt 58 Wrench
15 Gas spring 59 Inner hexagon screw M10*110
16 AC motor 60 Inner hexagon screw M10 * 40
17 Incline motor 61 Inner hexagon screw M10*60
62 Inner hexagon screw M8*20
19 Up control 63 Inner hexagon screw M8*25
20 Down control 64 Inner hexagon screw M8*35
21 Safety key 65 Inner hexagon screw M8 * 40
22 Top line 66 Inner hexagon screw M8*d5
23 Mid line 67 Inner hexagon screw M8 * 50
24 End-line 68 Inner hexagon screw M8 * 55
25 Line for mp3 69 Hexagon socket head cap screws M8 * 80
26 Safety switch sensor 70 Hexagon socket head cap screws M8*60
27 "Put down" button 71 Hexagon socket head cap screws M8 * 30
28 Short line 72 Hexagon socket head
Cap screws M8*12

www.powermaxfitness.net
9
29 Long line 73 Inner hexagon screw M8*45
30 The power cord 74 Self-tapping screw ST4.2*15
31 The power switch 75 Self-Drilling Screw ST4.2*15
32 The fuse switch 76 Self-Drilling Screw ST4.2*25
33 Over cover of control 77 Self-tapping screw ST4.2*1 0
34 Back cover of control 78 M8 gasket
35 Electro broad 79 M10 gasket
36 Rear cover 80 M8 spring cushion
37 Armrest 81 M8 Lock nut
38 Top motor cover 82 M10 Lock nut
39 End motor cover 83 Oil
40 Left cover 84 Manual
41 Right cover 85
42 Left cover of foot 86
43 Right cover of foot 87
44 Sidebar 88
INSTALLATION STEPS
Step 1: installation of electronic meter
1. Put the machine on the flat ground, set the column and console up in the direction shown as
bellow.
2. Hold left & right columns, use Allen wrench 63# to lock the console frame on the columns
with screw 78#.
1

www.powermaxfitness.net
10
Step 2: installation of upright post and left-right cover
1. Make the upright up with the screw68#, gasket81#, nut 81#„let it stand on the pedestal
2. Use screw79# to lock covers on the pedestal
Step 4: installation of other parts
1. Put the safety on the yellow place
2. Check the machine and make sure all the screw is locked before using

www.powermaxfitness.net
11
PRODUCT DRAWING
Single-Function Treadmill

www.powermaxfitness.net
12
INSTRUCTIONS
The instructions of treadmill:
For the consideration of your safety, a power socket with ground wire must be used when
the treadmill is working.
1. Insert the plug into the socket and turn on the power switch (the light turns into red).
Make sure a beep is heard and the window on the dashboard is showed.
2. Put the safety lock on the yellow spot of the dashboard. Make sure the safety lock is
clipped on your clothes in avoid of accident. The running machine will be stopped when
the safety lock is moved away. Put it back in situ to restart.

www.powermaxfitness.net
13

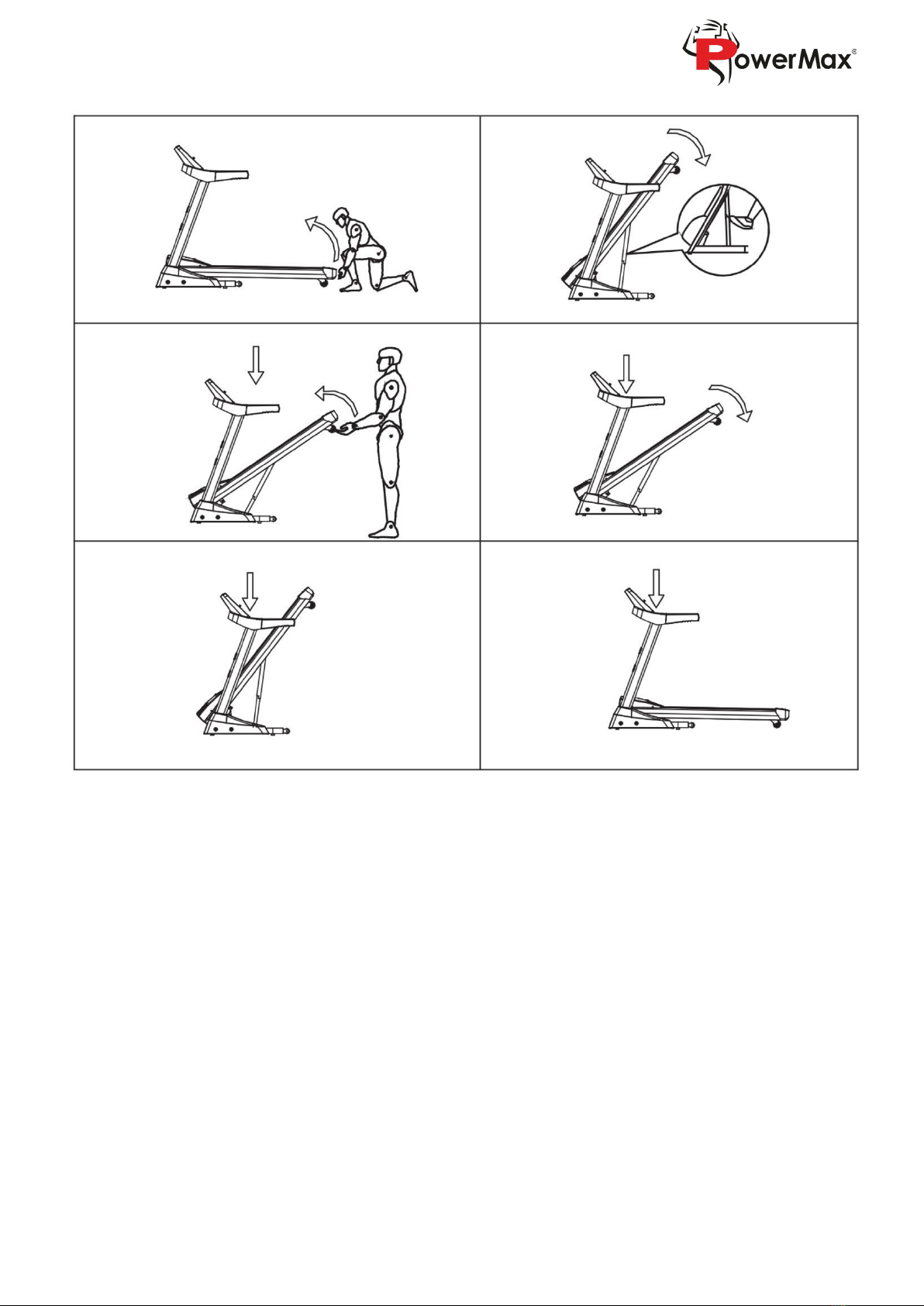

The instructions of moving the treadmill:
Fold the treadmill. Keep your foot against the edge of pedestal and pull the armrest
backward to incline the whole machine.
Move the treadmill. Keep the machine out of the reach of children to prevent the accident.
The instructions of folding:
Fold the treadmill.
Fold the treadmill to save space.
Turn off the power switch and pull the plug before folding the machine.
Lift the treadmill till the gas spring tube gets stuck.
Lay down the treadmill.
Lightly step on the gas spring tube to lay down the treadmill slowly.
ATTENTION! Keep children away from the treadmill to prevent accident.

www.powermaxfitness.net
14
DIRECTION OF USE
I. LCD DISPLAY WINDOW
1. Speed display window:Speed window display present speed on treadmill running,
the scope of speed display: 0.8-15.0KM/H. The window displays a time countdown of

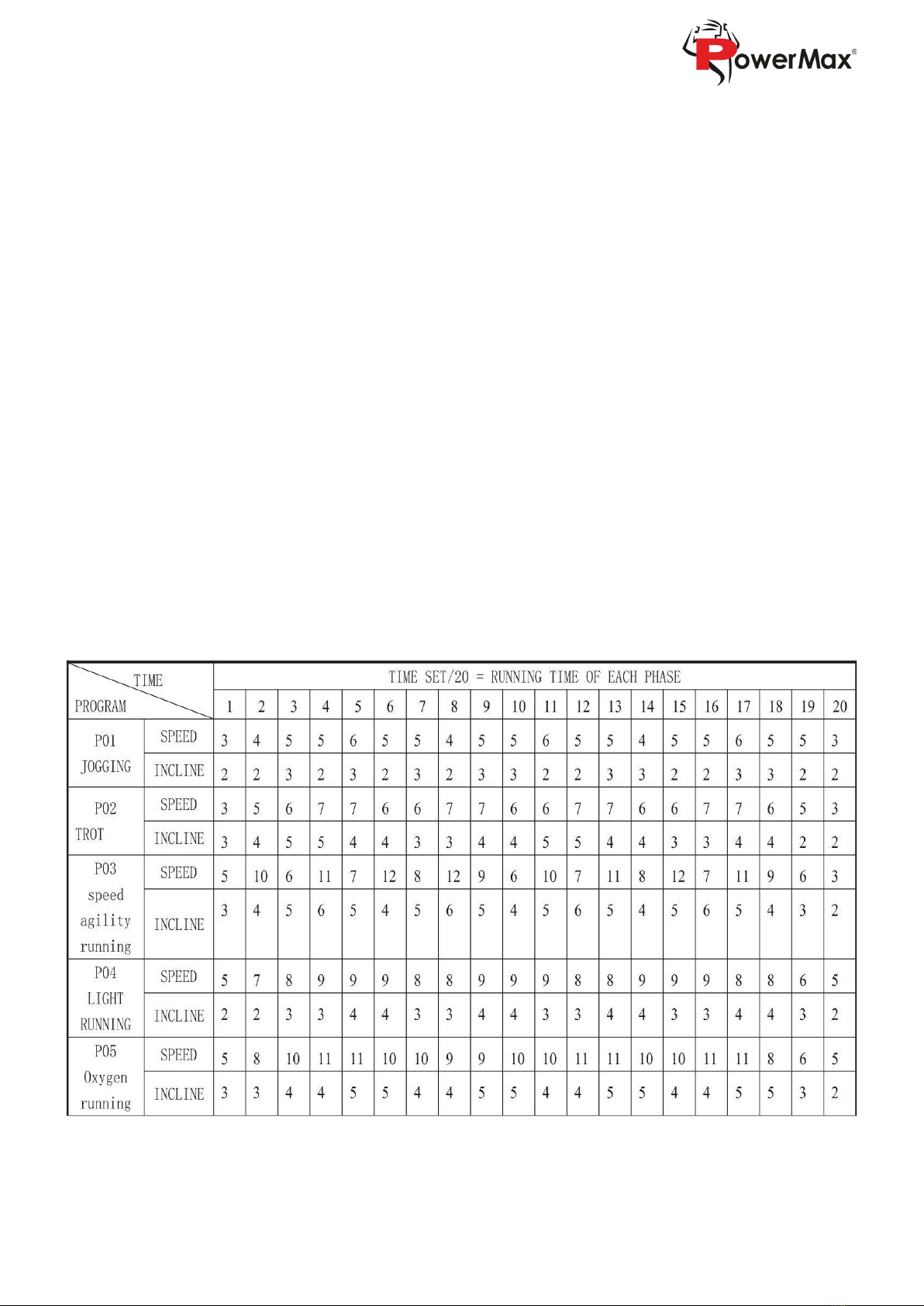

3, 2, 1 after pressing start button. Window displays P01-P02- P12-FAT after press
program or setting key
2. Time display window: Time window shows forward time from 0:00 -99;59, running
belt slows down till stop when running time to 99:59, time window show "End”, after
deed stop, the treadmill enters standby mode 5 minutes later. In contrast, time
countdown displays from time set to 0:00, running belt slows down till stop, as well,
speed window displays " End" when time countdown show 0:00, after deed stop, the
machine enters standby mode.

www.powermaxfitness.net
15
3. DIS display window: DIS window shows running distance, displays 0.00 99.90
forwardly, recount time from zero when time pass; Distance countdown show the set
to zero contrarily, the treadmill stops when countdown to zero and DIS window shows
End, then machine will enter readiness modes in 5 minutes after dead stop.
4. CAL display window: CAL window displays calories consumption. It displays forward
calories of 0.0-999.0, recount from zero once the calories are over. Calories window
also has countdown function, after complete stop, the device enters standby mode
in 5 minutes.
5. PUL/INCILINE display window:PUL display window shows heart rate, the sensors on
the handrails monitors the runner' s heart rate and displays from 50 to 200BPM on
the window. Inclines window displays incline percentage degree range from 0 to 15
II. PRESS BUTTON
1. PROG key is program button, window displays P01-P02- P12-FAT circularly for runner
selection once PROG button is pressed. P01-P12 is built-in program FAT is for fat content
measure.
2. MODE key is for mode selection, window displays 4 models of 0:00, 15:00, 1. 0, 50.0
circularly for runner selection. 0:00 is manual mode, 15:00 is time countdown mode, 1.0
is distance countdown mode, 50. 0 is calories countdown mode. Runner can adjust speed
and incline at mode selection, press START button to start treadmill after mode setting
finished.
3. START key is to start running, user can start treadmill running by pressing the button
anytime in the condition of safe key pull on.
4. STOP key is to stop running, treadmill stops running and enters reset when the STOP
button pressed.
5. SPEED+, SPEED- keys are for speed plus or minus. User can adjust speed before or after
running start, the distance gap is 0. 1km each press, distance will increase or decrease
continuously if press the button more than 0.5 second.
6. INCLINE+, INCLINE- These 2 buttons are for incline plus or minus, User can adjust incline
before or after running start, the incline gap is 1% each press, incline will increase or
decrease continuously if press the button more than 0.5 second.
7. SPEED keys, there are 4 quick speed keys of 3, 6, 9, 12KMH on the console, user can set
or change speed quickly by pressing the button.
8. INCLINE keys, there are 3 quick incline buttons of 3, 6, 9, press the key, user can set and
change degree percentage of incline.

www.powermaxfitness.net
16
9. At standby status, press SPEED+ and SPEED- over 3 seconds, window will display
distance, then press STOP key more than 3 seconds total distance will reset.
III. QUICK CONTROL BUTTONS (MANUAL MODE)
1. Turn power switch, then pull magnetic safe key on the safe key one the safe key position
of white circle below console.
2. Press START key, system enters into countdown and windows displays 3 seconds
countdown, the buzzer makes a sound, 3 seconds later, treadmill begin to run at speed of
1 KM per hour.
3. User can adjust via pressing SPEED+, SPEED-, either adjust incline by pressing INCLINE-f-
, INCLINE- after treadmill start.
IV. CONSOLE OPOERATION IN MOTION
1. Press SPEED- button, treadmill will decrease speed
2. Press SPEED- button, treadmill will improve speed
3. Press INCLINE- button, treadmill incline will increase
4. Press INCLINE+ button, treadmill incline will decrease
5. Press STOP button, treadmill will slow down till stop
V. MOBILE MODE
1. Press START button at standby status, treadmill begin to run on 0 incline at 1.0KMH speed,
other windows begin to count forwardly, user can change incline and speed by pressing
INCLINE+, INCLINE- or SPEED+, SPEED-.
2. Press MODE button at standby status, the device enters countdown mode, TIME window
displays 15:00 and twinkles, then press INCLINE+, INCLINE-, or SPEED+, SPEED-, user can set
running time range from 5:00 to 99.9 minutes
3. Press MODE at time countdown status, enters distance countdown mode, DIS window
shows 1.00 and twinkles, user can set running distance of 0.50-99.9 KM via press any buttons
of INCLINE+, INCLINE-, SPEED+ or SPEED-.
4. Press MODE at distance countdown status, enters calories countdown mode, CAL windows
show 50.0 and twinkles, user can set calories consumption by press any button of INCLINE+,
INCLINE-, SPEED+, SPEED-, the setting scope of calories is 10.0-999.0.
5. After any countdown setting finished among 3 countdown modes in all, then press START
button, the running belt begin to move in 3 minutes, user can adjust incline and speed
separately by pressing INCLINE+, INCLINE-or SPEED+, SPEED-, press STOP button and
running belt stop move.

www.powermaxfitness.net
17
VI. BUILT-IN GROGRAM
There is 15 built-in program P01-P15 in the treadmill system. Press GROG button at standby
status, SPEED window shows Pl-P15, TIME window twinkles after favourite program chosen
and displays 15:00 (minutes) of pre-set time, then press any button of INCLINE+, INCLINE-,
SPEED+, SPEED-and pre-set running time, finally press START button the machine will start
built-in program. There are 20 phases in built-in program, running time of each program is
1/20 of setting time., user can change speed and incline will revise according to program
change. It sounds Bi-Bi-Bi to remind when the machine enters into next program
automatically, but the machine will restore speed and incline set when enter into next built-
in program. Treadmill will not slow down till complete stop until all program finish, then
enters into standby status in 5 seconds after dead stop. VII. PROGRAM INSTRUCTION Each
program is divided into 20 phases averagely according to time, each phase has its own speed
and incline

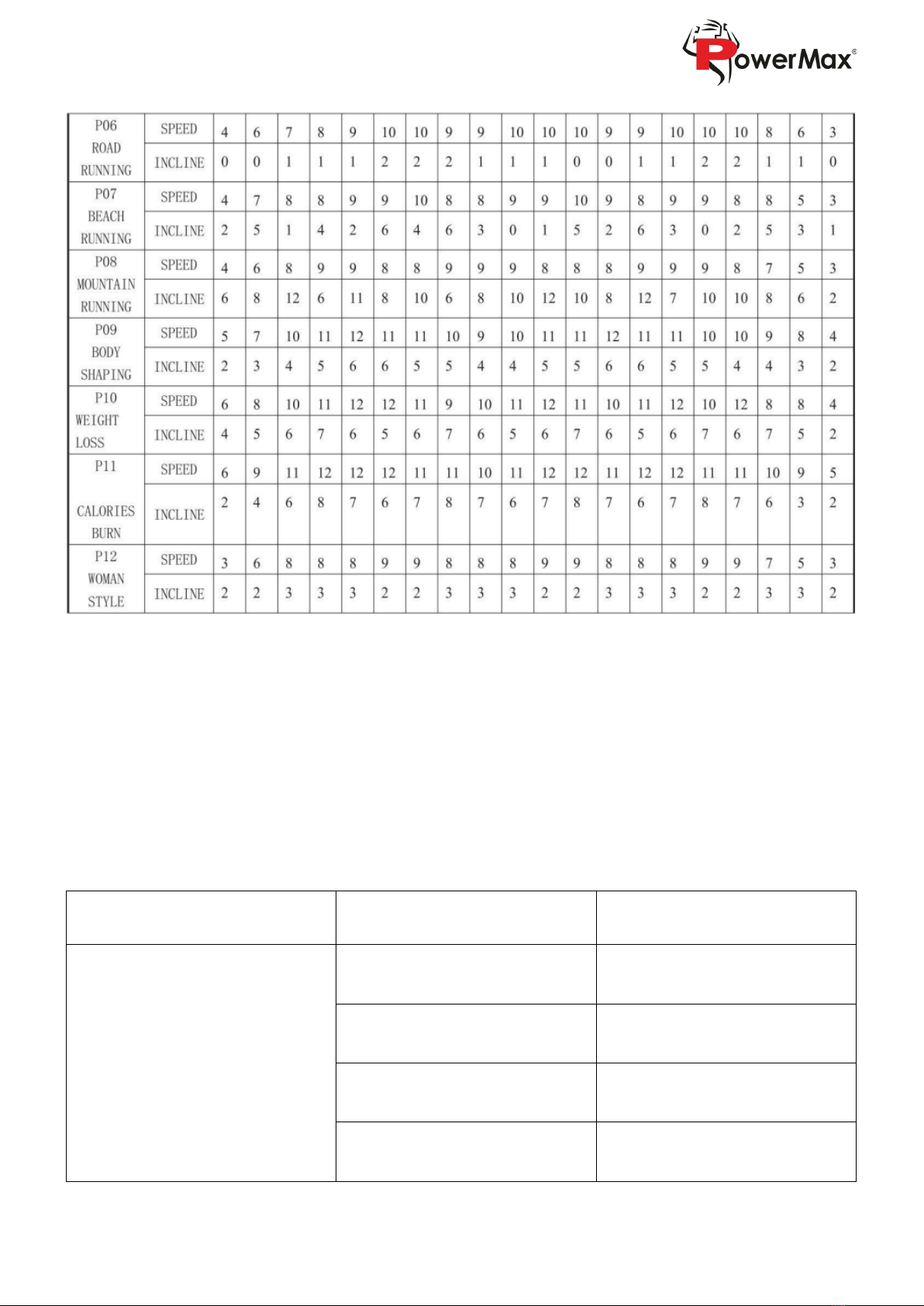

7. PROGRAM INSTRUCTION
Each program is divided into 20 phases averagely according to time, each phase has its own
speed and incline

www.powermaxfitness.net
18
VIII. PHYSICAL FITNESS TEST
X. FUNCTION OF SAFETY LOCK
Pull out safety lock in any case, the treadmill will make emergency stop, at the same time, SPEED
window shows --- and buzzers make sounds, the machine cannot be made other operation except
treadmill be shut down, put on safety lock again, treadmill will restore standby status.
TROUBLESHOOTING OF CIRCUIT FAULT
FAULT POSSIBLE CAUSE SOLUTION
NO DISPLAY ON CONSOLE
A. Do not plug on or no
power
Plug on power line or check
home electricity
B. Power switch on turn off Turn power switch to on
status
C. Driver broken or no
power to driver
Press over—load protection
device or change driver
D. Signal line of electronic
meter break Change signal line

www.powermaxfitness.net
19
E. Electronic meter broken Change electronic meter
F. Back—lit does not work Need repair, check back—lit
line or change back-lit
The display is incomplete and
missing strokes
A. Driver IC of display cold
solder or weld
Check welding spot and
welding again
B. LCD cable not fixed in
place Re—assemble LCD
C. Driver IC broken Change driver IC
Running belt move
improperly
A. Resistance in driving part Adjust driving part or add
silicon oil
B. Driving belt is too loose
or fasten Adjust driving belt
C. Drive torque is too big or
too small
Adjust potentiometer to
proper position
Electronic
meter
display
Displays
EOO/E07)
A. Safety lock missed Put on safety lock
B. Magnetron disconnect Adjust magnetron to
proper position
EOI—
communication
failure (driver
doesn’t t
accept electronic
meter' s signal
E013—
communication
failure
(electronic meter
doesn’t' t
accept driver' s
signal)
A. Signal wire missed or
poor contact Connect signal wire
B. Signal wire breaking short
circuit or open circuit Change signal wire
C. Signal line fault Change electronic meter
D. Signal line of driver fault Change driver
E02-Sta11
protection
(Explosion
A. Driving motor line
missed; or motor interior
circuit missed
Connect motor line or
change motor

www.powermaxfitness.net
20
protection or
driving motor
failure)
B. Driver IGBT broken Change driver
C. Outside AC voltage too
low
Pause, have electrician
eliminate trouble
E03— No sensor
signal (With
speed conduct
driver)
A. speed signal line missed,
or driving sensor broken
Correct speed signal line or
change speed sensor
B. Driving sensor broken Change driving sensor
E04—Elevation
self—inspection
failure (with
incline driver)
A. Incline motor line or
signal line missed
Inspect if wiring fault,
reconnect the wire
B. Incline motor failure Change incline motor
C. Elevation sensor broken Change sensor
E05—0ver—
current
protection
A. Loading too much weight System protects, restart
the machine
B. Transmission parts is
jammed
Adjust transmission parts or
add silicon oil
C. Motor inside is short
circuit Change motor
D. Driver broken Change driver
E06—Usually
motor open
circuit
A. Motor wire miss—
connection Connect motor wire again
B. Motor interval open
circuit Chang motor
C. Motor idling
Wrong display at too low
current, assemble motor and
test
E08-Storage fault
24C02 (and
24C02 driver)
A. Storage IC is not plugged
in (not switch power)
Plug IC in, take care of PINI
foot position
B. Storage IC damaged, or
relative circuit broken
Change storage IC or
change driver
E09-Inversion
fault (driver
upside down)
A. Treadmill is placed
vertically unevenly or
B. Driver upside down
damaged or circuit
