MAINTENANCE INSTRUCTIONS
AN D PARTS LIST
Models
27
27 Super
McMINNVILLE, TENNESSEE 37110

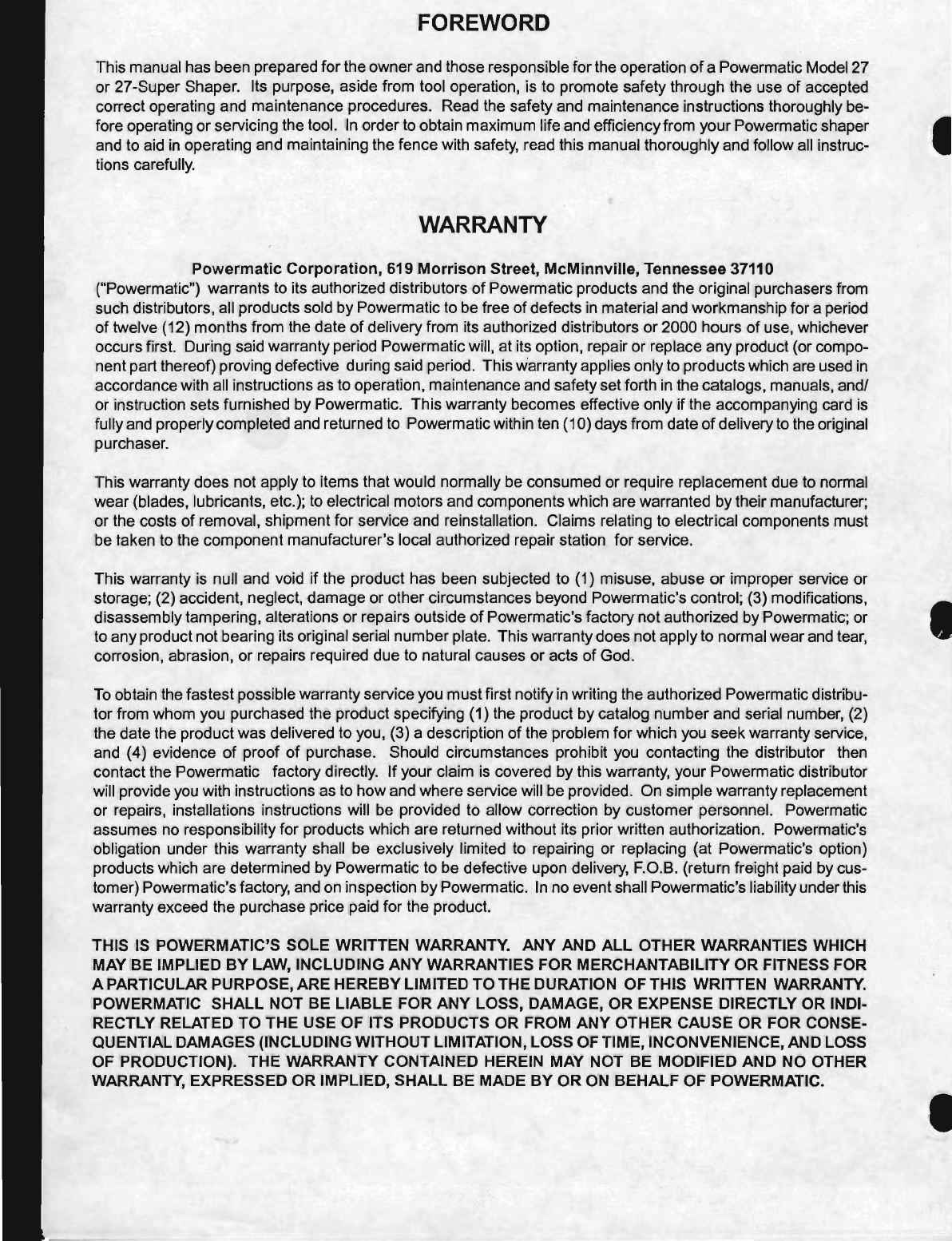

FOREWORD
This manual has been prepared for the ownerand those responsible forthe operation of a Powermatic Model 27
or 27-Super
Shapero Its purpose, aside from tool operation, is to promote safety through the use of accepted
correct operating and maintenance procedures. Read the safety and maintenance instructions thoroughly be-
fore operating or servicing the tool. In orderto obtain maximum life and efficiencyfrom yourPowermatic shaper
and to aid in operating and maintaining the fence with safety, read this manual thoroughly and follow all instruc-
tions carefully.
WARRANTY
Powermatic Corporation, 619 Morrison Street, McMinnville, Tennessee 37110
("Powermatic") warrants to its authorized distributors
of Powermatic products and the original purchasers from
such distributors, all products sold by Powermatic to be free of defects in material and workmanship for a period
of twelve (12) months from the date of delivery from its authorized distributors or 2000 hours of use, whichever
occurs first. During said warranty period Powermatic will, at its option, repair or replace anyproduct (or compo-
nentpartthereof) proving defective during said period. This warrantyapplies onlyto products which are used in
accordance with all instructions as to operation, maintenance and safetyset forth in the catalogs, manuals, and!
or instruction sets furnished by Powermatic. This warranty becomes effective only ifthe accompanying card is
fully and properlycompleted and returned to Powermaticwithin ten (10) days from date of deliveryto the original
purchaser.
This warranty does not apply to items that would normally be consumed or require replacement due to normal
wear (blades, lubricants, etc.); to electrical motors and components which are warranted bytheir manufacturer;
or the costs of removal, shipment for service and reinstallation. Claims relating to electrical components must
be taken to the component manufacturer's local authorized repair station for service.
This warranty is null and void if the product has been subjected to (1) misuse, abuse or improper service or
storage; (2) accident, neglect, damage or other circum~tances beyond Powermatic's control; (3) modifications,
disassemblytampering, alterations or repairs outside of Powermatic's factory not authorized by Powermatic; or
to any productnot bearing its original serial numberplate. This warranty does notapplyto normal wearand tear,
corrosion, abrasion, or repairs required due to natural causes or acts of God.
To obtain the fastest possible warranty service you mustfirst notify in writing the authorized Powermaticdistribu-
tor from whom you purchased the product specifying (1) the product by catalog number and serial number, (2)
the date the product was delivered to you, (3) a description
of the problem for which you seekwarranty service,
and (4) evidence of proof of purchase. Should circumstances prohibit you contacting the distributor then
contact the Powermatic factory directly. If your claim is covered by this warranty, your Powermatic distributor
will provide you with instructions as to how and where service will be provided. On simple warrantyreplacement
or repairs, installations instructions will be provided to allow correction by customer personnel. Powermatic
assumes no responsibility for products which are returned without its prior written authorization. Powermatic's
obligation under this warranty shall be exclusively limited to repairing or replacing (at Powermatic's option)
products which are determined by Powermatic to be defective upon delivery, F.O.B. (return freight paid by cus-
tomer) Powermatic's factory, and on inspection by Powermatic. In no event shall Powermatic's liabilityunderthis
warranty exceed the purchase price paid for the product.
THIS IS POWERMATIC'S SOLE WRITTEN WARRANTY. ANY AND ALL OTHER WARRANTIES WHICH
MAY BE IMPLIED BY LAW, INCLUDING ANY WARRANTIES FOR MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE,ARE HEREBYLIMITED TO THE DURATION OF THIS WRITTEN WARRANTY.
POWERMATIC SHALL NOT BE LIABLE FOR ANY LOSS, DAMAGE, OR EXPENSE DIRECTLY OR INDI·
RECTLY RELATED TO THE USE OF ITS PRODUCTS OR FROM ANY OTHER CAUSE OR FOR CONSE·
QUENTIALDAMAGES (INCLUDING WITHOUTLIMITATION, LOSS OFTIME, INCONVENIENCE, AND LOSS
OF PRODUCTION). THE WARRANTY CONTAINED HEREIN MAY NOT
BE MODIFIED AND NO OTHER
WARRANTY, EXPRESSED OR IMPLIED, SHALL BE MADE BY OR ON BEHALF OF POWERMATIC.

TABLE OF CONTENTS
Safety:
General Rules ................................................................................................................................4
Specific Rules ......................................... '" .................................................................................... 4
Decal Instruction ............................................................................................................................6

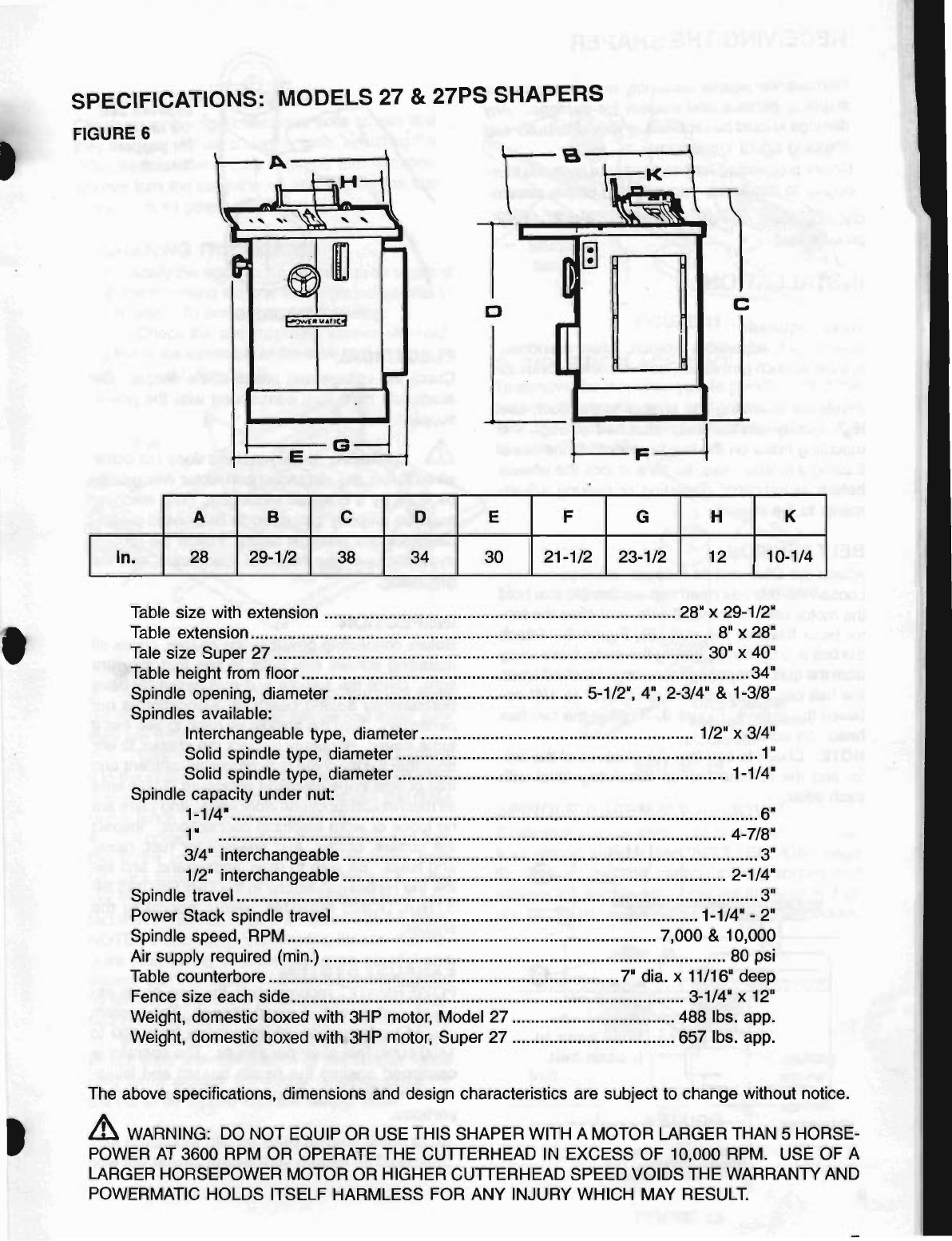

Specifications.......................................................................................................................................7

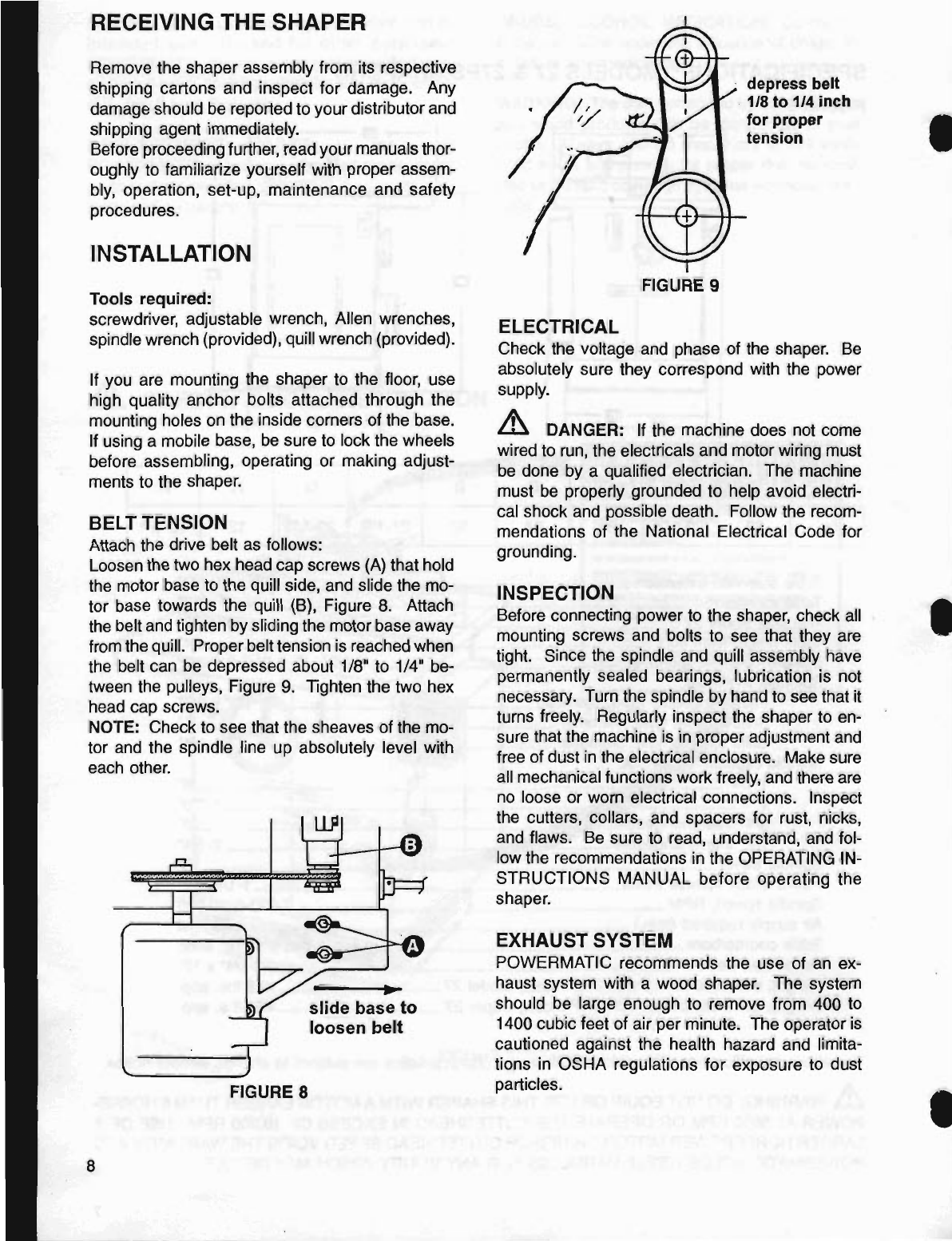

Receiving the Shaper...........................................................................................................................8
Installation ............................................................................................................................................8
Tools Required ...............................................................................................................................8
Belt Tension ...................................................................................................................................8
Electrical .. ......................................................................................................................................8
Inspection .......................................................................................................................................8
Exhaust System .............................................................................................................................8
Shaper Adjustments ............................................................................................................................9
Squaring the Fence ........................................................................................................................9
Spindle Replacement .. ...................................................................................................................9
Spindle Assembly Removal ... ........................................................................................................ 9
Replacing the Cutters .................................................................................................................. 10
Quill Slide Adjustment .................................................................................................................. 10
Changing Speeds ........................................................................................................................ 10
Mitre Gauge Adjustment .............................................................................................................. 10
Fence Assembly Adjustment ........................................................................................................ 11
Before Operating ........................................................................................................................... 11

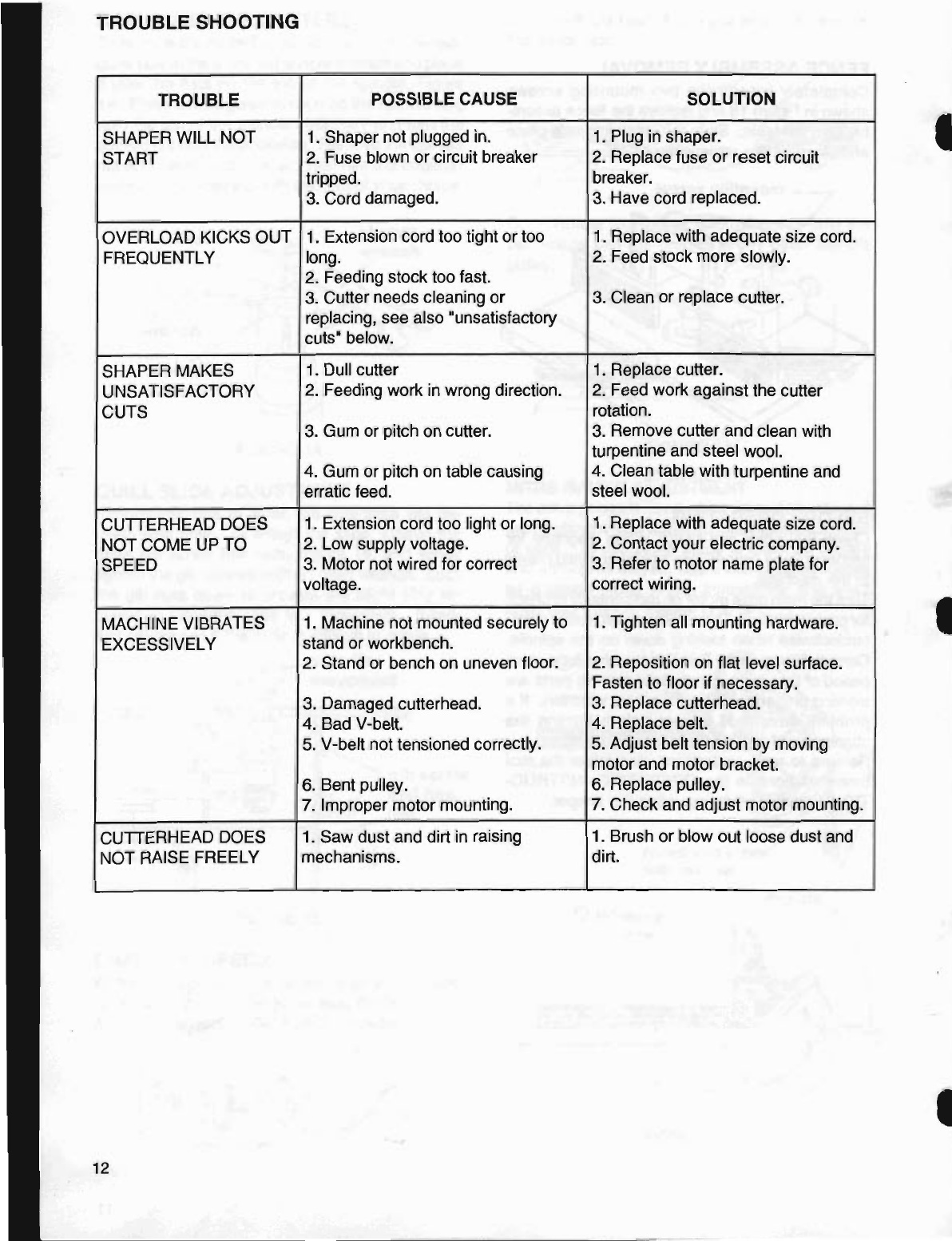

Trouble Shooting ............................................................................................................................... 12
Optional Accessories ........................................................................................................................ 13
Parts Lists & Exploded Views:

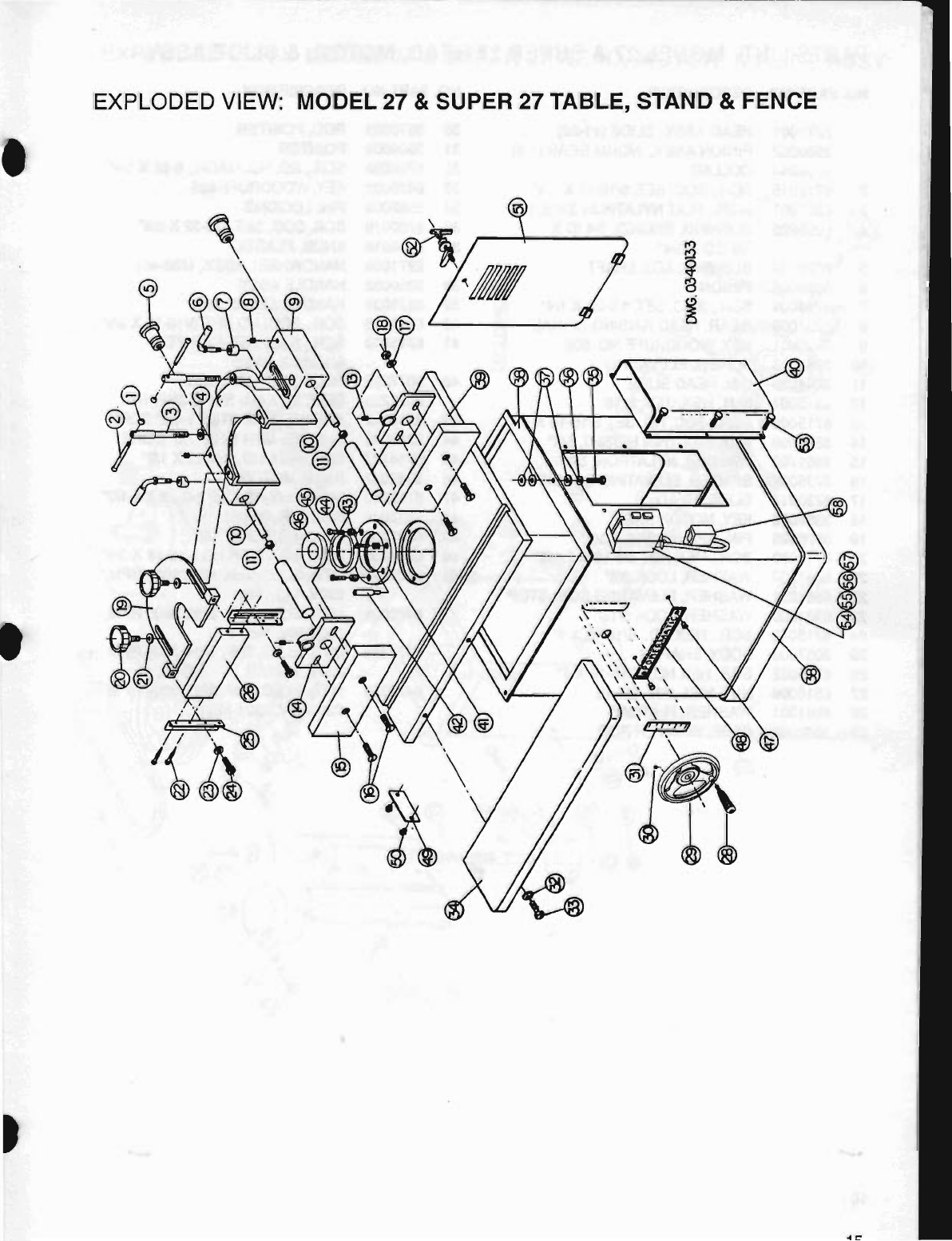

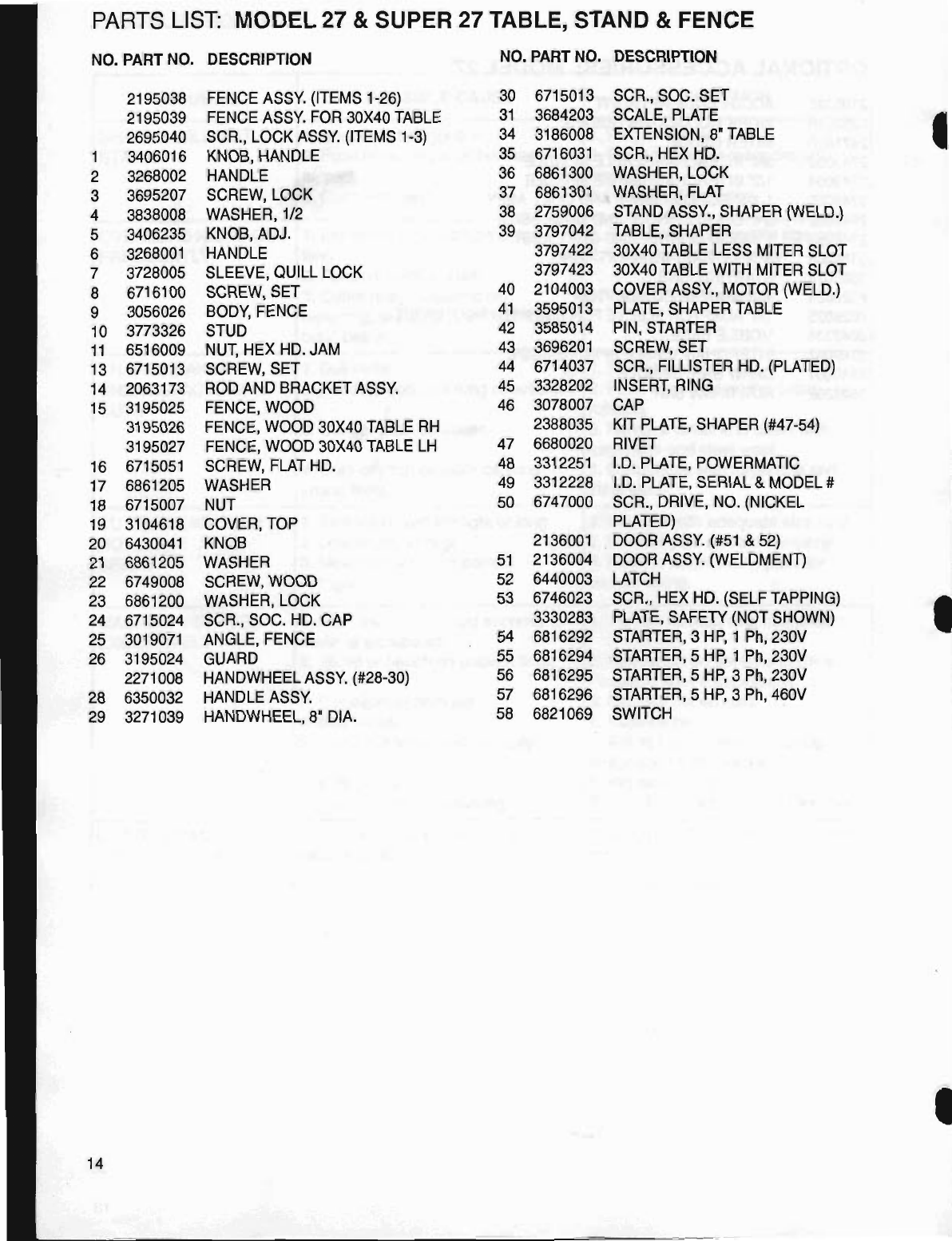

Model 27 & 27 Super Table, Stand & Fence ........................................................................... 14-15

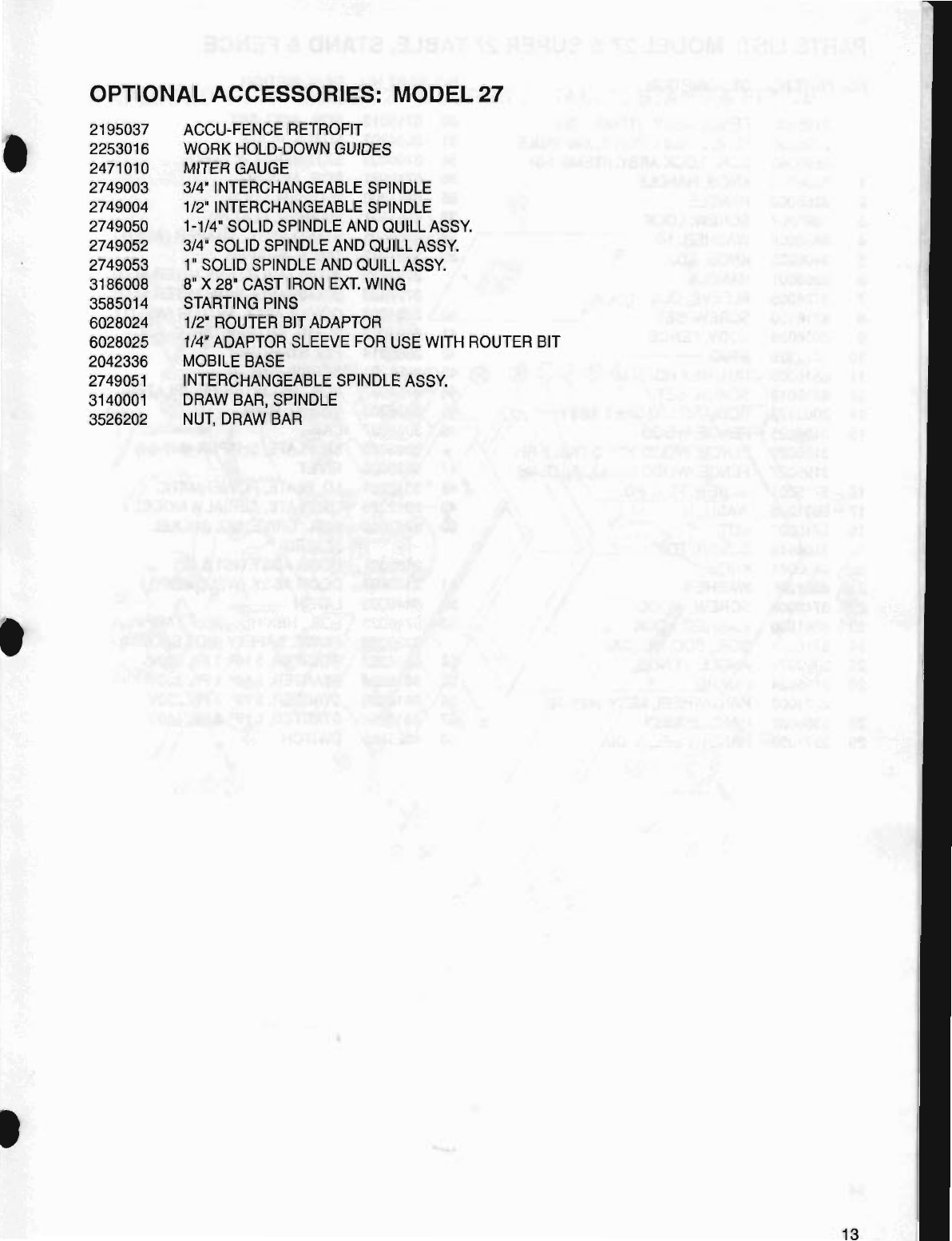

Optional Accessories: Model 27 .................................................................................................. 16
Model 27 & 27 Super Head, Motor & Slide Assembly ............................................................ 16-17

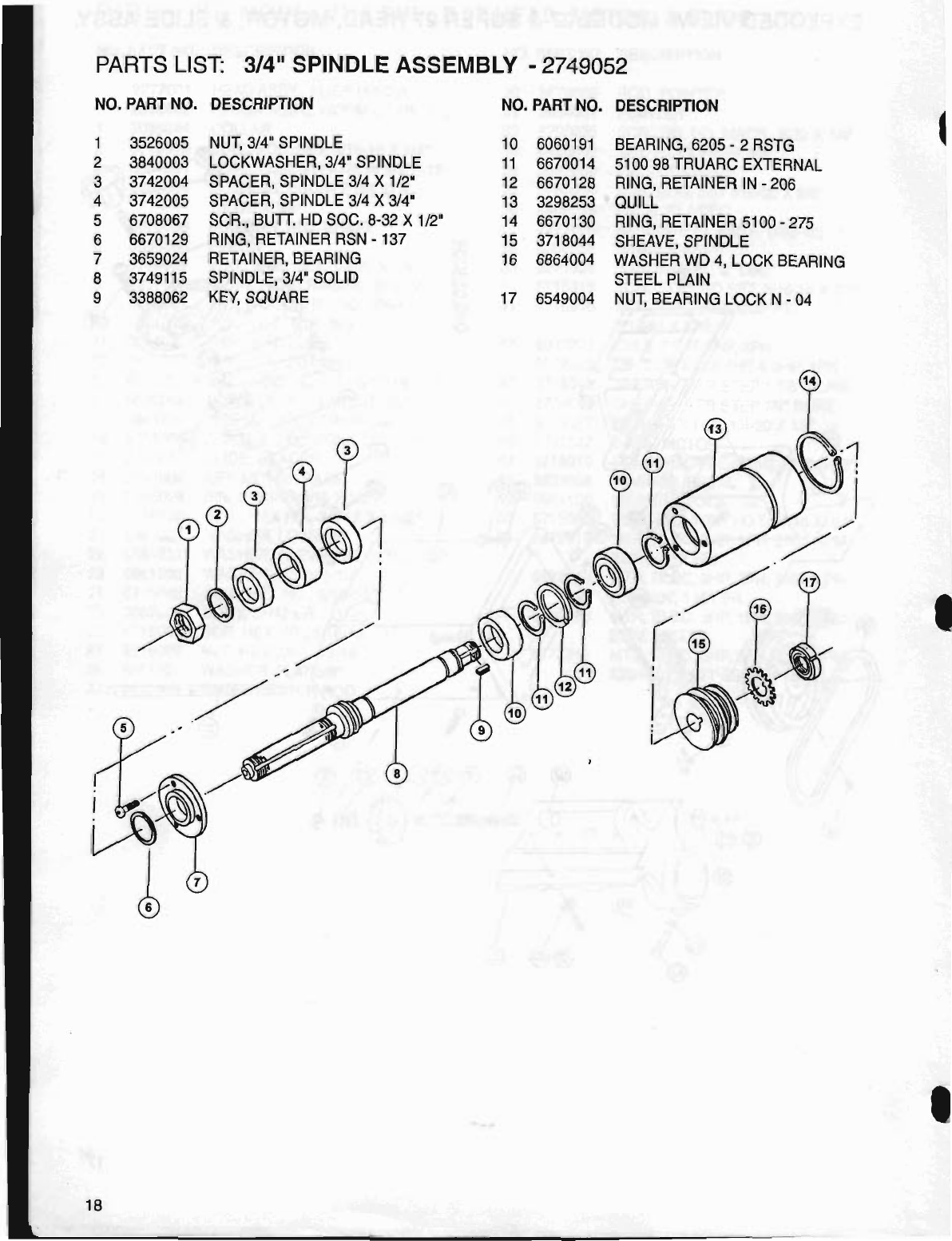

3/4" Spindle Assembly ................................................................................................................. 18
1" Spindle Assembly ... ................................................................................................................. 19
1-1/4" Spindle Assembly ..............................................................................................................20
Interchangeable Spindle Assembly ............................................................................................. 21
Spindle Assemblies: Shank Arbors, Wrenches ........................................................................... 22
Guard, Safety Ring ...................................................................................................................... 22
Mitre Gauge Assembly ................................................................................................................23
Holddown (Optional) ....................................................................................................................23
Electrical Schematics ...................................................................................................................24-37
Reversing Switch Diagrams.............................................................................................................. 38
Preventive Maintenance Check List ................................................................................................. 39

~ SAFETY: General Rules
READ THE MANUAL: Read, understand, and
follow the safety and maintenance instructions
found in this manual. Know the limitations and
hazards associated with the 27
shapero
WORK AREA: Keep the floor around the machine
clean
and free of scrap material, saw dust, oil or
grease
to mimimize the danger of tripping or slip-
ping. POWERMATIC recommends the use of anti-
skid strips for the operator. Provide ample unob-
structed floor area around the machine for free
flow of stock from the infeed
to the outfeed side of
the cutter. Mark off the machine area, and make
sure it is well lighted and equipped with a proper
exhaust system to mimimize dust.
ELECTRICALGROUNDING: Your machine must
be electrically grounded. If a cord and plug are
used, make certain the grounding
lug connects
to a suitable ground. Follow the grounding proce-
dure indicated by the National Electrical Code.
Keep power tools
in dry areas free from moisture.
PROTECTION:
Take every precaution to protect
yourself, others around you, and the machine it-
self from improper use.
CARELESS ACTS: Give the work you are doing
your undivided attention. Looking around, talking
to someone, and horseplay are careless acts that
can result
in serious injury.
IF YOU ARE NOT thoroughly familiar with the
operation of shapers, obtain advice from your su-
pervisor, instructor, or other qualified person.
DO NOT OVERREACH: Maintain a balanced
stance and keep your body under control at all
times.
Do not overreach or use excessive force
to perform any operation.
EYES: Always wear approved safety goggles,
glasses,
or a face shield when operating the
shapero There are no exceptions to this rule.
DRESS CODE:
Do not wear loose clothing, neck-
ties, jewelry, or gloves than can get caught in
moving parts. Confine long hair. Keep sleeves
above the elbow.
GUARDS:
Be sure shaperguard, feather-boards,
hold-downs, and specially designed devices are
used whenever possible. If the guard must be
4
removed for any operation, make sure it is replaced
immediately following completion of that opera-
tion.
HOUSEKEEPING: Before turning on machine,
remove all extra equipment such as keys,
wrenches, scrap, and cleaning rags away from the
shapero Keep the area around machine clean and
free of sawdust to mimimize danger of slipping.
POWER ON: Before connecting power to the
shaper, make sure the start switch
is in the ·0·
position.
POWER OFF: Make sure the shaperis unplugged
or electrically disconnected and locked out before
performing maintenance, changing cutters, orser-
vice work.
~ SAFETY: Specific Rules
READ THE MANUAL: Know the limitations and
hazards in using the 27 shapero SAFETY rules
decals (page
6) are placed on each machine as
reminders of good safety practice.
SHORT STOCK: Nevershape stock less than
12
inches in length without special fixtures. Where
practical, shape longer stock and cut to size.
12 INCH RULE: When shaping, never allow your
hands to come closer than 12 inches to the cut-
ters.
HAND SAFETY: Never pass the hands directly
over, or
in front of, the cutters. As one hand ap-
proaches the 12 inch radius point, remove it (or
the push stick)
in an arc motion and reposition
hands 12 inches beyond the cutters (Figure
1).
feed -
~, ,
\\
. \\
... ..- .....move hands In
arc away
from
cutters
FIGURE 1
I
•

BLIND CUT: When blind cutting, the workpiece is
positioned
on top of the template. This keeps the
cutter(s) cutting only the underside of the
workpiece and providing a "distance" guard for the
operator.
STOCK FEED: Feed stock opposite to the direc-
tion of the cutter rotation. Never back stock out of
the cutter once the cut has been started. Instead,
pull the stock straight back away from cutter and
begin the cut again, Figure
2.
~ . feed
~ ..
W!mmzzf«~ L_.,.aw.zuz-/o:ZUbl.. - --,
I I
L._ _ _ ___________ -1
pull stock
straight back
FIGURE 2
CUTTER CLEARANCE: With the power discon-
nected, always rotate the spindle by hand with any
new set-up to ensure proper clearance with the
cutters. At the same time, check to be sure the
cutterhead is turning in the correct direction.
GUIDE PIN: Whenever possible, use a guide pin
when performing pattern shaping and collar shap-
ing operations.
TOOL MAINTENANCE: Clean and sharp tools
give safer and better performance. Dull tools can
cause kickbacks and excessive chatter. Before
making a cut, always check the condition and ad-
justment of the tools. Never use a tool that is not
balanced and rated for the selected RPM.
safety
locking
washer ..........,~-f--~
spacer
FIGURE 3
SAFETY
LOCK WASHER: Never operate the
shaper without the safety locking keyed washer
located immediately under the spindle nut, Figure
3. This prevents the nut from coming loose when
the spindle is run
in a counterclockwise direction.
Do not substitute any other type washer
in place
of the safety lock washer.
SPINDLE SPEED: Do notoperate tools at speeds
higher than rated by the manufacturer.
CUTTER SELECTION: Use only those cutters
designed to be used
on the machine, and mount
only safety type cutters
on the spindle.
STOCK CONDITION: The danger of kicked back
stock can occur when the stock has knots, holes,
or foreign objects such as nails. Warped or in-
wind stock should first
be jointed on one surface
before attempting to use it on the shapero
JOB COMPLETION: The operator should never
leave the work station for any reason without turn-
ing off the shaper and waiting for the spindle to
come to a complete stop. When the operation is
complete he should clean up the shaper and work
area. Neverclean the shaper with the power "ON"
and never use the hands to clear sawdust and
debris -use a brush.
DO NOT REACH over
shapero There is danger
of kickback which can pull the hand back into the
cutter. Use push sticks to assist
in pushing the
work through. See Figure 4.
FIGURE 4

MISUSE: Do not use this shaper for otherthan its
intended use. If used for other purposes,
POWERMATIC disclaims any real or implied war-
ranty and holds itselfharmless for any injury which
may result from that use.
REPLACEMENT PARTS: Use only
POWERMATIC orfactory authorized replacement
parts and accessories; otherwise, the shaperwar-
ranty and guarantee will be null and void.
~ SAFETY: DECAL INSTRUCTION
DRUGS, ALCOHOL, MEDICATION: Do not op-
erate tool while under the influence of drugs, al-
cohol, or any medication.
WARNING: The dust generated by certain woods
and wood products can be dangerous to your
health. Always operate machinery
in well venti-
lated areas and provide for proper dust removal.
Use wood dust collection systems whenever pos-
sible.
SAFETY RULES
CAREFULLY READ INSTRUCTION MANUAL
BEFORE OPERAl1NG MACHINE.
DO NOT OPERATE WITHOUT AU. GUARDS AND
COVERS IN POSIllON.
BE SURE MACHINE IS ElECTRICALLY GROUNDED .
REMOVE OR FASTEN LOOSE ARl1CI.ES OF CtDlHING
SUCH AS NECKTlES , ETC .CONANE HAIR .
USE SAFETY FACE SHIELD, GOGGUES, OR GLASSES
TO PROTECT EYES AND OTHER PERSONAL SAFETY
EQUIPMENT AS REQUIRED .
STOP MACHINE BEFORE MAKING ADJUSlMENTS OR
CLEANING CHIPS FROM WORK AREA.
KEEP THE FLOOR AROUND THE MACHINE a..EAN AND
FREE FROM SCRAPS, SAWDUST , OIL OR GREASE TO
MINIMIZE THE DANGER OF SUPPING .
3330283
FIGURE 5
6
I
I
•

SPECIFICATIONS: MODELS 27 & 27PS SHAPERS
FIGURE 6
FiWr.".,.,1j
o
A B C 0 E F
c
G H K
I In.
28 29-1/2 38 34
30 21-1/2 23-1/2
12
10-1/4
Table size with extension ............................................................................28· x 29-1/2·
Table extension.................................................................................................... 8· x 28·
Tale size Super 27............................................................................................. 30· x 40·
Table height from floor................................................................................................. 34·
Spindle opening, diameter ...................................................... 5-1/2·, 4·, 2-3/4· & 1-3/8·
Spindles available:
Interchangeable type, diameter........................................................... 1/2· x 3/4·
Solid spindle type, diameter ..............................................................................1·
Solid spindle type, diameter ....................................................................... 1-1/4·
Spindle capacity under nut:
1-1/4·..................................................................................................................6·
1" .............................................................................................................. 4-7/8"
314" interchangeable..........................................................................................3"
1/2" interchangeable ................................................................................... 2-1/4"
Spindle travel .................................................................................................................3"
Power Stack spindle travel ...............................................................................1-1/4" -2"
Spindle speed, RPM................................................................................7,000 & 10,000
Air supply required (min.) ....................................................................................... 80 psi
Table counterbore ............................................................................ 7· dia. x 11/16" deep
Fence size each side..................................................................................... 3-1/4" x 12"
Weight, domestic boxed with 3HP motor, Model 27 ................................... 488 Ibs. app.
Weight, domestic boxed with 3HP motor, Super 27 ................................... 657 Ibs. app.
The above specifications, dimensions and design characteristics are subject to change without notice.
~ WARNING: DO NOT EQUIP OR USE THIS SHAPER WITH A MOTOR LARGER THAN 5 HORSE-
POWER AT 3600 RPM OR OPERATE THE CUTTERHEAD IN EXCESS OF 10,000 RPM. USE OF A
LARGER HORSEPOWER MOTOR OR HIGHER CUTTERHEAD SPEED VOIDS THE WARRANTY AND
POWERMATIC HOLDS ITSELF HARMLESS FOR ANY INJURY WHICH MAY RESULT.

RECEIVING THE SHAPER
Remove the shaper assembly from its respective
shipping cartons and inspect for damage. Any
damage should be reported to your distributorand
shipping agent immediately.
Before proceeding further, read your manuals thor-
oughly to familiarize yourself with proper assem-
bly, operation, set-up, maintenance and safety
procedures.
INSTALLATION
Tools required:
screwdriver, adjustable wrench, Allen wrenches,
spindle wrench (provided), quill wrench (provided).
If you are mounting the shaper to the floor, use
high quality anchor bolts attached through the
mounting holes
on the inside corners of the base.
If using a mobile base, be sure to lock the wheels
before assembling, operating or making adjust-
ments to the
shapero
BELT TENSION
Attach the drive belt as follows:
Loosen the two hex head cap screws (A) that hold
the motor base to the quill side, and slide the mo-
tor base towards the quill (B), Figure
8. Attach
the belt and tighten bysliding the motorbase away
from the quill. Proper belt tension is reached when
the belt can
be depressed about 1/8" to 1/4" be-
tween the pulleys, Figure
9. Tighten the two hex
head cap screws.
NOTE: Check to see that the sheaves of the mo-
tor and the spindle line up absolutely level with
each other.
FIGURE 8
8
slide base to
loosen belt
FIGURE 9
ELECTRICAL
depress belt
. 1/8 to 1/4 inch
for proper
tension
Check the voltage and phase of the
shapero Be
absolutely sure they correspond with the power
supply.
& DANGER: If the machine does not come
wired to run, the electricals and motor wiring must
be done by a qualified electrician. The machine
must
be properly grounded to help avoid electri-
cal shock and possible death. Follow the recom-
mendations
of the National Electrical Code for
grounding.
INSPECTION
Before connecting power to the shaper, check all
mounting screws and bolts to see that they are
tight. Since the spindle and quill assembly have
permanently sealed bearings, lubrication is
n~t
necessary. Turn the spindle by hand to see that It
turns freely. Regularly inspect the shaper to en-
sure that the machine is
in proper adjustment and
free of dust
in the electrical enclosure. Make sure
all mechanical functions work freely, and there are
no loose or worn electrical connections. Inspect
the cutters, collars, and spacers for rust, nicks,
and flaws.
Be sure to read, understand, and fol-
low the recommendations
in the OPERATING IN-
STRUCTIONS
MANUAL before operating the
shapero
EXHAUST SYSTEM
POWERMATIC recommends the use of an ex-
haust system with a wood
shapero The system
should be large enough to remove from 400 to
1400 cubic feet of air per minute. The operator
is
cautioned against the health hazard and limita-
tions
in OSHA regulations for exposure to dust
particles.
I
•
•

SHAPER ADJUSTMENTS
Check all mounting screws and bolts to see that
they are tight. When changing tools, adjusting the
drive belt, or doing clean-up and maintenance,
always turn the machine off and unplug the ma-
chine from its power source.
SQUARING THE FENCE
Periodically the wood fence will have to be squared
with the mounting surface and adjusted parallel to
each other.
To correct, do the following:
1. Check the two mounting screws (A) hold-
ing the fence assembly to the table and make sure
they are tight, Figure 10.
FIGURE 10
2. Check the four countersink flat head bolts
(B) that secure the wooden fences and make sure
they are tight.
3.
Take a 2 x 4 with a jointed edge and clamp
it to the shapertable making sure the jointed edge
is absolutely on line with the mitergroove and close
to the fence as shown
in Figure 10.
4. Loosen the two lock handles (C) and turn
the fence adjustment knobs (D) to move both
fences against the jointed edge of the 2 x
4. After
this adjustment the fences should make flush con-
tactwith the jointed edge and square with the table.
NOTE: Periodically the wooden fences may re-
quire resurfacing in order to remain parallel and
square with the table. This can be accomplished
by removing the entire fence assembly and resur-
facing the fences on a jointer, as shown in Figure
11. Make sure the fence is held square with the
jointer table with the bottom of the shaper fence
held firmly against the jointer fence in order for
the cut to
be square with the shaper table.
This procedure can be used several times to re-
new the fences before they require replacement.
shaper fence
assembly
FIGURE 11
SPINDLE REPLACEMENT
To remove the interchangeable spindle, select the
proper rectangular hole in the standard shaper
wrench and place it overthe flats on the top of the
spindle, Figure 12.
spindle
assembly stationary
./
/ turn spindle
wrench counter-
clockwise
FIGURE 12
SPINDLE ASSEMBLY REMOVAL
To remove spindle assembly, first remove the belt
from spindle sheave (see "BELTTENSION", page
9). Loosen the split casting locking screws and
remove the spindle assembly out the bottom, Fig-
ure 13.
To reinstall, reverse the above procedure.
FIGURE 13
locking
screw
spindle
assembly

REPLACING THE CUTTERS
To replace the cutter(s), select the proper rectan-
gularhole in the standard shaperwrench and place
it over the flats on the top of the spindle, Figure
14. Place a hexagonal wrench on the spindle nut,
hold the top of the spindle stationary and tum the
spindle nutcounterclockwise. Remove the spindle
nut and the slotted washer. Remove the cutter(s)
vertically and replace with the size of your choice.
FIGURE 14
QUILL SLIDE ADJUSTMENT
Periodically, due to wear, the quill slide will de-
velop side play. To adjust the slide, loosen the
three gib screw hex nuts, Figure 15, and lightly
tighten the gib screws with an Allen wrench. Lock
the gib nuts down to provide the slight play re-
quired to allow the slide free movement. Read-
just gib screws if the slide is difficult to move.
": ~spindle
movement
FIGURE 15
CHANGING SPEEDS
With the belt properly tensioned, changing speeds
is an easy operation (Figures 16A, B, C).
A. Disconnect power from the machine.
10
B. Roll the belt off one pulley to the other on
the motor side.
C. Rotate that pulley and roll pulley until the
belt snaps into the groove of the other spindle
pulley.
. ...
,1-(-- --\
FIGURE 16
MITRE GAUGE ADJUSTMENT
The mitre gauge is used when doing accurate end
grain cutting and to assist in handling certain types
of parts. To adjust the stops to exact 90 degree
and 45 degree angles, use a combination square
as a gauge along with a screwdriver and 5/16"
open end wrench, Figure 17 A, B.
o 90· stop position,
bottom
view
roundhead screw
with hex. nut
CD 45· stop position,
top view
FIGURE 17
stop pin
I
•

FENCE ASSEMBLY REMOVAL
Completely loosen the two mounting screws
shown in Figure 18 and remove the fence assem-
bly from the table. Store the fence
in a safe place
and clean before remounting.
mounting screw
FIGURE 18
BEFORE OPERATING
Check the motor and switch wiring diagrams for
propervoltage connections before applying power
to the machine.
Turn the main drive motoron momentarilyto check
forproper rotation. The spindle should rotate coun-
terclockwise when looking down on the spindle.
Correct as required. Run the machine for a short
period of time to ensure that the moving parts are
working properly with
no excessive vibration. If a
problem develops,
correct before turning the
shaper over for general use.
Be sure to read, understand, and follow the rec-
ommendations in the OPERATING INSTRUC-
TIONS manual when operating the
shapero
11

TROUBLE SHOOTING
TROUBLE
POSSIBLE CAUSE SOLUTION
SHAPER WILL
NOT
1. Shaper not plugged in. 1. Plug in shapero
START 2. Fuse blown or circuit breaker 2. Replace fuse
or reset circuit I
tripped. breaker.
3. Cord damaged.
3. Have cord replaced.
OVERLOAD KICKS
OUT
1. Extension cord too tight ortoo 1. Replace with adequate size cord.
FREQUENTLY long. 2. Feed stock more slowly.
2. Feeding stock too fast.
3. Cutter needs cleaning or 3. Clean or replace cutter.
replacing, see also ·unsatisfactory
cuts· below.
SHAPER MAKES
1. Dull cutter 1. Replace cutter.
UNSATISFACTORY
2. Feeding work in wrong direction. 2. Feed work against the cutter
CUTS rotation.
3. Gum or pitch on cutter.
3. Remove cutter and clean with
turpentine and steel wool.
4. Gum or pitch on table causing 4. Clean table with turpentine and
erratic feed. steel wool.
CUTTERHEAD DOES
1. Extension cord too light or long. 1. Replace with adequate size cord.
NOT COME UP
TO
2. Low supply voltage. 2. Contact your electric company.
SPEED
3. Motor not wired for correct 3. Refer to motor name plate for
voltage. correct wiring.
MACHINE VIBRATES 1. Machine not mounted securely to 1. Tighten all mounting hardware.
EXCESSIVELY stand
or workbench. I
2. Stand or bench on uneven floor. 2. Reposition on flat level surface.
Fasten to floor if necessary.
3. Damaged cutterhead. 3. Replace cutterhead.
4. Bad V-belt. 4. Replace belt.
5. V-belt not tensioned correctly. 5. Adjust belt tension by moving
motor and motor bracket.
6. Bent pulley. 6. Replace pulley.
7. Improper motor mounting. 7. Check and adjust motor mounting.
CUTTERHEAD DOES
1. Saw dust and dirt in raising
1. Brush or blowout loose dust and
NOT RAISE FREELY mechanisms. dirt.
12

OPTIONAL ACCESSORIES: MODEL 27
2195037
2253016
2471010
2749003
2749004
2749050
2749052
2749053
3186008
3585014
6028024
6028025
2042336
2749051
3140001
3526202
ACCU-FENCE RETROFIT
WORK HOLD-DOWN GUIDES
MITER GAUGE
3/4" INTERCHANGEABLE SPINDLE
1/2" INTERCHANGEABLE SPINDLE
1-1/4" SOLID SPINDLE AND QUILL ASSY.
3/4" SOLID SPINDLE AND QUILL ASSY.
1" SOLID SPINDLE AND QUILL ASSY.
8" X 28" CAST IRON EXT. WING
STARTING PINS
1/2" ROUTER BIT ADAPTOR
1/4" ADAPTOR SLEEVE FOR USE WITH ROUTER BIT
MOBILE BASE
INTERCHANGEABLE SPINDLE ASSY.
DRAW BAR, SPINDLE
NUT, DRAW BAR
13

PARTS LIST: MODEL 27 & SUPER 27 TABLE, STAND & FENCE
NO. PART NO. DESCRIPTION
NO. PART NO.
DESCRIPTION
2195038
FENCE ASSY. (ITEMS 1-26)
30 6715013
SCR., SOC. SET
2195039
FENCE ASSY. FOR 30X40 TABLE
31
3684203
SCALE, PLATE
2695040
SCR., LOCK ASSY. (ITEMS 1-3)
34
3186008
EXTENSION, 8" TABLE
1 3406016 KNOB, HANDLE
35
6716031
SCR., HEX HD.
2 3268002 HANDLE
36 6861300
WASHER, LOCK
3 3695207 SCREW, LOCK
37
6861301
WASHER, FLAT
4
3838008
WASHER,1/2
38
2759006
STAND ASSY., SHAPER (WELD.)
5 3406235 KNOB, ADJ.
39 3797042
TABLE, SHAPER
6
3268001 HANDLE
3797422
30X40 TABLE LESS MITER SLOT
7 3728005 SLEEVE, QUILL LOCK
3797423
30X40 TABLE WITH MITER SLOT
8
6716100 SCREW, SET
40
2104003
COVER ASSY., MOTOR (WELD.)
9 3056026 BODY, FENCE
41
3595013
PLATE, SHAPER TABLE
10 3773326
STUD
42
3585014 PIN, STARTER
11 6516009
NUT, HEX HD. JAM
43
3696201
SCREW, SET
13 6715013
SCREW, SET
44
6714037
SCR., FILLISTER HD. (PLATED)
14 2063173
ROD AND BRACKET ASSY.
45
3328202
INSERT, RING
15 3195025
FENCE, WOOD
46
3078007
CAP
3195026
FENCE, WOOD 30X40 TABLE RH
2388035
KIT PLATE, SHAPER (#47-54)
3195027
FENCE, WOOD 30X40 TABLE LH
47
6680020 RIVET
16 6715051
SCREW, FLAT HD.
48
3312251
J.D. PLATE, POWERMATIC
17
6861205 WASHER
49
3312228
J.D. PLATE, SERIAL & MODEL #
18
6715007 NUT
50
6747000
SCR., DRIVE, NO. (NICKEL
19 3104618 COVER, TOP
PLATED)
20
6430041 KNOB
2136001
. DOOR ASSY. (#51 & 52)
21 6861205
WASHER
51 2136004
DOOR ASSY. (WELDMENT)
22 6749008 SCREW, WOOD
52
6440003
LATCH
23
6861200 WASHER, LOCK
53 6746023
SCR., HEX HD. (SELF TAPPING)
I
24
6715024
SCR., SOC. HD. CAP
3330283
PLATE, SAFETY (NOT SHOWN)
25
3019071 ANGLE, FENCE
54 6816292
STARTER, 3 HP, 1 Ph, 230V
26
3195024 GUARD
55
6816294
STARTER, 5 HP, 1 Ph, 230V
2271008
HANDWHEEL ASSY. (#28-30)
56 6816295
STARTER, 5 HP, 3 Ph, 230V
28
6350032 HANDLE ASSY.
57
6816296
STARTER, 5 HP, 3 Ph, 460V
29 3271039
HANDWHEEL, 8" DIA.
58 6821069
SWITCH
,
14

EXPLODED VIEW: MODEL 27 & SUPER 27 TABLE, STAND & FENCE

PARTS LIST: MODEL 27 &SUPER 27 HEAD, MOTOR, &SLIDE ASSY.
NO. PART NO. DESCRIPTION
NO. PART NO.
DESCRIPTION
2277001
HEAD ASSY., SLIDE (#1-26) 30 3670009
ROD, POINTER
2586002 PINION ASSY., WORM GEAR (1-6) 31 3604001 POINTER
1
3096244 COLLAR 32 6706035
SCR., RD. HD. MACH., 6-32 X 1/4"
2 6715015 SCR., SOC. SET, 5/16-18 X 1/4" 33
6420002
KEY, WOODRUFF 608
3
6861901 WSR., FLAT NYLATRON 3/4"E-12
34
3582009
PIN, LOCKING
4 6095025 BUSHING, BRONZE 3/4 10 X 35
6760078
SCR. SOC. SET #10-32 X 3/8"
7/800 X 3/4" 36 6406018
KNOB, PLASTIC
5
3070006 BUSHING, ADJ. SHAFT
2271008
HANDWHEEL ASSY., (#38-40)
6
3586008
PINION
38 6350032 HANDLE ASSY.
7 6714004 SCR., SOC. SET, 1/4-20 X 1/4"
39 3271039
HANDWHEEL, 8" DIA.
8
3237003 GEAR, HEAD RAISING SPIRAL
40 6715013
SCR., SOC. HD SET, 5/16-18 X 3/8"
9
6420001 KEY, WOODRUFF NO. 606
41
6715016
SCR., SOC. SET, CUP PT.
10 3691003 SCREW, ELEVATING 5/16-18 X 5/16"
11 3244039
GIB, HEAD SLIDE
42
6077220
BELT, 3V315 3HP, 3PH
12 6515007 NUT, HEX. JAM, 5/16
6077223
BELT, 3V X 300 5HP & 3HP, 1 PH
13 6715008 SCR., SOC. HD. SET 5/16-18 X 1"
43 3718042
SHEAVE, MTR STEP 1-1/8" BORE
14 6520009 NUT, HEX THIN HEIGHT, 5/8"
44
3718043
SHEAVE, MTR STEP 7/8" BORE
15 6861702 WASHER, NYLATRON, 5/8"
45 6714127
SCR., HEX HD., 1/4-20 X 1/2"
16 3735006 SPACER, ELEVATING SCREW
46
3042047
BASE, MOTOR
17
3730012
SLIDE, HEAD 47 6718010
SCR., HEX HD CAP 1/2-13 X 1-1/2"
18 3387002 KEY, MOTOR BASE 48 3838008 WASHER,BEVEL
19 6626028 PIN, SPRING 3/16 X 1/2"
49
6861500
WASHER, LOCK 1/2"
20 6716032
SCR., HEX HD., 3/8-16 X 1-1/2" 50
6715006
SCR., HEX WSR HD 5/16-18 X 3/4"
21
6861300 WASHER, LOCK 3/8"
51 6472013
MTR, ELEC, 3HP, 1 PH, 3600 RPM,
22 6861251 WASHER, ELEVATING SCR. STOP
230V, 145T FR.
23 6861200
WASHER, LOCK 5/16"
6472026
MTR, ELEC, 3HP, 3PH, 3600 RPM,
24 6715042 SCR., HEX HD., 5/16-18 X 1"
230/460V, 145T FR.
25 3057006 BODY, SHAPER 6472328
MTR, ELEC, 5HP, 1 PH, 3600 RPM
26 6715032 SCR. HEX HD., 5/16-18 X 1" 230V, 182TFR.
27 6516009 NUT, HEX JAM, 3/8-16
6472319
MTR, ELEC, 5HP, 3PH, 3600 RPM
28 6861301
WASHER, FLAT 3/8" 230/460V, 182T FA.
29 3042004 BASE, POINTER ROD
16

PARTS LIST:
3/4" SPINDLE ASSEMBLY -2749052
NO. PART NO.
DESCRIPTION
1
3526005
NUT, 3/4" SPINDLE
2
3840003
LOCKWASHER, 3/4" SPINDLE
3
3742004
SPACER, SPINDLE 3/4 X 1/2"
4
3742005
SPACER, SPINDLE 3/4 X 3/4"
5
6708067
SCR., BUTT. HD SOC. 8-32 X 1/2"
6
6670129
RING, RETAINER RSN - 137
7 3659024
RETAINER, BEARING
8
3749115
SPINDLE, 3/4" SOLID
9
3388062
KEY, SQUARE
18
NO. PART NO.
10 6060191
11 6670014
12 6670128
13 3298253
14 6670130
15 3718044
16
6864004
17
6549004
DESCRIPTION
BEARING, 6205 - 2 RSTG
510098 TRUARC EXTERNAL
RING, RETAINER IN - 206
QUILL
RING, RETAINER 5100 - 275
SHEAVE, SPINDLE
WASHER WD 4, LOCK BEARING
STEEL PLAIN
NUT, BEARING LOCK N- 04
·1
/'
I
,
I

PARTS LIST:
111 SPINDLE ASSEMBLY -2749053
NO. PART NO.
DESCRIPTION
NO. PART NO.
1 3526006
NUT, 1" SPINDLE
10
6060191
2 3840004
LOCKWASHER, 1" SPINDLE
11
6670014
3
3742006
SPACER, SPINDLE 1X 1/2"
12 6670128
4 3742007
SPACER, SPINDLE 1X 3/4"
13
3298253
5 6708067
SCR., BUTT. HD SOC. 8-32 X 1/2"
14 6670130
6
6670129
RING, RETAINER RSN -137
15
3718044
7 3659024
RETAINER, BEARING
16
6864004
8
3749111
SPINDLE, 1" SOLID
9
3388062
KEY, SQUARE
17
6549004
I
. /'
l;()
L
DESCRIPTION
BEARING, 6205 - 2RSTG
510098 TRUARC EXTERNAL
RING, RETAINER IN - 206
QUILL
RING, RETAINER 5100 - 275
SHEAVE, SPINDLE
WASHER, LOCK BEARING
STEEL PLAIN
NUT, BEARING LOCK N- 04
'1
,/
I
,
I
19

PARTS LIST:
1-1/4" SPINDLE ASSEMBLY -2749050
NO. PART NO. DESCRIPTION
1 3526235 NUT, 1-114" SPINDLE
2
3840005 LOCKWASHER, 1-114" SPINDLE
3
3745030 SPACER, SPINDLE 1-1/4 X 1/2"
4
3745031 SPACER, SPINDLE 1-114 X 3/4"
5
6708067
SCR., BUTT. HD SOC. 8-32 X 1/2"
6
6670168 RING, RETAINER RSN - 162
7
3659120 RETAINER, BEARING
®
3749128 SPINDLE, 1-1/4" SOLID
9
3388062 KEY, SQUARE
20
NO. PART NO.
10
6060191
11 6670014
12
6670128
13 3298253
14
6670130
15
· 3718044
®
6864004
6iJ 6549004
DESCRIPTION
BEARING, 6205 - 2 RSTG
510098 TRUARC EXTERNAL
RING, RETAINER IN - 206
QUILL
RING, RETAINER 5100 - 275
SHEAVE, SPINDLE
WASHER WD 4, LOCK BEARING
STEEL PLAIN
NUT, BEARING LOCK N- 04
·1
./
I
,
I

PARTS LIST:
INTERCHANGEABLE SPINDLE ASSEMBLY -2749051
(ITEMS 1 THRU 14)
NO. PART NO.
DESCRIPTION NO. PART NO. DESCRIPTION
1
6708067 BOTTOM HEAD SOC. 8-32 X 1/2" 9 6670130
RING RETAINER IN - 206
2
6670129 RING, RETAINER RSN - 137 10 3718044
SHEAVE, SPINDLE
3
3659024 RETAINER, BEARING 11
6864004 WASHER, WD 4, BEARING LOCK
4
3749112 SPINDLE INTERCHANGEABLE STEEL PLAIN
STRAIGHT SHANK 12
6549004 NUT, BEARING LOCK N- 04
5
6060191 BEARING 6205 - 2RSTG 13 3583208 PIN, DOWEL
6
6670014 510098 TRUARC EXTERNAL 14 3388062 KEY, SQUARE
7
6670128 RING, RETAINER 5100 - 275 15 3140001 DRAWBAR
8
3298253 QUILL 16
3526202 NUT, DRAWBAR
21
