Precisa LT SERIES Reference guide

SWISS MADE
Brief instructions / Kurzanleitung / Courte notice d‘utilisation / Instrucciones breves Precisa Gravimetrics AG
SERIES LT




 !"!!#!!
$% !"!!#!!
& '()
)(**+++(
,


(-.)







English
3
Series 321
Table of contents
1. Introduction .....................6
2. Safety precautions..........6
3. Technical data.................7
4. Starting up .......................8
4.1 Choice of a suitable location.. 8
4.2 Unpacking the balance ........... 8
4.3 Assembling the balance.......... 9
4.4 Under-floor weighing ............ 10
4.5 Levelling the balance............. 11
4.6 Calibrating the balance ......... 11
5. Key functions................. 12
6. Overview of menus .......13
6.1 Menu control.......................... 13
6.2 Configuration menu............... 14
6.3 Application menu................... 15
7. Key menus ..................... 16
7.1 Tare menu .............................. 16
7.1.1 Taring the balance..............................16
7.1.2 Other functions ..................................16
7.2 Mode menu ............................ 17
7.2.1 Switch to an activated application or
back to weighing mode......................17
7.2.2 Other functions .................................17
7.3 Print menu .............................. 18
7.3.1 Print individual value / report..............18
7.3.2 Other functions .................................18

Series 321
4
DANGER
Warning of a possible danger which can lead to death or serious physical injuries.
GEFAHR
Warnung vor einer möglichen Gefahr, welche zum Tod oder zu schweren Körperverletzungen führen kann.
DANGER
Avertissement d‘un danger possible qui peut entraîner la mort ou de graves blessures.
PELIGRO
Advertencia ante un posible peligro que puede provocar la muerte o lesiones personales graves.
WARNING
Warning of a possibly dangerous situation which can lead to less severe injuries or damage.
VORSICHT
Warnung vor einer möglicherweise gefährlichen Situation, welche zu leichten Körperverletzungen oder Sachschäden führen kann.
PRUDENCE
Avertissement d‘une situation potentiellement dangereuse qui peut entraîner des blessures légères ou des dommages matériel.
CUIDADO
Advertencia ante una posible situación de peligro que puede provocar lesiones personales leves o daños materiales.
NOTE
Tips and important rules on the correct operation of the balance.
HINWEIS
Tipps und wichtige Regeln zum korrekten Arbeiten mit der Waage.
REMARQUE
Conseils et règles importantes pour travailler de manière conforme avec la balance.
NOTA
Consejos y reglas importantes para el correcto manejo de la balanza.

Series 321
5
6
5
3
2
1
4
4
MENU
0/T 0/T
esc
ins
clr
13 14
21 22 23 24
16
17
18
19
20
15
987

6
Series 321
1. Introduction
There are various models in the 321 Series. These brief instructions describe the balance with windshield. If you
are using a less complex model, the descriptions of elements that are not included can be skipped.
These brief instructions are intended as an initial overview and are an extract from the original operating instruc-
tions. The brief instructions must be available at all times at the workstation. More detailed descriptions can be
found in the original operating instructions, which can be downloaded from our website.
You should read the original operating instructions in full to ensure that you make the best possible use of your
balance.
2. Safety precautions
– When the balance is used in environments with increased safety requirements, the relevant precautions must be taken.
– The balance must only be operated with a fault-free power supply unit.
– Before connecting the power supply unit, ensure that the operating voltage specified on the power supply unit matches the
mains supply.
– The balance must only be operated with the power supply unit supplied.
– If safe operation of the balance is not possible, it must be disconnected from the power supply and secured against unin-
tentional use.

English
7
Series 321
3. Technical data
Casing dimensions W x D x H for: - Readability 0.1 mg
- Readability 1 mg
- Readability > 1 mg
228 x 381 x 345 mm
228 x 381 x 124 mm
228 x 381 x 90 mm
Net weight: - Readability 0.1 mg
- Readability 1 mg
- Readability > 1 mg
6.6 kg
5.5 kg
5.6 kg
Weighing range for each model
(see details on nameplate)
120 g to 10 200 g
Allowable ambient conditions
(for calibratable balances, see details on the nameplate)
5 °C to 40 °C
Allowable relative humidity 25 % - 85 %, non-condensing
Mains connection (19) 90 V - 264 V, 47 Hz - 63 Hz
Power consumption 18 W, 12 V DC, 1.5 A
Data transfer connection (17 and 18) RS 232/V24 interface,
USB type B (device)
Tab. 2
Technical data

8
Series 321
4. Starting up
4.1 Choice of a suitable location
– Solid, firm and low-vibration, horizontal base
– No direct sunlight
– No draft
– Ambient temperature: 5 °C - 40 °C
– Relative humidity (non-condensing): 25 % - 85 %
4.2 Unpacking the balance
NOTE
Retain the original packaging in order to avoid damaging the balance during shipping or transport and to enable
the balance to be stored in ideal conditions when out of use for long periods.
• Carefully unpack the balance.

English
9
Series 321
4.3 Assembling the balance
CAUTION
Before connecting the device to the mains, be sure that the operating voltage stated on the device and on the
power adaptor agrees with the local mains voltage. Do not touch any key during the following start-up sequence
until after about 3 seconds an acoustic signal sounds.
• Place the dust protection cover on the balance.
• Install the draft shield (1).
• Place the balance pan holder in position and add
the weighing pan (2).
• Insert the supplied power supply unit into the
socket (9) on the back of the balance.
AM
C, D, G

10
Series 321
4.4 Under-floor weighing
For weighing objects which, because of their size or shape, cannot be put in or on the balance.
• Remove the screw (10) on the underside of the balance.
• Place the balance over an opening.
• Hang the hook for under-bench weighing, to which the object can be secured, into the aperture (12) of the
metal casting (11).
kg
12
11
10 10 Screw
11 Metal casting
12 Aperture

English
11
Series 321
4.5 Levelling the balance
• Adjust the two adjustable feet (6) so that the air bubble in the level control (5) below the buttons on the control
panel (3) lies precisely in the centre of the sight glass marking.
0/T 0/T
ins
5
Wrong Right
4.6 Calibrating the balance
• Press the key to switch on the balance.
• Press thekey until the20-character info
line (14) in the display (4)
CALIBRATION.
The balance begins the calibration process.
• Follow the instructions in the info line (14) and the
eight-digit measurement display (13).
NOTE
The balance must be recalibrated each time its location is changed.

12
Series 321
5. Key functions
/- . $, :%
ON/OFF Switches the balance on/off 15
MENU / esc Calling up the configuration menu and
the application menu
16
O/T / ins
O/T / enter
Activates the tare functions and calibra-
tion function and other functions
17, 20
CHANGE / clr Switches between the basic program and
the chosen application
19
PRINT Activates printing functions and the Back
button in the menu
18
FUNCTION KEYS
left / right
up / down
Function keys. Start the functions in the
info-line
21, 22, 23, 24
Tab. 5
Key functions

English
13
Series 321
6. Overview of menus
NOTE
With user guidance activated, the keys that currently have a function or can be used backlit.
6.1 Menu control
Navigating through menu levels / Making an input:
/- . $,
left / right Changes from menu main path into sub-paths and back
up /down Up/Down movements within main and sub-paths
Changes selected parameters
O/T / enter Selects parameters
Stores the changed parameters
MENU / esc Interrupts an input
Leaves the menu
O/T / ins Places insert marker (in text entry)
CHANGE / clr Deletes input (in text entry)
PRINT Inputs a point (in text entry)
Tab. 6.1
Navigating through
menu levels /
Making an input

14
Series 321
6.2 Configuration menu
• Switch the balance off.
• First press the key briefly and then immediately press the key with a long press:
, $,
LANGUAGE Selecting the language
UNIT-1 Unit in which the weighing results are displayed
SET DATA PRINT Print formats, type of values to be printed out
SET CALIBRATION Calibration method
SET WEIGHING MODE Stability mode, Auto-Standby mode, zero correction, tare method, zero range
SET INTERFACE Baud rate, parity, handshake functions of the peripheral interface
SET DATE AND TIME Date and time
PASSWORD Password protection for menu definitions
THEFTCODE Activating / deactivating and changing the anti-theft code
KEY TONE Keypad sound
BUS Enable or disable the Precisa BUS or other accessories
Tab. 6.2
Contents of the
configuration menu

English
15
Series 321
6.3 Application menu
• Check that the balance is switched on.
• Press the key with a long press:
, $,
SET APP. UNITS Select an application
SETUP APPLICATION Specify the parameters for the application selected under "APPLICATION"
SET STATISTICS Statistics and storage functions
SET CHECK +/- Define the nominal weight and limits for comparison weighings
AUTO-START ON The selected application can, if required, be loaded automatically every time the bal-
ance is switched on
Tab. 6.3
Contents of the
application menu

16
Series 321
7. Key menus
7.1 Tare menu
7.1.1 Taring the balance
• Press the key with a short press:
The balance is tared.
7.1.2 Other functions
• Press the key until you reach the required function:
, $,
CALIBRATION The balance begins the calibration process.
• Release the key.
Tab. 7.1.2
Contents of the
tare menu

English
17
Series 321
7.2 Mode menu
7.2.1 Switch to an activated application or back to weighing mode
• Press the key with a short press:
The balance switches to the last application activated. This acts like a switchover.
7.2.2 Other functions
• Press the key until you reach the required function:
, $,
WEIGHING Switches to weighing mode
UNITS (COUNT; etc.) Switches to the selected application units, counting, etc.
STATISTICS Switches to the statistics program
CHECK +/- Switches to the program for comparison weighings
• Release the key.
Tab. 7.2.2
Contents of the
mode menu

18
Series 321
7.3 Print menu
7.3.1 Print individual value / report
• Press the key with a short press:
The individual value or report is printed out.
7.3.2 Other functions
• Press the key until you reach the required function:
, $,
RESET PROD. COUNTER Reset the product counter to 1
PRINT STATUS Print out balance settings
PRINT APPLICATIONS Print out application settings
PRINT CALIBRATIONS Print out calibration information
PRINT FIRMWARE HIST Print out firmware update information
• Release the key.
Tab. 7.3.2
Contents of the
print menu

Deutsch
19
Series 321
Inhaltsverzeichnis
1. Einleitung ....................... 20
2. Sicherheitshinweise......20
3. Technische Daten .........21
4. Inbetriebnahme .............22
4.1 Standortwahl.......................... 22
4.2 Auspacken der Waage .......... 22
4.3 Zusammenbau der Waage.... 23
4.4 Unterflurwägung.................... 24
4.5 Nivellierung der Waage ......... 25
4.6 Waage kalibrieren.................. 25
5. Tastenfunktionen ..........26
6. Übersicht der Menüs ....27
6.1 Menüsteuerung...................... 27
6.2 Konfigurationsmenü.............. 28
6.3 Applikationsmenü.................. 29
7. Tastenmenüs.................30
7.1 Tara-Menü.............................. 30
7.1.1 Waage tarieren...................................30
7.1.2 Weitere Funktionen ............................30
7.2 Mode-Menü............................ 31
7.2.1 Wechseln in ein aktiviertes Arbeits-
programm oder wieder in den Wäge-
Mode .................................................31
7.2.2 Weitere Funktionen ...........................31
7.3 Print-Menü.............................. 32
7.3.1 Einzelwert/Protokoll drucken..............32
7.3.2 Weitere Funktionen ...........................32

20
Series 321
1. Einleitung

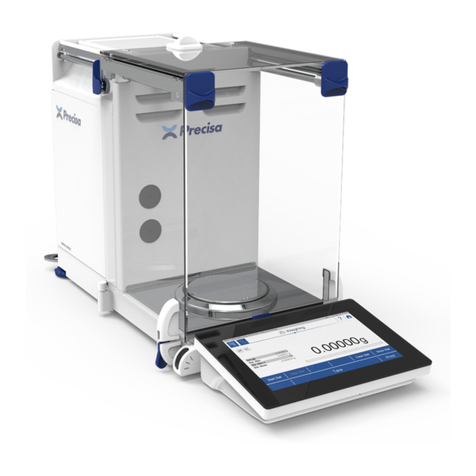

Es gibt verschiedene Modelle der Serie 321. In dieser Kurzanleitung wird die Waage mit Windschutz beschrie-
ben. Wenn Sie ein weniger komplexes Modell vorliegen haben, sind die Beschreibungen zu nicht vorhandenen
Elementen auszulassen.
Diese Kurzanleitung dient als erste Übersicht und ist ein Auszug aus der original Betriebsanleitung. Die Kurzanlei-
tung muss am Arbeitsplatz jederzeit verfügbar sein. Detaillierte Beschreibungen finden Sie in der original Betriebs-
anleitung, die von unserer Homepage heruntergeladen werden kann.
Sie sollten die original Betriebsanleitung vollständig durchlesen, damit Sie die Waage optimal nutzen können.
2. Sicherheitshinweise
– Bei Verwendung der Waage in Umgebungen mit erhöhten Sicherheitsanforderungen sind die entsprechenden Bestimmun-
gen zu beachten.
– Die Waage darf nur mit einem einwandfreien Steckernetzteil betrieben werden.
– Vor dem Einstecken des Steckernetzteils ist sicherzustellen, dass die auf dem Steckernetzteil angegebene Betriebsspan-
nung mit der Netzspannung übereinstimmt.
– Die Waage darf nur mit dem mitgelieferten Steckernetzteil betrieben werden.
– Wenn ein gefahrloser Betrieb der Waage nicht möglich ist, so ist die Waage vom Stromnetz zu trennen und gegen unbeab-
sichtigten Betrieb zu sichern.
