Owner’s Manual
JAZZY®600 ES

SAFETY GUIDELINES
WARNING! An authorized Pride Provider or a qualied technician must perform the initial setup
of this power chair and must perform all of the procedures in this manual.
The symbols below are used throughout this owner’s manual and on the power chair to identify warnings and
important information. It is very important for you to read them and understand them completely.
WARNING! Indicates a potentially hazardous condition/situation. Failure to follow designated
procedures can cause either personal injury, component damage, or malfunction. On the
product, this icon is represented as a black symbol on a yellow triangle with a black border.
MANDATORY! These actions should be performed as specied. Failure to perform mandatory
actions can cause personal injury and/or equipment damage. On the product, this icon is
represented as a white symbol on a blue dot with a white border.
PROHIBITED! These actions are prohibited. These actions should not be performed at any
time or in any circumstances. Performing a prohibited action can cause personal injury and/or
equipment damage. On the product, this icon is represented as a black symbol with a red circle
and red slash.

The intended use of the Pride Mobility Products device is to provide mobility to persons limited to a seated
position that have the capacity of operating a powered wheelchair.

CAUTION! Federal law restricts this device to sale by or on the order of a physician or other
certied personnel licensed by the law of the State (US only) or region in which this personnel
practices to use or order the use of the device.

Copyright © 2020
INFMANU4480/Rev D/May 2020
NOTE: This owner’s manual is compiled from the latest specications and product information available at
the time of publication. We reserve the right to make changes as they become necessary. Any changes to our
products may cause slight variations between the illustrations and explanations in this manual and the product
you have purchased. The latest/current version of this manual is available on our website.
NOTE: This product is compliant with WEEE, RoHS, and REACH directives and requirements.
NOTE: This product meets IPX4 classication (IEC 60529).
NOTE: This product and its components are not made with natural rubber latex. Consult with the manufacturer
regarding any after-market accessories.
Authorized Pride Provider:
Address:
Telephone:
Purchase Date:

Jazzy®600 ES www.pridemobility.com 3
CONTENTS
I. INTRODUCTION .................................................................................................................................4
II. SAFETY ...................................................................................................................................................5
III. YOUR POWER CHAIR ......................................................................................................................7
IV. ASSEMBLY...........................................................................................................................................11
V. COMFORT ADJUSTMENTS........................................................................................................17
VI. BATTERIES AND CHARGING....................................................................................................23
VII. CARE AND MAINTENANCE........................................................................................................27
USA Variation USA Variation USA Variation
asphalt tarmac backward(s) rearward(s) center centre
color colour cord lead curb kerb
elevator lift meter metre provider dealer; agent
sidewalk pavement tire tyre trunk boot
turn signal turn indicator yard grounds wrench spanner
caster castor pocketbook handbag counterclockwise anticlockwise
authorized authorised path footpath path bridleway
labor labour
LANGUAGE USAGE
This owner’s manual is intended for distribution in all English-speaking countries where our Power Chairs are
sold. We have chosen to compose this manual using language and spellings common to the USA. Since we
recognize that not all English-speaking countries use the same words or spellings, please refer to the following
chart for some common word variations that may be encountered throughout this manual.

4 www.pridemobility.com Jazzy®600 ES
I. INTRODUCTION
SAFETY
WELCOME to Pride Mobility Products (Pride). The power chair you have purchased combines state-of-the-art
components with safety, comfort, and styling in mind. We are condent that these design features will provide
you with the conveniences you expect during your daily activities. Once you understand how to safely operate
and care for your power chair, it should give you years of trouble-free operation and service.
Read and follow all instructions, warnings, and notes in this manual before attempting to operate your power
chair for the rst time. You must also read all instructions, warnings, and notes contained in any supplemental
instructional booklets for the controller, front riggings, and/or seating system that accompanied your power
chair before initial operation. Your safety depends upon you, as well as your provider, caretaker, or healthcare
professional in using good judgement.
If there is any information in this manual which you do not understand, or if you require additional assistance
for setup or operation, please contact your authorized Pride Provider. Failure to follow the instructions in this
manual and those located on your power chair can lead to personal injury and/or damage to the power
chair, and may void the warranty.
PURCHASER’S AGREEMENT
By accepting delivery of this product, you promise that you will not change, alter, or modify this product or remove
or render inoperable or unsafe any guards, shields, or other safety features of this product; fail, refuse, or neglect to
install any retrot kits from time to time provided by Pride to enhance or preserve the safe use of this product.
SHIPPING AND DELIVERY
Before using your power chair, make sure your delivery is complete as some components may be individually packaged.
If you do not receive a complete delivery, please contact your authorized Pride Provider immediately. Where damage
has occurred during transport, either to the packaging or content, please contact the delivery company responsible.
NOTE: If you ever lose or misplace your copy of this manual, contact us and we will be glad to send you a new
one immediately.

Jazzy®600 ES www.pridemobility.com 5
Read and follow the information in the owner’s manual.
II. SAFETY
PRODUCT SAFETY SYMBOLS
The symbols below are used on the power chair to identify warnings, mandatory actions, and prohibited actions.
It is very important for you to read and understand them completely.
NOTE: There are more warnings identied and explained in the Consumer Safety Guide that is included with
your power chair. Please become familiar with all the warnings and safety information found in the Consumer
Safety Guide and refer to this resource often.
Locked and in drive mode
Unlocked and in freewheel mode
Place unit on level ground and stand to one side when changing from drive mode to
freewheel mode or freewheel mode to drive mode.
Power Chair information label
Manufactured in
Class II Equipment
Indicates UNOCCUPIED power chair securement points.
Indicates that power chair, with similarly labeled seating system, conforms to ANSI/
RESNA WC/Vol. 4, Section 19 for transport of an occupied power chair in a motor
vehicle.
Indicates that power chair with a similar label is not rated for
occupied transit.

6 www.pridemobility.com Jazzy®600 ES
II. SAFETY
GENERAL GUIDELINES
MANDATORY! Do not operate your new power chair for the rst time without completely reading
and understanding this owner’s manual.
Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an
extensive variety of products to best t the individual needs of the power chair user. Please be aware that the nal
selection and purchasing decision regarding the type of power chair to be used is the responsibility of the power
chair user, who is capable of making such a decision, and his/her healthcare professional (i.e., medical doctor,
physical therapist, etc.).
The contents of this manual are based on the expectation that a mobility device expert has properly tted the power
chair to the user and has assisted the prescribing healthcare professional and/or the authorized Pride Provider in
the instruction process for the use of the product.
There are certain situations, including some medical conditions, where the power chair user will need to practice
operating the power chair in the presence of a trained attendant. A trained attendant can be dened as a family
member or care professional specially trained in assisting a power chair user in various daily living activities.
As you begin using your power chair during daily activities, you will probably encounter situations in which you
will need some practice. Simply take your time and you will soon be in full and condent control as you maneuver
through doorways, on and o of elevators, up and down ramps, and over moderate terrain.
Below are some precautions, tips, and other safety considerations that will help you become accustomed to
operating your power chair safely.
Pre-Ride Safety Check
Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety check
before each use to make sure your power chair operates smoothly and safely.
Perform the following inspections prior to using your power chair:
Check for proper tire ination. Maintain but do not exceed the psi/bar/kPa air pressure rating indicated on
each tire if equipped with pneumatic tires.
Check all electrical connections. Make sure they are tight and not corroded.
Check all controller connections to the power base. Make sure they are secured properly.
Check the brakes. See VII. “Care and Maintenance.”
Check battery charge. See VI. “Batteries and Charging.”
Ensure the manual freewheel levers are in drive mode before sitting on the power chair.
NOTE: If you discover a problem, contact your authorized Pride Provider for assistance.

Jazzy®600 ES www.pridemobility.com 7
III. YOUR POWER CHAIR
THE JAZZY®600 ES POWER CHAIR
Your power chair has two main assemblies: the seat assembly and the power base assembly. See gure 1. Typically,
the seat assembly includes the armrests, seatback, and seat base. The power base assembly includes two motor/brake
assemblies, two drive wheels, four caster wheels, two batteries, and wiring harnesses. See gures 1, 2, and 3.

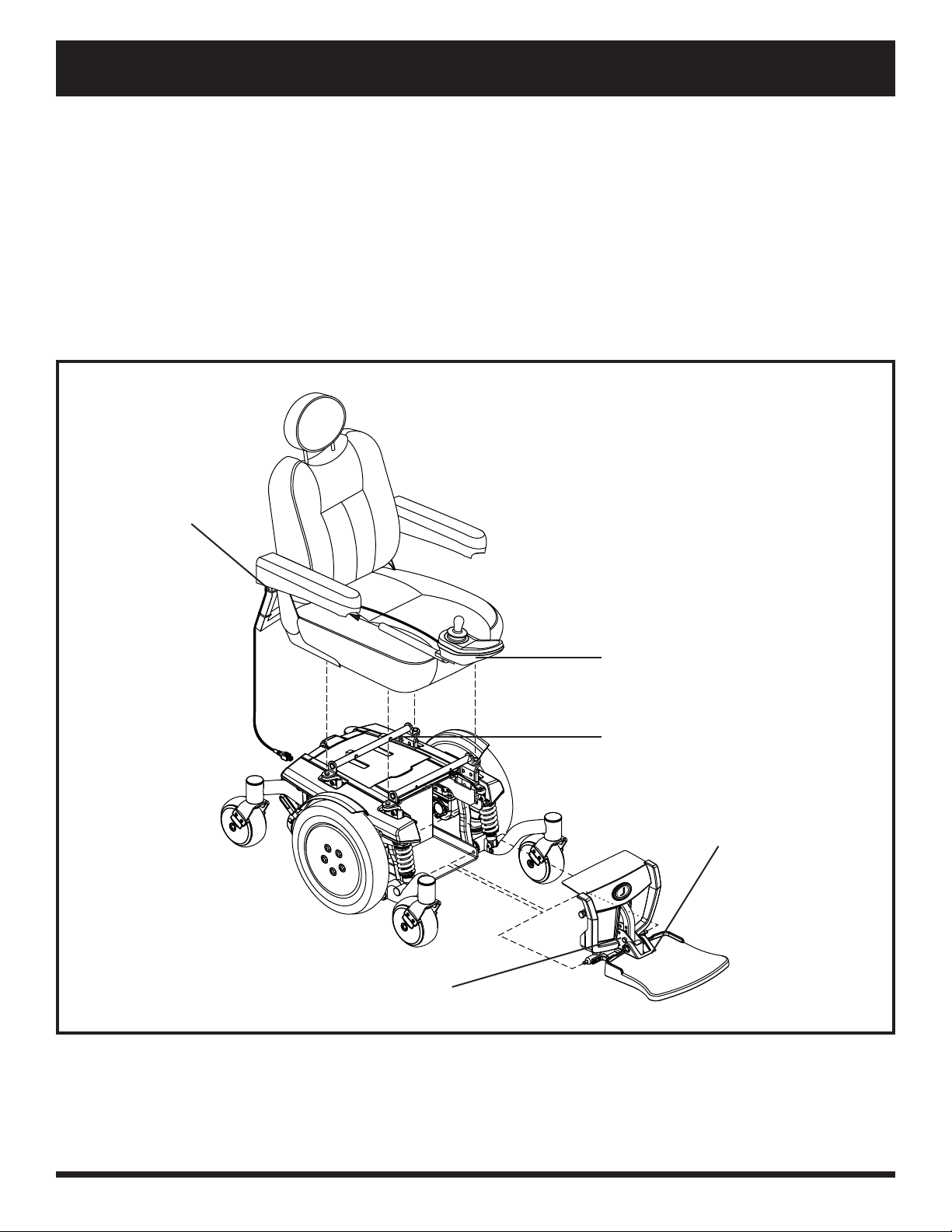

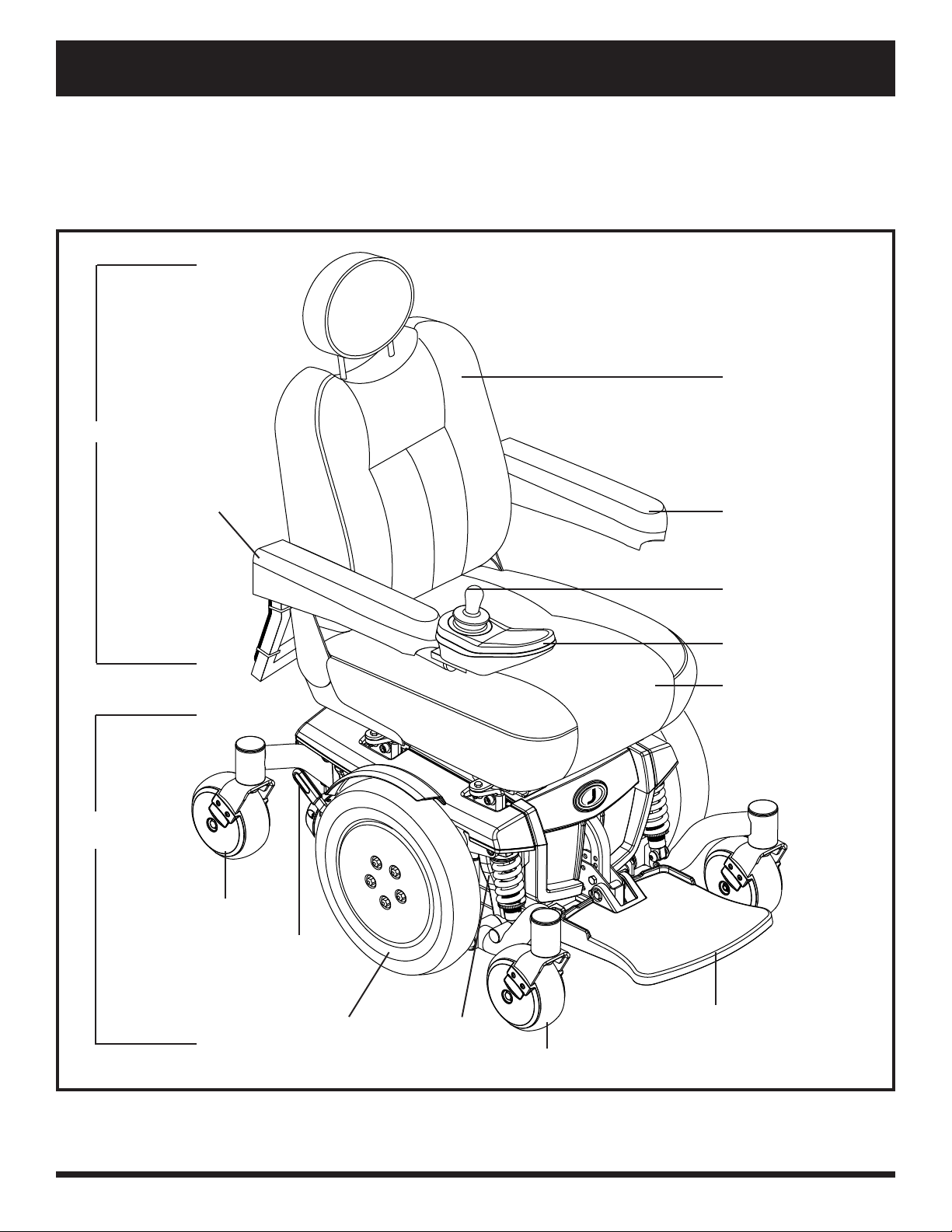

Figure 1. The Jazzy®600 ES Power Chair
SEATBACK
ARMREST
JOYSTICK
CONTROLLER
SEAT BASE
FRONT RIGGINGS
(FOOT PLATFORM SHOWN)
CASTER WHEEL
SPRING SHOCK/
GAS DAMPER
LOCATION
DRIVE WHEEL
MANUAL
FREEWHEEL
LEVER
CASTER WHEEL
ARMREST
SEAT ASSEMBLY
POWER BASE
ASSEMBLY

8 www.pridemobility.com Jazzy®600 ES
III. YOUR POWER CHAIR

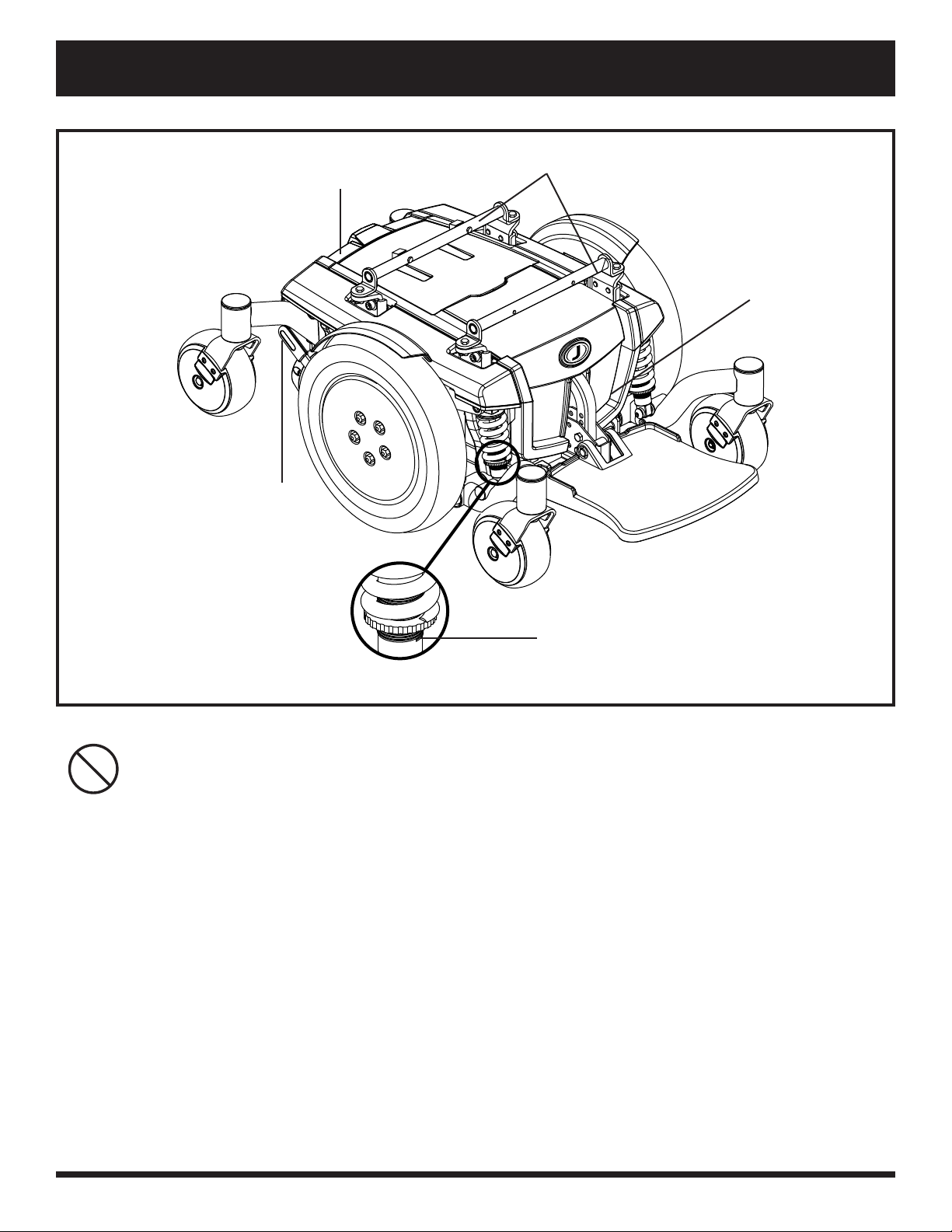

Figure 2. The Jazzy®600 ES Power Base
PROHIBITED! The spring tension on your power chair was factory set to meet the needs of the
demographic majority of users. Do not adjust the tension of any spring on your power chair.
Electrical Components
The electrical components consist of the controller assembly, the batteries, and the motors. The batteries, motors,
and controller power module (if equipped) are located on the power base assembly. The controller is located
on the seat assembly. Connectivity between the controller and the motors, batteries, and the battery charger is
provided by one or more wiring harnesses. See gure 3.
Controller Harness Connector: The controller harness connector is where the controller plugs into the power
base. Each controller uses a dierent type of harness. Regardless of which type of controller is used, the harness
must be secured to the seat assembly and not allowed to drag on the oor.
Motor Connectors: This is where the controller connects to the motors.
Battery Connector: This is where the controller connects to the batteries.
Controller Power Module: This enables the controller to communicate with the batteries and the motors.
REAR SHROUD
TRAPEZE BARS
FRONT COVER
SUSPENSION SPRING
MANUAL FREEWHEEL
LEVER

Jazzy®600 ES www.pridemobility.com 9
III. YOUR POWER CHAIR

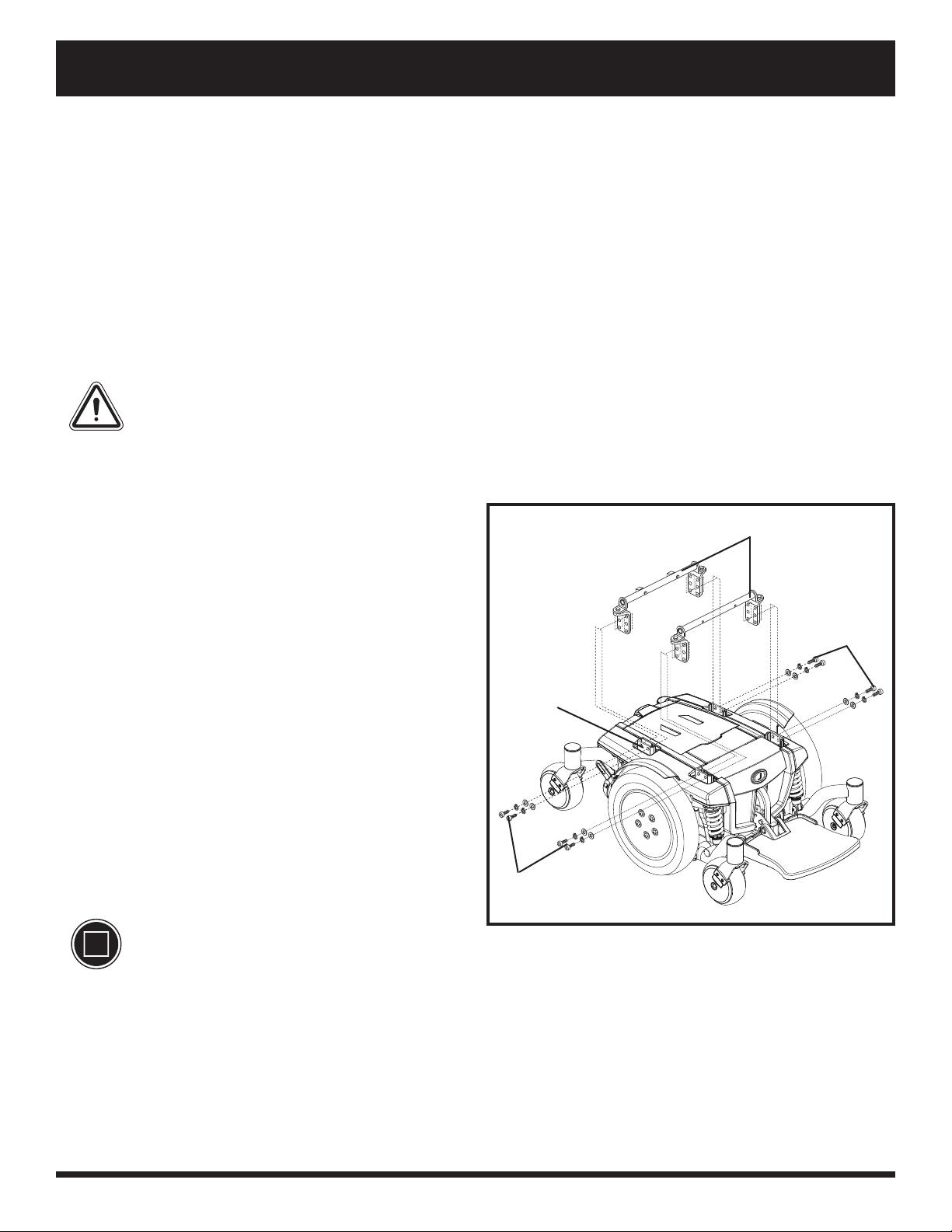

Figure 3. Jazzy®600 ES Electrical Components
Main Circuit Breaker (located on the rear main frame): The main circuit breaker is a safety feature built into
your power chair. When the batteries and the motors are heavily strained (e.g., from excessive loads), the main
circuit breaker trips to prevent damage to the motors and the electronics. If the circuit trips, allow your power
chair to “rest” for approximately one minute. Next, push in the circuit breaker button, turn on the controller, and
continue normal operation. If the main circuit breaker continues to trip repeatedly, contact your authorized Pride
Provider.
QUICK RELEASE
BATTERY CONNECTORS
TO MOTOR
CONNECTOR
MAIN CIRCUIT
BREAKER
TO MOTOR CONNECTOR
TO BATTERY CONNECTORS
CONTROLLER CONNECTOR
CONTROLLER POWER MODULE

10 www.pridemobility.com Jazzy®600 ES
III. YOUR POWER CHAIR
Manual Freewheel Levers
Your power chair has a manual freewheel lever on each motor. Manual freewheel levers enable you to disengage
the drive motors from the gearboxes and maneuver the chair manually.
WARNING! Do not use the power chair while the drive motors are disengaged! Do not
disengage the drive motors when the power chair is on an incline or decline, as the
unit could roll on its own. Only engage the freewheel mode when on a level surface.
WARNING! It is important to remember that when your power chair is in freewheel
mode, the braking system is disengaged.
To engage or disengage the drive motors:
1. Locate the lever on each side of the power base.
2. Pull both levers up to engage the drive motors (drive mode). See gure 4.
3. Push both levers down to disengage the drive motors (freewheel mode). See gure 5.
If a lever is dicult to move in either direction, slightly rock the power chair back and forth. The lever should
then move to the desired position.
WARNING! Avoid applying excessive force to the manual freewheel levers.
WARNING! Do not use your foot to operate the manual freewheel levers. Do not stand on the
manual freewheel levers. Applying excessive force to the manual freewheel levers may result in
damage to the freewheel levers, motors, and brakes.
WARNING! Do not use the freewheel lever handles as tie-down points to secure this product.

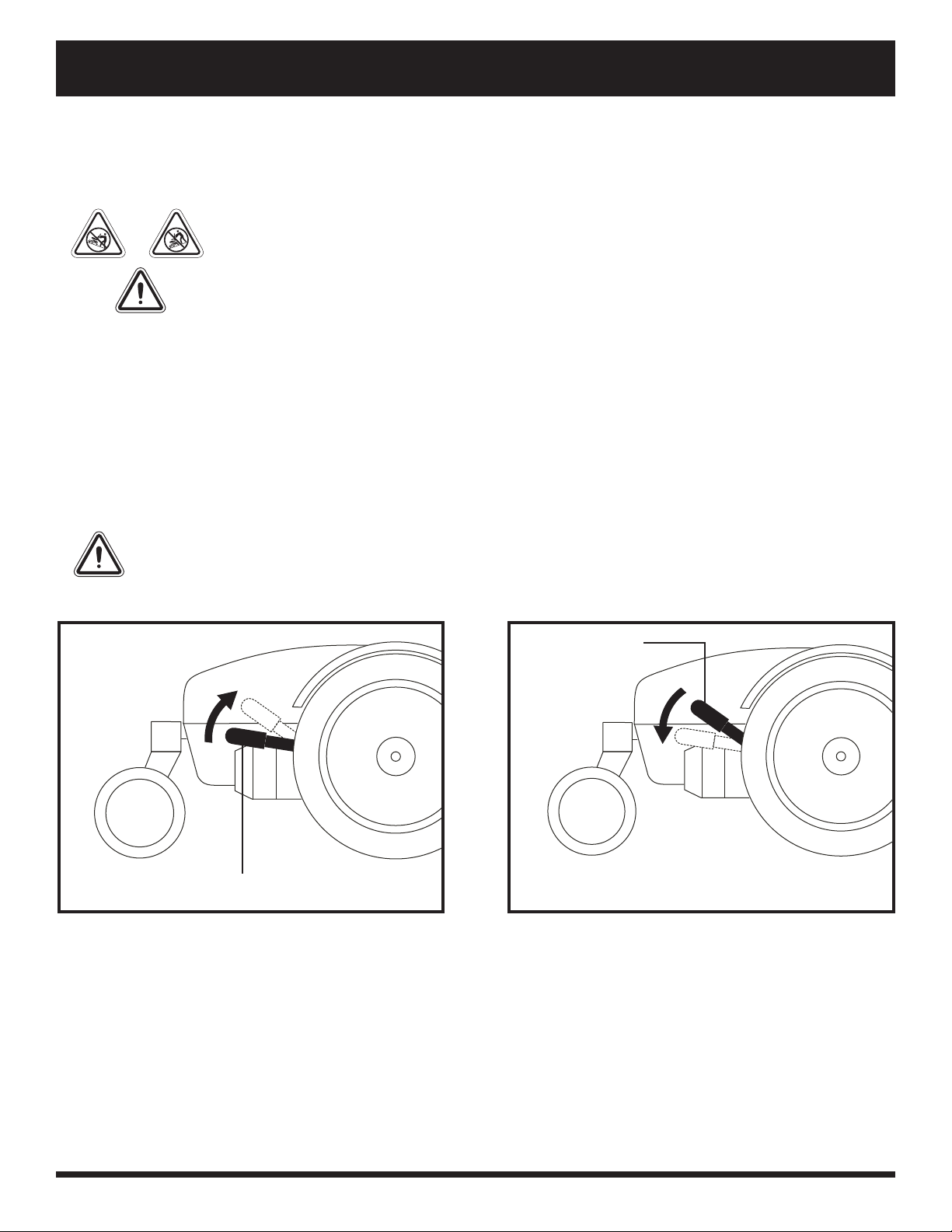

Figure 4. Drive Mode (Drive Engaged) Figure 5. Freewheel Mode (Drive Disengaged)
FREEWHEEL LEVER
FREEWHEEL LEVER

Jazzy®600 ES www.pridemobility.com 11
IV. ASSEMBLY
INITIAL ASSEMBLY
Your power chair may require some assembly either before initial use or after transportation. It may also require
disassembly to make some comfort adjustments. Figure 6 or 7 details those parts of the power chair that are
designed to be disassembled and assembled by an end user or by a qualied caregiver before using the product
or making comfort adjustments.
NOTE: Any nylon insert lock nut removed during the disassembly or adjustment of the power chair must be
replaced with a new nylon insert lock nut. Nylon insert lock nuts should not be reused as it may cause damage
to the nylon insert, resulting in a less secure t. Replacement nylon insert lock nuts are available at local
hardware stores or through your authorized Pride Provider.
ARMREST ANGLE ADJUSTMENT
CONTROLLER POSITION
SEAT HEIGHT/ANGLE ADJUSTMENT
FOOT PLATFORM
ANGLE ADJUSTMENT
FOOT PLATFORM HEIGHT/DEPTH ADJUSTMENT

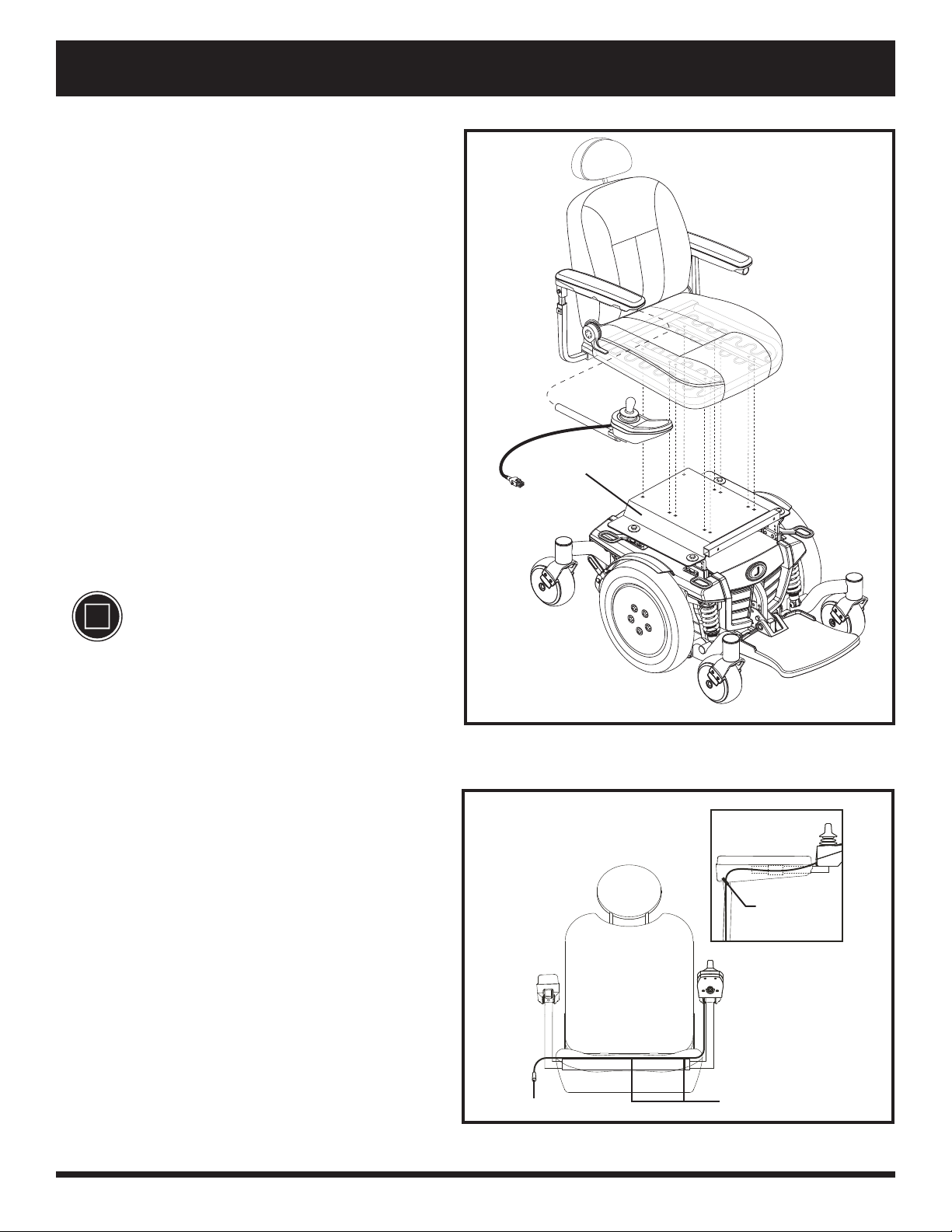

Figure 6. Jazzy® 600 ES Assembly View

12 www.pridemobility.com Jazzy®600 ES
IV. ASSEMBLY

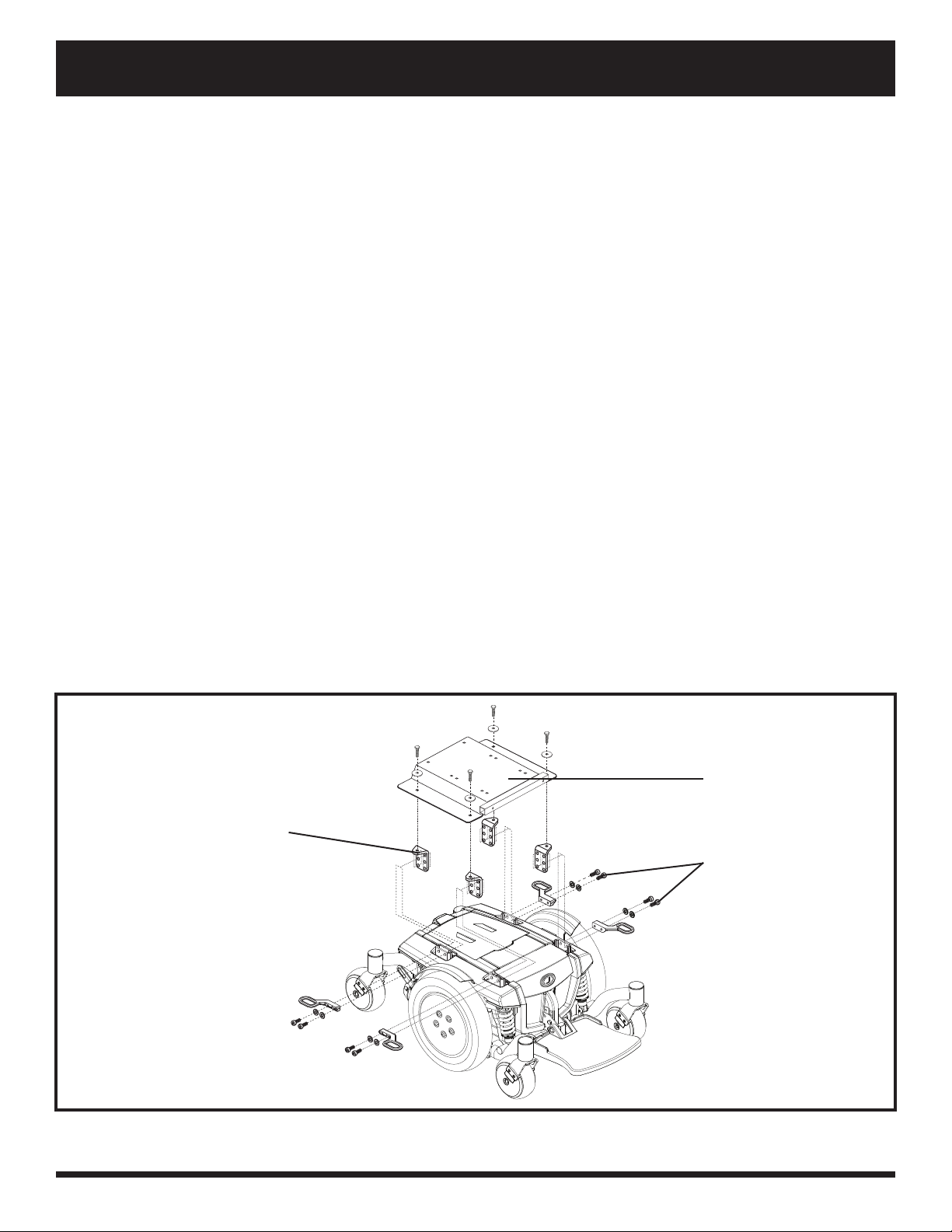

Figure 7. Jazzy®600 ES Assembly View (United Kingdom Occupied Transit Securement System Shown)
ARMREST ANGLE ADJUSTMENT
CONTROLLER POSITION
SEAT INSTALLATION
SEAT HEIGHT
ADJUSTMENT
FOOT PLATFORM
ADJUSTMENT

Jazzy®600 ES www.pridemobility.com 13
IV. ASSEMBLY

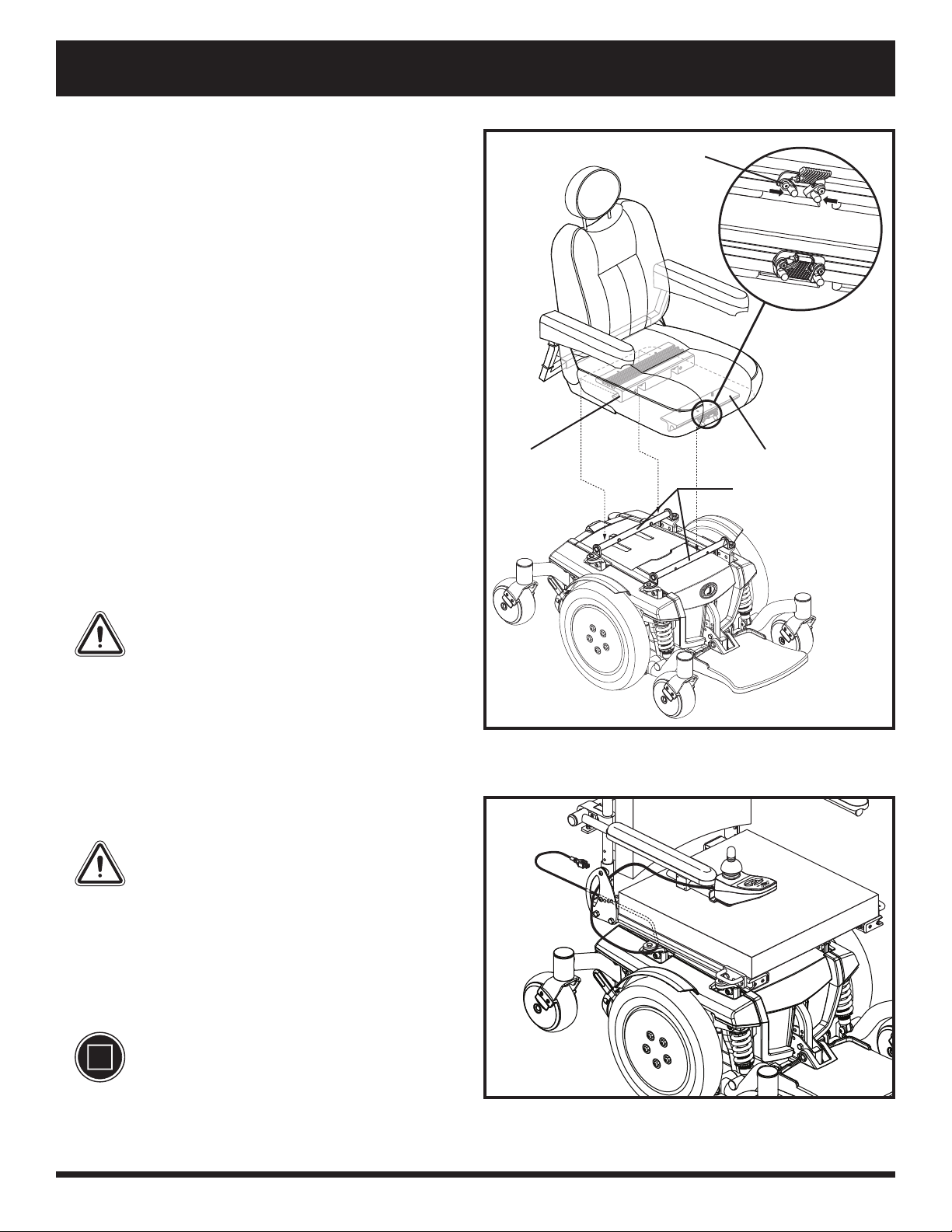

Figure 8. Seat Installation–Universal Mounting System
Seat Installation
It may be necessary to install the seat either prior to
initial operation or after transporting your power chair.
Most seats are attached to the power base with the
Universal Mounting System (UMS). The UMS consists
of universal parts that may be attached to the seat,
regardless of seat width or seat depth. The two main
components are aluminum extrusions mounted to the
seat base. These extrusions attach to a pair of trapeze
bars that are mounted to the power base. See gure 8.
For United Kingdom occupied transit power chairs, the
seat is secured to the power base with hardware that
attaches the seat plate to the four seat interface mounting
brackets. The seat plate is located on the bottom of the
seat. See gure 10.
NOTE: If your power chair is equipped with a Synergy
Seat or a TRU-Balance Power Positioning System,
refer to the information provided in separate manuals.
WARNING! Do not pick up the seat
frame by the armrests. They are free to
pivot, and you may lose control of the
seat if they do so.
To install the seat (UMS):
1. Tilt the seat back and slide the rear extrusion onto
the rear trapeze bar. See gure 8.
2. Lower the front extrusion onto the front trapeze bar
until the seat locks into place.
3. Flip the seat latch safety down.
WARNING! Make sure the seat latch
safety is ipped down before using your
power chair.
4. Install the controller and route the harness to the
back of the power base. See gures 9 or 11.
MANDATORY! Prevent controller
harness damage! Avoid routing the
controller harness on the outside of the
armrest pad. Route the harness under
the armrest or toward the inside of
the armrest pad. Use correct tie-down
points for controller harness to prevent
the harness from getting caught in the
drive tires, pinched in the seat frame,
or damaged when passing through
doorways.
Figure 9. Controller Harness Routing on a Synergy Seat
REAR
EXTRUSION
FRONT EXTRUSION
TRAPEZE BARS
SEAT LATCH SAFETY

14 www.pridemobility.com Jazzy®600 ES
IV. ASSEMBLY
5. Plug the controller connector into the rear of the
power base. See gure 3.
6. Secure the controller harness to the armrest
receiver with wire ties. See gure 11.
To install the seat (UK Occupied Transit):
1. Attach the seat plate to the power base and
ensure all hardware is properly installed and
securely tightened. See gure 10.
2. Install the controller and route the harness to the
back of the power chair. See gures 9 or 11.
3. Remove the rear shroud. See gure 2.
4. Plug the controller connector into the power
base. See gure 3.
5. Reinstall the rear shroud. See gure 2.
6. Route the controller harness so that it cannot be
pinched in the seat hinges. See gure 9 or 11.
MANDATORY! Prevent controller
harness damage! Use correct tie-
down points for controller harness.
Avoid routing the controller harness
on the outside of the armrest
pad. Route the harness under the
armrest or toward the inside of the
armrest pad. Use correct tie-down
points for the controller harness to
prevent the harness from getting
caught in the drive tires, pinched in
the seat frame, or damaged when
passing through doorways.
7. Secure the controller harness to the armrest
receiver with wire ties. See gure 11.
Figure 10. Seat Installation–UK Occupied Transit
Securement System
SEAT PLATE
Figure 11. Controller Harness Routing on a Contour Seat
TO POWER BASE WIRE TIES
WIRE TIES

Jazzy®600 ES www.pridemobility.com 15
IV. ASSEMBLY
Transit Securement System (Optional)
If your power chair is equipped with a transit
securement system, it is equipped with manufacturer-
installed front and rear securement brackets and
positioning belt anchoring brackets. See gure 12
or 13. Refer to the supplement provided with your
power chair for information on how to use the transit
securement system.
Power Chair Securement Points
The power chair may be equipped with four (4)
tie-down points for the purpose of securing the
unoccupied power chair during motor vehicle
transport. Each tie-down point is clearly labeled for
this purpose.
To secure a power chair equipped with tie-down
points:
Always secure the power chair in a forward-
facing position in the vehicle.
Attach the four tie-down straps only to
designated, labeled transit securement points
indicated by anchor symbols on the power chair.
See gures 12, 13, and 14. Tighten the straps to
suciently remove all slack.
Never attach tie-downs to adjustable, moving,
or removable parts of the power chair such as
armrests, front riggings, and wheels.
Position the anchor points for the rear tie-down
straps directly behind the rear securement
points on the power chair. The front tie-down
straps should be anchored to oor points that are
spaced wider than the power chair to provide
increased stability. See gure 14.
MANDATORY! The power chair
should be used as indicated in the
manufacturer’s instructions. If you
have any questions about the proper
use of your power chair, contact
your Quantum Rehab Provider.

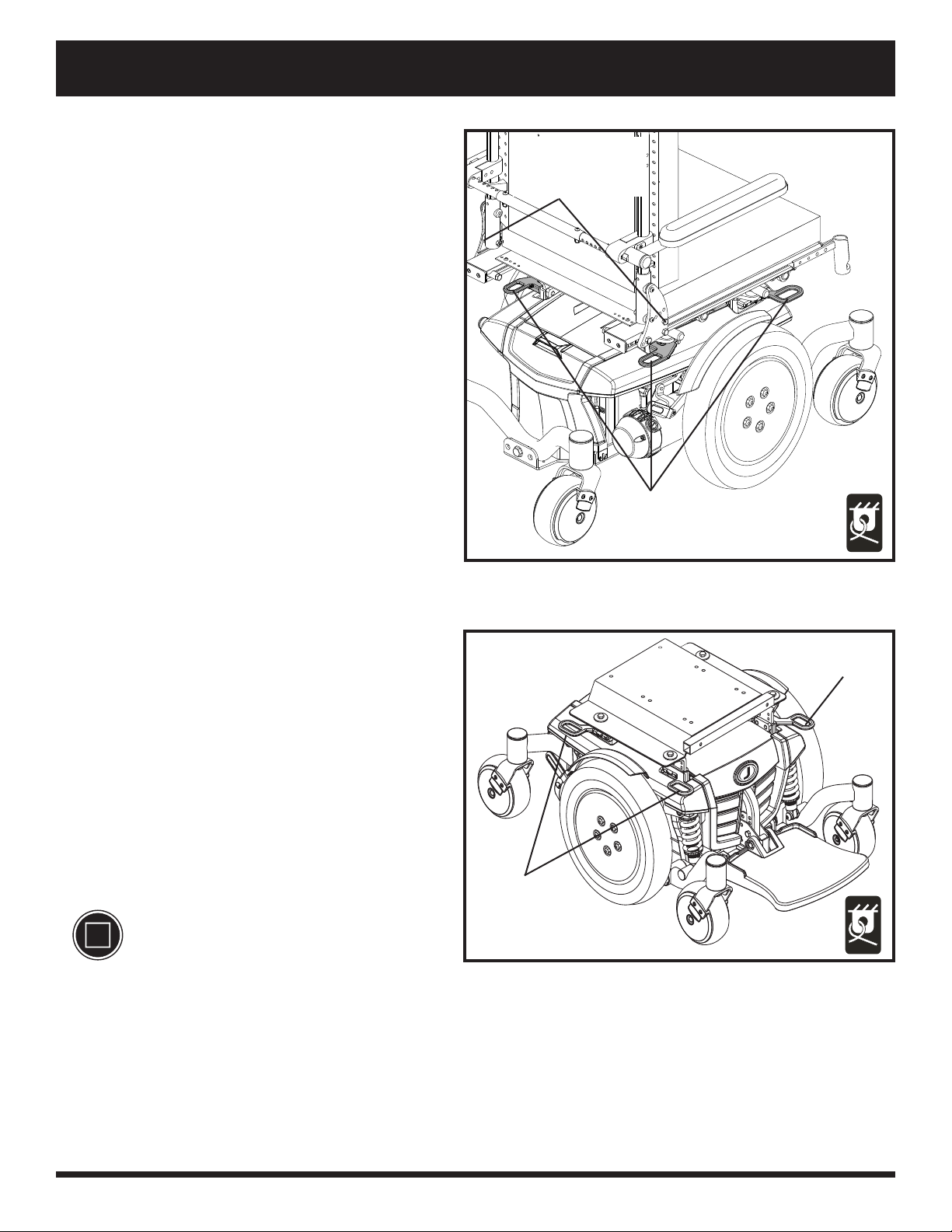

Figure 12. Transit System Securement Brackets (Synergy
Seat Shown
Figure 13. Transit System Securement Brackets–UK
Occupied Transit
POSITIONING BELT
ANCHORING BRACKET
LOCATIONS
(1 OF 2 SHOWN)
SECUREMENT
BRACKETS
(3 OF 4 SHOWN)
SECUREMENT
BRACKETS
SECUREMENT BRACKET
(1 OF 2)

16 www.pridemobility.com Jazzy®600 ES

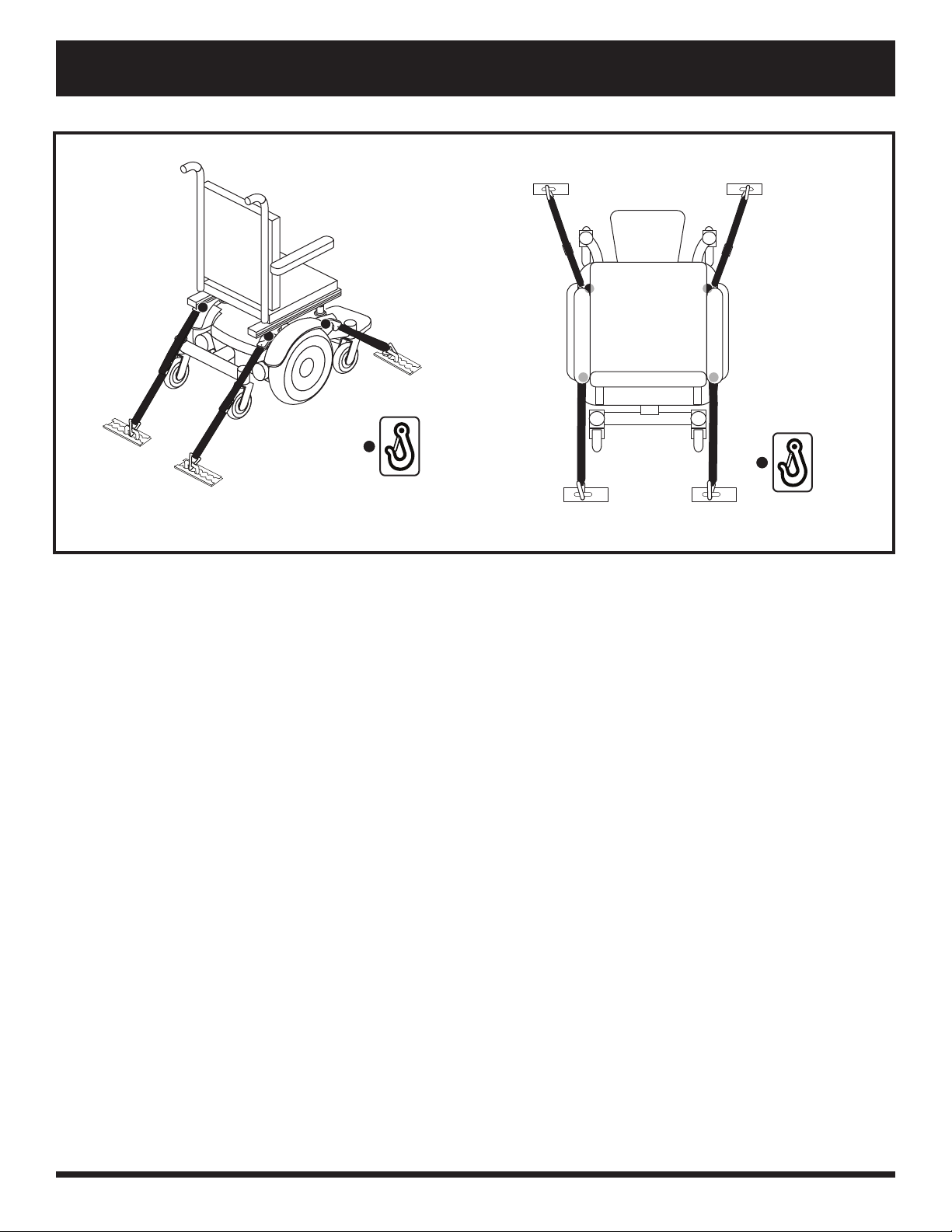

Figure 14. Unoccupied Transit System Securement Points
IV. ASSEMBLY
FRONT OF VEHICLE

Jazzy®600 ES www.pridemobility.com 17
COMFORT ADJUSTMENTS
After becoming familiar with your power chair’s operation, you may nd the need to make some adjustments
to increase your comfort, such as seat height and angle, armrest width, armrest angle and height, foot platform
height, depth, and angle, and controller position.
NOTE: If your power chair is equipped with a Synergy Seat or TRU-Balance Power Positioning System, refer
to the seat adjustment information contained in separate manuals. If your power chair is equipped with a
contoured seating system, refer to the following information.
WARNING! The center of gravity of your power chair was factory set to a position that meets
the needs of the demographic majority of users. Your authorized Pride Provider has evaluated
your power chair and made any necessary adjustments to suit your specic requirements. Do
not change your seating conguration without rst contacting Pride Mobility Products or your
authorized Pride Provider.
WARNING! Some power chair components are heavy. You may need assistance to lift or carry
them. Please refer to the specications table for specic component weights before you
disassemble the power chair.
WARNING! Remove the occupant from the power chair before making any adjustments.
Figure 15. Seat Height/Angle Adjustment–UMS
IV. ASSEMBLY
You may need the following to make comfort
adjustments:
metric/standard socket set and ratchet
adjustable wrench
metric/standard hex key set
thread lock
Seat Height and Seat Angle Adjustment
With the Universal Mounting System, you can change
the seat height to one of three positions by raising the
front and rear trapeze bars. If you raise or lower only
one trapeze bar (front or rear), you can also change the
seat base angle (dump). See gure 15.
With the United Kingdom occupied transit securement
system, you can change the seat height to one of three
positions. See gure 16.
MANDATORY! If your power chair is
equipped with a transit securement
system and any adjustment to the
seat height or seat angle is necessary,
contact your authorized Pride Provider.
These comfort adjustment can only be
made by an authorized Pride Provider.
To change the seat height (UMS):
1. Turn o the power to the controller.
2. Make sure the power chair is in drive mode.
3. Unplug the controller connector(s) from the power
base. See gure 3.
HARDWARE
HARDWARE
TRAPEZE BARS
SEAT INTERFACE
WELDMENT

18 www.pridemobility.com Jazzy®600 ES
V. COMFORT ADJUSTMENTS
4. Flip up the seat latch safety. See gure 8.
5. Squeeze the seat latch and release the seat from the front trapeze bar.
6. Slide the seat forward and remove it from the power base.
7. Remove the hardware that attaches the trapeze bars to the seat interface weldments. See gure 15.
8. Move the trapeze bars up or down to the desired height.
NOTE: Change the seat dump by raising or lowering only one trapeze bar (front or rear).
9. Reinstall the hardware.
10. Reinstall the seat.
11. Reconnect the controller to the power base.
To change the seat height (United Kingdom Occupied Transit):
1. Turn o the power to the controller.
2. Ensure the power chair is in drive mode.
3. Remove the rear shroud. See gure 2.
4. Disconnect the controller connector(s) from the power base. See gure 3.
5. Remove the seat.
6. Remove the hardware that secures the four seat interface mounting brackets to the power base.
7. Place the four mounting brackets at the desired height.
8. Reinstall the hardware that attaches the four mounting brackets to the power base and ensure the hardware is
properly and tightly secured.
9. Reinstall the seat.
10. Reconnect the controller connector(s) to the power base.
11. Reinstall the rear shroud.
Figure 16. Seat Height Adjustment–UK Occupied Transit
SEAT INTERFACE
MOUNTING BRACKET
SEAT PLATE
HARDWARE

Jazzy®600 ES www.pridemobility.com 19
V. COMFORT ADJUSTMENTS
Figure 17. Seat Position Adjustment
Seat Position
You can move the seat forward or rearward by changing
the extrusion mounting position.
To change the position:
1. Turn o the power to the controller.
2. Make sure the power chair is in drive mode.
3. Unplug the controller connector(s) from the power
base.
4. Remove the seat from the power base.
5. Remove both extrusions from the bottom of the seat.
6. Reposition the extrusions on a dierent set of
mounting holes. You must move both extrusions the
same number of holes either forward or backward.
See gure 17.
7. Fasten the extrusions back onto the bottom of the seat.
8. Reinstall the seat.
9. Reconnect the controller to the power base.
Manual Recline Seatback Adjustment
If your power chair is equipped with a reclining seat,
you can adjust the seatback angle with the seatback
release lever. The lever is located on the right side of
the seat base.
To adjust the recline angle:
1. Pull up on the seatback release lever.
2. Lean forward or backward to the desired position.
3. Release the lever.
Seatback Angle Adjustment
If your power chair is equipped with an adjustable
seatback, you can adjust it to four (4) dierent angles:
90°, 102°, 105°, or 107°.
To adjust the seatback angle:
1. Remove the adjusting screws from each seat hinge.
See gure 18.
2. Set the seatback at the desired angle.
3. Reinstall the adjusting screws to each seat hinge
and tighten.
Armrest Width Adjustment
You can change each armrest’s width independently of
the other.
NOTE: Changing the armrest width may increase the
overall width of your power chair.
Figure 18. Seatback/Armrest Adjustment
SEAT MOUNTING HOLES
JAM NUT
ARMREST ANGLE
ADJUSTING
SCREW
ARMREST
HEIGHT
ADJUSTING
SETSCREWS
SEATBACK ANGLE
ADJUSTING SCREW
ARMREST KNOB
CONTROLLER
BRACKET

20 www.pridemobility.com Jazzy®600 ES
Armrest Height Adjustment
To change the armrest height:
1. Loosen the two setscrews located on the armrest receiver. See gure 18.
2. Raise or lower the armrest to the desired height.
3. Tighten the setscrews to secure the armrest.
Controller Position
You can move the controller in toward or out away from the armrest, or change the position of the controller for
either left-hand or right-hand use.
WARNING! Do not place the controller harness so that it can be pinched in the seat frame or the
power base frame.
To extend the controller:
1. Flip up the armrest so it is perpendicular to the oor.
2. Loosen the setscrew on the controller bracket. See gure 19.
3. Slide the controller into or out of the armrest to the desired position.
4. Tighten the setscrew to secure the controller.
To change the controller position:
1. Turn o the power to the controller.
2. Unplug the controller connector(s) from the power base.
3. Remove any wire ties securing the controller harness to the armrest.
4. Flip up the armrest so it is perpendicular to the oor.
5. Loosen the setscrew on the controller bracket
6. Slide the controller out of the armrest.
7. Loosen the setscrew in the other armrest.
8. Place the controller in the other armrest.
9. Tighten the setscrews in both armrests.
10. Route the controller harness to the back of the power base and plug in the controller.
11. Secure the controller harness to the armrest with wire ties. See gure 11.
NOTE: If your power chair is equipped with a Synergy Seat or TRU-Balance Power Positioning System, refer
to the information provided in supplemental manuals provided with your seating system.
V. COMFORT ADJUSTMENTS
Figure 19. Underside of Armrest
To change the armrest width:
1. Locate the two armrest knobs on each side of the armrest
receiver bracket. See gure 18.
2. Loosen the knobs.
3. Slide the armrests in or out to the desired width.
4. Tighten the knobs.
Armrest Angle Adjustment
To change the armrest angle:
1. Lift the armrest straight up so that it is perpendicular to
the oor. See gure 19.
2. Loosen the jam nut.
3. Turn the adjusting screw to raise or lower the front of the
armrest.
4. Tighten the jam nut to lock the adjusting screw into place.
CONTROLLER BRACKET
SETSCREW
