SAFETY GUIDELINES
Copyright©2007
PrideMobilityProductsCorp.
INFMANU3448/RevC/July07
AuthorizedPrideProvider:_____________________________________________________________
Address:__________________________________________________________________________
PhoneNumber:_____________________________________________________________________
PurchaseDate:______________________________________________________________________
NOTE: This owner’s manual is compiled from the latest specifications and product information avail-
able at the time of publication. We reserve the right to make changes as they become necessary. Any
changes to our products may cause slight variations between the illustrations and explanations in
this manual and the product you have purchased. The latest/current version of this manual is available
on our website.
The symbols below are used throughout this owner's manual and on the power chair to identify warnings and
importantinformation.Itisvery importantforyou toreadthem andunderstandthem completely.
WARNING! Indicates a potentially hazardous condition/situation. Failure to follow designated
procedures can cause either personal injury, component damage, or malfunction. On the
product, this icon is represented as a black symbol on a yellow triangle with a black border.
MANDATORY! These actions should be performed as specified. Failure to perform mandatory
actions can cause personal injury and/or equipment damage. On the product, this icon is
represented as a white symbol on a blue dot with a white border.
PROHIBITED! These actions are prohibited. These actions should not be performed at any
time or in any circumstances. Performing a prohibited action can cause personal injury
and/or equipment damage. On the product, this icon is represented as a black symbol with
a red circle and red slash.
Quick Reference Information
088 609 661
WARNING! An authorized Pride Provider or a qualified technician must perform the initial
setup of this power chair and must perform all of the procedures in this manual.

Jazzy Select 7 www.pridemobility.com 3
CONTENTS
I. INTRODUCTION.................................................................................................................................4
II. SAFETY .................................................................................................................................................6
III. YOUR POWER CHAIR ....................................................................................................................17
IV. INITIAL ASSEMBLY.......................................................................................................................22
V. SERVICE .............................................................................................................................................23
VI. COMFORT ADJUSTMENTS........................................................................................................28
VII. BATTERIES AND CHARGING ....................................................................................................34
VIII.CARE AND MAINTENANCE ........................................................................................................38
IX. WARRANTY .......................................................................................................................................43

4 www.pridemobility.com Jazzy Select 7
I. INTRODUCTION
SAFETY
WELCOMEtoPrideMobility Products Corporation (Pride). The power chair youhave purchasedcombines state-of-
the-artcomponentswithsafety,comfort,andstylinginmind.Weareconfidentthatthesedesign featureswillprovideyou
withtheconveniencesyouexpectduringyourdaily activities. Once you understand how tosafelyoperateandcarefor
yourpowerchair,itshould give you yearsoftroublefreeoperation and service.
Readandfollowallinstructions,warnings, andnotesinthismanualbeforeattemptingto operateyourpowerchairforthe
firsttime.In addition, yoursafety depends uponyou,aswell as your provider,caretaker,or healthcareprofessional in
usinggoodjudgement.
Ifthereisanyinformationin this manual which you do not understand, or if you require additionalassistance for setup
or operation, please contact your authorized Pride Provider.Failureto follow theinstructions in thismanual and
thoselocatedon yourpowerchaircanleadto personal injuryand/ordamageto the powerchair, andmayvoid
thewarranty.
PURCHASER’S AGREEMENT
Byacceptingdelivery of this product, you promisethat youwill notchange,alter, or modify this product orremove or
renderinoperableorunsafeanyguards,shields,or othersafetyfeaturesofthisproduct;fail,refuse,orneglectto installany
retrofitkitsfromtimetotime provided by Pride to enhance or preserve the safe use of thisproduct.
SHIPPING AND DELIVERY
Beforeusing yourpowerchair,make sureyourdelivery iscompleteassome componentsmaybeindividually packaged.
Ifyou donotreceive acompletedelivery, pleasecontactyour authorizedPrideProviderimmediately.Wheredamagehas
occurredduringtransport, either tothepackagingorcontent, please contact thedeliverycompanyresponsible.
INFORMATION EXCHANGE
We wanttohearyourquestions,comments,andsuggestionsaboutthismanual.Wewouldalsoliketohearaboutthesafety
andreliability of yournewpowerchair,andabout the serviceyoureceivedfrom your authorizedPrideProvider.
Please notify us of any change of address, so we can keep you apprised of important information about safety, new
products,andnewoptions that can increase your ability to use andenjoyyourpowerchair.Please feel free to contact us
attheaddressbelow:
USA: Canada:
PrideMobility ProductsCorporation PrideMobilityProducts Company
Attn.:Customer CareDepartment 380VansickleRoadUnit350
182SusquehannaAvenue St.Catharines, Ontario L2R 6P7
Exeter, PA18643-2694 1-888-570-1113
[e-mail]
1-800-424-8205
NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact us and
we will be glad to send you a new one immediately.

Jazzy Select 7 www.pridemobility.com 5
I. INTRODUCTION
PRIDE OWNERS CLUB
As an owner of a Pride product, you are encouraged to enroll in the Pride Owners Club. Complete and return your
enclosedproduct registration cardorvisit Pride’sweb site atwww.pridemobility.com.
Fromour home page,select“OwnersClub” to enterapagededicated to currentandpotentialPride product owners.You
willgain accesstointerviews, stories,recreationideas,daily livingtips,product andfundinginformation,and interactive
messageboards. Thesemessageboardsinvite you tocommunicatewithother Pridecustomersaswell asPriderepresen-
tativeswho are available toassistyouwith any questionsorconcernsyoumay have.

6 www.pridemobility.com Jazzy Select 7
II. SAFETY
PRODUCT SAFETY SYMBOLS
Thesymbols belowareusedonthepowerchairtoidentifywarnings,mandatory actions,andprohibited actions.Itis very
importantfor you toreadandunderstand them completely.
Read and follow the information in the owner’s manual.
Maximum seating weight.
Do not allow unsupervised children to play near the power chair while the batteries are
charging.
Keep your hands away from the tires when driving. Be aware that loose fitting clothing
can become caught in drive tires.
Use correct tie-down points for controller harness to prevent the harness from getting
caught in the drive tires or pinched in the seat frame.
Do not use a cell phone, walkie/talkie, laptop, or other radio transmitter while operating.
Avoid exposure to rain, snow, ice, salt, or standing water whenever possible. Maintain and
store in a clean and dry condition.

Jazzy Select 7 www.pridemobility.com 7
II. SAFETY
Removal of grounding prong can create electrical hazard. If necessary, properly install an
approved 3-pronged adapter to an electrical outlet having 2-pronged plug access.
Locked and in drive mode.
Unlocked and in freewheel mode.
Do not place your power chair in freewheel mode while on an incline or decline. This
could cause the chair to roll uncontrollably on its own.
Do not lift the mobility product while seated in it.
EMI-RFI - This product has been tested and passed at an immunity level of 20 V/m.
Battery Set Configuration:
++
++
+ = Positive (Red) Terminal Post
- = Negative (Black) Terminal Post
Connect Red wire to Red Positive (+) Terminal Post
Connect Black wire to Black Negative (–) Terminal Post
Battery Set Configuration:
++
++
+ = Positive (Red) Terminal Post
- = Negative (Black) Terminal Post
Connect Red wire to Red Positive (+) Terminal Post
Connect Black wire to Black Negative (–) Terminal Post

8 www.pridemobility.com Jazzy Select 7
Explosive conditions exist!
Disposal and recycling - Contact your authorized Pride Provider for information on proper
disposal and recycling of your Pride product and its packaging.
Do not connect an extension lead to the AC/DC converter or the battery charger.
Corrosive chemicals contained in battery. Use only AGM or Gel-Cell batteries to reduce
the risk of leakage or explosive conditions.
Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive conditions.
Keep tools and other metal objects away from battery terminals.
Do not use batteries with different amp-hour (Ah) capacities. Do not mix old and new
batteries. Always replace both batteries at the same time.
II. SAFETY

Jazzy Select 7 www.pridemobility.com 9
II. SAFETY
GENERAL GUIDELINES
MANDATORY! Do not operate your new power chair for the first time without completely reading
and understanding this owner’s manual.
Your powerchairisastate-of-the-artlife-enhancementdevicedesignedtoincreasemobility.Prideprovidesan extensive
varietyof products tobestfit the individual needsof the power chairuser. Please be awarethat the final selectionand
purchasing decision regarding the type of power chair to be used is the responsibility of the power chair user, who is
capableof making suchadecision,and his/herhealthcareprofessional(i.e., medical doctor,physicaltherapist,etc.).
Thecontents of thismanualarebased ontheexpectationthat a mobilitydeviceexperthas properlyfittedthepower chair
tothe userandhasassisted theprescribinghealthcareprofessional and/ortheauthorizedPride Providerintheinstruction
processfor the use of theproduct.
Therearecertainsituations,includingsomemedicalconditions,wherethepowerchairuserwillneedtopracticeoperating
the power chair in the presence of a trained attendant.Atrained attendant can be defined as a family member or care
professionalspeciallytrainedinassistingapowerchairuserinvariousdailylivingactivities.
Asyoubeginusingyourpowerchairduringdailyactivities,youwill probablyencountersituationsinwhichyouwillneed
somepractice.Simplytakeyourtimeandyouwillsoonbeinfullandconfidentcontrolasyoumaneuverthroughdoorways,
onandoffofelevators, up and down ramps, and over moderate terrain.
Belowaresomeprecautions,tips,andothersafetyconsiderationsthat willhelpyoubecomeaccustomedtooperatingyour
powerchair safely.
Modifications
Pridehasdesignedandengineeredyourpowerchairtoprovidemaximummobilityandutility.Awide rangeof accessories
isavailablefromyourauthorized Pride Provider to further customize your power chair tobetter suit yourneeds and/or
preferences.However,undernocircumstances should youmodify,add, remove, or disableanyfeature,part, or function
ofyourpower chair.
WARNING! Do not modify your power chair in any way not authorized by Pride. Do not use
accessories if they have not been tested or approved for Pride products.
Pre-Ride Safety Check
Gettoknowthefeelofyourpowerchairanditscapabilities.Priderecommendsthatyouperformasafetycheckbefore
eachusetomakesureyourpowerchairoperatessmoothlyandsafely.
Performthefollowinginspectionspriortousingyourpowerchair:
!Checkforpropertireinflation.Maintainbutdonotexceed35psi(2.4bar)ineachtireifequippedwithpneumatictires.
!Checkallelectricalconnections. Make sure they are tight and not corroded.
!Checkallcontrollerconnections to the power base. Make sure they aresecured properly.
!Checkthe brakes. See VIII. “Care andMaintenance.”
!Checkbatterycharge. See VII. “Batteries and Charging.”
NOTE: If you discover a problem, contact your authorized Pride Provider for assistance.

10 www.pridemobility.com Jazzy Select 7
II. SAFETY
Weight Limitations
Yourpower chairisrated foramaximumweight capacity.Pleasereferto thespecificationstable forthislimit.
MANDATORY! Stay within the specified weight capacity of your power chair. Exceeding the weight
capacity voids your warranty. Pride will not be held responsible for injuries and/or property damage
resulting from failure to observe weight limitations.
WARNING! Do not carry passengers on your power chair. Carrying passengers on your power
chair may affect the center of gravity, resulting in a tip or a fall.
Tire Inflation
Ifyour powerchairis equippedwithpneumatictires, youshouldcheck orhavetheair pressurecheckedregularly.Proper
inflationpressures willprolongthe lifeofyourtires andhelpensure thesmoothoperationof yourpowerchair.
WARNING! It is important that 35 psi (2.4 bar) tire pressure be maintained in pneumatic tires at all
times. Do not underinflate or overinflate your tires. Low pressure may result in loss of control, and
overinflated tires may burst. Failure to maintain 35 psi (2.4 bar) tire pressure in pneumatic tires at
all times may result in tire and/or wheel failure.
WARNING! Inflate your power chair drive tires from a regulated air source with an available pressure
gauge. Inflating your tires from an unregulated air source could overinflate them, resulting in a
burst tire.
Incline Information
Moreandmorebuildingshaverampswithspecifieddegreesofinclination, designedforeasyandsafeaccess.Someramps
mayhave turning switchbacks(180-degreeturns)thatrequire you tohavegoodcornering skills onyourpowerchair.
!Proceedwithextremecautionasyouapproach the downgrade of a ramp or other incline.
!Takewideswingswithyourpower chair’sfrontwheelsaroundany tightcorners.Ifyoudothat,thepower chair’srear
wheelswillfollow a wide arc,notcutthecorner short, and notbumpintoorget hung up onanyrailingcorners.
!When driving down a ramp, keep the power chair’s speed adjustment set to the slowest speed setting to ensure a
safelycontrolleddescent.
!Avoid sudden stops and starts.
Whenclimbinganincline,trytokeepyourpowerchairmoving.Ifyoumuststop,startupagainslowlyandthenaccelerate
cautiously.When driving down an incline, set your power chair to the slowest speed setting and drive in the forward
directiononly. Ifyourpowerchair startstomovedown the inclinefasterthan you anticipatedordesired,allow ittocome
toa complete stop byreleasingthejoystick, then pushthejoystickforwardslightly to ensureasafelycontrolleddescent.
WARNING! When on any sort of an incline or decline, never place the power chair in
freewheel mode while seated on it or standing next to it.
WARNING! When climbing an incline, do not zigzag or drive at an angle up the face of
the incline. Drive your power chair straight up the incline. This greatly reduces the
possibility of a tip or a fall. Always exercise extreme caution when negotiating an
incline.
WARNING! You should not travel up or down a potentially hazardous incline (i.e., areas
covered with snow, ice, cut grass, or wet leaves).
WARNING! Never travel down an incline backward. Doing so may cause the power
chair to tip. Always exercise extreme caution when negotiating an incline.
WARNING! If your power chair is equipped with a reclining seatback, do not attempt
to negotiate inclines with the seat in a reclined position. Do not attempt to negotiate
obstacles with the seat in a reclined position unless an attendant is present to help
stabilize the chair. Failure to heed could result in the power chair tipping over.

Jazzy Select 7 www.pridemobility.com 11
II. SAFETY
5 (8.7%)
Figure 1. Maximum Safe Angle (Ascending and Descending)
WARNING! Even though your power chair is capable of climbing slopes greater than those illustrated
in figure 1, do not, under any circumstances, exceed the incline guidelines or any other
specifications presented in this manual. Doing so could cause instability in your power chair.
Incompliancewith theAmericanswithDisabilitiesActof 1990, allhandicappublicaccessramps are required tohavea
maximumslopeof 5° (8.7%). Therefore,Priderecommendsthatthemaximum slope of aninclineyouattempttosafely
ascend or descend on your power chair does not exceed 5° (8.7%). See figure 1.
WARNING! Any attempt to climb or descend a slope steeper than 5° (8.7%) may put your power
chair in an unstable position and cause it to tip.
Freewheel Mode
Yourpowerchairisequippedwithtwomanualfreewheelleverstoallowformanualmaneuverabilitybyatrainedattendant.
Formore information about howtoplaceyour power chairintoandoutof freewheel mode,seeIII.“Your Power Chair.”
WARNING! Do not place your power chair in freewheel mode while on an incline or
decline. This could cause the chair to roll uncontrollably on its own.
WARNING! Do not use your power chair in freewheel mode without an attendant present.
WARNING! Do not attempt to personally place your power chair in freewheel mode
while seated on it. Ask an attendant for assistance if necessary.
Braking Information
Your power chairisequippedwithtwo powerful brakesystems:
!Regenerative— useselectricitytorapidly slowthevehiclewhen the joystickreturnsto the center/stopposition.
!DiscParkBrake— activatesmechanicallyafterregenerativebraking slowsthevehicletonear stop,orwhenpoweris
removedfrom the systemforanyreason.
Cornering Information
Whileyourpowerchairisequippedwithfrontandrearcasterwheels,excessivelyhighcorneringspeedscanstillcreatethe
possibilityoftipping.Factorswhichaffectthepossibilityoftippinginclude,butarenotlimitedto:corneringspeed,steering
angle(howsharplyyouareturning), unevenroadsurfaces,inclinedroadsurfaces,ridingfroman areaoflowtractiontoan
areaof high traction (suchaspassing from a grassyareato a paved area–especially at high speedwhileturning), and
abruptdirectional changes. High cornering speeds arenotrecommended.If you feel that you maytipoverin a corner,
reduceyourspeed and steering angle (i.e., lessenthesharpnessoftheturn)to prevent your power chairfromtipping.
WARNING! When cornering sharply, reduce your speed and maintain a stable center of gravity.
This greatly reduces the possibility of a tip or fall.

12 www.pridemobility.com Jazzy Select 7
II. SAFETY

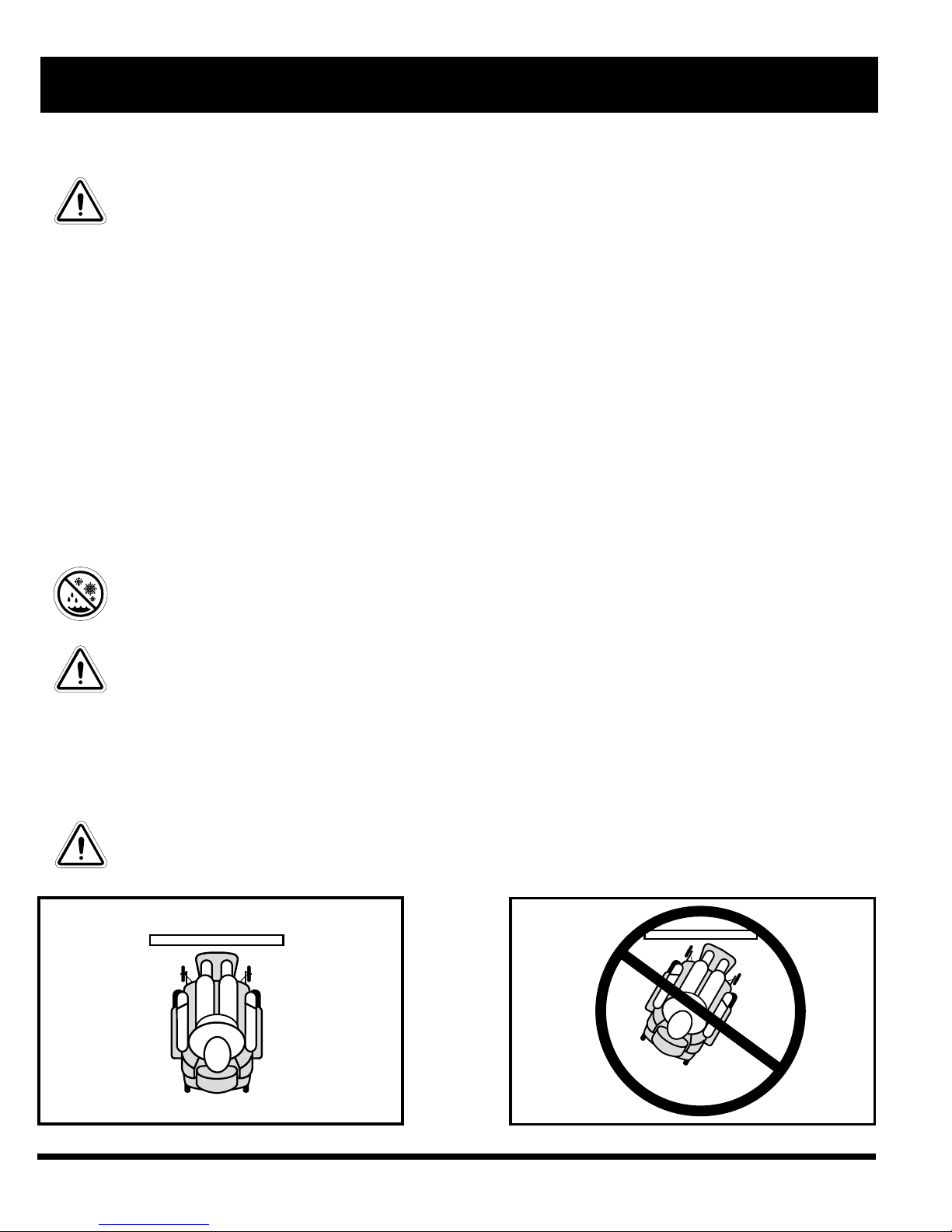

CURB
Figure 2. Correct Curb Approach
CURB
Figure 3. Incorrect Curb Approach
Public Streets and Roadways
WARNING! You should not operate your power chair on public streets and roadways. Be aware
that it may be difficult for traffic to see you when you are seated on your power chair. Obey all
local pedestrian traffic rules. Wait until your path is clear of traffic, and then proceed with
extreme caution.
Outdoor Driving Surfaces
Yourpowerchairisdesignedtoprovideoptimumstabilityundernormaldrivingconditions—dry,levelsurfacescomposed
ofconcrete,blacktop,orasphalt.However,Priderecognizes thattherewillbetimeswhenyouwillencounterothersurface
types.Forthisreason,yourpowerchairisdesignedtoperformadmirablyonpackedsoil,grass,andgravel.Feelfreeto
useyourpowerchairsafelyonlawnsandinparkareas.
!Reduceyourpower chair’sspeed whendrivingonuneventerrain and/or softsurfaces.
!Avoid tallgrassthatcanentangletherunninggear.
!Avoid loosely packedgravelandsand.
!Ifyou feelunsureabouta drivingsurface,avoidthat surface.
Inclement Weather Precautions
Exposureof yourpowerchairto inclementweatherconditionsshould beavoidedwheneverpossible. Ifsuddenlycaught
up in rain, snow, severe cold or heat while operating your power chair, proceed to shelter at the earliest opportunity.
Thoroughlydry yourpowerchairbefore storing,charging,oroperatingyour powerchair.
PROHIBITED! Operating in rain, snow, salt, mist/spray conditions, and on icy/slippery surfaces
can have an adverse affect on the electrical system. Maintain and store your power chair in a dry
and clean condition.
WARNING! Prolonged exposure to hot or cold conditions may affect the temperature of upholstered
and non-upholstered items on the power chair, possibly resulting in skin irritation. Exercise caution
when using the power chair in extremely hot or cold conditions or when exposing your power
chair to direct sunlight for prolonged periods of time.
Stationary Obstacles (Steps, Curbs, etc.)
Proceedwithextremecaution when driving near raised surfaces, unprotectedledges and/ordrop-offs (curbs,porches,
stairs,etc.). Besureyourpowerchairistravelingperpendicular toanycurb youmaybe requiredtonavigate.Seefigure2.
WARNING! Do not attempt to have your power chair climb or descend an obstacle that is higher
than 2 in. (5 cm) unless you have the assistance of an attendant.
WARNING! Do not attempt to have your power chair proceed backward down any step, curb, or
other obstacle. This may cause the power chair to tip.

Jazzy Select 7 www.pridemobility.com 13
II. SAFETY
Stairs and Escalators
Powerchairsarenot designed to travel up or down stairsor escalators. Alwaysuse anelevator.
WARNING! Never use your power chair to negotiate steps or escalators.
Doors
!Determineifthedooropens toward or away from you.
!Driveyourpowerchair gentlyandslowlyforwardtopushthe dooropen.Ordriveyourpowerchair gentlyandslowly
backwardto pull the door open.
Elevators
Modernelevatorshaveadooredgesafetymechanismthat,whenpushed,reopenstheelevatordoor(s).
!Ifyouare in the doorway ofan elevatorwhenthedoor(s) begin to close, push ontherubberdooredge or allow the
rubberdoor edge to contact thepowerchairand the door will reopen.
!Usecare that pocketbooks, packages,orpower chair accessories do notbecome caught in elevator doors.
Lift/Elevation Products
Ifyouwillbetravelingwithyour powerchair,youmayfinditnecessaryto usealift/elevationproducttoaidintransporta-
tion.Priderecommendsthatyouclosely review the instructions, specifications, and safety information set forth bythe
manufacturerofthelift/elevation productbeforeusingthatproduct.
WARNING! Never sit on your power chair when it is being used in connection with any
type of lift/elevation product. Your power chair was not designed with such use in
mind and any damage or injury incurred from such use is not the responsibility of
Pride.
Motor Vehicle Transport
Priderecommends thatyoudonot remainseatedinyour powerchairwhile travelinginamotor vehicle.Thepowerchair
shouldbestowed in the trunk ofa carorintheback of a truck orvan withbatteriesremovedandproperly secured.
WARNING! Do not sit on your power chair while it is in a moving vehicle.
WARNING! Always be sure your power chair and its batteries are properly secured when it is being
transported. Batteries should be secured in an upright position and protective caps should be
installed on the battery terminals. Batteries should not be transported with any flammable or
combustible items.
Positioning Belts
Your authorized Pride Provider,therapist(s), and otherhealthcareprofessionalsareresponsible for determining yourre-
quirementfor a positioning beltinorderto operate yourpowerchairsafely.
WARNING! If you require a positioning belt to safely operate your power chair, make sure it is
fastened securely in order to reduce the possibility of a fall from the power chair.
WARNING! The positioning belt is not designed for use as a seat belt in a motor vehicle. Nor is
your power chair suitable for use as a seat in any vehicle. Anyone traveling in a vehicle should be
properly belted into seats approved by the vehicle manufacturer.

14 www.pridemobility.com Jazzy Select 7
II. SAFETY
Batteries
In addition to following the warnings below, be sure to comply with all other battery handling information. For more
informationabout your powerchair’s batteries,seeVII.“Batteriesand Charging.”.
MANDATORY! Battery posts, terminals, and related accessories contain lead and lead
compounds. Wear goggles and gloves when handling batteries and wash hands after
handling.
WARNING! Power chair batteries are heavy. See specifications table. If you are unable
to lift that much weight, be sure to get help. Use proper lifting techniques and avoid
lifting beyond your capacity.
WARNING! Always protect the batteries from freezing and never charge a frozen battery.
Charging a frozen battery may result in damage to the battery.
WARNING! Connect the battery harnesses in the proper manner. RED (+) cables must
be connected to positive (+) battery terminals/posts. BLACK (-) cables must be
connected to negative (-) battery terminals/posts. Protective caps should be installed
over all battery terminals. REPLACE cables immediately if damaged.
Removable Parts
WARNING! Do not attempt to lift or move a power chair by any of its removable parts, including the
armrests, seat, foot riggings, controller, and shrouds.
Preventing Unintended Movement
WARNING! If you anticipate being seated in a stationary position for an extended period of time,
turn off the power. This will prevent unexpected motion from inadvertent joystick contact. This
will also eliminate the possibility of unintended chair movement from electromagnetic (EM) sources.
Reaching and Bending
Neverreach, lean,orbendwhiledrivingyourpowerchair.Ifitis absolutelynecessaryto reach,lean,or bendwhileseated
onyour power chair,it is important tomaintaina stable center of gravity andkeepthe power chair from tipping.Pride
recommendsthatthe power chair user determine his/her personallimitations andpractice bendingandreachinginthe
presenceofaqualifiedhealthcareprofessional.
WARNING! Keep your hands away from the tires when driving. Be aware that loose
fitting clothing can become caught in drive tires.
WARNING! Do not bend, lean, or reach for objects if you have to pick them up from the
floor by reaching down between your knees or if you have to reach over the back of
the seat. Movements such as these may change your center of gravity and the weight
distribution of the power chair. This may cause your power chair to tip.

Jazzy Select 7 www.pridemobility.com 15
II. SAFETY
Figure 4.IdealTransfer Position
Transfers
Transferring onto and off of your power chair requires a
goodsenseofbalance.Alwayshaveanattendantorhealth-
careprofessionalpresentwhilelearningtoproperlytransfer
yourself.
Toeliminatethepossibilityofinjury,Priderecommendsthat
youoratrainedattendantperform the following tasks be-
foreattemptingatransfer:
!Turnoff thepowertothecontroller.
!Ensureyourpowerchairisnotin freewheelmode.See
III.“Your PowerChair.”
!Turnthe caster wheels toward thetransferdestination
toimprovepowerchairstabilityduringtransfer.
!Make sure both armrests are flipped up or removed
fromyour powerchair.
!Flip up the foot platform or move the leg rests aside;
thiswillhelptokeep your feet from getting caught on
thefootriggingduringthetransfer.
!Reducethedistancebetweenyourpowerchairand the
objectyou are transferring onto.
WARNING! Before transferring, position yourself as far back as possible in the power chair seat
to prevent the power chair from tipping forward during transfer.
WARNING! Avoid putting all of your weight on the power chair armrests and do not use the armrests
for weight bearing purposes, such as transfers. Such use may cause the power chair to tip, resulting
in a fall from the power chair and personal injury.
WARNING! Avoid putting all of your weight on the foot riggings. Such use may cause the power
chair to tip.
Prescription Drugs/Physical Limitations
Usersmustexercisecareandcommon sensewhenoperatingapowerchair.Thisincludesawarenessofsafety issueswhen
takingprescribed orover-the-counterdrugsor whentheuserhas specificphysicallimitations.
WARNING! Consult your physician if you are taking prescribed or over-the-counter medication or
if you have certain physical limitations. Some medications and limitations may impair your ability
to operate your power chair in a safe manner.
Alcohol/Smoking
Thepowerchairusermustexercisecare andcommonsense whenoperatinghis/her powerchair.Thisincludesawareness
ofsafetyissueswhileundertheinfluenceofalcoholorwhilesmoking.
WARNING! Do not operate your power chair while you are under the influence of alcohol, as this
may impair your ability to operate your power chair in a safe manner.

16 www.pridemobility.com Jazzy Select 7
II. SAFETY
WARNING! Pride strongly recommends that you do not smoke cigarettes while seated in your
power chair, although the power chair has passed the necessary testing requirements for cigarette
smoking. You must adhere to the following safety guidelines if you decide to smoke cigarettes
while seated in your power chair.
!Do not leave lit cigarettes unattended.
!Keep ashtrays a safe distance from the seat cushions.
!Always make sure cigarettes are completely extinguished before disposal.
Electromagnetic and Radio Frequency Interference (EMI/RFI)
WARNING! Laboratory tests have shown that electromagnetic and radio frequency waves can
have an adverse affect on the performance of electrically-powered mobility vehicles.
Electromagneticand Radio FrequencyInterferencecan come from sourcessuch as cellular phones,mobile two-way
radios(suchas walkie-talkies), radio stations, TV stations,amateurradio(HAM)transmitters,wirelesscomputer links,
microwavesignals,pagingtransmitters, and medium-range mobile transceivers used by emergencyvehicles. Insome
cases,thesewavescancauseunintendedmovementordamagetothecontrol system.Everyelectrically-poweredmobility
vehiclehasanimmunity(orresistance)toEMI.Thehighertheimmunitylevel,thegreatertheprotectionagainstEMI.This
producthasbeentestedandhaspassedatanimmunity level of 20 V/m.
WARNING! Be aware that cell phones, two-way radios, laptops, and other types of radio transmitters
may cause unintended movement of your electrically-powered mobility vehicle due to EMI.
Exercise caution when using any of these items while operating your mobility vehicle and avoid
coming into close proximity of radio and TV stations.
WARNING! The addition of accessories or components to the electrically-powered mobility vehicle
can increase the susceptibility of the vehicle to EMI. Do not modify your power chair in any way
not authorized by Pride.
WARNING! The electrically-powered mobility vehicle itself can disturb the performance of other
electrical devices located nearby, such as alarm systems.
NOTE: For further information on EMI/RFI, go to the Resource Center on www.pridemobility.com. If
unintended motion or brake release occurs, turn your power chair off as soon as it is safe to do so. Call Pride
at 800-424-8205 to report the incident.

Jazzy Select 7 www.pridemobility.com 17
III. YOUR POWER CHAIR
Figure 5.The Jazzy Select 7
SEATBACK
ANTI-TIPWHEELS
ARMRESTS
BODYSHROUD
FOOTRIGGING
(FOOT PLATFORM SHOWN)
CASTERWHEEL
DRIVEWHEEL
CONTROLLER
POWER
BASE
ASSEMBLY
SEAT
ASSEMBLY
FREEWHEELLEVERS
SEATBASE
THE JAZZY SELECT 7
Your power chair has two main assemblies: the seat and the power base. See figure 5. Typically, the seating system
includesthearmrests,theseatback,theseat base,andthecontroller.Thepower baseassemblyincludestwodrive wheels,
two anti-tip wheels, two rear caster wheels, a body shroud, a frame assembly (located under the body shroud), two
batteryboxes,and the electrical connectors. See figures 5,6, and7.

18 www.pridemobility.com Jazzy Select 7
III. YOUR POWER CHAIR
Specifications
Suspension: Active-TracSuspension
DriveWheels: 10 in.(25.4 cm), solid, center-mounted
CasterWheels: 8 in. (20.32cm),solid,rear articulating
Anti-TipWheels: 6 in.(15.24cm), solid, front mounted
MaximumSpeed:¹ Up to 4 mph(6.43km/h)
Range:¹ Up to 14 miles (22.53 km)
Brakes: “IntelligentBraking,”electronicregenerative,discpark brake
GroundClearance:² 2.5 in.(6.35cm)
TurningRadius:² 18.5in.(47 cm)
OverallSize:² Length:36.5in.(92.71cm)
Width:23in. (58.42 cm) assembled
Drivetrain: Two motor,mid-wheel
Batteries:³ Two 12-volt, deep-cycle U-1batteries
BatteryCharger: 3-amp, Onboard
WeightCapacity: 300 lbs. (136 kg)
ComponentWeights: Seat: 33 lbs. (14.97 kg)
FootPlatform:8.5 lbs. (3.85 kg)
Front Battery and Case: 26 lbs. (11.79 kg) (U-1 Battery: 24.5 lbs. (11.11 kg)
Rear Battery and Case: 26 lbs. (11.79 kg) (U-1 Battery: 24.5 lbs. (11.11 kg)
ServiceComponent FrameAssembly:93 lbs. (42.18 kg)
Weights: BatteryWell Frame: 13.5 lbs. (6.12 kg)
FrontFrame: 2.5 lbs. (1.13kg)
RightFrameAssembly:38lbs.(17.23kg)
LeftFrameAssembly:38 lbs. (17.23 kg)
ServiceDisassemblyBracket: 1 lb. (.45 kg)
¹ Varies with base model,userweight, terrain type, battery amphour rating(Ah),battery charge, battery condition,
motors,controller type, tiretype,andtirecondition.
² Duetomanufacturingtolerancesandcontinued product improvement, this specification can be subject to variance
of (+ or – ) 3%.
³ AGMorGel-Cell type required. See VII.“BatteriesandCharging”.
NOTE: All specifications subject to change without notice.

Jazzy Select 7 www.pridemobility.com 19
III. YOUR POWER CHAIR
Figure 6. Power Base RearView - ElectronicsTray
CONTROLLER CONNECTOR MAINCIRCUITBREAKER
CHARGERPOWERCORD
RECEPTACLE
AMMETER
Electrical Components
Theelectricalcomponents consist of the controller,thebatteries,andthemotors.Thebatteries, motors, and controller
power module (if equipped) are located on the power base assembly.The controller is located on the seat assembly.
Connectivitybetween the controllerandthemotors,batteries, andthebatterychargeris provided byoneormore wiring
harnesses.Seefigures6 and 7.
ControllerConnector: Thisiswhere the controller connectstothepowerbase. Each controller usesadifferenttypeof
cable.Regardlessofwhichtypeofcontrollerisused,thecablemustbesecuredtotheseatassemblyandnotallowedto
dragonthe floor.
Ammeter:Thisdisplaysthe charger’s currentoutputin amps.
MainCircuitBreaker:Thisisasafetyfeaturebuilt intoyourpower chair.Whenthebatteriesandthemotorsareheavily
strained(e.g., fromexcessiveloads), themaincircuitbreakertripstoprevent damagetothe motorsandthe electronics.If
thecircuittrips,allowthepowerchairto“rest”forapproximatelyoneminute.Then,pushinthecircuitbreakerbutton,turn
onthe controller, and continue normal operation.Ifthe main circuit breaker continuestotrip repeatedly,contact your
authorizedPride Provider.
ChargerPower CordReceptacle: This is where the charger power cord plugs in when the batteries need to be re-
charged.
BatteryConnectors(Quick-Connectors): Theseprovide a connection betweenthebatteryboxes and the powerbase.
MotorConnectors:These provide aconnectionbetweenthe motors and the power base.

20 www.pridemobility.com Jazzy Select 7
III. YOUR POWER CHAIR
BATTERY CONNECTORS
(QUICK-CONNECTORS)
FRONT
BATTERY
BOX
REAR BATTERY BOX
SEAT TOWERS
MOTOR CONNECTOR

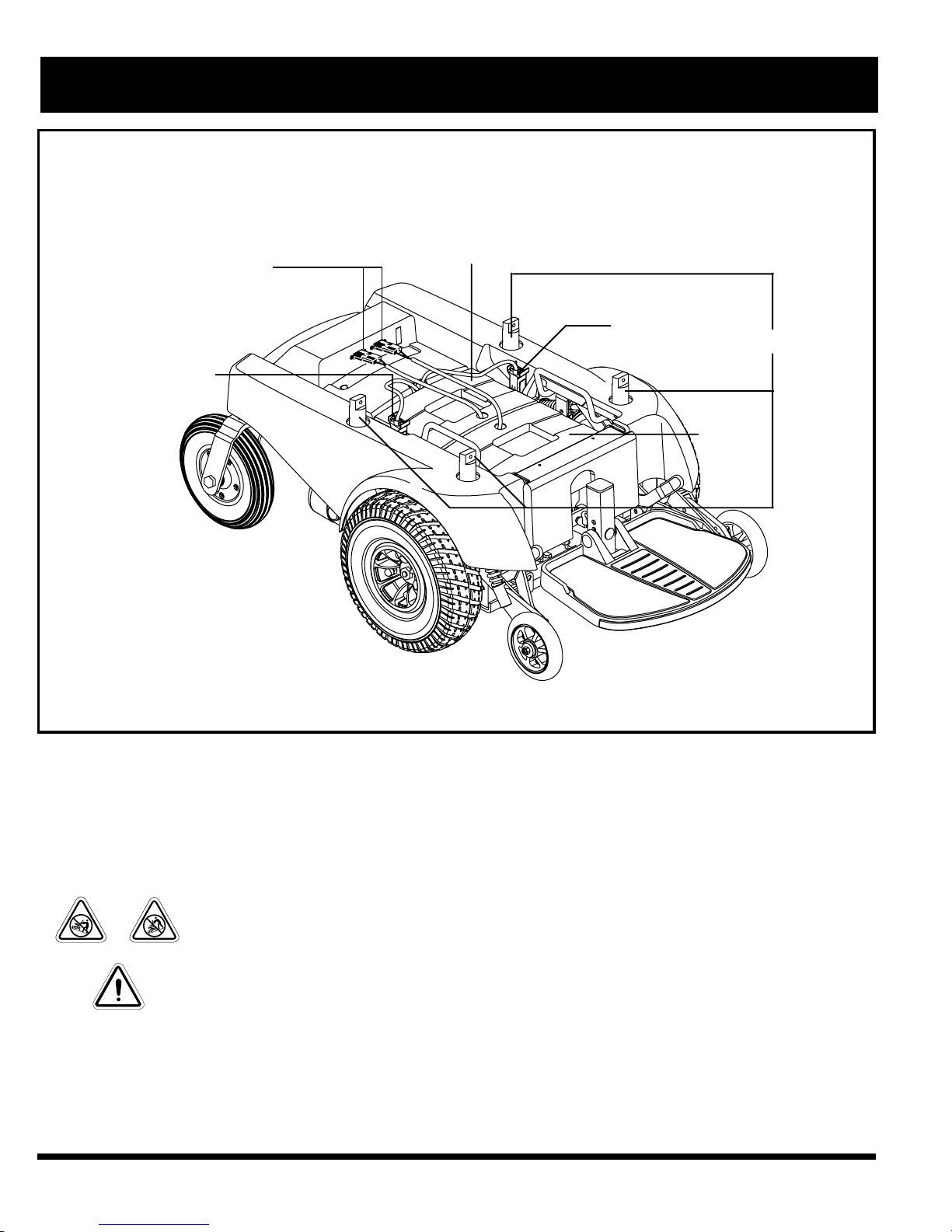

Figure 7.Power BaseTopView
MOTOR CONNECTOR
Manual Freewheel Levers
Forconvenience, yourpowerchairisequippedwithtwomanualfreewheellevers—oneforeachmotor.See figures8and
9.Theseleversallowyoutodisengagethedrivemotorsfromthegearboxesandmaneuverthechairmanually.Thisiscalled
freewheelmode.
WARNING! Do not use the power chair while the drive motors are disengaged! Do not
disengage the drive motors when the power chair is on an incline or decline, as the
unit could roll on its own. Only engage the freewheel mode when on a level surface.
WARNING! It is important to remember that when your power chair is in freewheel
mode, the braking system is disengaged.
To engage or disengage the drive motors:
1. Locatethemanualfreewheel levers at thefrontofthe chair. Seefigure5.
2. Pushtheleversdownto engage the drive motors (drive mode). See figure 8.
3. Pulltheleversupward to disengagethedrivemotors(freewheel mode). Seefigure9.
