Pride Mobility Quantum Jazzy series User manual

QUANTUM
JAZZY
S E R I E S
*INFMANU1206*
Date Inspected
Inspector
Quality Control - Quantum Jazzy 1420 Series
Inclusion of all Parts
Joystick Serial Number
Controller Serial Number
Left Motor Serial Number
Right Motor Serial Number
Fit and Finish
Performance
Product Serial #
Including Models: Quantum 1424 4HD, Quantum 1420 2SPHD, Quantum 1420 2SPVHD,
Quantum 1420 3SPHD, Quantum 1424 4SPHD, Quantum 1420 3SPVHD, Quantum 1420
3MPHD, Quantum 1424 4MPHD, Quantum 1420 3MPVHD, Jazzy 1420 3VHD, Jazzy 1420
2HD and Jazzy 1420 2VHD
Pride keeps a more detailed report on file at the factory.

SAFETY GUIDELINES
Copyright © 2011
Pride Mobility Products Corp.
INFMANU1206/Rev K/August 2011
Quantum Rehab Provider:________________________________________________________
Address:_______________________________________________________________________________
Phone Number: _________________________________________________________________________
Purchase Date:__________________________________________________________________________
NOTE: This owner’s manual is compiled from the latest specifications and product information available at
the time of publication. We reserve the right to make changes as they become necessary. Any changes to our
products may cause slight variations between the illustrations and explanations in this manual and the product
you have purchased. The latest/current version of this manual is available on our website.
The symbols below are used throughout this owner's manual and on the power chair to identify warnings and
important information. It is very important for you to read them and understand them completely.
WARNING! Indicates a potentially hazardous condition/situation. Failure to follow designated
procedures can cause either personal injury, component damage, or malfunction. On the
product, this icon is represented as a black symbol on a yellow triangle with a black border.
MANDATORY! These actions should be performed as specified. Failure to perform mandatory
actions can cause personal injury and/or equipment damage. On the product, this icon is
represented as a white symbol on a blue dot with a white border.
PROHIBITED! These actions are prohibited. These actions should not be performed at any time
or in any circumstances. Performing a prohibited action can cause personal injury and/or
equipment damage. On the product, this icon is represented as a black symbol with a red circle
and red slash.
Quick Reference Information
WARNING! A authorized Quantum Rehab Provider or a qualified technician must perform the
initial setup of this power chair and must perform all of the procedures in this manual.

Quantum Jazzy 1420 Series www.pridemobility.com 3
I. INTRODUCTION .................................................................................................................................. 4
II. SAFETY ................................................................................................................................................... 5
III. YOUR POWER CHAIR ..................................................................................................................... 17
IV. ASSEMBLY .......................................................................................................................................... 21
V. COMFORT ADJUSTMENTS ......................................................................................................... 23
VI. BATTERIES AND CHARGING ..................................................................................................... 30
VII. CARE AND MAINTENANCE ......................................................................................................... 34
APPENDIX I - SPECIFICATIONS .......................................................................................................... 39
CONTENTS

4 www.pridemobility.com Quantum Jazzy 1420 Series
I. INTRODUCTION
SAFETY
WELCOME to Quantum Rehab, a division of Pride Mobility Products Corporation (Pride). The power chair you
have purchased combines state-of-the-art components with safety, comfort, and styling in mind. We are confident
that these design features will provide you with the conveniences you expect during your daily activities. Once
you understand how to safely operate and care for your power chair, it should give you years of trouble free
operation and service.
Read and follow all instructions, warnings, and notes in this manual before attempting to operate your power chair
for the first time. You must also read all instructions, warnings, and notes contained in any supplemental instruc-
tional booklets for the controller, front riggings, and/or seating system that accompanied your power chair before
initial operation. Your safety depends upon you, as well as your provider, caretaker, or healthcare professional in
using good judgement.
If there is any information in this manual which you do not understand, or if you require additional assistance for
setup or operation, please contact your authorized Quantum Rehab Provider. Failure to follow the instructions
in this manual and those located on your power chair can lead to personal injury and/or damage to the
power chair, including voiding the warranty.
PURCHASER’S AGREEMENT
By accepting delivery of this product, you promise that you will not change, alter, or modify this product or
remove or render inoperable or unsafe any guards, shields, or other safety features of this product; fail, refuse, or
neglect to install any retrofit kits from time to time provided by Pride to enhance or preserve the safe use of this
product.
SHIPPING AND DELIVERY
Before using your power chair, make sure your delivery is complete as some components may be individually
packaged. If you do not receive a complete delivery, please contact your authorized Quantum Rehab Provider
immediately. Where damage has occurred during transport, either to the packaging or content, please contact the
delivery company responsible.
INFORMATION EXCHANGE
We want to hear your questions, comments, and suggestions about this manual. We would also like to hear about
the safety and reliability of your new power chair, and about the service you received from your authorized
Quantum Rehab Provider.
Please notify us of any change of address, so we can keep you apprised of important information about safety,
new products, and new options that can increase your ability to use and enjoy your power chair. Please feel free
to contact us at the address below:
USA: Canada:
Pride Mobility Products Corporation Pride Mobility Products Company
Attn.: Customer Care Department 380 Vansickle Road Unit 350
182 Susquehanna Avenue St. Catharines, Ontario L2R 6P7
Exeter, PA 18643-2694 1-888-570-1113
[email protected]
1-800-424-8205
NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact us and
we will be glad to send you a new one immediately.

Quantum Jazzy 1420 Series www.pridemobility.com 5
II. SAFETY
PRODUCT SAFETY SYMBOLS
The symbols below are used on the power chair to identify warnings, mandatory actions, and prohibited actions.
It is very important for you to read and understand them completely.
Read and follow the information in the owner’s manual.
Maximum seating weight.
Do not use a cell phone, walkie/talkie, laptop, or other radio transmitter while operating.
Avoid exposure to rain, snow, ice, salt, or standing water whenever possible. Maintain
and store in a clean and dry condition.
Do not allow unsupervised children to play near the power chair while the batteries are
charging.
Keep your hands away from the tires when driving. Be aware that loose fitting clothing
can become caught in drive tires.
Use correct tie-down points for controller harness to prevent the harness from getting
caught in the drive tires, pinched in the seat frame, or damaged when passing through
doorways.

6 www.pridemobility.com Quantum Jazzy 1420 Series
II. SAFETY
Removal of grounding prong can create electrical hazard. If necessary, properly install
an approved 3-pronged adapter to an electrical outlet having 2-pronged plug access.
Do not connect an extension cord to the AC/DC converter or the battery charger.
Corrosive chemicals contained in battery.
Wear safety goggles.
Do not lift the mobility product while seated in it.
Do not lift the mobility product while seated in it.

Quantum Jazzy 1420 Series www.pridemobility.com 7
II. SAFETY

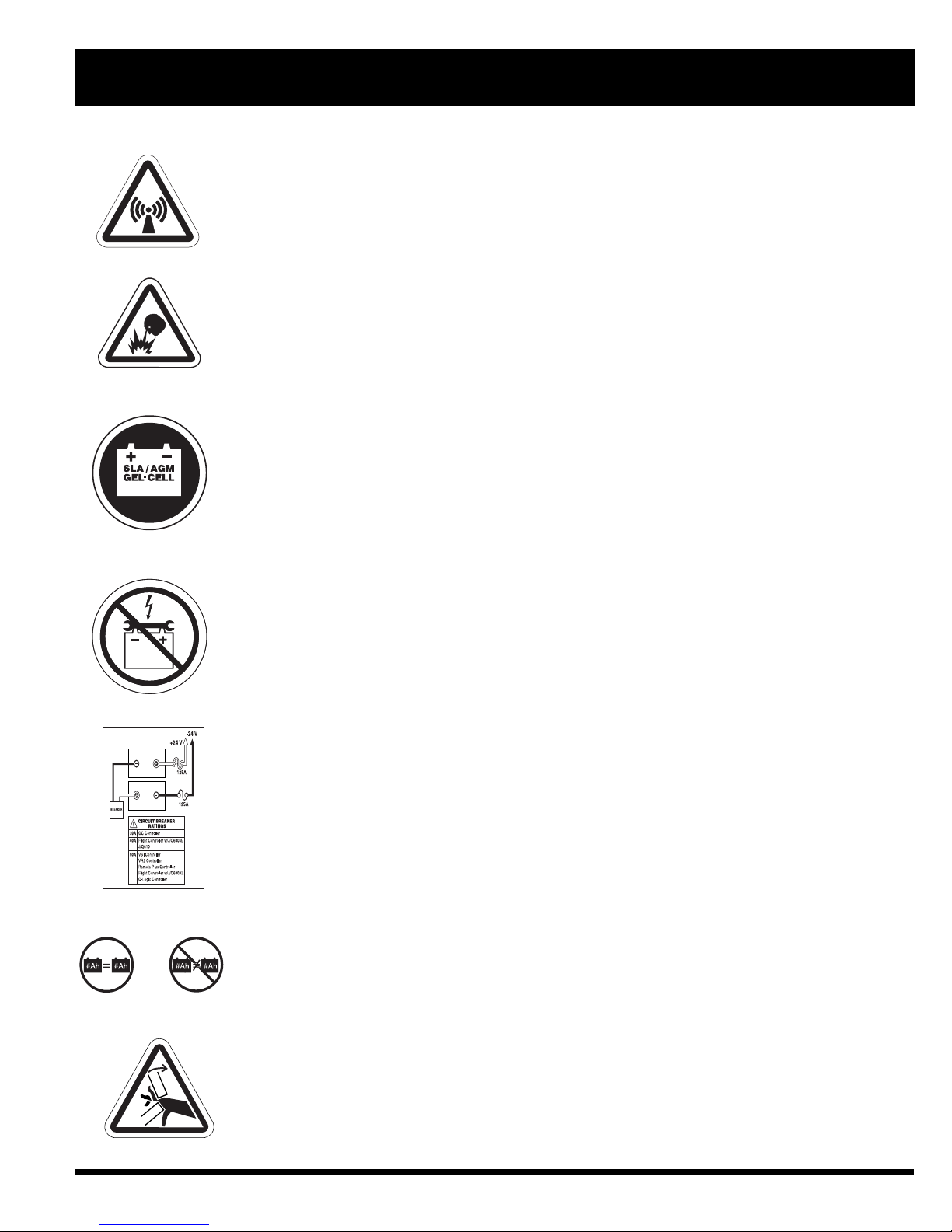

Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive
conditions.
Keep tools and other metal objects away from the battery terminals. Contact with
tools can cause electrical shock.
Do not use batteries with different amp-hour (Ah) capacities. Do not mix old and
new batteries. Always replace both batteries at the same time.
Battery Set Configuration:
+ = Positive (Red) Terminal Post
– = Negative (Black) Terminal Post
Connect Red wires to Red Positive (+) Terminal Posts
Connect Black wires to Black Negative (–) Terminal Posts
Explosive conditions exist!
EMI-RFI - This product has been tested and passed at an immunity level of 20 V/m.
Pinch/Crush point.

8 www.pridemobility.com Quantum Jazzy 1420 Series
II. SAFETY
Disposal and recycling – Contact your Quantum Rehab Provider for information on
proper disposal and recycling of your Pride product and its packaging.

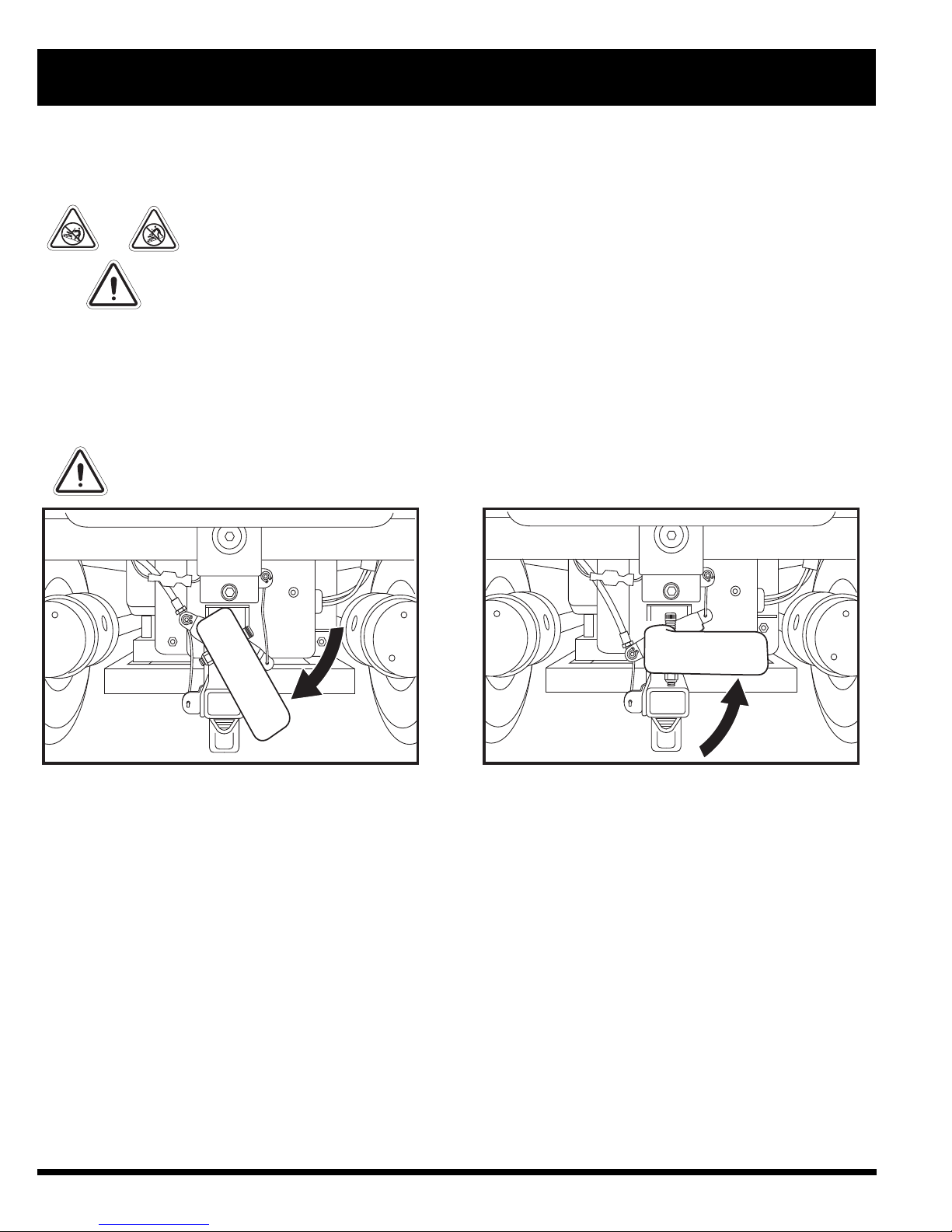

Locked and in drive mode.
Unlocked and in freewheel mode.
Battery charger for indoor use only.
Contains Lead.
Place unit on level ground and stand to one side when changing from drive mode to
freewheel mode or freewheel mode to drive mode.
Do not place your power chair in freewheel mode while on a decline.
Do not place your power chair in freewheel mode while on an incline.

Quantum Jazzy 1420 Series www.pridemobility.com 9
II. SAFETY
GENERAL GUIDELINES
MANDATORY! Do not operate your new power chair for the first time without completely reading
and understanding this owner’s manual.
Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an
extensive variety of products to best fit the individual needs of the power chair user. Please be aware that the final
selection and purchasing decision regarding the type of power chair to be used is the responsibility of the power
chair user, who is capable of making such a decision, and his/her healthcare professional (i.e., medical doctor,
physical therapist, etc.).
The contents of this manual are based on the expectation that a mobility device expert has properly fitted the
power chair to the user and has assisted the prescribing healthcare professional and/or the authorized Quantum
Rehab Provider in the instruction process for the use of the product.
There are certain situations, including some medical conditions, where the power chair user will need to practice
operating the power chair in the presence of a trained attendant. A trained attendant can be defined as a family
member or care professional specially trained in assisting a power chair user in various daily living activities.
As you begin using your power chair during daily activities, you will probably encounter situations in which you
will need some practice. Simply take your time and you will soon be in full and confident control as you maneuver
through doorways, on and off of elevators, up and down ramps, and over moderate terrain.
Below are some precautions, tips, and other safety considerations that will help you become accustomed to oper-
ating your power chair safely.
Modifications
Pride has designed and engineered your power chair to provide maximum mobility and utility. A wide range of
accessories is available from your authorized Quantum Rehab Provider to further customize your power chair to
better suit your needs and/or preferences. However, under no circumstances should you modify, add, remove, or
disable any feature, part, or function of your power chair.
WARNING! Do not modify your power chair in any way not authorized by Pride. Do not use
accessories if they have not been tested or approved for Pride products.
Pre-Ride Safety Check
Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety check
before each use to make sure your power chair operates smoothly and safely.
Perform the following inspections prior to using your power chair:
Check for proper tire inflation. Maintain but do not exceed the psi/bar/kPa air pressure rating indicated on each
tire if equipped with pneumatic tires.
Check all electrical connections. Make sure they are tight and not corroded.
Check all controller connections to the power base. Make sure they are secured properly.
Check the brakes. See VII. “Care and Maintenance.”
Check battery charge. See VI. “Batteries and Charging.”
NOTE: If you discover a problem, contact your authorized Quantum Rehab Provider for assistance.

10 www.pridemobility.com Quantum Jazzy 1420 Series
II. SAFETY
Weight Limitations
Your power chair is rated for a maximum weight capacity. Please refer to the specifications table for this limit.
MANDATORY! Stay within the specified weight capacity of your power chair. Exceeding the
weight capacity voids your warranty. Pride will not be held responsible for injuries and/or
property damage resulting from failure to observe weight limitations.
WARNING! Do not carry passengers on your power chair. Carrying passengers on your power
chair may affect the center of gravity, resulting in a tip or a fall.
Tire Inflation
If your power chair is equipped with pneumatic tires, you should check or have the air pressure checked regularly.
Proper inflation pressures will prolong the life of your tires and help ensure the smooth operation of your power
chair.
WARNING! It is important that the psi/bar/kPa air pressure rating indicated on the tire be
maintained in pneumatic tires at all times. Do not underinflate or overinflate your tires. Low
pressure may result in loss of control, and overinflated tires may burst. Failure to maintain the
psi/bar/kPa air pressure rating indicated on the pneumatic tires at all times may result in tire
and/or wheel failure.
WARNING! Inflate your power chair drive tires from a regulated air source with an available
pressure gauge. Inflating your tires from an unregulated air source could overinflate them,
resulting in a burst tire.
NOTE: If the tire on your power chair lists the psi rating only, use the following conversion formulas to
find the bar or kPa rating: bar = psi x 0.06895; kPa = psi x 6.89476.

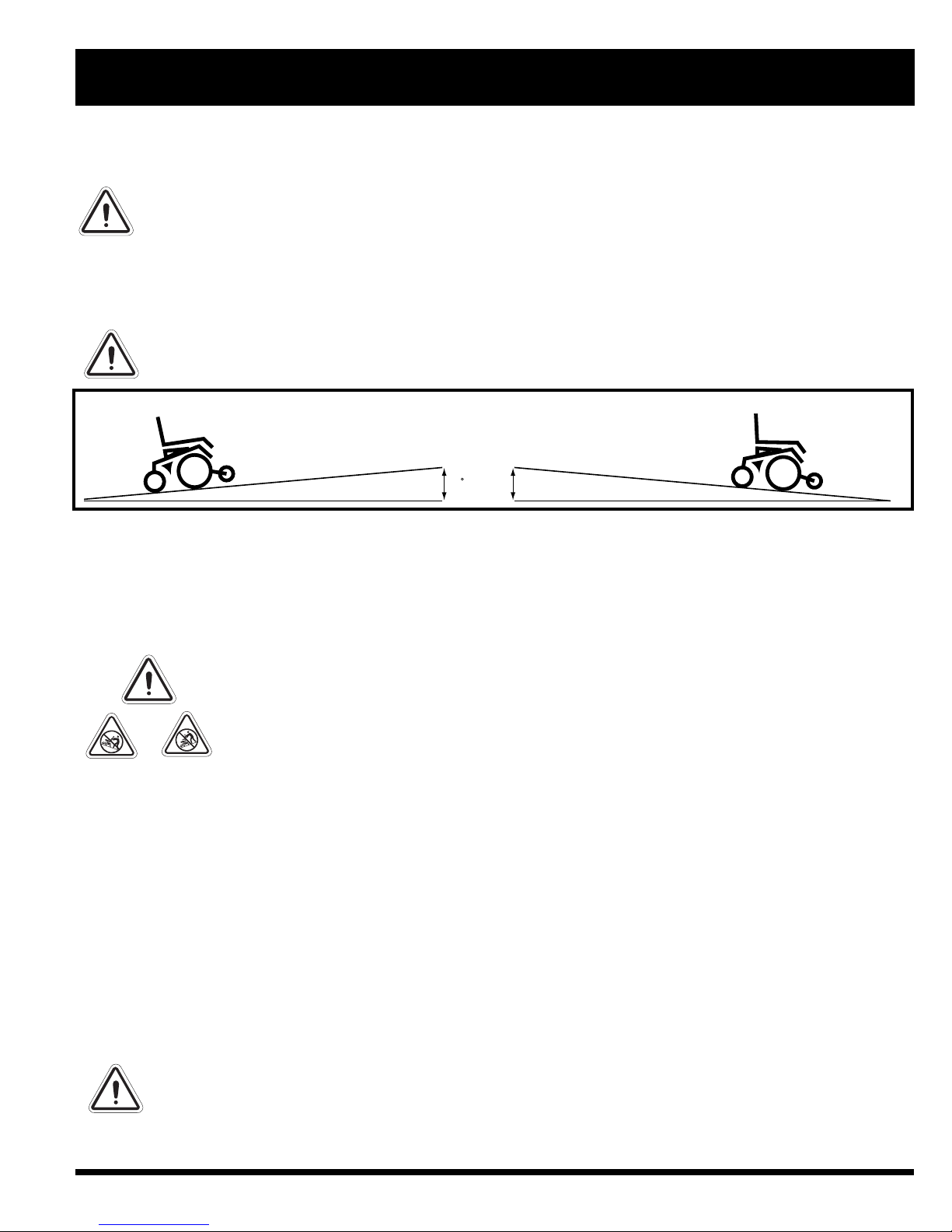

Incline Information
More and more buildings have ramps with specified degrees of inclination, designed for easy and safe access.
Some ramps may have turning switchbacks (180-degree turns) that require you to have good cornering skills on
your power chair.
Proceed with extreme caution as you approach the downgrade of a ramp or other incline.
Take wide swings with your power chair’s front wheels around any tight corners. If you do that, the power
chair’s rear wheels will follow a wide arc, not cut the corner short, and not bump into or get hung up on any
railing corners.
When driving down a ramp, keep the power chair’s speed adjustment set to the slowest speed setting to ensure
a safely controlled descent.
Avoid sudden stops and starts.
When climbing an incline, try to keep your power chair moving. If you must stop, start up again slowly and then
accelerate cautiously. When driving down an incline, set your power chair to the slowest speed setting and drive
in the forward direction only. If your power chair starts to move down the incline faster than you anticipated or
desired, allow it to come to a complete stop by releasing the joystick, then push the joystick forward slightly to
ensure a safely controlled descent.
WARNING! When on any sort of an incline or decline, never place the power chair in
freewheel mode while seated on it or standing next to it.
WARNING! When climbing an incline, do not zigzag or drive at an angle up the face of the
incline. Drive your power chair straight up the incline. This greatly reduces the possibility
of a tip or a fall. Always exercise extreme caution when negotiating an incline.
WARNING! You should not travel up or down a potentially hazardous incline (i.e., areas
covered with snow, ice, cut grass, or wet leaves).
WARNING! Never travel down an incline backward. Doing so may cause the power chair to
tip. Always exercise extreme caution when negotiating an incline.

Quantum Jazzy 1420 Series www.pridemobility.com 11
II. SAFETY
Figure 1. Maximum Safe Slope (Ascending and Descending)
WARNING! If your power chair is equipped with a reclining seatback, do not attempt to negotiate
inclines with the seat in a reclined position. Do not attempt to negotiate obstacles with the seat
in a reclined position unless an attendant is present to help stabilize the chair. Failure to heed
may result in the power chair tipping over.
WARNING! Even though your power chair is capable of climbing slopes greater than those
illustrated in figure 1, do not, under any circumstances, exceed the incline guidelines or any other
specifications presented in this manual. Doing so could cause instability in your power chair.
Pride recommends that the maximum slope of an incline you attempt to safely ascend or descend on your power
chair does not exceed 5° (8.7%). See figure 1.
WARNING! Any attempt to climb or descend a slope steeper than 5° (8.7%) may put your power
chair in an unstable position and cause it to tip.
Freewheel Mode
Your power chair is equipped with two manual freewheel levers to allow for manual maneuverability by a trained
attendant. For more information about how to place your power chair into and out of freewheel mode, see III.
“Your Power Chair.”
WARNING! Do not use your power chair in freewheel mode without an attendant present.
WARNING! Do not attempt to personally place your power chair in freewheel mode while
seated on it. Ask an attendant for assistance if necessary.
WARNING! Do not place your power chair in freewheel mode while on an incline or
decline. This could cause the chair to roll uncontrollably on its own.
Braking Information
Your power chair is equipped with two powerful brake systems:
Regenerative — uses electricity to rapidly slow the vehicle when the joystick returns to the center/stop position.
Disc Park Brake — activates mechanically after regenerative braking slows the vehicle to near stop, or when
power is removed from the system for any reason.
Cornering Information
While your power chair is equipped with rear caster wheels and front anti-tip wheels, excessively high cornering
speeds can still create the possibility of tipping. Factors which affect the possibility of tipping include, but are not
limited to: cornering speed, steering angle (how sharply you are turning), uneven road surfaces, inclined road
surfaces, riding from an area of low traction to an area of high traction (such as passing from a grassy area to a
paved area – especially at high speed while turning), and abrupt directional changes. High cornering speeds are
not recommended. If you feel that you may tip over in a corner, reduce your speed and steering angle (i.e., lessen
the sharpness of the turn) to prevent your power chair from tipping.
WARNING! When cornering sharply, reduce your speed and maintain a stable center of gravity. This
greatly reduces the possibility of a tip or fall. Always exercise common sense when cornering.
5 (8.7%)

12 www.pridemobility.com Quantum Jazzy 1420 Series
II. SAFETY
Public Streets and Roadways
WARNING! You should not operate your power chair on public streets and roadways. Be aware
that it may be difficult for traffic to see you when you are seated on your power chair. Obey all
local pedestrian traffic rules. Wait until your path is clear of traffic, and then proceed with
extreme caution.
Outdoor Driving Surfaces
Your power chair is designed to provide optimum stability under normal driving conditions—dry, level surfaces
composed of concrete, blacktop, or asphalt. However, Pride recognizes that there will be times when you will
encounter other surface types. For this reason, your power chair is designed to perform admirably on packed soil,
grass, and gravel. Feel free to use your power chair safely on lawns and in park areas.
Avoid driving on uneven terrain and/or soft surfaces.
Avoid tall grass that can entangle the running gear.
Avoid loosely packed gravel and sand.
If you feel unsure about a driving surface, avoid that surface.
Inclement Weather Precautions
Exposure of your power chair to inclement weather conditions should be avoided whenever possible. If suddenly
caught up in rain, snow, severe cold or heat while operating your power chair, proceed to shelter at the earliest
opportunity. Thoroughly dry your power chair before storing, charging, or operating your power chair.
PROHIBITED! Operating in rain, snow, salt, mist/spray conditions, and on icy/slippery surfaces
can have an adverse affect on the electrical system. Maintain and store your power chair in a
dry and clean condition.
WARNING! Prolonged exposure to hot or cold conditions may affect the temperature of
upholstered and non-upholstered items on the power chair, possibly resulting in skin irritation.
Exercise caution when using your power chair in extremely hot or cold conditions or when
exposing your power chair to direct sunlight for prolonged periods of time.
Stationary Obstacles (Steps, Curbs, etc.)
Proceed with extreme caution when driving near raised surfaces, unprotected ledges and/or drop-offs (curbs,
porches, stairs, etc.). Be sure your power chair is traveling perpendicular to any curb you may be required to
navigate.
To navigate up over a curb or stationary obstacle:
1. Approach the curb or obstacle slowly, and make sure the power chair is traveling perpendicular to the obstacle.
See figure 2.
2. Increase the forward speed just before the front wheels come in contact with the obstacle.
3. Reduce the forward speed only after the rear wheels have cleared the obstacle.
To navigate down a curb or stationary obstacle:
1. Approach the curb or obstacle slowly, and make sure the power chair is traveling perpendicular to the obstacle.
See figure 2.
2. Reduce the forward speed just before the front wheels come in contact with the obstacle.
3. Increase the forward speed only after the rear wheels have cleared the obstacle and you are once again on a level surface.
WARNING! Do not attempt to have your power chair climb or descend an obstacle that is higher
than 2 in. (5 cm) unless you have the assistance of an attendant.
WARNING! Do not attempt to have your power chair proceed backward down any step, curb, or
other obstacle. This may cause the power chair to tip.

Quantum Jazzy 1420 Series www.pridemobility.com 13
II. SAFETY
Stairs and Escalators
Power chairs are not designed to travel up or down stairs or escalators. Always use an elevator.
WARNING! Never use your power chair to negotiate steps or escalators.
Doors
Determine if the door opens toward or away from you.
Drive your power chair gently and slowly forward to push the door open. Or drive your power chair gently
and slowly backward to pull the door open.
Elevators
Modern elevators have a door edge safety mechanism that, when pushed, reopens the elevator door(s).
If you are in the doorway of an elevator when the door(s) begin to close, push on the rubber door edge or allow
the rubber door edge to contact the power chair and the door will reopen.
Use care that pocketbooks, packages, or power chair accessories do not become caught in elevator doors.
Lift/Elevation Products
If you will be traveling with your power chair, you may find it necessary to use a lift/elevation product to aid in
transportation. Pride recommends that you closely review the instructions, specifications, and safety information
set forth by the manufacturer of the lift/elevation product before using that product.
WARNING! Never sit on your power chair when it is being used in connection with any
type of lift/elevation product. Your power chair was not designed with such use in mind
and any damage or injury incurred from such use is not the responsibility of Pride.
Motor Vehicle Transport
Pride recommends that you do not remain seated in your power chair while traveling in a motor vehicle. The
power chair should be stowed in the trunk of a car or in the back of a truck or van with batteries removed and
properly secured. In addition, all removable power chair parts, including the armrests, seat, front riggings, con-
troller, and shrouds should be removed and/or properly secured during motor vehicle transport.
WARNING! Do not sit on your power chair while it is in a moving vehicle.
WARNING! Always be sure your power chair and its batteries are properly secured when it is
being transported. Batteries should be secured in an upright position and protective caps should
be installed on the battery terminals. Batteries should not be transported with any flammable or
combustible items.
Figure 3. Incorrect Curb ApproachFigure 2. Correct Curb Approach

14 www.pridemobility.com Quantum Jazzy 1420 Series
Positioning Belts
Your Quantum Rehab Provider, therapist(s), and other healthcare professionals are responsible for determining
your requirement for a positioning belt in order to operate your power chair safely.
WARNING! If you require a positioning belt to safely operate your power chair, make sure it is
fastened securely in order to reduce the possibility of a fall from the power chair.
WARNING! The positioning belt is not designed for use as a seat belt in a motor vehicle. Nor is
your power chair suitable for use as a seat in any vehicle. Anyone traveling in a vehicle should
be properly belted into seats approved by the vehicle manufacturer.
Batteries
In addition to following the warnings below, be sure to comply with all other battery handling information. For
more information about your power chair’s batteries, see VI. “Batteries and Charging.”
MANDATORY! Battery posts, terminals, and related accessories contain lead and lead
compounds. Wear goggles and gloves when handling batteries and wash hands after
handling.
WARNING! Power chair batteries are heavy. See specifications table. If you are unable
to lift that much weight, be sure to get help. Use proper lifting techniques and avoid
lifting beyond your capacity.
WARNING! Always protect the batteries from freezing and never charge a frozen
battery. Charging a frozen battery may result in damage to the battery.
WARNING! Connect your battery harnesses in the proper manner. RED (+) cables must
be connected to positive (+) battery terminals/posts. BLACK (-) cables must be
connected to negative (-) battery terminals/posts. Protective caps should be installed
over all battery terminals. REPLACE cables immediately if damaged.
Removable Parts
WARNING! Do not attempt to lift or move a power chair by any of its removable parts, including
the armrests, seat, front riggings, controller, and shrouds.
Preventing Unintended Movement
WARNING! If you anticipate being seated in a stationary position for an extended period of time,
turn off the power. This will prevent unexpected motion from inadvertent joystick contact. This
will also eliminate the possibility of unintended chair movement from electromagnetic (EM)
sources.
Reaching and Bending
Never reach, lean, or bend while driving your power chair. If it is absolutely necessary to reach, lean, or bend
while seated on your power chair, it is important to maintain a stable center of gravity and keep the power chair
from tipping. Pride recommends that the power chair user determine his/her personal limitations and practice
bending and reaching in the presence of a qualified healthcare professional.
WARNING! Do not bend, lean, or reach for objects if you have to pick them up from the
floor by reaching down between your knees or if you have to reach over the back of the
seat. Movements such as these may change your center of gravity and the weight
distribution of the power chair, possibly causing your power chair to tip.
WARNING! Keep your hands away from the tires when driving. Be aware that loose
fitting clothing can become caught in drive tires.
II. SAFETY

Quantum Jazzy 1420 Series www.pridemobility.com 15
II. SAFETY

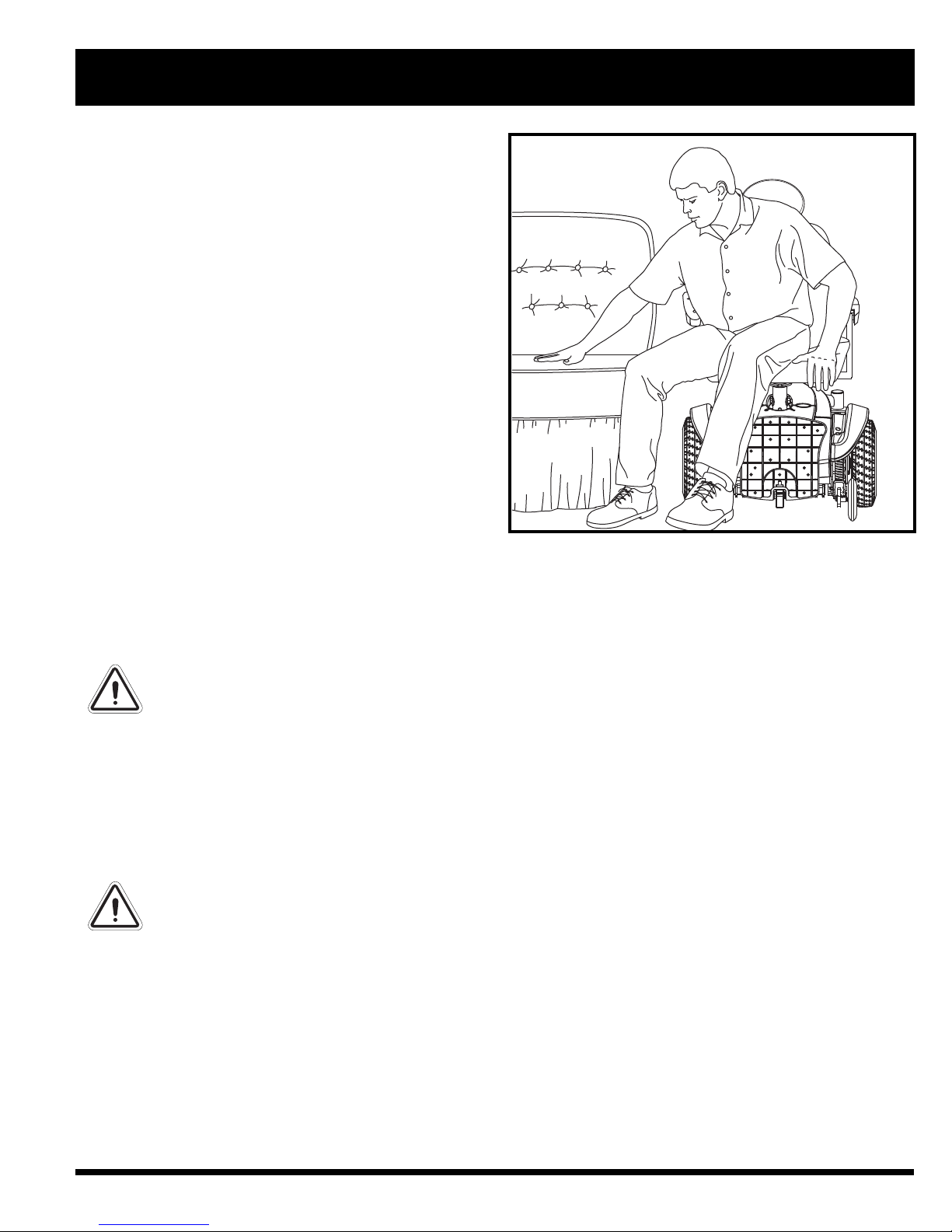

Figure 4. Ideal Transfer Position
Transfers
Transferring onto and off of your power chair requires
a good sense of balance. Always have an attendant or
healthcare professional present while learning to
properly transfer yourself.
To eliminate the possibility of injury, Pride recom-
mends that you or a trained attendant perform the fol-
lowing tasks before attempting a transfer:
Turn off the power to the controller.
Ensure your power chair is not in freewheel mode.
See III. “Your Power Chair.”
 Turn the caster wheels toward the transfer destina-
tion to improve power chair stability during transfer.
Make sure both armrests are flipped up or
removed from your power chair.
Flip up the foot platform or move the leg rests
aside; this will help to keep your feet from getting
caught on the front rigging during the transfer.
Reduce the distance between your power chair and
the object you are transferring onto.
WARNING! Avoid putting all of your weight on the front riggings. Such use may cause the power
chair to tip.
Prescription Drugs/Physical Limitations
Users must exercise care and common sense when operating a power chair. This includes awareness of safety
issues when taking prescribed or over-the-counter drugs or when the user has specific physical limitations.
WARNING! Consult your physician if you are taking prescribed or over-the-counter medication
or if you have certain physical limitations. Some medications and limitations may impair your
ability to operate your power chair in a safe manner.
WARNING! Before transferring, position yourself as far back as possible in the power chair seat
to prevent the power chair from tipping forward during transfer.
WARNING! Avoid putting all of your weight on the power chair armrests and do not use the
armrests for weight bearing purposes, such as transfers. Such use may cause the power chair
to tip, resulting in a fall from the power chair.
WARNING! The controller and controller bracket are non-load bearing items on your power
chair. Do not use the controller or controller bracket for weight bearing purposes, such as
transfers. Such use may cause damage to these components, resulting in a fall from the power
chair and personal injury.

16 www.pridemobility.com Quantum Jazzy 1420 Series
II. SAFETY
Alcohol/Smoking
The power chair user must exercise care and common sense when operating his/her power chair. This includes
awareness of safety issues while under the influence of alcohol or while smoking.
WARNING! Do not operate your power chair while you are under the influence of alcohol, as this
may impair your ability to operate your power chair in a safe manner.
WARNING! Pride strongly recommends that you do not smoke cigarettes while seated in your
power chair, although the power chair has passed the necessary testing requirements for
cigarette smoking. You must adhere to the following safety guidelines if you decide to smoke
cigarettes while seated in your power chair.
 Do not leave lit cigarettes unattended.
 Keep ashtrays a safe distance from the seat cushions.
 Always make sure cigarettes are completely extinguished before disposal.
Electromagnetic and Radio Frequency Interference (EMI/RFI)
WARNING! Laboratory tests have shown that electromagnetic and radio frequency waves can
have an adverse affect on the performance of electrically-powered mobility vehicles.
Electromagnetic and Radio Frequency Interference can come from sources such as cellular phones, mobile two-
way radios (such as walkie-talkies), radio stations, TV stations, amateur radio (HAM) transmitters, wireless com-
puter links, microwave signals, paging transmitters, and medium-range mobile transceivers used by emergency
vehicles. In some cases, these waves can cause unintended movement or damage to the control system. Every
electrically-powered mobility vehicle has an immunity (or resistance) to EMI. The higher the immunity level, the
greater the protection against EMI. This product has been tested and has passed at an immunity level of 20 V/m.
WARNING! Be aware that cell phones, two-way radios, laptops, and other types of radio
transmitters may cause unintended movement of your electrically-powered mobility vehicle due
to EMI. Exercise caution when using any of these items while operating your mobility vehicle
and avoid coming into close proximity of radio and TV stations.
WARNING! The addition of accessories or components to the electrically-powered mobility
vehicle can increase the susceptibility of the vehicle to EMI. Do not modify your power chair in
any way not authorized by Pride.
WARNING! The electrically-powered mobility vehicle itself can disturb the performance of other
electrical devices located nearby, such as alarm systems.
NOTE: For further information on EMI/RFI, go to the Resource Center on www.pridemobility.com. If unin-
tended motion or brake release occurs, turn your power chair off as soon as it is safe to do so. Contact your
authorized Quantum Rehab Provider to report the incident.

Quantum Jazzy 1420 Series www.pridemobility.com 17
THE QUANTUM JAZZY 1420 SERIES POWER CHAIR
Your power chair has two main assemblies: the seat and the power base. See figures 5 and 6. Typically, the seat
assembly includes the armrests, seatback, and seat base. The power base assembly includes two motor/brake
assemblies, two drive wheels, two anti-tip wheels, two caster wheels, two batteries, and wiring harnesses.
SEATBACK
CONTROLLER
ARMREST
BODY SHROUD
ANTI-TIP WHEELS
DRIVE WHEEL
CASTER WHEEL
Figure 5. The Quantum Jazzy 1420 Series Power Chair
POWER BASE
ASSEMBLY
SEAT ASSEMBLY
FRONT RIGGING
(SWING-AWAY
FOOTRESTS
SHOWN)
SEAT BASE
III. YOUR POWER CHAIR

18 www.pridemobility.com Quantum Jazzy 1420 Series
III. YOUR POWER CHAIR
BATTERIES
REAR SEAT TOWER LOCATION
(TOWER NOT SHOWN)
REAR SEAT TOWER
LOCATION (TOWER NOT SHOWN)
ELECTRONICS TRAY
FRONT SEAT TOWER LOCATION
(TOWER NOT SHOWN)

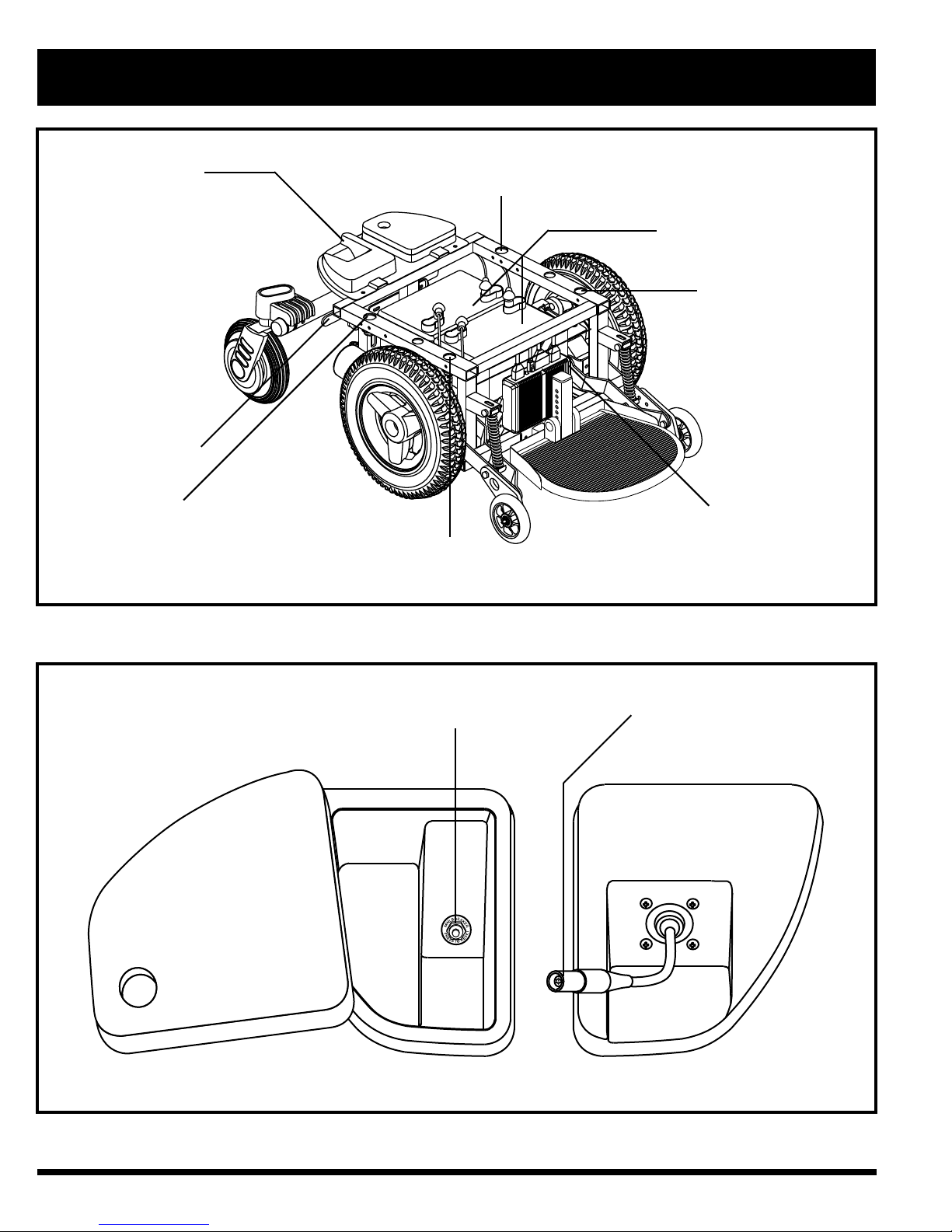

Figure 6. The Quantum Jazzy 1420 Series Power Base (Shroud Removed)
FREEWHEEL LEVER
MAIN CIRCUIT BREAKER CONTROLLER CONNECTOR
Figure 7. The Quantum Jazzy 1420 Series Electronics Tray
POWER MODULE
FRONT SEAT TOWER
LOCATION (TOWER NOT
SHOWN)

Quantum Jazzy 1420 Series www.pridemobility.com 19
Electronics Tray
The electronics tray is located on the back of the power base. See figures 6 and 7.
Main Circuit Breaker: The main circuit breaker is a safety feature built into your power chair. When the batteries
and the motors are heavily strained (e.g., from excessive loads), the main circuit breaker trips to prevent damage
to the motors and the electronics. If the circuit trips, allow your power chair to “rest” for approximately one
minute. Next, push in the circuit breaker reset button, turn on the controller, and continue normal operation. If the
main circuit breaker continues to trip repeatedly, contact your authorized Quantum Rehab Provider.
Controller Connector: This is where the controller connects to the power base. Each controller uses a different
type of harness. Regardless of which type of controller is used, the harness must be secured to the seat assembly
and not allowed to drag on the floor.
Active-Trac Suspension
The Quantum Jazzy 1420 is equipped with Active-Trac Suspension (ATS). ATS is a system designed to make the
power chair traverse different types of terrain and obstacles while maintaining smooth operation. With ATS, the
front anti-tip wheels work in conjunction with the motor suspension to help you maneuver over obstacles in excess
of 2 in. (5 cm) in height.
As the front anti-tip wheels come in contact with an obstacle, the front anti-tip wheel assembly is drawn upward.
At the same time, the motors are forced downward. This allows the motors to push the power chair over an
obstacle without the possibility of becoming “hung up.”
ATS also helps in day-to-day operating conditions. For instance, when you release the joystick, the power chair
begins to slow down. As the chair slows down, the front anti-tip wheels will automatically drop toward the ground.
This will reduce the forward tip that is typically encountered with mid-wheel drive chairs.
III. YOUR POWER CHAIR

20 www.pridemobility.com Quantum Jazzy 1420 Series
Manual Freewheel Lever
For your convenience, your power chair is equipped with a manual freewheel lever. See figures 8 and 9. This lever
allows you to disengage the drive motors and maneuver the chair manually.
WARNING! Do not use your power chair while the drive motors are disengaged! Do not
disengage the drive motors when your power chair is on an incline or decline, as the
unit could roll on its own! Only engage the freewheel mode when on a level surface.
WARNING! It is important to remember that when your power chair is in freewheel
mode, the braking system is disengaged.
To operate the manual freewheel lever:
1. Pull the manual freewheel lever out and rotate clockwise for freewheel mode (drive disengaged). See figure 8.
2. Rotate the manual freewheel lever counterclockwise for drive mode (drive motors engaged). See figure 9.
If a lever is difficult to move in either direction, slightly rock the power chair back and forth. The lever should
then move to the desired position.
WARNING! Do not use the freewheel lever handle as a tie-down point to secure this product.
III. YOUR POWER CHAIR
Figure 8. Freewheel Mode (Drive Disengaged) Figure 9. Drive Mode (Drive Engaged)
