Pro-Elec PEL00826 User manual

1
IMPORTANT SAFETY INFORMATION
Please read these instructions carefully before use and retain for future reference.
• When using electrical appliances basic safety precautions should always be
followed.
• Check that the voltage indicated on the rating plate corresponds with that of the
local network before connecting the appliance to the mains power supply.
Safety Information for Installation and Operation
• Avoid excessive force when installing.
• Always install on a surface that can support the weight of the xture.
Plastic Garden Lamp
Model: PEL00826

2
INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF
ELECTRICAL & ELECTRONIC EQUIPMENT.
When this product has reached the end of its life it must be treated as Waste Electrical
& Electronic Equipment (WEEE). Any WEEE marked products must not be mixed with
general household waste, but kept separate for the treatment, recovery and recycling
of the materials used. Contact your local authority for details of recycling schemes in
your area.
Made in China. PR2 9PP
Man Rev 1.0
SPECIFICATIONS
CLEANING AND MAINTENANCE
• Clean only with a soft, dry cloth. Do not use any chemicals, abrasives or solvents
that may damage the product.
Note: the light tting can be assembled inverted as
required.
• Attach the capping to the main assembly
Fit an appropriate lamp E27 Max 11W (not supplied).
• Assemble the diffuser and t to the capping.
• Fit the nial to the bottom of the diffuser.
• Restore the mains supply.
• Turn off or isolate the mains supply.
• Feed the supply wiring through a suitable
access point in the base plate.
• Mount the product base onto the wall using
a suitable mounting method ensuring the
directional marking UP is followed.
• Connect the positive supply wire (brown or
red) to the terminal marked L.
• Connect the neutral supply wire (blue or black) to the
terminal marked N.
• Fit the main assembly onto the base.
• Assemble the diffuser by sliding in the glazing
sheets.
• Attach the diffuser by sliding it into position and
turning it to locate securely.
• Fit an appropriate lamp E27 Max 11W (not supplied).
• Attach the capping onto the diffuser by engaging the
lugs and turn it to locate securely.
• Fit the nial onto the capping by turning it until it
locks into place.
• Restore the mains supply.

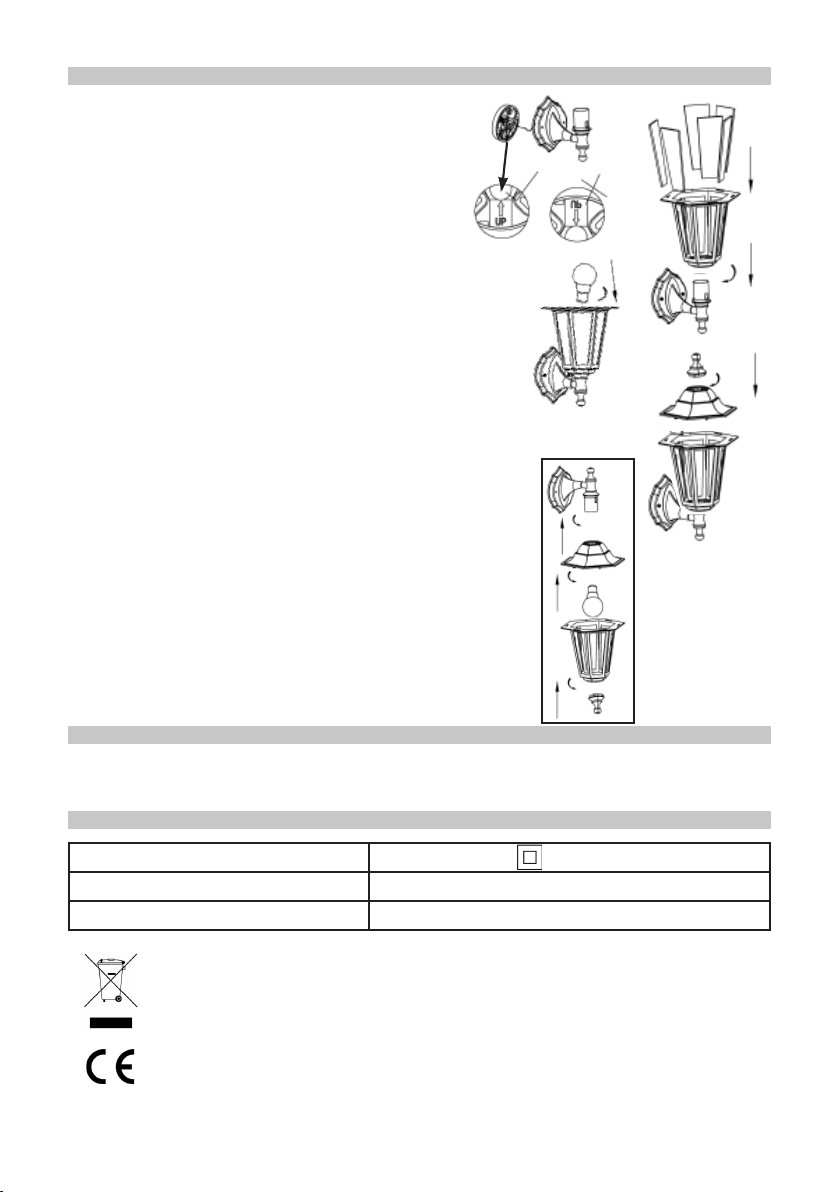

INSTALLATION
3
4
O
P
1
2
Alternative
Assembly
Voltage 220-240V~50Hz
IP rating IP44
Lamp type E27 11W Fluorescent or LED
