Pro-face LogiTouch GLC150-BG41-RSFL-24V User manual

1
DANGERS
When Designing your LogiTouch System:
- Be sure to design your LogiTouch control system so that in the event of a main
power supply failure or a LogiTouch accident, this system’s overall safety integ-
rity will be maintained. If this is not done, incorrect output signals or a LogiTouch
malfunction may cause an accident.
(1) Interlock circuits, etc. designed to interrupt or oppose normal machine move-
ment (i.e. Emergency Stop, General Protection, forward and reverse rotation,
etc.), as well as those designed to prevent machine damage (i.e. for upper,
lower and traverse movement limit positioning, etc.) should all be designed to
be located outside of the LogiTouch.
(2) Whenever the LogiTouch generates a “Watchdog Timer Error”, LogiTouch
operation will halt. Also, when an error occurs in Input/Output control areas
that the LogiTouch cannot detect, it is possible for unexpected equipment
operation to occur there. As a result, to prevent unsafe or unexpected equip-
ment operation, a “Failsafe Circuit” should be created which is completely
external to the LogiTouch.
(3) If an external unit’s relay or transistor malfunctions, causing an output (coil)
to remain either ON or OFF, a major accident can occur. To prevent this, be
sure to set up external watchdog circuits that will monitor vital output signals.
- Be sure to design a circuit that will supply power to the LogiTouch’s I/O unit(s)
before starting up the LogiTouch. If the LogiTouch’s internal program enters
RUN mode prior to the I/O unit’s load control power turning ON, an incorrect
output (signal) or malfunction could cause an accident to occur.
- Be sure to design a program that will ensure the safety of your system in, in the
event of a LogiTouch display or control unit malfunction, or in the event of either
a data transmission error or power failure between the LogiTouch and any con-
nected unit(s). These types of problems can lead to an incorrect output (signal) or
malfunction, which could thereby cause an accident to occur.
- Do not create touch panel switches which could possibly endanger the safety of
humans or equipment. This is due to the possibility of a malfunction in the
LogiTouch or its cable(s), causing the output of a signal that could result in a
major accident. All of a system’s major, safety-related switches should be desig-
nated to be operated separately from the LogiTouch.
- Be sure to design your system so that equipment will not malfunction due to a
communication fault between the LogiTouch and its host controller. This is to
prevent any possibility of bodily injury or material damage.
- Do not use the LogiTouch with aircraft control devices or medical life support
equipment, central trunk data transmission (communication) devices, nuclear
power control devices, or medical life support equipment, due to these devices
inherent requirements of extremely high levels of safety and reliability.
- When using the LogiTouch with transportation vehicles (trains, cars and ships),
disaster and crime prevention devices, various types of safety equipment, non-
life support related medical devices, etc. be sure to use redundant and/or failsafe
system designs ensure the proper degree of reliability and safety.

2
WARNINGS
- After the LogiTouch’s backlight burns out, unlike the LogiTouch’s “Standby
Mode”, the touch panel is still active. If the operator fails to notice that the back-
light is burned out and touches the panel, a potentially dangerous machine opera-
tion error can occur.
1) If your LogiTouch is not set to “Standby Mode” and the screen has gone
blank, your backlight is burned out.
2) Or, if your LogiTouch is set to Standby Mode, but touching the screen does
not cause the display to reappear, your backlight is burned out.
Also, to prevent an accidental machine operation error, Pro-face suggests you use
the LogiTouch’s built-in “USE TOUCH PANEL AFTER BACKLIGHT BURN-
OUT” feature, that will automatically detect a burnout and disable the touch screen.
Installation:
- High voltage runs through the LogiTouch. Except for replacing the backlight,
never disassemble the LogiTouch, otherwise an electric shock can occur.
- Do not modify the LogiTouch unit. Doing so may cause a fire or an electric shock.
- Do not use the LogiTouch in an environment where flammable gasses are present,
since operating the LogiTouch may cause an explosion.
Wiring:
- To prevent electric shock or equipment damage, prior to installing or wiring the
LogiTouch, be sure that the LogiTouch’s power cord is unplugged from the power
supply.
- Be sure to reattach the LogiTouch terminal block's plastic cover after completing any
terminal wiring. If this cover is not reattached, an electric shock could easily occur.
- High voltage runs through the LogiTouch. Except for changing the backlight, do
NOT attempt to open the LogiTouch, since there is a possibility of an electric shock.
- Do not use power levels with the LogiTouch that are outside of the LogiTouch’s
specified power range. Doing so may cause a fire, electric shock or damage the
LogiTouch.
Operation and Maintenance:
- Do not touch a live power terminal. This could cause a shock or machine malfunction.
- Due to the danger of an electric shock, be sure to confirm that the LogiTouch’s
power cord is unplugged before either cleaning the LogiTouch or attaching/de-
taching the power terminal block screws.
- When replacing the LogiTouch’s backlight, be sure to unplug the unit’s power
cord to prevent a shock, and wear gloves to prevent being burned.
- The LogiTouch uses a lithium battery for backing up its internal clock and con-
trol memory data. If the battery is incorrectly replaced (i.e. the + and - sides are
reversed), the battery may explode. Therefore, before changing the battery, Pro-
face recommends that you contact your local LogiTouch distributor for battery
replacement instructions.
- Do not modify the LogiTouch’s internal parts or wiring, since doing so may lead
to either a shock or fire.

3
CAUTIONS
Wiring Layout:
- Be sure that all LogiTouch input/output signal lines are isolated from all power
wiring or power cables, via a separate wiring duct. This is to prevent excessive
noise, which can cause a unit malfunction.
Installation:
- Be sure all data cables attached to the LogiTouch are securely connected. If all
connector pins do not make complete contact, incorrect input or output signals
can result.
General Wiring:
- To prevent shocks or malfunctions, LogiTouch’s FG (earth) wire should be
grounded according to the following:
1) Be sure to use a maximum grounding resistance of 100Ωor less.
2) A grounding wire of 2mm2or larger should be used.
- Be sure to confirm that the LogiTouch's operating voltage and wiring terminal
locations are correct. If either are incorrect, it can cause a fire or accident.
- Be sure to secure all wiring terminal screws in place with the designated torque.
Screws and terminals that become loose can cause a short circuit, fire or accident.
- Be sure that metal filings or wiring remnants do not fall inside the LogiTouch,
since they can cause a fire, accident, or malfunction.
LogiTouch Operation and Maintenance:
- Be sure to read the LogiTouch’s manual and on-line help information carefully
before performing program changes, forced output, or utilizing the RUN, STOP
or PAUSE commands while the LogiTouch is in operation. Mistakes concerning
the use of these items can cause an accident or equipment or damage.
- The LogiTouch's liquid crystal display contains a powerful irritant and if for any
reason the panel is damaged and this liquid enters your eye, flush your eye for 15
minutes with running water and contact a physcian.
LogiTouch Unit Disposal:
- Be sure to dispose of the LogiTouch unit in a manner appropriate to your country’s
industrial machinery disposal standards.

4
UL/c-UL(CSA) Application Notes
CE Marking Notes
The GLC150-BG41-RSFL-24V is a UL/c-UL listed product.
(UL file No. E214883)
This unit conforms as a component to the following standards:
UL508
Industrial Control Equipment
UL1604
Electrical Equipment for Use in Class I and II Division 2 and Class III Hazardous (Clas-
sified) Locations
CAN/CSA-C22.2, Nos.1010
Standard for Safety of Information Technology Equipment, including Electrical Busi-
ness Equipment
GLC150-BG41-RSFL-24V (UL Registration Model : 2980036-03)
<Cautions>
If the LogiTouch is installed so as to cool itself naturally, be sure to install it in a vertical
panel. Also, be sure that the LogiTouch is mounted at least 100mm away from adjacent
structures and other equipment, otherwise, the heat generated by the LogiTouch's inter-
nal components may become higher than that allowed by UL standard requirements.
The LogiTouch shall be separated from the mains by double or reinforced insulation.
UL1604 Conditions of Acceptability and Handling Cautions:
1.Power, input and output (I/O) wiring must all be in accordance with Class I, Division 2
wiring methods, Article 501-4 (b) of the National Electrical Code, NFPA 70, or as speci-
fied in Section 18-152 of the Canadian Electrical Code for units installed within Canada,
and in accordance with that location's authority.
2.Suitable for use in Class I, Division 2, Groups A, B, C and D hazardous locations, or
nonhazardous locations only.
3.WARNING: Explosion hazard - substitution of components may impair suitability for
Class I, Division 2.
4.WARNING: Explosion hazard - do not disconnect equipment unless power has been
switched OFF or the area is known to be nonhazardous.
5.WARNING: Explosion hazard - when in hazardous locations, turn OFF power before
replacing or wiring modules.
The GLC150-BG41-RSFL-24V is a CE marked, EMC compliant product. This unit also
conforms to EN55011 Class A, EN50082-2 directives.
For detailed CE marking information, please contact your local LogiTouch distributor.
CNS Notes
The GLC150-BG41-RSFL-24V conforms as a component to the following standards:
• CNS 13438 (Class A)
<Cautions>
The LogiTouch unit is designated as Class A industrial equipment. Therefore, when
using this unit in a residential area, be careful to avoid electromagnetic interference
from nearby home appliances.

5
Package Contents
The following items are included in the LogiTouch's package. Before using the
LogiTouch, please confirm that all items shown here are present.


Installation Fasteners (4)
This unit has been carefully packed, with special attention to quality. However,
should you find any of the items shown here to be damaged or missing, please
contact your local LogiTouch distributor immediately.


LogiTouch Type-C (1)
(GLC150-BG41-RSFL-24V)


Installation Guide (1)
<This Guide>
Option Items (sold separately)


LogiTouch Series
User Manual
(GLC150-MM01)


Flex Network Cables


Logic Program Developer Software
LogiTouch Editor


Data Transfer Cable (GPW-CB02)
50m FN-CABLE2050-31-MS
200m FN-CABLE2200-31-MS


External Communication Unit Connec-
tion User Manual
(GPW-MC50M)
Phoenix Contact MC1, 5/6-STF-3,81
Digital Elec. Corp. FN-IFCN01
(5 pieces)


Maintenance Option
Flex Network I/F Connectors
1Part Names

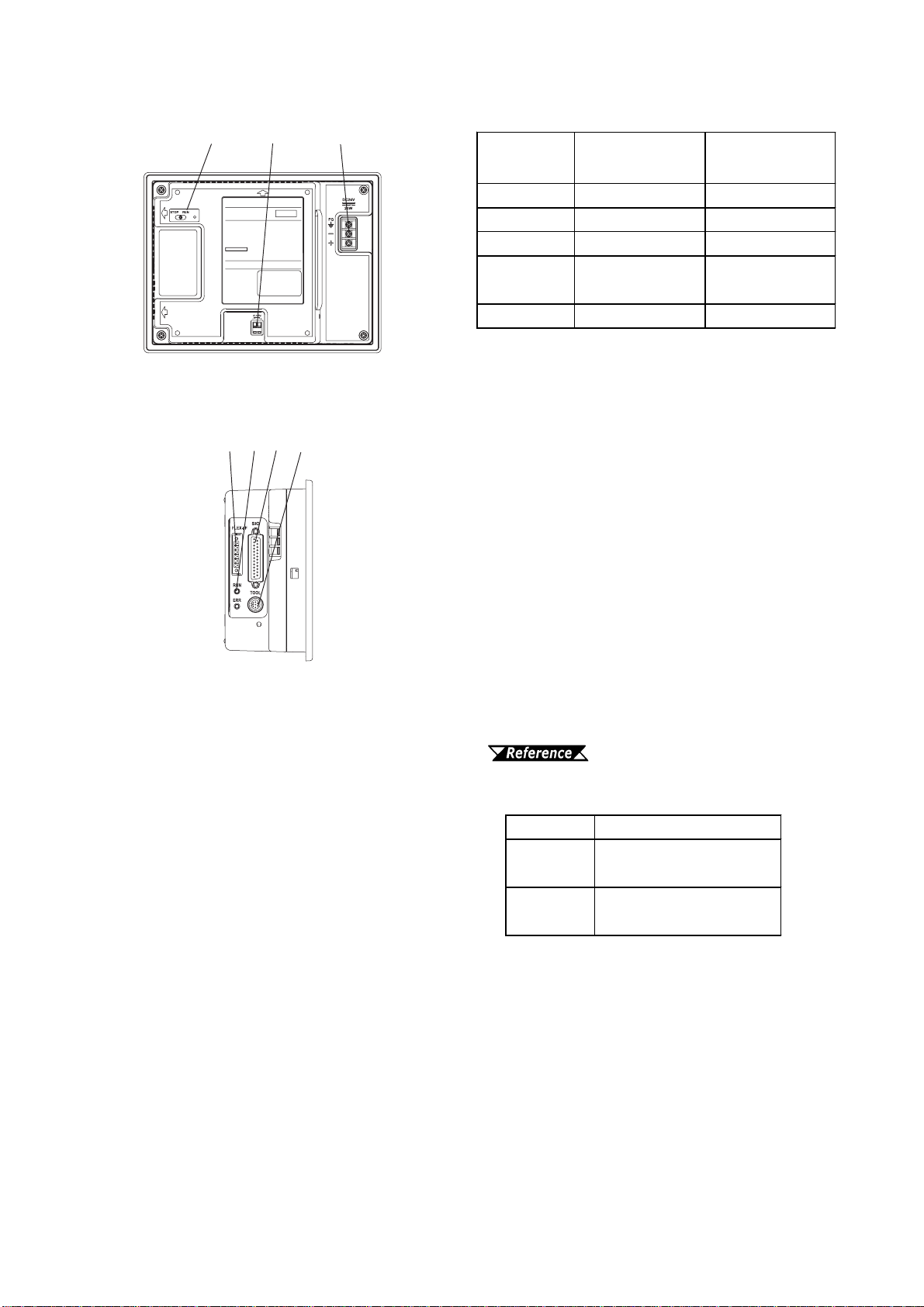

The LogiTouch Type-C’s part names and their functions are explained below.
A : Display: Displays controller and user-
created screen data.
B : Touch Panel : Performs touch-initiated
screen change operations and sends data
to controller.
A,B
C

6
IJ
HD
EF
G
*1Operation mode includes Display and touch key
features.
*2Includes the performance of logic program fea-
tures.
D : Power Input Terminal Block : The input
and ground terminals for the DC power
cable.
E : External Serial I/F : RS-232C/RS-422 in
terface. Connects a controller.
F : Tool Connector : Data Transfer cable is
connected here.
G : RUN/STOP Switch (LED lights during
RUN mode.) : RUN - Indicates the logic
program is operating.
STOP - Indicates the logic program has
stopped.
H : Alarm Output : Turns OFF (Releases) the
designated contact when a major or watch
dog error occurs.
Alarm Output Circuit
I : Flex Network Connector
J : Flex Network LED :
Operation
Mode*1 Controller Operation Mode*2 LED Color
OFFLINE STOP Green - Constant
In Operation RUN Green - Constant
In Operation STOP Green - Flashing
In Operation Backlightburnout
has occurred Green / Red - Constant
In Operation Major Error Red - Constant
Status LED Indicates
RUN
(Green) ON when communication is normal
ERR
(Red) ON when an error occurs in a connected I/O unit
C : Status LED :


Alarm Output Circuit
Turning the LT unit ON will start the unit’s system software and the alarm out-
put circuit’s relay. When a major error triggers a watchdog alarm, however, this
relay will turn OFF. Since an undefined LogiTouch input or output condition
can occur, be sure to design an external failsafe circuit that will monitor the
output of this relay.

7
3Dimensions

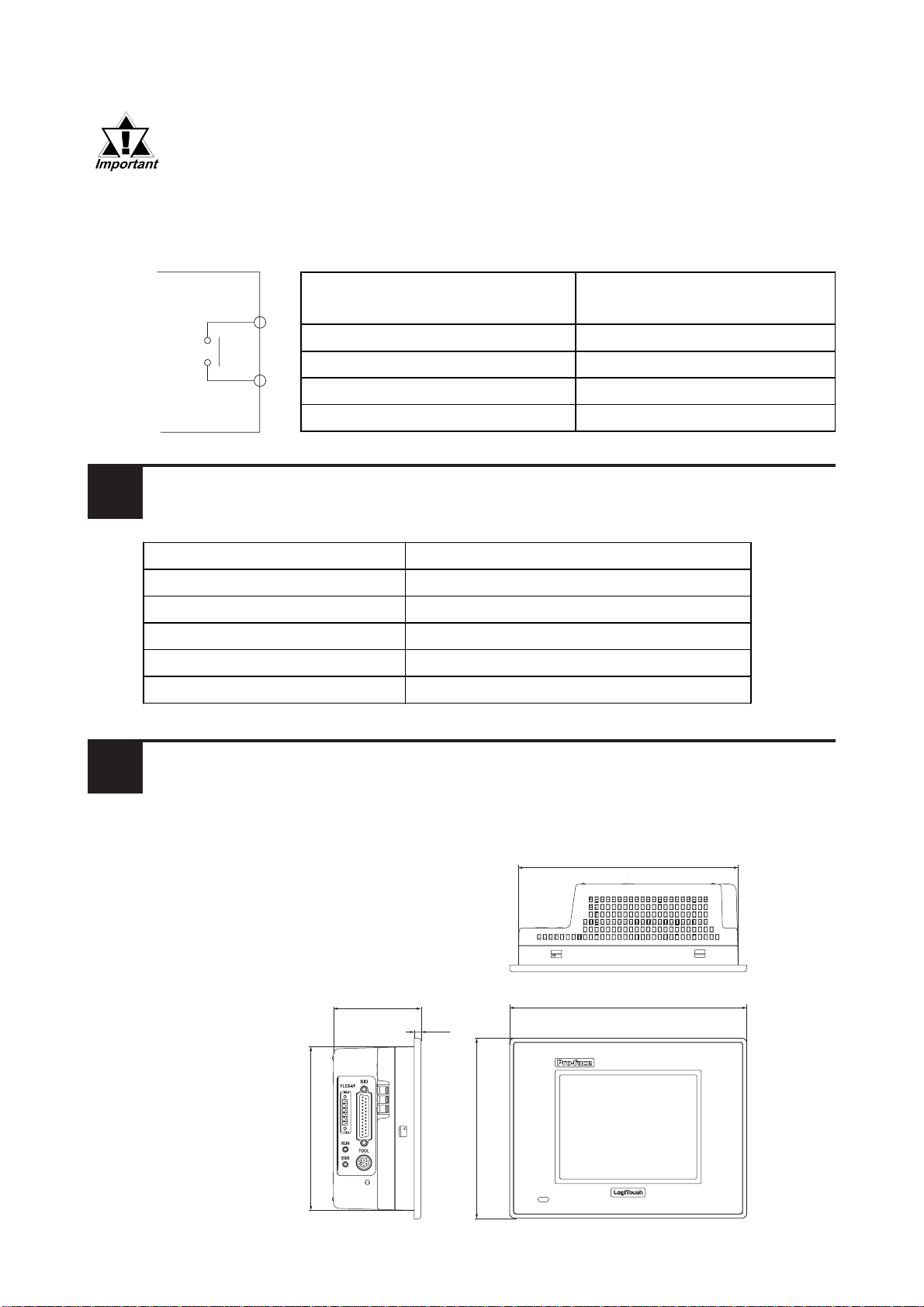

The GLC150-BG41-RSFL-24V unit dimensions are as follows.
ALARM
This relay switch remains OFF until the LT unit’s system software
completes its startup routine. During this startup period, this external
circuit must be informed that the LT is not yet operational.
Be sure to design a hold timer circuit that will start operations after
the startup routine is completed, or create an alarm monitoring sys-
tem that will monitor the LT unit’s circuits.
ContactRating 0.15A, AC125V (Resistance Load)
0.6A, DC24V (Resistance Load)
Operating Time (SetTime at20oC) 4ms or less
Recover Time (ResetTime at20oC) 4ms or less
Minimum switching load 1mA / DC5V
Initial ContactResistance 100mΩor less
2General Specifications
Rated Voltage DC24V
Voltage Supply Range DC20.4 to DC28．8V
AmbientOperating Temperature 0℃to 50℃
AmbientHumidity 20％RH to 85％RH (no condensation)
Atmospheric Pressure 800hPa to 1114hPa (2000 meter or lower)
Atmosphere Pollution Degree 2
75.8 [2.98] 6 [0.24]
141.2 [5.56]
207 [8.15]
157 [6.18]
191.2 [7.53]
(Unit:mm [in.] : excluding projections)

8


Serial Interface
RS-232C and RS-422 serial interface. Used to connect with a host (PLC).
Pin Arrangement Pin No. Signal Condition
1FGFrameGround
2 SD Send Data(RS-232C)
3 RD Receive Data (RS-232C)
4 RS RequestSend (RS-232C)
5 CS Clear Send (RS-232C)
6 NC No Connection
7 SG Signal Ground
8 CD Carrier Detect (RS-232C)
9 TRMX Termination (RS-422)
10 RDA Receive Data A (RS-422)
11 SDA Send Data B (RS-422)
12*1 RESERVE RESERVE
13*1 RESERVE RESERVE
14 VCC 5V±5% Output 0.25A
15 SDB Send Data B (RS-422)
16 RDB Receive Data B (RS-422)
17 NC No Connection
18 CSB Clear Send B (RS-422)
19 ERB Enable Receive B (RS-422)
20 ERB Enable Receive B (RS-232C)
21 CSA Clear Send A (RS-422)
22 ERA Enable Receive A (RS-422)
23 NC No Connection
24 NC No Connection
25 NC No Connection
Recommended Connector:Dsub 25 pin plug XM2A-2501 <made by OMRON Corp.>
Recommended Cover :Dsub25pinCover XM2S-2511<made byOMRON Corp.>
Use Jack Screw XM2Z-0071 <made by OMRON Corp.>
when needed.
Recommended Cable :CO-MA-VV-SB5Px28AWG<madebyHITACHICableLtd.>
*1 As pin no.12 and 13 are reserved, do not connect anything with them.
Use M2.6 x 0.45 pitch set screws to attach the cabler to the LogiTouch unit.
When connecting to external controllers, refer to the “LogiTouch
External Communication Unit Connection Manual”(included in
the “Logic Program Developer Software LogiTouch Editor”)
4Interfaces

9


Flex Network Interface
Connect a Flex Network unit to this interface.
6
5
4
3
2
1
Pin Arrangement Pin No. Signal
6 CH2 Shielded Line (SLD)
5 CH2 Communication Data (TR - )
4 CH2 Communication Data (TR + )
3 CH1Shielded Line(SLD)
2 CH1 Communication Data (TR - )
1 CH1 Communication Data (TR + )
For further information about Flex Network, or connectable Flex
Network I/O units, see the Flex Network User Manual.
5Installation
Before installing the LogiTouch into a cabinet or panel, check that
the installation gasket is securely attached to the unit.


Confirm the Installation Gasket’s Positioning
Rear panel
of LogiTouch Gasket
Recommended Connector : MC1, 5/6-STF-3,81 (Made by Phoenix Contact)
FN-IFCN01 (Maintenance Option / Digital Electron-
ics Corporation)*1
*1 A set of 5 pieces for MC1,5/6-STF-3,81

10


Create a Panel Cut and insert the LogiTouch into the panel from the front
Unit:mm [in.]


Attach the Installation Fasteners from Inside the Panel
The following figures show the four (4) fastener insertion slot locations. Insert
each fastener’s hook into the slot and pull it back until the hook catches.
Insertion Slots
Panel
Hook
• Tightening the screws with too much force can damage the
LogiTouch's plastic case.
• The necessary torque is 0.5Nm.
1.6 to 5.0
[0.06 to 0.2]
191.5 [7.54 ]
+1
–0
141.5 [5.57 ]
+1 0
+0.04
0
+0.04 0
under 4-R3

11
6Wiring
• To preventan electricshock,prior toconnectingtheLogiTouch’spower
cordterminalsto thepowerterminalblock,besurethat theLogiTouch’s
power supply is turned OFF, via a breaker, or similar unit.
•The GLC150-BG41-RSFL-24V unit is designed to use only DC24V
input. Any other power level can damage both the LogiTouch and
the power supply.
• To prevent an electric shock or equipment damage, be sure to reattach
the plastic cover to the terminal block after completing any wiring.
WARNINGS
• To avoid a short caused by loose ring terminals, be sure to use
ring terminals with an insulating sleeve.*1
• When the FG terminal is connected, be sure the wire is grounded. Not
grounding the LogiTouch unit will result in excess noise and vibration.
• Wherever possible, use thick wires (max. 2 mm2) for power terminals, and
twist the wire ends before attaching the ring terminals.
• Be sure to use the following size ring terminals.



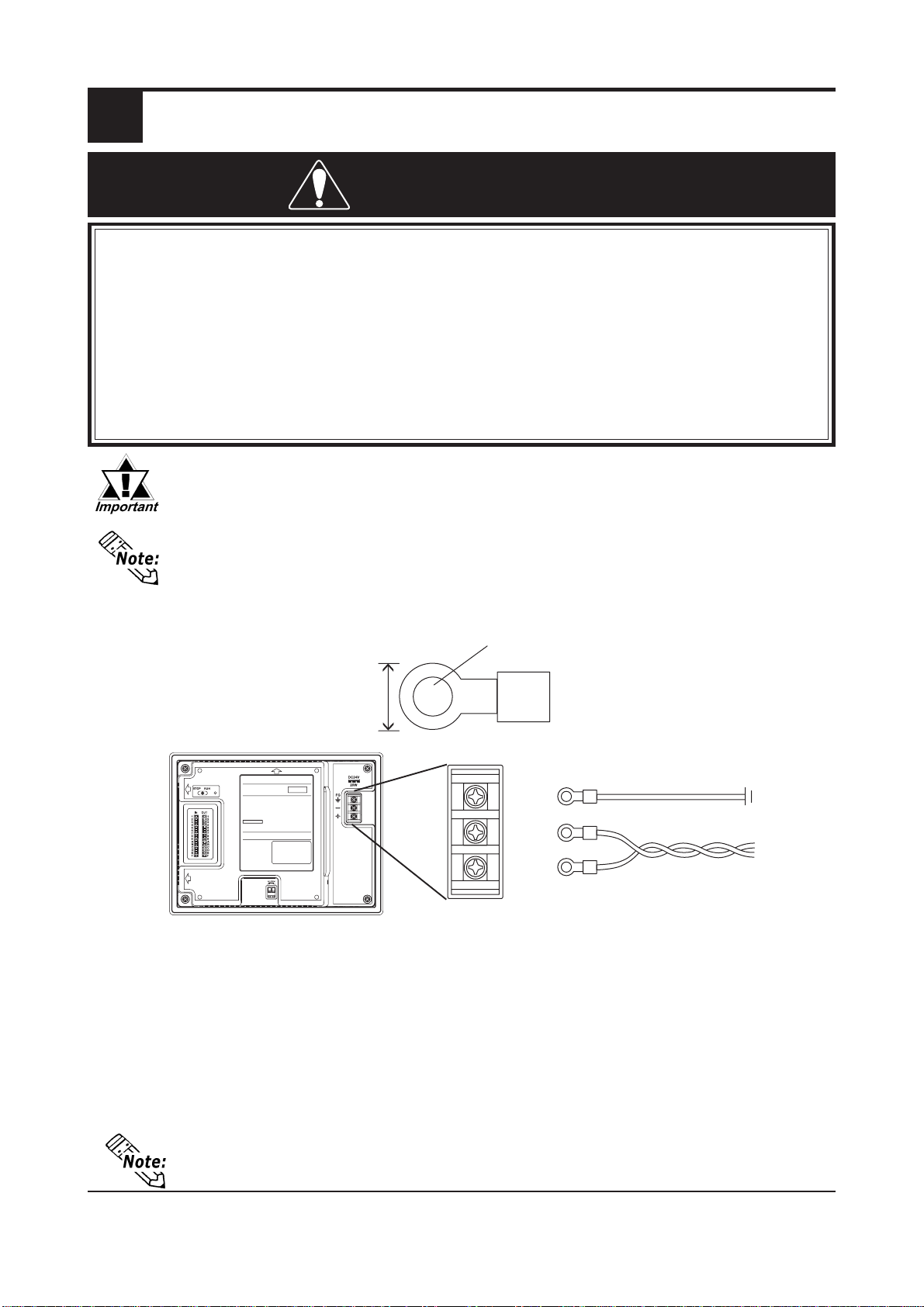

Connecting the LogiTouch Power Cord
When connecting the power cord, be sure to follow the procedures given below.
1. Confirm that the LogiTouch’s Power Cord is unplugged from the power supply.
2. Use a screwdriver to remove the Power Input Terminal Block’s clear plastic cover.
3. Unscrew the screws from the middle three (3) terminals, align the Ring
Terminals and reattach the screws.
4. Confirm that the wires are connected correctly.
5. Replace the Power Input Terminal Block’s clear plastic cover.
Rear View
FG
–
+
Power Input
Terminal Block
under 6.0mm [0.24in]
over φφ
φφ
φ3.2mm [0.13in]
The torque required to tighten these screws is 0.5 to 0.6Nm.
*1 Suggested Ring Terminal : V2-MS3 (made by JST)
FG
–
+

12
7Power Supply Cautions
Please pay special attention to the following instructions when connecting the
power cord terminals to the LogiTouch unit.
• If the power supply voltage exceeds the LogiTouch's specified range, connect a
voltage transformer.
• Between the line and the ground, be sure to use a low noise power supply. If
there is still an excessive amount of noise, connect a noise reducing transformer.
• Input and Output signal lines must be separated from the power control cables
for operational circuits.
• To increase the noise resistance, be sure to twist the ends of the power cord
wires before connecting it to the LogiTouch unit.
• The LogiTouch's power supply cord should not be bundled with or kept close
to main circuit lines (high voltage, high current), or input/output signal lines.
• Connect a surge absorber to handle power surges.
• To reduce noise, make the power cord as short as possible.
8Grounding Cautions
• When attaching a wire to the LogiTouch's rear face FG terminal, (on the Power
Input Terminal Block), be sure to create an exclusive ground*1.
• Inside the LogiTouch unit, the SG (Signal Ground) and FG (Frame Ground)
terminals are connected to each other.
• When attaching an expansion unit to the LogiTouch, be sure to read the expan-
sion unit's Installation Guide.
• The grounding electric wire must be independent, not crossing over other wires.
• All LogiTouch Input and Output signal lines must be separated from all operat-
ing circuit (power) cables.
• If this is not possible, use a shielded cable and ground the shield.
9Input/Output Signal Line Cautions
10 Maintenance and Periodic Inspection
When dirt collects on the surface or the frame of the display, soak a soft cloth in
water with a neutral detergent, wring the cloth tightly, and wipe the display.
• Do not use paint thinner, organic solvents, or strong acid com-
pound to clean the unit.
• Do not use hard or pointed objects to operate the touch-screen
panel, since it can damage the panel surface.
*1 Use a grounding resistance of 100 Ω , a wire of 2mm2or thicker, or your country’s
applicable standard.
