Pro-Form 450 LE User manual

Serial
Number
Decal
Model No. PFEL04915.0
Serial No.
Write the serial number in the
space above for reference.
USER’S MANUAL
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference. iconeurope.com
CUSTOMER SERVICE
UNITED KINGDOM
Call: 0330 123 1045
From Ireland: 053 92 36102
Website: iconsupport.eu
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: [email protected]
Write:
ICON Health & Fitness
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA

2
WARNING DECAL PLACEMENT
TABLE OF CONTENTS
PROFORM and IFIT are registered trademarks of ICON Health & Fitness, Inc. App Store is a trademark of Apple
Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google Inc. The
BLUETOOTH®word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license.
IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
166909 218557
218556
!
250085
• Not for therapeutic
use.
• Nicht für thera-
peutisch Gebrauch.
151249
259345
258865
258868 258869 258870 258871 258872
255569 258724 203572
166909 218557
218556
!
250085
• Not for therapeutic
use.
• Nicht für thera-
peutisch Gebrauch.
151249
259345
258865
258868 258869 258870 258871 258872
255569 258724 203572
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
HOW TO USE THE ELLIPTICAL ..............................................................15
MAINTENANCE AND TROUBLESHOOTING ....................................................24
EXERCISE GUIDELINES ....................................................................25
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
ORDERING REPLACEMENT PARTS .................................................. Back Cover
RECYCLING INFORMATION ......................................................... Back Cover
This drawing shows the location(s) of the warning decal(s).
If a decal is missing or illegible, see the front cover of
this manual and request a free replacement decal. Apply
the decal in the location shown. Note: The decal(s) may
not be shown at actual size.

3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. The elliptical is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the elliptical
by someone responsible for their safety.
4. Use the elliptical only as described in this
manual.
5. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
6. Keep the elliptical indoors, away from mois-
ture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
7. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from dam-
age, place a mat under the elliptical.
8. Inspect and properly tighten all parts each
time the elliptical is used. Replace any worn
parts immediately.
9. Keep children under age 13 and pets away
from the elliptical at all times.
10. The elliptical should not be used by persons
weighing more than 250 lbs. (113 kg).
11. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
12. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
13. The heart rate monitor is not a medical
device. Various factors may affect the accu-
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
14. The elliptical does not have a freewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
15. Keep your back straight while using the ellip-
tical; do not arch your back.
16. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.

4
Heart Rate Monitor
Handlebar
Upper Body Arm
Tablet Holder
Crank Arm
Wheel
Pedal
Console
Water Bottle Holder*
Leveling Foot
Handle Storage Latch
Storage Magnet
Fan
Pedal Arm Latch
*Water bottle is not included
BEFORE YOU BEGIN
Thank you for purchasing the PROFORM®450 LE
elliptical. The 450 LE elliptical provides an array of
features designed to make your workouts at home
more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Length: 5 ft. 4 in. (163 cm)
Width: 2 ft. 3 in. (69 cm)

5
M10 Locknut
(81)–2
M8 Jam Nut
(79)–7
M4 x 16mm Round
Head Screw
(101)–6
M8 x 69mm Bolt (80)–1
M10 x 80mm Carriage Bolt (82)–2
Hub Screw (87)–8 M8 x 23mm Screw
(84)–4
M8 x 41mm Bolt
(78)–4
M8 x 80mm Bolt (116)–2
M10 x 127mm Screw (83)–2
M4 x 32mm Round
Head Screw (105)–6
#10 x 51mm Screw
(108)–4
M8 Washer
(88)–6
Wave Washer
(111)–2
M8 Split
Washer
(90)–3
#10 Washer
(102)–8
M4 x 16mm Screw
(103)–6
#8 x 16mm Screw
(112)–4
#10 x 13mm Screw
(104)–4
M8 x 23mm Shoulder
Screw (115)–4
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.

6
2. While a second person lifts the Base (1), attach
the Front Stabilizer (6) to the Base with two
M10 x 80mm Carriage Bolts (82) and two M10
Locknuts (81).
6
81
82
1
2
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 5.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
one rubber mallet
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1
1. To register your product and activate your
warranty in the UK, go to iconsupport.eu. If
you do not have internet access, call Customer
Service (see the front cover of this manual).
To register your product and activate your
warranty in Australia, email or post the
following information to the email address or
postal address on the front cover of this manual.
• your receipt (make sure to keep a copy)
• your name, address, and telephone number
• the model number, serial number, and name
of your product (see the front cover of this
manual)

7
3. Remove the indicated screw (A) and the ship-
ping bracket (B) from the Base (1). Discard the
screw and the shipping bracket.
Next, tighten the Base Foot (26) into the
Base (1).
B
26
A
3
1
483
7
C
2
68
4. Orient the Rear Stabilizer (7) as indicated by the
sticker. Attach the Rear Stabilizer to the Frame
(2) with two M10 x 127mm Screws (83).
Next, hold the handle (C) on the Frame (2),
press the Latch (68), and lower the Frame until
the Rear Stabilizer (7) rests on the floor.

8
5. Hold a Hub Cover (75) and a Crank Arm (36)
against the Crank (45).
Align the holes in the Hub Cover (75) and the
Crank Arm (36) with the unused holes in the right
side of the Crank (45).
Insert four Hub Screws (87) into the Hub Cover
(75) and the Crank Arm (36), and finger tighten
the Hub Screws into the Crank (45). Tighten
one Hub Screw, and then tighten the Hub
Screw across from the first Hub Screw. Then,
tighten the remaining two Hub Screws.
Repeat this step on the left side of the
elliptical.
Make sure that the Crank Arms (36) are ori-
ented with the Crank Bushing Sleeves (43) in
the positions shown. Note: There are no Pulley
Screws (98) on the left side.
36
45
75
87
36
43
43
6. While a second person holds the Upright (3)
near the Base (1), connect the Upper Wire
Harness (48) to the Lower Wire Harness (49).
Tip: Avoid pinching the wires. Insert the
Upright (3) into the Base (1).
Attach the Upright (3) with an M8 x 69mm Bolt
(80), an M8 Split Washer (90), and an M8 Jam
Nut (79). Do not tighten the Bolt yet; make
sure that the Jam Nut is in the hexagonal
hole in the Base.
Next, finger tighten two M8 x 23mm Screws (84)
with two M8 Split Washers (90) into the Base (1).
Do not tighten the Screws yet.
Attach the Water Bottle Holder (22) to the Base
(1) with two M4 x 16mm Screws (103).
3
80
48
49
22
84
84
90 90
90
103
Avoid pinching
the wires
79
1
6
5
98

9
7. Identify the Right Upright Cover (17) and hold it
against the right side of the Upright (3).
Attach the Right Upright Cover (17) with two
M4 x 16mm Round Head Screws (101).
Attach the Left Upright Cover (39) in the
same way.
7
17
39
3
101
101
8. Identify the Right and Left Handlebars (119, 120)
and orient them as shown.
Tip: Avoid pinching the Pulse Wires (118).
Attach the Right and Left Handlebars (119, 120)
to the Upright (3) with two M8 x 80mm Bolts
(116) and two M8 Jam Nuts (79).
79
118
118
119
120
116
116
8
Avoid pinching
the wires
3

10

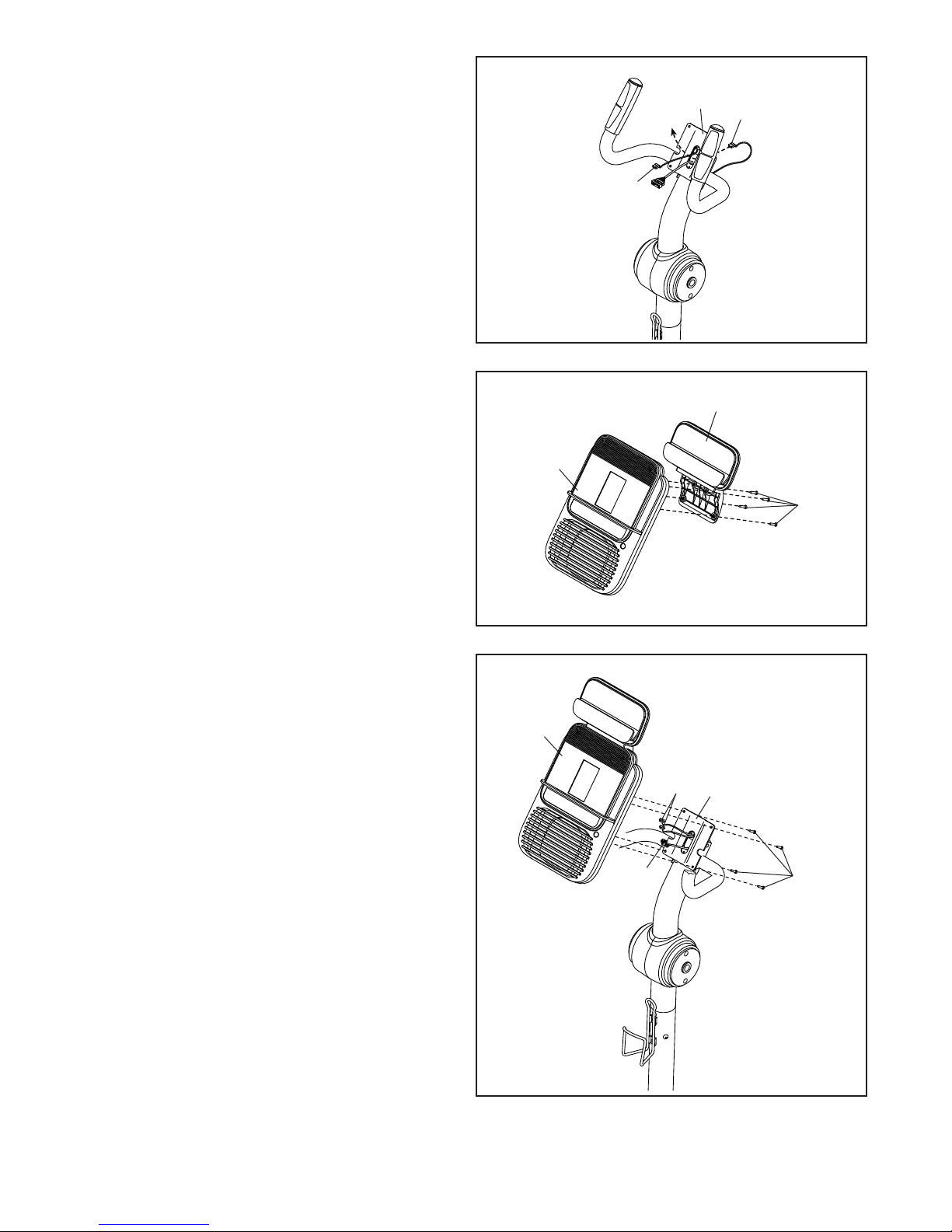

9. Insert the Pulse Wires (118) upward through the
Upright (3) as shown. 9
3118
118
10
11
5
5
121
112
118
48 103
3
Avoid pinching
the wires
10. Attach the Tablet Holder (121) to the Console (5)
with four #8 x 16mm Screws (112); start all the
Screws, and then tighten them.
11. While a second person holds the Console
(5) near the Upright (3), plug the Upper Wire
Harness (48) and the Pulse Wires (118) into the
receptacles on the Console.
The connectors on the Upper Wire Harness
(48) and the Pulse Wires (118) should slide
easily into the receptacles and snap into
place. If a connector does not slide easily into a
receptacle, turn the connector and try again. If
you do not connect the connectors properly,
the Console (5) may become damaged when
you use the elliptical.
Insert the excess wire into the Upright (3).
Tip: Avoid pinching the wires. Attach
the Console (5) to the Upright (3) with four
M4 x 16mm Screws (103); start all the Screws,
and then tighten them.

11
12. Attach the Upright Cap (4) to the Console (5)
with two M4 x 16mm Round Head Screws (101). 12
5
4
101
13
12
8
9
11
78
78
79
79
D
13. Identify the Right Upper Body Arm (8) and the
Right Upper Body Leg (11) and orient them as
shown.
Insert the Right Upper Body Arm (8) into the
Right Upper Body Leg (11).
Attach the Right Upper Body Arm (8) with two
M8 x 41mm Bolts (78) and two M8 Jam Nuts
(79). Make sure that the Jam Nuts are in the
hexagonal holes (D) in the Right Upper Body
Leg (11).
Attach the Left Upper Body Arm (9) to the
Left Upper Body Leg (12) in the same way.

12
14
14. Using a small plastic bag to keep your fingers
clean, apply a generous amount of the included
grease to the Pivot Axle (74) and to two Wave
Washers (111).
Insert the Pivot Axle (74) into the Upright (3) and
center it.
Slide a Wave Washer (111) onto each end of the
Pivot Axle (74).
Next, orient the Right Upper Body Leg (11) as
shown, and slide it onto the right end of the Pivot
Axle (74). Slide the Left Upper Body Leg (12)
onto the left end of the Pivot Axle.
At the same time, tighten an M8 x 23mm Screw
(84) with an M8 Washer (88) into each end of the
Pivot Axle (74).
88
84
111
88
74
3
84
111
11
12
Grease
15
15. Hold the Right Front Arm Cover (18) and the
Right Rear Arm Cover (19) around the Right
Upper Body Leg (11).
Attach the Arm Covers (18, 19) with three
M4 x 32mm Round Head Screws (105); start
all the Round Head Screws, and then tighten
them.
Attach the Left Front Arm Cover (20) and the
Left Rear Arm Cover (21) in the same way.
20
21 105
19
18
11

13
16
13
14
108 104
102
104
102

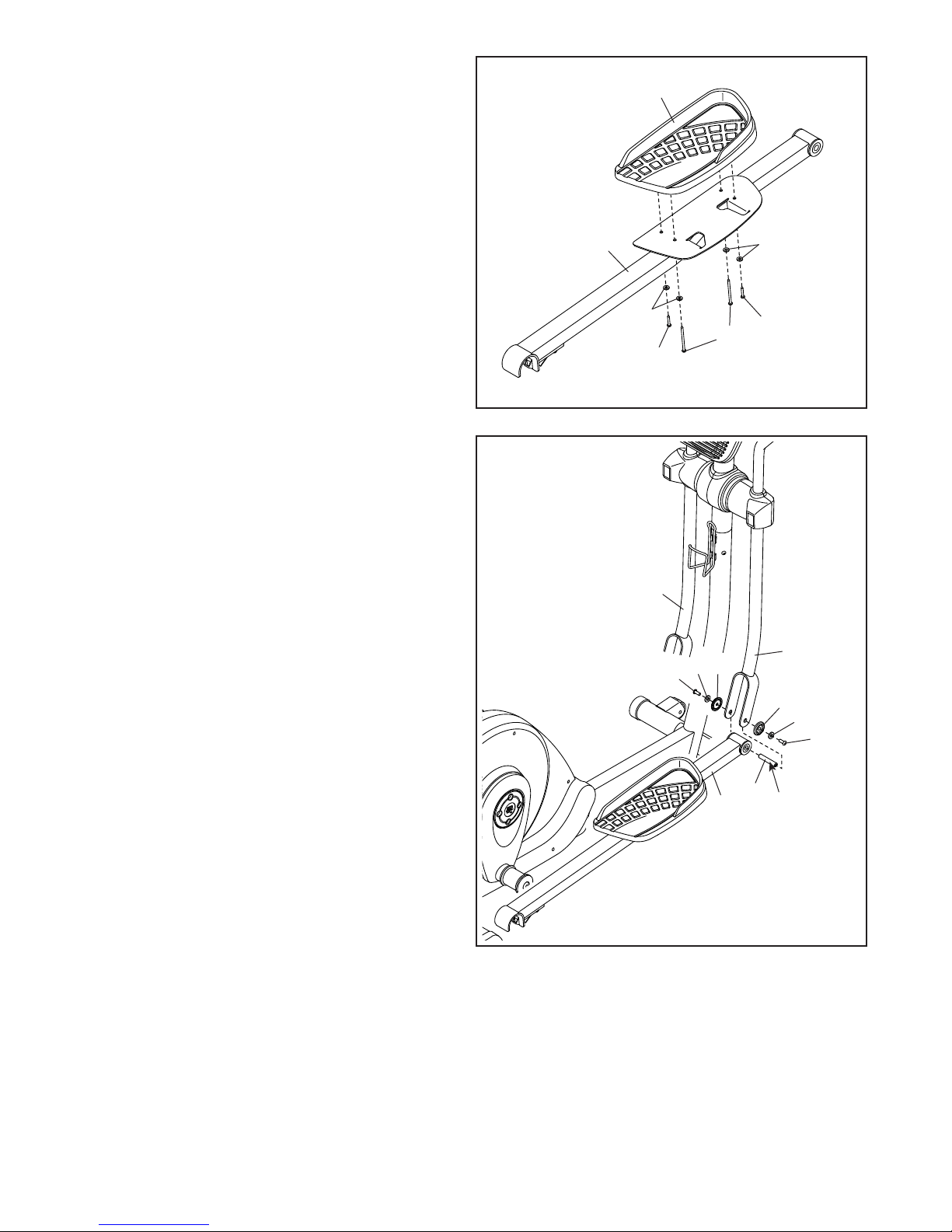

16. Identify the Right Pedal (13) and the Right Pedal
Arm (14).
Attach the Right Pedal (13) to the Right Pedal
Arm (14) with two #10 x 51mm Screws (108),
two #10 x 13mm Screws (104), and four #10
Washers (102); start all the Screws, and then
tighten them.
Attach the Left Pedal (not shown) to the Left
Pedal Arm (not shown) in the same way.
17
17. Apply a small amount of grease to one of the
Pedal Arm Axles (32).
Tighten an M8 x 23mm Shoulder Screw (115)
with an M8 Washer (88) and a Pedal Arm Cover
(31) a few turns into the Pedal Arm Axle (32).
While a second person holds the front end of the
Right Pedal Arm (14) inside the bracket on the
Right Upper Body Leg (11), insert the Pedal Arm
Axle (32) into both parts.
Next, tighten an M8 x 23mm Shoulder Screw
(115) with an M8 Washer (88) and a Pedal Arm
Cover (31) a few turns into the Pedal Arm Axle
(32). Tighten both Shoulder Screws at the
same time; to avoid damaging the Pedal Arm
Covers, do not overtighten the Shoulder
Screws.
Repeat this step to attach the Left Pedal Arm
(not shown) to the Left Upper Body Leg (12).
Grease
115
32
88
31
12
11
14
31
115 88

14

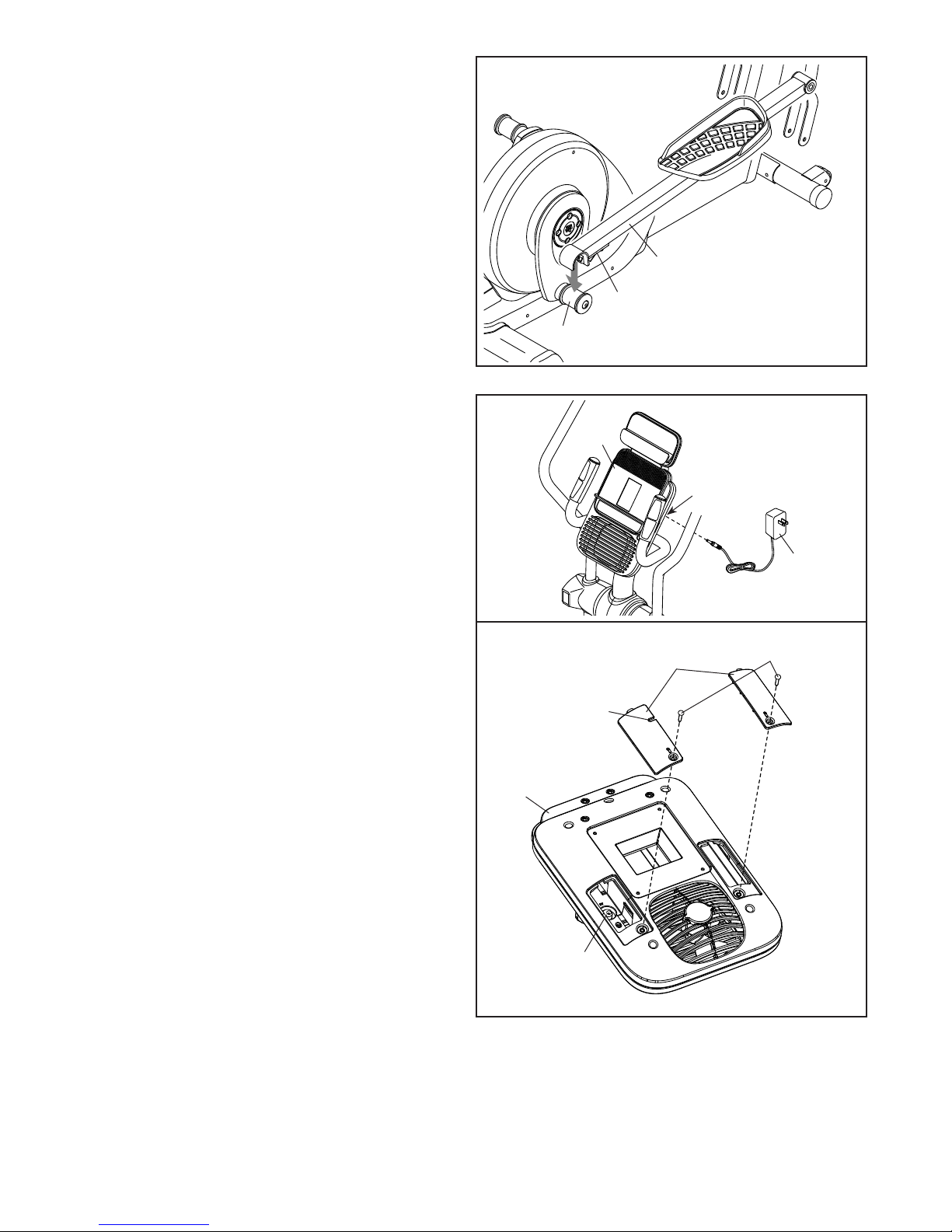

18. Lift the latch (E) on the underside of the Right
Pedal Arm (14), and set the Right Pedal Arm on
the right Crank Bushing Sleeve (43).
Release the lever, and make sure that the Right
Pedal Arm (14) is securely connected to the
Crank Bushing Sleeve (43).
Connect the Left Pedal Arm (not shown) in
the same way.
See step 6. Tighten the M8 x 69mm Bolt (80)
and the two M8 x 23mm Screws (84). E
43
14
18
5
60
19
19. See the upper and lower drawings. Plug
the Power Adapter (60) into the receptacle (F)
inside the indicated battery compartment on
the Console (5), and route the power adapter
through the notch (G) in the battery cover.
Note: To plug the Power Adapter (60) into an
outlet, see HOW TO PLUG IN THE POWER
ADAPTER on page 15.
See the lower drawing. The Console (5) can
also be operated with four D batteries (not
included); alkaline batteries are recommended.
Do not use old and new batteries together or
alkaline, standard, and rechargeable batteries
together.
Remove the screws (H), remove the battery
covers (I) from the back of the Console (5),
insert batteries into the battery compartments,
and then reattach the battery covers. Make sure
to orient the batteries as shown by the dia-
grams inside the battery compartments.
5
H
I
F
G
F
20. Make sure that all parts of the elliptical are properly tightened. Extra parts may be included. To protect
the floor or carpet from damage, place a mat under the elliptical.

15
HOW TO PLUG IN THE POWER ADAPTER
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room tem-
perature before plugging in the power adapter. If
you do not do this, you may damage the console
displays or other electronic components.
Plug the power
adapter (A) into
the receptacle
on the console.
Then, plug the
power adapter
into an appropri-
ate outlet that is
properly installed
in accordance with
all local codes and ordinances.
HOW TO FOLD AND UNFOLD THE ELLIPTICAL
When the elliptical is not in use, the frame can be
folded out of the way. First, lift the latch (B) under each
pedal arm (C), and lift the pedal arms off the sleeves
(D) on the crank arms (E).
See the upper drawing at the right. Raise the pedal
arms (C) until they touch the magnets (F) on the upper
body arms; the magnets will hold the pedal arms in
place. Then, hold the handle (G) and lift the frame (H)
until it locks in a vertical position.
To use the elliptical, first hold the handle (G), press the
latch button (I), and lower the frame (H).
Next, pull the pedal arms (C) off the magnets (F) on the
upper body arms. Then, lift the latches (B) under the
pedal arms, and set the pedal arms on the sleeves (D)
on the crank arms (E). Release the latches, and make
sure that the pedal arms are securely connected to the
crank arms.
HOW TO MOVE THE ELLIPTICAL
To move the elliptical, first fold it as described at the
left. Next, stand in front of the elliptical, hold the upright
(J), and place one foot against the center of the front
stabilizer (K). Pull the upright until the elliptical will roll
on the front wheels. Carefully move the elliptical to the
desired position, and then lower it.
A
B
D
C
E
K
J
HOW TO USE THE ELLIPTICAL
GF
H
I
C

16
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the upper body arms (L) or
the handlebars (M) and step onto the pedal (N) that is
in the lowest position. Next, step onto the other pedal.
Push the pedals until they begin to move with a con-
tinuous motion.
Note: The crank arms (E) can turn in either direc-
tion. It is recommended that you turn the crank
arms in the direction shown by the arrow; how-
ever, for variety, you can turn the crank arms in the
opposite direction.
To dismount the elliptical, wait until the pedals (N)
come to a complete stop. Note: The elliptical does
not have a free wheel; the pedals will continue to
move until the flywheel stops. When the pedals are
stationary, step off the highest pedal first. Then, step
off the lowest pedal.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical
rocks slightly on
your floor dur-
ing use, turn one
or both of the
leveling feet (O)
beneath the rear
stabilizer until the
rocking motion is
eliminated.
HOW TO USE THE TABLET HOLDER
IMPORTANT: The tablet holder (P) is designed for
use with most full-size tablets and smart phones.
Do not place any other electronic device or object
into the tablet holder.
To insert a tablet
or smart phone
into the tablet
holder (P), set
the bottom edge
of the tablet or
smart phone in the
tray. Make sure
that the tablet or
smart phone is
firmly secured
in the tablet holder. Reverse these actions to remove
the tablet or smart phone from the tablet holder.
N
E
M
L
O
P

17
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. As you exercise, the console will provide
continuous exercise feedback. You can even measure
your heart rate using the handgrip heart rate monitor
or a compatible heart rate monitor. See page 22 for
information about purchasing an optional chest
heart rate monitor.
You can also connect your tablet to the console and
use the iFit®Bluetooth Tablet app to record and track
your workout information.
The console also features a progressive 8-week
weight-loss program designed to help you lose
unwanted pounds. Each workout in the program
controls the resistance of the pedals as it guides you
through an effective workout.
In addition, the console offers a selection of preset
workouts. Each preset workout automatically changes
the resistance of the pedals and prompts you to
maintain a target speed as it guides you through an
effective workout.
You can even connect your personal audio player to
the console sound system and listen to your favorite
music or audio books while you exercise.
To use the manual mode, see page 18. To use an
8-week weight-loss workout, see page 20. To use
a preset workout, see page 21.
To use the sound system, see page 22. To con-
nect your tablet to the console, see page 22. To
connect your heart rate monitor to the console,
see page 23. To use the settings mode, see
page 23.
If there is a sheet of plastic on the display, remove the
plastic.
Glock
ELPF04915
PFEL04915
CONSOLE DIAGRAM

18
HOW TO USE THE MANUAL MODE
1. Turn on the console.
Press any button or begin pedaling to turn on the
console.
When you turn on the console, the displays will turn
on, a tone will sound, and the console will be ready
for use.
2. Select the manual mode.
When you turn on the con-
sole, the manual mode will
be selected automatically.
If you have selected a
workout, reselect the man-
ual mode by pressing the
Manual button.
3. Begin pedaling and change the resistance of
the pedals as desired.
As you pedal, change the
resistance of the pedals by
pressing the Resistance
increase and decrease
buttons.
Note: After you press the buttons, it will take a
moment for the pedals to reach the selected
resistance level.
4. Follow your progress with the displays.
The speed meter—This
display will provide a visual
representation of your pedal-
ing speed. As you increase
or decrease your pedaling
speed, bars will appear or
disappear in the speed meter.
Note: During a preset workout, this display will
show a target speed zone for each segment of the
workout.
The upper display—This
display will show your pedal-
ing speed in revolutions
per minute (RPM) and your
power output in watts. The
display will change every few
seconds.
This display will also show the resistance level
of the pedals for a few seconds each time the
resistance level changes.
This display will also show
your heart rate (BPM) when
you use the handgrip heart
rate monitor or a compat-
ible heart rate monitor (see
step 5).
The center display—This
display will show the distance
(Dist.) you have pedaled in
miles or kilometers and the
elapsed time. The display will
change every few seconds.
Note: During a preset workout, the display will
show the time remaining in the workout instead of
the elapsed time.
The lower display—This
display will show your
pedaling speed in miles per
hour or kilometers per hour
and the approximate num-
ber of calories (Cals.) you
have burned. The display will change every few
seconds.
Change the volume level
of the console by pressing
the volume increase and
decrease buttons.

19
To pause the console, stop pedaling. When the
console is paused, the displays will pause. To con-
tinue your workout, simply resume pedaling.
To reset the displays to zero, press the On/Reset
button.
Note: The console can show pedaling speed and
distance in either miles or kilometers. To change
the unit of measurement, see THE SETTINGS
MODE on page 23.
5. Measure your heart rate if desired.
You can measure your heart rate using either
the handgrip heart rate monitor or a compatible
heart rate monitor. For information about pur-
chasing an optional chest heart rate monitor,
see page 22.
The console is compatible with all BLUETOOTH®
Smart heart rate monitors. To connect your heart
rate monitor to the console, see page 23.
Note: If you use both heart rate monitors at the
same time, the BLUETOOTH Smart heart rate
monitor will have priority.
If there are sheets
of plastic on the
metal contacts (A)
on the handgrip
heart rate monitor,
remove the plastic.
In addition, make
sure that your
hands are clean.
To measure your
heart rate, hold the
handgrip heart rate monitor with your palms resting
against the contacts. Avoid moving your hands
or gripping the contacts tightly.
When your pulse is detected, your heart rate will be
shown in the upper display. For the most accurate
heart rate reading, hold the contacts for at least
15 seconds.
If your heart rate is not shown, make sure that your
hands are positioned as described. Be careful not
to move your hands excessively or to squeeze the
contacts tightly. For optimal performance, clean
the contacts using a soft cloth; never use alcohol,
abrasives, or chemicals to clean the contacts.
6. Turn on the fan if desired.
The fan has several speed
settings. Press the fan
increase and decrease but-
tons repeatedly to select a
fan speed or to turn off the
fan.
Note: If the pedals do not move for about 30
seconds, the fan will turn off automatically.
7. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
series of tones will sound, the console will pause,
and displays will pause.
If the pedals do not move for several minutes, the
console will turn off and the displays will be reset.
A

20
HOW TO USE AN 8-WEEK WEIGHT-LOSS
WORKOUT
1. Turn on the console.
Press any button or begin pedaling to turn on the
console.
When you turn on the console, the displays will turn
on, a tone will sound, and the console will be ready
for use.
2. Select the desired week of the program.
To select the desired week
of the program, press the
Select Week button repeat-
edly until the number of the
desired week appears in the
display.
3. Select the desired day of the program.
There are three day workouts
for each week of the pro-
gram. To select the desired
day of the program, press
the Select Day button repeat-
edly until the number of the
desired day appears in lower display. The duration
of the workout will appear in the center display.
4. Start the workout.
Press the Start button and begin pedaling to start
the workout.
Each workout is divided into one-minute segments.
One resistance level and one target speed are
programmed for each segment. Note: The same
resistance level and/or target speed may be pro-
grammed for consecutive segments.
At the end of each segment of the workout, a
series of tones will sound. The resistance level for
the next segment will appear in the upper display
for a few seconds to alert you. The resistance of
the pedals will then change.
The speed meter will
show two flashing bars
that represent the target
speed zone (B) for the
segment; the target
speed zone includes a
range of speeds that
are within a few RPMs
of the target speed for the segment. The solid bars
represent your actual pedaling speed.
As you exercise, keep your pedaling speed within
the target speed zone for the current segment by
increasing or decreasing your pedaling speed or
by increasing or decreasing the resistance of the
pedals.
IMPORTANT: The target speed is intended only
to provide motivation. Make sure to pedal at a
speed and a resistance level that is comfortable
for you.
If the resistance level for the current segment is
too high or too low, you can manually override
the setting by pressing the Resistance buttons.
IMPORTANT: When the current segment of the
workout ends, the pedals will automatically
adjust to the resistance level programmed for
the next segment.
If you stop pedaling for several seconds, a series of
tones will sound and the workout will pause.
To restart the workout, simply resume pedaling.
The workout will continue until the last segment of
the workout ends.
5. Follow your progress with the displays.
See step 4 on page 18.
6. Measure your heart rate if desired.
See step 5 on page 19.
7. Turn on the fan if desired.
See step 6 on page 19.
8. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 19.
B
