Pro-Form 455 Ekg Bike User manual

CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Serial Number
Decal (under frame)
Model No. PFEVEX3916.1
Serial No.
www.iconeurope.com
Visit our website at
USER'S MANUAL
QUESTIONS?
As a manufacturer,we are commit-
ted to providing complete customer
satisfaction. If you have questions,
or if there are missing parts, please
contact us at the numbers or
addresses listed below:
Call: 08457 089 009
Outside UK: 0 (44) 113 3877133
Fax: [phone]
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
Unit 4
Revie Road Industrial Estate
Revie Road, Beeston
Leeds, LS11 8JG
UK
Write the serial number in the
space above for future reference.

2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO OPERATE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
PROFORM is a registered trademark of ICON IP,Inc.
The decal shown here has been
applied in the location shown. If a
decal is missing or illegible, call the
telephone number on the front cover
of this manual and request a free
replacement decal. Apply the decal
in the location shown. Note: The
decal may not be shown at actual size.
WARNING DECAL PLACEMENT

3
1. Before beginning any exercise program, con-
sult your physician. This is especially impor-
tant for persons over the age of 35 or per-
sons with pre-existing health problems.
2. Read all instructions in this manual and all
warnings on the exercise cycle before using
the exercise cycle.
3. Use the exercise cycle only as described in
this manual.
4. It is the responsibility of the owner to ensure
that all users of the exercise cycle are ade-
quately informed of all precautions.
5. The exercise cycle is intended for home use
only.Do not use the exercise cycle in
acommercial, rental, or institutional setting.
6. Keep the exercise cycle indoors, away from
moisture and dust. Place the exercise cycle
on a level surface, with a mat beneath it to
protect the floor or carpet. Make sure that
there is enough clearance around the exer-
cise cycle to mount, dismount, and use it.
7. Inspect and properly tighten all parts regular-
ly. Replace any worn parts immediately.
8. Keep children under the age of 12 and pets
away from the exercise cycle at all times.
9. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise cycle. Always wear
athletic shoes for foot protection.
10. The exercise cycle should not be used by
persons weighing more than 113kg (250 lbs).
11. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
12. Always keep your back straight while using
the exercise cycle; do not arch your back.
13. If you feel pain or dizziness while exercising,
stop immediately and cool down.
WARNING:To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise cycle before using your exercise
cycle. ICON assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
IMPORTANT PRECAUTIONS

4
Congratulations for selecting the new PROFORM®755
EKG exercise cycle. Cycling is one of the most effec-
tive exercises for increasing cardiovascular fitness,
building endurance, and toning the entire body. The
755 EKG exercise cycle offers an impressive array of
features designed to let you enjoy this healthful exer-
cise in the comfort and convenience of your home.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have questions
after reading this manual, please see the front cover
of this manual. To help us assist you, note the product
model number and serial number before contacting
us. The model number and the location of the serial
number decal are shown on the front cover of this
manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Handgrip Pulse Sensor
Adjustment Handle
Seat
Seat Post
Seat Knob
Side Shield
Leveling Foot
Pedal with Strap
Console
Handlebar
Seat Post Knob
Wheel
Water Bottle Holder*
BEFORE YOU BEGIN
*No water bottle is included

5
Place all parts of the exercise cycle in a cleared area and remove the packing materials. Donot dispose of the
packing materials until assembly is completed.
In addition to the included hex keys, assembly requires a Phillips screwdriver .
Asyou assemble the exercise cycle, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST near the end of the manual. The number
following the parentheses is the quantity used in assembly. Note: Some small parts may have been pre-
assembled for shipping. If a part is not in the parts bag, check to see if it has been preassembled.
M10 x 85mm Button
Screw (23)–4
M10 x 50mm Button
Screw (48)–3
M6 x 10mm
Screw (46)–2
M4 x 19mm
Screw (47)–2
M10 Split
Washer (55)–3 M4 x 16mm Screw (54)–4
ASSEMBLY
1. While another person lifts the front of the Frame (1),
attach the Front Stabilizer (2) to the Frame with two
M10 x 85mm Button Screws (23).
23
1
2
1

6
2. While another person lifts the rear of the Frame (1),
attach the Rear Stabilizer (3) to the Frame with two
M10 x 85mm Button Screws (23).
3. While another person holds the Handlebar Post (6)
near the Frame (1), connect the Upper Wire
Harness (51) to the Lower Wire Harness (50). Next,
pull the excess Upper Wire Harness out of the top of
the Handlebar Post, and slide the Handlebar Post
onto the Frame. Be careful not to pinch the Wire
Harnesses.
Attach the Handlebar Post (6) to the Frame (1) with
three M10 x 50mm Button Screws (48) and three
M10 Split Washers (55); tighten the two Button
Screws in the front of the Handlebar Post first,
and then tighten the third Button Screw.
1
23
3
3
55
55
55
48 48
1
51
Avoid pinching
the wire har-
nesses during
this step
50
6
2
4
618
47
4. Attach the Water Bottle Holder (18) to the
Handlebar Post (6) with two M4 x 19mm
Screws (47).

7
7. While another person holds the Console (9) near
the Handlebar (7), connect the console wire har-
ness to the Upper Wire Harness (51). Insert the
excess wire downward into the Handlebar Post (6).
Attach the Console (9) to the Handlebar (7) with
four M4 x 16mm Screws (54). Be careful not to
pinch the wire harnesses.
79
7
7
54
22
10
6
6
6. Attach the Handlebar (7) to the Handlebar Post (6)
with the Handlebar Clamp (22) and the Adjustment
Handle (10). Note: The Adjustment Handle works
like a spanner.Turn the Adjustment Handle clock-
wise, pull it away from the Handlebar, turn it coun-
terclockwise, push it toward the Handlebar, and
then turn it clockwise again. Repeat until the
Handlebar is tight.
6
51
Console Wire
Harness
5. The Console (9) requires four 1.5V “D” batteries;
alkaline batteries are recommended. Press the tabs
onthe battery cover and remove the battery cover.
Next, insert four batteries into the Console; make
sure that the batteries are oriented as shown by
the diagrams inside the Console. Then, reattach
the battery cover.
5
Battery
Cover
Batteries
9
Avoid pinching the
wire harnesses
during this step

8
9. Attach an M6 x 10mm Screw (46) to the Seat
Post (11). Next, slide the Seat Carriage (19) onto the
Seat Post. Then, adjust the Seat Carriage to the
desired position and tighten the Seat Knob (31) into
the Seat Carriage.
See the inset drawing. Attach another M6 x 10mm
Screw (46) to the Seat Post (11).
8. Turn the Seat Post Knob (20) counterclockwise sev-
eral turns to loosen it. Next, pull the Seat Post Knob
outward, and insert the Seat Post (11) into the
Frame (1). Slide the Seat Post upward or downward
to the desired position, and release the Seat Post
Knob. Move the Seat Post up or down slightly to
make sure that the Seat Post Knob is engaged
inone of the adjustment holes in the Seat Post.
Then, turn the Seat Post Knob clockwise to tighten it.
11
20
1
46
19
11
46
11
31
9
8
10. Identify the Left Pedal (24), which is marked with a
“Left” sticker.Using an adjustable wrench, firmly
tighten the Left Pedal counterclockwise into the
Left Crank Arm (15). Tighten the Right Pedal (not
shown) clockwise into the Right Crank Arm (not
shown). Important: Tighten both Pedals as firmly
as possible. After using the exercise cycle for
one week, retighten the Pedals. For best perfor-
mance, keep the Pedals tightened.
Press the tab on the side of the Left Pedal (24) and
adjust the pedal strap to the desired position.
Adjust the other pedal strap (not shown) in the
same way.
11. Make sure that all parts are properly tightened before you use the exercise cycle. Note: Some hard-
ware may be left over after assembly is completed. Place a mat under the exercise cycle to protect the
floor or carpet.
15
Strap
Tab 24
10

9
HOW TO LEVEL THE EXERCISE CYCLE
If the exercise cycle rocks slightly on your floor, turn
one or both of the leveling feet under the rear stabiliz-
er until the rocking motion is eliminated.
HOW TO ADJUST THE HEIGHT OF THE SEAT
For effective exercise, the seat should be at the proper
height. As you pedal, there should be a slight bend in
your knees when the pedals are in the lowest position.
To adjust the seat,
first turn the seat
post knob counter-
clockwise several
turns to loosen it.
Next, pull the knob,
slide the seat post
upward or down-
ward to the desired
position, and then
release the knob.
Move the seat post
up or down slightly
to make sure that
the knob is
engaged in one of
the adjustment
holes in the seat post. Then, turn the knob clock-
wise to tighten it.
HOW TO ADJUST THE LATERAL POSITION OF
THE SEAT
To adjust the lateral
position of the seat,
first loosen the seat
knob a few turns.
Then, move the seat
forward or backward
to the desired posi-
tion, and firmly tight-
en the seat knob.
HOW TO ADJUST THE PEDAL STRAPS
To adjust the pedal
straps, press the
tabs on the sides
of the pedals and
adjust the pedal
straps to the
desired position.
HOW TO ADJUST THE HANDLEBAR
To adjust the han-
dlebar, first turn the
indicated adjustment
handle counterclock-
wise to loosen it.
Note: The adjust-
ment handle works
like a spanner.Turn
the handle counter-
clockwise, pull it
away from the han-
dlebar, turn it clock-
wise, push it toward the handlebar,and then turn it
counterclockwise again. Repeat until the handlebar is
loose. Move the handlebar up or down to the desired
position and then retighten the handle.
Tab
Seat
Seat
Post
Knob
Seat Post
Seat
Seat Knob
Seat Post
Adjustment
Handle
Strap
HOW TO OPERATE THE EXERCISE CYCLE

10
PFEVEX3916
EBPE3916

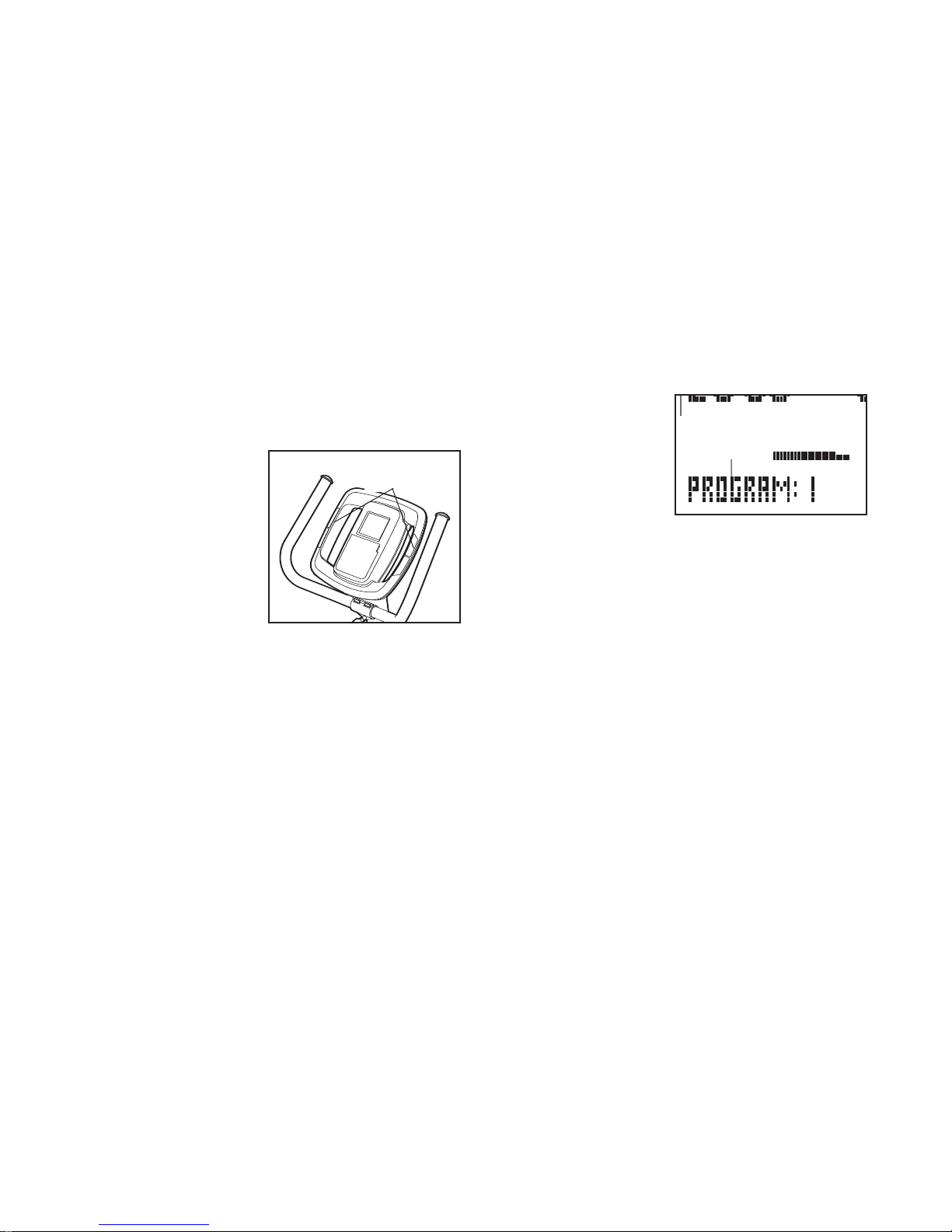

FEATURES OF THE CONSOLE
The advanced console offers a selection of features
designed to make your workouts more effective.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. As you exercise, the console will display
continuous exercise feedback. You can even measure
your heart rate using the handgrip pulse sensor or the
optional chest pulse sensor. Note: For information
about the optional chest pulse sensor, see page 15.
The console also features eight smart programs that
automatically change the resistance of the pedals and
prompt you to vary your pedaling pace while guiding
you through effective workouts.
In addition, the console offers two heart rate programs
that automatically control the resistance of the pedals
and prompt you to maintain a constant pedaling pace
to keep your heart rate near target heart rate settings
during your workouts.
To use the manual mode of the console,follow the
steps beginning on page 11. To use a smart program,
see page 12. Touse a heart rate program, see
page 13.
IMPORTANT: If the exercise cycle has been
exposed to cold temperatures, allow it to warm to
room temperature before turning on the power.If
you do not do this, the console displays or other
electrical components may become damaged.
CONSOLE DIAGRAM
