Pro-Form GameFit Bike PFEVEX92407.0 User manual

USER'S MANUAL
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Serial
Number
Decal
Model No. PFEVEX92407.0
Serial No.
Write the serial number in the
space above for future reference.
QUESTIONS?
As a manufacturer,we are commit-
ted to providing complete customer
satisfaction. If you have questions,
or if there are missing parts, please
contact us at the numbers or
addresses listed below:
Call: 08457 089 009
Outside UK: 0 (44) 113 3877133
Fax: [phone]
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
Unit 4
Revie Road Industrial Estate
Revie Road, Beeston
Leeds, LS11 8JG,
UK

2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO OPERATE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
The warning decal shown here has been
applied in the location shown. If a decal is
missing or illegible, call the telephone num-
ber on the front cover of this manual and
request a free replacement decal. Apply the
decal in the location shown. Note: The decal
may not be shown at actual size.
PROFORM is a registered trademark of ICON IP, Inc.

3
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over the age of 35 or
persons with pre-existing health problems.
2. Read all instructions in this manual and all
warnings on the exercise cycle before using
the exercise cycle.
3. Use the exercise cycle only as described in
this manual.
4. It is the responsibility of the owner to ensure
that all users of the exercise cycle are ade-
quately informed of all precautions.
5. The exercise cycle is intended for home use
only. Do not use the exercise cycle in a
commercial, rental, or institutional setting.
6. Keep the exercise cycle indoors, away from
moisture and dust. Place the exercise cycle
on a level surface, with a mat beneath it to
protect the floor or carpet. Make sure that
there is enough clearance around the exer-
cise cycle to mount, dismount, and use it.
7. Inspect and properly tighten all parts regular-
ly. Replace any worn parts immediately.
8. Keep children under the age of 12 and pets
away from the exercise cycle at all times.
9. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise cycle. Always wear
athletic shoes for foot protection.
10. The exercise cycle should not be used by
persons weighing more than 250 lbs.
(113 kg).
11. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
12. Always keep your back straight while using
the exercise cycle; do not arch your back.
13. If you feel pain or dizziness while exercising,
stop immediately and cool down.
WARNING:To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise cycle before using your exercise
cycle. ICON assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
IMPORTANT PRECAUTIONS

4
Congratulations for selecting the new PROFORM®
GAMEFIT BIKE exercise cycle. Cycling is one of the
most effective exercises for increasing cardiovascular
fitness, building endurance, and toning the entire
body. The GAMEFIT BIKE exercise cycle offers a
selection of features designed to let you enjoy this
healthful exercise in the convenience and privacy of
your home.
For your benefit, read this manual carefully before
using the exercise cycle.If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts labeled in the drawing below.
Handlebar
Game Controller
Seat
Adjustment Knob
Leveling Foot
Seat Knob
Pedal/Strap
Console
Water Bottle Holder*
Wheel
*No water bottle is included
Pulse Sensor
BEFORE YOU BEGIN

5
ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench and Phillips
screwdriver .
Use the part drawings below to identify the small parts used in assembly. The number in parentheses below
each drawing refers to the key number of the part, from the PART LIST near the end of this manual. The second
number refers to the quantity needed for assembly. Note: Some small parts may have been preattached for
shipping. If a part is not in the parts bag, check to see if it has been preattached.
M10 x 20mm Button
Screw (35)–3 M10 x 73mm Button Screw (33)–4
M8 Nylon
Locknut (37)–4 M8 Split Washer (36)–4 M10 Split Washer (34)–4
M6 x 8mm
Screw (51)–2
M4 x 15mm
Bright Screw
(15)–4
M
Curved
Washer (66)–2
M8 x 45mm Button
Screw (67)–2
M10 Bright Split
Washer (69)–3
M4 x 15mm
Screw (68)–7

6
2. While another person lifts the rear of the Frame (1),
attach the Rear Stabilizer (14) to the Frame with
two M10 x 73mm Button Screws (33) and two M10
Split Washers (34).
33
34
34
14
1
3
3
35
Avoid pinching the
Wire Harnesses (31, 32)
during this step
69
69
1
35
3. While another person holds the Upright (3) near the
Frame (1), connect the Upper Wire Harness (32) to
the Lower Wire Harness (31).
Gently pull the upper end of the Upper Wire
Harness (32) to remove the slack, and slide the
Upright (3) onto the Frame (1).
Tip: Avoid pinching the Wire Harnesses (31, 32)
during this step. Attach the Upright (3) with three
M10 x 20mm Button Screws (35) and three M10
Bright Split Washers (69).
2
32
31
1.
Identify the Front Stabilizer (2), which has round
wheels. While another person lifts the front of the
Frame (1), attach the Front Stabilizer to the Frame
with two M10 x 73mm Button Screws (33) and two
M10 Split Washers (34). 2
33
34
34
1
1
To make assembly easier, read the
information on page 5 before you begin
assembling the exercise cycle.

7
6. The Console (6) can be operated with four “D” bat-
teries; alkaline batteries are recommended. Press
the tab on the battery cover and remove the battery
cover. Insert four batteries into the console; make
sure that the batteries are oriented as shown by
the diagram inside the battery compartment.
Then, reattach the battery cover.
Note: The Console (6) can also be operated with an
optional power supply instead of batteries. To pur-
chase a power supply, call the telephone num-
ber on the front cover of this manual. Plug one
end of the power supply into the jack on the con-
sole. Plug the other end of the power supply into an
appropriate outlet that is properly installed in accor-
dance with all local codes and ordinances.
6
Batteries
Batteries
Battery
Cover
6
5. Attach the Left and Right Handlebar Covers (64, 65)
and the Rear Handlebar Cover (46) around the
Upright (3) and the Handlebar (47) with five
M4 x 15mm Screws (68).
5
47
3
46
68
68
64
65
68
4. Orient the Handlebar (47) as shown. While a sec-
ond person holds the Handlebar near the Upright
(3), insert the Game Wires (45) into the front of the
Upright and pull them upward out of the top of the
Upright. Tip: Use an elastic band or a piece of
tape to prevent the Game Wires and the Upper
Wire Harness (32) from falling down into the
Upright.
Attach the Handlebar (47) to the Upright (3) with
two M8 x 45mm Button Screws (67) and two
Curved Washers (66).
4
47
3
66
66
67
32
45

8
9. Orient the Seat Post (5) as shown. Loosen the
Adjustment Knob (11) a few turns, pull the
Adjustment Knob outward, and insert the Seat Post
into the Frame (1). Move the Seat Post upward or
downward to the desired position, and then release
the Adjustment Knob into one of the adjustment
holes in the Seat Post. Then, tighten the Adjustment
Knob a few turns. Make sure that the Adjustment
Knob is engaged in an adjustment hole.
Attach an M6 x 8mm Screw (51) to the front of the
Seat Post (5).
951
11
5
1
8. Attach the Water Bottle Holder (29) to the Upright
(3) with two M4 x 15mm Screws (68). 8
68
29
3
7
7. While another person holds the Console (6) near
the Upright (3), connect the console wire harness to
the Upper Wire Harness (32). Next, connect the
console game wire marked with a tag to the Game
Wire (45) marked with a tag. Then, connect the
other console game wire to the other Game Wire.
Tip: Avoid pinching the wires during this step.
Insert the excess wires downward into the Upright
(3). Attach the Console (6) to the Upright with four
M4 x 15mm Bright Screws (15).
3
15
32
45
6
Console Wire
Harness
Console
Game Wires
15
Avoid pinching the
wires during this step

9
12. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is
completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.
11. Identify the Left Pedal (24), which is marked with an
“L.” Using an adjustable wrench, firmly tighten the
Left Pedal
counterclockwise into the Left Crank Arm
(42). Tighten the Right Pedal (not shown) clockwise
into the Right Crank Arm (not shown). IMPORTANT:
Tighten both Pedals as firmly as possible. After
using the exercise cycle for one week, retighten
the Pedals. For best performance, keep the
Pedals tightened.
Adjust the strap on the Left Pedal (24) to the
desired position, and press the end of the strap
onto the tab on the side of the Left Pedal. Adjust the
strap on the Right Pedal (not shown) in the same
way.
11
24
42
Strap
Tab
10. Orient the Seat (12) and the Seat Carriage (26) as
shown. Attach the Seat to the Seat Carriage with
four M8 Nylon Locknuts (37) and four M8 Split
Washers (36). Note: The Seat Carriage, Nylon
Locknuts, and Split Washers may be preat-
tached to the underside of the Seat.
Slide the Seat Carriage (26) onto the Seat Post (5)
and move the Seat Carriage forward or backward to
the desired position. Then, tighten the Seat Knob
(52) into the Seat Carriage.
Attach an M6 x 8mm Screw (51) to the rear of the
Seat Post (5).
10
26
36
37
52
12
51
5

10

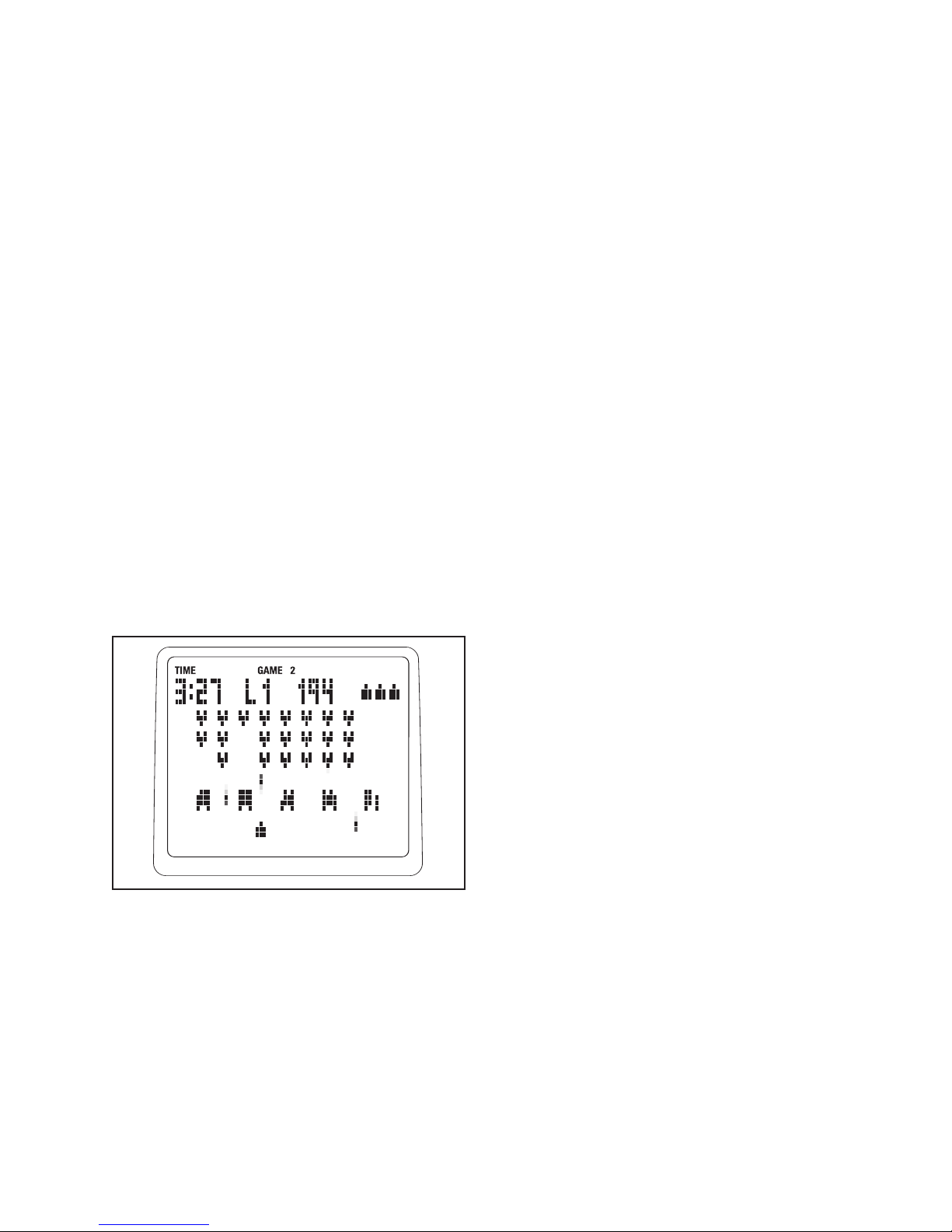

HOW TO OPERATE THE EXERCISE CYCLE
HOW TO ADJUST THE HEIGHT OF THE SEAT
For effective exer-
cise, the seat
should be at the
proper height. As
you pedal, there
should be a slight
bend in your knees
when the pedals
are in the lowest
position. To adjust
the seat, first turn
the adjustment
knob counterclock-
wise several turns
to loosen it. Next, pull the knob, slide the seat post
upward or downward to the desired position, and then
release the knob. Move the seat post upward or
downward slightly to make sure that the knob is
engaged in one of the adjustment holes in the seat
post. Then, turn the knob clockwise to tighten it.
HOW TO ADJUST THE LATERAL POSITION OF
THE SEAT
To adjust the lateral
position of the seat,
first loosen the seat
knob a few turns.
Then, move the
seat forward or
backward to the
desired position,
and firmly tighten
the seat knob.
HOW TO ADJUST THE PEDAL STRAPS
To adjust the pedal
straps, first pull the
ends of the pedal
straps off the tabs
on the pedals.
Adjust the pedal
straps to the
desired position,
and then press the
ends of the pedal
straps onto the
tabs.
HOW TO LEVEL THE EXERCISE CYCLE
If the exercise cycle rocks slightly on your floor, turn
one or both of the leveling feet under the rear
stabilizer.
Pedal
Strap
Seat Knob
Seat
Post
Adjustment
Knob
Seat
Seat
