Pro-Lift T-9400 Instructions for use

Operating Instructions & Parts Manual
Hydraulic
Scissors Jack
To avoid crushing and related injuries:
NEVER work under a load supported
only by a jack. ALWAYS use adequately
rated jack stands.
WARNING!
ATENCIÓN
• Leer, comprender, y seguir las
instrucciónes antes de utilizar el
aparato.
• El manual de instrucciónes y la
información de seguridad deben estar
comunicado en lengua del operador
antes del uso.
• No seguir estas indicaciónes puede
causar daños personales o materiales.
!
Printed in China
OIPM# HSJ-03
Model Number
T-9400
Capacity
2200 lb
Shinn Fu Company of America, Inc. © 2003
10939 N. Pomona Ave.
Kansas City, MO 64153
Phone [phone], fax [phone]

2 3
Save these instructions. For your safety,
please read, understand and follow the
information contained within before use.
The owner and operator shall have an
understanding of this product and safe
operating procedures before attempting
to use. Instructions and safety informa-
tion shall be conveyed in the operators
native language before use is authorized.
Make certain that the operator thoroughly
understands the inherent dangers asso-
ciated with the use and misuse of the prod-
uct. If any doubt exists as to the safe and
proper use of this device as outlined in
this factory authorized manual, remove
from service until which time it is clear.
This jack is not suitable for use in lifting,
leveling and/or positioning houses, con-
struction trailers and dwellings in general.
Inspect before each use. Do not use if
cracked, broken, bent or otherwise dam-
aged parts are noted or if the jack is sus-
pected to have been subjected to a shock
load. Discontinue use until checked out
by an authorized factory service center.
Owner and operators of this device shall
be aware that no serviceable or replace-
able parts are available for this device. Do
not attempt to weld, rivet or otherwise re-
pair this device. It is recommended that
an annual inspection be done to this de-
vice by qualified persons and that miss-
ing or damaged labels, warning/safety
decals be replaced with ones that are fac-
tory authorized. Always reference the Prod-
uct Label and Owner's Manual to estab-

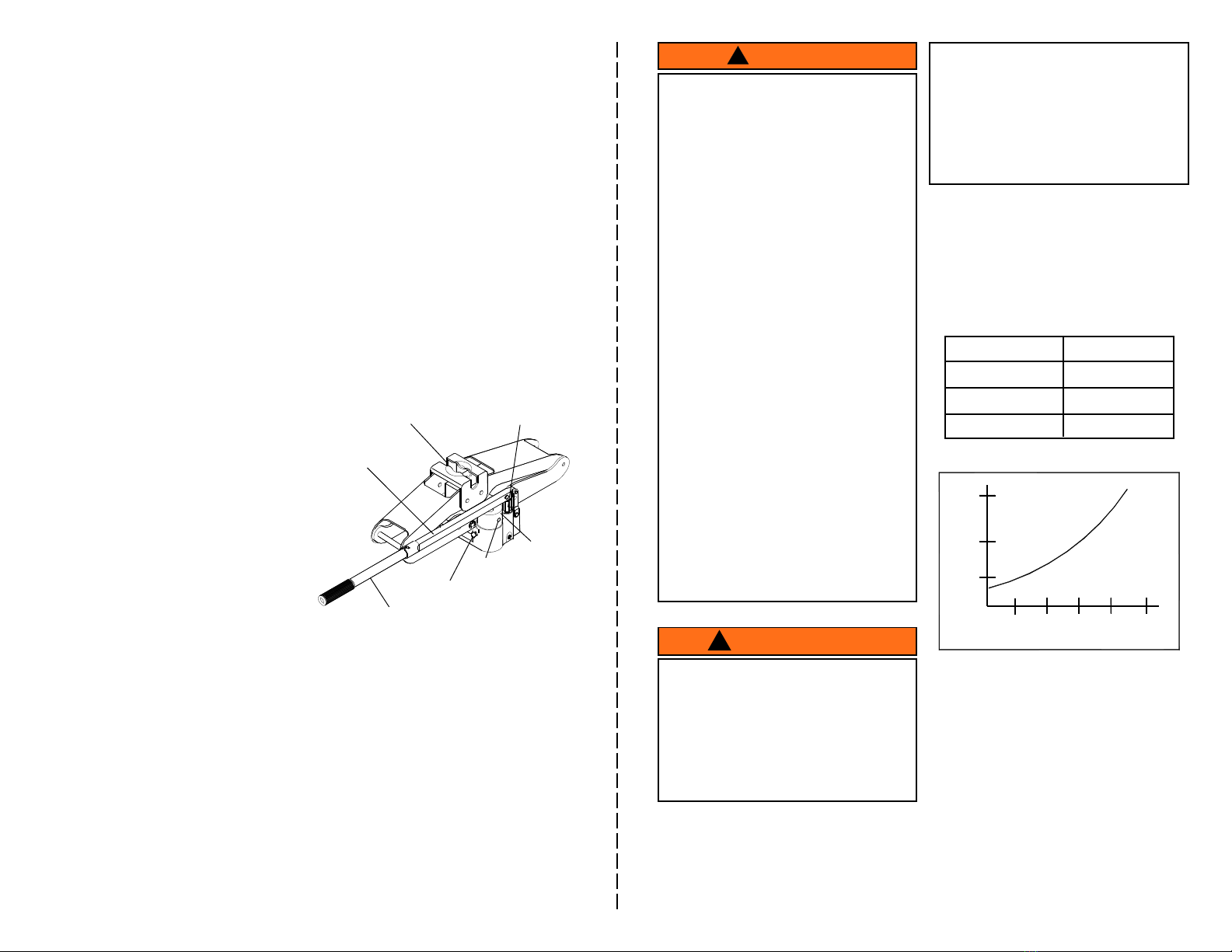

lish rated capacity. Figure 1 - Model T-9400 Nomenclature
• Leer, comprender, y seguir las
instrucciónes antes de utilizar el aparato.
• El manual de instrucciónes y la
información de seguridad deben estar
comunicado en lengua del operador
antes del uso.
• No seguir estas indicaciónes puede
causar daños personales o materiales.
ATENCIÓN
!
PRODUCTDESCRIPTION
This jack is designed to safely and effec-
tively lift one axle of a vehicle for the sole
purpose of tire removal and/or installa-
tion.
BEFOREUSE
1. Verify that the product and the applica-
tion are compatible, if in doubt call Pro-
Lift Customer Support @ (816) 891-
6390.
2. Before using this product, read the
owner's manual completely and famil-
iarize yourself thoroughly with the prod-
uct, its components and recognize the
hazards associated with its use. Check
with vehicle owner's manual for proper
lift points.
HEIGHT/WEIGHTCURVE
This device is designed to sustain the fol-
lowing loads at these specified heights.
DO NOT EXCEED the rated capacity for
each position.
Figure 2 - Height/Weight Curve
5
10
15
500 1500 2500
Weight (Ibs)
Heigh (inches)
slotted saddle
handle socket
oil filler plug
power unit
handle
release valve
pump piston
Study, understand, and follow all printed
materials provided with and on this
device. Do not use this product before
reading and understanding the tire
changing procedures as outlined in the
vehicle owners manual or tire chang-
ing compartment of the vehicle. Do not
exceed rated capacity as outlined in the
height/weight curve (see Fig. 2). Use
only on hard, level surfaces capable of
sustaining rated capacity loads. Use for
emergency tire changing only. Never
put any portion of body under a vehicle
supported by the jack. Activate the haz-
ard warning flasher, turn off ignition, set
parking brake, move automatic trans-
mission to park position. In case of
manual transmission, put it in reverse
gear if car is facing downhill and low-
est gear if car is facing uphill. In addi-
tion, the wheel diagonally opposite from
the wheel being lifted shall be chocked
in both directions. Lift only on areas of
the vehicle as specified by the vehicle
manufacturer. Follow tire changing pro-
cedures as per vehicle owners manual.
Use ONLY the provided operating han-
dle or factory replacement. Failure to
heed these messages may result in
personal injury and/or property dam-
age.
!
WARNING ! SAFETY MESSAGE !
Be sure all tools and personnel are clear
before lowering load. No alterations shall
be made to this device. Only attachments
and/or adapters supplied by the manufac-
turer shall be used. Lift only on areas of
the vehicle as specified by the vehicle
manufacturer.
Height (inches) Weight (lbs)
4 ¾600
10 1500
15 2200

OPERATION
Lifting
1. Place vehicle in park, with emergency
brake on and the wheels diagonally op-
posite from the wheel being lifted shall
be chocked in both directions.
2. Locate and close release valve by turn-
ing it with the stamped end of the pro-
vided handle, clockwise, until it is firmly
tightened. Center the slotted saddle un-
der lift point. Jack shall be positioned
at 90 degrees perpendicular to the ve-
hicle frame seam, with the pump and
release valve facing the side of the ve-
hicle on which the tire being changed
is found.
3. Remove handle from release valve and
insert it into the handle socket. Pump
handle to raise saddle to vehicle manu-
facturers recommended lift point.
4. Pump further to desired height, but never
beyond a point just high enough to re-
move and install the tire.
Lowering
1. Remove handle from handle socket,
engage the release valve and slowly
turn the handle counterclockwise but
never more than 2 full turns.
2. After removing jack from under the load,
push saddle down to reduce ram ex-
posure to rust and contamination.
MAINTENANCE
Important: Use only a good grade hydrau-
lic jack oil. Avoid mixing different types of
fluid and Never use brake fluid, turbine
oil, motor oil or glycerin. Improper fluid can
cause failure of the jack and the potential
for sudden and immediate loss of load.
We recommend Mobil DTE 13M. Please
note that there are no replacement parts
applicable to this device.
4 5
MAINTENANCE(continued)
Addingoil
1. With saddle fully lowered set jack in its
upright, level position. Locate and re-
move oil filler plug.
2. Fill with oil until ~3/16”above the inner
cylinder as seen from the oil filler plug
hole. Reinstall the oil filler plug.
Changingoil
For best performance and longest life, re-
place the complete fluid supply at least
once per year.
1. With saddle fully lowered, remove the
oil filler plug.
2. Lay the jack on its side and drain the
fluid into a suitable container.
Note: Dispose of hydraulic fluid in accord-
ance local regulations.
Lubrication
A periodic coating of light lubricating oil to
pivot points, axles and hinges will help to
prevent rust and assure every parts
moves freely.
Note: Never apply lubricant directly on top
of saddle.
Cleaning
Periodically check the pump piston and
ram for signs of rush or corrosion. Clean
as needed and wipe with an oily cloth.
Note: Never use sandpaper or abrasive
material on these surfaces !
Storage
When not in use, store the jack with sad-
dle fully lowered.
