Pro-Lift B-002NC Instructions for use

6
Operating Instructions & Parts Manual
Hydraulic
Bottle Jack
Shinn Fu Company of America, Inc. © 2003
10939 N. Pomona Ave.
Kansas City, MO 64153
Phone [phone], fax [phone] Printed in China
OIPM#BJ-03
To avoid crushing and related injuries:
NEVER work on, under or around a load
supported only by a jack. ALWAYS use
adequately rated jack stands.
WARNING!
ATENCIÓN
• Leer, comprender, y seguir las
instrucciónes antes de utilizar el
aparato.
• El manual de instrucciónes y la
información de seguridad deben estar
comunicado en lengua del operador
antes del uso.
• No seguir estas indicaciónes puede
causar daños personales o materiales.
!
Model B-012NC shown
Model Number
B-002NC
B-004NC
B-006NC
B-008NC
B-012NC
B-S12NC
B-020NC
B-S20NC
Capacity
2 Ton
4 Ton
6 Ton
8 Ton
12 Ton
12 Ton
20 Ton
20 Ton
(Shorty)
(Shorty)
90DAYSLIMITEDWARRANTY
For a period of ninety (90) days from date of purchase, Shinn Fu Co. of
America, Inc. will repair or replace, at its option, without charge, any of its products
which fails due to a defect in material or workmanship, or which fails to conform to any
implied warranty not excluded hereby.
Performance of any obligation under this warranty may be obtained by return-
ing the warranted product, freight prepaid, to Shinn Fu Co. of America, Inc. Warranty
Service Department, 10939 N. Pomona Ave., Kansas City, MO 64153.
Except where such limitations and exclusions are specifically prohibited by
applicable law, (1) the CONSUMER'S SOLE AND EXCLUSIVE REMEDY SHALL BE
THE REPAIR OR REPLACEMENT OF DEFECTIVE PRODUCTS AS DESCRIBED
ABOVE, and (2) Shinn Fu Co. of America, Inc. SHALL NOT BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL DAMAGE OR LOSS WHATSOEVER, and (3) THE
DURATION OF ANY AND ALL EXPRESSED AND IMPLIED WARRANTIES, INCLUDING
WITHOUT LIMITATION, ANY WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE, IS LIMITED TO A PERIOD OF NINETY (90) DAYS FROM
DATE OF PURCHASE.
Some states do not allow limitations on how long an implied warranty lasts,
so the above limitation may not apply to you. Some states do not allow the exclusion
or limitation of incidental or consequential damages, so the above limitation or exclu-
sion may not apply to you. This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
U.S. Patent No. 5,946,912

2 3
Save these instructions. For your safety,
read, understand, and follow the information
provided with and on this jack. The owner
and operator of this equipment shall have
an understanding of this jack and safe
operating procedures before attempting to
use. The owner and operator shall be aware
that use and repair of this product may
require special skills and knowledge.
Instructions and safety information shall be
conveyed in the operator's native language
before use of this jack is authorized. If any
doubt exists as to the safe and proper use
of this jack, remove from service
immediately. Inspect before each use. Do
not use if broken, bent, cracked, or damaged
parts (including labels) are noted. Any jack
that appears damaged in any way, operates
abnormally or is missing parts, shall be re-
moved from service immediately. If the jack
has been or suspected to have been sub-
jected to a shock load (a load dropped sud-
denly, unexpectedly upon it), immediately
discontinue use until jack has been checked
by a factory authorized service center. It is
recommended that an annual inspection be
done by qualified personnel. Labels and
Owner's Manuals are available from
manufacturer (see Replacement Parts,
page 5).
PRODUCTDESCRIPTION
Pro-Lift Hydraulic Bottle Jacks are de-
signed to lift, but not sustain, loads rang-
ing from 2 tons thru 20 tons depending
on the rated capacity of the jack. They are
designed to be used vertically. After lift-
ing, loads must be immediately sup-
ported by appropriate means. Each
model is suitable for use in an appropri-
ately rated and designed vertical or bench
press structure. These jacks are not rec-
ommended for use in lifting or position-
ing construction trailers, houses and/or
other building structures.
OPERATION
Lifting (refer to Fig 1, Page 2)
1. Place vehicle in park, with emergency
brake on and wheels securely chocked
to prevent inadvertent vehicle movement.
2. Locate and close release valve by turning
handle clockwise until firm resistance is
felt to further thread engagement. Cen-
ter jack saddle under lift point.
3. Verify lift point, insert handle into handle
sleeve and pump to contact lift point. To
lift, pump handle until load reaches de-
sired height.
4. Transfer the load immediately to appro-
priately rated jack stands.
Lowering
1. Raise load high enough to clear the jack
stands, then carefully remove jack
stands (always used in pairs).
2. Slowly turn the handle counterclockwise,
but no more than 1/2 turn. If the load fails
to lower:
a. Use another jack to raise the vehicle
high enough to reinstall jack stands.
b. Remove the affected jack and then the
stands.
c. Using the other jack, lower the load by
turning the operating handle counter-
clockwise, but no more than 1/2 turn.
3. After removing jack from under the load,
push saddle down to reduce ram expo-
sure to rust and contamination.
BEFOREUSE
1. Verify that the product and the applica-
tion are compatible, if in doubt call Pro-
Lift Customer Support @ (816) 891-
6390.
2. Before using this product, read the
owner's manual completely and famil-
iarize yourself thoroughly with the prod-
uct, its components and recognize the
hazards associated with its use.
3. Using the stamped end of the provided
handle, engage and turn the release
valve counterclockwise no more than
1/2 full turns from a fully closed posi-
tion.
4. With saddle fully lowered, locate and
remove the oil filler plug. Insert the
handle into the handle sleeve, then
pump 6 to 8 full strokes. This will help
release any pressurized air which may
be trapped within the reservoir. Oil level
should be even with the bottom of the
oil filler plug hole. Reinstall the oil filler
plug.
5. Check that the pump operates smoothly
before putting into service. Replace
worn or damaged parts and assem-
blies with Pro-Lift Authorized Replace-
ment Parts only. (See Replacement
Parts Section). Lubricate as instructed
in Maintenance Section.
• Leer, comprender, y seguir las
instrucciónes antes de utilizar el aparato.
• El manual de instrucciónes y la
información de seguridad deben estar
comunicado en lengua del operador
antes del uso.
• No seguir estas indicaciónes puede
causar daños personales o materiales.
ATENCIÓN
!
Study, understand, and follow all in-
structions provided with and on this
device. Do not exceed rated capacity.
This is a lifting device only. After lifting,
immediately transfer the load to appro-
priately rated vehicle stands. Never
work on, under, or around a load sup-
ported by this device. Use only on hard,
level surfaces capable of sustaining
rated capacity loads. Do not move or
dolly loads with this device. Failure to
heed these markings may result in per-
sonal injury and/or property damage.
!
WARNING
!SAFETY MESSAGE !
Be sure all tools and personnel are clear
before lowering load. No alterations
shall be made to this device. Only at-
tachments and/or adapters supplied by
the manufacturer shall be used. Lift only
on areas of the vehicle as specified by
the vehicle manufacturer.

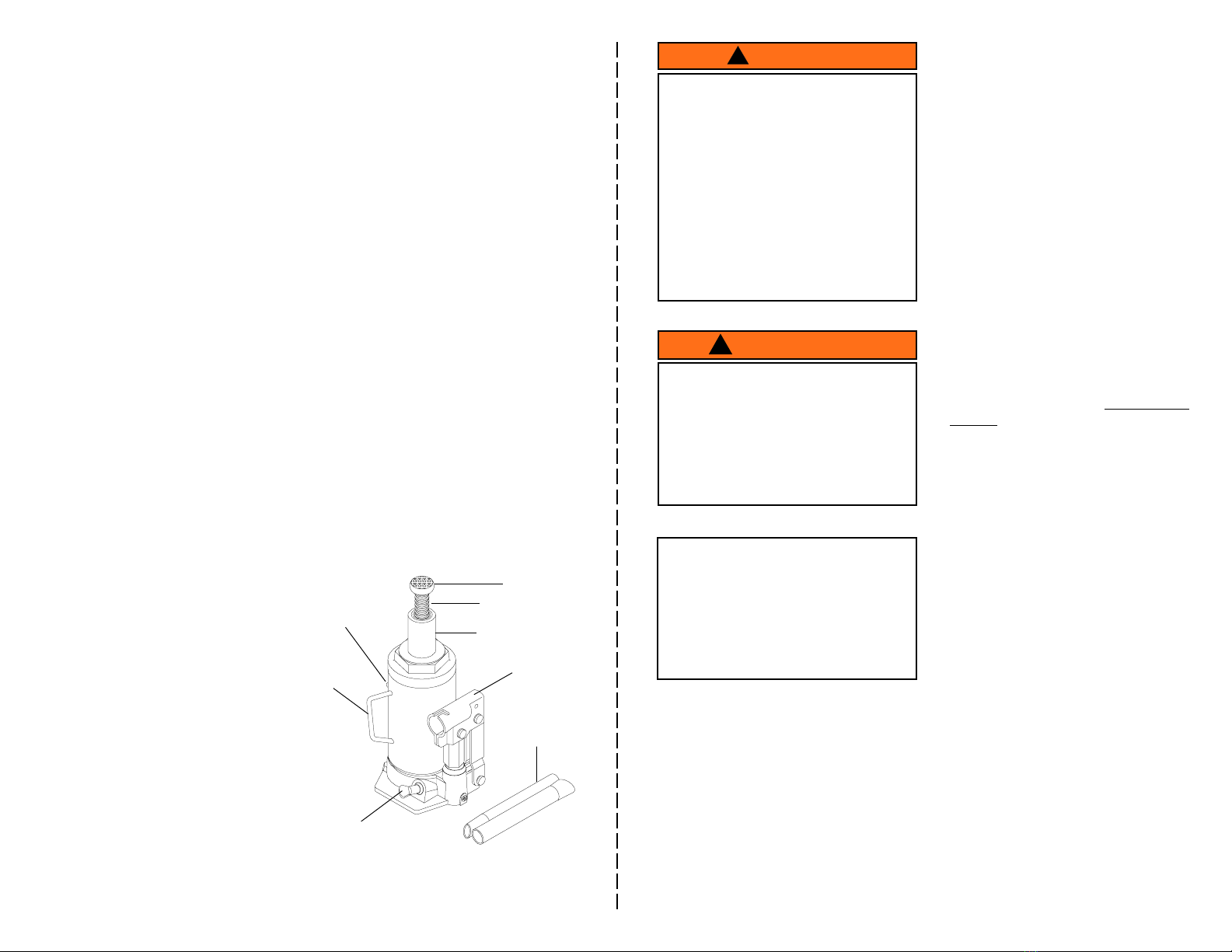

Figure 1 - Typical Bottle Jack Nomenclature
handle
sleeve
saddle
oil filler plug
carry
handle
handle
assembly
release valve
extension
screw
ram

4 5
Part No. Description Quantity
1 oil filler plug 1
2 handle assembly 1
-- labels 2
-- owner’s manual 1
Possible Causes Corrective Action
Jack will not lift load
Jack bleeds off after lift
Will not lift to full
extension
•Release valve not tightly
closed
•Overload condition
•Fluid level low
•Fluid level low
•Air trapped in system
•Release valve not tightly
closed
•Overload condition
•Hydraulic unit malfunction
•Ensure release valve tightly
closed
•Remedy overload condition
•Ensure release valve tightly
closed
•Remedy overload condition
•Contact Pro-Lift Customer Support
•Ensure proper fluid level
•Ensure proper fluid level
•With ram fully retracted,
remove oil filler plug to let
pressurized air escape, then
reinstall oil filler plug
Poor lift performance
Jack will not lower after
unloading
•Reservoir overfilled
•Linkages binding
•Drain fluid to proper level
•Clean and lubricate moving
parts
TROUBLESHOOTING
Symptom
MAINTENANCE
Important:Use only a good grade hydraulic
jack oil. Avoid mixing different types of fluid
and Never use brake fluid, turbine oil,
transmission fluid, motor oil or glycerin. Im-
proper fluid can cause failure of the jack and
the potential for sudden and immediate loss
of load. We recommend Mobil DTE13M or
equivalent.
Addingoil
1. With saddle fully lowered and pump pis-
ton fully depressed, set jack in its upright,
level position. Remove oil filler plug.
2. Fill until oil is level with the filler plug hole,
reinstall oil filler plug.
Changing oil
For best performance and longest life,
replace the complete fluid supply at least
once per year.
1. With saddle fully lowered, remove the oil
filler plug.
MAINTENANCE (continued)
2. Lay the jack on its side and drain the fluid
into a suitable container.
Note: Dispose of hydraulic fluid in
accordance with local regulations.
3. Set jack in its upright, level position. Fill
until oil is level with the filler plug hole,
reinstall oil filler plug.
Lubrication
A periodic coating of light lubricating oil to
pivot points, axles and hinges will help to
prevent rust and assure that pump as-
semblies move freely.
Cleaning
Periodically check the pump piston and ram
for signs of rust or corrosion. Clean as
needed and wipe with an oily cloth.
Note: Never use sandpaper or abrasive
material on these surfaces !
REPLACEMENT PARTS
Not all components of the jack are replacement items, but are illustrated as a convenient
reference of location and position in the assembly sequence. When ordering parts, give
model number, serial number and description below. Call or write for current pricing:
phone [phone], fax [phone] or contact Pro-Lift Customer Support.
10939 N. Pomona Ave., Kansas City, MO 64153.
1
2
