ProFusion HA24-50E User manual

INSTRUCTION MANUAL
Technical Support: 1-866-206-0888
Service email: [e-mail]
PET OWNERS WARNING:The health of some small pets
including birds are extremely sensitive to the fumes produced during
the first-time use of many appliances. These fumes are not harmful to
humans but we recommended that you do not use your heater around
birds and small pets during its initial use until the manufacturing
corrosion coatings burn off.
1

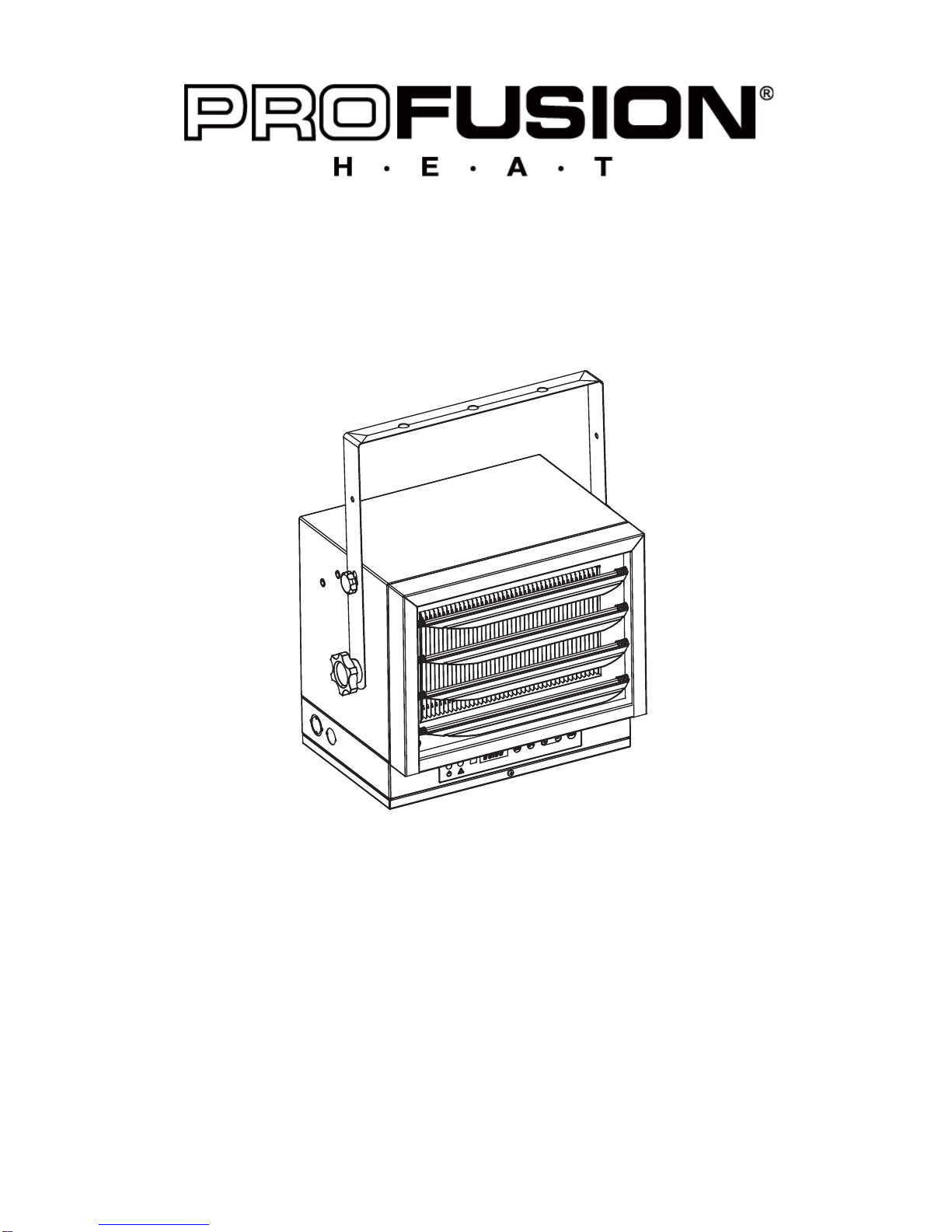

Heavy Electric Utility Heater
Model： HA24-50E
HA24-75E
Figure 1

IMPORTANT INSTRUCTIONS
When using electrical appliances, basic precautions should always be followed to reduce
the risk of fire, electric shock, and injury to persons, including the following:
1. Read all instructions before installing or using this heater
2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces
Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, etc. and
curtains at least 3 feet (0.9 m) from the front of the heater and keep them away from the
sides and rear.
3. Extreme caution is necessary when any heater is used by or near children or invalids
and whenever the heater is left operating and unattended.
4. Always turn off the power of heater when not in use.
5. Do not operate any heater after it malfunctions. Disconnect power at service panel and
have heater inspected by a reputable electrician before reusing.
6. Do not use outdoors
7. This heater is not intended for use in bathrooms, laundry areas and similar indoor
locations. Never locate heater where it may fall into a bathtub or other water container.
8. To disconnect heater, turn controls to off. and turn off power to heater circuit at main
disconnect panel.
9. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this
may cause an electric shock or fire, or damage the heater.
10.Connect to properly grounded outlets only.
11. To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not
use on soft surfaces, like a bed, where openings may become blocked.
12. Aheater has hot and arcing or sparking parts inside. Do not use it in areas where
gasoline, paint, or flammable liquids are used or stored.
13. Use this heater only as described in this manual. Any other use not recommended by
the manufacturer may cause fire, electric shock, or injury to persons.
14. This heater may include a visual alarm to warn that parts of the heater are getting
excessively hot. If the alarm illuminates, immediately turn the heater off and inspect for any
objects on or adjacent to the heater that may have blocked the airflow or otherwise cause
high temperatures. DO NOT OPERATE THE HEATER WITH THE ALARM
ILLUMINATING.
SAVE THESE INSTRUCTIONS
2

DESCRIPTION
Electric utility heaters are designed to meet a variety of heating requirements by switching
a few wires located in the base of the unit. Heat output is 25 589 BTU per hour. Features
horizontal and vertical flow horizontal air flow. Built-in thermostat with overheating safety
thermal cutout
SPECIFICATIONS
GENERAL SAFETY INFORMATION
:
:
: This heater requires hard wire installation (no plug). The
installation of this product must be carried out by a Certified Electrician
and in accordance with all local and national electrical codes.
NOTE: Compatible with a 240V Line Voltage Double Pole Wall
Thermostat. Must be installed by a Certified Electrician.
Read and understand all installation and operation
instructions and observe all safety instructions.
1. Use only copper wires rated for at least 60ºC.
2. Heater air flow must be directed parallel to or away from adjacent wall.
3. Observe wall, floor and ceiling clearance requirements
4. All wiring must be done according to national and local electrical codes in the united
states and the heater must be grounded as a precaution against possible electrical
shock. Heater circuit must be protected with proper fuses.
3
Rating AMPS BTU/hour
7500W 240V 31.3 25589
5000W 20.9
17065
Model Voltage
HA24-50E
HA24-75E 240V

5. The mounting structure and the anchoring hardware must be capable of reliably
supporting the weight of the heater and if used the mounting bracket.
6. All electrical power must be disconnected and the main service box must be locked
before inspecting cleaning or servicing the hater. This is a precaution to prevent
serious electric shock.
7. This heater is not suitable for use in hazardous locations as defined by the national
fire protection association (NFPA) in the united states. This heater has hot and
arcing sparking parts inside. Do not use it in areas where gasoline paint or
flammable liquids are used or stored.
8. This heater is not suitable for use in corrosive atmospheres such as marine
greenhouses or chemical storage areas.
9. This heater must be mounted at least 8 feet off the floor.
Improper installation or failure to follow the procedures outlined in this
instruction manual can result in serious electrical shock.
LOCATING HEATER
Install heater out of traffic areas maintaining clearances stated in figure 2. The direction of
air flow should not be restricted is by columns or machinery and the air flow should wipe
exposed walls rather than blowing directly on them. When more than one heater is used in
an area the heaters should be arranged so that the air discharge of each heater supports
the air flow of the others to provide best circulation of warm air as indicated in figure 3.
4

Figure 2
Figure
2
MOUNTING THE BRACKET
Ceiling mounting
Refer to Figures 4a and 4b.
1. Locate a wood stud in the wood ceiling joist. If you cannot locate a wood stud, you have
to install a wood piece on the ceiling as this heater must be securely fastened.
2. Remove the mounting bracket from the heating unit by loosening bracket screws with a
wrench and slipping the handle off over the screw heads.
5

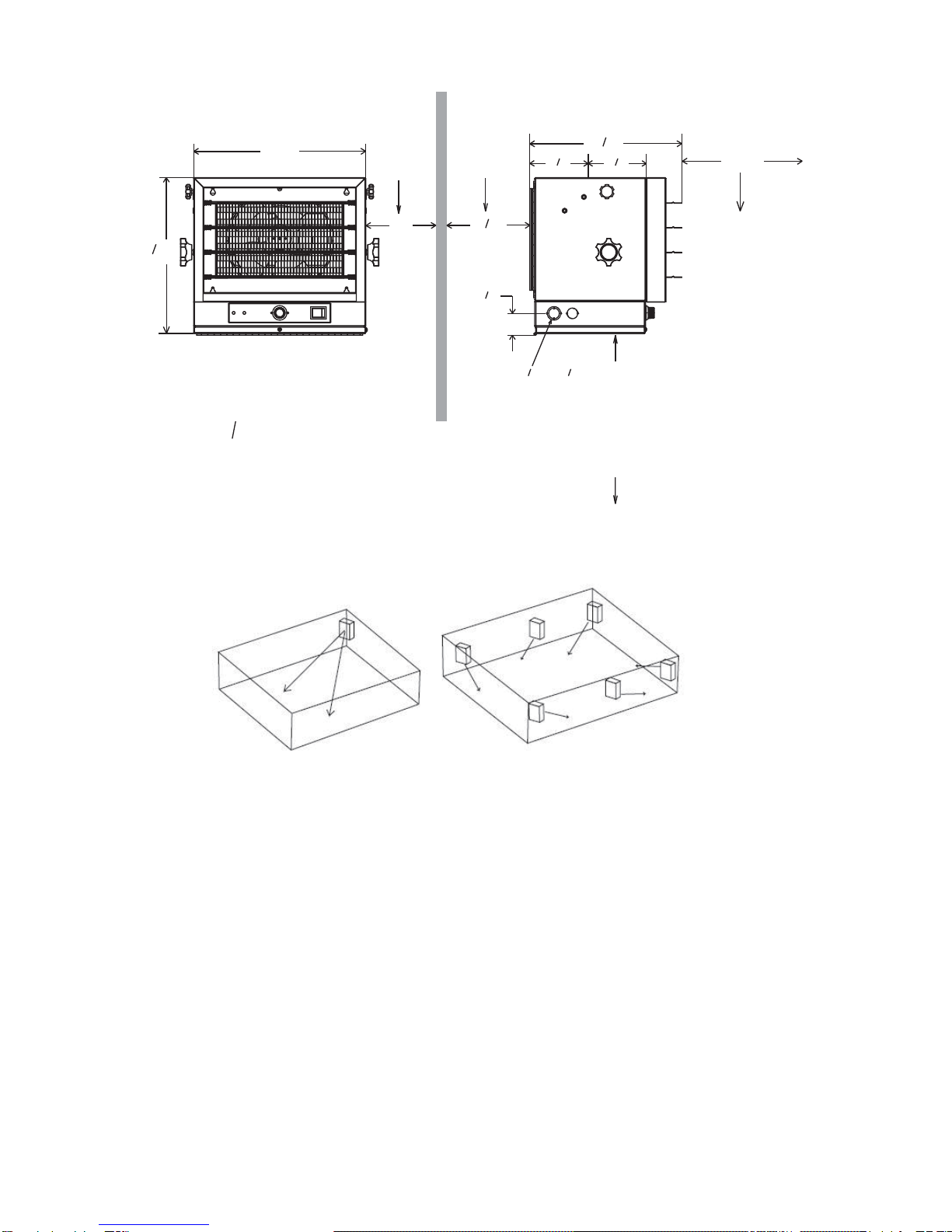

FRONT VIEW
Note: Min.clearance to ceiling
when note using mounting brackets
is 1 in.
58
MINIMUM
DISTANCE
TO WALL
MINIMUM
DISTANCE
TO WALL
13in.
7 in.
38
MINIMUM
DISTANCE
TO FLOOR
8 ft.
SIDE VIEW
MAXIMIUM MOUNTING HEIGHT FRO:
Vertical air de;ivery unit = 11 ft.
Horizontal air delivery unit =8 ft.
MINIMUM
DISTANCE
FROM
DISCHARGE
TO ANY
OBJECT
14in.
12 in.
12
10 in.
35
4 in.
12
4 in.
12
24 in.
1 in.
34
in. .,
12
in.
34

3. Place a washer on screws before inserting through the holes in the mounting bracket
and screw them securely into a ceiling joist.
NOTE: If you want to swivel the heater either to the right or left adding a washer to both
sides of the bracket is recommended. A longer lag bolt may be required to properly secure
the unit. See Figure 4a.
HANGING THE HEATER
1) Attach the heating unit to the mounting bracket.
2) Lift the heater up and into the mounting bracket.
3) Align the bracket screws with the keyhole slots in the mounting bracket.
4) If the heater is to be tilted it must be positioned in the keyhole slots - see figure 5.
5) Tighten the bracket screws with a wrench so the unit is securely suspended at
horizontal or vertical level.
Figure 5
ADJUSTING AIR FLOW DIRECTION
1. To turn the unit when it has been installed with a single lag bolt (as shown in figure 4a),
simply turn the entire heater as needed. The unit cannot be turned horizontally if it has
been installed with 2 lag bolts.
6
USE BOTTOM KEYHOLE
SLOTS IF HEATER IS TO
BE TILTED DOWN
REMOVE SCREW TO DOOR
WASHER
BRACKET
LAG BOLT
DIAGONAL
38’’
Figure 4b-Double-Screw Mounting
WASHER
BRACKET
LAG BOLT
DIAGONAL
38’’
Figure 4a-single-Screw Mounting

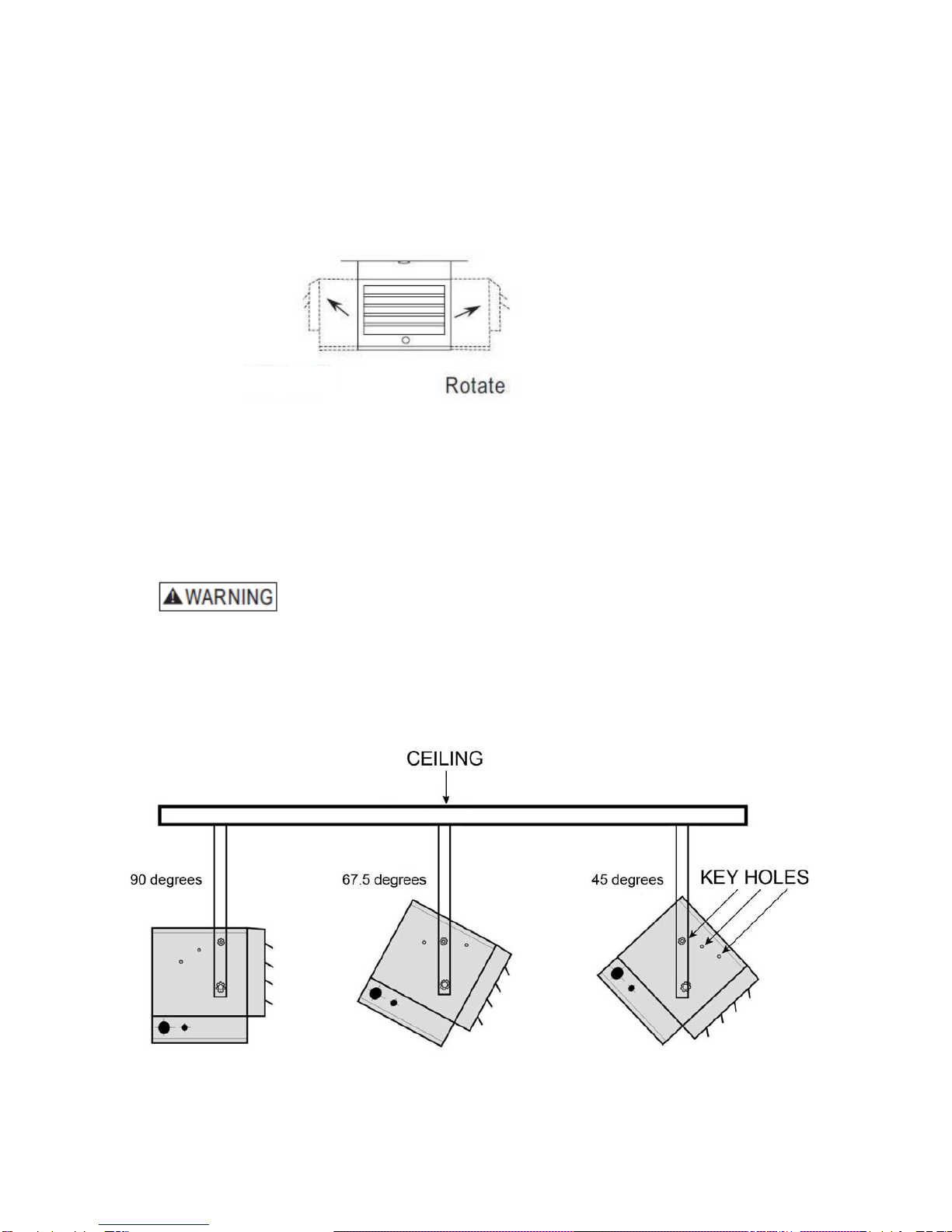

2. To tilt the unit vertically, loosen the bracket screws (see figure 5).
NOTE: For the heater to be tilted vertically, it must be mounted in bottom keyhole slots of
mounting brackets to maintain adequate clearance and prevent possible overheating.
1. Adjust louvers to the desired position.
NOTE: The louvers are designed so they cannot be completely closed. Do not attempt to
defeat this feature; damage to the unit can result.
To prevent possible electric shock, disconnect power to the heater at the
main service box before attempting to adjust the heat output of this unit.
MULTIPLE VERTICALANGLES
7

8
Wall mounting(optional）
MOUNTING THE BRACKET

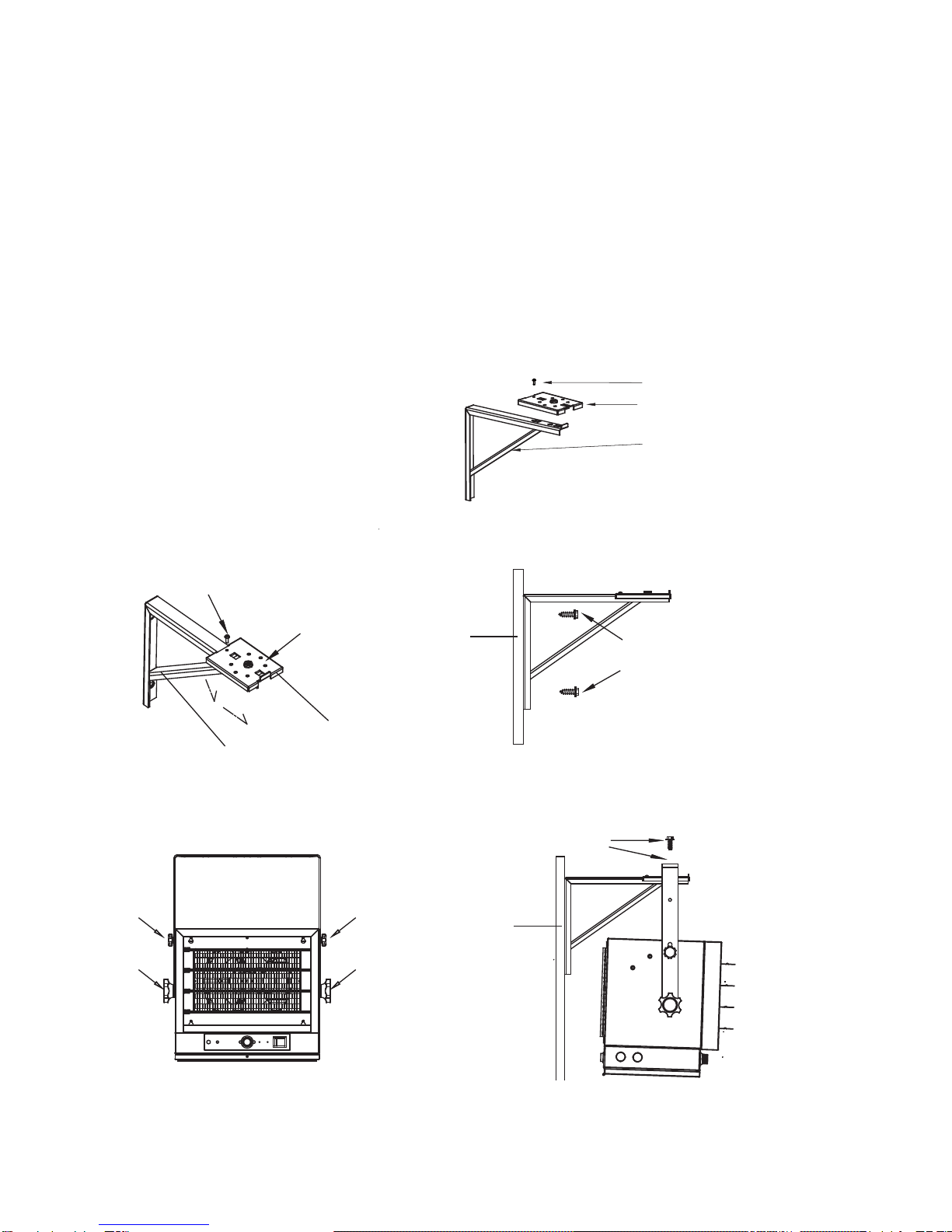

Refer to Figures 5 to 5E.
1. Locate the bracket on the walll , this heater must be securely fastened.
2. Sliding the support plate into the tripod and alignment square hole,locked with screws.
3. Fixed the bracket on the wall.
4.Fixed the gibbet on the machine ,and adjusted angle with
BOTTOM KEYHOLE ,
5.Insttall the heater on the bracket with screw,heater must be securely fastened
6.Adjust the horizontal angel refer to Figres 5E
3.Use the BOTTOM KEYHOLE
to lock the angel
2.Install the bracket on
the wall with two screw
WALL
Figure 5A Figure 5B
Figure 5C Figure 5D
locked by screw
support plate
tripod
1.Sliding the support plate
into the tripod
WALL
4.Fixed the heater on
the brackets with screw
Hanging wall optional accessories
support plate
tripod
SCREW
Wall hanging parts
Figure 5

45° 45°
horizontal
WALL
NOTE: The louvers are designed so they cannot be completely closed. Do not attempt to
defeat this feature; damage to the unit can result.
To prevent possible electric shock, disconnect power to the heater at the
main service box before attempting to adjust the heat output of this unit.
9
Figure 5E
5.There are 3 angels to be selected by two screw
screw
screw
screw
HEATER
RATING&VOLTAGE HEATER
AMPS MAX.FUSE
SIZE MIN.WIRE SIZE
75°C COPPER
5000W@240W 20.9 30 #12
HA24-50E 5000W Principle diagram of electrical apparatus
IN3
SW
NTC
IN2
PELAY4
DLSPLAY
LED
OUT4
SW-OUT
SW-OUTSW-IN
OUT3
OUT2
OUT1
LAMP
LAMP-N PAN-N
PELAY5 L-IN
PELAY3PELAY2PELAY1
IN1
Power light
Motor
240v 60Hz
Caution light Over heat
AC240V/60Hz
Terminal station
Terminal station
1000W Element 750W Element 750W Element 750W Element 750W Element 1000W Element
(E)
D

CONNECTING THE POWER
If you will use an external temperature control (external thermostat) to control the heater to be
operated or not, please follow below attention points:
1. Make sure that the heater's External temperature control switch has been switched to
external temperature control mode.
2. Connect the wire according to below wiring diagram.
10
HEATER
RATING&VOLTAGE HEATER
AMPS MAX.FUSE
SIZE MIN.WIRE SIZE
75°C COPPER
7500W@240W 31.3 45 #10
IN3
SW
NTC
IN2
PELAY4
DLSPLAY
LED
OUT6 SW-OUT SW-OUTSW-IN
OUT3
OUT2OUT1
LAMP
LAMP-N PAN-N
PELAY5 L-IN
PELAY3
PELAY2PELAY1
IN1
Motor
240v 60Hz
Caution light
Over heat
Terminal station
OUT4 OUT5
Over heat
Power light
D
PELAY6 PELAY7
1250W Element 1250W Element 1250W Element 1250W Element 1250W Element 1250W Element
(E)
AC240V/60Hz
HA24-75E 7500W Principle diagram of electrical apparatus

3. The external temperature control ( external thermostat) should be in accordance with
the requirement of UL or ETL standard.
4. The lead wire of external temperature control ( external thermostat) can not less than
16AWG.
External Temperature control
11
IN3
SW
NTC
IN2
PELAY4
DLSPLAY
LED
OUT6 SW-OUT SW-OUTSW-IN
OUT3
OUT2OUT1
LAMP
LAMP-N PAN-N
PELAY5 L-IN
PELAY3
PELAY2PELAY1
IN1
Motor
240v 60Hz
Caution light
Over heat
Terminal station
OUT4 OUT5
Over heat
Power light
D
PELAY6 PELAY7
1250W Element 1250W Element 1250W Element 1250W Element 1250W Element 1250W Element
(E)
AC240V/60Hz

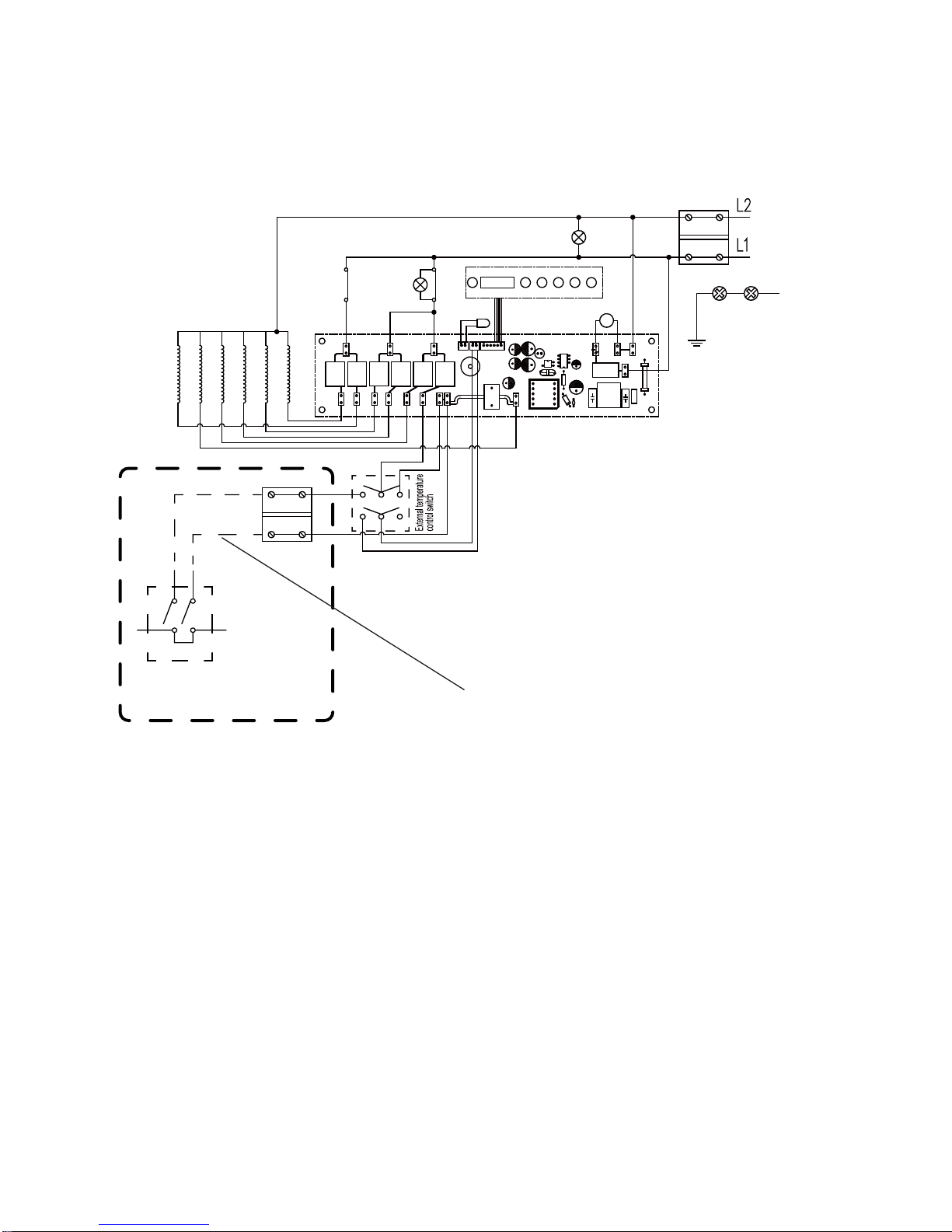

External temperature control wiring diagram

The external thermostat installation as below:
1.prize up the hole
2.Screw out the two screws
3.Strip away the cover of wire for 50mm
4.Tightening the wire 5.twisted into a circle
6.
6.
Put in the wires through the hole
Put in the wires through the hole
7.Conected the wires to machine
and make it secured
12

13

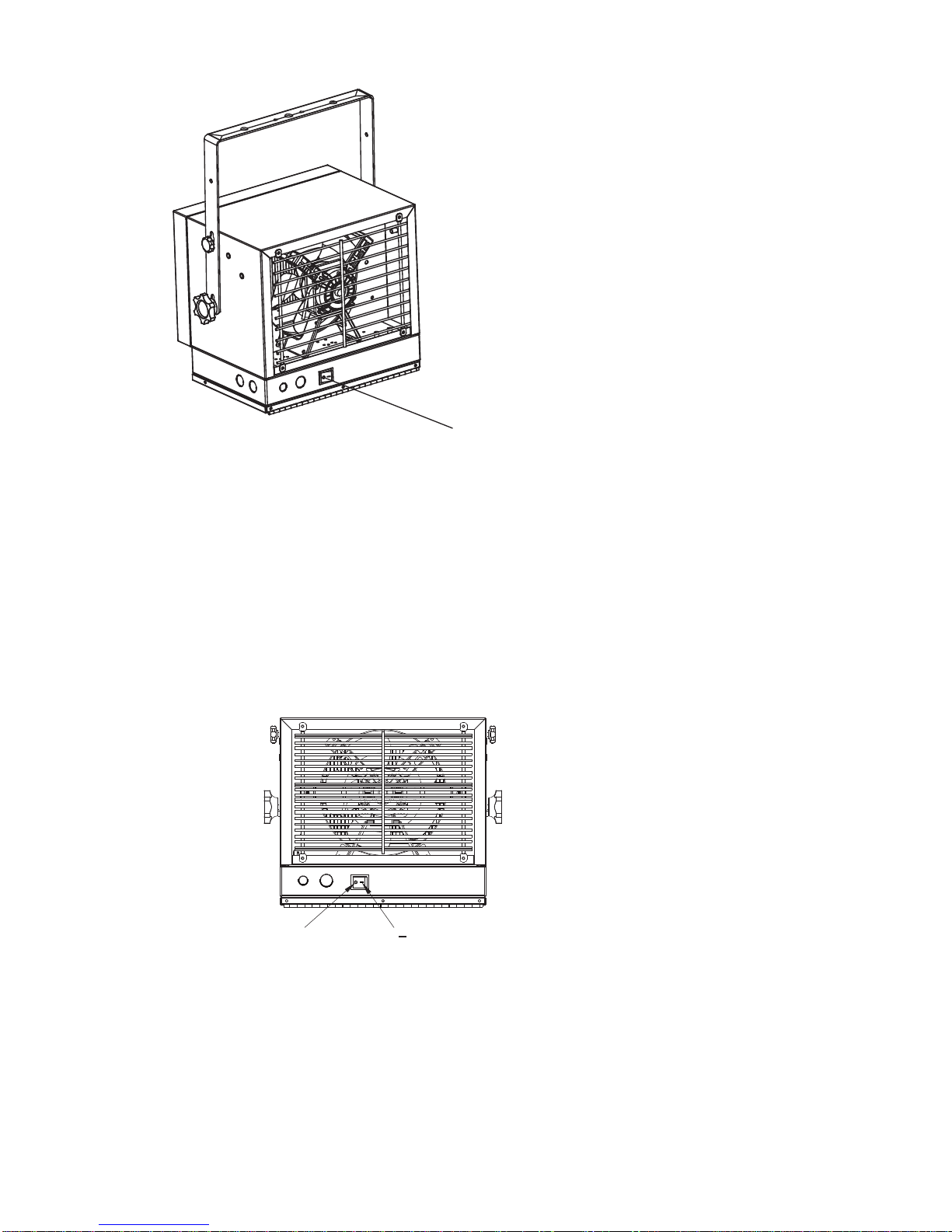

TO PROTECT THE HEATING ELEMENT
When start the heater, turning the temperature control in clockwise slowly to
terminal, the unit starts the fan first then star the heating element.
When close the heater, turning the temperature control in anticlockwise
slowly to off, the unit close the heating element first then close the fan.
8.Lock screw
Switch on the heater is
in Normal control Switch off the hether is in
external thermostat control
Normal control external thermostat
control
9.Normal control and external thermostat
control(use the button switch on/off)
BACK VIEW

Warning: This appliance must be grounded!
Warning: The appliance must connect to a current protection circuit or device at
50Amp or less before being connected to power supply!
1. Remove the screw from the front of the unit to connect the power to the heater.
2. Attach the cable connectors to the unit (See Figure 6) and slide the 10-gauge wire
through the cable connector.
NOTE: All wiring must be carried out by a Certified Electrician and must be in
accordance to national and local electrical codes in the United States. For certain
applications, conduit may be required, See Figure 6. Check local electrical codes. If
you run the wiring in conduit and wish to be able to turn the heater be sure to
purchase enough flexible conduit to allow the heater to be turned.
3. Connect the wire to the power block located in the base of the heater - See Figure 7.
4. Turn on the power at the main service.
CAUTION:
High temperatures – risk of fire. Keep flammable materials, such as furniture, pillows,
bedding, papers, clothes and curtains at least 3 ft. (0.9 m) from the front and top of the
heater and keep them away from the sides and rear.
To reduce the risk of fire, do not use it in areas where gasoline, paint or flammable liquids
are used or stored.
Figure
Figure 6
14
Figure 7

15
OPERATING INSTRUCTIONS
Control Panel
Power
Power
Timer
Timer
!
Power indicator (amber)
Cauon indicator (RED) Fahrenheit Temp/ Celsius Temp
Press these buons to set the room
temperature desired or automacally
offme
Timer buon
LED display
There are two working modes: Normal mode & Central-control mode;
Once the room temperature reaches the set point,the heater will stop running;
In normal mode, the LED will show the current room temperature;
The LED will display the current room temperature 5 seconds aer each operaon.
InstrucƟons for Normal mode
* Power buƩon
You can use the power buon as the On/Offswitch
The power buon is also used to change the heang output between “L” stage and “H” stage
2. “H”—high power
*temperature selection
Using the “F/℃”buon to change the modes between Fahrenheit temperature and
Celsius temperature
Press the “+” or “-“ buon to set the desired temperature between 5 ℃and 35 ℃.
Hold down“+ ” or “-” buon to speed up the selecon process.
*Timer selecƟon
1. “L”—low power
Use the “Timer” button to set the working hours for heater from 1hour to 24 hours
Each press of the “Timer” button, the time will be changed by 1 hour on the LED screen

*Instruction for external thermostat control mode
Under the external thermostat control mode:
1.The “power button” on the control panel of the heater is only used as On/Off switch
2.The timer button can be used to set working hours in the same way as the Normal mode.
3.“+ ” & “-” buttons are not available for temperature selection.
“O” Normal mode
“ ” external thermostat control mode
BACK VIEW
External temperature control switch
16
