10,000W/240V WALL / CEILING MOUNTED GARAGE HEATER
WITH ELECTRONIC CONTROLLER AND REMOTE
OWNER’S MANUAL
Model No.: PH-9100WRN
10000W 240V60Hz
IMPORTANT INSTRUCTIONS
READ & SAVE
PET OWNERS WARNING:
The health of some small pets including birds are extremely
sensitive to the fumes produced during the first-time use of many
appliances. These fumes are not harmful to humans but we
recommended that you do not use your heater around birds and
small pets during its initial use until the manufacturing corrosion
coatings burn off.
Technical support: 1-866-206-0888
Service email: [email protected]

2
TABLE OF CONTENTS
Important Instructions………………………………………3
Installing Instructions………………………. ………………5
Specifications and Wiring Diagram ……………………….9
Parts of the heater……………………….…………..………10
Operating Instructions……………………….………....…..11
Maintenance and Cleaning………………………………..14
Troubleshooting……………………………………………..15

3
IMPORTANT INSTRUCTIONS
PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS
HEATER
NOTE: There may be a trace of smoke or odor when unit is first
operated. Don’t be alarmed. This indicates that a drop of oil
fell on the heating coil during the manufacturing process. It will
quickly evaporate and should not re-occur.
Make sure that the room in which the appliance is located is
well ventilated during this operation. It is normal for the
appliance to emit small cracking sounds when you turn it on
for the first time. Do not be alarmed.
WHEN USING ELECTRICAL APPLIANCES,
BASICPRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO
REDUCE RISK OF FIRE, ELECTRICAL SHOCK AND INJURY TO
PERSONS OR PROPERTY, INCLUDING THE FOLLOWING:
1) Read all instructions before using this heater.
2) This heater is hot when in use. To avoid burns, do not let bare
skin touch hot surfaces. Keep combustible materials, such as
furniture, pillows, bedding, papers, clothes, and curtains at least 3’
(0.9 m) from the front of the heater and keep them away from the
sides and rear.
3) Extreme caution is necessary when any heater is used by or
near children or invalids and whenever the heater is left operating
and unattended.
4) Always switch off the heater when not in use.
5) Do not operate any heater after the heater malfunctions, has
been dropped or damaged in any manner. Disconnect power at
service panel and have heater inspected by a reputable electrician
before reusing.
6) Do not use outdoors.
7) To disconnect heater, turn off power to heater circuit at main
disconnect panel.

4
8) Do not install less than 6 feet(1.8 m in U.S.A) / 8 feet (2.4 m in
Canada) high from the floor and closer than 1 foot (0.3m) to any
adjacent vertical surfaces or walls. Keep at least 4.5 inches (11.5cm)
from the back wall (with or without using the wall hanging mounting
bracket).
9) Do not insert or allow foreign objects to enter any ventilation or
exhaust opening as this may cause an electric shock or fire, or
damage the heater.
10) To prevent a possible fire, do not block air intakes or exhaust in
any manner.
11) A heater has hot and arcing or sparking parts inside. To reduce
the risk of fire, do not use it in areas where gasoline, paint, or
flammable vapors and liquids are used or stored.
12) Use this heater only as described in this manual. Any other use
not recommended by the manufacturer may cause fire, electric
shock, or injury to persons.
13) This product must be installed by a certified electrician, in
accordance with local codes.
14) For supply cables, use 6AWG (13.3 mm2) copper wires.
15) WARNING – RISK OF FIRE, DO NOT USE AS A RESIDENTIAL
OR HOUSEHOLD HEATER.
CAUTION – High temperature, risk of fire, keep electrical cords,
drapery, furnishings, and other combustibles at least 3 feet
(0.9 m) from the front of the heater and away from the side and
rear.
SAVE THESEINSTRUCTIONS
WARNING – RISK OF FIRE, DO NOT USE AS A
RESIDENTIALOR HOUSEHOLD HEATER.

5
WARNING:All wiring must be installed by a certified electrician
according to the electrical safety.
The ceiling heater must be grounded in accordance with all national
and local building codes.
All wiring procedures and connections shall be in accordance
with the national and local codes having jurisdiction.
Before installation:
Disconnect the main supply connection.
Supply cables shall be 6 AWG (13.3 mm2) copper wires.
The heater must be connected to individual branch circuit protected
by 60Amp circuit breaker only.
Supply cables must be equipped with a dual pole circuit breaker
rating at least 240V 60A/pole as main cutoff switch of power
connection to the heater.
Wiring compartment for accommodating supply cables and pigtail
leads are adequate and measured free space of 2524.67 cm3.
CAUTION: High temperature, risk of fire, keep electrical cords,
drapery, furnishings, and other combustibles at least 3 feet (0.9 m)
from the front of the heater and away from the side and rear.
WARNING: To reduce the risk of fire, do not store or use
gasoline or other flammable vapors and liquids in the vicinity of the
heater.
INSTALLATION INSTRUCTION:
1. Keep the unit at least 6 feet(1.8 m in U.S.A)/ 8 feet (2.4 m in
Canada) away from the floor. This minimum distance must be
maintained.
2. Do not install closer than1 foot (or 0.3 m) to any adjacent vertical
surfaces or walls.
3. Keep at least 4.5 inches (11.5cm) from the back wall (with or
INSTALLING INSTRUCTIONS

6
without using the wall hanging mounting bracket).
4. Mark the drill-hole positions on the wall or ceiling for the
mounting bracket.
5. Drill the required holes with diameter fit for the anchor provided
for positioning the mounting bracket.
6. Insert the anchors.
7. Attach the mounting bracket to the wall and secure with mounting
screws.
8. Loose the tilt adjustment knobs, remove the cart.
9. Align the Hang Bracket to the knob screw holes.
10.Re-insert the knob and tighten.
11. Hook the unit to the mounting bracket and let the unit hang from
the mounting bracket.

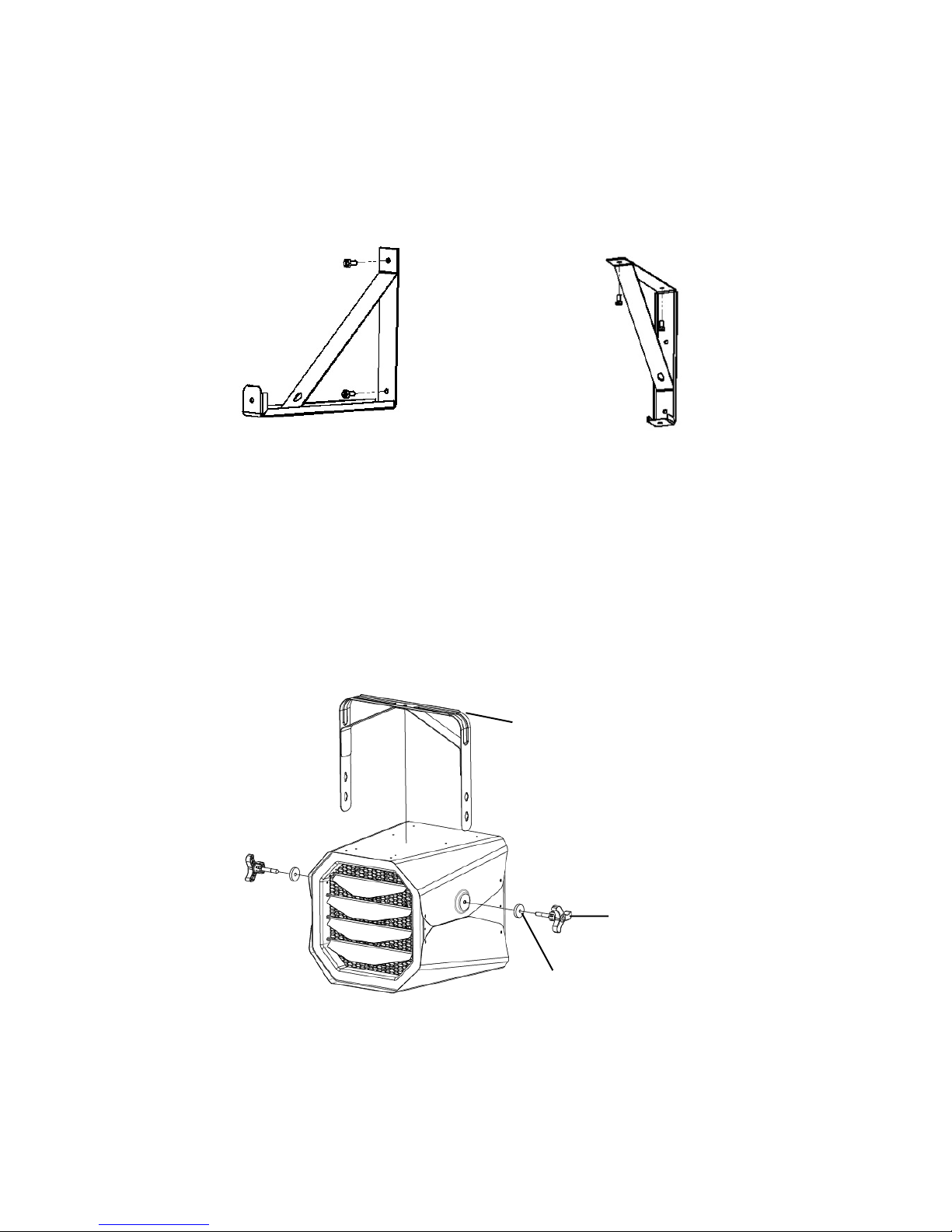

Hang Bracket
Knob
Rubber Pad
Wall Mount
Ceiling Mount

7
12. Insert the bolt provided through the mounting bracket and the
heater handle; tighten with the nut and washer.
13. Loosen the screw to remove the inspection window cover in the
rear of the heater.
14.Run the electrical power supply cable in flexible conduit and
connect to the wiring compartment via the knock-out at back
side of the unit.
15. Make the connections properly with connectors which are
suitable for the conductor size, including grounding wirings. And
after making the connections, arrange the pigtail leads of unit
and power supply wires in the wiring compartment.
16. You can use the inside or wall thermostat. If you use the inside
thermostat, press the rock switch to INSIDE THERMOSTAT.
17. If you want to use the wall thermostat (Not included), press the
rock switch to WALL THERMOSTAT, and insert the two wall
Wall Mount
Ceiling Mount

8
thermostat wire to the Terminal A inside the heater, make sure
to tighten the screws in the Terminal A.
18. Replace the wiring compartment/connection cover and lock in
place with the screw.

9
10,000W/240V WALL / CEILING MOUNTED GARAGE HEATER
WITH ELECTRONIC CONTROLLER AND REMOTE
Model: PH-9100WRN
Voltage: 240 V
Watts: 10000 W
Frequency: 60 Hz
Recommended Heating Capacity: 1.25watts / ft³ (0.03m³)

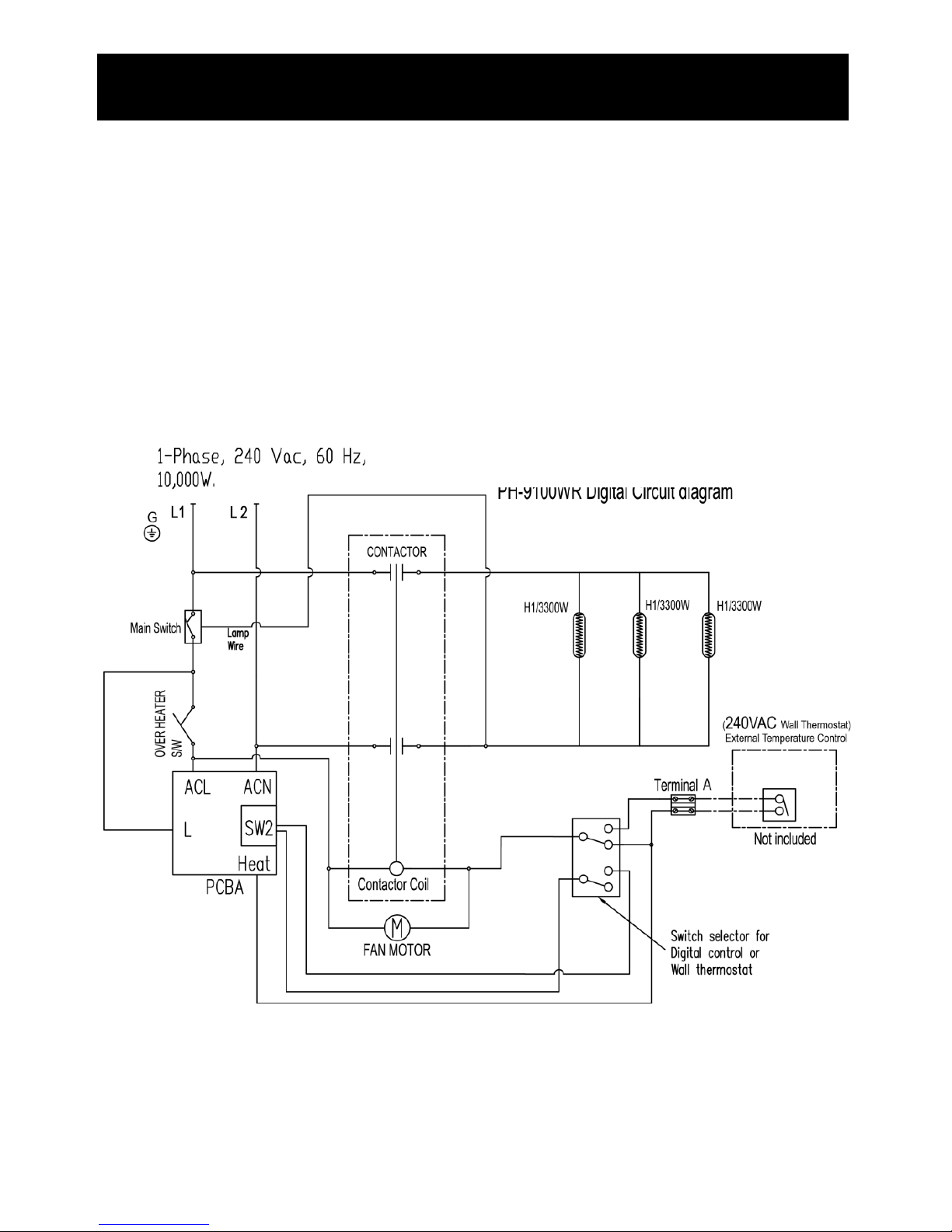

Wiring diagram:
SPECIFICATIONS
PH-9100WRN Digital
Circuit Diagram

10

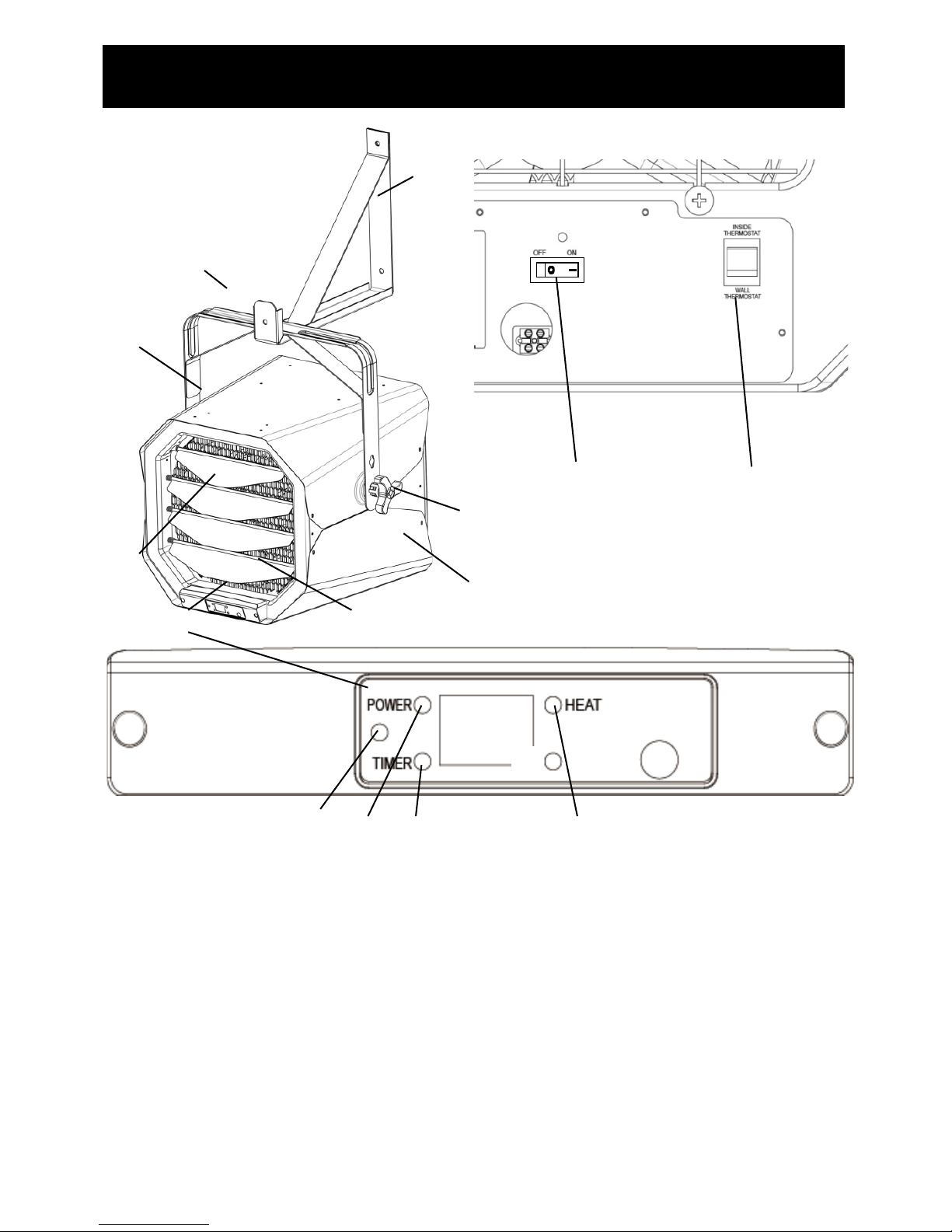

A. Wall Mount Bracket
B. Ceiling Bracket
C. Upper Housing
D. Louver for air direction
E. Tilt adjustable knob
F. Lower Housing
G. Front Exhaust Grill
H. ON/OFF Switch
I. Inside/Wall
Thermostat Switch
J. Control panel
K. Alarm LED
L. Power LED
M. Timer LED
N. Heat LED
PARTS OF THE HEATER
A
E
B
C
D
F
G
H
I
J
N
M
L
K

11
WARNING -The heater must be properly installed before it is
used.
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR
ARC FLASH:
Apply appropriate personal protective equipment (PPE)
and follow safe electrical work practices. See NFPA 70.
A circuit breaker must be installed and serviced only by a
qualified electrical personnel.
Always use a properly rated voltage sensing device to
confirm power is off.
The switch on the heater is to start the Fan and Heater.
Use the circuit breaker as power ON/OFF device. The
circuit breaker is to be installed by certified
electrician and shall be located in line of sight from
the heater location or shall be capable of being locked
in open position. Follow the operating instruction to
reduce the risk of fire, electric shock, injury or death
to persons.
Switch on the circuit breaker.
Insert the batteries to the remote controller as below images:
NOTE: Remove the batteries if the remote control is not to be
used for a month or more. Batteries left in the unit may leak
and cause damage.
OPERATING INSTRUCTIONS

12
DO NOT MIX OLD AND NEW BATTERIES! DO NOT MIX
ALKALINE, STANDARD (CARBON-ZINC) OR
RECHARGEABLE (NICKEL-CADMIUM) BATTERIES!
TURNING THE HEATER ON
To turn the heater ON, press the ON/OFF rock switch to ON
position, the power LED will turn on and display the room
temperature.
The factory setting temperature is 70℉, If you set the
thermostat switch to Inside Thermostat, and the room
temperature is lower or equal to 68℉, the heater will turn to
High mode and will turn off when the room temperature is
higher or equal to 72℉.
SETTING THE TEMPERATURE
To set the desired temperature:
Press the Thermostat button, and then press the + button to
increase the temperature or the -button to decrease the
temperature.
You can also press the + button until the numeric temperature
starts flashing. Press+button again to increase the
temperature or the - button to decrease the temperature.
After setting the desired temperature, the heater will run on
heating when the room temperature is equal to or lower than
the setting temperature - 2℉, and will turn off when the room
temperature is equal to or greater than the setting
temperature+2℉.
Note: If you set the thermostat switch to WALL THERMOSTAT,
press the + and - button cannot set the temperature, the heater
will run in ON or OFF heating according the wall thermostat
setting temperature.

13
SETTING THE TIMER
Press the TIMER button until Set Time starts flashing. The
default value is 3 hours.
Press the“+”button to increase the set time or the “–” button to
decrease the set time. The timer can be set from 1 to 12 hours.
The timer will set and execute after the LED display stops
flashing. The heater will shut OFF automatically when the set
time is reached.
To turn the timer OFF, press the TIMER button, and then
pressing the “–” button to set the time to 0. The timer feature
will turn off when the LED stops flashing.
To turn off the heater, switch off the circuit breaker.
The circuit breaker serves as the power
disconnection means.
This heater includes a visual alarm to warn that parts of the
heater are getting excessively hot. If the alarm flashes,
immediately turn the heater OFF and inspect for any objects, on
or adjacent to the heater that may cause high temperatures. DO
NOT OPERATE THE HEATER WITH THE ALARM FLASHING.
To reset the heater, switch the circuit breaker OFF, and wait five
to ten minutes for the unit to cool down before turning the heater
on.

14
There is no user maintenance part except regular cleaning as
following description. All other servicing or maintenance should be
performed by qualified service personnel.
Before any cleaning, make sure that:
1. Disconnect power supply at source. Switch off the circuit
breaker.
2. Wait for 60 minutes to ensure the heating element has cool
down, and your heater is now ready for cleaning.
Regular Cleaning:
1. Do not use cleaning liquid or other chemicals to spray on the
unit.
2. Interior dust can often be removed by using a vacuum cleaner
with a crevice tool attachment.
3. To clean enclosure, use a clean, soft and lightly damp cloth to
gently wipe off the dirt from the surface of the unit. Be sure not
to wet the heating element and the switches. Allow the unit to
dry completely before using it.
CAUTION: DO NOT ALLOW WATER TO RUN INTO THE
INTERIOR OF THE HEATER AS THIS COULD CREATE A FIRE
OR ELECTRIC SHOCK HAZARD, DAMAGING THE UNIT.
MAINTENCE AND CLEANING

15
If your heater fails to operate, please follow these procedures:
This heater is intended to be a ceiling-mounted heater. It has a
thermal cut-off protection. If the thermal cut-off protection trips, then,
switch off the power. Switch off the circuit breaker. The unit
should reset automatically after 10 minutes. If the thermal cut-off
protection trips again, consult a certified electrician to determine the
reason for overheating.
Problem
Probable Cause
Solution
Unit is not
heating.
Overheat protection has
temporarily deactivated
the heater.
Turn the heater OFF;
Switch off the circuit
breaker.. Wait 10
minutes before turning on
the heater
Breaker/Fuse has been
tripped.
Check your electrical box
to confirm the breaker
has not been blown. This
may occur if the
receptacle is shared
between other high
consumption appliances.
The heater
is
producing
a burning
smell.
Check & ensure there are
no combustible materials
within 0.9 meters (3 feet)
surrounding the heater.
Remove any combustible
items from the heater.
A drop of oil fell on the
heating coil during the
manufacturing process. It
will quickly evaporate and
should not occur again.
Ensure room in which
heater is situated is well
ventilated.
Ensure a minimum
clearance of 4.5 inches
(11.5 cm) from both sides
and rear of heater to
adjacent walls.
Reposition the heater so
there is enough space
around the heater to the
adjacent walls.
TROUBLESHOOTING

16
PLEASE DO NOT ATTEMPT TO OPEN OR REPAIR THE HEATER
YOURSELF. DOING SO COULD CAUSE DAMAGE OR PERSONAL
INJURY.
