ProFusion GD9315BC1-N User manual

INFRARED QUARTZ HEATER
OWNER’S MANUAL
Model No. GD9315BC1-N
PLEASE SAVE THESE INSTRUCTIONS
WARNING: READ THIS OWNER’S MANUAL CAREFULLY BEFORE USE.

2
Thank you for choosing a PROFUSION HEAT Infrared Quartz Heater. This owner’s manual
will provide you with valuable information necessary for the proper care and maintenance of
your new product. Please take a few moments to thoroughly read the instructions and familiarize
yourself with all the operational aspects of your new heater.
IMPORTANT INSTRUCTIONS
When using this electric unit, basic safety precautions should always be followed to reduce the
risk of fire, electric shock, and injury to persons, including the following:
1. Read ALL instructions before using this unit.
2. CAUTION: Risk of Electric Shock. DO NOT open or try to repair the heater yourself.
3. This heater may get hot when in use. To avoid burns, DO NOT let bare skin touch hot
surfaces. If provided, use handles when moving this heater.
4. Keep combustible materials, such as furniture, pillows, bedding, paper, clothes, and
curtains at least 3 ft from the front of the heater and keep them away from the sides, top,
and rear. DO NOT place towels or other objects on the heater.
5. Extreme caution is necessary when any heater is used by or near children or the disabled,
or when the heater is left operating and unattended.
6. DO NOT operate any heater with a damaged cord or after the heater malfunctions, has
been dropped or damaged in any manner. Return heater to authorized service facility for
examination, electrical or mechanical adjustment, or repair.
7. This heater is not intended for use in bathrooms, laundry areas and similar indoor
locations. NEVER locate heater where it may fall into a bathtub or other water container.
To protect against electrical hazards, DO NOT immerse in water or other liquids.
8. DO NOT touch the control panel or plug with a wet hand.
9. DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or
similar coverings. Arrange cord away from traffic area and where it will not be tripped
over.
10. DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening as
this may cause an electric shock or fire, or damage the heater.
11. To prevent a possible fire, DO NOT block the air intakes or exhaust in any manner. DO
NOT use on soft surfaces, like a bed, where openings may become blocked.
12. A heater has hot and arcing or sparking parts inside. DO NOT use in areas where
gasoline, paint, explosive and/or flammable liquids are used or stored. Keep unit away
from heated surfaces and open flames.
13. Always plug heaters directly into a wall outlet/receptacle. Never use with an extension
cord or relocatable power tap (outlet/power strip).
14. To avoid fire or shock hazard, plug the unit directly into a 120 V AC electrical outlet.
15. To disconnect heater, turn controls to OFF, then remove plug from outlet. Pull firmly on
the plug, DO NOT unplug by pulling on the cord.
16. Always unplug the unit before moving or cleaning, or whenever the heater is not in use.

3
17. Use only for intended household use as described in this manual. Any other use not
recommended by the manufacturer may cause fire, electric shock, or injury to persons.
The use of attachments not recommended or sold by unauthorized dealers may cause
hazards.
18. Always use on a dry, level surface. Use on floor only.
19. DO NOT use outdoors.
20. WARNING: To reduce the risk of fire or electric shock, DO NOT use this unit with any
solid-state speed control device.
21. DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit.
Doing so will void your warranty. The inside of the unit contains no user serviceable
parts. Qualified personnel should perform all servicing only.
22. Connect to properly grounded outlets only.
23. Save these instructions.
SPECIFICATIONS
Voltage Rating 120V (60Hz)
Power Consumption 1500W
Unit Size 16.5 in. (W) x 13.1 in. (D) x 16.8 in. (H)
Unit Weight 18.7 lbs
SAFETY FEATURES
Tip-Over Safety Feature
This heater is equipped with a tip-over safety feature. Once the heater is tipped over, an internal
switch will automatically shut the heater off. Once the heater is restored an upright position, the
heater will reset. To continue operation, turn on the heater using the supplied remote control or
the control panel on the heater.
Overheat Safety Feature
This heater is equipped with an overheat safety feature. When the heater’s internal components
reach a certain temperature that could cause overheat and possible fire, the heater will
automatically shut off.

4
WARNING: This heater has a voltage rating
of 120 volts. The cord has a plug as shown in
A. An adapter as shown in C is available for
connecting three-blade grounding-type plugs
to two-slot receptacles. The grounding lug
extending from the adapter must be connected
to a permanent ground such as a properly
grounded outlet box. The adapter should not be
used if a three-slot grounded receptacle is
available.
DO NOT DEFEAT THE SAFETY PURPOSE
OF THE GROUNDED PLUG.
WARNING: It is normal for the power cord to feel warm to the touch; however, a loose fit
between the outlet and the plug may cause overheating of the plug. If this occurs, try inserting
the plug into a different outlet. Contact a qualified electrician to inspect the original outlet for
damage.
IN THE BOX
·INFRARED QUARTZ HEATER
·REMOTE CONTROL(2 AAA batteries not included)
·INSTRUCTION BOOKLET
PRODUCT DIAGRAM
Air Outlet
Control Panel
Wheels
Remote Control
Air Intake
Cord Clamp
Power Switch
Temp Sensor
Front Panel

5

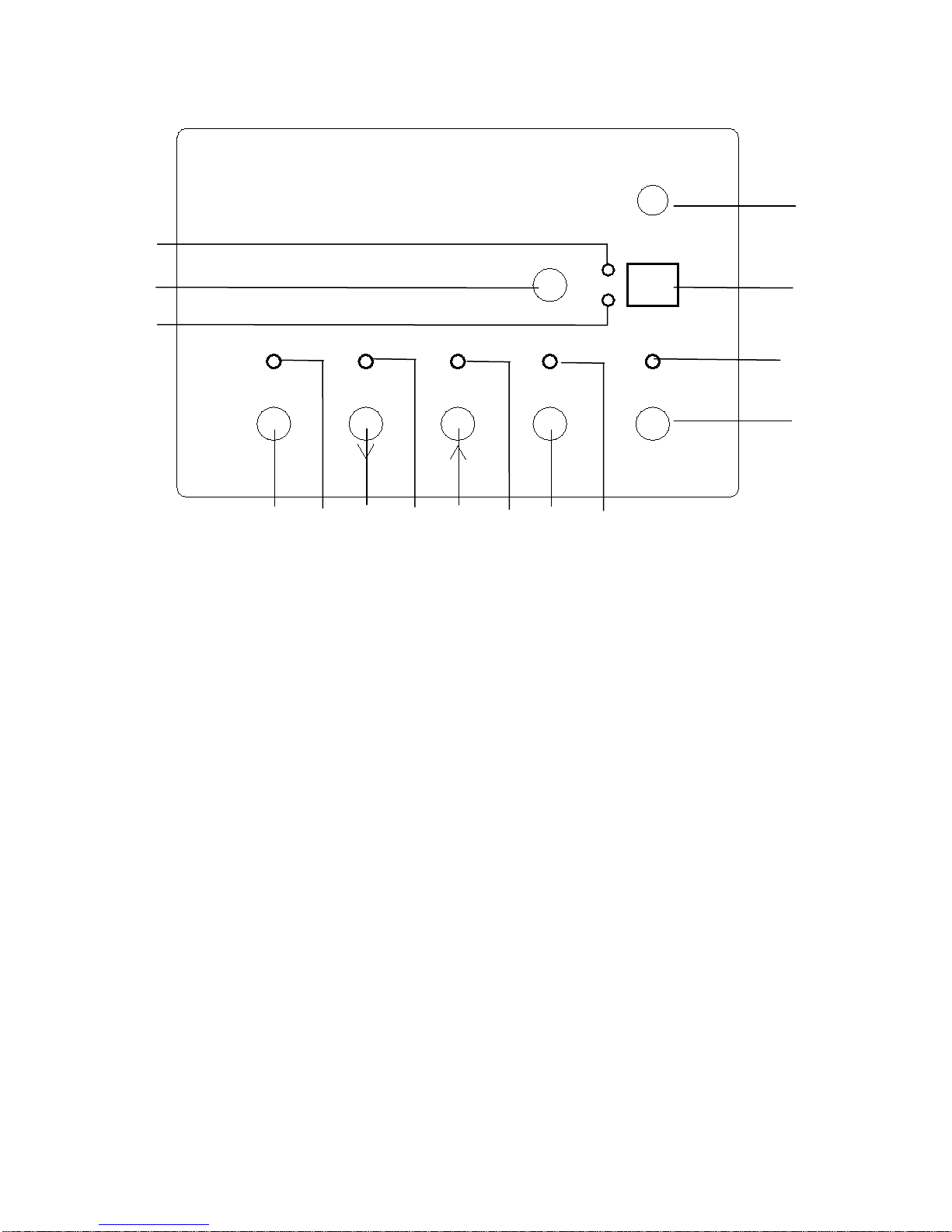

1. Signal receiving window: For receiving remote control signal.
2. Digital display: Indicates set room temperature or time.
3. Power indicator light: Indicates that the heater is receiving power from outlet. Will flash when
powered “ON”.
4. ON/OFF button: Powers the display on and off.
5. Energy-saving mode indicator: Will be lit when energy-saving mode is engaged.
6. Mode button: To select between High, Low and Eco modes.
7. Low Mode indicator light: Will be lit when Low Heat mode is engaged.
8. Temp up button: To increase desired temperature.
9. High Mode indicator light: Will be lit when High Heat mode is engaged.
10. Temp down button: To decrease desired temperature.
11. Timer indication light: Will be lit when the Timer mode is engaged.
12. Timer button: Used to engage timer mode and to set hour value for the timer.
13. Fahrenheit indicator light: Will be lit when temperature displayed is in Fahrenheit.
14. ℃/℉Button: Alternates between Fahrenheit and Celsius.
15. Celsius indicator light: Will be lit when temperature displayed is in Celsius.
Control Panel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Timer High Low ECO Power
RCIN
ON/OFF
Timer Mode
¡æ
¨H
77

6
PREPARATION
Place the heater on a firm, level surface and plug into a grounded 120V 60Hz power outlet. and
turn on the power switch in the rear of the unit. Only operate heater in upright position with
caster wheels attached.
Insert 2 AAA batteries into the remote control before using (Batteries Not Included)
OPERATING INSTRUCTIONS
1. Start and select working mode
Or
Turn the heater on by pressing the ON/OFF button on the
control panel or by pressing the Power button on the
supplied remote control.
Once power is off, heating element will stop working at first.
Fan will prolong working for 3 minutes to emit plenty of
heat inside. This mark will indicate running during the 3
minutes.
Remote Control
℃/℉button: Button for alternating between Fahrenheit and Celsius
ON/OFF button: Used for power-on or power-off
Temp up button: to make set temperature rise
Temp down button: to make set temperature decline
Timer button: Used for setting timer and adjust time value of timing
Mode button：Used for mode selection

7
Or
Select a heat Mode
Press the MODE button to toggle between the three heat
modes.
High Mode uses 1500W; Low Mode uses 1000W. ECO
mode is an Economic Energy Saving Function. When ECO
mode is chosen, the heater will operate from less to more
heating power (watts) in an attempt to maintain a constant
warm 68℉(20℃).
2. Setting Desired Temperature
Or Or
Or
Adjust the desired temperature by pressing the Up/Down
arrows on the control panel or remote control.
Or
Desired temperature options vary from 59℉to 86℉,or
from 15℃to 30℃. Once you have chosen the desired
temperature, the heater will remain on until the room
temperature increases to the temperature on the digital
display. The heater will cycle on and off to maintain the
desired room temperature.
Or
Press ℃/℉button to change the display temperature
between Fahrenheit and Celsius.
The Fahrenheit indicator LED will light , when the
temperature is displayed in Fahrenheit.
The Celsius LED will light, when the temperature is
displayed in Celsius.
3. Setting the POWER OFF TIMER Function
Note: The Power-Off-Timer Function will allow for the heater to power OFF after a
certain set time, and can only be set while the heater’s display is in the “On” position.
Or
Turn the heater to the “On” position .Press the Timer
button on the heater’s control panel or the remote.

8
The digital display changes from the “temperature” to the
“hours” option for the timer. Continue to press the timer
button to change the number of hours you would like the
heater to run before powering itself off .The hour options
for the timer are from 0 to 12 hrs. (in 1 hr increments).
The selected hour increments will flash for a few seconds,
then revert back to the set desired temperature .The Timer
indicator light will remain lit as long as the Timer is set.
The heater will power OFF when the internal heater clock
counts down the hour increments you set.
4.Setting the POWER-ON-TIMER Function
Note: The Power-ON-Timer Function will allow for the heater to power ON after a
certain set time, and can only be set while the heater’s display is in the “Off” position.
Or
Turn the heater to the “OFF” position .Press the Timer
button on the heater’s control panel or the remote.
The digital display shows the “hours” option for the timer.
Continue to press the timer button to change the number of
hours you would like the heater’s internal clock to count
down before powering itself on .The hour options for the
timer are from 0 to 12 hrs. (in 1 hr increments).
The Timer indicator light will remain lit as long as the
Timer is set. The heater will power itself ON when the
internal heater clock counts down the hour increments you
set.
5. Setting electro lock
The Electro Lock can help avoid the heater from being accidentally engaged by
children. The locking mechanism can be set in both the ON and OFF modes.
And
Press Temp Up and Temp Down buttons at the same time
for 3 seconds. Locking is complete when you hear a beep.
When locked, the functions of the control panel and remote
will be locked for use.
And
When you need to unlock it, press Temp Up and Temp
Down buttons at the same time for 3 seconds. You will hear
a beep .The control panel and remote control will become
functional again.

9
MAINTENANCE
1. Turn off the power switch in the rear of the unit.
2. Unplug the unit and let it cool completely.
3. To keep the heater clean, the outer shell may be cleaned with a soft, damp cloth. You
may use a mild detergent if necessary. After cleaning, dry the unit with a soft cloth.
CAUTION: DO NOT let liquid enter the heater.
4. DO NOT use alcohol, gasoline, abrasive powders, furniture polish, or rough brushes to
clean the heater. This may cause damage or deterioration to the surface of the heater.
5. DO NOT immerse the heater in water.
6. Wait until the unit is completely dry before use.
7. Air filter needs cleaning after being used for 3 months. Please take off the filter
following the 3 steps in the drawing below. Flush and clean the filter with water and then,
dry it out and re-assemble.
3) Remove Air filter
1) Remove bracket screws (2X)
The unit
2) Remove filter bracket

10
8. If you do not use the heater for a long time, please take out the remote batteries (to prevent
corrosion) as shown below. Store the remote in a safe place.
STORAGE
Store the heater in a cool, dry location when not in use. To prevent dust and dirt build-up, use the
original packaging to repack the unit.
BASIC TROUBLESHOOTING
If the heater will not operate, please check the following before seeking repair advice:
1. Check if the power cord is plugged into an electrical outlet, if not, plug in.
2. Check if electricity to the main power switch (in the back) is working.
3. Check to see if the battery on the remote is placed correctly, undamaged.
NOTE: For the heater to function properly, the desired temperature on the heater must be
set a few degrees higher than the temperature in the room. If the heater does not seem to
send out heat, increase the desired temperature on the heater to engage the heat elements.
PUSH
lid
Battery
