PROGRESSIVE DESK FLT-02 User manual

V 2.02
Scan for video assembly!
FLT-02
User Manual

Caution 3
Specifications
4
Dimensional Drawing 5
Components
6
Assembly 7
Operations 10
Troubleshooting 13
P a g e | 2
Table of Contents
Have any queries? Our expert engineers are here to help!
[email protected] progressivedesk.com
1-800-828-9414

Warning
Pinch Point
Keep hands and
fingers clear.
Caution
Ensure no obstacles are in the desk's path. Ensure the
tabletop is not touching any walls. Ensure all cords are
appropriate length to accommodate the change in height.
Keep children away from electric height-adjustable desks, control units, and handsets. There is a
risk of injury and electric shock.
During the Reset Procedure, the desk will retract 7mm below the lowest normal
operating height. Ensure no obstacles impede this motion of travel.
Keep all electrical components away from liquids.
Do not sit or stand on the desk frame. Do not crawl or lie under the desk frame.
Do not place any objects taller than 20" underneath the desk.
P a g e | 3

Specifications
P a g e | 4
Input Voltage
Specification Description
120 VAC, 60 Hz
24 VDC
25.5"
23.6" - 49.1"
39.6" minimum - 74" maximum
45" x 25"
270 lbs (135 lbs per leg)
1.57"/s
1.18"/s
10% (2 minutes on, 18 minutes off)
< 50 dB
Steel
Powder Coat - White, Black, Grey
Adjustable Leveling Feet
Output Voltage
Stroke (Movement)
Height Range (without tabletop)
Base Width
Minimum Tabletop Size
Weight Capacity (load)
No Load Speed
Full Load Speed
Duty Cycle
Operating Noise
Frame Material
Finish
Leveling
Standby < 0.1W
UL (Customizable) and BIFMA
Low Power Mode
Certification
Soft Start and Stop
Feature Description
The desk frame will accelerate to maximum speed and decelerate to a stop to
ensure smooth travel.
The smart remote has the ability to save preset height locations for convenience.
Set the numbered buttons on the smart remote for quick and seamless
adjustment.
The collision-detection feature will help protect the desk frame against obstacles which
impede the motion of travel. There are three force settings which can be detected
during travel: 22lbs, 33lbs, and 44lbs. This feature can be disabled by the user.
Collision Detection
Memory Presets

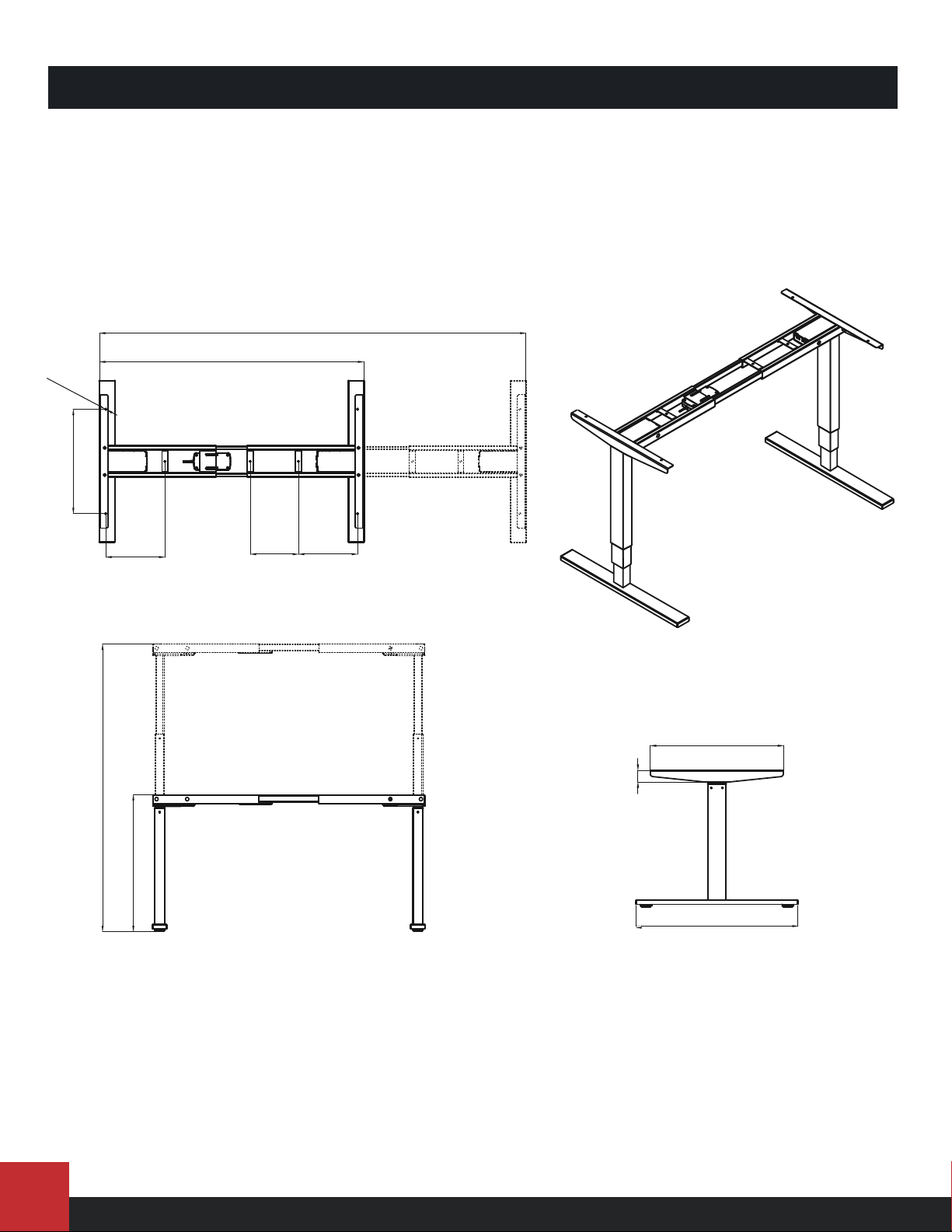

Dimensional Drawing
Maximum Width - 72.4"
Minimum Width - 43"
*Feet and column style may vary slightly
17.7"
0.3"
10" 10"
22.6"
27.5"
2"
8.2"
Retracted - 23.6"
Extended - 49.1"
P a g e | 5

P a g e | 6
Components
Important: The drawings below are for reference only and may be slightly different from
the physical product. Please contact us if you have missing or damaged components.
Progressive Desk Table
Top Included Hardware
If you purchased a Progressive Desk tabletop, use
the machine screws included in the tabletop
packaging (#17) instead of the wood screws (#14).
Progressive Desk tabletops will have pre-drilled
threaded holes for installation.
Included Allen Wrench (A)
Side Brackets
Center Rails
Cable Clips
M6x35
Machine Screw
M6x13
Machine Screw
Extension Cable
Frame End
Frame End CB
S5x16
Wood Screw
M6x14
Machine Screw
S5x20
Wood Screw
M6x10
Machine Screw
Power Cord
Foot
(Pre-Installed Glides)
Leg
Control Box Remote
Phillips Head Screwdriver
and/or Power Drill
Tape Measure
Tools You
Will Need
17
16
13
10
7
4
1
14
11
8
5
2
15
12
9
6
3
7
10
4
1
1
1
2
7
16
1
2
2
2
8
1
2
1

37
5
4
Separate control box (7), center rails (5), and frame ends (3,4).
Use the Allen wrench to partially install each machine screw (12) until all screws are
inserted before fully tightening. Repeat for the second leg.
Ensure the frame end (4) is
positioned as shown.
12
4
1
Use the Allen wrench to install 2 machine screws (13) into
the side bracket (6). Repeat for the second leg. 13
4
1
Assembly

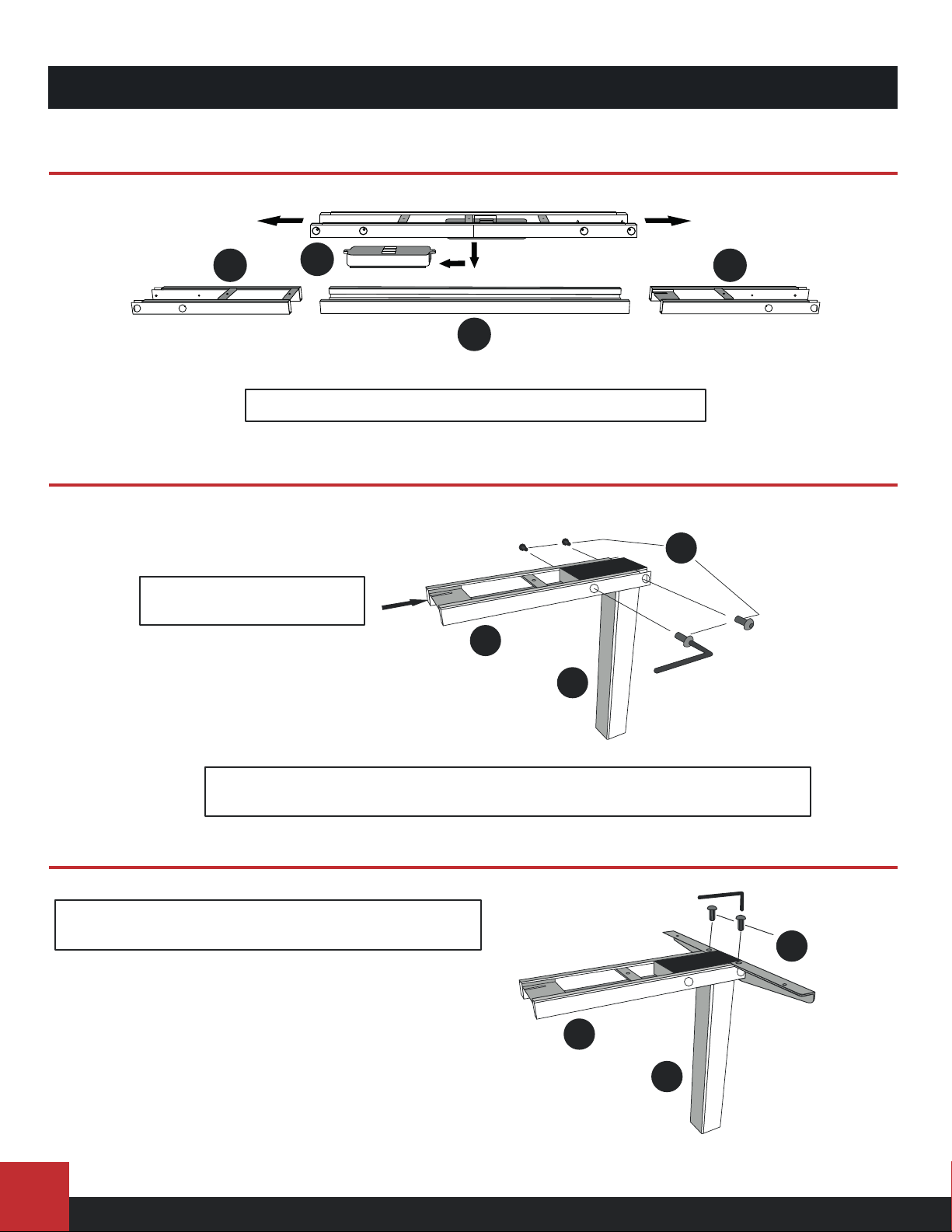

STEP 1: Expand the frame and separate all components
STEP 2: Attach the legs to the frame ends
STEP 3: Install side brackets to the frame ends
P a g e | 7

Insert center rails (5) to join frame ends (3,4) together.
Do not insert or tighten machine screws until Step 8.
Ensure the gap is facing inward
and is closer to the top edge.
453
Use an Allen wrench to install the foot (2) using 4
machine screws (11). Repeat for the second leg. 11
2
Extend the desk frame to align with the pre-drilled holes
in the tabletop. If you are using your own tabletop, allow
the tabletop to extend 1.5" beyond the side brackets.
Assembly

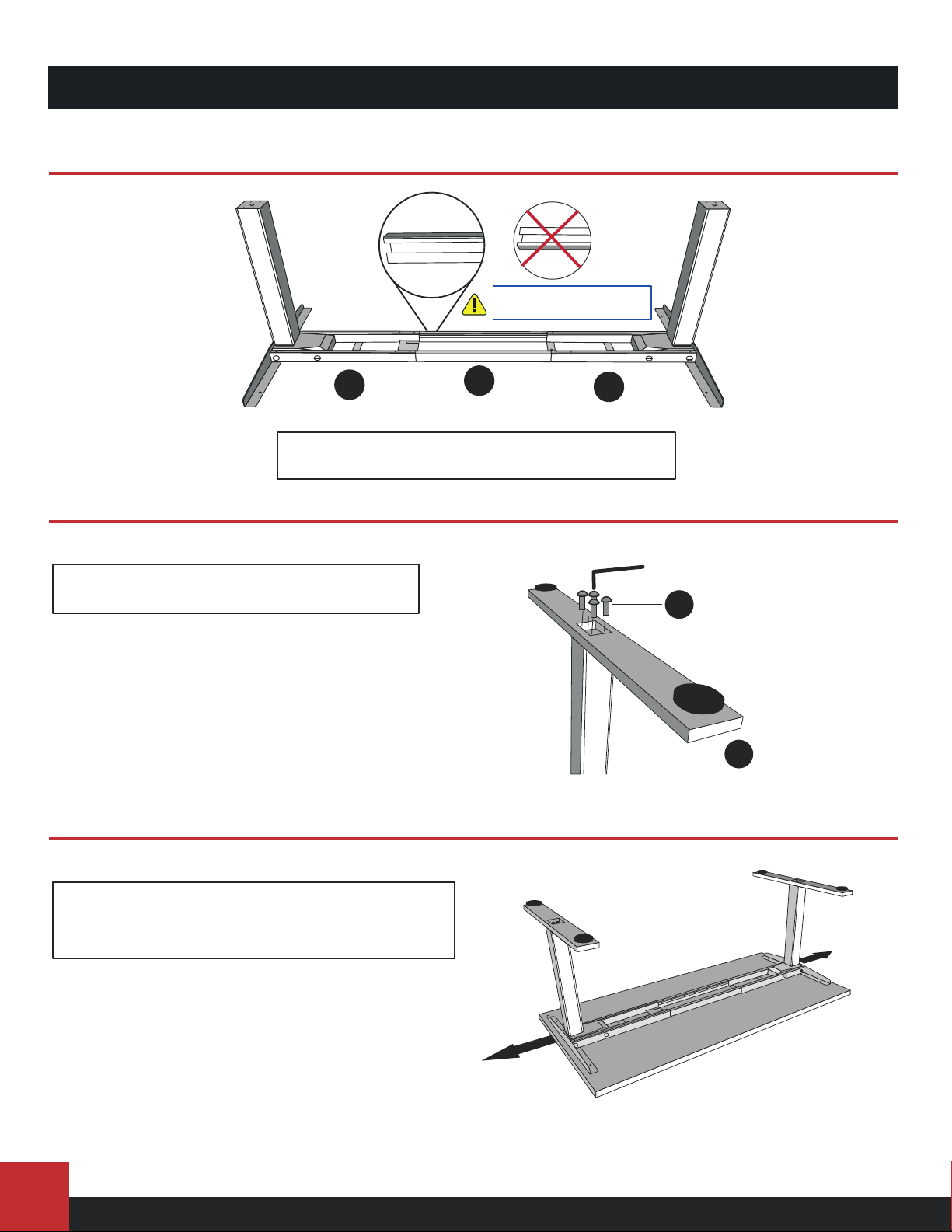

STEP 4: Connect both frame ends using the center rails
STEP 5: Install each foot with pre-installed glides
STEP 6: Place the desk frame onto the tabletop
P a g e | 8

8
15
14 17
or
Line up the remote (8) with the tabletop edge and install it
to the tabletop using a power drill and 2 wood screws (15).
If you have a Progressive Desk tabletop, use the
machine screws (17) included in the tabletop
packaging. Line up the desk frame with the
predrilled holes on the underside of the tabletop
and insert all machine screw before using the
Allen wrench to tighten each machine screw (17).
Progressive Desk Tabletop
If you have your own tabletop, position the desk
frame so that the tabletop extends 1.5" beyond
the side brackets (6). Use a power drill to install
7 wood screws (14) into the hole positions.
Third-Party Tabletop
11
Use the Allen wrench to secure both center rails (5)
using 8 machine screws (11). The machine screws
should be tightened against the center rails.
7
9
4
8
10 1
It is required to complete the reset procedure in the
next section prior to operating your standing desk.
• Plug in power cord (9) to AC.
• Plug in nearest leg (1) to M1.
Use extension cord (10) if needed.
• Plug in remote (8) to HS.
• Plug in nearest leg (1) to M2.
Use extension cord (10) if needed.
AC M1
F HS M2
Slide the control box (7) into frame end CB (4).
Attach remote (8) to control box (7).
Attach power cord (9) to control box (7).
Attach both legs (1) to the control box (7). Use
the included extension cable (10) if necessary.
Use the included self-adhesive cable ties (16)
to secure loose wires to the underside of your
tabletop.
We recommend having two people for this
step. Flip the fully assembled desk by the legs
(not by the tabletop). Adjust the preinstalled
glides on the feet (2) as needed.
Assembly
STEP 7: Secure the desk frame & remote to the tabletop
STEP 8: Secure the center rails
STEP 9: Install the control box & connect all peripherals
P a g e | 9

P a g e | 10
1234 M
1
2
3
4
M
Operations

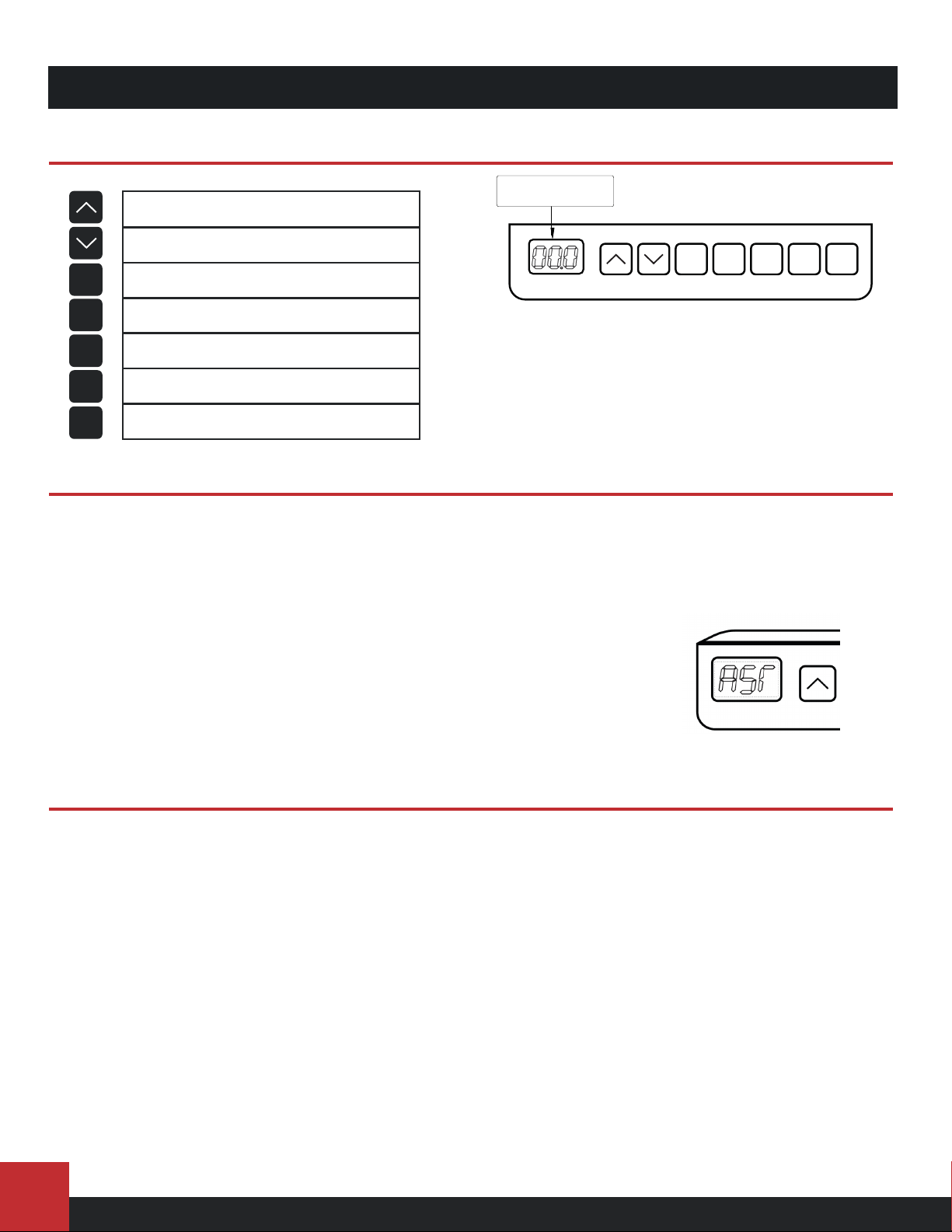

REMOTE BUTTONS
RESET PROCEDURE
HEIGHT CALIBRATION
MEMORY PRESET PROGRAMMING
Height Display
UP - Hold to move table lift up
DOWN - Hold to move table lift down
Memory Preset 1
Memory Preset 5
Memory Preset 3
Memory Preset 4
Memory Preset programming button
WARNING: During the Reset Procedure, the table lift will retract 0.28 inches below the lowest normal operating
position. Ensure there are not obstructions in the path of the table lift. Release the DOWN button to stop motion at any
time.
1. Use the UP or DOWN button to bring the desk to
the desired height.
2. Press M button once, followed by the desired
Memory Preset button.
1. If remote height display shows "ASr", skip to step 4.
2. Move the table lift to the lowest position using DOWN button.
3. Once at the lowest position, press and hold the DOWN button on the remote until
height display shows "ASr". Release the DOWN button.
4. Press and hold the DOWN button, the table lift will move down 0.28 inches below the
lowest normal operating position. Continue to hold the DOWN button until the table lift
moves back up to the lowest normal operating position. Release the DOWN button.
5. The table lift height will be displayed on the remote height display and is now ready
for use.
Calibrate the Remote height display to match actual height of desk which may differ depending on feet height or table top
thickness.
1. Move the table lift to the lowest position using the DOWN button. Measure the height from the floor to surface of table
top. If measured height does not match the height on the remote height display, continue with the following steps.
2. Press and hold the DOWN button until height display shows "ASr". Release the DOWN button.
3. Press and hold the M button until the height display flashes.
4. Use the UP and DOWN buttons to match the height display with your measured height.
5. Once the correct value is displayed, do not touch the remote until the height display flashes "ASr". Hold the DOWN
button until the table lift slightly lowers, then slightly rises back up. Release when the table lift height is displayed on the
remote.

P a g e | 11
Operations
REMOTE CONTROL LOCK
To Lock
Press and hold the M button. The remote height display will show "S-", then it will show the table lift height, and finally
it will display "LOC". The remote control buttons are now locked.
To Unlock
Press and hold the M button until the height display shows the table lift height.
HEIGHT DISPLAY UNITS (inch or centimeter)
1. Move the table lift to the lowest position using the DOWN button.
2. Press and hold the DOWN button until the display shows "ASr". Release the DOWN button.
3. Hold the 2 button to select through the options. Release once the display shows the code corresponding to the desired
setting.
"10.3" - centimeters
"10.4" - inches
Once the selection is made, "ASr" will show up on the display.
4. Hold the DOWN button until the table lift slightly lowers, then slightly rises back up. Release when the table lift height is
displayed on the remote.
COLLISION DETECTION SENSITIVITY
1. Move the table lift to the lowest position using the DOWN button.
2. Press and hold the DOWN button until the display shows "ASr". Release the DOWN button.
3. Hold the UP button to select through the options. Release once the display shows the code corresponding to the desired
setting.
"10.5" - 22lbs
"10.6" - 33lbs
"10.7" - 55lbs
Once the selection is made, "ASr" will show up on the display.
4. Hold the DOWN button until the table lift slightly lowers, then slightly rises back up. Release when the table lift height is
displayed on the remote.

P a g e | 12
Operations
MEMORY PRESET ONE-TOUCH and CONSTANT-TOUCH MODE
One-Touch mode is the default setting. The memory preset button may be pressed once without holding and the table lift
will move to the desired height. Any button may be pressed to stop movement.
Constant-Touch mode requires you to hold the memory preset button until the desired height is reached. Releasing the
memory preset button earlier will make the table lift stop immediately.
MINIMUM AND MAXIMUM HEIGHT LIMIT
Resetting to Default Minimum and Maximum Height Limit
1. Press the M button once and wait for the display to show "S-".
2. Hold the M button until the display shows "555" and then release.
Setting Maximum Height Limit
1. Use the UP or DOWN button to bring the desk to the desired maximum height limit.
2. Press the M button once. "S-" will appear on the display screen. Press the UP button once, the "S-" will flash once.
3. Hold the M button until the display shows "999". Release the M button.
Setting Minimum Height Limit
1. Use the UP or DOWN button to bring the desk to the desired minimum height limit.
2. Press the M button once. "S-" will appear on the display screen. Press the DOWN button once, the "S-" will flash once.
3. Hold the M button until the display shows "000". Release the M button.
1. Move the table lift to the lowest position using the DOWN button.
2. Press and hold the DOWN button until the display shows "ASr". Release the DOWN button.
3. Hold the 1 button to select through the options. Release once the display shows the code corresponding to the desired
setting.
"10.1" - One-Touch
"10.2" - Constant-Touch
Once the selection is made, "ASr" will show up on the display.
4. Hold the DOWN button until the table lift slightly lowers, then slightly rises back up. Release when the table lift height is
displayed on the remote.

P a g e | 13
Troubleshooting
Have any queries? Our expert engineers are here to help!
[email protected] progressivedesk.com
1-800-828-9414
Code
E01 - E04
E07
E08
E09
E10
H01
Power issue
or
Firmware issue
M1 - Connection issue or
Legs are uneven
M2 - Connection issue or
Legs are uneven
M3 - Connection issue or
Legs are uneven
M4 - Connection issue or
Legs are uneven
Over heat / Duty
Cycle protection
Ensure AC outlet is not faulty.
Ensure all parts in the table lift are authentic and compatible.
Initiate Reset Procedure to clear the error.
Allow the system to rest for 18 minutes, then it may be used
normally. Follow the Duty Cycle rating listed in Specifications
to prevent overheating.
Ensure all Legs are securely connected to the Control Box and
cables are free of damage.
Ensure there are no obstructions affecting the table lift travel path.
Ensure weight on table lift is evenly distributed and does not exceed
table lift limits. Initiate Reset Procedure to clear the error.
Description Solution
Problem
Table lift is
not level
Remote
height is off
Table lift
unresponsive
Significantly
slow movement
Unusual noise
during travel
Table lift stops
abruptly
Connection issue Disconnect and reconnect all cables (Lifting Column, Control Box, AC
Power, and Remote), then initiate the Reset Procedure.
Ensure weight on table lift is evenly distributed and does not exceed
table lift limits, then initiate the Reset Procedure.
Press any button on the Remote.
Ensure Remote and Power Cord connection to
Control Box is secure and free of damage.
Please refer to Setting Minimum and Maximum Height Limit.
Disconnect and reconnect all cables connected to Control Box.
Ensure all cables are secure and free of damage.
Ensure weight on table lift is evenly distributed and
does not exceed table lift limits.
Ensure weight on table lift is evenly distributed and
does not exceed table lift limits.
Ensure there are no obstructions affecting the table lift travel path.
Weight issue
Weight issue
Weight issue
Obstruction
Low Power
Mode active
Connection issue
Connection issue
Travel limits
reached
Description Solution
