ProLights ArcPod 27VW User manual

USER MANUAL
REV.01-08/22 English version
ArcPod 27VW
27x10W VW outdoor IP66 LED wash
light for exterior installations

Thank you for choosing PROLIGHTS
Please note that every PROLIGHTS product has been designed in Italy to meet quality and performance requirements
for professionals and designed and manufactured for the use and application as shown in this document.
Any other use, if not expressly indicated, could compromise the good condition/operation of the product and/or be
a source of danger.
This product is meant for professional use. Therefore, commercial use of this equipment is subject to the respectively
applicable national accident prevention rules and regulations.
Features, specications and appearance are subject to change without notice. Music & Lights S.r.l. and all afliated
companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or any other
loss occasioned by the use of, inability to use or reliance on the information contained in this document.
Product user manual can be downloaded from the website www.prolights.it , or can be inquired to the ofcial
PROLIGHTS distributors of your territory (https://www.prolights.it/sales_network.html).
Scanning the below QR Code, you will access the download area of the product page, where you can nd a broad
set of always updated technical documentation: specications, user manual, technical drawings, photometrics,
personalities, xture rmware updates.
The PROLIGHTS Logo, PROLIGHTS names and all other trademark in this document pertaining to PROLIGHTS services
or PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its afliates, and subsidiaries.
PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc -
04026 - Minturno (LT) ITALY.
Visit the download area
of the product page

PROLIGHTS - ArcPod 27VW 01
INDEX
SAFETY INFORMATION 02
1 - PACKAGING 05
PACKAGE CONTENT..................................................................................................... 05
OPTIONAL ACCESSORIES............................................................................................. 05
2 - TECHNICAL DRAWING 06
3 - INSTALLATION 07
MOUNTING.................................................................................................................... 07
4 - PRODUCT OVERVIEW 08
5 - CONNECTION TO THE MAINS SUPPLY 09
6 - DMX CONNECTION 10
CONNECTION OF THE CONTROL SIGNAL: DMX LINE .............................................. 10
INSTRUCTIONS FOR A RELIABLE DMX CONNECTION ............................................... 10
CONNECTION DAISY CHAIN OF THE DMX LINE ........................................................ 10
DMX ADDRESSING ........................................................................................................ 11
7 - RDM FUNCTIONS
11
8 - OPERATION VIA DATAMASTER 12
RDM SETTING................................................................................................................ 12
STAND ALONE FUNCTION ........................................................................................... 13
9 - DMX CHARTS 14
10 - ACCESSORIES INSTALLATION 18
LENS (CODE S27QLENS10-15-25-45)............................................................................ 18
LIGHT DIFFUSION FILTER (CODE A27QFILTER)............................................................ 19
BARN DOOR (CODE S27QBD - OPTIONAL)................................................................. 20
11 - MAINTENANCE 21
MAINTENANCE AND CLEANING THE PRODUCT........................................................ 21
VISUAL CHECK OF PRODUCT HOUSING ..................................................................... 21
TROUBLESHOOTING..................................................................................................... 22

PROLIGHTS - ArcPod 27VW
02
SAFETY INFORMATION
WARNING!
• Please read carefully the instruction reported in this section before installing, power-
ing, operating or servicing the product and observe the indications also for its future
handling.
This unit is not for household use, only professional applications.
Connection to mains supply
• The Connection to the mains supply must be carried out by a qualied electrical
installer.
• Use only AC supplies 100-240V 50-60 Hz, the xture must be electrically connected
to ground (earth).
• Select the cable cross section in according with the maximum current draw of the
product and the possible number of products connected at the same power line.
• The AC mains power distribution circuit must be equipped with magnetic+residual
current circuit breaker protection.
• Do not connect it to a dimmer system; doing so may damage the product.
Protection and Warning against electrical shock
• Do not remove any cover from the product, always disconnect the product from AC
power before servicing.
• Ensure that the xture is electrically connected to ground (earth). And use only a
source of AC power that complies with local building and electrical codes and has
both overload and ground-fault (earth-fault) protection.
• Before using the xture, check that all power distribution equipment and cables are
in perfect condition and rated for the current requirements of all connected devices.
• Isolate the xture from power immediately if the power plug or any seal, cover, ca-
ble, or other components are damaged, defective, deformed or showing signs of
overheating.
• Do not reapply power until repairs have been completed.
• Refer any service operation not described in this manual to PROLIGHTS Service team
or an authorized PROLIGHTS service center.
Installation
• Make sure that all visible parts of the product are in good visible condition before its
use or installation.
• Make sure the point of anchorage is stable before positioning the projector.
• When suspending the xture above ground level, secure it against failure of primary
attachments by attaching a safety cable that is approved as a safety attachment for
the weight of the xture to the attachment point on the main frame of the product. ln
case the safety cable, enter in action, it needs to be replaced with a new one.
• Install the product only in well ventilated places.
• For non temporary installations, ensure that the xture is securely fastened to a load-
bearing surface with suitable corrosionresistant hardware.
• For a temporary installation with clamps, ensure that the quarter-turn fastener and/or
screws are turned fully, and secured with a suitable safety cable.
3 m Minimum distance of illuminated objects
• The projector needs to be positioned so that the objects hit by the beam of light are
at least 3 meters (9.84 ft) from the lens of the projector.

PROLIGHTS - ArcPod 27VW 03
T
45°
C
aMax operating ambient temperature (Ta)
• Do not operate the xture if the ambient temperature (Ta) exceeds 45 °C (113 °F).
T
-20°
C
a
Minimum operating ambient temperature (Ta)
• Do not operate the xture if the ambient temperature (Ta) is below -20 °C (-4 °F).
Protection from burns and re
• The exterior of the xture becomes hot during use. Avoid contact by persons and
materials.
• Ensure that there is free and unobstructed airow around the xture.
• Keep ammable materials well away from the xture.
• Do not expose the front glass to sunlight or any other strong light source from any an-
gle. Lenses can focus the sun’s rays inside the xture, creating a potential re hazard.
• Do not attempt to bypass thermostatic switches or fuses.
IP66
Permanent Outdoor use
• This product is rated with an IP (Ingress protection) for permanent outdoor use when
used and serviced according to the instruction contained in this document.
• Never use the xture in places subject to vibrations or bumps.
• Make certain that no inammable liquids, water or metal objects enter the xture.
• Excessive dust, smoke uid, and particle build up degrades performance, causes
overheating and will damage the xture.
• Damages caused by inadequate cleaning or maintenance are not covered by the
product warranty.
T
65°
C
c
Temperature of the external surface
• The surface of the xture can reach up to 65 °C (149 °F) during operation. Avoid
contact with people and materials.
Maintenance
• Warning! Disconnect the xture from AC mains power and allow to cool for at least
10 minutes before handling.
• Only technicians who are authorized by PROLIGHTS or Authorised service partners
are permitted to open the xture.
• Users may carry out external cleaning, following the warnings and instructions pro-
vided, but any service operation not described in this manual must be referred to a
qualied service technician.
• Important! Excessive dust, smoke uid, and particle build up degrades performance,
causes overheating and will damage the xture. Damages caused by inadequate
cleaning or maintenance is not covered by the product warranty.
Photobiological safety
• This device emits potentially dangerous optical radiation and is identied in the cat-
egory of Risk Group 1 according to EN 62471.
Do not stare at the operating light source
• Do not look directly at the LED source during operation. It can be harmful to the eyes
and skin.
• During Installation, operation and maintenance, be prepared for the xture to light
and move suddenly when connected to power.
Disposal
• This product is supplied in compliance with European Directive 2012/19/EU – Waste
Electrical and Electronic Equipment (WEEE). To preserve the environment please dis-
pose/ recycle this product at the end of its life according to the local regulation.

PROLIGHTS - ArcPod 27VW
04
The products to which this manual refers comply with:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD).
• 2014/30/EU - Electromagnetic Compatibility (EMC).
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS).
The products to which this manual refers comply with:
• UL 1573 + CSA C22.2 No. 166 - Stage and Studio Luminaires and Connector Strips.
FCC Compliance:
• This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
Other approvals
• The product meets the safety requirements of the certification procedures of the
market in which it is placed and sold.

PROLIGHTS - ArcPod 27VW 05
1 - PACKAGING
PACKAGE CONTENT
• 1x ARCPOD27VW.
• 1x BARE END - IP connection adapter.
• 1x 5p XLR - IP connection male adapter.
• 1x 5p XLR - IP connection female adapter
• User Manual.
OPTIONAL ACCESSORIES
• AWEXDC1221ADP: signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa.
• FCLA27Q: ight case for 5 pcs of ARCPOD27Q/VW.
• RSR0630A/B: Steel security cable for hanging bodies, inox steel shackle, L=60 cm, silver/black.
• C6002: slim aluminium clamp, 200 kg loading, 48-51 mm tubes, M10 bolt.
• A27QFILTER20: 20° symmetric light diffusion lter for ARCPOD27Q/VW, 11,4x33,7 cm.
• A27QFILTER30: 30° symmetric light diffusion lter for ARCPOD27Q/VW, 11,4x33,7 cm.
• A27QFILTER40: 40° symmetric light diffusion lter for ARCPOD27Q/VW, 11,4x33,7 cm.
• A27QFILTER60: 60° symmetric light diffusion lter for ARCPOD27Q/VW, 11,4x33,7 cm.
• A27QFILTER80: 80° symmetric light diffusion lter for ARCPOD27Q/VW, 11,4x33,7 cm.
• A27QFILTER1060: 10°x60° asymmetric light diffusion lter for ARCPOD27Q/VW, 11,4x33,7 cm.
• A27QFILTER3060: 30°x60° asymmetric light diffusion lter for ARCPOD27Q/VW, 11,4x33,7 cm.
• A27QFILTER6010v60°X10° asymmetric light diffusion lter for ARCPOD27Q/VW, 11,4x33,7 cm.
• A27QFILTER6030: 60°X30° asymmetric light diffusion lter for ARCPOD27Q/VW, 11,4x33,7 cm.
• S27QLENS10: 10° lens for SOLAR27Q, ARCPOD27Q/VW, SOLAR48Q, ARCPOD48Q/VW,
ARCPOD15Q/VW and ARCPOD96Q.
• S27QLENS15: 15° lens for SOLAR27Q, ARCPOD27Q/VW, SOLAR48Q, ARCPOD48Q/VW,
ARCPOD15Q/VW and ARCPOD96Q.
• S27QLENS25: 25° lens for SOLAR27Q, ARCPOD27Q/VW, SOLAR48Q, ARCPOD48Q/VW,
ARCPOD15Q/VW and ARCPOD96Q.
• S27QLENS45: 45° lens for SOLAR27Q, ARCPOD27Q/VW, SOLAR48Q, ARCPOD48Q/VW,
ARCPOD15Q/VW and ARCPOD96Q.
• S27QBD: black barn door 4 directional aps to adjust the light beam, SOLAR27Q,ARCPOD27Q/VW.
• DATAMASTER: RDM/DMX tool,cable tester, 5p XLR connectors,pouch, charging cable, XLR adapters.
• AWEXAC1L03: IP67 power extension cable for outdoor architectural projectors, L.03 m.
• AWEXAC1L05: IP67 power extension cable for outdoor architectural projectors, L.05 m.
• AWEXAC1L10: IP67 power extension cable for outdoor architectural projectors, L.10 m.
• AWEXAC1L20: IP67 power extension cable for outdoor architectural projectors, L.20m.
• AWEXDC1L03: IP67 DMX extension cable for outdoor architectural projectors, L.03 m.
• AWEXDC1L05: IP67 DMX extension cable for outdoor architectural projectors, L.05 m.
• AWEXDC1L10: IP67 DMX extension cable for outdoor architectural projectors, L.10 m.
• AWEXDC1L20: IP67 DMX extension cable for outdoor architectural projectors, L.20 m.
• UPBOX1UP5: rmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT.

PROLIGHTS - ArcPod 27VW
06

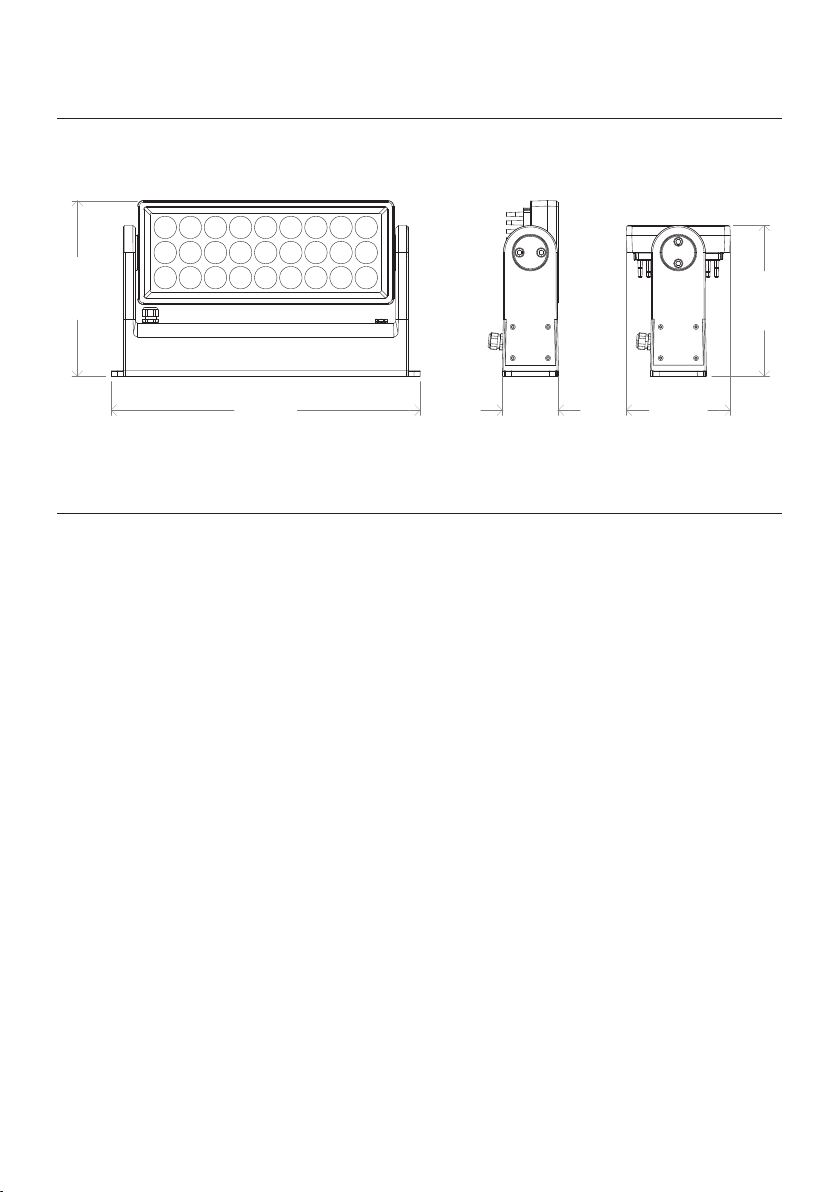

2 - TECHNICAL DRAWING
258 mm
[10.2 in]
455 mm
[17.9 in]
83 mm
[3.3 in]
153 mm
[6.0 in]
222 mm
[8.7 in]
Fig. 01
Weight: 9 kg - 4.08 lbs

PROLIGHTS - ArcPod 27VW 07
3 - INSTALLATION
MOUNTING
Check that the supporting structure can safely bear the weight of all installed xtures, clamps, cables,
auxiliary equipment, etc. and complies with locally applicable regulations.
When suspending the xture above ground level, secure it against failure of primary attachments by
attaching a safety wire that is approved as a safety attachment for the weight of the xture to an anchor
point on the product main frame.
Do not use removable parts or weak anchors for secondary attachment.
Warning! When clamping the xture to a truss or other structure at any angle, use clamps of half-cou-
pler type. Do not use any type of clamp that does not completely encircle the structure when fastened.
455 mm
[17.9 in]
437 mm
[17.2 in]
83 mm
[3.3 in]
8 mm
[0.3 in]
56 mm
[2.2 in]
Fig. 02
TILT movement: 130°
Screws for unlock and lock
the TILT (on both sides)
Slots for fixing

PROLIGHTS - ArcPod 27VW
08
4 - PRODUCT OVERVIEW
1. POWER IN: for connection to a mains (100-240V~/50-60Hz). The max power consumption is 120W.
2. DMX IN (3-pole): 1 = GND, 2 = sign-, 3 = sign+.
3. DMX OUT (3-pole): 1 = GND, 2 = sign-, 3 = sign+.
4. POWER OUT: power output for connection of multiple units in series.
Fig. 03
1 2 3 4

PROLIGHTS - ArcPod 27VW 09

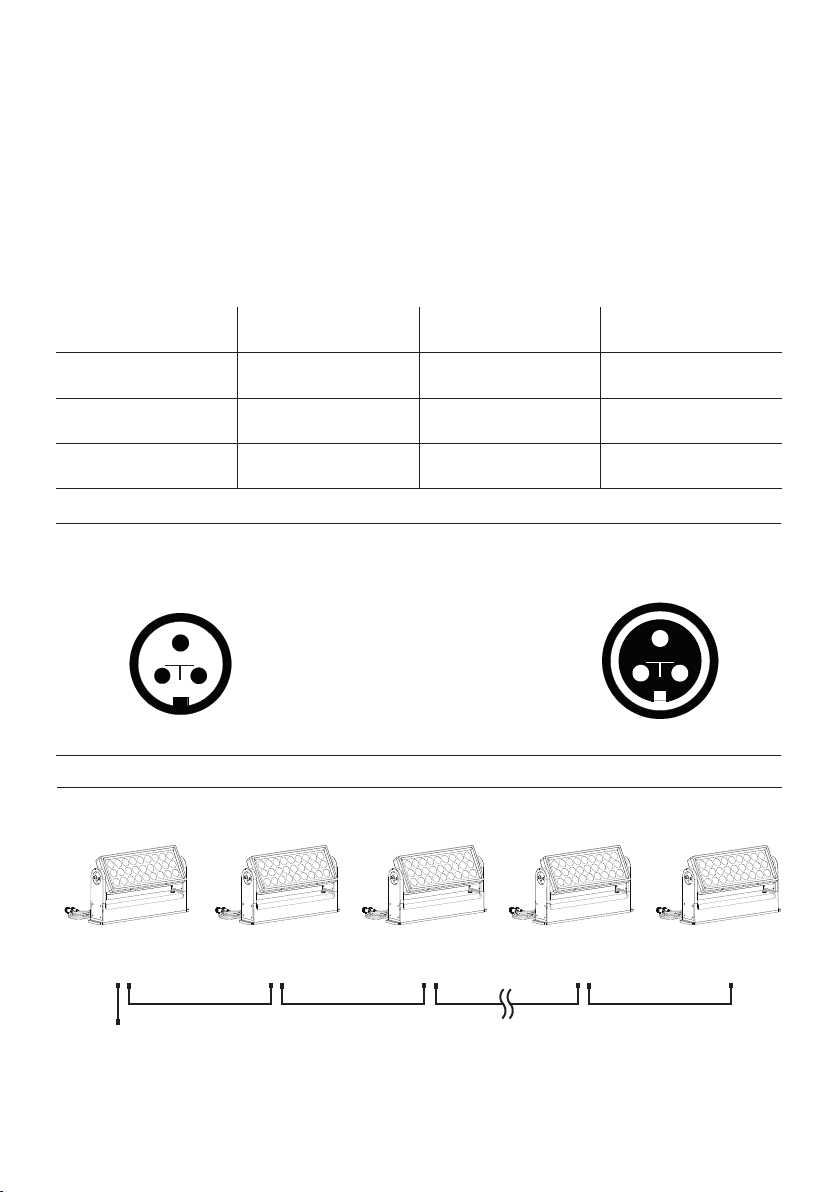

Fig. 05 - Example conguration (Output at 230 V)
MALE POWER
IP67 CONNECTOR
FEMALE POWER
IP67 CONNECTOR
N L
E
L N
E
Unit 1 Unit 2 Unit 3 Unit 8 Unit 9
POWER
IN
POWER
IN
MAINS 230V
POWER
IN
POWER
IN
POWER
IN
POWER
OUT
POWER
OUT
POWER
OUT
POWER
OUT
NOTE: when not using the Power output connectors, you must seal the cable ends with the sup-
plied caps.
Fig. 04
5 - CONNECTION TO THE MAINS SUPPLY
WARNING: For protection from electric shock, the xture must be earthed!
The product is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz
AC power source from 100-240 Volts.
If you need to install a power plug on the power cable to allow connection to power outlets, install a
grounding-type (earthed) plug, following the plug manufacturer’s instructions. If you have any doubts
about proper installation, consult a qualied electrician.
The max power consumption is 265W.
You can link up to 9 at 230 V. Never exceed this number. Power linking cords can be purchased sepa-
rately.
Core (EU) Core (US) Connection Plug terminal marking
Brown Black Live L
Blue White Neutral N
Yellow+green Green Earth E

PROLIGHTS - ArcPod 27VW
10

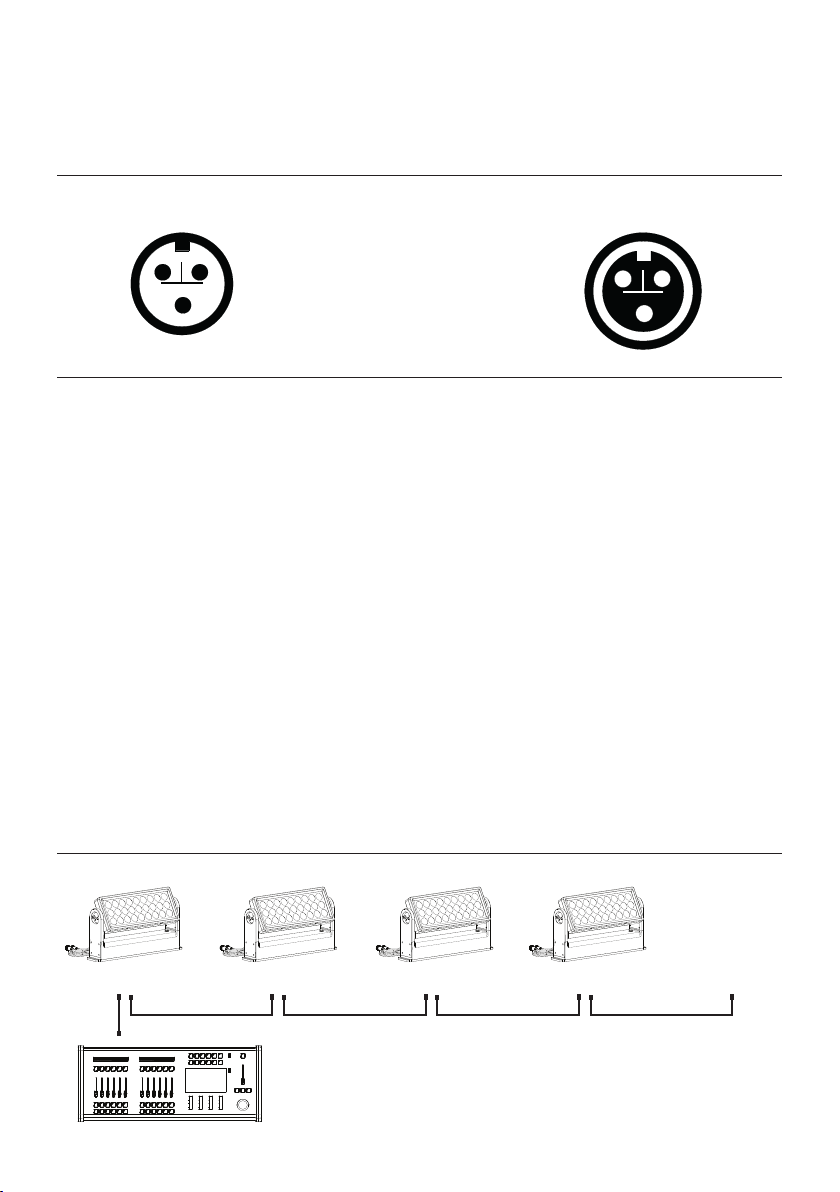

6 - DMX CONNECTION
CONNECTION OF THE CONTROL SIGNAL: DMX LINE
The product has connectors for DMX input and output.
The default pin-out on both connectors is as the following diagram:
Fig. 06
Pin1 : GND - Shield
Pin2 : - Signal
Pin3 : + Signal
DMX - OUTPUT
IP67 CONNECTOR
DMX - INPUT
IP67 CONNECTOR
INSTRUCTIONS FOR A RELIABLE DMX CONNECTION
Use shielded twisted-pair cable designed for RS-485 devices: standard microphone cable cannot trans-
mit control data reliably over long runs. 24 AWG cable is suitable for runs up to 300 meters (1000 ft).
Heavier gauge cable and/or an amplier is recommended for longer runs.
To split the data link into branches, use splitter-ampliers in the connection line.
Do not overload the link. Up to 32 devices may be connected on a serial link.
NOTE: To connect the unit to your DMX network, it is necessary to use the adapters XLR 5 pin-
IP67 signal connector, supplied with this product.
CONNECTION DAISY CHAIN OF THE DMX LINE
Connect the DMX data output from the DMX source to the product DMX input (male connector).
Run the data link from the product DMX output (female connector) connector to the DMX input of the
next xture.
Terminate the data link by connecting a 120 Ohm signal termination.
The termination is prepared by 120Ω 1/4 W resistor between pins 2 and 3 of the male DMX connector.
Install a DMX termination plug on the last xture on the link. If a splitter is used, terminate each branch
of the link.
NOTE: when not using the DMX input or DMX output connectors, you must seal the cable ends
with the supplied caps.
The following diagram shows the DMX connection:
Fig. 07 - Example 10 DMX channels conguration
. . . . . . . . . . . .
DMX Address: 33 DMX Address: 63DMX Address: 43 DMX Address: 53
. . . . . . . . . . . .
DMX512 Controller
DMX IN DMX IN DMX IN DMX INDMX OUT
DMX OUT
DMX OUT DMX OUT DMX OUT
1 2
3
2 1
3

PROLIGHTS - ArcPod 27VW 11
DMX ADDRESSING
In order to start controlling the product via DMX, the rst step is to select a DMX address, also known
as the start channel, this is the rst channel used to receive instructions from a DMX controller. If you
wish to control the product individually, it is necessary to assign a different starting address channel to
each xture.
The number of channels occupied from the product depends on the DMX mode selected, so always
verify the DMX Mode before start addressing.
If you assign two xtures the same address, they will be executing the same behaviour. Selecting the
same address to multiple xtures can be useful for diagnostic purposes and symmetrical control.
DMX addressing is limited to make it impossible to set the DMX address so high that you are left with-
out enough control channels for the product.
Set the xture’s DMX address by RDM with the DATAMASTER.
7 - RDM FUNCTIONS
The product can communicate using RDM (Remote Device Management) protocol over a DMX512
Networks.
RDM is a bi-directional communications protocol for use in DMX512 control systems, it is the open
standard for DMX512 device conguration and status monitoring.
The RDM protocol allows data packets to be inserted into a DMX512 data stream without affecting
existing non-RDM equipment. It allows a console or dedicated RDM controller to send commands to
and receive messages from specic xtures.
The PIDs in the following tables are supported in the product.
Parameter PID GET SET
DEVICE_INFO 0x0060 x
DEVICE_MODEL_DESCRIPTION 0x0080 x
MANUFACTURER_LABEL 0x0081 x
DEVICE_LABEL 0x0082 x x
FACTORY_DEFAULTS 0x0090 x x
SOFTWARE_VERSION_LABEL 0x00C0 x
DMX_PERSONALITY 0x00E0 x x
DMX_PERSONALITY_DESCRIPTION 0x00E1 x
DMX_START_ADDRESS 0x00F0 x x
DIMMER_INFO 0x00F0
CURVE 0x0343 x x
CURVE_DESCRIPTION 0x0344 x x
SENSOR_VALUE 0x0201 x x
IDENTIFY_DEVICE 0x1000 x
DMX FAULT(0:BLACKOUT,1:HOLD,2:STANDALONE) 0x8200 x x
MASTER/SLAVE (0:MST DMX; 1:MST NO DMX; 2:SLAVE) 0x8201 x x
STAND ALONE MODE (0:EFFECT; 1:STATIC; 2:CCT; 3:MANUAL) 0x8202 x x
EFFECTS (0-9) 0x8203 x x
EFFECT SPEED (0-255) 0x8217 x x
STATIC COLORS (0-2) 0x82C9 x x
WHITE PRESETS (0-9) 0x82CA x x
MANUAL WW(000-255) 0x82CB x x
MANUAL CW(000-255) 0x82CC x x
UNO (0:STATIC; 1:CCT; 2:MANUAL) 0x8211 x x
WH. CAL. WW(000-255) 0x82EC x x
WH. CAL CW(000-255) 0x8209 x x
INVERT MAPPING (0:OFF; 1:ON) 0x8210 x x
CURRENT HOURS(00000-65535) 0x82BE x x
POWER CONSUMPTION(AC 220V) 0x82BF x x
MAINTENANCE TIME(ALERT PERIOD:10-300) 0x82C0 x x
MAINTENANCE TIME(ELAPSED TIME:00-ALERT PERIOD) 0x82C1 x x
ERROR MESSAGES (???) 0x82C2 x x
CLEAN ALL DATA(0:NO,1:YES) 0x82C3 x x

PROLIGHTS - ArcPod 27VW
12
8 - OPERATION VIA DATAMASTER
The unit uses a DATAMASTER for conguration purposes. The diagram below sows how to connect the
DATAMASTER to this product. This connection will control multiple products at the same time.
To set different Stand Alone mode on different product, you must connect the DATAMASTER to each
product, individually.
However, by using the DATAMASTER, you may address each product in the daisy chain to a different
DMX address by using the RDM function without the need connect to each individual product.
Important: The DATAMASTER must be used to congure this product.
MUSIC & LIGHTS suggests that you connect no more than 11 units in this mode and keep the total
distance to less than 60 m (197 ft). Otherwise, you might need to use an RDM optically isolated signal
amplier.
RDM SETTING
To set the RDM functions with the DATAMASTER follow these steps:
• Turn on the DATAMASTER;
• Select the "RDM" function;
• Wait the discovering of all units;
• Select the desired unit and press ENTER button;
• Change the value of the desired function.
The following chart describes the RDM menu tree of the product, the terms shown in BOLD indicates
the default settings.
MENU*
1 DMX_START_ADDRESS 001 - 512
2 DMX_PERSONALITY 1CH
2CH
3CH
4CH
9CH
12CH
To choose the DMX mode.
3 CURVE 0:LINEAR To choose the dimmer curve.
1:S-CURVE
2:SQUARE LAW
3:INVERSE SQUARE LAW
4 OUTPUT_RESPONSE_TIME 0:AUTO To choose the dimmer speed.
1:FAST
2:MEDUIM
3:SLOW
5 MODULATION_FREQUENCY 0:600Hz Select PWM frequency.
1:1200Hz
2:2000Hz
3:4000Hz
4:6000Hz
5:25kHz

PROLIGHTS - ArcPod 27VW 13
STAND ALONE FUNCTION
To set the STAND ALONE you must follow the below steps with DATAMASTER:
DMX OUT
DATAMASTER
Fig. 08
• Connect only one projector to the DATAMASTER;
• Select the second function "STAND ALONE";
• Select "Manual Color" or "Effect" function;
• Select "Head 1";
• Select the desired color or effect with speed.
The projector where is setted the STAND ALONE values is a "MASTER" projector.
If there isn't the DMX controller or the DMX missing this projector will send his STAND ALONE value
on the DMX line.
On others units that will be connected to the same DMX line must NOT be setted the STAND ALONE,
they will be "SLAVE" and they will follow the DMX of the MASTER.

PROLIGHTS - ArcPod 27VW
14
9 - DMX CHARTS
CH 1CH 2CH 3CH 4CH 9CH
1DIMMER DIMMER WARM WHITE DIMMER DIMMER
2 CCT COLD WHITE DIMMER FINE DIMMER FINE
3DIMMER FADE CCT STROBE
4DIMMER FADE CCT
5 CROSSFADE
6WARM WHITE
7 COLD WHITE
8DIMMER FADE
9 CONTROL
ID DMX Mode Footprint
1 1 Ch 1
2 2 Ch 2
3 3 Ch 3
4 4 Ch 4
5 9 Ch 9
6 12 Ch 12
RDM Personality ID List
RDM Model ID: 0xD091

PROLIGHTS - ArcPod 27VW 15
1CH 2CH 3CH 4CH 9CH FUNCTION DMX Value Default
1 1 1 1 DIMMER
0~100% 000 ÷ 255 000
2 2 DIMMER FINE
0~100% 000 ÷ 255 000
3
STROBE
Close
Strobe from slow to fast
Open
Pulse in from slow to fast
Open
Pulse out from slow to fast
Open
Randon from slow to fast
Open
000 ÷ 001
002 ÷ 062
063 ÷ 064
065 ÷ 125
126 ÷ 127
128 ÷ 188
189 ÷ 190
191 ÷ 251
252 ÷ 255
255
2 3 4 CCT
Linear from 2700K to 6500K 000 ÷ 255 000
5CROSSFADE FROM CCT TO WWCW
0~100% 000 ÷ 255 000
1 6 WARM WHITE
0~100% 000 ÷ 255 000
2 7 COLD WHITE
0~100% 000 ÷ 255 000
348
DIMMER FADE
Preset dimmer speed from display menu
Dimmer speed mode off
Dimmer speed mode 1 (fast speed)
Dimmer speed mode 2 (middle speed)
Dimmer speed mode 3 (slow speed)
000 ÷ 051
052 ÷ 101
102 ÷ 152
153 ÷ 203
204 ÷ 255
000
9
CONTROL
NO FUNCTION
DIMMER CURVE LINEAR
DIMMER CURVE S-CURVE
DIMMER CURVE SQUARE LAW
DIMMER CURVE INVERSE SQUARE LAW
DIMMER SPEED AUTO
DIMMER SPEED FAST
DIMMER SPEED MEDIUM
DIMMER SPEED SLOW
LED FREQUENCY 600HZ
LED FREQUENCY 1200HZ
LED FREQUENCY 2000HZ
LED FREQUENCY 4000HZ
LED FREQUENCY 6000HZ
LED FREQUENCY 25KHZ
DMX FAULT HOLD
DMX FAULT BLACKOUT
DMX FAULT STAND ALONE
STAND ALONE MASTER DMX
STAND ALONE MASTER NO DMX
STAND ALONE SLAVE
STAND ALONE EFFECTS
STAND ALONE STATIC COLORS
STAND ALONE WHITE PRESETS
STAND ALONE MANUAL COLORS
INVERT MAPPING ON
INVERT MAPPING OFF
Reserved
FACTORY DEFAULT OF CONTROL FUNCTIONS
0 ÷ 1
2 ÷ 3
4 ÷ 5
6 ÷ 7
8 ÷ 9
10 ÷ 11
12 ÷ 13
14 ÷ 15
16 ÷ 17
18 ÷ 19
20 ÷ 21
22 ÷ 23
24 ÷ 25
26 ÷ 27
28 ÷ 29
30 ÷ 31
32 ÷ 33
34 ÷ 35
36 ÷ 37
38 ÷ 39
40 ÷ 41
42 ÷ 43
44 ÷ 45
46 ÷ 47
48 ÷ 49
50 ÷ 51
52 ÷ 53
54 ÷ 253
254 ÷ 255
000

PROLIGHTS - ArcPod 27VW
16
ROW SECTIONS
ROW 1
ROW 2
ROW 3
CH 12 CH
1DIMMER
2STROBE 1
3STROBE 2
4STROBE 3
5WW1
6CW1
7WW2
8CW2
9WW3
10 CW3
11 DIMMER FADE
12 CONTROL
12 CH FUNCTION DMX Value Default
1DIMMER
0~100% 000 ÷ 255 000
2
STROBE 1
Close
Strobe from slow to fast
Open
Pulse in from slow to fast
Open
Pulse out from slow to fast
Open
Randon from slow to fast
Open
000 ÷ 001
002 ÷ 062
063 ÷ 064
065 ÷ 125
126 ÷ 127
128 ÷ 188
189 ÷ 190
191 ÷ 251
252 ÷ 255
255

PROLIGHTS - ArcPod 27VW 17
12 CH FUNCTION DMX Value Default
3STROBE 2
Refer to "STROBE 1" for values --- 255
4STROBE 3
Refer to "STROBE 1" for values --- 255
5WARM WHITE 1
0~100% 000 ÷ 255 000
6COLD WHITE 1
0~100% 000 ÷ 255 000
7WARM WHITE 2
0~100% 000 ÷ 255 000
8COLD WHITE 2
0~100% 000 ÷ 255 000
9WARM WHITE 3
0~100% 000 ÷ 255 000
10 COLD WHITE 3
0~100% 000 ÷ 255 000
11
DIMMER FADE
Preset dimmer speed from display menu
Dimmer speed mode off
Dimmer speed mode 1 (fast speed)
Dimmer speed mode 2 (middle speed)
Dimmer speed mode 3 (slow speed)
000 ÷ 051
052 ÷ 101
102 ÷ 152
153 ÷ 203
204 ÷ 255
000
12
CONTROL
NO FUNCTION
DIMMER CURVE LINEAR
DIMMER CURVE S-CURVE
DIMMER CURVE SQUARE LAW
DIMMER CURVE INVERSE SQUARE LAW
DIMMER SPEED AUTO
DIMMER SPEED FAST
DIMMER SPEED MEDIUM
DIMMER SPEED SLOW
LED FREQUENCY 600HZ
LED FREQUENCY 1200HZ
LED FREQUENCY 2000HZ
LED FREQUENCY 4000HZ
LED FREQUENCY 6000HZ
LED FREQUENCY 25KHZ
DMX FAULT HOLD
DMX FAULT BLACKOUT
DMX FAULT STAND ALONE
STAND ALONE MASTER DMX
STAND ALONE MASTER NO DMX
STAND ALONE SLAVE
STAND ALONE EFFECTS
STAND ALONE STATIC COLORS
STAND ALONE WHITE PRESETS
STAND ALONE MANUAL COLORS
INVERT MAPPING ON
INVERT MAPPING OFF
Reserved
FACTORY DEFAULT OF CONTROL FUNCTIONS
0 ÷ 1
2 ÷ 3
4 ÷ 5
6 ÷ 7
8 ÷ 9
10 ÷ 11
12 ÷ 13
14 ÷ 15
16 ÷ 17
18 ÷ 19
20 ÷ 21
22 ÷ 23
24 ÷ 25
26 ÷ 27
28 ÷ 29
30 ÷ 31
32 ÷ 33
34 ÷ 35
36 ÷ 37
38 ÷ 39
40 ÷ 41
42 ÷ 43
44 ÷ 45
46 ÷ 47
48 ÷ 49
50 ÷ 51
52 ÷ 53
54 ÷ 253
254 ÷ 255
000

PROLIGHTS - ArcPod 27VW
18
10 - ACCESSORIES INSTALLATION
LENS (CODE S27QLENS10-15-25-45)
1
1
2
3
4
5
6
DETAIL
WARNING: never touch the LEDs.
1. Remove the front cover (1) by loosing the screws. Then remove the front glass (2), rubber seal (3),
lens holder (4) and the lens (5)
2. Replace the lenses by inserting the two pins on the back of the lens (DETAIL) with the holes pro-
vided on the PCB LED (5).
NOTE: to reassemble the lenses, reverse the procedure.
NOTE: it is recommended to tighten the front cover screws carefully so as to guarantee the correct
IP degree.
Fig. 09
