ProLights EclPanel TWCJR User manual

USER MANUAL
REV.02-11/20 English version
EclPanel TWCJR
370W Tunable White and colourful LED
soft light with pixels and lighting effects

Thank you for choosing PROLIGHTS.
Please note that every PROLIGHTS product has been designed in Italy to meet quality and performance require-
ments for professionals and designed and manufactured for the use and application as shown in this document.
Any other use, if not expressly indicated, could compromise the good condition/operation of the product and/or be
a source of danger.
This product is meant for professional use. Therefore, commercial use of this equipment is subject to the respec-
tively applicable national accident prevention rules and regulations.
Features, specications and appearance are subject to change without notice. Music & Lights S.r.l. and all afliated
companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or any
other loss occasioned by the use of, inability to use or reliance on the information contained in this document.
Product user manual can be downloaded from the website www.prolights.it , or can be inquired to the ofcial
PROLIGHTS distributors of your territory (https://www.prolights.it/sales_network.html).
Scanning the below QR Code, you will access the download area of the product page, where you can nd a broad
set of always updated technical documentation: specications, user manual, technical drawings, photometrics,
personalities, xture rmware updates.
The PROLIGHTS Logo, PROLIGHTS names and all other trademark in this document pertaining to PROLIGHTS
services or PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its afliates, and sub-
sidiaries.
PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via Appia km
136,200; Itri 04020, Italy.

1PROLIGHTS - Ecl PanelTWCJR
INDEX
SAFETY INFORMATION 2
1 - PACKAGING 5
PACKAGE CONTENT....................................................................................................... 5
OPTIONAL ACCESSORIES............................................................................................... 5

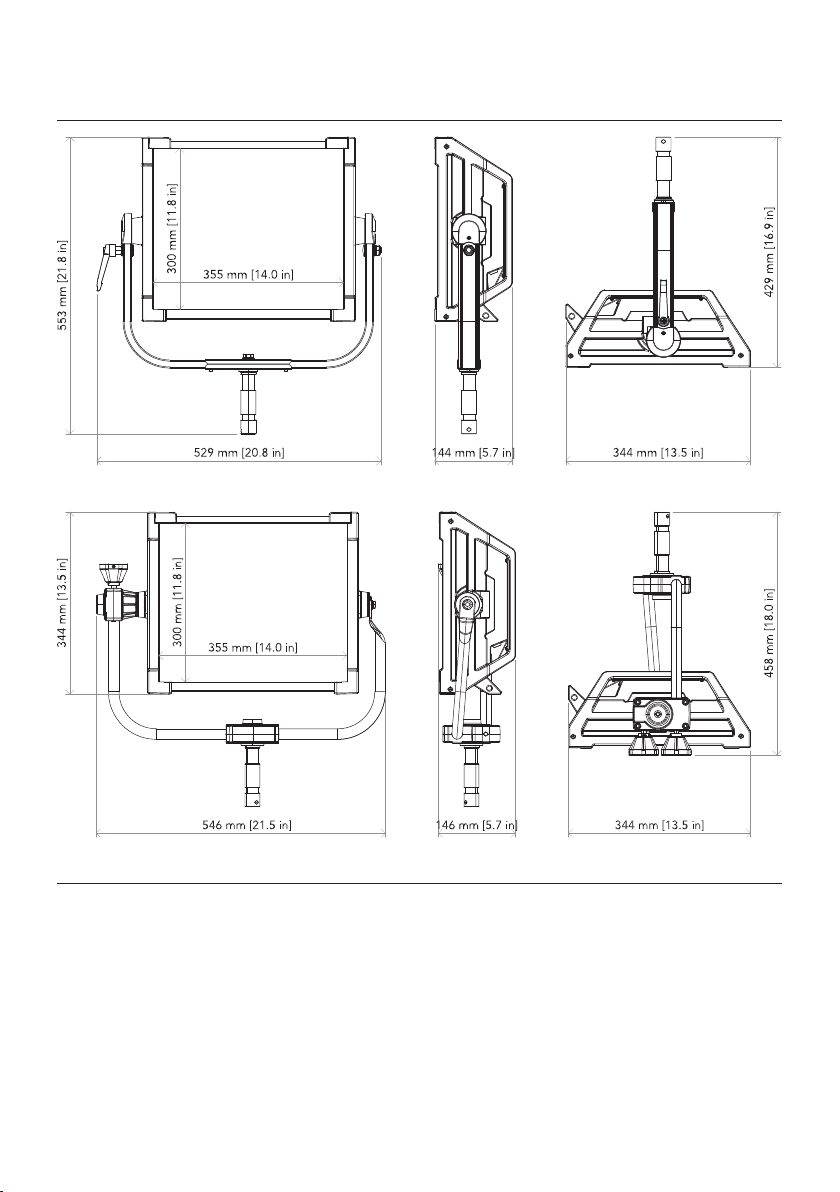

2 - TECHNICAL DRAWING 6
3 - INSTALLATION 7

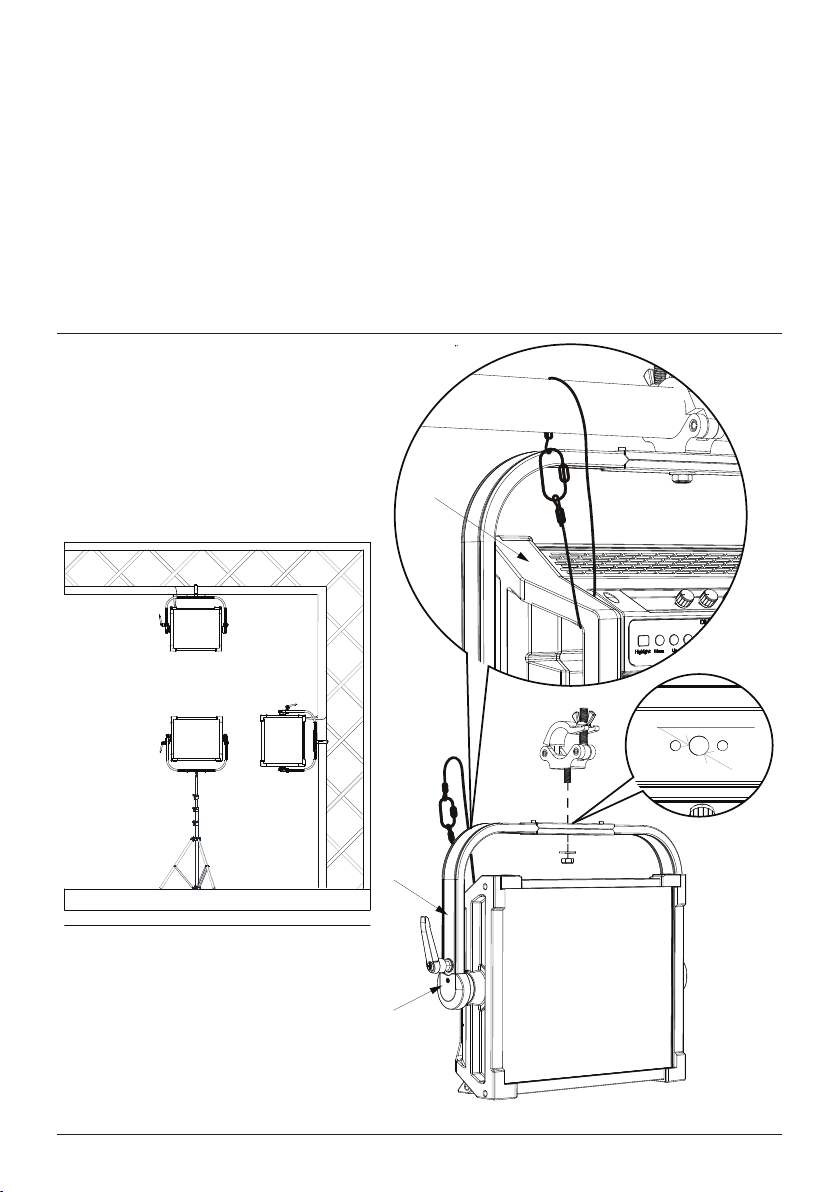

MOUNTING...................................................................................................................... 7
4 - CONNECTION TO THE MAINS SUPPLY 8
5 - START UP 8
CONNECT AND DISCONNECT POWER FROM THE PRODUCT.................................... 8

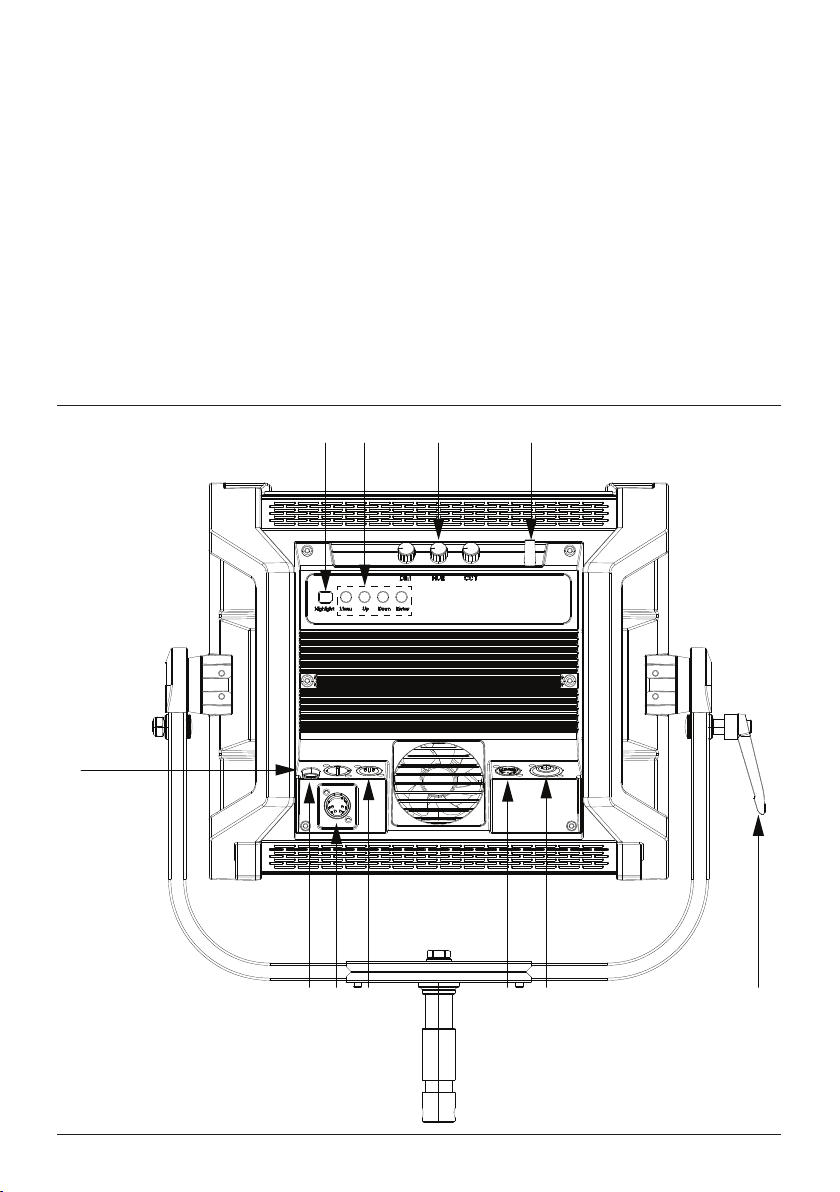

6 - PRODUCT OVERVIEW 9
7 - DMX CONNECTION 10
CONNECTION OF THE CONTROL SIGNAL: DMX LINE .............................................. 10
INSTRUCTIONS FOR A RELIABLE DMX CONNECTION ............................................... 10

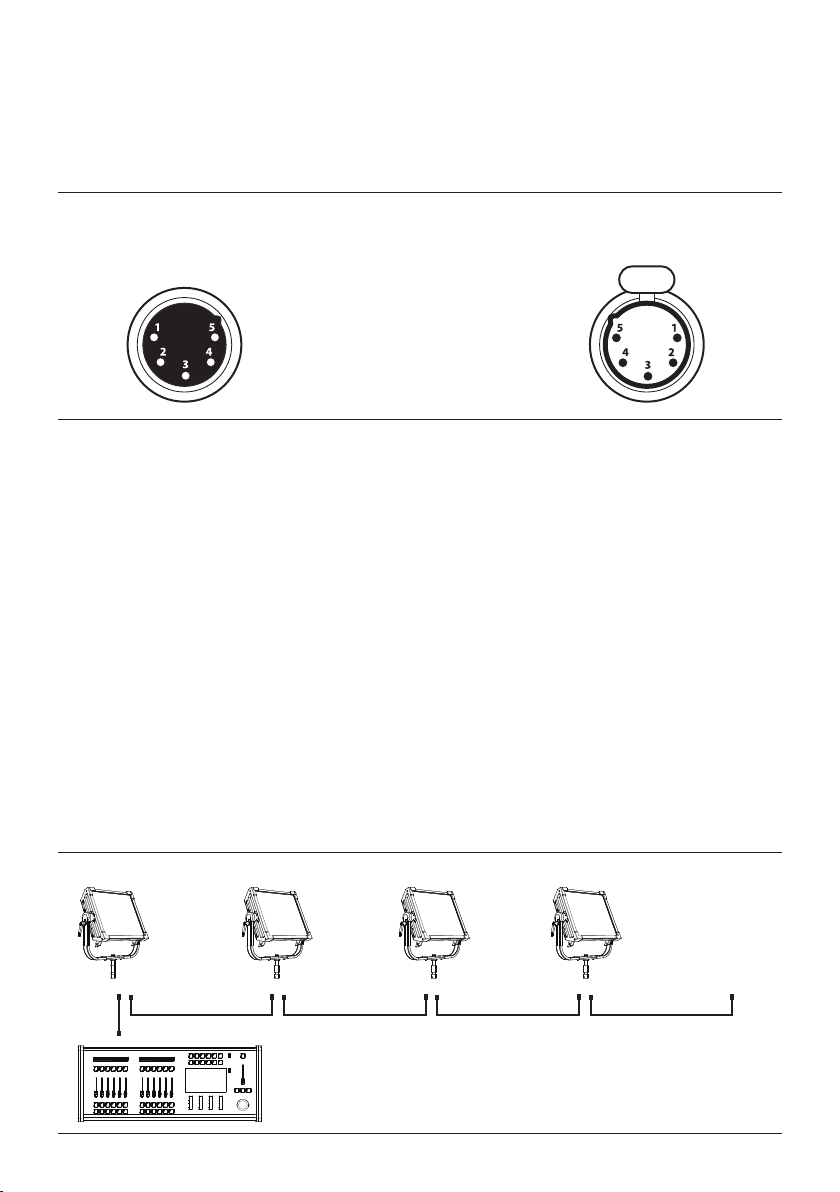

CONNECTION DAISY CHAIN........................................................................................ 10
CONNECTION OF THE DMX LINE................................................................................ 10
CONSTRUCTION OF THE DMX TERMINATION ........................................................... 11
DMX ADDRESSING ........................................................................................................ 11
OPERATION AS A WIRELESS TRANSMITTER................................................................ 12
DMX TO WDMX (TX)...................................................................................................... 12
OPERATION AS A WIRELESS RECEIVER........................................................................ 12
WDMX TO DMX (RX)...................................................................................................... 12
8 - CONTROL PANEL 13

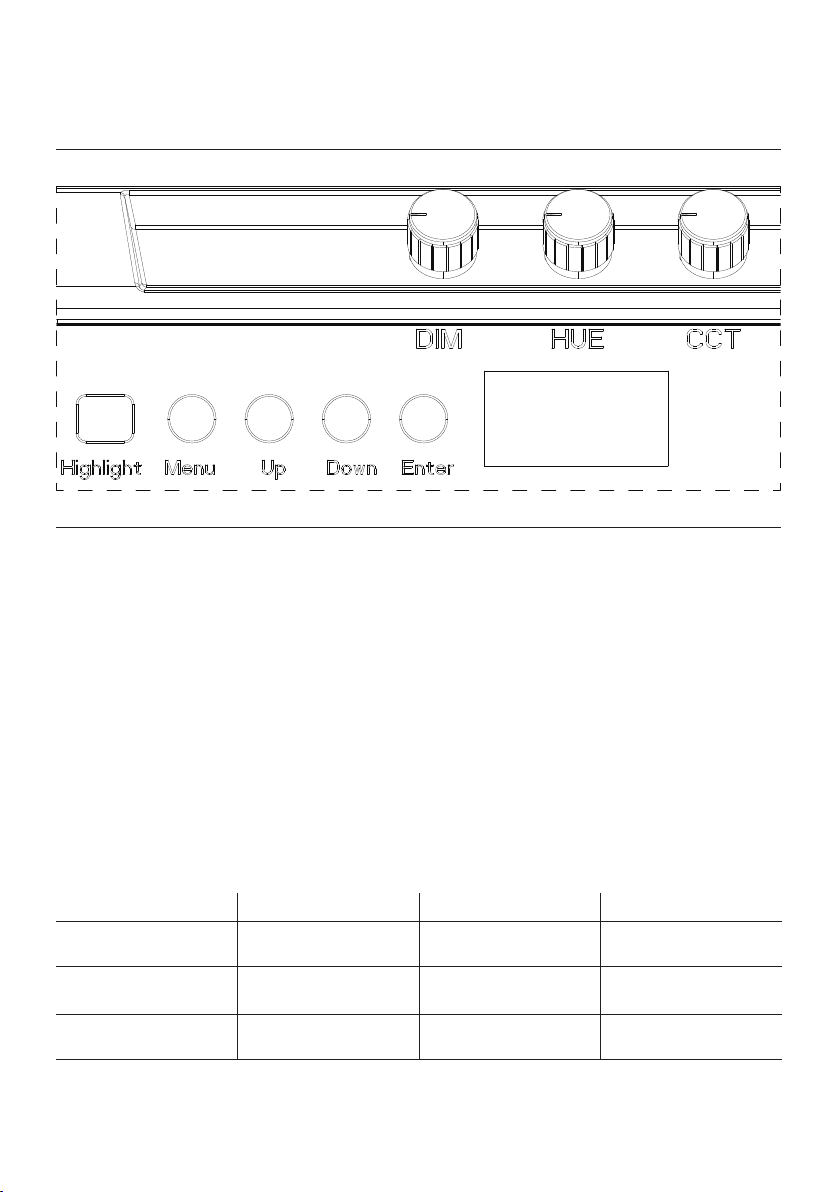

DISPLAY AND BUTTONS LAYOUT................................................................................. 13
ROTATORY KNOB LAYOUT ........................................................................................... 13
9 - MENU STRUCTURE 14
10 - RDM FUNCTIONS 18
11 - DMX CHARTS 19
12 - ACCESSORIES INSTALLATION 26
THE POLE OPERATED YOKE (code ECLPANELJRPOYO).............................................. 26
RIGID EGG CRATES (codes EPTWCJREC4C, EPTWCJREC30, EPTWCJREC60) ........... 27
DIFFUSION FILTERS (codes EPTWCFILTERHD, EPTWCFILTERMD, EPTWCFILTERLD) . 28
BARN DOOR (code EPTWCJRBD) ................................................................................. 29
13 - MAINTENANCE 30
MAINTENANCE AND CLEANING THE PRODUCT........................................................ 30
REPLACING THE FUSE................................................................................................... 30
VISUAL CHECK OF PRODUCT HOUSING ..................................................................... 30
TROUBLESHOOTING..................................................................................................... 31

PROLIGHTS - Ecl PanelTWCJR2
SAFETY INFORMATION
WARNING!
• Please read carefully the instruction reported in this section before installing, power-
ing, operating or servicing the product and observe the indications also for its future
handling.
This unit is not for household use, only professional applications.
Installation
• This product is designed for indoor and dry environments.
• Do not use in wet location and do not expose the xture to rain or moisture.
• Never use the xture in places subject to vibrations or bumps.
• Make certain that no inammable liquids, water or metal objects enter the xture.
• Excessive dust, smoke uid, and particle build up degrades performance, causes
overheating and will damage the xture. Damage caused by inadequate cleaning or
maintenance is not covered by the product warranty.
0,5 m Minimum distance of illuminated objects
• The projector needs to be positioned so that the objects hit by the beam of light are
at least 0.5 meters (1.64 ft) from the lens of the projector.
T
45°
C
aMax operating ambient temperature (Ta)
• Do not operate the xture if the ambient temperature (Ta) exceeds 45 °C (113 °F).
T
-20°
C
a
Minimum operating ambient temperature (Ta)
• Do not operate the xture if the ambient temperature (Ta) is below -20 °C (-4 °F).
Protection from burns and fire
• The exterior of the xture becomes hot during use. Avoid contact by persons and
materials.
• Ensure that there is free and unobstructed airow around the xture.
• Keep ammable materials well away from the xture
• Do not expose the front glass to sunlight or any other strong light source from any an-
gle. Lenses can focus the sun’s rays inside the xture, creating a potential re hazard.
• Do not attempt to bypass thermostatic switches or fuses.
Indoor use
• This product is designed for indoor and dry environments.
• Do not use in wet location and do not expose the xture to rain or moisture.
• Never use the xture in places subject to vibrations or bumps.
• Make certain that no inammable liquids, water or metal objects enter the xture.
• Excessive dust, smoke uid, and particle build up degrades performance, causes
overheating and will damage the xture. Damage caused by inadequate cleaning or
maintenance is not covered by the product warranty.
T
50°
C
c
Temperature of the external surface
• The surface of the xture can reach up to 50 °C (122 °F) during operation. Avoid
contact with people and materials.

3PROLIGHTS - Ecl PanelTWCJR
Minimun
distance
Risk
Group 2
Risk
Group 1
0.2 m
0.7 ft
14 m
47.93 ft
Protection and Warning against electrical shock
• Do not remove any cover from the product and disconnect the product from AC
power before servicing.
• Ensure that the xture is electrically connected to ground (earth). And use only a
source of AC power that complies with local building and electrical codes and has
both overload and ground-fault (earth-fault) protection.
• Before using the xture, check that all power distribution equipment and cables are
in perfect condition and rated for the current requirements of all connected devices.
• Isolate the xture from power immediately if the power plug or any seal, cover, cable,
or other component is damaged, defective, deformed or showing signs of overheat-
ing. Do not reapply power until repairs have been completed.
• Refer any service operation not described in this manual to PROLIGHTS Service team
or an authorized PROLIGHTS service center.
Connection to mains supply
• The Connection to the mains supply must be carried out by a qualied electrical
installer.
• Use only AC supplies 100-240V 50-60Hz, the xture must be electrically connected
to ground (earth).
• Select the cable cross section in according with the maximum current draw of the
product and the possible number of products connected at the same power line.
• The AC mains power distribution circuit must be equipped with magnetic+residual
current circuit breaker protection.
• Do not connect it to a dimmer system; doing so may damage the product.
T
70°
C
c
Temperature of the external surface
• The surface of the xture can reach up to 70 °C (159.8 °F) during operation. Avoid
contact with people and materials.
Maintenance
• Warning! Disconnect the xture from AC mains power and allow to cool for at least
10 minutes before handling.
• Only technicians who are authorized by PROLIGHTS or Authorised service partners
are permitted to open the xture.
• Users may carry out external cleaning, following the warnings and instructions pro-
vided, but any service operation not described in this manual must be referred to a
qualied service technician.
• Important! Excessive dust, smoke uid, and particle build up degrades performance,
causes overheating and will damage the xture. Damages caused by inadequate
cleaning or maintenance is not covered by the product warranty.
Photobiological safety
• This device emits potentially dangerous optical radiation and is identied in the cat-
egory of Risk Group 2 according to EN 62471.

PROLIGHTS - Ecl PanelTWCJR4
Do not stare at the operating light source
• Do not look directly at the LED source during operation. It can be harmful to the eyes
and skin.
• During Installation, operation and maintenance, be prepared for the xture to light
and move suddenly when connected to power.
• The device should be positioned so that prolonged staring into the luminaire at a
distance closer than 14 m is not expected.
Disposal
• This product is supplied in compliance with European Directive 2012/19/EU - Waste
Electrical and Electronic Equipment (WEEE). To preserve the environment please dis-
pose/recycle this product at the end of its life according to the local regulation.
• The product contains a lithium ion battery.
• Don't throw the unit into the garbage at the end of its lifetime.
• Make sure to dispose is according to your local ordinances and/or regulations, to
avoid polluting the environment!
• The packaging is recyclable and can be disposed.
The products to which this manual refers comply with the European Directives pur-
suant to:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD).
• 2014/30/EU - Electromagnetic Compatibility (EMC).
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS).
• 2014/53/EU - Radio Equipment Directive (RED).

5PROLIGHTS - Ecl PanelTWCJR
1 - PACKAGING
PACKAGE CONTENT
• 1x ECLPANELTWCJR;
• 1x 1,5 meters power cable (SCHUKO plug - NEUTRIK POWERCON TRUE1 IP65);
• EPTWCJRFILTERMD: Front medium diffusion lter for ECLPANELTWCJR;
• ECLFRSPG: Spigot for PROLIGHTS Fresnel series;
• User manual.
OPTIONAL ACCESSORIES
• FCLPANELJR1U: Flight case for 1 pc of ECLPANELTWCJR.
• FCLPANELJR4U: Flight case for 4 pcs of ECLPANELTWCJR.
• ECLPANELJRPOYO: Pole operated aluminium yoke bracket for ECLPANELTWCJR.
• EPTWCJRFILTERINT: Front diffuser lter for ECLPANELTWCJR;
• EPTWCJRFILTERHD: Front high diffusion lter (less output) for ECLPANELTWCJR;
• EPTWCJRFILTERLD: Front low diffusion lter (more output) for ECLPANELTWCJR;
• EPTWCJREC30: 30 degree egg crate for ECLPANELTWCJR;
• EPTWCJREC60: 60 degree egg crate for ECLPANELTWCJR;
• EPTWCJREC4C: 4 chamber egg crate for ECLPANELTWCJR;
• EPTWCJRBD: Barn door with 4 directional aps to adjust the light beam;
• EPTWCJRSB11: SnapBag 1x1 for ECLPANELTWCJR by DoP choice;
• EPTWCJRSG4SB1: 40° SnapGrid for SnapBag, 1x1 for ECLPANELTWCJR by DoP choice;
• EPTWCJRSG4SB1140: 40° SnapGrid for SnapBag, 1x1 for ECLPANELTWCJR by DoP choice;
• EPSREM: Rabbit-Ears 1x1 MINI for ECLPANELTWCJR by DoP choice;
• EPSBRL3: Snapbag Lantern 3' for Rabbit-Ears by DoP. Incl. Lantern, Backcovers, Carry Bag;
• EPSBRL3C4: Cover for Snapbag Lantern 3' (EPSBRL3) by DoP choice; 4 sides, adj. with zipper;
• EPSBRM: SnapBag Medium to be mounted on Rabbit Ears by DoP;
• EPSGCM40: 40° SnapGrid, to be mounted on Snap Bag Medium (EPSBRM);
• EPSBRO3: Snapbag Octa 3' to be mounted on Rabbit-Ears by DoP;
• EPSGC3W40: 40° SnapGrid, to be mounted on Snap Bag Octa 3' (EPSBRO3);
• EPSBRO5: Snapbag Octa 5' to be mounted on Rabbit-Ears by DoP;
• EPSGC5W40: 40° SnapGrid, to be mounted on Snap Bag Octa 5' (EPSBRO5);
• EPSBRO7: Snapbag Octa 7' to be mounted on Rabbit-Ears by DoP.;
• EPSGC7W40: 40° SnapGrid, to be mounted on Snap Bag Octa 7' (EPSBRO7);
• SWIT500W2KIT: 24/48V 500W battery (>1.2hrs) KIT including 2*PBH260S smart power batt.+st.
adapt;
• UPBOX1U: Firmware uploader kit, USB IN, 3p XLR DMX OUT;
• RSR: Steel security cable for hanging bodies, inox steel shackle;
• C6040: Heavy-load aluminum clamp, 500kg loa, 48-51mm tubes, M10 bolt inc.

PROLIGHTS - Ecl PanelTWCJR6
2 - TECHNICAL DRAWING
Dimensions are in mm / in - Fig.1
Weight: 10.5 kg - 23.15 lbs
Weight: 11.8kg - 26.01 lbs

7PROLIGHTS - Ecl PanelTWCJR
Fig.2
3 - INSTALLATION
MOUNTING
Check that the supporting structure can safely bear the weight of all installed xtures, clamps, cables,
auxiliary equipment, etc. and complies with locally applicable regulations.
When suspending the xture above ground level, secure it against failure of primary attachments by
attaching a safety wire that is approved as a safety attachment for the weight of the xture to an anchor
point on the product main frame.
Do not use removable parts or weak anchors for secondary attachment.
Warning! When clamping the xture to a truss or other structure at any angle, use clamps of half-cou-
pler type. Do not use any type of clamp that does not completely encircle the structure when fastened.
1
3
2
Clamp
Ø11 mm [Ø0.4 in]

PROLIGHTS - Ecl PanelTWCJR8
5 - START UP
CONNECT AND DISCONNECT POWER FROM THE PRODUCT
To apply and disconnect power to the product:
• Check that the product is installed and secured as indicated in the Safety Informations, and that
personal safety will not be put at risk when the xture lights up.
• Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz).
• The product is then ready for its operations and can be controlled through the available input sig-
nals on board.
• To disconnect power from the product, disconnect the Mains from the socket.
• In case you wish to run the product through an external battery, then connect the product to an
external battery (24-36V) into the dedicated XLR4p socket; to disconnect power, disconnect the
Battery from the socket.
4 - CONNECTION TO THE MAINS SUPPLY
WARNING: For protection from electric shock, the xture must be earthed!
The product is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz
AC power source from 100-240 Volts.
If you need to install a power plug on the power cable to allow connection to power outlets, install a
grounding-type (earthed) plug, following the plug manufacturer’s instructions. If you have any doubts
about proper installation, consult a qualied electrician.
T max power consumption is 230W.
Core (EU) Core (US) Connection Plug terminal marking
Brown Black Live L
Blue White Neutral N
Yellow+green Green Earth

9PROLIGHTS - Ecl PanelTWCJR
6 - PRODUCT OVERVIEW
1. ANTENNA of Wireless DMX Receiver internal module.
2. ROTATORY KNOBS for product stand alone control operations.
3. USER INTERFACE with display and buttons for access to the control panel functions.
4. HIGHLIGHT button: turns the xture temporary on for focusing without data signal.
5. POWER IN: for connection to the Mains 100-240V~/50-60Hz.
6. MAIN FUSE HOLDER: replace a burnt-out fuse by one of the same type only (T3.15 A250 V).T3.15 A250 V).
7. BATTERY IN (4-pole XLR): for battery within 24-36 V range, 1 = V -, 2 = N/C, 3 = N/C, 4 = V+.
8. DMX IN (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C.
9. DMX OUT (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C.
10. POWER OUT: power output for connection of multiple units in series.
11. TILT KNOB: for xture tilt adjustment and fastening.
Fig.3
6 8 9 10 117
1234
5

PROLIGHTS - Ecl PanelTWCJR10
7 - DMX CONNECTION
CONNECTION OF THE CONTROL SIGNAL: DMX LINE
The product has XLR sockets for DMX input and output.
The default pin-out on both socket is as the following diagram:
Fig.4
Pin1 : GND - Shield
Pin2 : - Signal
Pin3 : + Signal
Pin4 : N/C
Pin5 : N/C
DMX - OUTPUT
XLR socket
DMX - INPUT
XLR plug
INSTRUCTIONS FOR A RELIABLE DMX CONNECTION
Use shielded twisted-pair cable designed for RS-485 devices: standard microphone cable cannot trans-
mit control data reliably over long runs. 24 AWG cable is suitable for runs up to 300 meters (1000 ft).
Heavier gauge cable and/or an amplier is recommended for longer runs.
To split the data link into branches, use splitter-ampliers in the connection line.
Do not overload the link. Up to 32 devices may be connected on a serial link.
CONNECTION DAISY CHAIN
Connect the DMX data output from the DMX source to the product DMX input (male connector XLR)
socket.
Run the data link from the product XLR output (female connector XLR) socket to the DMX input of the
next xture.
Terminate the data link by connecting a 120 Ohm signal termination. If a splitter is used, terminate
each branch of the link.
Install a DMX termination plug on the last xture on the link.
CONNECTION OF THE DMX LINE
DMX connection employs standard XLR connectors. Use shielded pair-twisted cables with 120Ω im-
pedance and low capacity.
The following diagram shows the connection mode:
Fig.5 - Example 15 DMX channels conguration
. . . . . . . . . . . .
DMX Address: 33 DMX Address: 78DMX Address: 48 DMX Address: 63
. . . . . . . . . . . .
DMX512 Controller
DMX IN DMX IN DMX IN DMX INDMX OUT DMX OUT DMX OUT DMX OUT

11PROLIGHTS - Ecl PanelTWCJR
DMX ADDRESSING
In order to start controlling the product via DMX, the rst step is to select a DMX address, also known
as the start channel, this is the rst channel used to receive instructions from a DMX controller. If you
wish to control the product individually, it is necessary to assign a different starting address channel to
each xture.
The number of channels occupied from the product depends on the DMX mode selected, so always
verify the DMX Mode in the MENU before start addressing.
If you assign two xtures the same address, they will be executing the same behaviour. Selecting the
same address to multiple xtures can be useful for diagnostic purposes and symmetrical control.
DMX addressing is limited to make it impossible to set the DMX address so high that you are left with-
out enough control channels for the product.
To set the xture’s DMX address:
1. Press MENU to open the main menu.
2. Reach the addressing menu, then select the DMX ADDRESS settings.
3. Select the address from 1 to 512 using the navigation arrows/buttons and conrm by pressing
ENTER.
4. Press Menu to exit and return to the Home screen.
The product DMX address, as well as other possible user settings through the MENU, can also be
set when the product is disconnected from the Main through the internal battery-backup. All that is
needed is to press and hold the button ENTER to momentarily enable the display and enter in the
settings. Once the required operations have been executed, the display will switch off again after few
seconds of being inactive.
OPERATION AS A WIRELESS TRANSMITTER
ECLPANELTWCJR can be used as wireless trasmitter for transmitt at different wireless receivers DMX
signal. To use ECLPANELTWCJR as wireless transmitter, please follow the procedure below:
1. Push MENU button untill you show CONNECT on display, then press ENTER button to conrm.
2. Use UP/DOWN buttons for select Wireless, then press ENTER to conrm.
3. Push ENTER button on WDMX ON/OFF function and enable it to ON.
4. Select WDMX mode and set it on Transmitter (please note that WDMX mode will be available only
if WDMX ON/OFF is set to ON).
5. Ensure that the receiver units are not connected to any other transmitter. Please refer to "Reset the
receiver" paragraph.
6. Enable TX LINK to ON to link transmitter to receivers (please note that TX LINK will be avaible only
if WDMX mode is set to Transmitter).
CONSTRUCTION OF THE DMX TERMINATION
The termination is prepared by soldering a 120Ω 1/4 W resistor between pins 2 and 3 of the male XLR
connector, as shown in gure.
Fig.6
Example:
5 pin XLR connector
4

PROLIGHTS - Ecl PanelTWCJR12
• The transmitter scans for all unlinked receivers for a period of about 5 seconds.
• If the connection fails, check the position of the receiver.
• The wireless icon on the receiver display indicates the received signal strength.
Unlinking the transmitter
Follow the procedure below to unlink the transmitter from all receivers connected with the unit.
1. Push MENU button untill you show CONNECT on display, then press ENTER button to conrm.
2. Use UP/DOWN buttons for select Wireless, then press ENTER to conrm.
3. Enable TX UNLINK to ON 8 (please note that TX UNLINK will be avaible only if WDMX mode is set
to Transmitter).
• All connected receivers will be unlinked.
DMX TO WDMX (TX)
This function enable or disable the transmission throught wireless of the DMX signal from the transmit-
ter side to the receiver.
OPERATION AS A WIRELESS RECEIVER
ECLPANELTWCJR can be used as wireless receiver connected to a wireless transmitter.
To use ECLPANELTWCJR as wireless receiver, please follow the procedure below:
1. Push MENU button untill you show CONNECT on display, then press ENTER button to conrm.
2. Use UP/DOWN buttons for select Wireless, then press ENTER to conrm.
3. Push ENTER button on WDMX ON/OFF function and enable it to ON.
4. Select WDMX mode and set it on Receiver (please note that WDMX mode will be available only if
WDMX ON/OFF is set to ON).
5. Enable RX RESET to ON to reset the receiver (please note that RX RESET will be avaible only if
WDMX mode is set to Receiver).
6. On the transmitter, enable TX LINK to ON to link transmitter to the receivers.
7. If the connection is successful and DMX input is available the display the display on the receiver
unit will shows the DMX address. If DMX signal is not available, the display will shows "No signal"
but keeps the transmitter linked.
8. If the connection fails, check the position of the receiver.
9. The wireless icon on the receiver display indicates the received signal strength.
Reset the receiver
Follow the procedure below to reset the receiver.
1. Push MENU button untill you show CONNECT on display, then press ENTER button to conrm.
2. Use UP/DOWN buttons for select Wireless, then press ENTER to conrm.
3. Enable RX RESET to ON.
• The wireless icon on the receiver display indicates the received signal strength.
WDMX TO DMX (RX)
This function enable or disable the retransmission of the wireless DMX signal received throught the
DMX port on the receiver side.

13PROLIGHTS - Ecl PanelTWCJR
Fig.7
8 - CONTROL PANEL
The product has a display and buttons for access to the control panel functions.
MODE ROTARY KNOB 1 ROTARY KNOB 2 ROTARY KNOB 3
EFFECTS Dimmer (0 ÷255) Effect Speed (1 ÷100)
CCT Dimmer (0 ÷255) +/- Green (-25/+25) Control temperature
(CCT): 2800K ÷10000K
HSI Dimmer (0 ÷255) Colors (0 ÷255) Saturation (SAT): 0 ÷255
DISPLAY AND BUTTONS LAYOUT
• The product has a display and buttons for access to the control panel functions.
• HIGHLIGHT: Press and hold for three seconds to temporary turn ON the product at Full ON for user
focusing operations.
• MENU: Used to access the menu tree or to return a previous menu window.
• UP: Browse upwards through the menu list and increases the numeric value displayed.
• DOWN: Browse downwards through the menu list and decreases the numeric value displayed.
• ENTER: Used to conrm the current menu or conrm the current function value or option within a
menu.
ROTATORY KNOB LAYOUT
The product is equipped with rotatory knobs for manual control of the product, those are enabled only
in Stand Alone mode and they enable access to control certain attributes according to the selected
STAND ALONE mode as indicated below:

MENU
1CONNECT DMX Address Value (001-512)
DMX Mode Theater 1CH Amber Shift on
Color
Temperature
2800K
3200K
3500K
4000K
4500K
5000K
5600K
6000K
6500K
7000K
7500K
8000K
8500K
9000K
9500K
10000K
Hue
(-025÷025)
Hue=0
Manual Color Red (000÷255)
Green (000÷255)
Blue (000÷255)
White (000÷255)
2CH Amber Shift on
Color
Temperature
2800K
3200K
3500K
4000K
4500K
5000K
5600K
6000K
6500K
7000K
7500K
8000K
8500K
9000K
9500K
10000K
Hue
(-025÷025)
Hue=0
Manual Color Red (000÷255)
Green (000÷255)
Blue (000÷255)
White (000÷255)
4CH
5CH1
5CH2
6CH
10CH
15CH
17CH
Tour 4Ch
6Ch
10Ch
11Ch
15Ch
Pixel 1
2H
2V
4
PROLIGHTS - Ecl PanelTWCJR14
9 - MENU STRUCTURE
The following chart describes the MENU tree of the product, the terms shown in BOLD indicates the
default settings.

Wireless WDMX
ON/OFF
On-Off Enable/Disable the wireless card.
WDMX mode Transmitter
Receiver
Allows to choose whether to set the wireless on
the Transmitter or Receiver.
WDMX mode is unlocked only if WDMX ON /
OFF is ON.
TX link On-Off TX link unlock when the unit is set as a
transmitter..
TX unlink On-Off Disconnect the transmitter from all receivers.
TX unlink unlocks only if WDMX mode is on
transmitter.
RX reset On-Off Total reset of the receiver.
RX reset unlocks only if WDMX mode is receiver.
DMX to
WDMX (TX)
On-Off Enable/Disable the transmission of the dmx from
the transmitter to the receiver via wdmx.
WDMX to
DMX (RX)
Enable/Disable the retransmission of the DMX
from the receiver to the other units connected by
cable to the receiver itself.
2SETUP Screen Back Light On
10 s
20 s
30 s
Allows you to select the timing after that display
will switch automatically off when unactive.
Flip Display No-Yes Allows you to rotate the display by 180°.
Key Lock No-Yes Allows you lock the buttons on the control panel
by a password.
Press following combinations (password) in or-
der to access to the user menu : UP, DOWN, UP,
DOWN, ENTER.
3ADVANCED Full On
Mode
HB
Studio
HB - High Brightness Mode, delivering the full
output on every primary color
Studio – Calibrated white output at 6000K,when
all primary colors are set to full.
Dimmer
Mode
Off
Dimmer 1
Dimmer 2
Dimmer 3
Linear dimmer behaviour.
Dimmer curve adding little fade.
Dimmer curve adding medium fade.
Dimmer curve adding long fade.
Color
Calibration
White
Balance
Off Disable the White Calibration at full.
Adjust Red
(125÷255)
Green
(125÷255)
Blue
(125÷255)
White
(125÷255)
Calibrated Manufacturer calibration to grant performance
and color consistency.
Led
Frequency
600Hz
1200 Hz
2000 Hz
4000 Hz
6000Hz
25kHZ
36kHZ
Select PWM frequency.
Fan Mode Auto
On
Off
Silent1
Silent2
Select the product Fan mode.
Factory
Reload
No-Yes To reset the unit to factory default settings.
4INFORMA-
TION
Fixture TIme 0÷9999 View informations about product operating
lifetime.
15PROLIGHTS - Ecl PanelTWCJR

Disp Version V1.0
Drv Version V1.0
UID 15D00236
****
To view the ID for the product RDM control.
5STAND
ALONE
Master/Slave Master
Slave
Allow you to link and operating in synk multiple
units without a DMX console. Choose a unit to
perform as the Master. This unit must be the rst
unit in line; Set the successive units to be slave.
Effects Dimmer
(000÷255)
Use the DIM rotary knob to set the DImmer value.
Effect 1
Effect 2
Effect 3
Effect 4
Effect 5
Candle
Cop Car1
Cop Car2
Cop Car3
Fire
Fireworks
Paparazzi
Television
Party
Clouds
Club
Color Chase
Strobe
Lightning
Explosion
Fluorescent
Process
Pulsing
Welding
Use the HUE rotary knob to select the Effect.
Speed
(1÷100)
Use the CCT rotary knob to choose the Effect
Speed.
CCT Dimmer
(000÷255)
Use the DIM rotary knob to set the DImmer value.
Green
(-25/+25)
Use the HUE rotary knob to choose the tint (+/-
green) value.
2800K÷
10000K
Use the CCT rotary knob to elect the CCT value.
HSI Dimmer
(000÷255)
Use the DIM rotary knob to set the DImmer value.
Colors
(000÷255)
Use the HUE rotary knob to choose the color
point.
Saturation
(000÷255)
Use the CCT rotary knob to select the Saturation
of the selected color.
Color
Temperature
2800K
3200K
3500K
4000K
4500K
5000K
5600K
6000K
6500K
7000K
7500K
8000K
8500K
9000K
9500K
10000K
Hue
(-025÷025)
Dimmer
(000÷255)
Select a predened White CCT output from the
list.
Fixed Color R
G
B
W
Dimmer
(000÷255)
Select of the following predened color combi-
nation and its Dimmer value.
After enabled this mode, the unit will be auto-
matically assigned as Master.
PROLIGHTS - Ecl PanelTWCJR16

GB
RB
RG
RGB
RW
GW
BW
RGW
RBW
GBW
RGBW
Manual Color Red
Green
Blue
White
(000÷255)
(000÷255)
(000÷255)
(000÷255)
User generated color preset by assigning values
to each primary color attribute.
After enabled this mode, the unit will be auto-
matically assigned as Master.
NOTE: If the projector is in Slave mode if the DMX signal is lost, the projector will remain on according
to the last received DMX value. If the projector was in STATIC or AUTO mode, if the DMX signal is lost,
the projector will return to the previously set STATIC or AUTO.
17PROLIGHTS - Ecl PanelTWCJR

PARAMETER PID GET SET
DEVICE_MODEL_DESCRIPTION 0x0080 x
MANUFACTURER LABEL 0x0081 x
DEVICE_LABEL 0x0082 x x
FACTORY_DEFAULTS 0x0090 x x
SOFTWARE_VERSION_LABEL 0x00C0 x
DMX_PERSONALITY 0x00E0 x x
DMX_PERSONALITY_DESCRIPTION 0x00E1 x
DMX_START_ADDRESS 0x00F0 x x
SENSOR_DEFINITION (LED temperature sensor) 0x0200 x
CURVE 0x0343 x x
CURVE_DESCRIPTION 0x0344 x
MODULATION_FREQUENCY 0x0347 x x
MODULATION_FREQUENCY_DESCRIPTION 0x0348 x
DEVICE_HOURS 0x0400 x
DISPLAY_INVERT 0x0500 x x
IDENTIFY_DEVICE 0x1000 x x
MS Full On Mode 0:HB 1:Studio (Custom) 0x8217 x x
PROLIGHTS - Ecl PanelTWCJR18
10 - RDM FUNCTIONS
The product can communicate using RDM (Remote Device Management) protocol over a DMX512
Networks.
RDM is a bi-directional communications protocol for use in DMX512 control systems, it is the open
standard for DMX512 device conguration and status monitoring.
The RDM protocol allows data packets to be inserted into a DMX512 data stream without affecting
existing non-RDM equipment. It allows a console or dedicated RDM controller to send commands to
and receive messages from specic xtures.
The PIDs in the following tables are supported in the product.
