ProLights ArcShine M9/18FC User manual

USER MANUAL
REV.01-08/22 English version
ArcShine M9/18FC
ArcShine M9-18VW
9/18x4W IP66 RGB + Warm White architectural linear bar, 50/100 cm
9/18x4W IP66 Variable White architectural linear bar, 50/100 cm

Thank you for choosing PROLIGHTS
Please note that every PROLIGHTS product has been designed in Italy to meet quality and performance requirements
for professionals and designed and manufactured for the use and application as shown in this document.
Any other use, if not expressly indicated, could compromise the good condition/operation of the product and/or be
a source of danger.
This product is meant for professional use. Therefore, commercial use of this equipment is subject to the respectively
applicable national accident prevention rules and regulations.
Features, specications and appearance are subject to change without notice. Music & Lights S.r.l. and all afliated
companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or any other
loss occasioned by the use of, inability to use or reliance on the information contained in this document.
Product user manual can be downloaded from the website www.prolights.it , or can be inquired to the ofcial
PROLIGHTS distributors of your territory (https://www.prolights.it/sales_network.html).
Scanning the below QR Code, you will access the download area of the product page, where you can nd a broad
set of always updated technical documentation: specications, user manual, technical drawings, photometrics,
personalities, xture rmware updates.
The PROLIGHTS Logo, PROLIGHTS names and all other trademark in this document pertaining to PROLIGHTS services
or PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its afliates, and subsidiaries.
PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc -
04026 - Minturno (LT) ITALY.
Visit the download area
of the product page
ARCSHINEM9FC
ARCSHINEM18FC
ARCSHINEM9VW
ARCSHINEM18VW

PROLIGHTS - ArcShine M series 01
INDEX
SAFETY INFORMATION 02
1 - PACKAGING 05
PACKAGE CONTENT..................................................................................................... 05
OPTIONAL ACCESSORIES............................................................................................. 05
2 - TECHNICAL DRAWING 06
3 - INSTALLATION 07
MOUNTING.................................................................................................................... 07
4 - PRODUCT OVERVIEW 08
5 - CONNECTION TO THE MAINS SUPPLY 09
6 - DMX CONNECTION 10
CONNECTION OF THE CONTROL SIGNAL: DMX LINE .............................................. 10
INSTRUCTIONS FOR A RELIABLE DMX CONNECTION ............................................... 10
CONNECTION DAISY CHAIN OF THE DMX LINE ........................................................ 10
CONSTRUCTION OF THE DMX TERMINATION ........................................................... 11
DMX ADDRESSING ........................................................................................................ 11
7 - RDM FUNCTIONS 12
8 - OPERATION VIA DATAMASTER 14
RDM SETTING................................................................................................................ 14
STAND ALONE FUNCTION ........................................................................................... 14
9 - MENU STRUCTURE 15
10 - DMX CHARTS 19
RDM Personality ID List .................................................................................................. 19
FC Variant - DMX Chart Summary .................................................................................. 19
RDM Model ID................................................................................................................ 19
Product Variant ............................................................................................................... 19
ID .................................................................................................................................... 19
VW Variant - DMX Chart Summary ................................................................................. 23
11 - ACCESSORIES INSTALLATION 25
LIGHT DIFFUSION FILTER (ARCSM18FILTER20/40/60/1060/3060, ARCSM9FI
TER20/40/60/1060/3060 - OPTIONAL).......................................................................... 25
BARNDOOR (ARCS18FIXBD, ARCS9FIXBD - OPTIONAL)............................................. 26
12 - MAINTENANCE 27
MAINTENANCE AND CLEANING THE PRODUCT........................................................ 27
VISUAL CHECK OF PRODUCT HOUSING ..................................................................... 27
TROUBLESHOOTING..................................................................................................... 28

PROLIGHTS - ArcShine M series02
SAFETY INFORMATION
WARNING!
• Please read carefully the instruction reported in this section before installing, powering,
operating or servicing the product and observe the indications also for its future handling.
This unit is not for household and residential use, only professional applications.
Connection to mains supply
• The Connection to the mains supply must be carried out by a qualied electrical
installer.
• Use only AC supplies 100-240V 50-60 Hz, the xture must be electrically connected
to ground (earth).
• Select the cable cross section in according with the maximum current draw of the
product and the possible number of products connected at the same power line.
• The AC mains power distribution circuit must be equipped with magnetic+residual
current circuit breaker protection.
• Do not connect it to a dimmer system; doing so may damage the product.
Protection and Warning against electrical shock
• Do not remove any cover from the product, always disconnect the product from AC
power before servicing.
• Ensure that the xture is electrically connected to ground (earth). And use only a
source of AC power that complies with local building and electrical codes and has
both overload and ground-fault (earth-fault) protection.
• Before using the xture, check that all power distribution equipment and cables are
in perfect condition and rated for the current requirements of all connected devices.
• Isolate the xture from power immediately if the power plug or any seal, cover, cable, or
other components are damaged, defective, deformed or showing signs of overheating.
• Do not reapply power until repairs have been completed.
• Refer any service operation not described in this manual to PROLIGHTS Service team
or an authorized PROLIGHTS service center.
Installation
• Make sure that all visible parts of the product are in good visible condition before its
use or installation.
• Make sure the point of anchorage is stable before positioning the projector.
• When suspending the xture above ground level, secure it against failure of primary
attachments by attaching a safety cable that is approved as a safety attachment for
the weight of the xture to the attachment point on the main frame of the product. ln
case the safety cable, enter in action, it needs to be replaced with a new one.
• Install the product only in well ventilated places.
• For non temporary installations, ensure that the xture is securely fastened to a load-
bearing surface with suitable corrosionresistant hardware.
• For a temporary installation with clamps, ensure that the quarter-turn fastener and/or
screws are turned fully, and secured with a suitable safety cable.
0,5 m Minimum distance of illuminated objects
• The projector needs to be positioned so that the objects hit by the beam of light are
at least 0.5 meters (1.64 ft) from the lens of the projector.
T 45°C
a
Max operating ambient temperature (Ta)
• Do not operate the xture if the ambient temperature (Ta) exceeds 45 °C (113 °F).

PROLIGHTS - ArcShine M series 03
T
-20°
C
a
Minimum operating ambient temperature (Ta)
• Do not operate the xture if the ambient temperature (Ta) is below -20 °C (-4 °F).
Protection from burns and re
• The exterior of the xture becomes hot during use. Avoid contact by persons and
materials.
• Ensure that there is free and unobstructed airow around the xture.
• Keep ammable materials well away from the xture.
• Do not expose the front glass to sunlight or any other strong light source from any an-
gle. Lenses can focus the sun’s rays inside the xture, creating a potential re hazard.
• Do not attempt to bypass thermostatic switches or fuses.
IP66
Permanent Outdoor use
• This product is rated with an IP (Ingress protection) for permanent outdoor use when
used and serviced according to the instruction contained in this document.
• Never use the xture in places subject to vibrations or bumps.
• Make certain that no inammable liquids, water or metal objects enter the xture.
• Excessive dust, smoke uid, and particle build up degrades performance, causes
overheating and will damage the xture.
• Damages caused by inadequate cleaning or maintenance are not covered by the
product warranty.
T
60°
C
c
Temperature of the external surface
• The surface of the xture can reach up to 60 °C (140 °F) during operation. Avoid
contact with people and materials.
Maintenance
• Warning! Disconnect the xture from AC mains power and allow to cool for at least
10 minutes before handling.
• Only technicians who are authorized by PROLIGHTS or Authorised service partners
are permitted to open the xture.
• Users may carry out external cleaning, following the warnings and instructions pro-
vided, but any service operation not described in this manual must be referred to a
qualied service technician.
• Important! Excessive dust, smoke uid, and particle build up degrades performance,
causes overheating and will damage the xture. Damages caused by inadequate
cleaning or maintenance is not covered by the product warranty.
Photobiological safety
• This device emits potentially dangerous optical radiation and is identied in the cat-
egory of Risk Group 1 according to EN 62471.
Do not stare at the operating light source
• Do not look directly at the LED source during operation. It can be harmful to the eyes
and skin.
• During Installation, operation and maintenance, be prepared for the xture to light
and move suddenly when connected to power.
Disposal
• This product is supplied in compliance with European Directive 2012/19/EU – Waste
Electrical and Electronic Equipment. (WEEE). To preserve the environment please
dispose/ recycle this product at the end of its life according to the local regulation.

PROLIGHTS - ArcShine M series04
The products to which this manual refers comply with:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD);
• 2014/30/EU - Electromagnetic Compatibility (EMC);
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS);
• 2014/53/EU - Radio Equipment Directive (RED).
The products to which this manual refers comply with:
• UL 1573 + CSA C22.2 No. 166 - Stage and Studio Luminaires and Connector Strips.
• UL 1012 + CSA C22.2 No. 107.1 - Standard for power units other than class 2.
FCC Compliance:
• This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
Other approvals
• The product meets the safety requirements of the certification procedures of the
market in which it is placed and sold.

PROLIGHTS - ArcShine M series 05
1 - PACKAGING
PACKAGE CONTENT
• 1x ARCSHINEM9FC / ARCSHINEM9VW / ARCSHINEM18FC / ARCSHINEM18VW.
• 1 x BARE END - IP connection adapter.
• 1 x 5p XLR - IP connection male adapter.
• 1 x 5p XLR - IP connection female adapter.
• User Manual.
OPTIONAL ACCESSORIES
• AWEXAC2L03: extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 3m.
• AWEXAC2L05: extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 5m.
• AWEXAC2L10: extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 10m.
• AWEXAC2L20: extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 20m.
• AWEXDC2L03: extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 3m.
• AWEXDC2L05: extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 5m.
• AWEXDC2L10: extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 10m.
• AWEXDC2L20: extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 20m.
• ARCS9FIXBD: barndoor to adjust the light beam for ARCSHINES9 and ARCSHINEM9.
• ARCS18FIXBD: barndoor to adjust the light beam for ARCSHINES18 and ARCSHINEM18.
• ARCSM9FILTER20: light diffusion lter for ARCSHINEM9, 20°.
• ARCSM9FILTER40: light diffusion lter for ARCSHINEM9, 40°.
• ARCSM9FILTER60: light diffusion lter for ARCSHINEM9, 60°.
• ARCSM9FILTER1060: light diffusion lter for ARCSHINEM9, 10°x60°.
• ARCSM9FILTER3060: light diffusion lter for ARCSHINEM9, 30°x60°.
• ARCSM18FILTER20: light diffusion lter for ARCSHINEM18, 20°.
• ARCSM18FILTER40: light diffusion lter for ARCSHINEM18, 40°.
• ARCSM18FILTER60: light diffusion lter for ARCSHINEM18, 60°.
• ARCSM18FILTER1060: light diffusion lter for ARCSHINEM18, 10°x60°.
• ARCSM18FILTER3060: light diffusion lter for ARCSHINEM18, 30°x60°.
• ARCSSM9OUTERCASE: outercase box for ground installation for ARCSHINES9 and ARCSHINEM9 series.
• ARCSSM18OUTERCASE: outercase box per ground installation per serie ARCSHINES18 e ARCSHINEM18.
• UPBOX1UP5: rmware uploader kit, USB IN, 3-pin XLR DMX OUT.

PROLIGHTS - ArcShine M series06
2 - TECHNICAL DRAWING
508 mm
[20.0 in]
106 mm
[4.2 in]
106 mm
[4.2 in]
71 mm
[2.8 in]
71 mm
[2.8 in]
106 mm
[4.2 in]
ARCSHINEM9 weight: 3 kg - 6,61 lbs
1001 mm
[39.4 in]
71 mm
[2.8 in]
106 mm
[4.2 in]
106 mm
[4.2 in]
106 mm
[4.2 in]
71 mm
[2.8 in]
ARCSHINEM18 weight: 4,9 kg - 10,80 lbs
155 mm
[6.1 in]
601 mm
[23.7 in]
121 mm
[4.8 in]
ARCSSM9OUTERCASE weight: 5 kg - 11,02 lbs
155 mm
[6.1 in]
1101 mm
[43.3 in]
121 mm
[4.8 in]
ARCSSM18OUTERCASE weight: 10 kg - 22,04 lbs
Fig. 01

PROLIGHTS - ArcShine M series 07
43 mm
[1.7 in]
6 mm
[0.2 in]
50 mm
[2.0 in]
20 mm
[0.8 in]
20 mm
[0.8 in]
26 mm
[1.0 in]
43 mm
[1.7 in]
6 mm
[0.2 in]
50 mm
[2.0 in]
20 mm
[0.8 in]
20 mm
[0.8 in]
26 mm
[1.0 in]
3 - INSTALLATION
MOUNTING
Check that the supporting structure can safely bear the weight of all installed xtures, clamps, cables,
auxiliary equipment, etc. and complies with locally applicable regulations.
When suspending the xture above ground level, secure it against failure of primary attachments by
attaching a safety wire that is approved as a safety attachment for the weight of the xture to an anchor
point on the product main frame.
Do not use removable parts or weak anchors for secondary attachment.
Warning! When clamping the xture to a truss or other structure at any angle, use clamps of half-cou-
pler type. Do not use any type of clamp that does not completely encircle the structure when fastened.
Fig.02
TILT angle: manual 180°
Screws for unlock and lock
the TILT (on both sides)

PROLIGHTS - ArcShine M series08
1
5 6 57
2 3 4

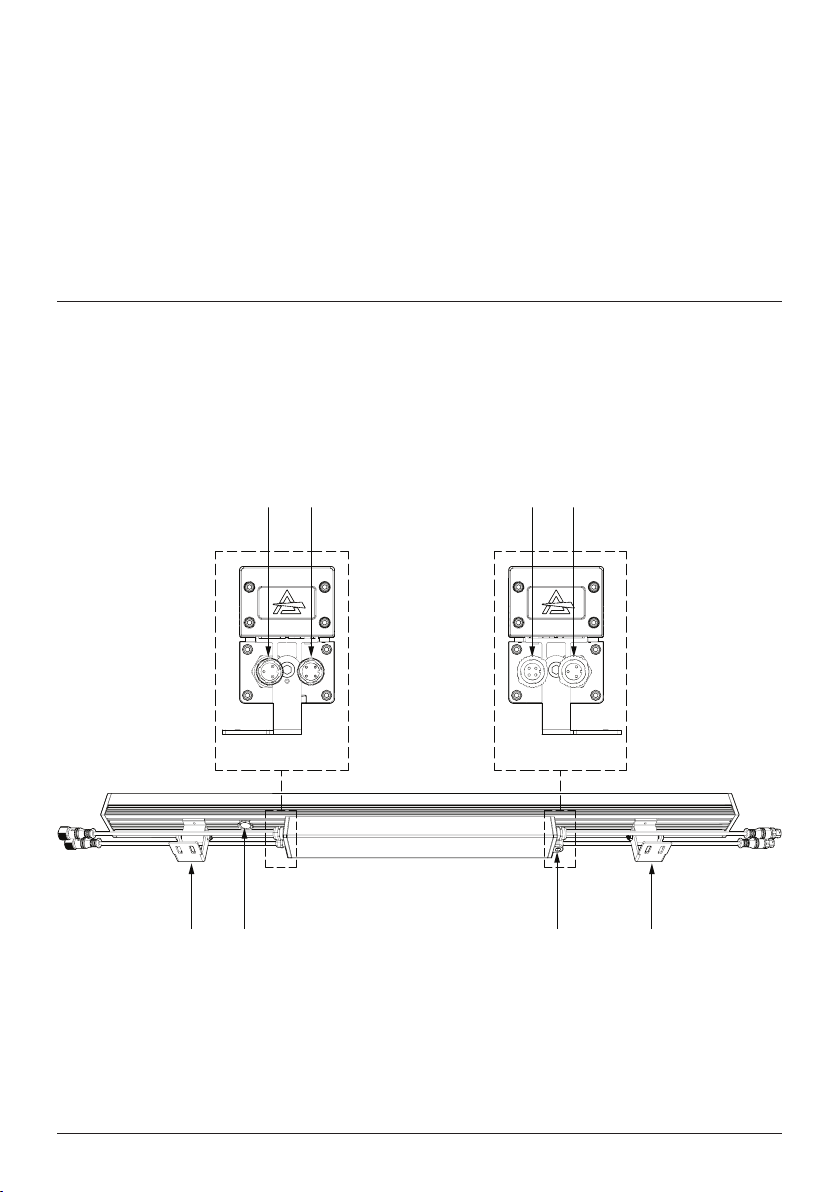

4 - PRODUCT OVERVIEW
1. POWER IN: for connection to the Mains 100-240V~/50-60Hz.
2. DMX IN (4-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C.
3. DMX OUT (4-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C.
4. POWER OUT: power output for connection of multiple units in series.
5. BRACKET for fastening.
6. GORE VALVE;
7. SAFETY EYE to attach safety cable.
Fig. 03

PROLIGHTS - ArcShine M series 09
Fig. 05 - Example conguration (Output at 230 V)
MALE POWER
IP67 CONNECTOR
FEMALE POWER
IP67 CONNECTOR
Unit 1 Unit 2 Unit 3 Unit 8 Unit 30
POWER
IN
POWER
IN
MAINS 230V
POWER
IN
POWER
IN
POWER
IN
POWER
OUT
POWER
OUT
POWER
OUT
POWER
OUT
NOTE: when not using the Power output connectors, you must seal the cable ends with the sup-
plied caps.
Fig. 04

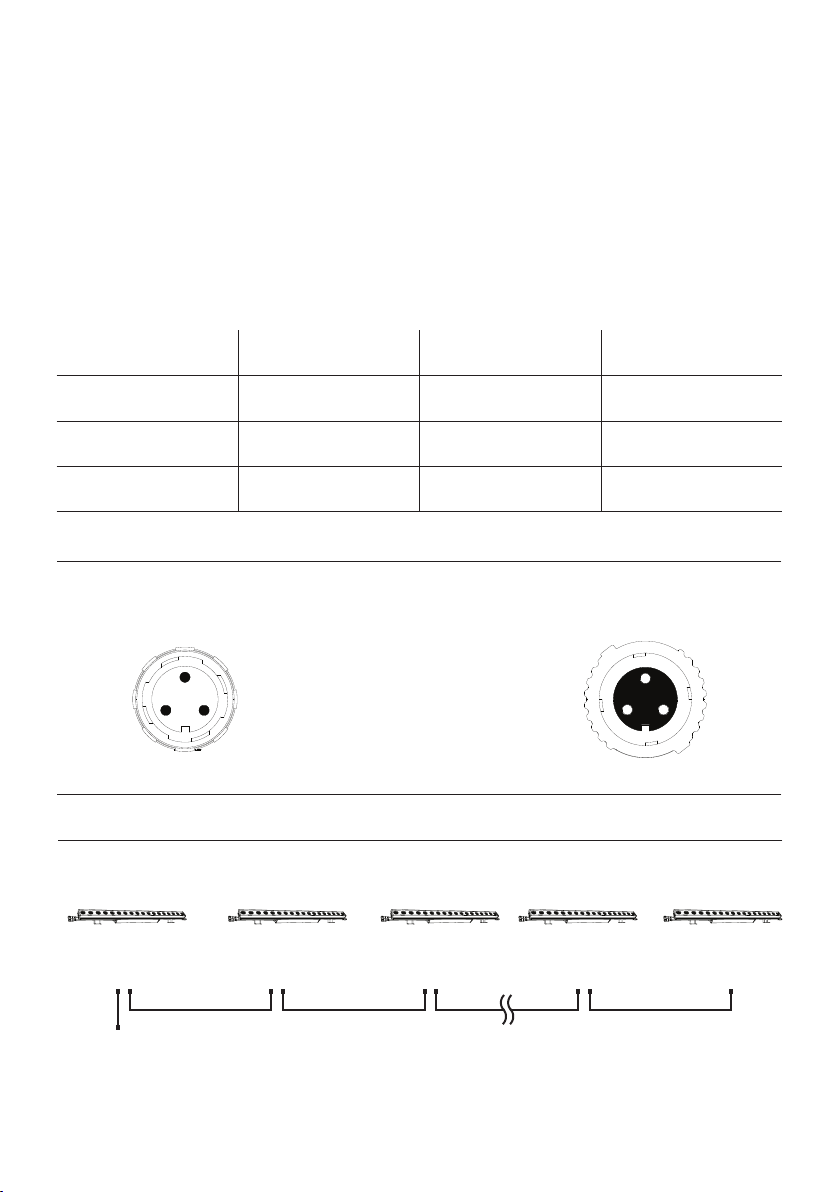

5 - CONNECTION TO THE MAINS SUPPLY
WARNING: For protection from electric shock, the xture must be earthed!
The product is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz
AC power source from 100-240 Volts.
If you need to install a power plug on the power cable to allow connection to power outlets, install a
grounding-type (earthed) plug, following the plug manufacturer’s instructions. If you have any doubts
about proper installation, consult a qualied electrician.
The max power consumption is 40 W for ARCSHINEM9 while it is 80 W ARCSHINEM18.
You can link up to 30 at 230 V ARCSHINEM9, 15 for ARCSHINEM18. Never exceed this number. Power
linking cords can be purchased separately.
Core (EU) Core (US) Connection Plug terminal marking
Brown Black Live L
Blue White Neutral N
Yellow+green Green Earth E

PROLIGHTS - ArcShine M series10
6 - DMX CONNECTION
CONNECTION OF THE CONTROL SIGNAL: DMX LINE
The product has connectors for DMX input and output.
The default pin-out on both connectors is as the following diagram:
Fig. 06
Pin1 : GND - Shield
Pin2 : - Signal
Pin3 : + Signal
DMX - OUTPUT
IP67 CONNECTOR
DMX - INPUT
IP67 CONNECTOR
INSTRUCTIONS FOR A RELIABLE DMX CONNECTION
Use shielded twisted-pair cable designed for RS-485 devices: standard microphone cable cannot trans-
mit control data reliably over long runs. 24 AWG cable is suitable for runs up to 300 meters (1000 ft).
Heavier gauge cable and/or an amplier is recommended for longer runs.
To split the data link into branches, use splitter-ampliers in the connection line.
Do not overload the link. Up to 32 devices may be connected on a serial link.
NOTE: To connect the unit to your DMX network, it is necessary to use the adapters XLR 5 pin-
IP67 signal connector, supplied with this product.
CONNECTION DAISY CHAIN OF THE DMX LINE
Connect the DMX data output from the DMX source to the product DMX input (male connector).
Run the data link from the product DMX output (female connector) connector to the DMX input of the
next xture.
Terminate the data link by connecting a 120 Ohm signal termination.
The termination is prepared by 120Ω 1/4 W resistor between pins 2 and 3 of the male DMX connector.
Install a DMX termination plug on the last xture on the link. If a splitter is used, terminate each branch
of the link.
NOTE: when not using the DMX input or DMX output connectors, you must seal the cable ends
with the supplied caps.
The following diagram shows the DMX connection:
Fig. 07 - Example 14 DMX channels conguration
. . . . . . . . . . . .
DMX Address: 33 DMX Address: 75DMX Address: 47 DMX Address: 61
. . . . . . . . . . . .
DMX512 Controller
DMX IN DMX IN DMX IN DMX INDMX OUT
DMX OUT
DMX OUT DMX OUT DMX OUT

PROLIGHTS - ArcShine M series 11
DMX ADDRESSING
In order to start controlling the product via DMX, the rst step is to select a DMX address, also known
as the start channel, this is the rst channel used to receive instructions from a DMX controller. If you
wish to control the product individually, it is necessary to assign a different starting address channel to
each xture.
The number of channels occupied from the product depends on the DMX mode selected, so always
verify the DMX Mode in the MENU before start addressing.
If you assign two xtures the same address, they will be executing the same behaviour. Selecting the
same address to multiple xtures can be useful for diagnostic purposes and symmetrical control.
DMX addressing is limited to make it impossible to set the DMX address so high that you are left with-
out enough control channels for the product.
To set the xture’s DMX address:
1. Press ENTER to open the main menu.
2. Reach the addressing menu, then select the DMX ADDRESS settings.
3. Select the address from 1 to 512 using the navigation arrows/buttons and conrm by pressing
ENTER.
4. Press Menu to exit and return to the Home screen.
CONSTRUCTION OF THE DMX TERMINATION
The termination is prepared by soldering a 120Ω 1/4 W resistor between pins 2 and 3 of the male XLR
connector, as shown in gure.
Fig. 07
Example:
5 pin XLR connector
4

Category Parameter PID GET SET
Product
Information
DEVICE_INFO 0x0060 x
PRODUCT_DETAIL_ID_LIST 0x0070 x
DEVICE_MODEL_DESCRIPTION 0x0080 x
MANUFACTURER_LABEL 0x0081 x
DEVICE_LABEL 0x0082 x x
FACTORY_DEFAULTS 0x0090 x x
SOFTWARE_VERSION_LABEL 0x00C0 x
BOOT_SOFTWARE_VERSION_ID 0x00C1 x
BOOT_SOFTWARE_VERSION_LABEL 0x00C2 x
DMX512
Setup
DMX_PERSONALITY 0x00E0 x x
DMX_PERSONALITY_DESCRIPTION 0x00E1 x
DMX_START_ADDRESS 0x00F0 x x
SLOT_INFO 0x0120 x
SLOT_DESCRIPTION 0x0121 x
DEFAULT_SLOT_VALUE 0x0122 x
DMX_BLOCK_ADDRESS 0x0140 x x
DMX_FAIL_MODE 0x0141 x x
DMX_STARTUP_MODE 0x0142 x x
Dimmer
Settings
DIMMER_INFO 0x0340 x
MINIMUM_LEVEL 0x0341 x x
MAXIMUM_LEVEL 0x0342 x x
CURVE 0x0343 x x
CURVE_DESCRIPTION 0x0344 x x
OUTPUT_RESPONSE_TIME 0x0345 x x
OUTPUT_RESPONSE_TIME_ DESCRIPTION 0x0346 x
MODULATION_FREQUENCY 0x0347 x x
MODULATION_FREQUENCY_ DESCRIPTION 0x0348 x
Sensors SENSOR_DEFINITION 0x0200 x
SENSOR_VALUE 0x0201 x x
RECORD_SENSORS 0x0202 x
BURN_IN 0x0440 x x
PROLIGHTS - ArcShine M series12
7 - RDM FUNCTIONS
The product can communicate using RDM (Remote Device Management) protocol over a DMX512
Networks.
RDM is a bi-directional communications protocol for use in DMX512 control systems, it is the open
standard for DMX512 device conguration and status monitoring.
The RDM protocol allows data packets to be inserted into a DMX512 data stream without affecting
existing non-RDM equipment. It allows a console or dedicated RDM controller to send commands to
and receive messages from specic xtures.
The PIDs in the following tables are supported in the product.

Category Parameter PID GET SET
Power/Lamp
Settings
DEVICE_HOURS 0x0400 x x
LAMP_HOURS 0x0401 x x
LAMP_STRIKES 0x0402 x x
LAMP_STATE 0x0403 x x
LAMP_ON_MODE 0x0404 x x
DEVICE_POWER_CYCLES 0x0405 x x
Control IDENTIFY_DEVICE 0x1000 x x
RESET_DEVICE 0x1001 x
POWER_STATE 0x1010 x x
PERFORM_SELFTEST 0x1020 x x
SELF_TEST_DESCRIPTION 0x1021 x
CAPTURE_PRESET 0x1030 x x
PRESET_PLAYBACK 0x1031 x x
IDENTIFY_MODE 0x1040 x x
PRESET_INFO 0x1041 x
PRESET_STATUS 0x1042 x x
PRESET_MERGEMODE 0x1043 x x
POWER_ON_SELF_TEST 0x1044 x x
PROLIGHTS - ArcShine M series 13

PROLIGHTS - ArcShine M series14

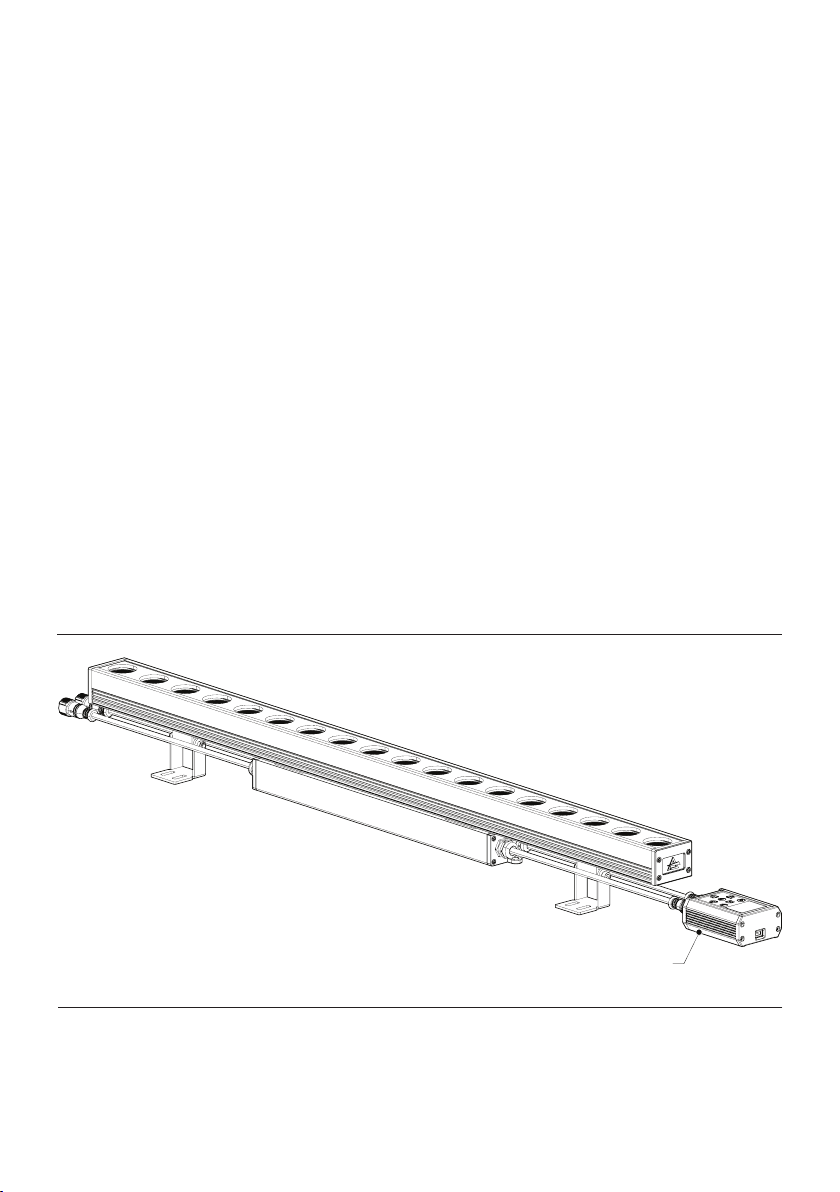

8 - OPERATION VIA DATAMASTER
The unit uses a DATAMASTER for conguration purposes. The diagram below sows how to connect the
DATAMASTER to this product. This connection will control multiple products at the same time.
To set different Stand Alone mode on different product, you must connect the DATAMASTER to each
product, individually.
However, by using the DATAMASTER, you may address each product in the daisy chain to a different
DMX address by using the RDM function without the need connect to each individual product.
Important: The DATAMASTER must be used to congure this product.
MUSIC & LIGHTS suggests that you connect no more than 11 units in this mode and keep the total
distance to less than 60 m (197 ft). Otherwise, you might need to use an RDM optically isolated signal
amplier.
RDM SETTING
To set the RDM functions with the DATAMASTER follow these steps:
• Turn on the DATAMASTER;
• Select the "RDM" function;
• Wait the discovering of all units;
• Select the desired unit and press ENTER button;
• Change the value of the desired function.
The following chart describes the RDM menu tree of the product, the terms shown in BOLD indicates
the default settings.
STAND ALONE FUNCTION
• To set Standalone Mode please refer to the Menu Structure
DATAMASTER
Fig. 08

PROLIGHTS - ArcShine M series 15
9 - MENU STRUCTURE
The following chart describes the MENU tree of the product, the terms shown in BOLD indicates the
default settings.
MENU*
1 DMX_START_ADDRESS 001 - 512
2 DMX_PERSONALITY FC Variant Mode VW Variant Mode
1CH 1CH
2CH 2CH
5CH 3CH
9CH 4CH
12CH 9CH
available only on M18 variant
14CH 9CH2
3 CURVE 0:LINEAR To choose the dimmer curve.
1:S-CURVE
2:SQUARE LAW
3:INVERSE SQUARE LAW
4 OUTPUT_RESPONSE_TIME 0:AUTO To choose the dimmer speed.
1:FAST
2:MEDUIM
3:SLOW
5 MODULATION_FREQUENCY 0:600Hz Select PWM frequency.
1:1200Hz
2:2000Hz
3:4000Hz
4:6000Hz
5:25kHZ
SPECIAL PIDs**
1DMX FAULT 0:BLACKOUT To choose the behaviour of fixture in case of
dmx signal lost.
1:HOLD
2:STAND ALONE
2MASTER/SLAVE 0:MST DMX Outputs dmx signal.
1:MST NO DMX Doesn't output dmx signal.
2:SLAVE Receive dmx signal.
3 STAND ALONE MODE 0:EFFECTS To use onboard effects
1:STATIC To use static color presets.

PROLIGHTS - ArcShine M series16
2:CCT To use white presets:
3:MACRO To use color gels. Please refer to DMX chart
for Gel numbers, listed on DMX value column.
4:RGBW
To use RAW color mixing. Red, Green, Blue
and White channel are available as single
custom pid as listed below.
4 UNO/DUO MODE
FC VERSION ONLY 0:STATIC To use static color presets.
1:CCT To use white presets:
2:MACRO To use color gels. Please refer to DMX chart
for Gel numbers, listed on DMX value column.
3:RGBW
To use RAW color mixing. Red, Green, Blue
and White channel are available as single
custom pid as listed below.
5 EFFECTS (0 - 10)Choose between different effects.
6 EFFECTS SPEED (0 - 255)Choose speed of the effects
7STATIC COLORS (0 - 14)To choose between static color presets.
0: R
1: G
2: B
3: W
4: GB
5: RB
6: RG
7: RGB
8: RW
9: GW
10: BW
11: RGW
12: RBW
13: GBW
14: RGBW
8WHITE PRESETS (0 - 20) To choose between cct white preset.
0: 2800K
1: 3000K
2: 3200K
3: 3400K
4: 3600K
5: 3800K
6: 4000K
7: 4200K
8: 4400K
9: 4600K
10: 4800K
11: 5000K
12: 5200K
13: 5400K
14: 5600K
15: 6000K
16: 6500K
17: 7000K
18: 8000K
19: 9000K
20: 10000K
9COLOR MACROS (0 - 255) To choose between color gels. Please refer to
DMX chart for Gel numbers, listed on DMX
value column.
10 MANUAL RED (000 ÷ 255) Raw red channel (used in RGBW stand alone
mode).
11 MANUAL GREEN (000 ÷ 255) Raw green channel (used in RGBW stand
alone mode).
12 MANUAL BLUE (000 ÷ 255) Raw blue channel (used in RGBW stand alone
mode).
13 MANUAL WHITE (000 ÷ 255) Raw white channel (used in RGBW stand
alone mode).

PROLIGHTS - ArcShine M series 17
14 FULL ON 0:HB MODE High Brightness Mode, delivering the full
output on every primary color
1:STUDIO MODE Fixture will reach 6000K white point.
15 STUDIO-RED (000 ÷ 255) Max value of red color intensity when all color
are at maximum value.
16 STUDIO-GREEN (000 ÷ 255) Max value of green color intensity when all
color are at maximum value.
17 STUDIO-BLUE (000 ÷ 255) Max value of blue color intensity when all
color are at maximum value.
18 STUDIO-WHITE (000 ÷ 255) Max value of white color intensity when all
color are at maximum value.
19 WHITE CALIBRATION-RED (125 ÷ 255) Max value of red color intensity.
20 WHITE CALIBRATION GREEN (125 ÷ 255) Max value of green color intensity.
21 WHITE CALIBRATION-BLUE (125 ÷ 255) Max value of blue color intensity.
22 WHITE CALIBRATION-WHITE (125 ÷ 255) Max value of white color intensity.
23 INVERT MAPPING
x18 version only 0: OFF - 1:ON Rotate Section direction
24 CURRENT HOURS (00000-65535) Shows fixture hours.
25 POWER CONSUMPTION(AC 220V) Shows fixture's power consumption.
26 MAINTENANCE TIME (ALERT PERIOD:10 ÷ 300)To set maintenance time alert period
27 MAINTENANCE TIME (ELAPSED TIME:00-ALERT PERIOD) Shows elapsed tiime to alert period.
28 ERROR MESSAGES Shows error codes.
29 CLEAN ALL DATA 0:NO Complete reset of the fixture.
1:YES
SPECIAL PIDs** for VW version
1DMX FAULT 0:BLACKOUT To choose the behaviour of fixture in case of
dmx signal lost.
1:HOLD
2:STAND ALONE
2MASTER/SLAVE 0:MST DMX Outputs dmx signal.
1:MST NO DMX Doesn't output dmx signal.
2:SLAVE Receive dmx signal.
3 STAND ALONE MODE 0:EFFECTS To use onboard effects
1:STATIC To use static color presets.
2:CCT To use white presets:
3:MAN To use RAW color mixing. CW and WW are
available as single custom pid as listed below.
4 UNO/DUO MODE 0:STATIC To use static color presets.
1:CCT To use white presets:
2:MAN To use RAW color mixing. CW and WW are
available as single custom pid as listed below.
5 EFFECTS (0 - 5)Choose between different effects.
6 EFFECTS SPEED (0 - 255)Choose speed of the effects
7FIXED COLOR (0 - 2)To choose between static color presets.
0: CW
1: WW
2: CW + WW

PROLIGHTS - ArcShine M series18
8WHITE PRESETS (1 - 7) To choose between cct white preset.
1: 2800K
2: 3000K
3: 3200K
4: 4000K
5: 5600K
6: 6000K
7: 6500K
9STATIC CW (000 ÷ 255) Raw CW channel (used in MAN stand alone
mode).
10 STATIC WW (000 ÷ 255) Raw WW channel (used in MAN stand alone
mode).
11 WHITE CALIBRATION-BLUE (125 ÷ 255) Max value of blue color intensity.
12 WHITE CALIBRATION-WHITE (125 ÷ 255) Max value of white color intensity.
13 INVERT MAPPING
x18 version only 0: OFF - 1:ON Rotate Section direction
14 CURRENT HOURS (00000-65535) Shows fixture hours.
15 POWER CONSUMPTION(AC 220V) Shows fixture's power consumption.
16 MAINTENANCE TIME (ALERT PERIOD:10 ÷ 300)To set maintenance time alert period
17 MAINTENANCE TIME (ELAPSED TIME:00-ALERT PERIOD) Shows elapsed tiime to alert period.
18 ERROR MESSAGES Shows error codes.
19 CLEAN ALL DATA 0:NO Complete reset of the fixture.
1:YES
