ProLights Jet PAR7ZIP User manual

USER MANUAL
English version
Jet PAR7ZIP
7x20W IP65 RGB+WW zoom LED PAR
REV.01-04/23 - PRELIMINARY

Thank you for choosing PROLIGHTS
Please note that every PROLIGHTS product has been designed in Italy to meet quality and performance requirements
for professionals and designed and manufactured for the use and application as shown in this document.
Any other use, if not expressly indicated, could compromise the good condition/operation of the product and/or be
a source of danger.
This product is meant for professional use. Therefore, commercial use of this equipment is subject to the respectively
applicable national accident prevention rules and regulations.
Features, specications and appearance are subject to change without notice. Music & Lights S.r.l. and all afliated
companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or any other
loss occasioned by the use of, inability to use or reliance on the information contained in this document.
Product user manual can be downloaded from the website www.prolights.it , or can be inquired to the ofcial
PROLIGHTS distributors of your territory (https://www.prolights.it/sales_network.html).
Scanning the below QR Code, you will access the download area of the product page, where you can nd a broad
set of always updated technical documentation: specications, user manual, technical drawings, photometrics,
personalities, xture rmware updates.
The PROLIGHTS Logo, PROLIGHTS names and all other trademark in this document pertaining to PROLIGHTS services
or PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its afliates, and subsidiaries.
PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc -
04026 - Minturno (LT) ITALY.
Visit the download area
of the product page

PROLIGHTS - Jet PAR7ZIP 01
INDEX
SAFETY INFORMATION 02
1 - PACKAGING 05
PACKAGE CONTENT..................................................................................................... 05
OPTIONAL ACCESSORIES............................................................................................. 05
2 - TECHNICAL DRAWING 05
3 - INSTALLATION 06
MOUNTING.................................................................................................................... 06
4 - CONNECTION TO THE MAINS SUPPLY 07
5 - START UP 07
CONNECT AND DISCONNECT POWER FROM THE PRODUCT.................................. 07

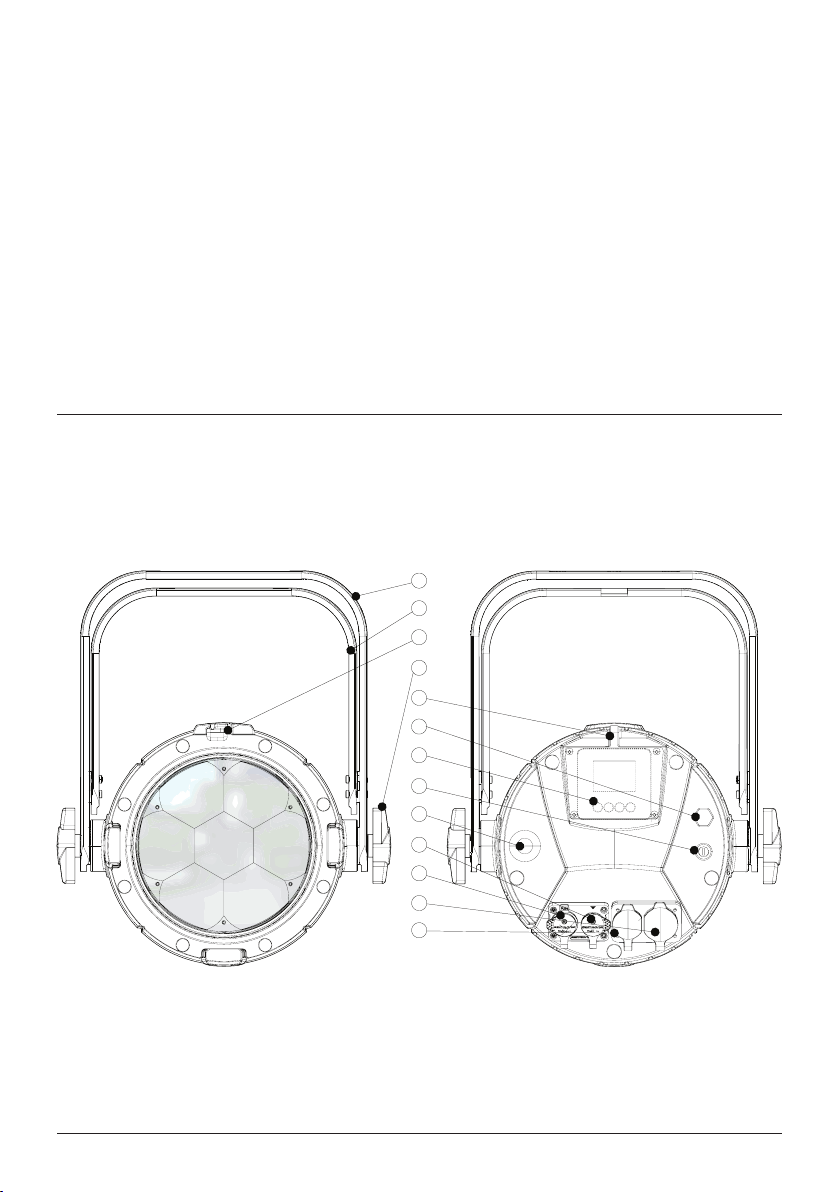

6 - PRODUCT OVERVIEW 08
7 - DMX CONNECTION 09
CONNECTION OF THE CONTROL SIGNAL: DMX LINE .............................................. 09
INSTRUCTIONS FOR A RELIABLE DMX CONNECTION ............................................... 09

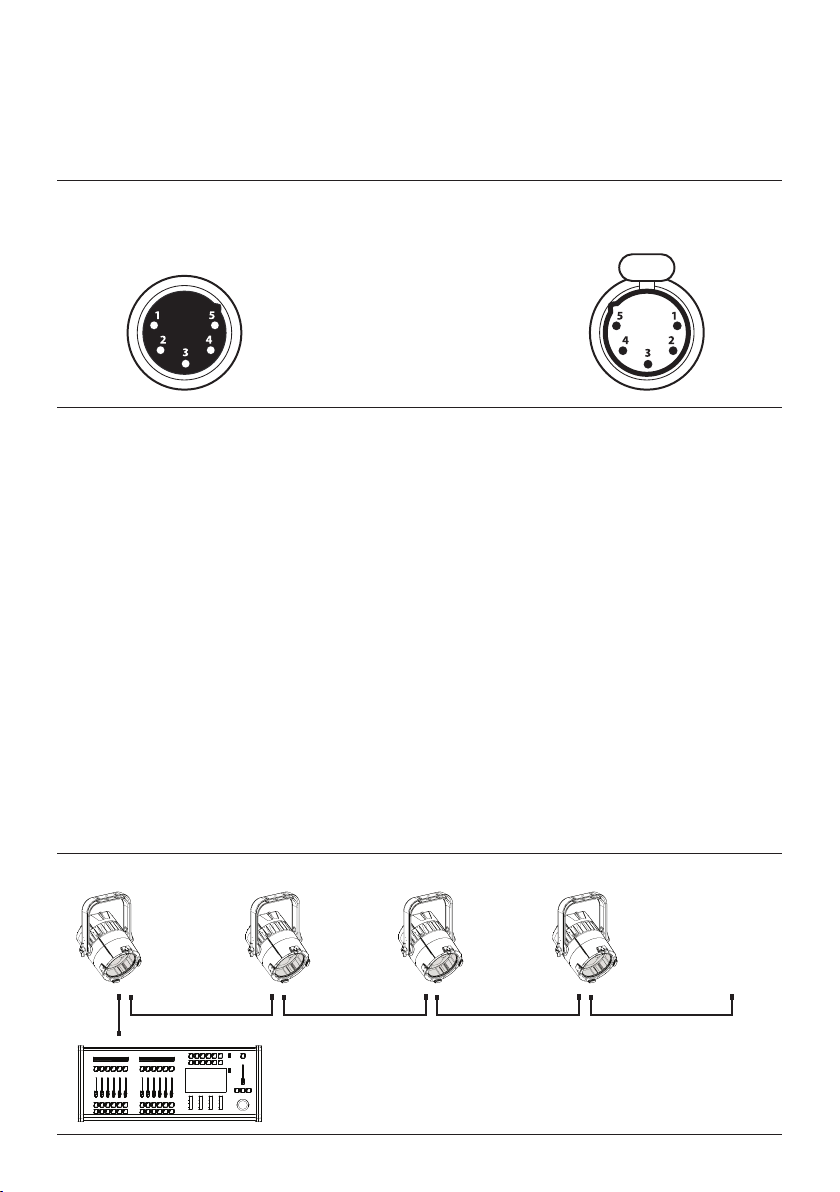

CONNECTION DAISY CHAIN........................................................................................ 09
CONNECTION OF THE DMX LINE................................................................................ 09
CONSTRUCTION OF THE DMX TERMINATION ........................................................... 10
DMX ADDRESSING ........................................................................................................ 10
OPERATION AS A WIRELESS TRANSMITTER................................................................ 10
IN TO CRMX................................................................................................................... 11
OPERATION AS A WIRELESS RECEIVER........................................................................ 11
CRMX TO DMX (RX) ....................................................................................................... 11
8 - CONTROL PANEL 12

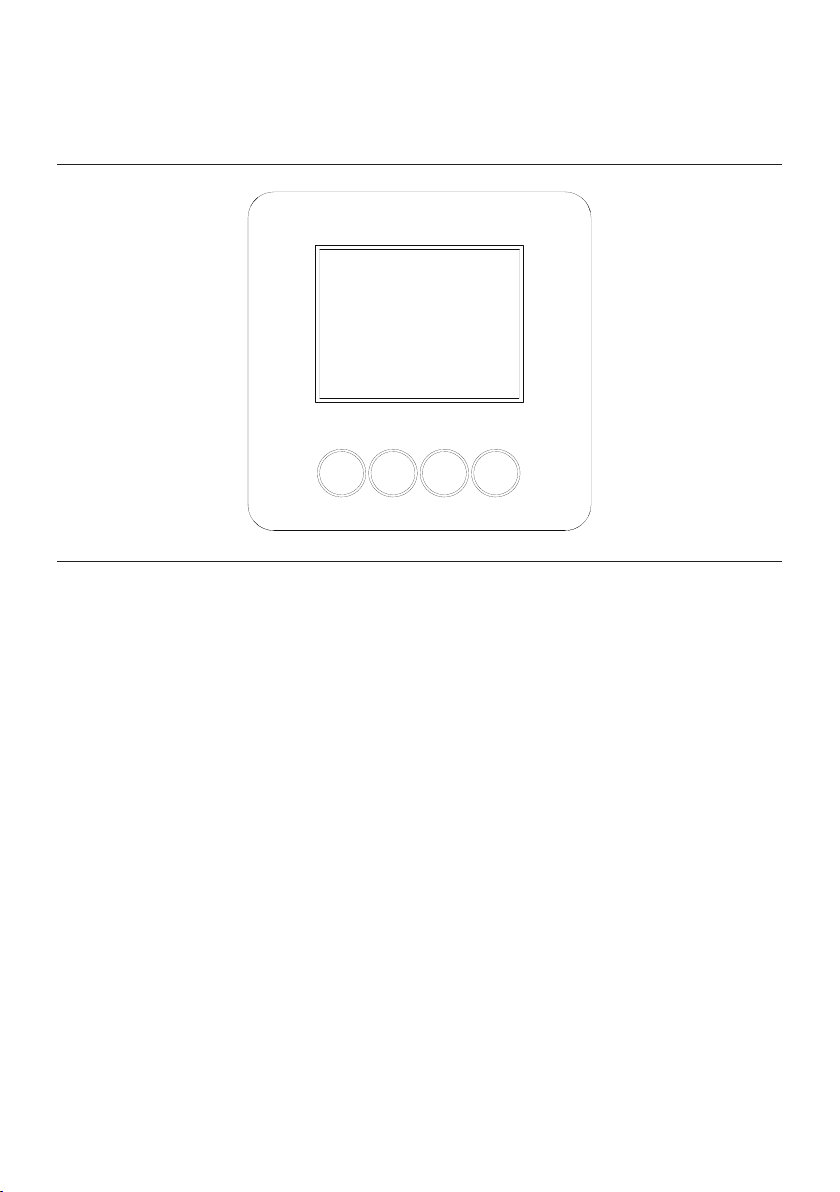

DISPLAY AND BUTTONS LAYOUT................................................................................. 12
9 - MENU STRUCTURE 13
10 - SHORTCUT 16
11 - RDM FUNCTIONS 17
12 - DMX CHARTS 20
RDM Model ID................................................................................................................ 20
14 - ERROR MESSAGES 28
15 - ACCESSORIES INSTALLATION 29
FILTER FRAME (CODE AJP7ZIPBD - OPTIONAL) .......................................................... 29
BARN DOOR (CODE AJP7ZIPBD - OPTIONAL)............................................................. 30
16 - PERIODICAL CLEANING 31
17 - TEST OF IP65 RATING 32
18 - MAINTENANCE 33
MAINTENANCE AND CLEANING THE PRODUCT........................................................ 33
REPLACING THE FUSE................................................................................................... 33
VISUAL CHECK OF PRODUCT HOUSING ..................................................................... 33
TROUBLESHOOTING..................................................................................................... 34

PROLIGHTS - Jet PAR7ZIP02
SAFETY INFORMATION
WARNING!
• See https://www.prolights.it/product/JETPAR7ZIP#download for installation instruc-
tions.
• Please read carefully the instruction reported in this section before installing, power-
ing, operating or servicing the product and observe the indications also for its future
handling.
This unit is not for household and residential use, only professional applications.
Connection to mains supply
• The Connection to the mains supply must be carried out by a qualied electrical
installer.
• Use only AC supplies 100-240V 50-60 Hz, the xture must be electrically connected
to ground (earth).
• Select the cable cross section in according with the maximum current draw of the
product and the possible number of products connected at the same power line.
• The AC mains power distribution circuit must be equipped with magnetic+residual
current circuit breaker protection.
• Do not connect it to a dimmer system; doing so may damage the product.
Protection and Warning against electrical shock
• Do not remove any cover from the product, always disconnect the product from AC
power before servicing.
• Ensure that the xture is electrically connected to ground (earth). And use only a
source of AC power that complies with local building and electrical codes and has
both overload and ground-fault (earth-fault) protection.
• Before using the xture, check that all power distribution equipment and cables are
in perfect condition and rated for the current requirements of all connected devices.
• Isolate the xture from power immediately if the power plug or any seal, cover, ca-
ble, or other components are damaged, defective, deformed or showing signs of
overheating.
• Do not reapply power until repairs have been completed.
• Refer any service operation not described in this manual to PROLIGHTS Service team
or an authorized PROLIGHTS service center.
Installation
• Make sure that all visible parts of the product are in good visible condition before its
use or installation.
• Make sure the point of anchorage is stable before positioning the projector.
• When suspending the xture above ground level, secure it against failure of primary
attachments by attaching a safety cable that is approved as a safety attachment for
the weight of the xture to the attachment point on the main frame of the product. ln
case the safety cable, enter in action, it needs to be replaced with a new one.
• Install the product only in well ventilated places.
• For non temporary installations, ensure that the xture is securely fastened to a load-
bearing surface with suitable corrosionresistant hardware.
• For a temporary installation with clamps, ensure that the quarter-turn fastener and/or
screws are turned fully, and secured with a suitable safety cable.

PROLIGHTS - Jet PAR7ZIP 03
0,3 m Minimum distance of illuminated objects
• The projector needs to be positioned so that the objects hit by the beam of light are
at least 0,3 meters (0,98 ft) from the lens of the projector.
T 45°C
a
Max operating ambient temperature (Ta)
• Do not operate the xture if the ambient temperature (Ta) exceeds 45 °C (113 °F).
T -15°C
a
Minimum operating ambient temperature (Ta)
• Do not operate the xture if the ambient temperature (Ta) is below -15 °C (5 °F).
Protection from burns and re
• The exterior of the xture becomes hot during use. Avoid contact by persons and
materials.
• Ensure that there is free and unobstructed airow around the xture.
• Keep ammable materials well away from the xture.
• Do not expose the front glass to sunlight or any other strong light source from any an-
gle. Lenses can focus the sun’s rays inside the xture, creating a potential re hazard.
• Do not attempt to bypass thermostatic switches or fuses.
IP65
Outdoor (temporary) use
• This product is rated with an IP (Ingress protection) for temporary outdoor use when
used and serviced according to the instruction contained in this document.
• Never use the xture in places subject to vibrations or bumps.
• Make certain that no inammable liquids, water or metal objects enter the xture.
• Excessive dust, smoke uid, and particle build up degrades performance, causes
overheating and will damage the xture.
• Damages caused by inadequate cleaning or maintenance are not covered by the
product warranty.
Light collimation optical system
• This product contains internal light collimation opticsl system. Avoid to expose the
optical system to any intense source of light (including sunlight) from any angle.
T 62°C
c
Temperature of the external surface
• The surface of the xture can reach up to 62 °C (143,6 °F) during operation. Avoid
contact with people and materials.
Radio receiver
This product contains a radio receiver and/or transmitter:
• Maximum output power: 17 dBm.
• Frequency band: 2.4 GHz.
Maintenance
• Warning! Disconnect the xture from AC mains power and allow to cool for at least
10 minutes before handling.
• Only technicians who are authorized by PROLIGHTS or Authorised service partners
are permitted to open the xture.
• Users may carry out external cleaning, following the warnings and instructions pro-
vided, but any service operation not described in this manual must be referred to a
qualied service technician.
• Important! Excessive dust, smoke uid, and particle build up degrades performance,
causes overheating and will damage the xture. Damages caused by inadequate
cleaning or maintenance is not covered by the product warranty.

PROLIGHTS - Jet PAR7ZIP04
Photobiological safety
• This device emits potentially dangerous optical radiation and is identied in the cat-
egory of Risk Group 2 according to EN 62471.
Do not stare at the operating light source
• Do not look directly at the LED source during operation. It can be harmful to the eyes
and skin.
• During Installation, operation and maintenance, be prepared for the xture to light
and move suddenly when connected to power.
• The device should be positioned so that prolonged staring into the luminaire at adis-
tance closer than TBC m (TBC ft) is not expected.
TBC
Minimun
distance
Risk
Group 2
Risk
Group 1
0.2 m
0.7 ft
10.5 m
34.45 ft
Disposal
• This product is supplied in compliance with European Directive 2012/19/EU – Waste
Electrical and Electronic Equipment (WEEE). To preserve the environment please dis-
pose/ recycle this product at the end of its life according to the local regulation.
The product contains a lithium ion battery
• Don't throw the unit into the garbage at the end of its lifetime.
• Make sure to dispose according to your local ordinances and/or regulations, to avoid
polluting the environment!
• The packaging is recyclable and can be disposed.
The products to which this manual refers comply with:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD).
• 2014/30/EU - Electromagnetic Compatibility (EMC).
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS).
• 2014/53/EU - Radio Equipment Directive (RED).
Other approvals

PROLIGHTS - Jet PAR7ZIP 05
1 - PACKAGING
PACKAGE CONTENT
• 1x JETPAR7ZIP.
• 1x 1,5 meters power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65).
• User Manual.
OPTIONAL ACCESSORIES
• AJP7ZIPBD: barn door with 8 directional aps to adjust the light beam, ASTRA / JET PAR7ZIP.
• IPTESTBOX: portable vacuum and pressure tester for ProLights IP xtures.
• C6002A/B: slim aluminium clamp, 200 kg loading, 48-51 mm tubes, M10 bolt, aluminium / black.
• RSR0670A/B: steel security cable for hanging bodies, inox steel shackle, aluminium / black.
• WSBBF1G5: blackBox F-1 G5 transmitter, 2,45GHz & 5.2/5,8 GHz, DMX/RDM, 512Ch.
• WSBBF1G6: blackBox F-1 G6 transrec, 512ch, 2.45GHz, DMX&RDM,Bluetooth,G3,G4,G4S, G5, CRMX.
• WSBBR512G5: blackBox R-512 G5 receiver 512Ch, 2.45GHz & 5.8GHz, DMX/RDM optional.
• WSBBR512G6: blackBox R-512 G6 receiver 512Ch, 2.45GHz,DMX&RDM,Bluetooth,G3,G4,G4S,G5,CRMX.
• UPBOX2P5: rmware uploader kit, USB IN, 5-pin XLR DMX OUT.
292 mm
[11.5 in]
302 mm
[11.9 in]
Ø451 mm
[17.8 in]
Ø481 mm
[18.9 in]
345 mm
[13.6 in]

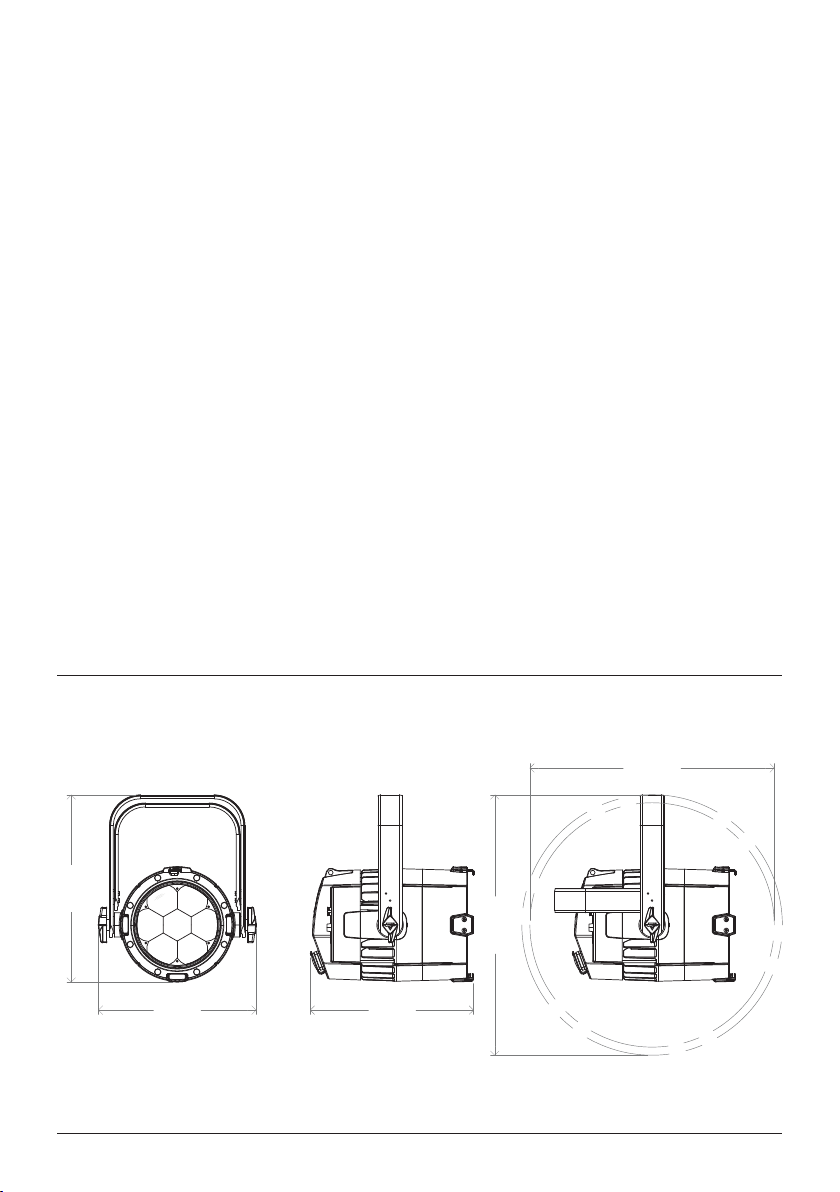

Fig. 01
Weight: 9,3 kg - 20,50 lbs
2 - TECHNICAL DRAWING

PROLIGHTS - Jet PAR7ZIP06
Fig.02
3 - INSTALLATION
MOUNTING
Check that the supporting structure can safely bear the weight of all installed xtures, clamps, cables,
auxiliary equipment, etc. and complies with locally applicable regulations.
When suspending the xture above ground level, secure it against failure of primary attachments by
attaching a safety wire that is approved as a safety attachment for the weight of the xture to an anchor
point on the product main frame.
Do not use removable parts or weak anchors for secondary attachment.
Warning! When clamping the xture to a truss or other structure at any angle, use clamps of half-cou-
pler type. Do not use any type of clamp that does not completely encircle the structure when fastened.
RSR0670A/B
Steel security cable C6002 A/B clamp
98,50 mm
3,88 in
Ø13 mm
0,51 in

PROLIGHTS - Jet PAR7ZIP 07
5 - START UP
CONNECT AND DISCONNECT POWER FROM THE PRODUCT
To apply and disconnect power to the product:
• Check that the product is installed and secured as indicated in the Safety Informations, and that
personal safety will not be put at risk when the xture lights up.
• Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz).
• The product is then ready for its operations and can be controlled through the available input sig-
nals on board.
• To disconnect power from the product, disconnect the Mains from the socket.
4 - CONNECTION TO THE MAINS SUPPLY
WARNING: For protection from electric shock, the xture must be earthed!
The product is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz
AC power source from 100-240 Volts.
If you need to install a power plug on the power cable to allow connection to power outlets, install a
grounding-type (earthed) plug, following the plug manufacturer’s instructions. If you have any doubts
about proper installation, consult a qualied electrician.
The max power consumption is 140W.
Core (EU) Core (US) Connection Plug terminal marking
Brown Black Live L
Blue White Neutral N
Yellow+green Green Earth

PROLIGHTS - Jet PAR7ZIP08
MODE/
ESC UP DOWN ENTER
10
2
6
8
5
3
1
4
7
9
11
13
12
6 - PRODUCT OVERVIEW
1. BRACKET for hanging safe.
2. BRACKET for oor positioning.
3. HOLDER CLIP for lter frame and barndoor accessory.
4. KNOB for bracket.
5. SAFETY EYE to attach safety cable.
6. GORE VALVE.
7. USER INTERFACE with display and buttons for access to the control panel functions.
8. MAIN FUSE HOLDER: replace a burnt-out fuse by one of the same type only (3.15A).
9. ANTENNA.
10.DMX IN (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C.
11.DMX OUT (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C.
12.POWER OUT: power output for connection of multiple units in series.
13.POWER IN: for connection to the Mains 100-240V~/50-60Hz.
Fig 03

PROLIGHTS - Jet PAR7ZIP 09
7 - DMX CONNECTION
CONNECTION OF THE CONTROL SIGNAL: DMX LINE
The product has XLR sockets for DMX input and output.
The default pin-out on both socket is as the following diagram:
Fig. 05
Pin1 : GND - Shield
Pin2 : - Signal
Pin3 : + Signal
Pin4 : N/C
Pin5 : N/C
DMX - OUTPUT
XLR socket
DMX - INPUT
XLR plug
INSTRUCTIONS FOR A RELIABLE DMX CONNECTION
Use shielded twisted-pair cable designed for RS-485 devices: standard microphone cable cannot trans-
mit control data reliably over long runs. 24 AWG cable is suitable for runs up to 300 meters (1000 ft).
Heavier gauge cable and/or an amplier is recommended for longer runs.
To split the data link into branches, use splitter-ampliers in the connection line.
Do not overload the link. Up to 32 devices may be connected on a serial link.
CONNECTION DAISY CHAIN
Connect the DMX data output from the DMX source to the product DMX input (male connector XLR)
socket.
Run the data link from the product XLR output (female connector XLR) socket to the DMX input of the
next xture.
Terminate the data link by connecting a 120 Ohm signal termination. If a splitter is used, terminate
each branch of the link.
Install a DMX termination plug on the last xture on the link.
CONNECTION OF THE DMX LINE
DMX connection employs standard XLR connectors. Use shielded pair-twisted cables with 120Ω im-
pedance and low capacity.
The following diagram shows the connection mode:
Fig. 04 - Example 20 DMX channels conguration
. . . . . . . . . . . .
DMX Address: 1 DMX Address: 60DMX Address: 20 DMX Address: 40
. . . . . . . . . . . .
DMX512 Controller
DMX IN DMX IN DMX IN DMX INDMX OUT DMX OUT DMX OUT DMX OUT

PROLIGHTS - Jet PAR7ZIP10
DMX ADDRESSING
In order to start controlling the product via DMX, the rst step is to select a DMX address, also known
as the start channel, this is the rst channel used to receive instructions from a DMX controller. If you
wish to control the product individually, it is necessary to assign a different starting address channel to
each xture.
The number of channels occupied from the product depends on the DMX mode selected, so always
verify the DMX Mode in the MENU before start addressing.
If you assign two xtures the same address, they will be executing the same behaviour. Selecting the
same address to multiple xtures can be useful for diagnostic purposes and symmetrical control.
DMX addressing is limited to make it impossible to set the DMX address so high that you are left with-
out enough control channels for the product.
To set the xture’s DMX address:
1. Press ENTER to open the main menu.
2. Reach the addressing menu, then select the DMX ADDRESS settings.
3. Select the address from 1 to 512 using the navigation arrows/buttons and conrm by pressing
ENTER.
4. Press Menu to exit and return to the Home screen.
OPERATION AS A WIRELESS TRANSMITTER
JETPAR7ZIP can be used as wireless transmitter to transmit DMX signal to different wireless receivers.
To use JETPAR7ZIP as wireless transmitter, please follow the procedure below:
1. Push ENTER button untill you show CONNECT on display, then press ENTER button to conrm.
2. Use UP/DOWN buttons for select WIRELESS, then press ENTER to conrm.
3. Push ENTER button on CRMX ON/OFF function and enable it to ON.
4. Select CRMX mode and set it on Transmitter (please note that CRMX mode will be available only if
CRMX ON/OFF is set to ON).
5. Ensure that the receiver units are not connected to any other transmitter. Please refer to "Reset the
receiver" paragraph.
6. Enable TX LINK to ON to link transmitter to receivers (please note that TX LINK will be available only
if CRMX mode is set to Transmitter).
• The transmitter scans for all unlinked receivers for a period of about 5 seconds.
• If the connection fails, check the position of the receiver.
• The wireless icon on the receiver display indicates the received signal strength.
CONSTRUCTION OF THE DMX TERMINATION
The termination is prepared by soldering a 120Ω 1/4 W resistor between pins 2 and 3 of the male XLR
connector, as shown in gure.
Fig. 05
Example:
5 pin XLR connector
4

PROLIGHTS - Jet PAR7ZIP 11
Unlinking the transmitter
Follow the procedure below to unlink the transmitter from all receivers connected with the unit.
1. Push ENTER button untill you show CONNECT on display, then press ENTER button to conrm.
2. Use UP/DOWN buttons for select Wireless, then press ENTER to conrm.
3. Enable TX UNLINK to ON 8 (please note that TX UNLINK will be available only if CRMX mode is
set to Transmitter).
• All connected receivers will be unlinked.
IN TO CRMX
This function enable or disable the transmission throught wireless of the DMX signal from the transmit-
ter side to the receiver.
Any incoming signal (ArtNet, sACN or DMX) is retransmitted throught wireless.
It's possible to choose retransmission of Main Fixture or Pixel Engine.
If the JETPAR7ZIP protocol selected is ArtNet / sACN, the CRMX module will retransmit the DMX val-
ues contained in the ArtNet / sACN signal received from the JETPAR7ZIP.
NOTE: Artnet and sACN have higher priority on DMX if they are connected to transmitter.
NOTE: Do not use IN TO CRMX and ETH TO DMX simultaneously, this will cause data conict on DMX
output signal.
OPERATION AS A WIRELESS RECEIVER
JETPAR7ZIP can be used as wireless receiver connected to a wireless transmitter.
To use JETPAR7ZIP as wireless receiver, please follow the procedure below:
1. Push ENTER button untill you show CONNECT on display, then press ENTER button to conrm.
2. Use UP/DOWN buttons for select Wireless, then press ENTER to conrm.
3. Push ENTER button on CRMX ON/OFF function and enable it to ON.
4. Select CRMX mode and set it on Receiver (please note that CRMX mode will be available only if
CRMX ON/OFF is set to ON).
5. Enable RX RESET to ON to reset the receiver (please note that RX RESET will be available only if
CRMX mode is set to Receiver).
6. On the transmitter, enable TX LINK to ON to link transmitter to the receivers.
7. If the connection is successful and DMX input is available the display the display on the receiver unit
will shows the DMX address. If DMX signal is not available, the display will shows "No signal" but
keeps the transmitter linked.
8. If the connection fails, check the position of the receiver.
9. The wireless icon on the receiver display indicates the received signal strength.
Reset the receiver
Follow the procedure below to reset the receiver.
1. Push MENU button untill you show CONNECT on display, then press ENTER button to conrm.
2. Use UP/DOWN buttons for select Wireless, then press ENTER to conrm.
3. Enable RX RESET to ON.
• The wireless icon on the receiver display indicates the received signal strength.
CRMX TO DMX (RX)
This function enable or disable the retransmission of the wireless DMX signal received throught the
DMX port on the receiver side.

PROLIGHTS - Jet PAR7ZIP12
Fig. 06
MODE/
ESC UP DOWN ENTER
8 - CONTROL PANEL
The product has a display and buttons for access to the control panel functions.
DISPLAY AND BUTTONS LAYOUT
The product has a display and buttons for access to the control panel functions:
• MODE / ESC: used to access the menu tree or to return a previous menu window.
• UP: browse upwards through the menu list and increases the numeric value displayed.
• DOWN: browse downwards through the menu list and decreases the numeric value displayed.
• ENTER: used to conrm the current menu or conrm the current function value or option within a
menu.

9 - MENU STRUCTURE
The following chart describes the MENU tree of the product, the terms shown in BOLD indicates the
default settings.
CONNECT ADDRESS 1 - 512 Set address used for Fixture.
DMX MODE UNO Set DMX chart for Main Fixture.
DUO
BASIC
BASIC 16BIT
STANDARD
EXTENDED
WIRELESS CRMX
ON/OFF
ON/OFF Enable/Disable the wireless card.
CRMX MODE TRANSMITTER
RECEIVER
TX LINK ON/OFF TX link unlock when the unit is set as
a transmitter.
TX UNLINK ON/OFF Disconnect the transmitter from all
receivers.
TX unlink unlocks only if CRMX mode
is on transmitter.
RX RESET ON/OFF Total reset of the receiver.
RX reset unlocks only if CRMX mode
is receiver.
IN TO CRMX
(TX)
ON/OFF Enable/Disable the transmission
of the DMX values via wdmx.
CRMX TO
DMX (RX)
ON/OFF Enable/Disable the retransmission
of the DMX from the receiver to the
other units connected by cable to the
receiver itself.
SET UP SCREEN BACKLIGHT ON/10S/20S/30S Allows you to select the timing after
that display will switch automatically
off when unactive.
FLIP DISPLAY ON/OFF Allows you to rotate the display by
180°.
KEY LOCK ON/OFF Allows you lock the buttons on the
control panel by a password. Press
following combinations (password) in
order to access to the user menu : UP,
DOWN, UP, DOWN.
FIXTURE
SETTINGS
FAN MODE AUTO Select Fan behaviour.
SILENT
HIGH
SPEKTRA
CALIBRATION
ON View the table.
PURE COLORS
OFF
LED MODE HIGH QUALITY Set led operating mode.
HIGH BRIGHTNESS
WHITE POINT 3200K Select CCT when RGBW@Full.
4000K
5600K
6000K
8000K
DMX FAULT HOLD To choose the behaviour of xture in
case of dmx signal lost.
BLACKOUT
STANDALONE
EMERGENCY
DIMMER
CURVE
LINEAR Select different curve behaviour of
dimmer.
S-CURVE
SQUARE LAW
INV. SQUARE LAW
PROLIGHTS - Jet PAR7ZIP 13

DIMMER
SPEED
AUTO Select Dimmer speed.
FAST
MEDIUM
SLOW
LED
FREQUENCY
600 Hz Select PWM frequency.
1200 Hz
2000 Hz
4000 Hz
6000 Hz
10 kHz
12 kHz
15 kHz
20 kHz
25 kHz
50 kHz
TUNGSTEN
EMULATION
ON To enable/disable Tungsten Emula-
tion.
OFF
ZOOM MODE STANDARD
PIXELS
INVERT
ZOOM
ON Invert zoom values.
OFF
ADVANCED RESET
FUNCTIONS
ALL To reset functions.
ZOOM
CALIBRATION PASSWORD For the calibration of functions.
050 password for user reset
MANUAL
CONTROL
... For manual control of the unit.
CONFIGURA-
TION PRESET
PRESET 1 LOAD
PRESET 2 SAVE
PRESET 3 SET AS DEFAULT YES
PRESET 4 NO
TRANSFER
CONFIGURA-
TION
WITHOUT
DMX
ADDRESS
To transfer the same menu settings
of one xtures to all the other in the
daisy chain, including or not the dmx
address. Transfer conguration also
works via WDMX.
WITH DMX
ADDRESS
RELOAD
DEFAULT
BASIC
RELOAD
YES 050 password for user reset.
NO
PRESET
RELOAD
YES
NO
FACTORY
RELOAD
(Password
050)
YES
NO
INFORMA-
TIONS
FIXTURE TIME FIXTURE
HOURS
TOTAL (READ) To check the total working hours of
the unit.
PARTIAL (READ AND
RESET)
CURRENT
HOURS
TOTAL (READ AND
RESET)
To check the current working hours
of the unit.
PARTIAL (READ AND
RESET)
SOURCE
HOURS
TOTAL (READ) To see the total operating hours of
the LED source.
PARTIAL (READ AND
RESET)
POWER ON
CYCLE
TOTAL (READ) To see the power cycles of the ma-
chine.
PARTIAL (READ AND
RESET)
MAINTENAN-
CE TIME
ELAPSED TIME (READ AND
RESET)
To choose and reset unit mainte-
nance warning hours.
ALERT PERIOD 10 – 750
PROLIGHTS - Jet PAR7ZIP14

TEMPERA-
TURE
NEAR SOUR-
CE TEMP,
DRIVER PCB
TEMP, LED
PCB TEMP,…
To see the unit temperature.
FAN SPEED NEAR SOUR-
CE FAN, BASE
FAN,…
To see the speed of the fans.
WIRELESS
QUALITY
To see the wireless quality..
CHANNEL
VALUE
To see the dmx value of those chan-
nels.
ERROR
MESSAGE
To see any error messages
FIXTURE
MODEL
JETPAR7ZIP View informations about xture
model
RDM UID (READ, RESET
AND EDIT)
View ID for the RDM control
SOFTWARE
VERSION
1U01
V1.1.00.0...
View informations about software
version.
STAND
ALONE
MASTER/
SLAVE
MASTER DMX Allow you to link and operating in
synk multiple units without a DMX
console. Choose a unit to perform as
the Master. Master No DMX: xture is
not broadcasting signal
MASTER NO
DMX
SLAVE
EFFECTS EFFECT 1 - 5 DIMMER <1-100> Effects modes allows creation and
editing of 5 effects maximum.
Each effect contains up to 20 colors,
a Main Dimmer and a Main Strobe.
COLOR section:
SWITCH is used to toggle On/Off the
color in the sequence.
DIMMER is used to individually DIM
the selected color.
STROBE is used to individually
STROBE the selected color.
HOLD TIME denes how long the co-
lor is hold on the output.
FADE IN/OUT TIME denes the ti-
mings of fading in/out.
The effects can be considered as
CHASE, once last color has nished
playing the sequence will start again
STROBE <1-100>
COLOR 1 SWITCH ON
OFF
DIMMER
STROBE
HOLD TIME 0 - 360s
(Step by 0.5s)
FADE IN
TIME
0 - 60s
(Step by 0.5s)
FADE OUT
TIME
0 - 60s
(Step by 0.5s)
COLOR
MACRO
Show list of
STATIC mode
List of Color Macro like per Static
Mode.
WHITE
PRESETS
Show list of
STATIC mode
List of White Presets like per Static
Mode.
MANUAL
COLORS
Show list of
STATIC mode
List of Manual Colors like per Static
Mode.
… …
COLOR 20 SWITCH ON
OFF
DIMMER
STROBE
HOLD TIME 0 - 360s
(Step by 0.5s)
FADE IN
TIME
0 - 60s
(Step by 0.5s)
FADE OUT
TIME
0 - 60s
(Step by 0.5s)
COLOR
MACRO
Show list of
STATIC mode
WHITE
PRESETS
Show list of
STATIC mode
MANUAL
COLORS
Show list of
STATIC mode
PROLIGHTS - Jet PAR7ZIP 15

10 - SHORTCUT
Keys Mode Description
UP + DOWN after power on Flip Display Directly flip display without enter inside menu.
DOWN then power on Reset without pan/tilt
movements
Fixture will be powered on without reset on pan/
tilt movements.
ENTER + UP then power on Bootloader Force firmware upgrade.
STATIC COLOR
MACRO
Check Color Macro
channel on DMX
Charts
Dimmer
<000-255>
WHITE
PRESETS
2700K Dimmer
<000-255>
G/M Point
<-025-025>
2800K
3200K
3500K
4000K
4500K
5000K
5600K
6000K
6500K
7000K
8000K
9000K
10000K
MANUAL
COLORS
RED <000-255>
GREEN <000-255>
BLUE <000-255>
WHITE <000-255>
PROLIGHTS - Jet PAR7ZIP16

Category Parameter PID GET SET
Product
Information
DEVICE_INFO 0x0060 x
PRODUCT_DETAIL_ID_LIST 0x0070 x
DEVICE_MODEL_DESCRIPTION 0x0080 x
MANUFACTURER_LABEL 0x0081 x
DEVICE_LABEL 0x0082 x x
FACTORY_DEFAULTS 0x0090 x x
SOFTWARE_VERSION_LABEL 0x00C0 x
BOOT_SOFTWARE_VERSION_ID 0x00C1 x
BOOT_SOFTWARE_VERSION_LABEL 0x00C2 x
DMX512
Setup
DMX_PERSONALITY 0x00E0 x x
DMX_PERSONALITY_DESCRIPTION 0x00E1 x
DMX_START_ADDRESS 0x00F0 x x
SLOT_INFO 0x0120 x
SLOT_DESCRIPTION 0x0121 x
DEFAULT_SLOT_VALUE 0x0122 x
DMX_BLOCK_ADDRESS
(Support required if device uses aDMX512 Slot) 0x0140 x x
DMX_FAIL_MODE 0x0141 x x
DMX_STARTUP_MODE 0x0142 x x
Dimmer
Settings
DIMMER_INFO 0x0340 x
MINIMUM_LEVEL 0x0341 x x
MAXIMUM_LEVEL 0x0342 x x
CURVE 0x0343 x x
CURVE_DESCRIPTION 0x0344 x x
OUTPUT_RESPONSE_TIME 0x0345 x x
OUTPUT_RESPONSE_TIME_ DESCRIPTION 0x0346 x
MODULATION_FREQUENCY 0x0347 x x
MODULATION_FREQUENCY_ DESCRIPTION 0x0348 x
PROLIGHTS - Jet PAR7ZIP 17
11 - RDM FUNCTIONS
The product can communicate using RDM (Remote Device Management) protocol over a DMX512
Networks.
RDM is a bi-directional communications protocol for use in DMX512 control systems, it is the open
standard for DMX512 device conguration and status monitoring.
The RDM protocol allows data packets to be inserted into a DMX512 data stream without affecting
existing non-RDM equipment. It allows a console or dedicated RDM controller to send commands to
and receive messages from specic xtures.
The PIDs in the following tables are supported in the product.
RDM is also available on Wireless. WDMX Tiny's Downstream must be enabled in its custom PIDs to work.

Category Parameter PID GET SET
Sensors SENSOR_DEFINITION 0x0200 x
SENSOR_VALUE 0x0201 x x
RECORD_SENSORS 0x0202 x
BURN_IN 0x0440 x x
Power/Lamp
Settings
DEVICE_HOURS 0x0400 x x
LAMP_HOURS 0x0401 x x
LAMP_STRIKES 0x0402 x x
LAMP_STATE 0x0403 x x
LAMP_ON_MODE 0x0404 x x
DEVICE_POWER_CYCLES 0x0405 x x
Display
Settings
DISPLAY_INVERT 0x0500 x x
DISPLAY_LEVEL 0x0501 x x
Conguration LOCK_PIN 0x0640 x x
LOCK_STATE 0x0641 x x
LOCK_STATE_DESCRIPTION 0x0642 x
Control IDENTIFY_DEVICE 0x1000 x x
RESET_DEVICE 0x1001 x
POWER_STATE 0x1010 x x
PERFORM_SELFTEST 0x1020 x x
SELF_TEST_DESCRIPTION 0x1021 x
CAPTURE_PRESET 0x1030 x x
PRESET_PLAYBACK 0x1031 x x
IDENTIFY_MODE 0x1040 x x
PRESET_INFO 0x1041 x
PRESET_STATUS 0x1042 x x
POWER_ON_SELF_TEST 0x1044 x x
Category Parameter PID GET SET Value Description Default
Value
Manufac-
turer PIDs PIX. ENGINE
ADDR. (1-512) 0x0200 x 0-512
Set DMX Address for Pixel
Engine
0: Follow Fixture
1-512:Manual DMX Address
0
PIX. ENGINE
MODE (0:Off
1:Ring 2:Pixel)
0x0201 x x 0-2
Set DMX Mode for Pixel Engine
0:Off
1:Ring
2:Pixel
0
DMX FAULT 0x0202 x 0-3
0: HOLD
1: BLACKOUT
2: STAND ALONE
3:EMERGENCY
0
MASTER/
SLAVE 0x0440 x x 0-2
0:MASTER DMX
1:MASTER NO DMX
2: SLAVE
2
PROLIGHTS - Jet PAR7ZIP18
