ECL
Packing content • ECL
• Mount bracket
• Power cable
• User manual
TABLE OF CONTENTS Safety
General instructionsGeneral instructions
Warnings and installation precautionsWarnings and installation precautions
1 Introduction
1. 1 Description1. 1 Description
1. 2 Technical specications1. 2 Technical specications
1. 3 The congurations1. 3 The congurations
1. 4 Operating elements and connections1. 4 Operating elements and connections
2 Installation
2. 1 Mounting2. 1 Mounting
3 Functions and settings
3. 1 Operation3. 1 Operation
3. 2 Basic3. 2 Basic
3. 3 Menu structure3. 3 Menu structure
3. 4 Auto Show mode3. 4 Auto Show mode
3. 5 Static mode3. 5 Static mode
3. 6 Master/Slave mode3. 6 Master/Slave mode
3. 7 Linking3. 7 Linking
3. 8 DMX conguration3. 8 DMX conguration
3. 9 DMX mode3. 9 DMX mode
3. 10 Connection of the DMX line3. 10 Connection of the DMX line
3. 11 Construction of the DMX termination3. 11 Construction of the DMX termination
3. 12 DMX control3. 12 DMX control
3. 13 Fixture settings3. 13 Fixture settings
3. 14 Fixure information3. 14 Fixure information
4 Maintenance
4. 1 Maintenance and cleaning the unit4. 1 Maintenance and cleaning the unit
4. 2 Fuse replacement4. 2 Fuse replacement
4. 3 Trouble shooting4. 3 Trouble shooting
2
2
3
3
5
7
8
9
9
10
11
11
11
11
12
12
13
13
14
15
15
17
17
17

ECL
2
SAFETY
General instruction
• The products referred to in this manual conform to the European Community Directives and are there-
fore marked with .
• The unit is supplied with hazardous network voltage (230V~). Leave servicing to skilled personnel only.
Never make any modications on the unit not described in this instruction manual, otherwise you will
risk an electric shock.
• Connection must be made to a power supply system tted with ecient earthing (Class I appliance ac-
cording to standard EN 60598-1). It is, moreover, recommended to protect the supply lines of the units
from indirect contact and/or shorting to earth by using appropriately sized residual current devices.
• The connection to the main network of electric distribution must be carried out by a qualied electrical
installer. Check that the main frequency and voltage correspond to those for which the unit is designed
as given on the electrical data label.
• This unit is not for home use, only professional applications.
• Never use the xture under the following conditions:
- in places subject to vibrations or bumps;
- in places with a temperature of over 45 °C.
• Make certain that no inammable liquids, water or metal objects enter the xture.
• Do not dismantle or modify the xture.
• All work must always be carried out by qualied technical personnel. Contact the nearest sales point for
an inspection or contact the manufacturer directly.
• If the unit is to be put out of operation denitively, take it to a local recycling
plant for a disposal which is not harmful to the environment.
Warnings and installation precautions
• If this device will be operated in any way dierent to the one described in this manual, it may suer
damage and the guarantee becomes void. Furthermore, any other operation may lead to dangers like
short circuit, burns, electric shock, etc.
• Before starting any maintenance work or cleaning the projector, cut o power from the main supply.
• Always additionally secure the projector with the safety rope.When carrying out any work, always com-
ply scrupulously with all the regulations (particularly regarding safety) currently in force in the country
in which the xture’s being used.
• Install the xture in a well ventilated place.
• Keep any inammable material at a safe distance from the xture.
• Shields, lenses or ultraviolet screens shall be changed if they have become damaged to such an extent
that their eectiveness is impaired.
• The lamp (LED) shall be changed if it has become damaged or thermally deformed.
• Never look directly at the light beam. Please note that fast changes in lighting, e. g. ashing light, may
trigger epileptic seizures in photosensitive persons or persons with epilepsy.
• Do not touch the product’s housing when operating because it may be very hot.
• This product was designed and built strictly for the use indicated in this documentation. Any other use,
not expressly indicated here, could compromise the good condition/operation of the product and/or
be a source of danger.
• We decline any liability deriving from improper use of the product.
WARNING! Before carrying out any operations with the unit, carefully read this instruction
manual and keep it with cure for future reference. It contains important information about
the installation, usage and maintenance of the unit.

3
ECL
- 1 - INTRODUCTION
1.1 DESCRIPTION
ECL is the new LED proler by Prolights, featurig a new level of performance in the eld of ellipsoidal with
LED technology. The combination of an high ux 150W COB LED with the new optical system allows ECL
to performs a uniform projection, high CRI (97), and linear dimmer over the entire ramp.
Available in Tungsten (3000K) and Daylight (6000K) versions, ECL is the rst projector in its category oer-
ing an amazing light output and an excellent framing property with a low-consumption LED source. De-
sign of ECL makes it t properly in studio applications, theaters, events, architectural and in environments
having limited power supplies.
Advantages of ECL technology:
• Considerable energy saving during operation
• Simplied wiring: up to 8 prolers in a daisy-chain for both power and signal connection
• No need for dimmers nor lamp replacement, LED lifespan >50.000h
• No maintenance operations, ideal when placed out of reach
• Suitable for long-lasting operations
• Cost-eective lower need for typical air-conditioned studio requirements
• Working with industry-standard accessories
• Virtually indestructible accessories and parts
• Also tting plastic gobos, besides standard glass and metal gobos
• Constant color temperature over the whole dimming scale
• Flicker-free for cameras, TV-studios friendly
• No UV/IR emissions
• No harm installation in proximity of audience (TV, theaters) or light sensitive objects (museums)
• User-friendly LED display interface for dimming curve calibration, DMX setup and self-test
1.2 TECHNICAL SPECIFICATIONS
Light source and optics
• 1x150W LED
• Lumen: Tungsten 5352 lm, Daylight 6963 lm
• Lux @ 3m (Tungsten version): 9960 lux (optics 19°), 6622 lux (optics 26°), 4625 lux (optics 36°), 2530 lux
(optics 50°)
• Lux @ 3m (Daylight version): 12976 lux (optics 19°), 8621 lux (optics 26°), 5875 lux (optics 36°), 3045 lux
(optics 50°)
• Peak intensity (Tungsten): 89640 cd (19°), 59598 cd (26°), 41625 cd (36°), 22770 cd (50°)
• Peak intensity (Daylight): 116784 cd (19°), 77589 cd (26°), 52875 cd (36°), 27405 (50°)
• Color rendering: Tungsten >98Ra, Daylight >96Ra
• Color Temperature: Tungsten 3000K, Daylight 6000K
• Available optics (not included): 19°,26°, 36°, 50°
• High-eciency optics maximizing uniformity of projection, framing precision, color temperature sta-
bility over the entire dimming curve
• Average life LED life: >50,000 hours
Electronics and features
• Several DMX congurations (1, 2, 5 channels)
- 1 channel: dimmer

ECL
4
- 2 channels: dimmer, strobe
- 5 channels: dimmer, strobo, auto programs, auto speed, dimmer speed
• 4-char LED display for control
• Auto mode: built-in programs with execution speed adjustment
• Master/Slave mode for stand-alone operations of more units
• Dimmer curve setting: 4 selectable congurations
• Flicker-free frequency (>400 Hz) diodes suitable for camera recording
• Quiet operations, forced-air cooling with no-noise fans
Structure and Power supply
• High-resistance aluminum body designed to facilitate heat dissipation
• Designed for compatibility with industry-standard accessories as blades, gobo/eects holders, tube-
lens of other ERS projectors
• Internal Protection: IP20
• Input/Output Power connections: Neutrik NAC3MPA/NAC3MPB
• Input/Output Signal connections: 5p XLR
• Suspension bracket, rear handles and clamp levers designed for fast and easy mounting and pointing
• Power supply: 100-240V 50/60Hz
• Operating conditions: -20/45 °C
• Power output for daisy-chain connection of more units: up to 8 projectors at 230V
• Max output consumption: 172W
• Weight: 9,25 kg
• Dimensions (WxHxD): 282x466x530 mm

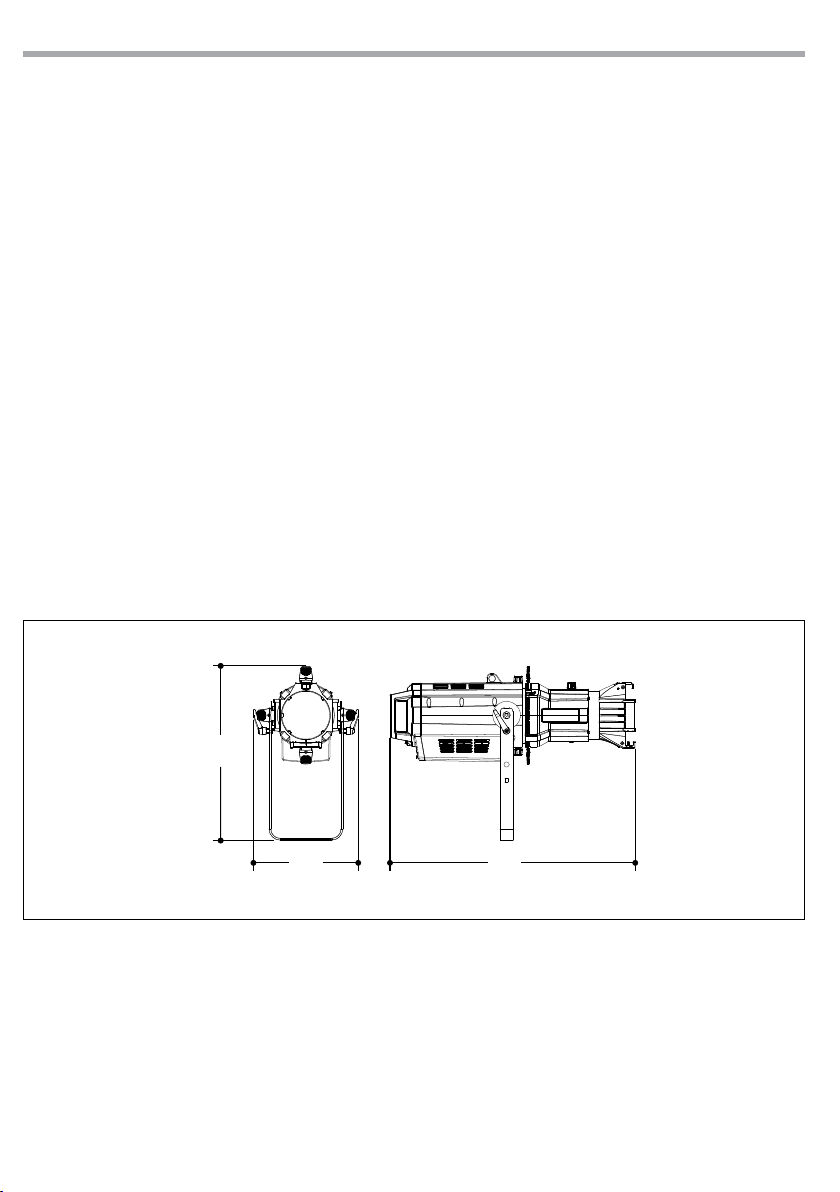

Technical drawing Fig.1
466
282 656

5
ECL

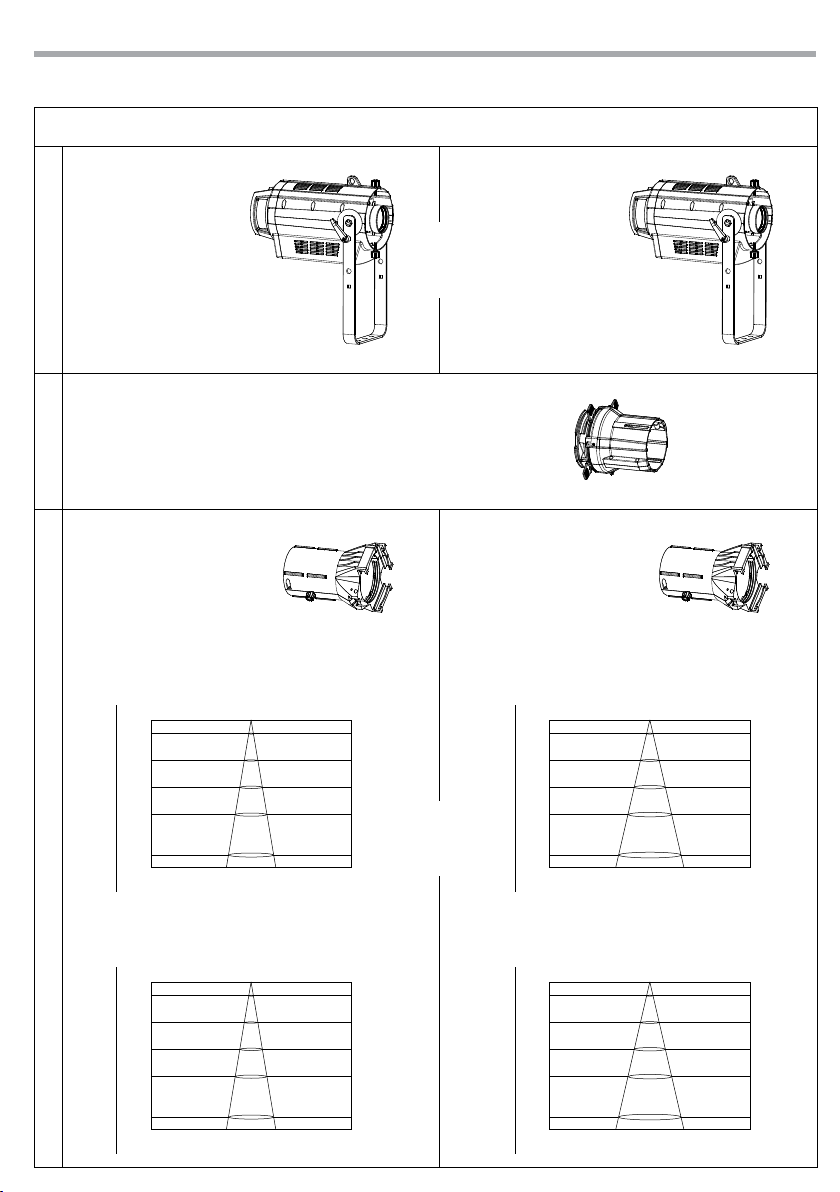

1.3 THE CONFIGURATIONS
Configuration No 1
1
ECLTU
Reector Housing
Tungsten version
Col. temperature: 3000K
ECLDY
Reector Housing
Daylight version
Col. temperature: 6000K
2ECLMP1
Aluminium middle part for ECL, compatible with 19°, 26° optics
3
ECLL19
Optics for ECL proler,
19° beam
ECLL26
Optics for ECL proler,
26° beam
OR
OR
Illuminance at a Distance
19°
1.0m
0m
3.0m
5.0m
7.0m
10.0m
0.33m
1.00m
1.67m
2.34m
Lux Center Beam Angle: 19° Beam Width
116784lx
12976lx
4671lx
2383lx
3.17m1167lx
ECLIPSE(DY)19°
Illuminance at a Distance
26°
1.0m
0m
3.0m
5.0m
7.0m
10.0m
0.46m
1.39m
2.31m
3.23m
Lux Center Beam Angle: 26° Beam Width
77589lx
8621lx
3103lx
1583lx
4.62m776lx
ECLIPSE(DY)26°
Illuminance at a Distance
19°
1.0m
0m
3.0m
5.0m
7.0m
10.0m
0.33m
1.00m
1.67m
2.34m
Lux Center Beam Angle: 19° Beam Width
89640lx
9960lx
3585lx
1829lx
3.17m896lx
ECLIPSE(TU)19°
Illuminance at a Distance
26°
1.0m
0m
3.0m
5.0m
7.0m
10.0m
0.46m
1.39m
2.31m
3.23m
Lux Center Beam Angle: 26° Beam Width
59598lx
6622lx
2383lx
1216lx
4.62m596lx
ECLIPSE(TU)26°

ECL
6
Configuration No 2
1
ECLTU
Reector Housing
Tungsten version
Col. temperature: 3000K
ECLDY
Reector Housing
Daylight version
Col. temperature: 6000K
2ECLMP2
Aluminium middle part for ECL, compatible with 36°, 50° optics
3
ECLL36
Optics for ECL proler,
36° beam
ECLL50
Optics for ECL proler,
50° beam
OR
OR
Illuminance at a Distance
36°
1.0m
0m
3.0m
5.0m
7.0m
10.0m
0.65m
1.95m
3.25m
4.55m
Lux Center Beam Angle: 36° Beam Width
52875lx
5875lx
2115lx
1079lx
6.5m528lx
ECLIPSE(DY)36°
Illuminance at a Distance
50°
1.0m
0m
3.0m
5.0m
7.0m
10.0m
0.93m
2.80m
4.65m
6.53m
Lux Center Beam Angle: 50° Beam Width
27405lx
3045lx
1096lx
559lx
9.19m274lx
ECLIPSE(DY)50°
Illuminance at a Distance
36°
1.0m
0m
3.0m
5.0m
7.0m
10.0m
0.46m
1.39m
2.31m
3.23m
Lux Center Beam Angle: 36° Beam Width
41625lx
4625lx
1665lx
849lx
4.62m416lx
ECLIPSE(TU)36°
Illuminance at a Distance
50°
1.0m
0m
3.0m
5.0m
7.0m
10.0m
0.93m
2.80m
4.65m
6.53m
Lux Center Beam Angle: 50° Beam Width
22770lx
2530lx
910lx
465lx
9.19m228lx
ECLIPSE(TU)50°

7
ECL
1
2
45
37
6
89
12
11
13
10
14 15

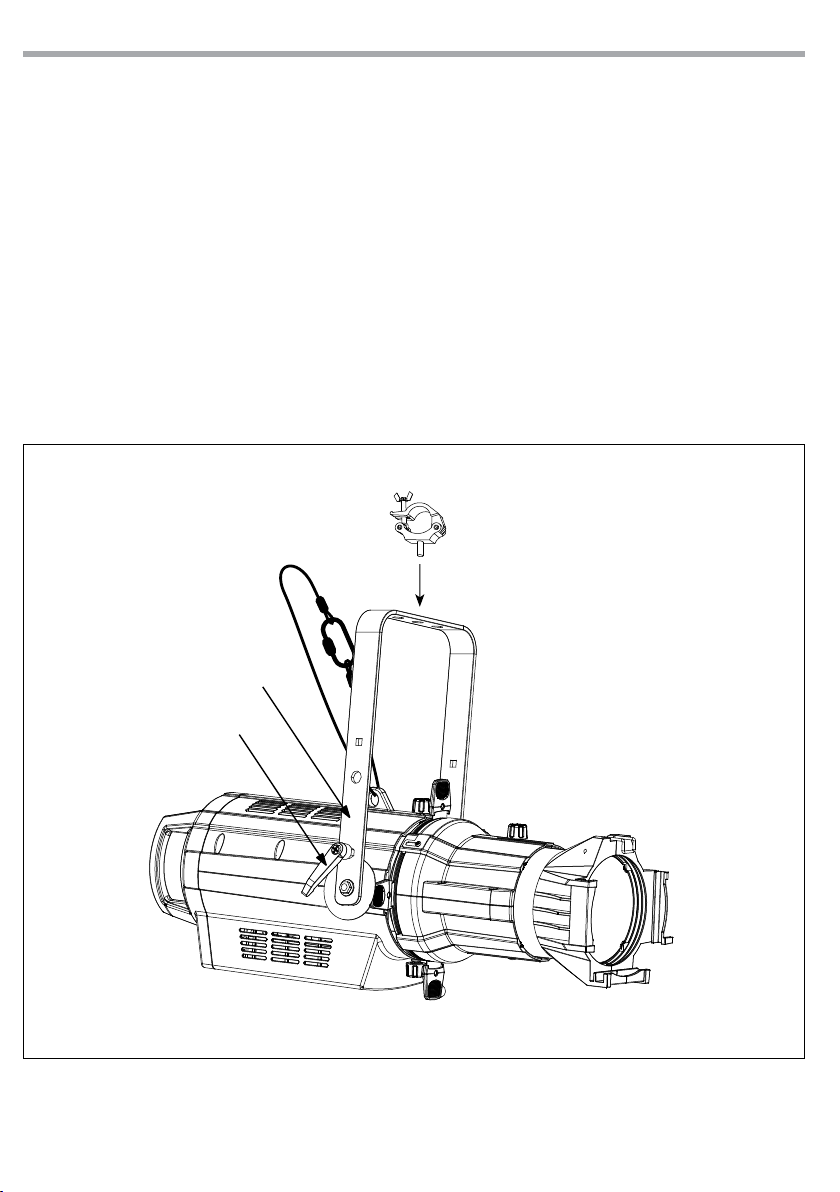

1.4 OPERATING ELEMENTS AND CONNECTIONS
Fig.2
1. MOUNTING BRACKET
2. LOCKING KNOB for the mounting bracket
3. HANDLE
4. ECL
5. SAFETY EYE to attach safety cable.
6. SHUTTER
7. ECLMP - Aluminium middle part
8. OPTIC
9. FILTER FRAME
10. FUSE OLDER in the event of breakage, always
replace the fuse with the same type and
rating (T3.15A).
11. CONTROL PANEL with display and 4 button
used to access the control panel functions
and manage them.
12. POWER IN (PowerCON IN): for connection to a
socket (100-240V~/50-60Hz) via the supplied
mains cable.
13. POWER OUT (PowerCON OUT): connect to
supply power to the next unit.
14. DMX OUT (5-pole XLR):
1 = ground, 2 = DMX-, 3 = DMX+, 4 N/C, 5 N/C
15. DMX IN (5-pole XLR):
1 = ground, 2 = DMX-, 3 = DMX+, 4 N/C, 5 N/C
Rear panel

Fig.3
2
1
CLAMP
SAFETY
CABLE
ECL
8
- 2 - INSTALLATION
2.1 MOUNTING
ECL may be set up on a solid and even surface. The unit can also be mounted upside down to a cross arm.
For xing, stable mounting clips are required. The mounting place must be of sucient stability and be
able to support a weight of 10 times of the unit’s weight.
When carrying out any installation, always comply scrupulously with all the regulations (particularly re-
garding safety) currently in force in the country in which the xture’s being used.
• Install the projector at a suitable location by means of the mounting bracket (1).
• Always additionally secure the projector with the safety rope from falling down. For this purpose, fas-
ten the safety rope at a suitable position so that the maximum fall of the projector will be 20 cm.
• Adjust the projector and use the knob (2) to slightly release or tighten the locking mechanism of the
bracket if is necessary.

9
ECL
- 3 - FUNCTIONS AND SETTINGS
3.1 OPERATION
Connect the supplied main cable to a socket (100-240 VAC-50/60 Hz). Then the unit is ready for operation
and can be operated via a DMX controller or it independently performs its show program in succession.
To switch o, disconnect the mains plug from the socket. For a more convenient operation it is recom-
mended to connect the unit to a socket which can be switched on and o via a light switch.
3.2 BASIC
Access control panel functions using the four panel buttons located directly underneath the LCD Display
(g.4).
MENU UP DOWN ENTER
Used to access the menu or
to return a previous menu
option
Navigates downwards through
the menu list and increases
the numeric value when in a
function
Navigates upwards through
the menu list and decreases
the numeric value when in
a function
Used to select and store the
current menu or conrm the
current function value or
option within a menu
Fig.4 - Functions of the buttons
MENU UP
DOWNENTER

ECL
10
3.3 MENU STRUCTURE
MENU (LEVEL 1) (LEVEL 2) (LEVEL 3) REMARK
1 Auto Show Auto Show Speed Default: Auto 0
< Auto 0 > < Auto 0 > < 100 >
< Auto 1 > < 100 >
< Auto 2 > < 100 >
< Auto 3 > < 100 >
2 Static Static
< Dimmer > Dimmer Default: 255
< 255>
< Strobe > Strobe Default: 0
< 255>
3 Dim Mode Dim Mode Default: O
< DIM 1 > < O > O: Dimmer speed On/O
< DIM 1 > DIM 1: Dimmer speed fast 0.8 s
< DIM 2 > DIM 2: Dimmer speed middle 1.6 s
< DIM 3 > DIM 3: Dimmer speed slow 2.4 s
4 Back Light Back Light Default: On
< On > < On > On: LCD background light always On
< 10 s > 10 s: O after 10 seconds
< 20 s > 20 s: O after 20 seconds
< 30 s > 30 s: O after 30 seconds
5 Information Auto Auto
Test Test
Fix Hours Fixture running time 0-9999H
< 0 H > Default: 0H
Version Version number
< V1.0 >
6 DMX Address DMX Address Default: 001
< 001 > < 508 >
7 DMX Channel DMX Channel DMX Channel mode
< 5Ch > < 1Ch > Address: 1 - 512
< 2Ch > Address: 1 - 511
< 5Ch > Address: 1 - 508
8 Master/Slave Master Mode Default: Slave
< Slave > < Master >
< Slave >
9 Fan Mode Fan Mode Default: Auto
< Auto > < Auto >
< High >

11
ECL
10 LED Frequency LED Frequency Default: 1200 Hz
< 1200 Hz > < 600 Hz >
< 1200 Hz >
< 2000 Hz >
< 4000 Hz >
< 25 kHz >
11 Temperature
< 33 C >
3.4 AUTO SHOW MODE
If no DMX control signal is present at the DMX INPUT, the unit independently runs through its show pro-
gramme provided that the blackout mode is switched o:
• Press the button MENU so many times until the display shows AUTO, then press the button ENTER.
• Press the button UP/DOWN to switch between the show AUTO 0 - AUTO 3. The unit will operate in show
mode.
• Using the button UP/DOWN to select the desired run speed slow-fast (0-100)
• Press the button ENTER to save the setting.
IMPORTANT: Programs AUTO 0 - AUTO 3 are fully pre-programmed and will not be altered by changes.
3.5 STATIC MODE
This xture has the ability to accept custom static color settings. Access this via the control panel.
• To enable the static mode, press MENU repeatedly until STATIC shows on the display.
• Through the button UP/DOWN select DIMMER or STROBE then press the button ENTER.
• Set the value (000 - 255), through the buttons UP/DOWN.
• Press the button ENTER to conrm.
• Press the MENU button to go back or to meet the waiting time to exit the setup menu.
3.6 MASTER/SLAVE MODE
This mode will allow you to link up the units together without a controller. Choose a unit to function as the
Master. The unit must be the rst unit in line; other units will work as slave with the same eect.
• Press the button MENU so many times until the display shows MASTER/SLAVE and press the button ENTER.
• Press UP/DOWN to set the unit as master or slave (MASTER, SLAVE).
• Use standard DMX cables to daisy chain your units together via the DMX connector on the rear of the
units. For longer cable runs we suggest a terminator at the last xture (see page 14).
3.7 LINKING
Several units may be interconnected in order to control all further slave units to the same eect of the
master unit.
1. Connect the DMX OUT of the master unit via 5-pole XLR cable to the DMX IN of the rst slave unit.
2. Connect the DMX OUT of the rst slave unit to the DMX IN of the second slave unit, etc. until all units
are connected in a chain.

ECL
12
DMX Address: 48DMX Address: 38DMX Address: 33 DMX Address: 43

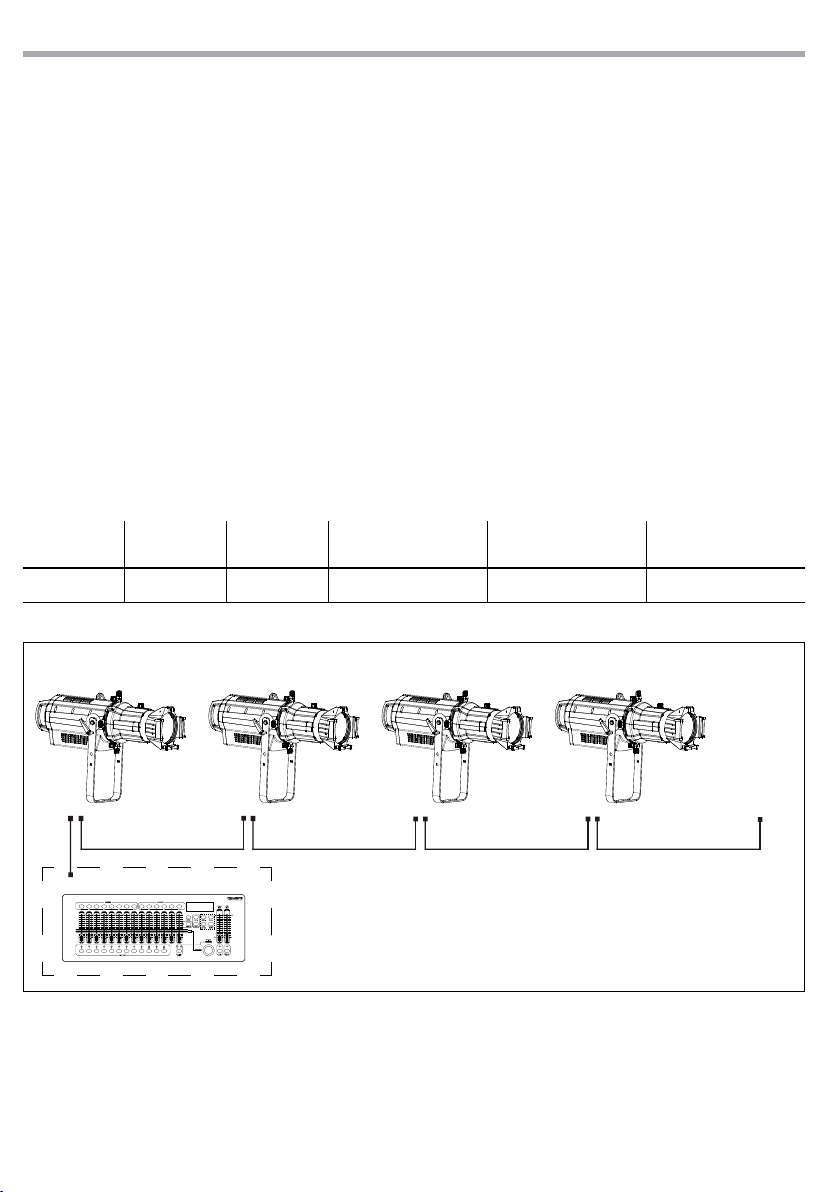

Fig.5 - Example 5 DMX channels conguration
DMX512 Controller
3.8 DMX CONFIGURATION
ECL is equipped with dierent DMX conguration.
• Press the button MENU so many times until shows DMX CHANNEL, and press the button ENTER to conrm.
• Select the desired DMX conguration (1CH - 2CH - 5CH) through the buttons UP/DOWN.
The tables on page 15 indicate the operating mode and DMX value. The ECL is equipped with 5-pole XLR
connections.
3.9 DMX MODE
• Press the button MENU so many times until the display shows DMX ADDRESS, and press the button ENTER
to conrm.
• Press UP/DOWN button to select the desired value (001-512). Press and hold to scroll quickly.
• Press ENTER button to store.
• Press the MENU button to go back or to meet the waiting time to exit the setup menu.
To able to operate the ECL with a light controller, adjust the DMX start address for the rst a DMX channel.
If e. g. address 33 on the controller is provided for controlling the function of the rst DMX channel,
adjust the start address 33 on the ECL. The other functions of the light eect panel are then automatically
assigned to the following addresses.
An example with the start address 33 is shown below:
Number of
DMX channels
Start address
(example)
DMX Address
occupied
Next possible start
address for unit No. 1
Next possible start
address for unit No. 2
Next possible start
address for unit No. 3
5 33 33-37 38 43 48
. . . . . . . . . . . .

13
ECL
Fig.6
Fig.7
3.10 CONNECTION OF THE DMX LINE
DMX connection employs standard XLR connectors. Use shielded pair-twisted cables with 120Ω imped-
ance and low capacity.
The following diagram shows the connection mode:
ATTENTION
The screened parts of the cable (sleeve) must never be connected to the system’s earth, as this would
cause faulty xture and controller operation.
Over long runs can be necessary to insert a DMX level matching amplier.
For those connections the use of balanced microphone cable is not recommended because it cannot
transmit control DMX data reliably.
• Connect the controller DMX input to the DMX output of the rst unit.
• Connect the DMX output to the DMX input of the following unit. Connect again the output to the input
of the following unit until all the units are connected in chain.
• When the signal cable has to run longer distance is recommended to insert a DMX termination on the
last unit.
3.11 CONSTRUCTION OF THE DMX TERMINATION
The termination avoids the risk of DMX 512 signals being reected back along the cable when they reach-
es the end of the line: under certain conditions and with certain cable lengths, this could cause them to
cancel the original signals.
The termination is prepared by soldering a 120Ω 1/4 W resistor between pins 2 and 3 of the 5-pin male XLR
connector, as shown in gure.
DMX - OUTPUT
XLR socket
DMX - INPUT
XLR plug
Pin1 : GND - Shield
Pin2 : - Negative
Pin3 : + Positive
Pin4 : N/C
Pin5 : N/C
Example:
3 pin XLR connector

ECL
14
3.12 DMX CONTROL
1 CHANNEL
MODE FUNCTION DMX
Value
1 Ch
1DIMMER
0~100% 000 - 255
2 CHANNELS
MODE FUNCTION DMX
Value
2 Ch
1DIMMER
0~100% 000 - 255
2
STROBE
No Function
Strobe slow to fast
000 - 010
011 - 255
5 CHANNELS
MODE FUNCTION DMX
Value
5 Ch
1DIMMER
0~100% 000 - 255
2
STROBE
No Function
Strobe slow to fast
000 - 010
011 - 255
3
AUTO PROGRAMS
No Function
Auto Program 1
Auto Program 2
Auto Program 3
Auto Program 0
000 - 010
011 - 070
071 - 130
131 - 190
191 - 255
4AUTO SPEED
0~100% 000 - 255
5
DIMMER SPEED
Preset dimmer speed from display menu
Dimer speed mode o
Dimmer speed mode 1 (fast speed)
Dimmer speed mode 2 (middle speed)
Dimmer speed mode 3 (slow speed)
000 - 051
052 - 101
102 - 152
153 - 203
204 - 255

15
ECL
3.13 FIXTURE SETTINGS
It is possible to change the parameter value in the following way:
Dimmer
• Enter in Dimmer mode to select specic dimming curve, press the button MENU so many times
until shows DIM MODE, and press the button ENTER to conrm.
• Press the button UP/DOWN to select OFF - DIM1 - DIM2 - DIM3.
• Press ENTER button to store.
• Press the MENU button to go back or to meet the waiting time to exit the setup menu.
Back Light
• To activate Backlight display press the button MENU so many times until shows BACK LIGHT, and press
the button ENTER to conrm.
• Press the button UP/DOWN to select ON - 10S - 20S - 30S.
• Press ENTER button to conrm the selection.
• Press the MENU button to go back or to meet the waiting time to exit from the setup menu auto-
matically.
Fan Mode
• To set the Fan Mode press the button MENU so many times until shows FAN MODE, and press the
button ENTER to conrm.
• Press the button UP/DOWN to select AUTO - HIGH.
• Press ENTER button to conrm the selection.
• Press the MENU button to go back or to meet the waiting time to exit from the setup menu auto-
matically.
LED Frequency
• To adjust the frequency of the LEDs, press the MENU button repeatedly until the display shows LED
Frequency, and then press the ENTER button.
• Select the frequency (600Hz - 1200Hz - 2000Hz - 4000Hz - 25kHz) using the UP/DOWN buttons.
• To conrm, press the ENTER key.
• Press the MENU button to go back or wait a few seconds to exit the setup menu.
3.14 FIXTURE INFORMATION
Auto Test
Allow checking the proper functioning of the unit. Start the automatic test in the following way:
• Press the button MENU so many times until shows INFORMATION, then press the ENTER button to
conrm.
• Using the button UP/DOWN to select AUTO TEST.
• To conrm and start the automatic test press the ENTER button.
Fixture Hours
Show the xture working hours.
• Press the button MENU so many times until shows INFORMATION. Press the button ENTER to conrm
• Using the button UP/DOWN to select FIX HOURS, then press the button ENTER to conrm
• Then the display will show the working hours.

ECL
16
• Press the MENU button to go back or to meet the waiting time to exit from the setup menu auto-
matically
Version
Show the xture rmware version.
• Press the button MENU so many times until shows INFORMATION
• Select through the button UP/DOWN the VERSION menu voice.
• The display will show the rmware data.
• Press the MENU button to go back or to meet the waiting time to exit from the setup menu automatically.
Temperature
Show the temperature unit.
• Press the button MENU so many times until shows TEMPERATURE

17
ECL
- 4 - MAINTENANCE
4.1 MAINTENANCE AND CLEANING THE UNIT
• Make sure the area below the installation place is free from unwanted persons during setup.
• Switch o the unit, unplug the main cable and wait until the unit has cooled down.
• All screws used for installing the device and any of its parts should be tightly fastened and should not
be corroded.
• Housings, xations and installation spots (ceiling, trusses, suspensions) should be totally free from any
deformation.
• The main cables must be in impeccable condition and should be replaced immediately even when a
small problem is detected.
• It is recommended to clean the front at regular intervals, from impurities caused by dust, smoke, or
other particles to ensure that the light is radiated at maximum brightness. For cleaning, disconnect the
main plug from the socket. Use a soft, clean cloth moistened with a mild detergent. Then carefully wipe
the part dry. For cleaning other housing parts use only a soft, clean cloth. Never use a liquid, it might
penetrate the unit and cause damage to it.
4.2 FUSE REPLACEMENT
1. Remove the safety cap by a screwdriver.
2. Replace the blown fuse with a fuse of the exact same type and rating (T3.15A).
3. Install the safety cap, and reconnect power.
4.3 TROUBLESHOOTING Fig.8
Problems Possible causes Checks and remedies
Fixture does not light up
• No mains supply
• Dimmer fader set to 0
• All color faders set to 0
• Faulty LED
• Faulty LED board
• Check the power supply voltage
• Increase the value of the dimmer channels
• Increase the value of the color channels
• Replace the LED board
• Replace the LED board
General low light intensity • Dirty lens assembly
• Misaligned lens assembly
• Clean the xture regularly
• Install lens assembly properly
Fixture does not power up
• No power
• Loose or damaged power cord
• Faulty internal power supply
• Check for power on power outlet
• Check power cord
• Replace internal power supply
Fixture does not respond to DMX
• Wrong DMX addressing
• Damaged DMX cables
• Bouncing signals
• Check control panel and unit addressing
• Check DMX cables
• Install terminator as suggested
Contact an authorized service center in case of technical problems or not reported in the table can not be
resolved by the procedure given in the table.

REV.02-05/15
Music & Lights S.r.l. si riserva ogni diritto di elaborazione in qualsiasi forma delle presenti istruzioni per l’uso.
La riproduzione - anche parziale - per propri scopi commerciali è vietata.
Al ne di migliorare la qualità dei prodotti, la Music&Lights S.r.l. si riserva la facoltà di modicare, in
qualunque momento e senza preavviso, le speciche menzionate nel presente manuale di istruzioni.
Tutte le revisioni e gli aggiornamenti sono disponibili nella sezione 'Manuali' sul sito www.musiclights.it
