ProLights ArcPod 48Q User manual

USER MANUAL
REV.02-07/21 English version
ArcPod 48Q
48x10W RGBW/FC outdoor IP66 LED
wash light for exterior installations

Thank you for choosing PROLIGHTS
Please note that every PROLIGHTS product has been designed in Italy to meet quality and performance requirements
for professionals and designed and manufactured for the use and application as shown in this document.
Any other use, if not expressly indicated, could compromise the good condition/operation of the product and/or be
a source of danger.
This product is meant for professional use. Therefore, commercial use of this equipment is subject to the respectively
applicable national accident prevention rules and regulations.
Features, specications and appearance are subject to change without notice. Music & Lights S.r.l. and all afliated
companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or any other
loss occasioned by the use of, inability to use or reliance on the information contained in this document.
Product user manual can be downloaded from the website www.prolights.it , or can be inquired to the ofcial
PROLIGHTS distributors of your territory (https://www.prolights.it/sales_network.html).
Scanning the below QR Code, you will access the download area of the product page, where you can nd a broad
set of always updated technical documentation: specications, user manual, technical drawings, photometrics,
personalities, xture rmware updates.
The PROLIGHTS Logo, PROLIGHTS names and all other trademark in this document pertaining to PROLIGHTS services
or PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its afliates, and subsidiaries.
PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc -
04026 - Minturno (LT) ITALY.
Visit the download area
of the product page

PROLIGHTS - ArcPod 48Q 01
INDEX
SAFETY INFORMATION 02
1 - PACKAGING 05
PACKAGE CONTENT..................................................................................................... 05
OPTIONAL ACCESSORIES............................................................................................. 05
2 - TECHNICAL DRAWING 06
3 - INSTALLATION 07
MOUNTING.................................................................................................................... 07
4 - PRODUCT OVERVIEW 08
5 - CONNECTION TO THE MAINS SUPPLY 09
6 - DMX CONNECTION 10
CONNECTION OF THE CONTROL SIGNAL: DMX LINE .............................................. 10
INSTRUCTIONS FOR A RELIABLE DMX CONNECTION ............................................... 10
CONNECTION DAISY CHAIN OF THE DMX LINE ........................................................ 10
DMX ADDRESSING ........................................................................................................ 11
7 - RDM FUNCTIONS 11
8 - OPERATION VIA DATAMASTER 12
RDM SETTING................................................................................................................ 12
STAND ALONE FUNCTION ........................................................................................... 13
9 - DMX CHARTS 14
10 - ACCESSORIES INSTALLATION 18
LENS (CODE S27QLENS10-15-25-45)............................................................................ 18
LIGHT DIFFUSION FILTER (CODE A48QFILTER)............................................................ 19
BARN DOOR (CODE S48QBD - OPTIONAL)................................................................. 20
11 - MAINTENANCE 21
MAINTENANCE AND CLEANING THE PRODUCT........................................................ 21
VISUAL CHECK OF PRODUCT HOUSING ..................................................................... 21
TROUBLESHOOTING..................................................................................................... 22

PROLIGHTS - ArcPod 48Q02
SAFETY INFORMATION
WARNING!
• Please read carefully the instruction reported in this section before installing, power-
ing, operating or servicing the product and observe the indications also for its future
handling.
This unit is not for household use, only professional applications.
Connection to mains supply
• The Connection to the mains supply must be carried out by a qualied electrical
installer.
• Use only AC supplies 100-240V 50-60 Hz, the xture must be electrically connected
to ground (earth).
• Select the cable cross section in according with the maximum current draw of the
product and the possible number of products connected at the same power line.
• The AC mains power distribution circuit must be equipped with magnetic+residual
current circuit breaker protection.
• Do not connect it to a dimmer system; doing so may damage the product.
Protection and Warning against electrical shock
• Do not remove any cover from the product, always disconnect the product from AC
power before servicing.
• Ensure that the xture is electrically connected to ground (earth). And use only a
source of AC power that complies with local building and electrical codes and has
both overload and ground-fault (earth-fault) protection.
• Before using the xture, check that all power distribution equipment and cables are
in perfect condition and rated for the current requirements of all connected devices.
• Isolate the xture from power immediately if the power plug or any seal, cover, ca-
ble, or other components are damaged, defective, deformed or showing signs of
overheating.
• Do not reapply power until repairs have been completed.
• Refer any service operation not described in this manual to PROLIGHTS Service team
or an authorized PROLIGHTS service center.
Installation
• Make sure that all visible parts of the product are in good visible condition before its
use or installation.
• Make sure the point of anchorage is stable before positioning the projector.
• When suspending the xture above ground level, secure it against failure of primary
attachments by attaching a safety cable that is approved as a safety attachment for
the weight of the xture to the attachment point on the main frame of the product. ln
case the safety cable, enter in action, it needs to be replaced with a new one.
• Install the product only in well ventilated places.
• For non temporary installations, ensure that the xture is securely fastened to a load-
bearing surface with suitable corrosionresistant hardware.
• For a temporary installation with clamps, ensure that the quarter-turn fastener and/or
screws are turned fully, and secured with a suitable safety cable.
0,5 m Minimum distance of illuminated objects
• The projector needs to be positioned so that the objects hit by the beam of light are
at least 0.5 meters (1.64 ft) from the lens of the projector.

PROLIGHTS - ArcPod 48Q 03
T 45°C
a
Max operating ambient temperature (Ta)
• Do not operate the xture if the ambient temperature (Ta) exceeds 45 °C (113 °F).
T
-20°
C
a
Minimum operating ambient temperature (Ta)
• Do not operate the xture if the ambient temperature (Ta) is below -20 °C (-4 °F).
Protection from burns and re
• The exterior of the xture becomes hot during use. Avoid contact by persons and
materials.
• Ensure that there is free and unobstructed airow around the xture.
• Keep ammable materials well away from the xture.
• Do not expose the front glass to sunlight or any other strong light source from any an-
gle. Lenses can focus the sun’s rays inside the xture, creating a potential re hazard.
• Do not attempt to bypass thermostatic switches or fuses.
IP66
Permanent Outdoor use
• This product is rated with an IP (Ingress protection) for permanent outdoor use when
used and serviced according to the instruction contained in this document.
• Never use the xture in places subject to vibrations or bumps.
• Make certain that no inammable liquids, water or metal objects enter the xture.
• Excessive dust, smoke uid, and particle build up degrades performance, causes
overheating and will damage the xture.
• Damages caused by inadequate cleaning or maintenance are not covered by the
product warranty.
T
80°
C
c
Temperature of the external surface
• The surface of the xture can reach up to 80 °C (176 °F) during operation. Avoid
contact with people and materials.
Maintenance
• Warning! Disconnect the xture from AC mains power and allow to cool for at least
10 minutes before handling.
• Only technicians who are authorized by PROLIGHTS or Authorised service partners
are permitted to open the xture.
• Users may carry out external cleaning, following the warnings and instructions pro-
vided, but any service operation not described in this manual must be referred to a
qualied service technician.
• Important! Excessive dust, smoke uid, and particle build up degrades performance,
causes overheating and will damage the xture. Damages caused by inadequate
cleaning or maintenance is not covered by the product warranty.
Photobiological safety
• This device emits potentially dangerous optical radiation and is identied in the cat-
egory of Risk Group 1 according to EN 62471.
Do not stare at the operating light source
• Do not look directly at the LED source during operation. It can be harmful to the eyes
and skin.
• During Installation, operation and maintenance, be prepared for the xture to light
and move suddenly when connected to power.
Disposal
• This product is supplied in compliance with European Directive 2012/19/EU – Waste
Electrical and Electronic Equipment (WEEE). To preserve the environment please dis-
pose/ recycle this product at the end of its life according to the local regulation.

PROLIGHTS - ArcPod 48Q04
The products to which this manual refers comply with:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD).
• 2014/30/EU - Electromagnetic Compatibility (EMC).
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS).

PROLIGHTS - ArcPod 48Q 05
1 - PACKAGING
PACKAGE CONTENT
• 1x ARCPOD48Q;
• 1x SCHUKO - IP connection adapter;
• 1x 5p XLR - IP connection male adapter;
• 1x 5p XLR - IP connection female adapter;
• User Manual.
OPTIONAL ACCESSORIES
• RSR0630A/B: steel security cable for hanging bodies, inox steel shackle, L=60 cm, silver/black;
• FCLA48Q: ight case for 6 pcs of ARCPOD48Q;
• C6002: slim aluminium clamp, 200 kg loading, 48-51 mm tubes, M10 bolt;
• A48QFILTER20: 20° symmetric light diffusion lter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm;
• A48QFILTER30: 30° symmetric light diffusion lter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm;
• A48QFILTER40: 40° symmetric light diffusion lter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm;
• A48QFILTER60: 60° symmetric light diffusion lter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm;
• A48QFILTER80: 80° symmetric light diffusion lter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm;
• A48QFILTER1090: 10°X90° asymmetric light diffusion lter for ARCPOD48Q and ARCPOD96Q
15x44,7 cm;
• A48QFILTER1060: 10°x60° asymmetric light diffusion lter for ARCPOD48Q and ARCPOD96Q
15x44,7 cm;
• A48QFILTER3060: 30°x60° asymmetric light diffusion lter for ARCPOD48Q and ARCPOD96Q
15x44,7 cm;
• A48QFILTER9010: 90°X10° asymmetric light diffusion lter for ARCPOD48Q and ARCPOD96Q
15x44,7 cm;
• A48QFILTER6010: 60°X10° asymmetric light diffusion lter for ARCPOD48Q and ARCPOD96Q
15x44,7 cm;
• A48QFILTER6030: 60°X30° asymmetric light diffusion lter for ARCPOD48Q and ARCPOD96Q
15x44,7 cm;
• S27QLENS10: 10° lens for SOLAR27Q, ARCPOD27Q, SOLAR48Q, ARCPOD48Q, ARCPOD15Q
and ARCPOD96Q;
• S27QLENS15: 15° lens for SOLAR27Q, ARCPOD27Q, SOLAR48Q, ARCPOD48Q, ARCPOD15Q
and ARCPOD96Q;
• S27QLENS25: 25° lens for SOLAR27Q, ARCPOD27Q, SOLAR48Q, ARCPOD48Q, ARCPOD15Q
and ARCPOD96Q;
• S27QLENS45: 45° lens for SOLAR27Q, ARCPOD27Q, SOLAR48Q, ARCPOD48Q, ARCPOD15Q
and ARCPOD96Q;
• S48QBD: black barn door 4 directional aps to adjust the light beam, SOLAR4Q,ARCPOD48Q;
• DATAMASTER: RDM/DMX tool,cable tester, 5p XLR connectors,pouch, charging cable, XLR adapters;
• AWEXAC1L03: IP67 power extension cable for outdoor architectural projectors, L.03 m;
• AWEXAC1L05: IP67 power extension cable for outdoor architectural projectors, L.05 m;
• AWEXAC1L10: IP67 power extension cable for outdoor architectural projectors, L.10 m;
• AWEXAC1L20: IP67 power extension cable for outdoor architectural projectors, L.20m;
• AWEXDC1L03: IP67 DMX extension cable for outdoor architectural projectors, L.03 m;
• AWEXDC1L05: IP67 DMX extension cable for outdoor architectural projectors, L.05 m;
• AWEXDC1L10: IP67 DMX extension cable for outdoor architectural projectors, L.10 m;
• AWEXDC1L20: IP67 DMX extension cable for outdoor architectural projectors, L.20 m;
• UPBOX1U: rmware uploader kit, USB IN, 3pin XLR DMX OUT, USB OUT.

PROLIGHTS - ArcPod 48Q06

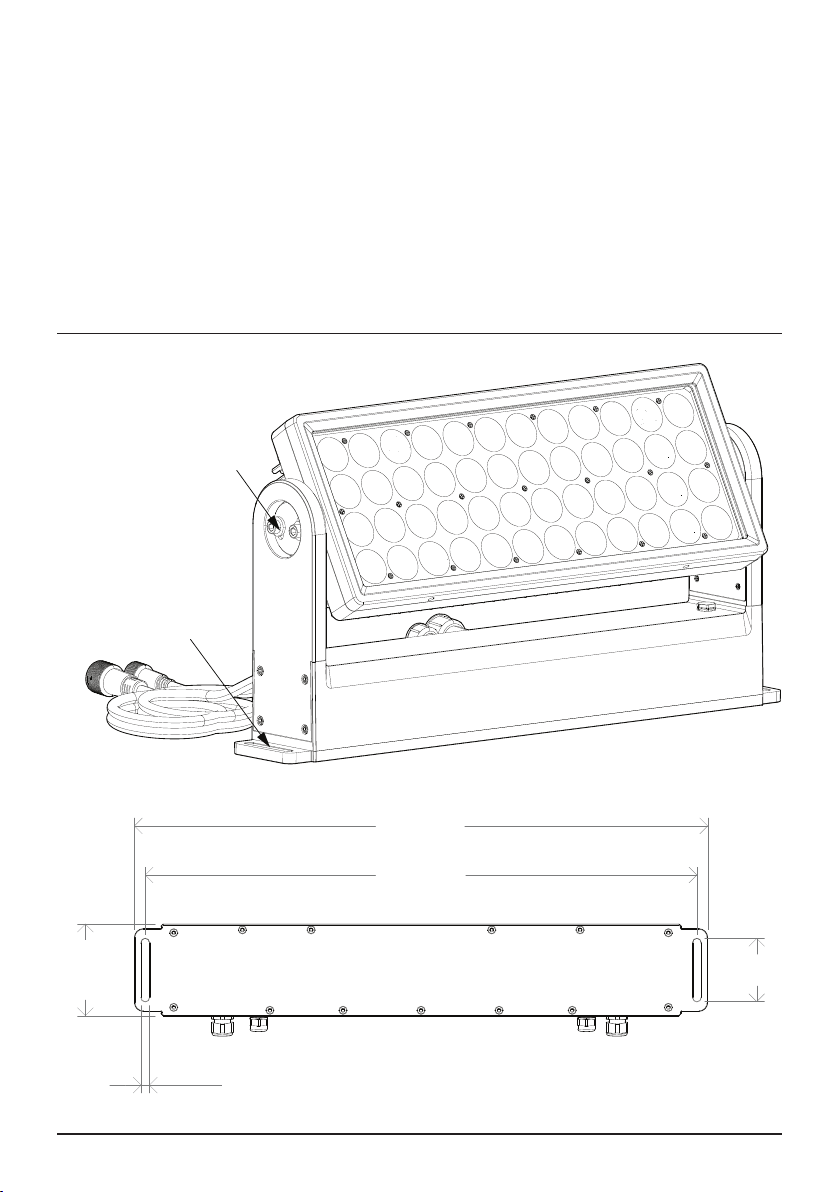

2 - TECHNICAL DRAWING
584 mm
[23.0 in]
304 mm
[12.0 in]
93 mm
[3.7 in]
190 mm
[7.5 in]
250 mm
[9.8 in]
Fig. 01
Weight: 14 kg - 30.86 lbs

PROLIGHTS - ArcPod 48Q 07
3 - INSTALLATION
MOUNTING
Check that the supporting structure can safely bear the weight of all installed xtures, clamps, cables,
auxiliary equipment, etc. and complies with locally applicable regulations.
When suspending the xture above ground level, secure it against failure of primary attachments by
attaching a safety wire that is approved as a safety attachment for the weight of the xture to an anchor
point on the product main frame.
Do not use removable parts or weak anchors for secondary attachment.
Warning! When clamping the xture to a truss or other structure at any angle, use clamps of half-cou-
pler type. Do not use any type of clamp that does not completely encircle the structure when fastened.
584 mm
23.0 in
562 mm
22.1 in
93 mm
3.7 in
64 mm
2.5 in
8 mm
0.3 in
Fig. 02
TILT movement: 130°
Screws for unlock and lock
the TILT (on both sides)
Slots for fixing

PROLIGHTS - ArcPod 48Q08
4 - PRODUCT OVERVIEW
1. POWER IN: for connection to a mains (100-240V~/50-60Hz). The max power consumption is 120W.
2. DMX IN (3-pole): 1 = GND, 2 = sign-, 3 = sign+.
3. DMX OUT (3-pole): 1 = GND, 2 = sign-, 3 = sign+.
4. POWER OUT: power output for connection of multiple units in series.
Fig. 03
1 2 3 4

PROLIGHTS - ArcPod 48Q 09
Fig. 05 - Example conguration (Output at 230 V)
MALE POWER
IP67 CONNECTOR
FEMALE POWER
IP67 CONNECTOR
N L
E
L N
E
MAINS 230V
Unit 1 Unit 2 Unit 3 Unit 4
POWER
IN
POWER
IN
POWER
IN
POWER
IN
POWER
OUT
POWER
OUT
POWER
OUT
POWER
OUT
NOTE: when not using the Power output connectors, you must seal the cable ends with the sup-
plied caps.
Fig. 04

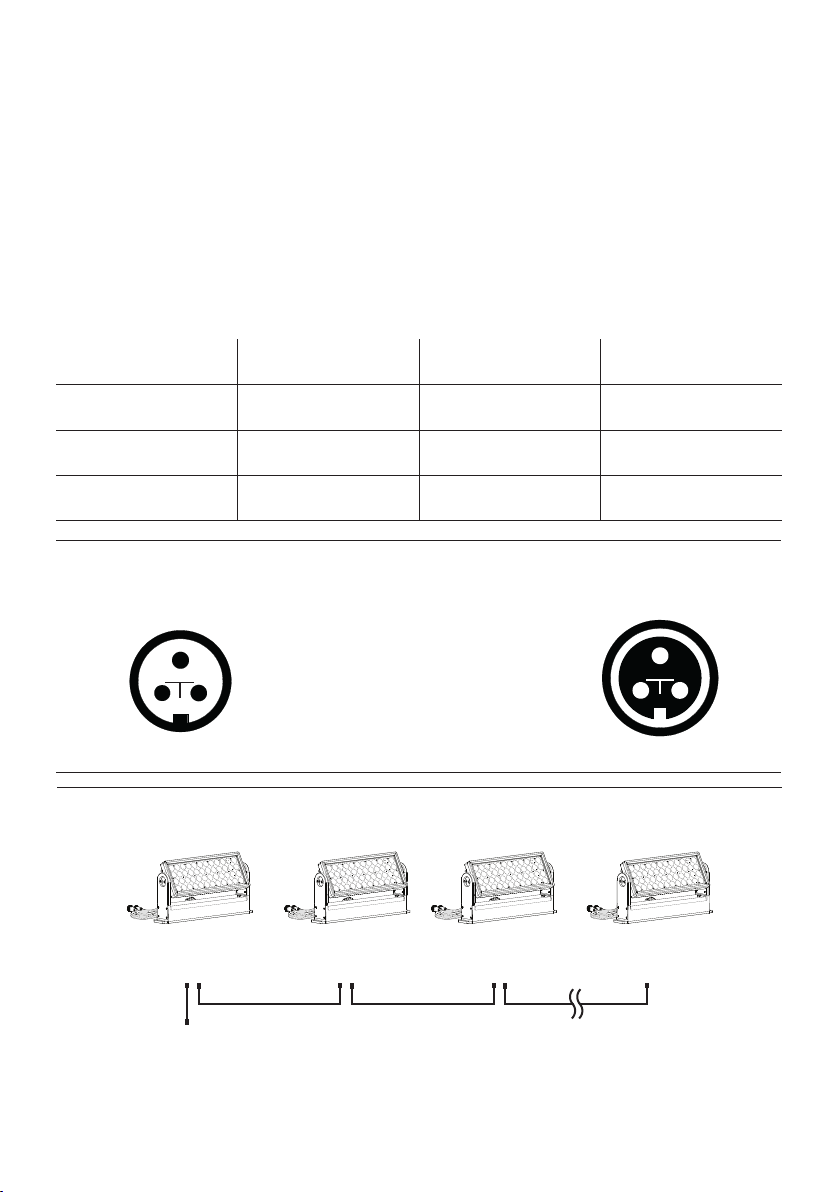

5 - CONNECTION TO THE MAINS SUPPLY
WARNING: For protection from electric shock, the xture must be earthed!
The product is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz
AC power source from 100-240 Volts.
If you need to install a power plug on the power cable to allow connection to power outlets, install a
grounding-type (earthed) plug, following the plug manufacturer’s instructions. If you have any doubts
about proper installation, consult a qualied electrician.
The max power consumption is 521W.
You can link up tp 2 units at 120 V; 4 at 230 V. Never exceed this number. Power linking cords can be
purchased separately.
When connecting the unit to a local power, it may be necessary to use the Schuko to IP67 adapters
supplied with this product.
Core (EU) Core (US) Connection Plug terminal marking
Brown Black Live L
Blue White Neutral N
Yellow+green Green Earth E

PROLIGHTS - ArcPod 48Q10

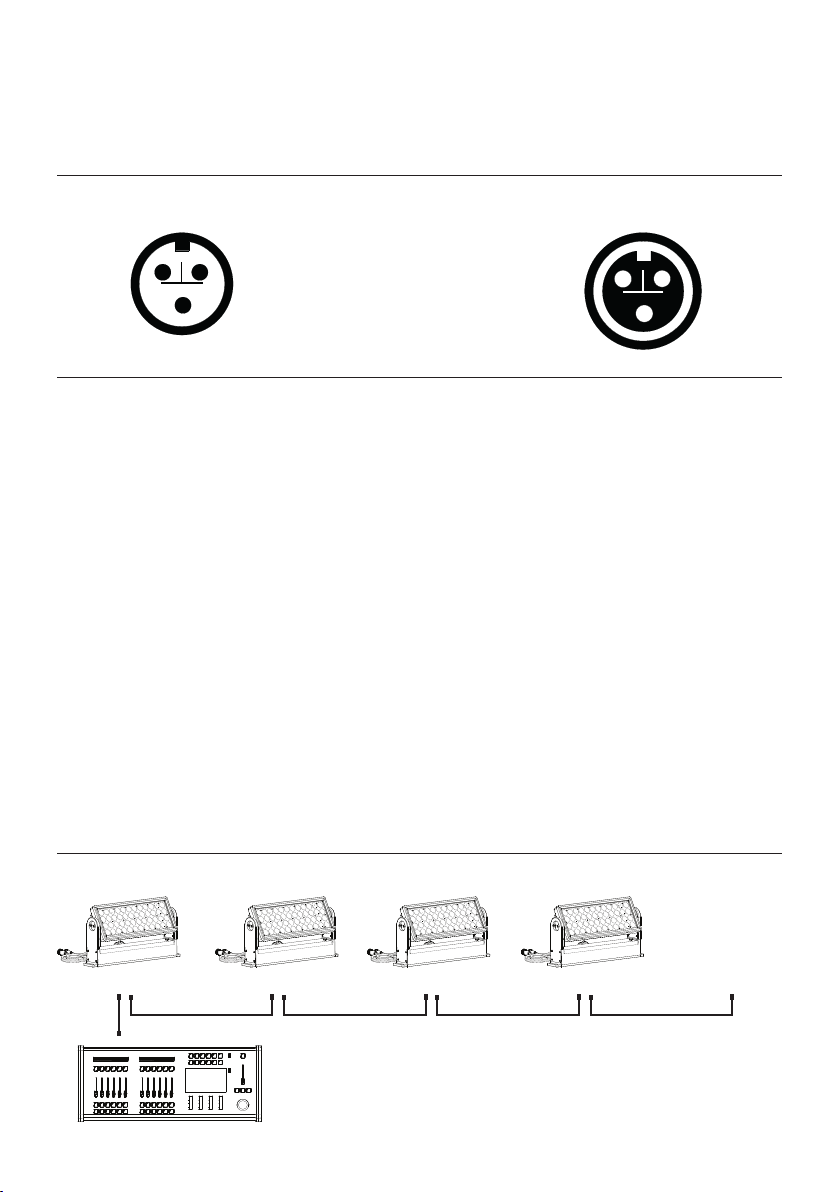

6 - DMX CONNECTION
CONNECTION OF THE CONTROL SIGNAL: DMX LINE
The product has connectors for DMX input and output.
The default pin-out on both connectors is as the following diagram:
Fig. 06
Pin1 : GND - Shield
Pin2 : - Signal
Pin3 : + Signal
DMX - OUTPUT
IP67 CONNECTOR
DMX - INPUT
IP67 CONNECTOR
INSTRUCTIONS FOR A RELIABLE DMX CONNECTION
Use shielded twisted-pair cable designed for RS-485 devices: standard microphone cable cannot trans-
mit control data reliably over long runs. 24 AWG cable is suitable for runs up to 300 meters (1000 ft).
Heavier gauge cable and/or an amplier is recommended for longer runs.
To split the data link into branches, use splitter-ampliers in the connection line.
Do not overload the link. Up to 32 devices may be connected on a serial link.
NOTE: To connect the unit to your DMX network, it is necessary to use the adapters XLR 5 pin-
IP67 signal connector, supplied with this product.
CONNECTION DAISY CHAIN OF THE DMX LINE
Connect the DMX data output from the DMX source to the product DMX input (male connector).
Run the data link from the product DMX output (female connector) connector to the DMX input of the
next xture.
Terminate the data link by connecting a 120 Ohm signal termination.
The termination is prepared by 120Ω 1/4 W resistor between pins 2 and 3 of the male DMX connector.
Install a DMX termination plug on the last xture on the link. If a splitter is used, terminate each branch
of the link.
NOTE: when not using the DMX input or DMX output connectors, you must seal the cable ends
with the supplied caps.
The following diagram shows the DMX connection:
Fig. 07 - Example 10 DMX channels conguration
. . . . . . . . . . . .
DMX Address: 33 DMX Address: 63DMX Address: 43 DMX Address: 53
. . . . . . . . . . . .
DMX512 Controller
DMX IN DMX IN DMX IN DMX INDMX OUT
DMX OUT
DMX OUT DMX OUT DMX OUT
1 2
3
2 1
3

PROLIGHTS - ArcPod 48Q 11
DMX ADDRESSING
In order to start controlling the product via DMX, the rst step is to select a DMX address, also known as the
start channel, this is the rst channel used to receive instructions from a DMX controller. If you wish to control
the product individually, it is necessary to assign a different starting address channel to each xture.
The number of channels occupied from the product depends on the DMX mode selected, so always verify the
DMX Mode before start addressing.
If you assign two xtures the same address, they will be executing the same behaviour. Selecting the same
address to multiple xtures can be useful for diagnostic purposes and symmetrical control.
DMX addressing is limited to make it impossible to set the DMX address so high that you are left without
enough control channels for the product.
Set the xture’s DMX address by RDM with the DATAMASTER.
7 - RDM FUNCTIONS
The product can communicate using RDM (Remote Device Management) protocol over a DMX512
Networks.
RDM is a bi-directional communications protocol for use in DMX512 control systems, it is the open
standard for DMX512 device conguration and status monitoring.
The RDM protocol allows data packets to be inserted into a DMX512 data stream without affecting
existing non-RDM equipment. It allows a console or dedicated RDM controller to send commands to
and receive messages from specic xtures.
The PIDs in the following tables are supported in the product.
Parameter PID GET SET
DEVICE_INFO 0x0060 x
DEVICE_MODEL_DESCRIPTION 0x0080 x
MANUFACTURER_LABEL 0x0081 x
DEVICE_LABEL 0x0082 x x
FACTORY_DEFAULTS 0x0090 x x
SOFTWARE_VERSION_LABEL 0x00C0 x
DMX_PERSONALITY 0x00E0 x x
DMX_PERSONALITY_DESCRIPTION 0x00E1 x
DMX_START_ADDRESS 0x00F0 x x
DIMMER_INFO 0x00F0
CURVE 0x0343 x x
CURVE_DESCRIPTION 0x0344 x x
SENSOR_VALUE 0x0201 x x
IDENTIFY_DEVICE 0x1000 x
WHITE CALIBRATION-RED(125-255) 0x8200 x x
WHITE CALIBRATION-GREEN(125-255) 0x8201 x x
WHITE CALIBRATION-BLUE(125-255) 0x8202 x x
WHITE CALIBRATION-WHITE(125-255) 0x8203 x x
FULL ON (0:HB mode; 1:Studio mode) 0x8217 x x
STUDIO-RED(000-255) 0x82C9 x x
STUDIO-GREEN(000-255) 0x82CA x x
STUDIO-BLUE(000-255) 0x82CB x x
STUDIO-WHITE(000-255) 0x82CC x x
MASTER/SLAVE (0:MASTER DMX; 1:MASTER NO DMX; 2:SLAVE) 0x8211 x x
STAND ALONE MODE (0:STATIC; 1:CCT; 2:MACRO; 3:RGBW) 0x82EC x x
EFFECT (1-9) 0x8209 x x
EFFECT_SPEED (0-255) 0x8210 x x
FIXED_COLOR (1-14) 0x82BE x x
WHITE PRESETS (1-10) 0x82BF x x
STATIC RED(000-255) 0x82C0 x x
STATIC GREEN(000-255) 0x82C1 x x
STATIC BLUE(000-255) 0x82C2 x x
STATIC WHITE(000-255) 0x82C3 x x

PROLIGHTS - ArcPod 48Q12
8 - OPERATION VIA DATAMASTER
The unit uses a DATAMASTER for conguration purposes. The diagram below sows how to connect the
DATAMASTER to this product. This connection will control multiple products at the same time.
To set different Stand Alone mode on different product, you must connect the DATAMASTER to each
product, individually.
However, by using the DATAMASTER, you may address each product in the daisy chain to a different
DMX address by using the RDM function without the need connect to each individual product.
Important: The DATAMASTER must be used to congure this product.
MUSIC & LIGHTS suggests that you connect no more than 11 units in this mode and keep the total
distance to less than 60 m (197 ft). Otherwise, you might need to use an RDM optically isolated signal
amplier.
RDM SETTING
To set the RDM functions with the DATAMASTER follow these steps:
• Turn on the DATAMASTER;
• Select the "RDM" function;
• Wait the discovering of all units;
• Select the desired unit and press ENTER button;
• Change the value of the desired function.
The following chart describes the RDM menu tree of the product, the terms shown in BOLD indicates
the default settings.
MENU
1START ADDRESS 001-512
2PERSONALITY 5 Ch
7 Ch
10 Ch
17 Ch
722 Ch
3DIMMER MODE Off
Dimmer1
Dimmer2
Dimmer3
4PWM
MODULATION
600Hz
1200Hz
2000Hz
4000Hz
6000Hz
25kHz
Select PWM fre-
quency.
6SPECIFIC PIDS 8200 White Balance-Red 125 ÷ 255
8201 White Balance-Green 125 ÷ 255
8202 White Balance- Blue 125 ÷ 255
8203 White Balance- White 125 ÷ 255
8206 Clean Device Hours 0-1 0: No
1: Yes
8217 Full On mode 0-1 0: HB Mode
1: Studio Mode

PROLIGHTS - ArcPod 48Q 13
STAND ALONE FUNCTION
To set the STAND ALONE you must follow the below steps with DATAMASTER:
DMX OUT
DATAMASTER
Fig. 08
• Connect only one projector to the DATAMASTER;
• Select the second function "STAND ALONE";
• Select "Manual Color" or "Effect" function;
• Select "Head 1";
• Select the desired color or effect with speed.
The projector where is setted the STAND ALONE values is a "MASTER" projector.
If there isn't the DMX controller or the DMX missing this projector will send his STAND ALONE value
on the DMX line.
On others units that will be connected to the same DMX line must NOT be setted the STAND ALONE,
they will be "SLAVE" and they will follow the DMX of the MASTER.

PROLIGHTS - ArcPod 48Q14
Channel 5 Ch 7 Ch 10 Ch
1 RED DIMMER DIMMER
2 GREEN RED RED
3BLUE GREEN GREEN
4 WHITE BLUE BLUE
5DIMMER SPEED MODE WHITE WHITE
6STROBE STROBE
7DIMMER SPEED MODE COLOR MACRO
8 EFFECTS
9 EFFECTS SPEED
10 DIMMER SPEED MODE
9 - DMX CHARTS

PROLIGHTS - ArcPod 48Q 15
5 Ch 7 Ch 10 Ch FUNCTION DMX Value Default
1 1 DIMMER
0~100% 000 ÷ 255 000
122RED
0~100% 000 ÷ 255 000
233GREEN
0~100% 000 ÷ 255 000
344BLUE
0~100% 000 ÷ 255 000
455WHITE
0~100% 000 ÷ 255 000
6 6
STROBE
No function
Strobe Slow to Fast
000 ÷ 010
011 ÷ 255 000
7
COLOR MACRO
No Function
R 100%, G 0~100%, B 0%
R 100%~0%, G 100%, B 0%
R 0%, G 100%, B 0~100%
R 0%, G 100%~0%, B 100%
R 0%~100%, G 0%, B 100%
R 100%, G 0%, B 100%~0%
R 100%, G 0%~100%, B 0%~100%
R 100%~0%, G 100%~0%, B 100%
R 100% G 100% B 100% W100%
2800k
3000k
3200k
4000k
5600k
6000k
6500k
7000k
8000k
9000k
10000k
000 ÷ 010
011 ÷ 030
031 ÷ 050
051 ÷ 070
071 ÷ 090
091 ÷ 110
111 ÷ 130
131 ÷ 150
151 ÷ 170
171 ÷ 200
201 ÷ 205
206 ÷ 210
211 ÷ 215
216 ÷ 220
221 ÷ 225
226 ÷ 230
231 ÷ 235
236 ÷ 240
241 ÷ 245
246 ÷ 250
251 ÷ 255
000
8
EFFECTS
No Function
Effect 1
Effect 2
Effect 3
Effect4
Effect5 (Effects1- 4)
Effect 6
Effect 7
Effect 8
Effect 9 (Effects6- 8)
000 ÷ 010
011 ÷ 037
038 ÷ 064
065 ÷ 091
092 ÷ 118
119 ÷ 145
146 ÷ 172
173 ÷ 199
200 ÷ 226
227 ÷ 255
000
9EFFECTS SPEED
Effects speed slow to fast 000 ÷ 255 000
5 7 10
DIMMER SPEED MODE
Preset dimmer speed from display menu
Dimmer speed mode off
Dimmer speed mode 1 (fast speed)
Dimmer speed mode 2 (middle speed)
Dimmer speed mode 3 (slow speed)
000 ÷ 051
052 ÷ 101
102 ÷ 152
153 ÷ 203
204 ÷ 255
000

PROLIGHTS - ArcPod 48Q16

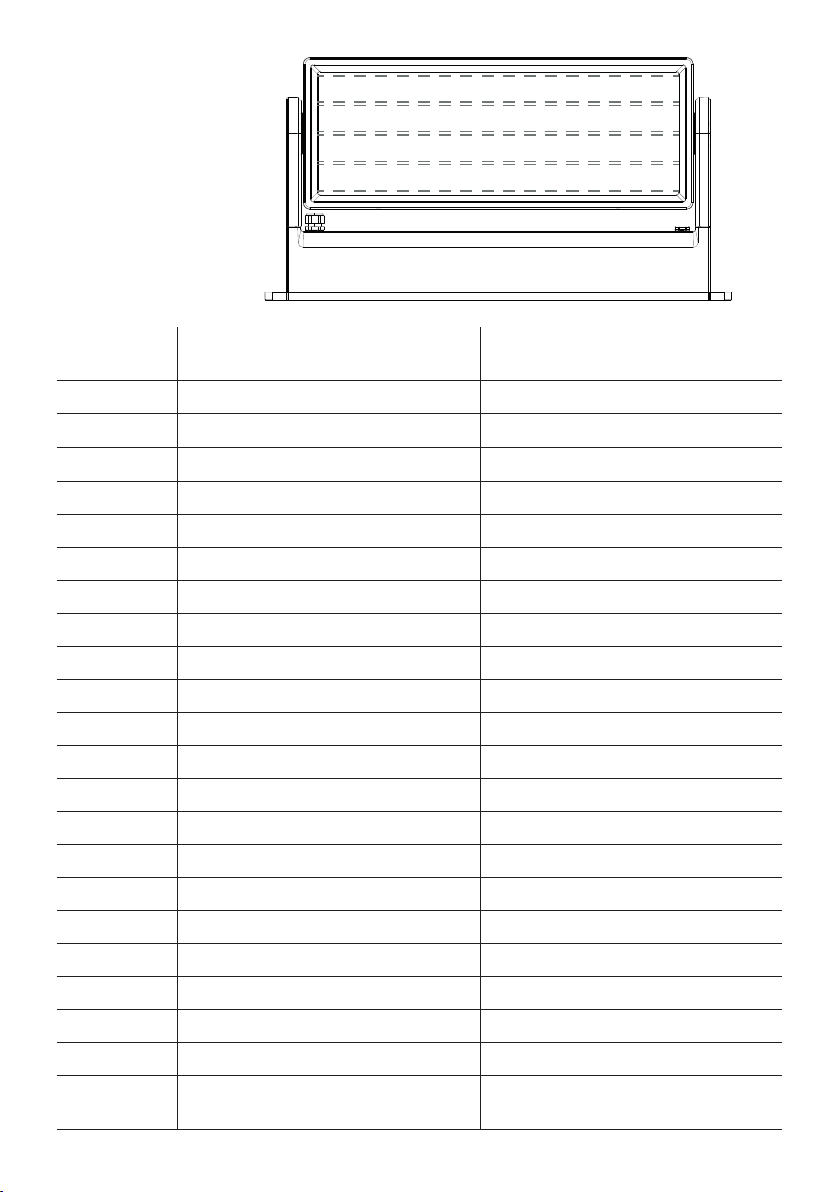

Channel 17 Ch 22 Ch
1RED 1 DIMMER
2GREEN 1 STROBE 1
3BLUE 1 STROBE 2
4WHITE 1 STROBE 3
5RED 2 STROBE 4
6GREEN 2 RED 1
7BLUE 2 GREEN 1
8WHITE 2 BLUE 1
9RED 3 WHITE 1
10 GREEN 3 RED 2
11 BLUE 3 GREEN 2
12 WHITE 3 BLUE 2
13 RED 4 WHITE 2
14 GREEN 4 RED 3
15 BLUE 4 GREEN 3
16 WHITE 4 BLUE 3
17 DIMMER SPEED MODE WHITE 3
18 RED 4
19 GREEN 4
20 BLUE 4
21 WHITE 4
22 DIMMER SPEED MODE
ROW SECTIONS
ROW 1
ROW 2
ROW 3
ROW 4

PROLIGHTS - ArcPod 48Q 17
17 Ch 22 Ch FUNCTION DMX Value Default
1DIMMER
0~100% 000 ÷ 255 000
2
STROBE 1
No function
Strobe Slow to Fast
000 ÷ 010
011 ÷ 255 000
3
STROBE 2
No function
Strobe Slow to Fast
000 ÷ 010
011 ÷ 255 000
4
STROBE 3
No function
Strobe Slow to Fast
000 ÷ 010
011 ÷ 255 000
5
STROBE 4
No function
Strobe Slow to Fast
000 ÷ 010
011 ÷ 255 000
1 6 RED 1
0~100% 000 ÷ 255 000
2 7 GREEN 1
0~100% 000 ÷ 255 000
3 8 BLUE 1
0~100% 000 ÷ 255 000
4 9 WHITE 1
0~100% 000 ÷ 255 000
5 10 RED 2
0~100% 000 ÷ 255 000
6 11 GREEN 2
0~100% 000 ÷ 255 000
7 12 BLUE 2
0~100% 000 ÷ 255 000
8 13 WHITE 2
0~100% 000 ÷ 255 000
9 14 RED 3
0~100% 000 ÷ 255 000
10 15 GREEN 3
0~100% 000 ÷ 255 000
11 16 BLUE 3
0~100% 000 ÷ 255 000
12 17 WHITE 3
0~100% 000 ÷ 255 000
13 18 RED 4
0~100% 000 ÷ 255 000
14 19 GREEN 4
0~100% 000 ÷ 255 000
15 20 BLUE 4
0~100% 000 ÷ 255 000
16 21 WHITE 4
0~100% 000 ÷ 255 000
17 22
DIMMER SPEED MODE
Preset dimmer speed from display menu
Dimmer speed mode off
Dimmer speed mode 1 (fast speed)
Dimmer speed mode 2 (middle speed)
Dimmer speed mode 3 (slow speed)
000 ÷ 051
052 ÷ 101
102 ÷ 152
153 ÷ 203
204 ÷ 255
000

PROLIGHTS - ArcPod 48Q18
10 - ACCESSORIES INSTALLATION
LENS (CODE S27QLENS10-15-25-45)
1
1
2
3
4
5
6
DETAIL
WARNING: never touch the LEDs.
1. Remove the front cover (1) by loosing the screws. Then remove the front glass (2), rubber seal (3),
lens holder (4) and the lens (5)
2. Replace the lenses by inserting the two pins on the back of the lens (DETAIL) with the holes pro-
vided on the PCB LED (5).
NOTE: to reassemble the lenses, reverse the procedure.
NOTE: it is recommended to tighten the front cover screws carefully so as to guarantee the correct
IP degree.
Fig. 09
