PROLiNK DS-3602 User manual

Version 1.00
(English | Indonesian)
Smart LED Strip
Quick Installation
Guide
Model No:
DS-3602

Package Contents
1
Notes:
•The picture illlustrations in this document may dier from actual
product.
•If your package does not contain any of the above items, please
contact your reseller immediately. EN1
x 1x 1 x 1 x 1
x 1 x 1
2m Starter kit
Mounting
accessories
kit
x 1 x 1 x 3 x 3
5m Starter kit x 1 x 1 x 6 x 6
2m Extension x 1 -x 3 x 3
Starter kit
Extension
English

EN2
To reset the LED Strip to factory
default
To switch between Auto Add/
EZ Mode and AP Mode
configurations
Press and Hold the button from
Smart Controller
Press and Hold the button from
Smart Controller
Activity Action Required
Overview
2
O
On (White / Colour
/ Blinking) Unit is On
Fast Blinking Unit is in Auto Add /EZ Mode Configuration
Slow Blinking Unit is in AP Mode Configuration
Unit is O
LED Strip Behaviour Description

EN3
Installation
3
A. Preparation
1. Place the LED Strip and Phone within three feet of
the router.
Notes:
•Make sure the phone is connected to the router through a 2.4GHz
wireless network.
•Smart LED Strip is operating only at 2.4GHz Wireless N standard.
2. Download, install and create an account through the
Prolink mEzee App. You can scan the QR code below
to download from Google Store or Apple App Store.
Alternatively, search for "mEzee".
English

Installation
3
For Google Assistant / Amazon Alexa users:
Step 1. Complete the steps in this Quick Installation Guide
Step 2. Follow the setup instruction available from
https://prolink2u.com/smart-home/smart-lighting/ds-3602/download/
EN4
B. Plug In
1. Power ON the LED strip. Ensure that the light indicator
on the device is flashing rapidly (which indicated that
the device is ready to connect).
2. Measure the area you wish to attach the LED strip to.
Ensure that the area has a clean, solid surface.

EN5
Installation
3
3. Measure the LED strip to the desired length, starting at
the end closest to the connector, for the Smart Controller.
Starting at the end closest to the connector for the Smart
Controller.
Reminder: If you measure & cut from the opposite end, you will not
be able to connect the LED strip to the Smart Controller.

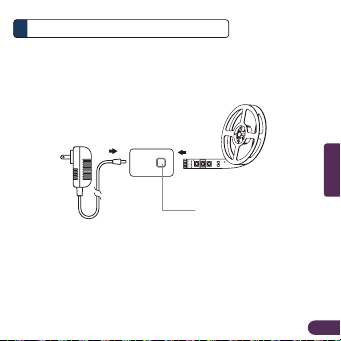

Power
Adapter
Smart
Controller
LED Strip
Reset Button
Press: Turn On/Off
Press & Hold: Reset
English

Installation
3
EN6

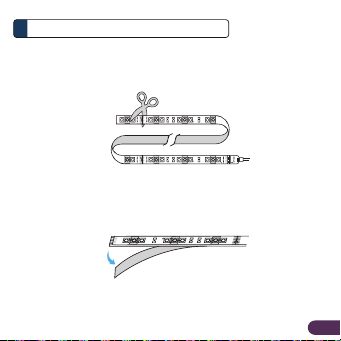

4. Locate the closest cut mark to your desired length of
usage. Each strip has cutting marks on every 10cm apart.
Use a sharp pair of scissors or blade and cut only along
the cut mark.
1. Be sure to thoroughly clean surface or wall with any
standard rubbing alcohol before applying adhesive
and let dry.
LED Strip Adhesive Installation
2. Peel adhesive lining from the back of the light strip.
3. Position LED strip upon selected surface and press down
firmly for at least 30 seconds to ensure a strong hold.

Installation
3
EN7
C. Setting up the LED Strip
1. Launch the mEzee App and login with your account
2. Tap Add Device or +on the top right-hand corner
3. If the Bluetooth on your mobile phone is switched On,
proceed with Method A. If your mobile device does not
have Bluetooth, proceed with Method B.
Method A: Auto Add Configuration
1. Upon tapping Add Device or +from main screen, the
app will start to discover devices.
2. Tap Add.
English

EN8
Installation
3

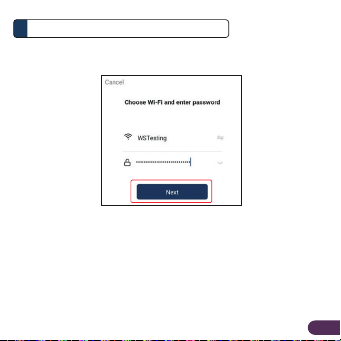

3. Select your Wi-Fi name, enter the Wi-Fi password,
and tap Next.

EN9
Installation
3

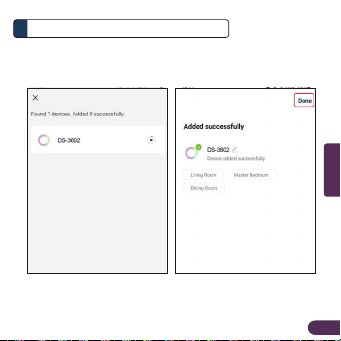

4. Once connected, proceed to name this device for easy
reference and tap Done.
English

EN10
Method B: AP Mode Configuration
2. Toggle the top right-hand option to AP Mode if it shows
otherwise.
3. Ensure that the LED strip is blinking slowly. Otherwise,
press and hold the button from the Smart Controller until
the LED strip starts blinking slowly. Alternatively, Power
On and Off 3 consecutive times.
Installation
3

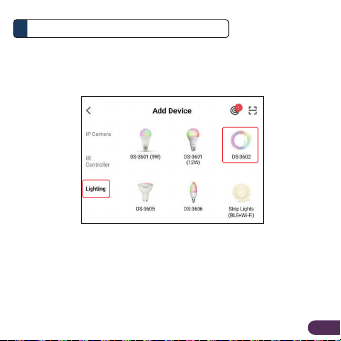

1. Select Lighting and tap DS-3602.

EN11

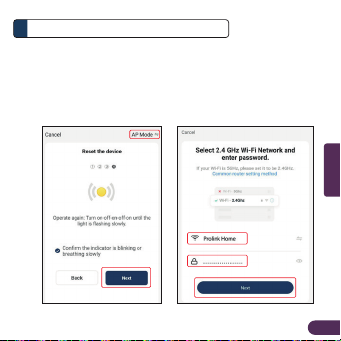

4. Check "Confirm the indicator is blinking or breathing slowly"
box, and tap Next.
5. Select your Wi-Fi name, enter the Wi-Fi password and tap
Next.
Installation
3
English

EN12
6. Tap Go to Connect and connect your mobile phone to
PROLiNK-XXXX or SmartLife-XXXX SSID. If you get
prompted with "SSID doesn't have Internet access", tap
Connect and return back to the App.
Installation
3

EN13
7. Once connected, proceed to name this device for easy
reference and tap Done.
Installation
3
Notes:
Please set the length of LED Strip before control the features in mEzee,
otherwise you may not able to get the desired features you intend to.
English

EN14
Installation
3

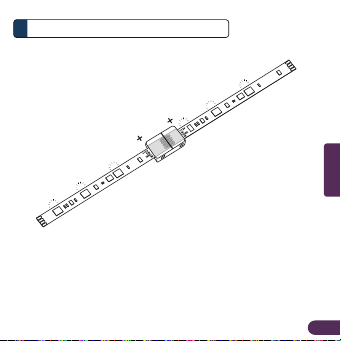

How to: Extend Light Strip Length (up to 10 Meter)
i) Using a small knife or blade, trim the protective plastic
coating around the edge of the strip's end.
ii) Slide the trimmed end into the extender connector
compartment. Follow the attachment lip to ensure that the
strip light is connected to the 4-pronged conductor correctly.
iii) Repeat these steps with the other end of the light strip
and snap the connector closed.
1. Open the LED
strip connector
and remove
about 1cm of PU
coating with a
box cutter
3. Make sure both
LED strips are
aligned
2. Insert the strip
underneath
the metal tabs
+12V
DO
GND
W
+12V
DI
GND
W

EN15
Installation
3
Notes:
•If the LED strip is not functioning, check if the 4-pronged conducts
are connected correctly with the LED strip's copper area.
English

EN16
Frequently Asked Questions
4
Yes. You can share your bulbs with family and friends who
will have access to control your bulbs, plugs, cameras, and
other devices. In the app, press the Profile button and click
on the "Device Sharing" button, and you will be able to give
or revoke sharing permissions. In order to share, the other
user should already have downloaded the app and
registered a new account.
Can I share with family and friends?
Yes. You can group multiple devices of the same type
together, by room, location, or however else you want. The
same devices can be in multiple groups. For example, you
may create a light group specifically for your "Bedroom", as
well as a light group for the "Entire House". The lights which
are under the "Bedroom" light group can also be included as
part of the "Entire House" light group. From your main device
list, click on one of the devices you want to group. Press the
"•••" button on the topright for advanced settings, and click
Create Group. You will then be able to choose which devices
you would like to group together and will be able to rename
them.
Can I group multiple devices together?

EN17
English
Frequently Asked Questions
4
The app can control an unlimited amount of devices in an
unlimited amount of locations. However, your router may
have a limit of how many devices can be connected to one
router.
How many devices can I control?
Make sure your Wi-Fi router is online and in range. Make
sure you have the latest functionality by clicking "Check
for firmware update" in your device settings.
The device appears offline or unreachable. what should I do?
From your main device list, click on one of the devices you
want to rename, press the "•••" button on the top right for
advanced settings, and click Modify Device Name or Modify
Group Name (if applicable). You will then be able to rename
your device accordingly.
How do I rename my device?

EN18
Frequently Asked Questions
4
What is the wireless range?
Products need to be connected to Wi-Fi in order to use
them remotely.
If my Wi-Fi/Internet is down, will my devices still work?
The range of your home Wi-Fi is heavily dependent on your
home router and the conditions of the room. Check your
router specifications for the exact data range. You may add
a Prolink Extender to enhance and extend your Wi-Fi
coverage if needed.
