PROLiNK DS-3602 User manual

Smart LED Strip
Quick Installation
Guide
Model No:
DS-3602
Version 1.40
(English | Indonesian)
Scan me:

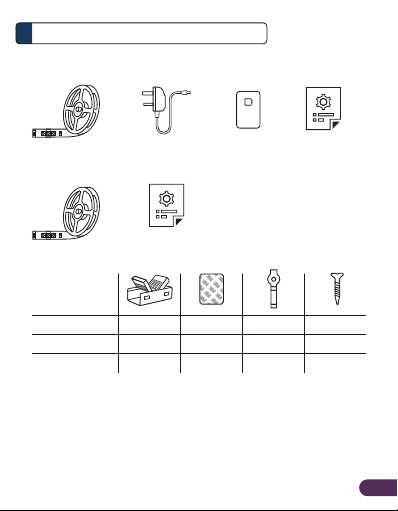

Package Contents
1
Note:
• The picture illlustrations in this document may dier from actual
product.
•If your package does not contain any of the above items, please
contact your seller immediately.
EN1
x 1x 1 x 1 x 1
x 1 x 1
Starter kit
Extension
2m Starter kit
Mounting
accessories
kit
x 1 x 1 x 3 x 3
5m Starter kit x 1 x 1 x 6 x 6
2m Extension x 1 x 1 x 3 x 3

EN2
To reset the LED strip to
default setting
To switch between Auto Add/
EZ Mode and AP Mode
configurations
Press and Hold the button
from Smart Controller
Activity Action Required
Overview
2
Installation
3
A. Preparation
1. Place the LED strip and Phone within three feet of
the router.
Note:
•Make sure the phone is connected to the router through a 2.4GHz
wireless network.
• Smart LED strip only operates when connected to 2.4GHz wireless
network (support WPA or WPA2 only).
English
O
On (White /
Colour / Blinking) Unit is On
Fast Blinking Unit is in Auto Add / EZ Mode Configuration
Slow Blinking Unit is in AP Mode Configuration
Unit is O
LED Strip Status

EN3
Installation
3
2. Download, install and create an account through the
Prolink mEzee app. You can scan the QR code below
to download from Google Store or Apple App Store.
Alternatively, search for "mEzee".
B. Setting up of LED strip
1. Connect the Smart Controller with the Power Adapter and
LED strip as shown below. Ensure that the LED light is in fast
blinking mode after turning on the power. Please power
on/o 3 times if the LED light is not in fast blinking mode
after power on.
Power
Adapter
(RH-120-1000-B1)
Smart
Controller
LED Strip
Reset Button
To reset: Press and hold
until the LED light flashes
quickly.

EN4
Installation
3
English
2. Launch the mEzee app and login with your account.
3. Tap Add Device or +on the top right-hand corner.
4. Use Method A to configure using Bluetooth. Otherwise,
please use Method B.

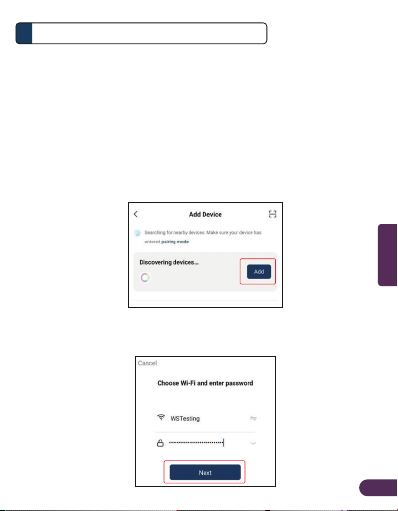

Method A: Auto Add Configuration

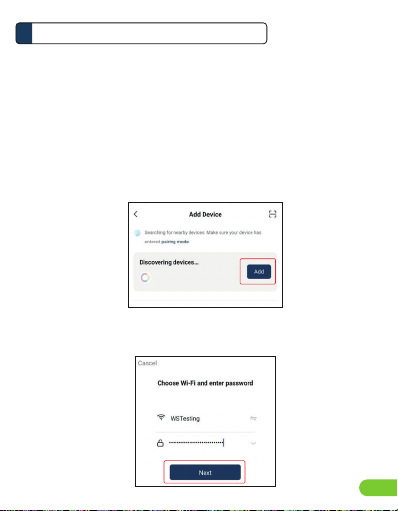

1. Upon tapping Add Device or +from main screen, the
app will start to discover devices.
2. Tap Add.
3. Select your Wi-Fi name, enter the Wi-Fi password, and
tap Next.

EN5
Installation
3
4. Once connected, proceed to name this device for easy
reference and tap Done.
Method B: AP Mode Configuration
1. Select Lighting and tap DS-3602.

EN6
Installation
3

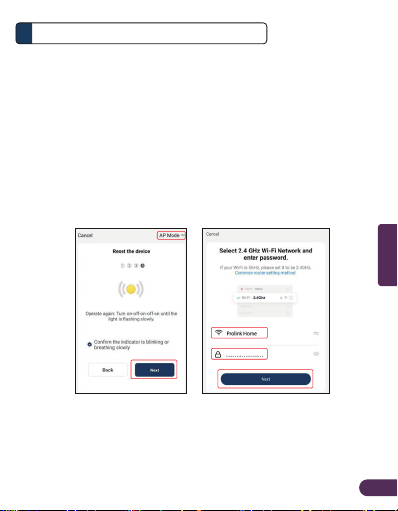

2. Toggle the top right-hand option to AP Mode if it shows
otherwise.
3. Ensure that the LED strip is blinking slowly. Otherwise,
press and hold the button on the Smart Controller until
the LED strip started blinking slowly. Alternatively, Power
On and Off for 3 consecutive times.
4. Check "Confirm the indicator is blinking or breathing
slowly" box, and tap Next.
5. Select your Wi-Fi name, enter the Wi-Fi password and
tap Next.
English

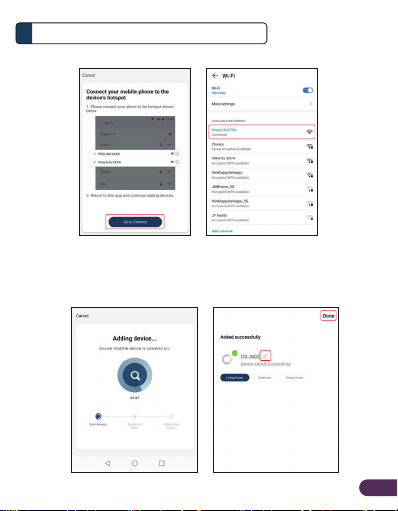

6. Tap Go to Connect and connect your mobile phone to
PROLiNK-XXXX or SmartLife-XXXX SSID. If you get
prompted with "SSID doesn't have Internet access", tap
Connect and return back to the app.

EN7
Installation
3
7. Once connected, proceed to rename this device for easy
reference and tap Done.

EN8
Installation
3
English
Note:
a) Please determine the length of LED strip before controlling the
features in mEzee app, otherwise you may not able to achieve
the desired features.
b) Ensure that the LED strip is working perfectly before installation.
Please reach out to the shop that you purchased from if there are
any issue.
+12V
DO
GND
W
+12V
DO
GND
W
C. Installation of LED strip
1. Measure the area you wish to install the LED strip. Ensure
that the area has a clean and solid surface.
2. Use a sharp pair of scissors or blade to cut. The LED strip
is cuttable at every 10cm (if needed).
+12V
DO
GND
W
+12V
DO
GND
W

EN9
Installation
3
For Google Assistant / Amazon Alexa users:
Step 1. Complete the steps in this Quick Installation Guide.
Step 2. Setup guide for Google Home and Amazon Alexa are
available at https://prolink2u.com/products/ds-3602,
under downloads tab.
Note:
You will not be able to connect the LED strip to the Smart Controller if
you measure & cut from the wrong end.
3. Gently peel adhesive lining at the back of the LED strip.
4. Position LED strip and press down firmly for at least 30
seconds to ensure a strong hold.

EN10
Installation
3
English

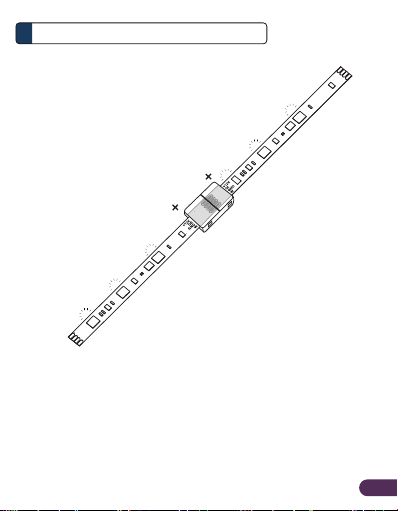

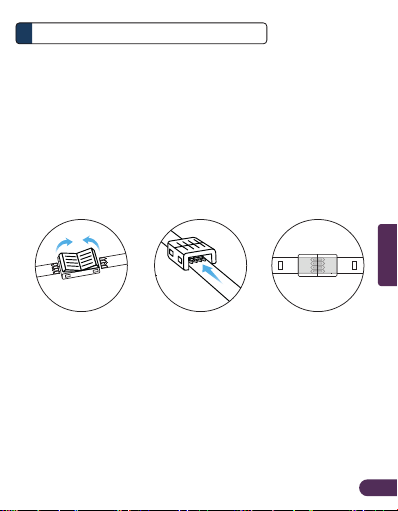

How to extend the light strip length (up to 10m)
i) Using a small knife or blade, trim the protective plastic
coating around the edge of the strip's end.
ii) Slide the trimmed end into the extender connector
compartment. Follow the attachment lip to ensure that
the strip light is connected to the 4-pronged conductor
correctly.
iii) Repeat the above steps for the other end of the light strip
and close the connector.
1. Open the LED
strip connector
and remove
about 1cm of PU
coating with a
small knife or
blade
3. Make sure both
LED strips are
aligned
2. Insert the strip
underneath
the metal tabs
+12V
DO
GND
W
+12V
DI
GND
W

EN11
Installation
3
Note:
If the LED strip is not working, ensure that the 4-pronged conducts are
connected correctly with the LED strip's copper area.

EN12
Frequently Asked Questions
4
Sharing of LED strip access with family and friends can be
done using the mEzee app. Tap the “•••” button found on the
top right for advanced settings, and tap the “Share Device”
button followed by the “Add Sharing” button to grant or
revoke sharing permissions.
Note that all users will need to have a registered account
on the mEzee app in order to gain access to the LED strip.
How can I share the LED strip access with family and friends?
The mEzee app can control an up to up to 200 smart home
devices including cameras for multiple locations. However,
your router may have a limitation on the number of devices
connected to it.
How many LED strip can I control?
On the main device list on the mEzee app, tap on the LED strip
you wanted to rename and “•••” button found on the top right
for advanced settings, and tap “DS-3602” found on the top to
edit.
How do I rename the LED strip?
What should I do when my LED strip appears offline or
undetected?
Ensure that your Wi-Fi router is working and move your LED
strip closer to the it. Subsequently, check that you have the
latest firmware version by clicking “Check for firmware
update” in your device settings using the mEzee app.
English

EN13
Frequently Asked Questions
4
You may consider adding a Prolink Wi-fi Extender to enhance
and extend the Wi-fi coverage.
What should I do if I am unable to connect my LED strip due
to the location of my router?
LED strip need to be connected to your home Internet if you
want to use them remotely.
Can I use the LED strip if my Wi-fi/ internet is down?

Catatan:
• Gambar Ilustrasi dalam dokumen ini mungkin tampak berbeda
dari produk yang sebenarnya.
• Jika salah satu item yang disebutkan di atas tidak termasuk dalam
paket Anda, silakan segera berkonsultasi dengan reseller Anda.
x 1x 1 x 1 x 1
x 1 x 1
Paket pemula
Perpanjangan
Kit Pemula 2m
Pemasangan
aksesoris kit
x 1 x 1 x 3 x 3
Kit Pemula 5m x 1 x 1 x 6 x 6
Perpanjangan
2m x 1 x 1 x 3 x 3
Indonesian
ID1
Isi Kemasan
1

ID2
Untuk mengatur ulang strip
LED ke default pengaturan
Untuk beralih antara Tambah
Otomatis/Mode EZ dan Mode
AP konfigurasi
Tekan dan Tahan tombol
dari Smart Controller
Aktivitas Diperlukan Tindakan
Keterangan
2
Instalasi
3
A. Persiapan
1. Tempatkan strip LED dan Telepon dalam jarak tiga kaki
router.
Catatan:
•Pastikan ponsel terhubung ke router melalui 2.4GHz jaringan
nirkabel.
•Smart LED strip hanya beroperasi saat terhubung ke nirkabel
2.4GHz jaringan (hanya mendukung WPA atau WPA2).
O
On (Putih /
Warna/ Berkedip) Unit aktif
Berkedip Cepat Unit dalam Konfigurasi Auto Add / EZ Mode
Berkedip Lambat Unit dalam Konfigurasi AP Mode
Unit tidak aktif
Strip LED Status

ID3
Instalasi
3
2. Unduh, instal, dan buat akun melalui aplikasi Prolink
mEzee. Anda dapat memindai kode QR di bawah ini
untuk mengunduh dari Google Store atau Apple App
Store. Atau, cari “mEzee”.
B. Menyiapkan strip LED
1. Hubungkan Smart Controller dengan adaptor USB dan
strip LED seperti yang ditunjukkan di bawah ini. Pastikan
lampu LED menyala dengan cepat mode berkedip setelah
menyalakan daya. Mohon kekuatan On/O 3 kali jika lampu
LED tidak dalam mode kedip cepat setelah dihidupkan.
Pengontrol
cerdas
(RH-120-1000-B1)
Adaptor
daya
Jalur LED
Butang reset
Untuk mengatur ulang:
Tekan dan tahan sampai
lampu LED berkedip
dengan cepat.
Indonesian

ID4
Instalasi
3
2. Luncurkan aplikasi mEzee dan masuk dengan akun Anda.
3. Ketuk Add Device atau +di pojok kanan atas.
4. Gunakan Metode A untuk mengonfigurasi menggunakan
Bluetooth. Jika tidak, silakan gunakan Metode B.
Metode A: Tambahkan Konfigurasi Otomatis
1. Setelah mengetuk Add Device atau +dari layar utama, itu
aplikasi akan mulai menemukan perangkat.
2. Ketuk Add.
3. Pilih Wi-Fi name, masukkan Wi-Fi password, dan ketuk
Next.

ID5
Instalasi
3
Metode B: Konfigurasi Mode AP
1. Pilih Lighting dan ketuk DS-3602.
4. Setelah terhubung, lanjutkan memberi nama perangkat
ini agar mudah referensi dan ketuk Done.
Indonesian

ID6
Instalasi
3
2. Alihkan opsi kanan atas ke AP Mode jika ditampilkan
jika tidak.
3. Pastikan strip LED berkedip perlahan. Jika tidak, tekan
dan tahan tombol pada Smart Controller sampai strip
LED mulai berkedip perlahan. Atau, Power Hidup dan
Mati selama 3 kali berturut-turut.
4. Centang kotak “Confirm the indicator is blinking or
breathing slowly”, dan ketuk Next.
5. Pilih nama Wi-Fi name, masukkan the Wi-Fi password
dan ketuk Next.
6. Ketuk Go to Connect dan sambungkan ponsel Anda ke
PROLiNK-XXXX atau SmartLife-XXXX SSID. Jika Anda
mendapatkan diminta dengan "SSID doesn't have Internet
access", ketuk Connect dan kembali ke Aplikasi.
