ProMariner™HEAVY DUTY RECREATIONAL SERIES
Owner’s Manual and Installation Guide
Model Part No. Volts Amps Banks Cables Size AC In
ProSport6 PFC 43023 12 6 1 6’ 7.125”x 7.25” x 2.75” 100-260
ProSport12 PFC 43026 12/24 12 2 6’ 9.875”x 7.25” x 2.75” 100-260
ProSport20 PFC 43028 12/24 20 2 6’ 12.125”x 7.25” x 2.75” 100-260
ProSport20Plus PFC 43029 12/24/36 20 3 6’ 12.125”x 7.25” x 2.75” 100-260
IMPORTANT NOTICE
Please save and read all safety, operating and installation instructions before installing
or applying AC power to your ProSport On-Board Marine Battery Charger.
Your Satisfaction is Important to Us!
Please call our Customer Care Department at [phone] from 8:30 am to 5pm Eastern Time
for any service or installation assistance. Thank you - ProMariner Customer Care
PLEASE RECORD YOUR:
Model Number:________________ Serial Number: ________________ Date of Purchase: _____________
For use with Flooded (Lead-Acid), AGM and Gel Batteries. Not for use with 4D or 8D large capacity batteries.
Marine Battery Charger
100%
WATERPROOF&
SALTWATER
TESTED
Pro Mar Digital Performance Charging Inside
Global AC Input
Power Factor Corrected
100-260 VAC 50/60 Hz
2-Year Warranty

Table of Contents
Introduction... 1
Important Safety Instructions… 2-7
General Overview… 8-9
General Operation… 10-12
Installation... 13-15
Wiring Diagrams… 16-22
Charging your Batteries... 23
Maintenance… 24
Troubleshooting... 25
Accessories... 26
Environment and disposal... 27
Warranty... 28
Important Charger Operation Note:
Once your new ProSport is installed and properly connected to batteries you will be ready to plug it in.
Please note the ProSport has a built-in self test feature that will also analyze all battery connections
and batteries to determine your boats batteries are capable of being charged correctly. The
self test is automatic and will take place everytime the unit is plugged into a 120/230 VAC outlet.
The self test may take up to 2 minutes to complete.
During the self test the red charge mode indicator will be flashing. When completed if everything
is connected properly and the batteries are OK and above 2.0 volts DC then the charger will register
and illuminate the green system check OK indicator followed by a solid (non flashing) red charge
mode LED illuminating indicating all batteries are being charged.
If the charger does not go into the charge mode with a solid (non flashing) red charge mode
indicator and the system check OK indicator is not illuminated with a solid green LED then a
red battery bank fault LED will illuminate identifying the battery(s) that have either a wiring
fault present i.e. poor connection, a blown DC cable fuse, the DC cable is wired in reverse
polarity, battery cable is wired across two batteries in series with a high DC overvoltage of
24V or the battery itself may be under 2.0 volts DC. In any of these cases refer to the
troubleshooting section on page 25 of this manual.
TABLE OF CONTENTS

INTRODUCTION
Introduction
Thank you from all of us at ProMariner and congratulations on your recent purchase of the ProSport
On-Board Marine Battery Charger. Powered and designed by ProMariner, a leader in the marine charger
industry for over 35 years. ProSport Generation 3 On-Board Marine Battery Chargers incorporate all-digital
microprocessor control. Like no other, the new ProSport Series provides automatic installation feedback with
its exclusive “System Check OK” and individual “Battery Bank Trouble” LED indicators, and also has the most
advanced energy saving mode. After fully charging and conditioning batteries, ProSport’s Energy Saver Mode
will monitor and Auto Maintain batteries only when needed to maintain a full state of charge, resulting in
maximum reserve power performance and lower AC power consumption and operating costs.

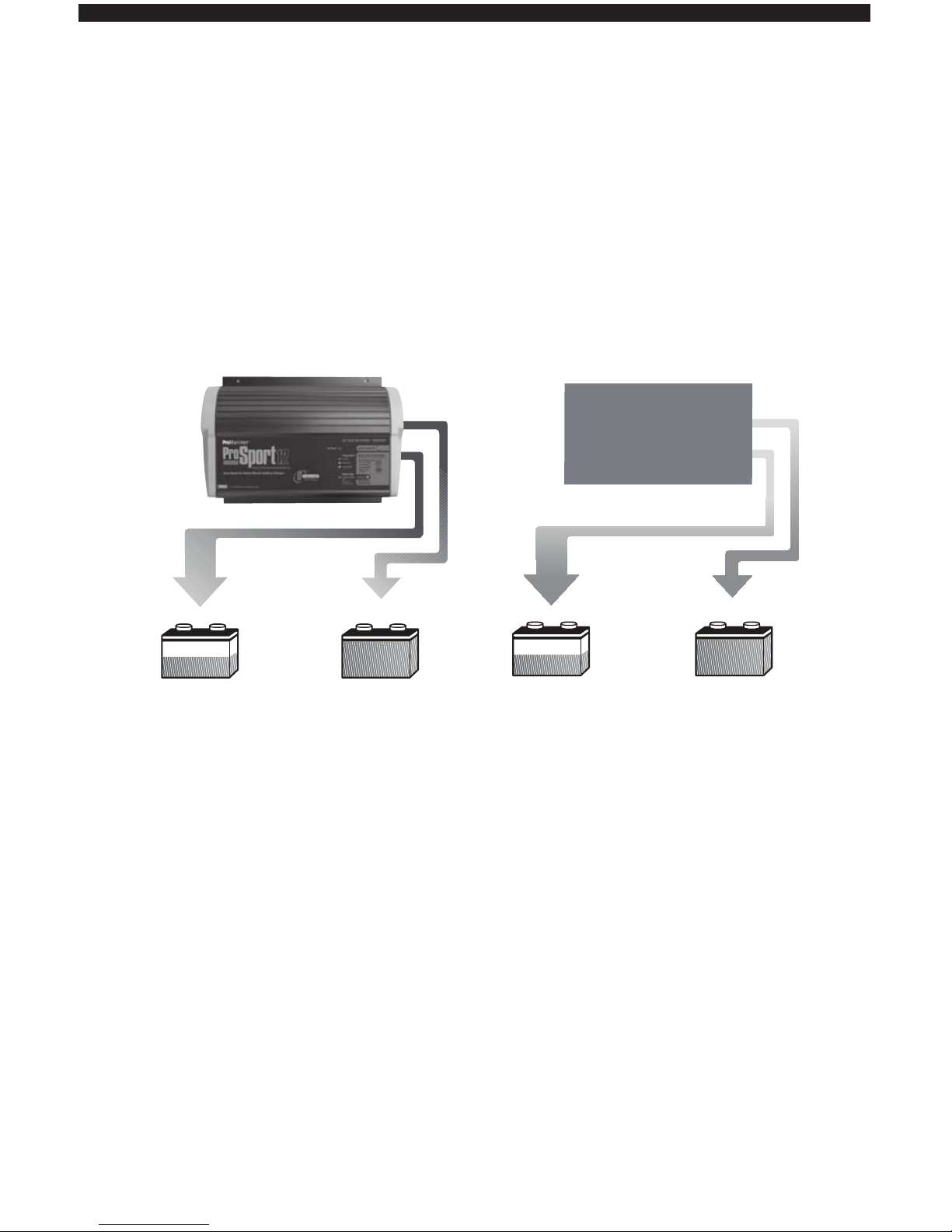

ProSport incorporates Distributed-On-Demand™ Charging technology, taking 100% of the available charging
amps and distributing them to any one or combination of all batteries as needed for faster charging.
ProSport is 100% waterproof and shockproof, weighing 40% lighter than older technology epoxy filled
chargers providing cooler operation and greater reliability. Each ProSport model has 2 digitally selectable
charge profiles (a 3rd HPAGM profile on the ProSport 20 Dual Only) and all models include a once-a-month
storage reconditioning mode for extending battery life.
ProMariner’s Generation 3 ProSport Features Inc lude:
ProMar Digital Technology Microprocessor and software controlled pulse charging technology delivering a
40% lighter design, cooler charger operation and faster
charging.
System OK & Battery Bank Trouble Status Indicators Advanced technology eliminates time consuming
troubleshooting by clearly indicating system and battery connections are OK or if a fault is present on a specific
battery bank.
Digital Multi-Stage Performance Charging Fully charge and extend the life of your batteries. Automatically
charges, conditions and safely maintains batteries on board for maximum time on the water.
Energy Saver Mode After fully charging and conditioning batteries, ProSport’s Energy Saver Mode will
monitor
and Auto Maintain batteries only when needed, maintaining a full state of charge. This significantly
reduces AC power consumption, lowers operating costs and maximizes reserve power performance.
Storage Recondition Mode During short or long-term storage, ProSport automatically reconditions all
batteries on board once a month for maximum battery life and
performance.
Distributed-On-Demand™ Technology Automatically charges and maintains your engine crank battery
while distributing all remaining charging amps to house or trolling motor battery(s).
Digital LED Display and Battery Type Selector LED indicators for Charging, Conditioning and Auto Maintain
modes in addition to AC Power and selected battery type (2 charge profiles to choose from and a 3rd HPAGM
profile on the ProSport 20 Dual Only).
Built-in Quality & Safety Compact and rugged extruded aluminum design. Dual in-line DC safety fuses for
trolling motor and house battery banks, built-in over-voltage, overload, over-temperature, reverse polarity and
ignition protection.
Pre-wired for Easy Installation
2-Year Warranty
1

2
SAFETY INSTRUCTIONS
Important Safety Instructions
SAVE THESE INSTRUCTIONS
This manual contains important safety and operating instructions for the ProSport On-Board Marine Battery
Charger.
CAUTION – To reduce the risk of injury, charge only Lead-acid type rechargeable batteries; Flooded (Lead-
acid), Sealed (Lead-acid) and Gel (Gelled Electrolyte Lead- acid). Other types of batteries may burst, causing
personal injury.
Use of attachments not recommended or sold by ProMariner may result in a risk of fire, electrical shock or
personal injury.
EXTERNAL CONNECTIONS TO CHARGER SHALL COMPLY WITH THE UNITED STATES
COAST GUARD ELECTRICAL REGULATIONS (33CFR183, SUB PART 1).
Before connecting your batteries or applying AC power, read all instructions and cautionary markings on the
battery charger, cables, and batteries.
WARNING
To reduce the risk of injury to user or property; the user must read and understand the instruction manual
and all warnings on the charger and batteries before use.
WARNING
RISK OF EXPLOSIVE GAS MIXTURE. Read instructions in manual before using charger.
1. Connect and disconnect battery leads only when supply cord is disconnected.
2. Do not overcharge battery - See Instruction Manual.
3. Do not smoke, strike a match, or cause a spark in vicinity of battery.
4. Use in well-ventilated area.
5. Refer to Instruction Manual for further details.
CAUTION
Risk of Electric Shock. Connect only to properly grounded GFCI (ground fault circuit interrupt)
protected outlets.
Do not expose AC Power cord connection to rain or snow .
If cords or wires/cables become damaged return complete unit to ProMariner for ser vice/repair immediatel y .
WARNING
1. WARNING - RISK OF EXPLOSIVE GASES.
a. WORKING IN THE VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE
EXPLOSIVE GASES DURING NORMAL BATTERY OPERATION. FOR THIS REASON, IT IS OF UTMOST
IMPORTANCE THAT YOU FOLLOW THE INSTRUCTIONS EACH TIME YOU USE THE CHARGER.
b. To reduce risk of battery explosion, follow these instructions and those marked on the battery.
2. Use charger for charging a LEAD-ACID battery only.It is not intended to supply power to an extra-low-voltage
eletrical system or to charge dry-cell batteries.Charging dry-cell batteries may burst and cause injury to persons
and property.
3. NEVER smoke,strike a match or cause a spark or flame in vicinity of battery.

3
Important Safety Instructions
4. NEVER charge a frozen, damaged or leaking battery.
5. Study all battery manufacturer’s specific precautions such as removing or not removing cell caps while
charging and recommended rates of charge.
6. Use of an attachment not recommended or sold by ProMariner may result in a risk of fire, electric
shock, or injury to persons.
7. To reduce risk of damage to electric plug and cord, pull by plug rather than cord when disconnecting
charger.
8. Extension cords should not be used unless absolutely necessary. Use of an improper extension cord
could result in a risk of fire and electric shock. If an extension cord must be used make sure:
a. Pins on the plug of the extension cord are the same number, size and shape as those on the plug of
the charger.
b Use only a properly wired extension cord in good electrical condition.
c. Use an industrial grade / heavy duty UL or CSA approved and grounded extension cord. Check
extension cord before use for damage, bent prongs, and cuts. Replace if damaged. Always make
your extension cord connection on the charger side first. After connecting the extension cord to
the charger proceed to plug the extension cord into a nearby 120/230 VAC GFCI protected
(Ground Fault Circuit Interrupt) outlet. Below are manufacturer recommendations for the right
size UL or CSA Approved grounded extension cord.
i. Up to 50 feet in length use a 3 conductor 18 AWG extension cord.
ii 50 to 100 feet in length use a 3 conductor 16 AWG extension cord.
iii. 100 to 150 feet in length use a 3 conductor 14 AWG extension cord.
9. Do not operate charger if any protective AC and DC cable insulation, charging clamps, DC fuse holders
and/or maintainer ring terminals have been damaged or compromised. Return the charger for service
and repair to ProMariner immediately.
10. Do not operate the charger if it has received a sharp blow, direct hit of force, been dropped or otherwise
damaged in any way. Return the charger for service and repair to ProMariner immediately.
11. Do not disassemble charger. Incorrect reassembly may result in a risk of electric shock or fire. If service
or repair is required please call ProMariner customer service at [phone] between 8:30am-
5pm (EST) Monday through Friday, or via www.promariner.com. Unauthorized attempts to service, repair
or modify may result in a risk of electrical shock, fire or explosion and will void warranty.
12. To reduce risk of electric shock, unplug charger from outlet before attempting any maintenance or
cleaning.
13. Do not expose AC power cord connection to rain or snow.
SAFETY INSTRUCTIONS

4
Important Safety Instructions
14. GROUNDING AND AC POWER CORD CONNECTION INSTRUCTIONS
a. Charger should be grounded to reduce risk of electric shock. Charger is equipped with an electric
cord having in equipment-grounding conductor and a grounding plug. The plug must be plugged
into a 120/230 VAC GFCI protected (Ground Fault Circuit Interrupt) outlet that is properly
installed and grounded in accordance with all local codes and ordinances.
DANGER
Never alter AC cord or plug provided - If it will not fit outlet, have proper outlet installed by a qualified
electrician. Improper connection can result in a risk of an electric shock.
b. This battery charger is for use on a nominal 120-volt circuit, and has a grounding plug that looks
like the plug illustrated in figure A. A temporary adapter, which looks like the adapter illustrated in
figure B may be used to connect this plug to a two-pole receptacle as shown in figure B if a properly
grounded outlet is not available. The temporary adapter should be used only until a properly
grounded GFCI protected outlet can be installed by a qualified electrician.
DANGER
Before using adapter as illustrated, be certain that center screw of outlet plate is grounded. The green-
colored rigid ear or leg extending from adapter must be connected to a properly grounded outlet - make
certain it is grounded. If necessary, replace original outlet cover plate screw with a longer screw that will
secure adapter ear or lug to outlet cover plate and make ground connection to grounded GFCI protected
outlet.
Use of an adapter is not allowed in Canada. If a grounding type receptacle is not available, do not use
this appliance until the proper GFCI protected outlet is installed by a qualified electrician.
Grounding means
Metal screw
Adapter
Figure B
Figure A
Grounding pin
120/230 VAC GFCI protected (Ground Fault Circuit Interrupt)
outlet via house panel breaker or GFCI outlet (not shown)
SAFETY INSTRUCTIONS

5
Important Safety Instructions
15. PERSONAL PRECAUTIONS
CAUTION
a. Consider having someone close enough or within the range of your voice to come to your
aid when you work near a lead-acid battery.
b. Have plenty of soap, water and baking soda nearby in case battery acid comes in contact
with skin, clothes or eyes.
c. Wear complete eye protection, hand and clothing protection. Avoid touching eyes while
working near a battery.
d. If battery acid contacts skin or clothing, wash immediately with soap and water. If acid
enters eye, immediately flood eye with running cold water for at least 15 minutes and get
medical attention immediately.
e. NEVER smoke, strike a match or cause a spark or flame in vicinity of battery or engine. f.
Be extra cautious to reduce risk of dropping a metal tool onto the battery. It might spark or
short-circuit a battery or other electrical hardware which may cause an explosion or fire.
g. Remove all personal metal items such as rings, bracelets, necklaces, watches, and jewelry
when working near a battery. A battery can produce a short circuit current high enough to
weld a ring or any other metal, causing serious burns.
h. Use charger for charging a LEAD-ACID battery only. It is not intended to supply power to
a low voltage electrical system other than in a start-motor application. Do not use battery
charger for charging dry-cell batteries that are commonly used with home appliances.
These batteries may burst and cause injury to persons and damage to property.
i. NEVER charge a frozen, damaged or leaking battery.
j. Keep other persons, children and pets away from batteries and your charger during
operation to avoid serious injury, death, fire or explosion.
SAFETY INSTRUCTIONS

6
Important Safety Instructions
16. PREPARING TO CHARGE A BATTERY
CAUTION
a. If necessary to remove a battery from a boat to charge, always remove the grounded
negative terminal from the battery first. Make sure all accessories in the boat are off,
as to not cause an arc. Be sure the area around the charger and batteries is well ventilated
while the batteries are being charged. Gases can be forcefully blown away using a piece of
cardboard or other nonmetallic material as a fan.
b. Be sure the area around the charger and batteries is well ventilated while the battery is
being charged.
If the electrolyte is splashed into an eye, immediately force the eye open and flood it with
clean, cool water for at least 15 minutes. Get prompt medical attention.
If electrolyte is taken internally, drink large quantities of water or milk. DO NOT induce
vomiting. Get prompt medical attention.
Neutralize with baking soda any electrolyte that spills on a vehicle or in the work area. After
neutralizing, rinse contaminated area clean with water.
c. Clean battery terminals. Be careful to keep corrosion from coming in contact with eyes.
d. For flooded batteries with removable caps, ONLY ADD DISTILLED WATER in each cell
until electrolyte reaches levels specified by the battery manufacturer. Do not over fill. For
a maintenance free battery without removable caps, such as valve regulated lead acid
batteries, carefully follow manufacturer’s recharging instructions.
e. Study all battery manufacturers’ specific precautions; warnings and instructions while
charging and recommended rates of charge. Never charge a battery with missing safety
vent caps.
f. Do not overcharge batteries by selecting the wrong battery type or by trying to charge a
non-12 Volt as defined by the 12 Volt battery types specified in this manual.
Always remove the extension cord from the 120/230 VAC outlet first when charging is
completed followed by unplugging the charger, completely disconnecting.
SAFETY INSTRUCTIONS

7
Charger Location & DC Connection
17. CHARGER LOCATION
CAUTION
a Locate charger as far away from batteries as possible.
b. Never place a charger directly above a battery being charged; gases or fluids from battery
will corrode and damage charger.
c. Do not operate charger in an enclosed area or in an area with restricted ventilation in any
way.
d. Never allow battery acid to drip on charger when reading electrolyte specific gravity or
filling a battery.
e. Do not set a battery on top of charger.
f. Do not install on or over combustible surfaces.
18. DC CONNECTION PRECAUTIONS
CAUTION
a. Connect and disconnect DC output cables only after setting any charger switches to “off”
position and removing AC cord from electric outlet. Never allow cables to touch each other.
IMPORTANT NOTICE: FCC CLASS A PART 15 NOTIFICATION
Your On-Board Marine Battery Charger has been designed and tested to comply with FCC Class A
part 15. These regulations are to provide adequate protection against harmful interference while
operated in a commercial application. If in a residential setting, you are encountering interference
with TV and radio reception, simply remove AC power from the ProMariner unit to confirm if
your battery charger is causing interference. End user can explore the following to minimize
interference:
1) Chose a different AC circuit to power your On-Board Marine Battery Charger.
2) Make sure your outlet is properly grounded.
3) Re-position receiving antenna.
4) Purchase a separate AC line filter.
5) Relocate charger so that it is at the furthest point from home receiving equipment,TV, radio, etc.
SAFETY INSTRUCTIONS

8
General Overview
The ProSport Charger is an advanced electronic and fully automatic multi-stage on-board marine
battery charger. ProSport is pre-wired for easy installation and is 100% waterproof for fresh and
salt water applications. ProSport’s multi-stage charging process delivers five modes of operation
that include: start up diagnostics, charging, conditioning, auto maintain and storage reconditioning
of each battery. This process is proven to extend the life of your batteries and will fully charge your
batteries each time you connect to AC power. ProSport delivers increased power and performance
while providing improved durability and heat transfer.
The ProSport Distributed-On-Demand™ Charging Technology will automatically sense and
distribute 100% of the available charging output of 8,12, 15 or 20 amps (model specific) to any
one battery or combination of all batteries. Each battery charger output is fully isolated. ProSport’s
easy to view LED indicators will provide at a glance status of: AC power, battery type, charging, and
ready status. The LED status center also includes an indication of a fault or failure detected at each
battery that is connected to the charger and can be seen on the top of the unit when installed.
Note: ProSport On-Board Marine Battery Chargers are designed for any combination
of group 24,27,30 and 31 batteries. Each battery charger DC output cable must be
connected to one (1) 12Volt DC battery (even if batteries are configured for 24 Volt DC or
36Volt DC trolling motor or system applications).
Important: The pair of red and black wires in 1 cable jacket MUST GO TO THE SAME 12VDC battery.
GENERAL OVERVIEW
When connecting to an engine start battery only connect the battery bank cable that is LABELED:
“FOR ENGINE BATTERY, USE THIS BANK CABLE ONLY”.
Application Tip
If your application is for 4D or 8D large capacity batteries, please refer to ProMariner’s website
www.promariner.com and view our ProNauticP Hardwired Charger Assortment for a model that
is correct for this group size of batteries.
Most specifically you do not have to remove series or parallel jumper cables to use your ProSport
charger. See typical wiring diagrams for these systems in the installation section of this manual.
Note: The ProSport must be connected to batteries to operate. It will not operate as a 12 volt
power supply.
Each charger cable must
be connected to 1 battery,
just as shown. Observe
black to (-) and red to (+).
Do this for each battery. cable jacket
black (–)
red (+)
Group size 24
thru 31 only
Top View of Battery
+
_

9
How Distributed-On-Demand™ Charging Technology W o rks
ProSport’s Distributed-On-Demand™ Charging Technology ensures 100% of the available
charging amps are fully utilized to meet the demand of each battery on-board. For example, if your
engine start battery only needs 2 amps from your ProSport 12 (6/6 two bank charger) the unused
4 amps will be automatically Distributed-On-Demand™ to your house or trolling motor battery,
providing a total of 10 amps for faster charging versus only 5 amps that the conventional 5/5
battery charger would provide. The competitive 5/5 charger has a 5 amp limit per bank.
12 Amps Fully Distributed
Fully
Charged
Fully
Charged
5 Amps Max.
VS
Other 5/5
10 amp chargers
10
House or
Trolling Battery
Engine
Start Battery
House or
Trolling Battery
Engine
Start Battery
25 2
++
=12 =7
General Operation
Install your ProSport On-Board Marine Battery Charger to the guidelines in this manual.
Make sure your charger and batteries are properly vented. Connect your extension cord with
no AC power present to the ProSport and proceed to plug your extension cord in at a
nearby 120/230VAC GFCI protected (Ground Fault Circuit Interrupt) outlet.
With your ProSport plugged in properly, it will automatically/fully charge your batteries while it
conditions and extends the life of your batteries. Always leave your charger plugged in to reduce
sulfate build-up allowing your batteries to be fully charged and maintained for your next fishing trip.
The ProSport design incorporates a new storage recondition mode that stimulates and reconditions
your onboard batteries for 3 hours once a month and when completed will resume its normal auto
maintain mode. During the storage recondition mode the ready/maintain LED will remain green and
the storage recondition mode LED will fade-in fade-out pulse, indicating your batteries are being
reconditioned and are fully charged during this process.
GENERAL OVERVIEW

10
ProSport LED Status Center - Operation and Display
ProSport includes 7 LEDs for operation status and up to 3 battery bank trouble LEDs depending on
the model.
1. The blue AC power LED
Illuminates when AC power is applied
2. The battery type LED
Will illuminate red for standard Flooded (lead-acid)/AGM and green for GEL.
Note: The ProSport 20 Dual bank model includes an amber battery type LED for AGM HP
(High Performance) battery type. Please read the battery manufacturer literature carefully
and select the correct charge profile. Failure to do so may cause early battery failure.
3. The system check OK LED
After applying AC power the ProSport will self test and analyze all battery connections
and batteries. If all checks are OK the green LED will illuminate. This can take up to 2 minutes.
4. The charge mode LEDs
Charging: Red LED will flash during the self test and battery test mode
(approximately 1-2 minutes) and will be solid red during charging.
Conditioning: Amber LED illuminates during conditioning mode.
Auto Maintain: Green LED illuminates when batteries are fully charged and being
automatically maintained until you are ready to use your boat.
Storage Recondition: Green LED fades in and out when performing a once a month storage
recondition mode.
5. Battery bank trouble status LEDs
Red LEDs will illuminate indicating a wiring problem or fault at one of the batteries connected
to the ProSport charger. See page 25 for further details.
GENERAL OPERATION

11
Operation after Applyi ng AC Power to a ProSport Charger
Connected to Dischar ged Batteries
(The following example is for the factory setting of Flooded (lead-acid) batteries) When power is applied the ProSport
performs a self test of the battery charger electronics and the batteries connected to the battery charger.
During the startup test the battery type LED will be illuminated and the red charge mode LED will flash indicating that
the unit is in a self test mode. When complete and if there are no faults, the charger’s system check OK indicator will
illuminate green and the ProSport’s solid red charging LED will be ON indicating the charge process is initiated.
Note: If there is a fault the appropriate bank LED will illuminate and the charge process may not start, depending on the
location of the fault. See page 25 for further troubleshooting details.
If there are no Battery Faults, the Green System Check OK LED will illuminate and the following sequences will
proceed:
The red battery type LED (factory set for standard Flooded (lead-acid)/AGM batteries) will illuminate.
The red charge mode LED will illuminate indicating the charger has started its multi-stage charging process.
When the charge process is approximately 80% complete the red charge mode indicator will turn off and the amber
conditioning LED will turn on indicating the conditioning mode.
When the multi-stage charge process is completed you will observe the following:Battery type red LED goes OFF.
The red charging LED and the amber conditioning LED will be off and the green ready/maintain LED will illuminate
indicating your batteries are fully charged.
The only LEDs on after the multi-stage charge process is completed are the green system OK LED, blue AC power LED
and the green ready/maintain LED.
Multi-Stage Charging Overview
Stage 1 - System Check OK and Battery Analyzing: During this stage the ProSport red “Charge” LED will flash indi-
cating ProSport is analyzing all battery connections in addition to checking each battery is capable of being charged. Upon
completion the “System Check OK” indicator will illuminate green followed by Stage 2 Charging.
Stage 2 - Charging:
During this mode the “Charging” indicator will be red. The ProSport Series will use all of its available
charging amps (as controlled by temperature) until the battery voltage is raised to
14.6 VDC (Flooded lead-acid factory setting).
Stage 3 - Conditioning: During this mode the “Conditioning” status indicator will be amber. Batteries will hold at 14.6 VDC
(factory set for Flooded lead-acid batteries) to complete charging while conditioning each battery connected. Upon completion
the ProSport will go into its Energy Saver
Mode.
Stage 4 - Auto Maintain (Energy Saver Mode): During this mode the blue “Power” and green “Auto Maintain” LED’s
will be on indicating Stage 2 charging and Stage 3 conditioning are completed. At this time ProSport
will initiate its Auto Main-
tain (Energy Saver Mode) which will monitor and Auto Maintain batteries only when needed to maintain a full state of charge.
Stage 5 - Storage Recondition Mode: During this mode the ProSport “Storage Recondition Mode” green indicator will
illuminate with a slow fade in and out pulse. This indicates that while your batteries/boat are in
storage the ProSport will
automatically recondition all batteries for up to 3 hours once a month extending battery
life and maximizing on the water
battery power
performance.
Average Voltage
(Factory installed black programming cap charge profile illustration).

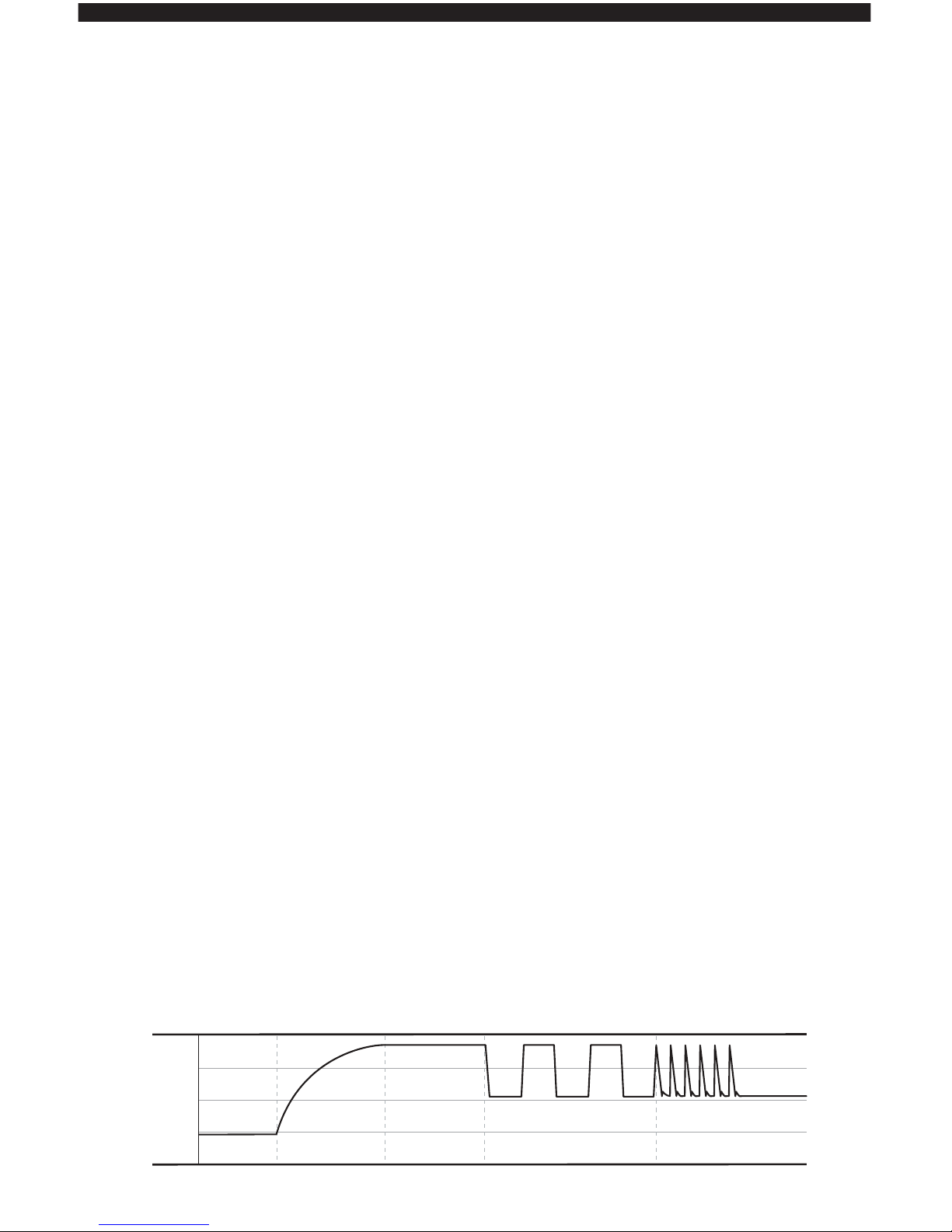

Volts
Analyzing Charging Conditioning Auto Maintain
Monthly Storage Reconditioning
14
13
12
11
GENERAL OPERATION

12
Selecting a Charging Profile & Understanding Battery T ypes
Your battery charger is equipped with a user programmable battery type selector that is factory set for
standard Flooded (lead-acid) / AGM (Absorbed Glass Mat) batteries.
To set your charger for Gel batteries simply remove the black programming cap and replace it with the Gel
programming gray cap. If you own a ProSport 20 Dual Bank Charger you also have the option to use the
High Performance AGM profile recommended for OPTIMA BlueTop Deep Cycle and Odyssey AGM marine
batteries by installing the blue AGM HP programming cap. Any time you reprogram or change the cap, apply
marine silicone to the threads of the cap being installed.
NOTE: AGM (Absorbed Glass Mat) batteries are not Gel (Gelled Electrolyte Lead-acid) batteries. Gel
batteries require a completely different charge profile that must be selected versus the out of the box
factory setting.AGM batteries can accept the same charging profile as Flooded (lead-acid) batteries.
Understanding Battery Types & Charger Settings
There are three primary types of batteries in the marketplace today; standard Flooded (lead-acid), AGM
(Absorbed Glass Mat), high performance AGM and Gel cell (Gelled Electrolyte Lead-acid). Traditionally, the
most common type of batteries used are Flooded (lead-acid) batteries. Almost all Gel cell batteries will state
that they are Gel cell on the battery case or labels. Shown below are typical battery voltages at absorption
and float levels.
LED Battery Type Charging Profile Cap
Red Standard Flooded (lead-acid) -
with or without fill caps
AGM (Absorbed Glass Mat) - Sealed
14.6 VDC Absorption, 13.4 VDC Float Black
Green Gel Cell - Sealed Gray Cap 14.1 VDC Absorption, 13.8 VDC Float Gray
Amber* AGM High Performance
(Absorbed Glass Mat) - Sealed
(OPTIMA, Odyssey, West Marine Brands)
14.7 VDC Absorption 13.6 VDC Float Blue*
NOTE: AGM (Absorbed Glass Mat) batteries are not Gel (Gelled Electrolyte Lead-acid) batteries. Gel
b a tt e r i e s require a completely different charge profile that must be selected versus the out of the box
factor y setting. AGM batteries can accept the same charging profile as Flooded (Lead-acid) batteries.
* Only available on ProSport 20 Two Bank model only .
Note: If you are still unsure what kind of battery(s) you have, we recommend that you contact the
manufacturer of the
batter y(s).
GENERAL OPERATION

13
Installation
All ProSport Battery Chargers are designed to be permanently mounted on-board, and should be mounted
with extruded fins placed horizontally.
Always mount your ProSport in a compartment area that can be properly ventilated during use.
Do NOT mix battery types on-board. All batteries should be of the same age and in good operating condition.
Do NOT make any electrical connections to the ProSport or batteries until the following steps are completed:
10 Easy to follow installation steps:
1. Select a mounting location that allows for free air ventilation with a minimum of 8 inches of clear
unobstructed space around and in front of the battery charger. Open all battery and engine compartments
and ventilate for at least 15 minutes before starting the installation of the charger. Confirm all battery cables
can reach each of the batteries.
Do not install charger on carpeted, upholstered, vinyl, or varnished areas. Be sure to place the ProSport in
an accessible area where all indicators are viewable. Install this unit on a hard surface.
Note: For installations requiring an extension of the DC battery charger cables, please call or visit your
retailer or dealer to purchase ProMariner’s 5 foot or 15 foot battery charger DC cable extenders. Our
innovative cable extenders are properly fused and do not require any cutting or stripping of wires. If you have
any problems locating this accessory call ProMariner at [phone].
2. Using the ProSport charger as a template or the enclosed paper template, mark the position of each
mounting hole. Insure the mounting screws will not puncture or protrude into a live well, a fuel or oil tank or
the bottom of the boat.
3. Using a 1/8” drill bit, drill pilot holes in the (4) marked locations as described in step 2. Apply a silicon
sealer in each of the mounting locations to waterproof the screw holes.

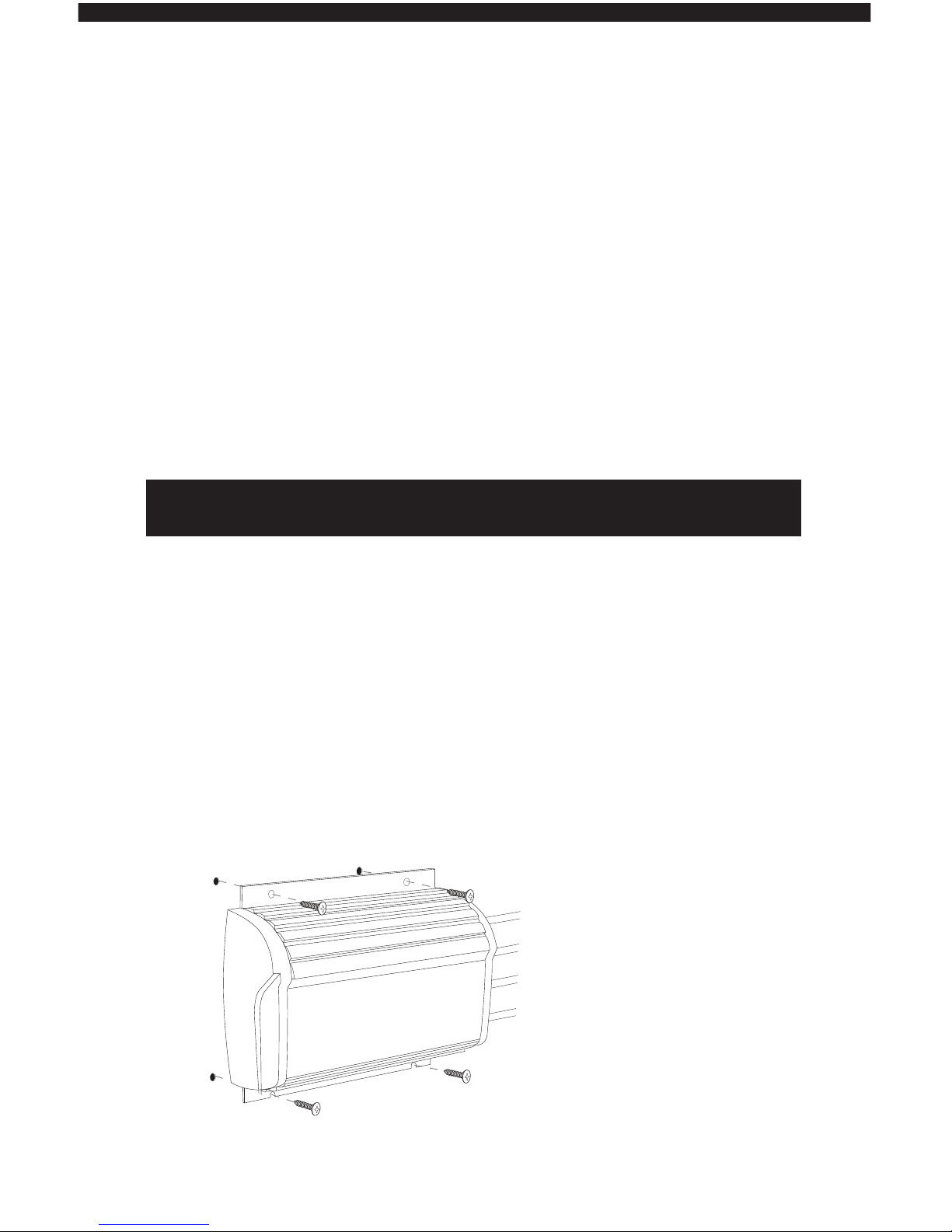

4. Position the charger over the mounting holes and secure with a power screwdriver by installing 4 stainless
steel # 10 screws. (mounting screws not included).
1/8" pilot hole
with silicon sealer
IMPORTANT NOTICE
Confirm the surface you will be
mounting the charger to is
adequate in strength and
thickness to hold the ProSport in
place with the mounting screws
you have selected.
Maintain an obstruction free area
of 8 inches around the ProSport
On-Board Marine Battery Charger
For aluminum boat installation we recommend installing your ProSport Charger on a wood or fiberglass panel
and not directly on the aluminum hull.
INSTALLATION
1/8” pilot hole
with silicon sealer
IMPORTANT NOTICE
Confirm the surface you will be
mounting the charger to is adequate
in strength and thickness to hold the
ProSport in place with the mounting
screws you have selected.
Maintain an obstruction free area of
8inches around the ProSport
On-Board Marine Battery Charger

14
Installation
5. Prepare each battery in advance by cleaning each terminal post with a wire brush until a shiny surface is
obtained.
6. Run cables free from sharp objects and hold each in place with cable ties. Coil excess cable, do not cut
or shorten the length of the cables, as in-line fuses are located 4 inches from the end of each positive (red)
cable. In addition, there are fuses in all but one of the negative (black) leads. These fuses protect the charger
and output cables in the event of a wiring short. We recommend the use of wire ties or cable clamps to
provide strain relief for the cables and to reduce the risk of damage to the cables or connections.
7. Connect the DC output cables as illustrated on pages 16-22. Make sure the (black) wires are connected as
illustrated to the negative side of the battery and the (red) wires are connected to the positive side of the battery.
Important Note: Your ProSport charger will not operate properly if it is not connected properly to each
battery. Reminder, The ProSport and each DC jacketed bank cable must be properly connected to
“individual 12V batteries”. Number of DC jacketed bank cables equals the number of batteries that must
be individually connected. Example: a 3 bank ProSport 20 Three Bank charger must be connected to 3
individual 12V batteries, as illustrated on pages 16-22. Simply choose the illustration that has the same
number of charger output bank cables as your ProSport Battery Charger in hand and wire exactly as
shown (choose the illustration that matches your application) for proper charger operation.
8. Make sure all DC connections are correct, tight, and free from corrosion.
9. Locate the AC power cord in an open-air area of your boat at least 21 inches from the charger, batteries,
and fuel fill lines.
10. Connect a heavy duty UL approved extension cord to the battery charger first. After connecting the
extension cord to the charger, proceed to plug the extension cord to a nearby 120/230 VAC
GFCI protected (Ground Fault Circuit Interrupt) outlet. Always remove the extension cord from the
120/230VAC outlet first when charging is completed, followed by unplugging the charger. You are now
connected and charging your batteries. View the LED indicators.
4 Steps to Wire your ProSport Charger Correctly
STEP 1: Simply choose the illustration that has the same number of charger output bank cables as your
ProSport Battery Charger in hand and wire exactly as shown (choose the illustration that matches your
application) for proper charger operation.
STEP 2: Do not remove your batteries series or parallel jumper cables that interconnect batteries to each
other. ProSport Chargers are designed with isolated outputs and series or parallel jumper cables do not have
to be removed.
STEP 3: Your ProSport charger will not operate properly if it is not connected properly to each battery.
Reminder, the ProSport and each DC jacketed bank cable must be properly connected to “individual 12V
batteries”. Number of DC jacketed bank cables equals the number of batteries that must be individually
connected. Example: a three bank ProSport 20 3 Bank must be connected to 3 individual 12V batteries. As
Illustrated on Pages 16-22. Select your battery / trolling motor configuration for the specific wiring illustration
needed for your charger.
INSTALLATION

15
Installation
STEP 4: Incorrect wiring will result in reverse polarity or high reverse voltage, in the event this happens, the
ProSport Charger has been designed to not fail as a result, however it will cause the charger to “internally
disconnect” and provide “no output” until the (reverse polarity caused by putting the “red” + lead on
a - negative battery terminal) and or the (high reverse DC voltage caused by taking one bank cable and
spreading it across two batteries) is corrected, using the wiring diagrams as shown on pages 16-22. In the
event of a reverse polarity connection or an improper battery connection or if an output is not connected
to a battery the appropriate red battery bank trouble LED will illuminate identifying the battery and wiring
connections where a fault is present. See page 25 for further details.
Installation
When connecting each jacketed battery charger cable, make sure it is connected
to only one 12 VDC battery and observe the polarity and color of all connections:
Red Wire = + (Positive) Battery connection
Black Wire = - (Negative) Battery connection
The black wire can never be connected to a terminal with red wires. Only black.
Important: The pair of red and black wires in 1 cable jacket MUST GO TO THE SAME 12VDC battery.
Each charger cable must
be connected to 1 battery,
just as shown. Observe
black to (-) and red to (+).
Do this for each battery. cable jacket
black (–)
red (+)
Group size 24
thru 31 only
Top View of Battery
+
_
When connecting to an engine start battery only connect the battery bank cable that is LABELED:
“FOR ENGINE BATTERY USE THIS BANK CABLE ONLY”.
Application Tip
If your application is for 4D or 8D large capacity batteries, please refer to ProMariner’s website www.promariner.com and view
our ProNauticP Hardwired Charger Assortment for a model that is correct for this group size of batteries.
INSTALLATION

16
Typical Wiring
Fig. 1 ProSport 15 (OEM only) and 20 Three Bank Charger for 3 12V Batteries
Dedicated 12 VDC Trolling/House Bank and 2 Engine Crank Batteries Typical Configuration
ProSport 20 Plus
Note:
Indicates jumper series
Indicates fuse
For engine battery use
this bank cable only
cable 1
bat 1
Engine Engine 12 VDC Trolling Motor
or House Battery
Top view
of battery
bat 2 bat 3
red red
red
black black
black
cable 2 cable 3
+
_
+ +
_ _
Installation
When connecting each jacketed battery charger cable, make sure it is connected
to only one 12 VDC battery and observe the polarity and color of all connections:
Red Wire = + (Positive) Battery connection
Black Wire = - (Negative) Battery connection
The black wire can never be connected to a terminal with red wires. Only black.
Important: The pair of red and black wires in 1 cable jacket MUST GO TO THE SAME 12VDC battery.
Note 1: One bank cable connects to no more than one battery
Note 2: ProSport is designed to be used with group 24, 27, 30 and 31 batteries
WIRING DIAGRAMS

17
Typical Wiring
Fig. 2 ProSport 15 (OEM only) and 20 Three Bank Charger for 3 12V Batteries
24 VDC Trolling Motor Battery Configuration with (2) 12 VDC Batteries Connected
with a Series Jumper Plus Dedicated 12 VDC Engine Start Battery
For engine battery use
this bank cable only
+
_
+ +
_ _
ProSport 20 Plus
Note:
Indicates jumper series
Indicates fuse
cable 1
bat 1
12 VDC Engine
Crank Battery
Two 12 VDC Batteries connected with a series
jumper for a 24 VDC Trolling Motor
Top view
of battery
bat 2 bat 3
red red
red
black black
black
cable 2 cable 3
Installation
When connecting each jacketed battery charger cable, make sure it is connected
to only one 12 VDC battery and observe the polarity and color of all connections:
Red Wire = + (Positive) Battery connection
Black Wire = - (Negative) Battery connection
The black wire can never be connected to a terminal with red wires. Only black.
Important: The pair of red and black wires in 1 cable jacket MUST GO TO THE SAME 12VDC battery.
Note 1: One bank cable connects to no more than one battery
Note 2: ProSport is designed to be used with group 24, 27, 30 and 31 batteries
WIRING DIAGRAMS
