Zehnder Rittling ComfoAir Luxe Operator's manual

1 - EN
Ventilation system ComfoAir Luxe
User document
Cooling Fresh Air Clean AirHeating
ComfoAir 160
ComfoAir 200
ComfoAir 450
ComfoAir 550
ComfoAir 350
All manuals and user guides at all-guides.com

EN - 2
All rights reserved.
This documentation has been compiled with the utmost care. The publisher cannot be held liable for any damage
caused as a result of missing or incorrect information in this document. In case of dis putes the English version of
these instructions will be binding.

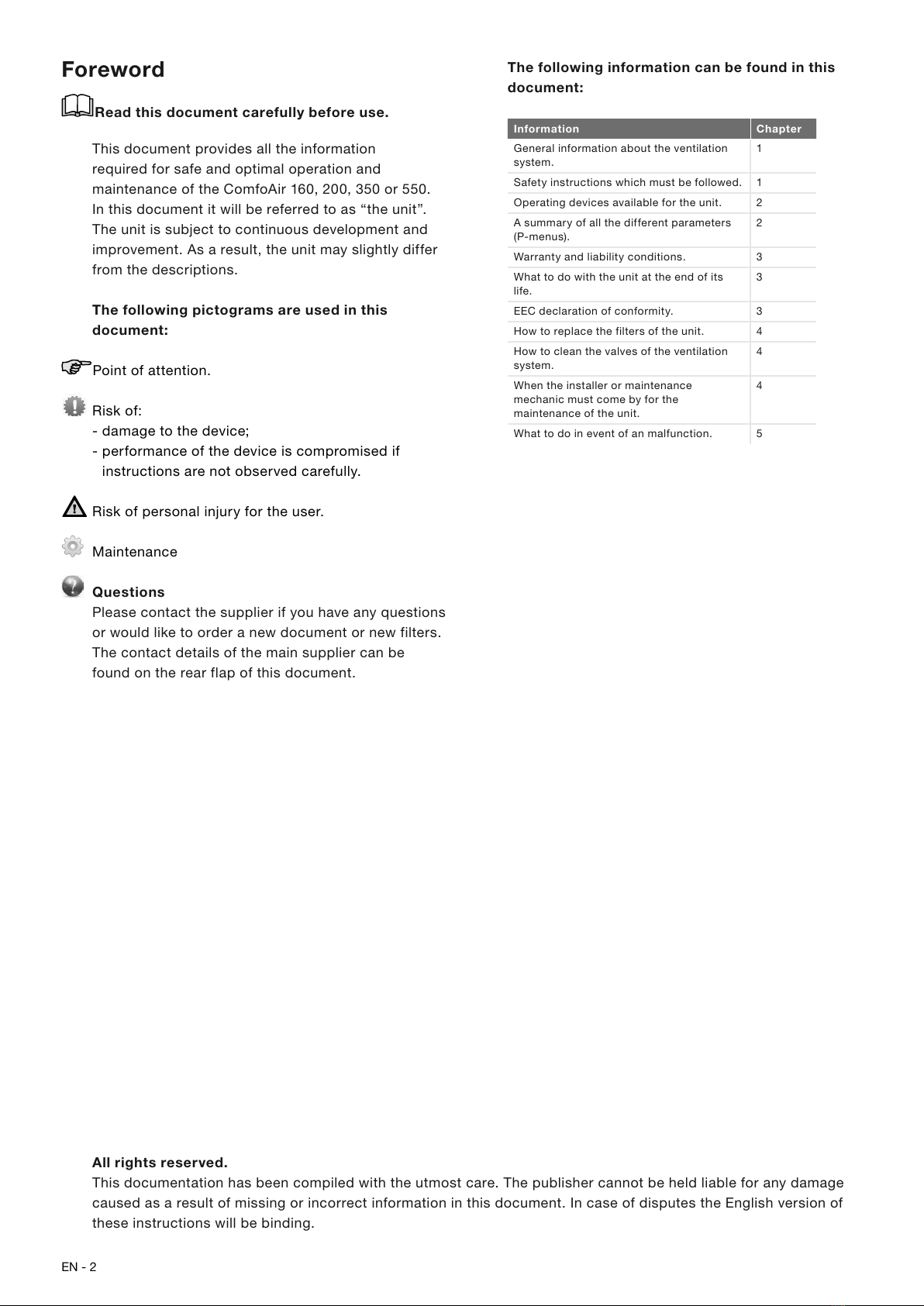

Foreword
Read this document carefully before use.
This document provides all the information
required for safe and optimal operation and
maintenance of the ComfoAir 160, 200, 350 or 550.
In this document it will be referred to as “the unit”.
The unit is subject to continuous development and
improvement. As a result, the unit may slightly differ
from the descriptions.
The following pictograms are used in this
document:
Point of attention.
Risk of:
- damage to the device;
- performance of the device is compromised if
instructions are not observed carefully.
Risk of personal injury for the user.
Maintenance
Questions
Please contact the supplier if you have any questions
or would like to order a new document or new filters.
The contact details of the main supplier can be
found on the rear flap of this document.
The following information can be found in this
document:
Information Chapter
General information about the ventilation
system.
1
Safety instructions which must be followed. 1
Operating devices available for the unit. 2
A summary of all the different parameters
(P-menus).
2
Warranty and liability conditions. 3
What to do with the unit at the end of its
life.
3
EEC declaration of conformity. 3
How to replace the filters of the unit. 4
How to clean the valves of the ventilation
system.
4
When the installer or maintenance
mechanic must come by for the
maintenance of the unit.
4
What to do in event of an malfunction. 5
All manuals and user guides at all-guides.com

3 - EN
Table of Contents
Foreword ................................................................................................................................................................... 2
1 Introduction and safety ............................................................................................................................................5
2 Operation ..................................................................................................................................................................6
2.1 Available operating devices .................................................................................................................................6
2.2 P menus for the user ...........................................................................................................................................7
3 CE certification and warranty ................................................................................................................................. 8
4 Maintenance ....................................................................................................................................................... 9
4.1 Cleaning or replacing the filters ....................................................................................................................9

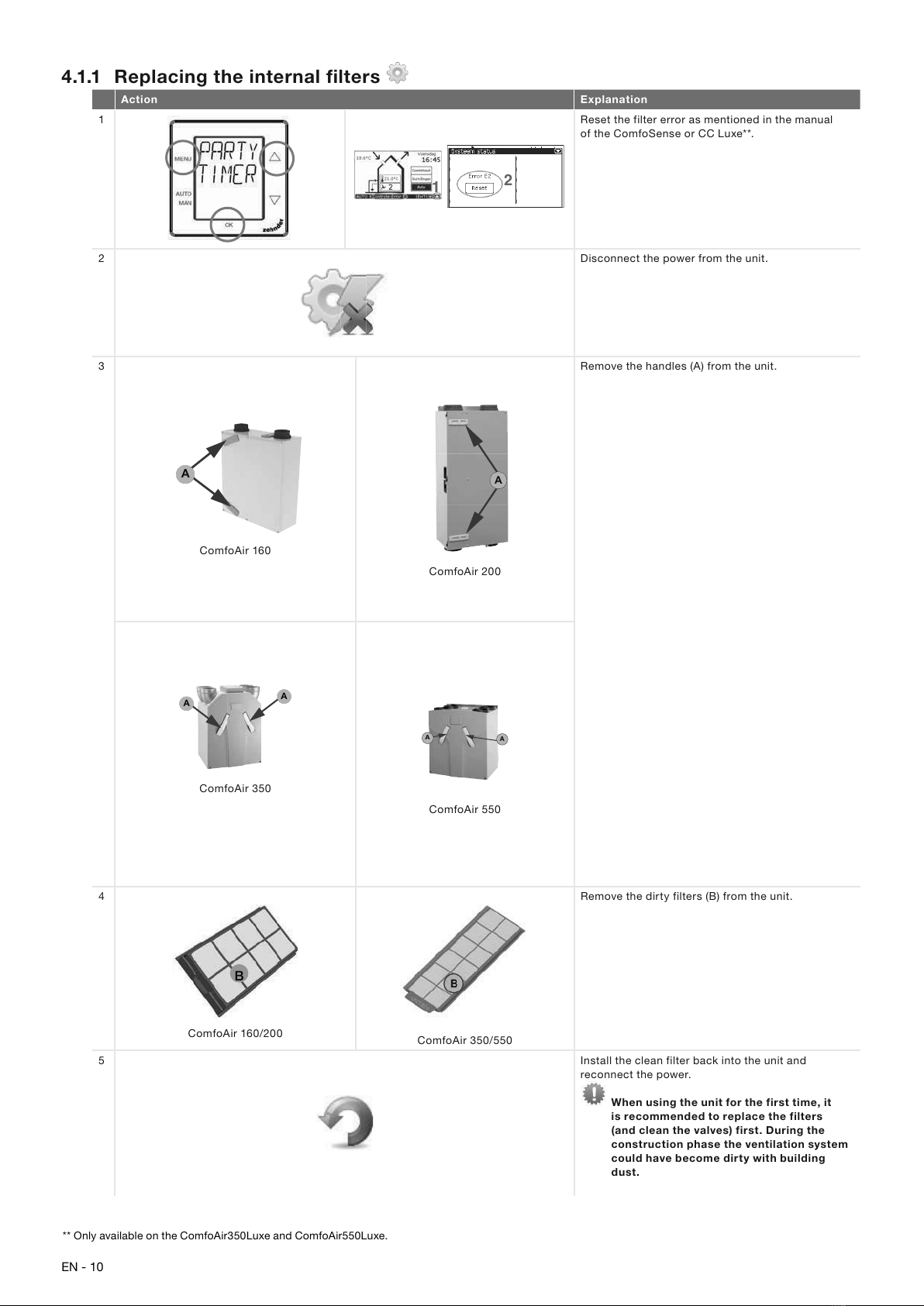

4.1.1 Replacing the internal filters ................................................................................................................ 10
4.1.2 Cleaning the internal filters ................................................................................................................. 11
4.1.3 Replacing or cleaning the external filter .............................................................................................. 11
4.2 Cleaning the valve ....................................................................................................................................... 11
4.3 Condensation drain ..................................................................................................................................... 11
4.4 Maintenance by the installer or maintenance mechanic .............................................................................. 11
5 Malfunctions ........................................................................................................................................................... 11

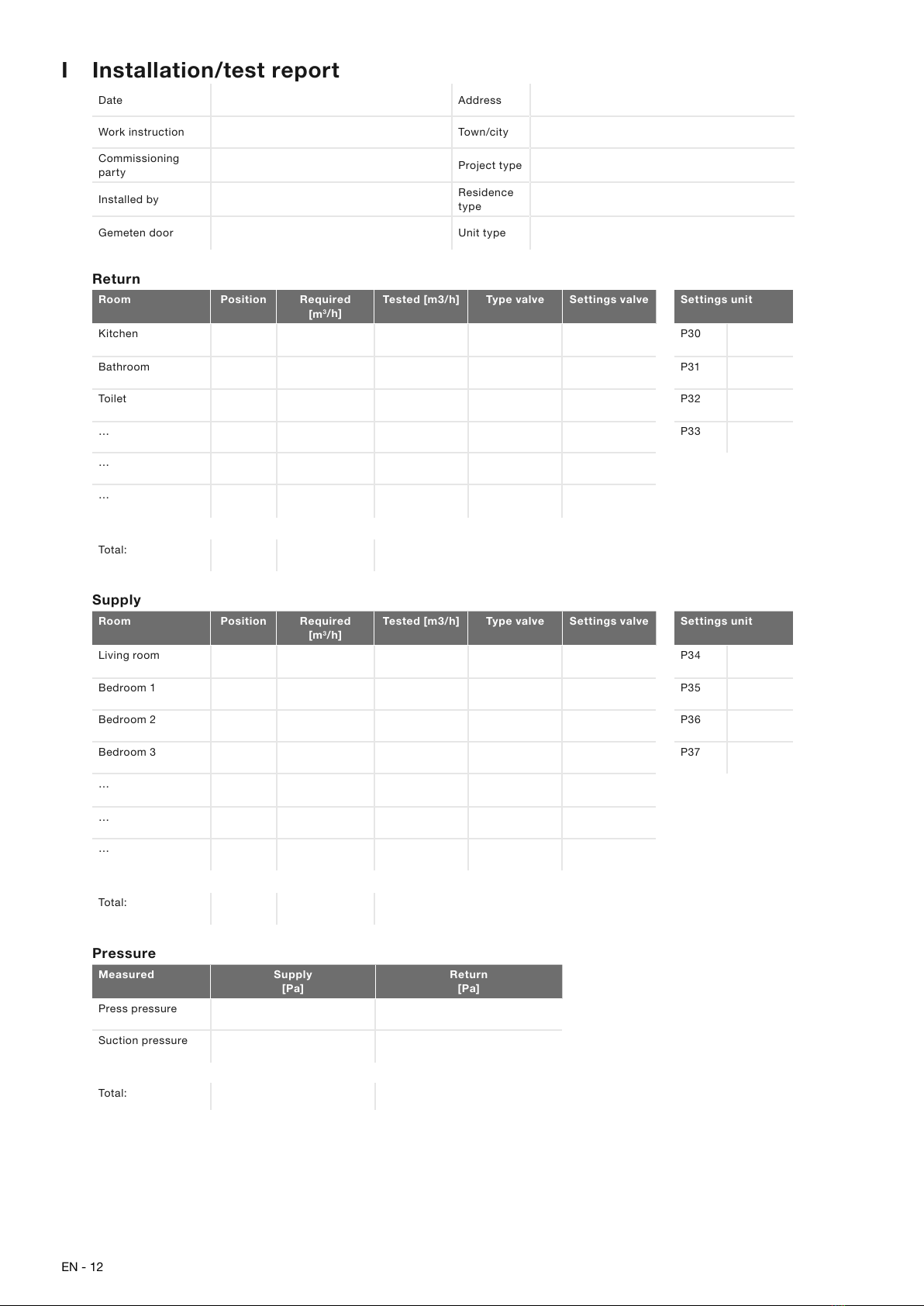

I Commissioning & Inspection Record ................................................................................................................... 12

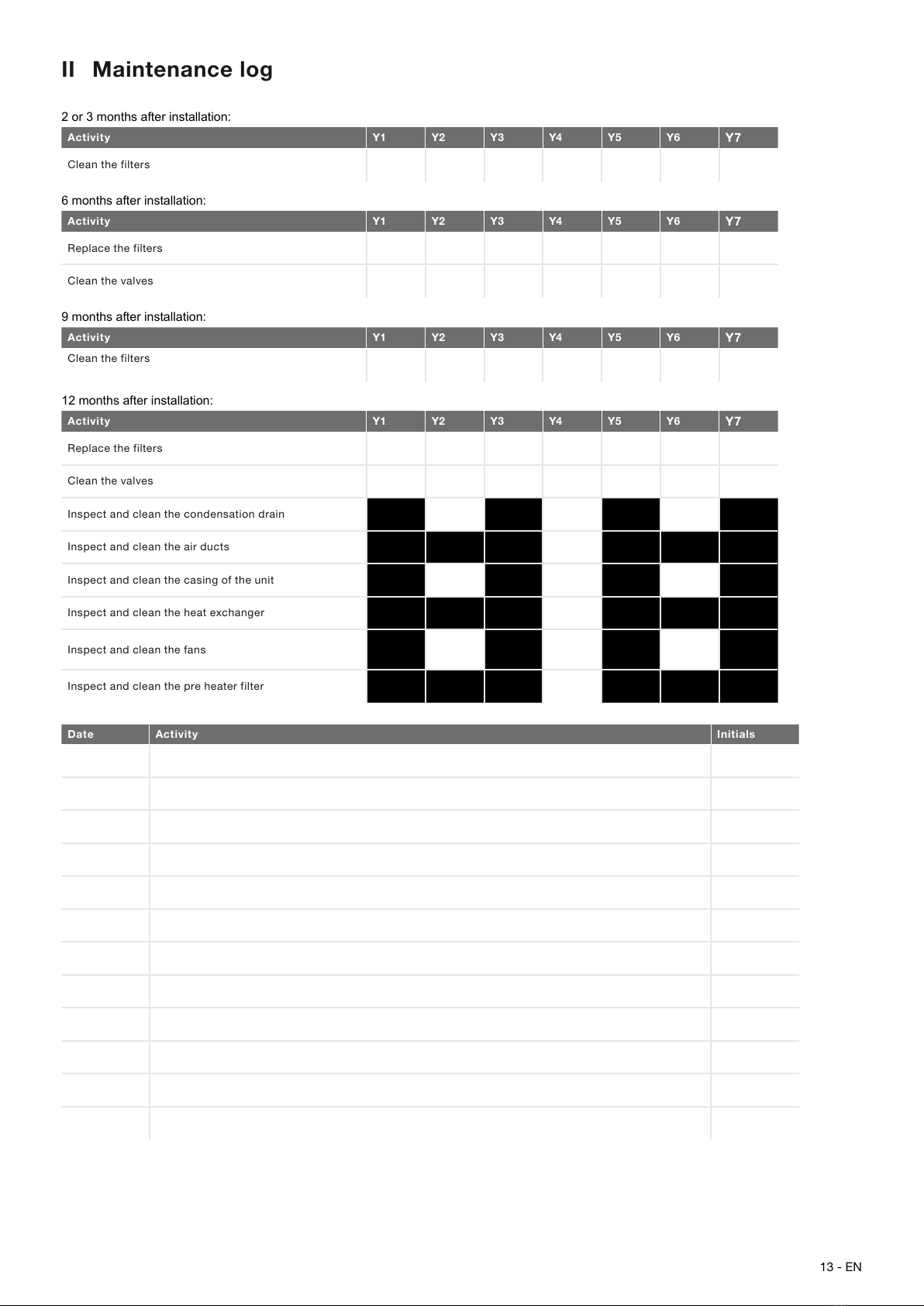

II Maintenance log ..................................................................................................................................................... 13
All manuals and user guides at all-guides.com

EN - 4
All manuals and user guides at all-guides.com

5 - EN
1 Introduction and safety
The unit is a balanced ventilation system with heat
recovery in order to create energy-efficient ventilation
in houses. Balanced ventilation means that pollutants
from the kitchen, the bathroom, the toilet(s) and
possibly the storage room are extracted, while the
same amount of fresh air is blown into the living room
and bedrooms. Gaps under or near the doors ensure
a good through-flow in the dwelling.
Ensure that the gaps under or near the door are
never obstructed. For example by furniture,
draught excluders or deep-pile carpet.
A balanced ventilation system consists of:
The unit (A);
Duct system for the supply of outdoor air (B);
Duct system for the exhaust of indoor air (C);
Supply valves in the living room and bedrooms (D);
Exhaust valves in the kitchen, bathroom, the toilet
and (if present) the storage room (E).
Safety instructions
Always follow the safety regulations, warnings,
comments and instructions given in this document.
Personal injury or damage to the unit can arise from
non-compliance with the safety regulations, warnings,
comments and instructions in this document.
It is recommended to take out a maintenance
contract so that the device is checked on a regular
basis. The supplier can provide a list of registered
installers nearby;
The unit may only be installed, connected,
rendered operational and maintained by an
appropriately approved installer, unless otherwise
indicated in this document;
Store the document for the entire working life of
the unit;
Instructions with regard to cleaning or replacing
the filters must be carefully observed;
When carrying out any work on the unit, make
sure the power is disconnected and cannot be
inadvertently reconnected;
The unit cannot be opened without
using tools.
A
DD
E
E
E
D
B
C
All manuals and user guides at all-guides.com

EN - 6
** Only available on the ComfoAir350Luxe, ComfoAir450Luxe and ComfoAir550Luxe.
2 Operation
How to use and read the operating devices of the unit is mentioned in the document of the operating device.

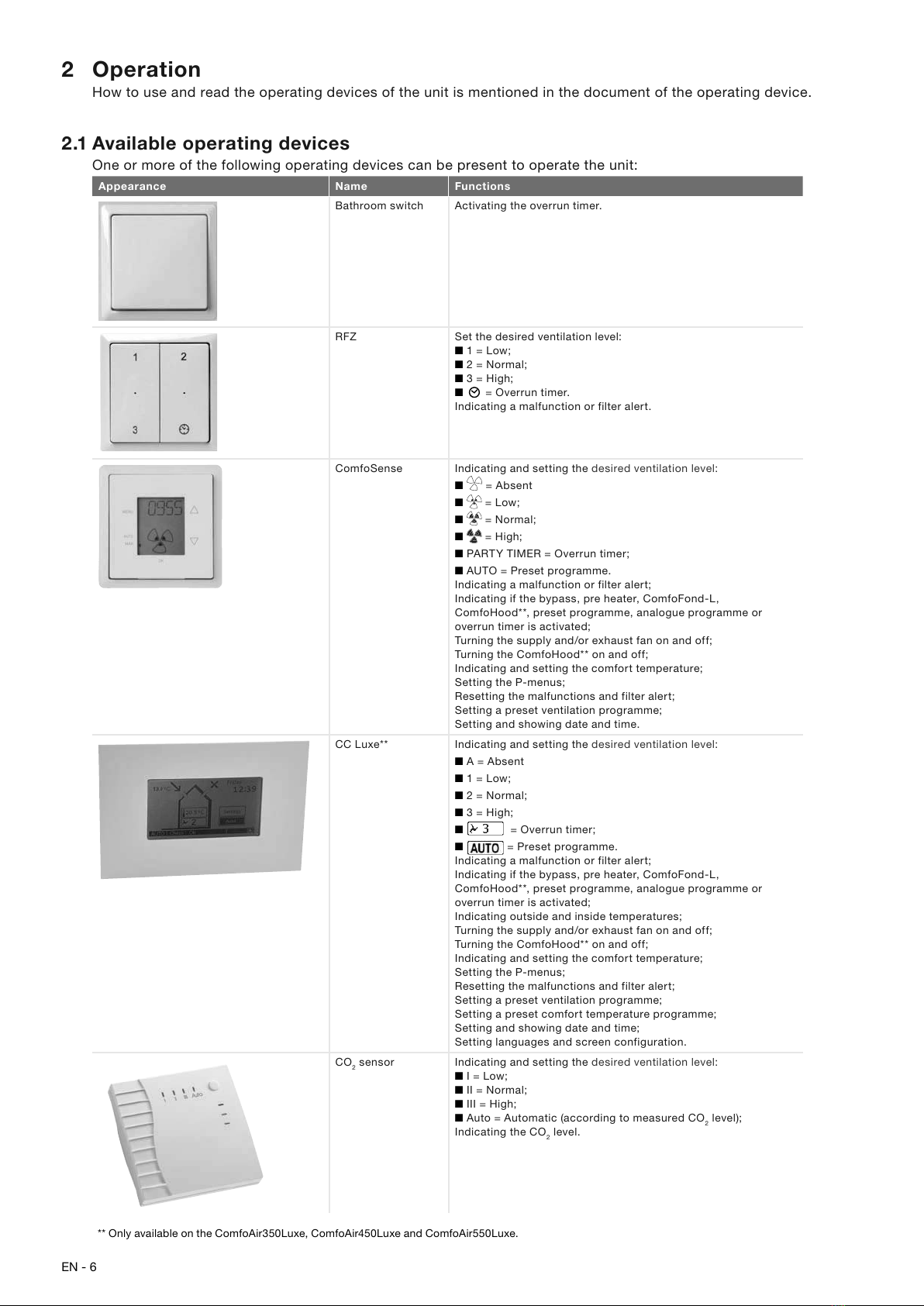

2.1 Available operating devices
One or more of the following operating devices can be present to operate the unit:
Appearance Name Functions
Bathroom switch Activating the overrun timer.
RFZ Set the desired ventilation level:
■ 1 = Low;
■ 2 = Normal;
■ 3 = High;
■ = Overrun timer.
Indicating a malfunction or filter alert.
ComfoSense Indicating and setting the desired ventilation level:
■ = Absent
■ = Low;
■ = Normal;
■ = High;
■ PARTY TIMER = Overrun timer;
■ AUTO = Preset programme.
Indicating a malfunction or filter alert;
Indicating if the bypass, pre heater, ComfoFond-L,
ComfoHood**, preset programme, analogue programme or
overrun timer is activated;
Turning the supply and/or exhaust fan on and off;
Turning the ComfoHood** on and off;
Indicating and setting the comfort temperature;
Setting the P-menus;
Resetting the malfunctions and filter alert;
Setting a preset ventilation programme;
Setting and showing date and time.
CC Luxe** Indicating and setting the desired ventilation level:
■ A = Absent
■ 1 = Low;
■ 2 = Normal;
■ 3 = High;
■ = Overrun timer;
■ = Preset programme.
Indicating a malfunction or filter alert;
Indicating if the bypass, pre heater, ComfoFond-L,
ComfoHood**, preset programme, analogue programme or
overrun timer is activated;
Indicating outside and inside temperatures;
Turning the supply and/or exhaust fan on and off;
Turning the ComfoHood** on and off;
Indicating and setting the comfort temperature;
Setting the P-menus;
Resetting the malfunctions and filter alert;
Setting a preset ventilation programme;
Setting a preset comfort temperature programme;
Setting and showing date and time;
Setting languages and screen configuration.
CO2 sensor Indicating and setting the desired ventilation level:
■ I = Low;
■ II = Normal;
■ III = High;
■ Auto = Automatic (according to measured CO2 level);
Indicating the CO2 level.
All manuals and user guides at all-guides.com

7 - EN
2.2 P menus for the user
A summary of all the accessible P-menus is given
below.
Menu P1 > Status of time programmes
Status
Submenu Description Activated
P10** Is menu P20 currently
active?
Yes (1) / No (0)
P11 Is menu P21 currently active? Yes (1) / No (0)
P12 Is menu P22 currently
active?
Yes (1) / No (0)
P13 Is menu P23 currently
active?
Yes (1) / No (0)
P14 Is menu P24 currently active? Yes (1) / No (0)
P15 Is menu P25 currently active? Yes (1) / No (0)
P16 Is menu P26 currently
active?
Yes (1) / No (0)
P19** Is menu P29 currently
active?
Yes (1) / No (0)
Menu P9 > Status of additional programmes
Status
Submenu Description Activated
P90 Open fire programme active? Yes (1) / No (0)
P91 Bypass open? Yes (1) / No (0)
P92** ComfoFond-L** valve open? Yes (1) / No (0)
P93** Post heater on? Yes (1) / No (0)
P94 Analogue input (0-10V)
active?
Yes (1) / No (0)
P95 Frost protection or pre
heater active?
Yes (1) / No (0)
P96** ComfoHood** on? Yes (1) / No (0)
P99 Enthalpy programme active? Yes (1) / No (0)
Menu P2 > Setting time delays
Time delay values
Submenu Description Minimum Maximum General
reset
P20**
Only applies to systems
fitted with a ComfoHood**.
Overrun timer for the ComfoHood** programme.
■ ’x’ minutes after operating the ComfoHood** switch the
unit reverts back to the normal setting.
0 Min. 180 Min. 0 Min.
P21 Delay timer for the bathroom switch (to switch to high
position).
■ ‘x‘ minutes after operating the bathroom switch,
the unit switches to the high setting.
0 Min. 15 Min. 0 Min.
P22 Overrun timer for the bathroom switch (to switch to normal
position).
■ ‘x‘ minutes after operating the bathroom switch, the unit
switches back to the normal setting.
0 Min. 120 Min. 30 Min.
P23 n/a 0 Min. 120 Min. 0 Min.
P24 Filter warning
■ ‘x’ weeks after cleaning the filters the “filter dirty” alert
will reappear.
10 weeks 26 weeks 16 weeks
P25
Only applies to systems
fitted with an RFZ swith.
Overrun timer for ventilation setting 3 (using ).
■ After pressing briefly (< 2 sec.), the unit will switch to
the high setting for ‘x’ minutes and then
automatically returns to the normal setting.
If any switch is operated during this lagging time the unit will
instantly revert to the ventilation position as set at that time.
1 Min. 20 Min. 10 Min.
P26
Only applies to systems
fitted with an RFZ swith.
Overrun timer for ventilation setting 3 (using ).
■ After pressing continously (> 2 sec.), the
unit will switch to the high setting for ‘x’ minutes and then
automatically returns to the normal setting.
If any switch is operated during this lagging time the unit will
instantly revert to the ventilation position as set at that time.
1 Min. 120 Min. 30 Min.
P27
Only applies to systems
fitted with a ComfoSense
or CC Luxe**.
Time for the boost setting.
■ After pressing on the CC Luxe** or after
turning on the PARTY TIMER on the ComfoSense, the
unit will switch to the high setting for ‘x’ minutes and then
automatically returns to the normal setting.
If any switch is operated during this lagging time the unit will
instantly revert to the ventilation position as set at that time.
0 Min. 120 Min. 30 Min.
P29**
Only applies to systems
fitted with a ComfoHood**.
Setting the ComfoHood** ventilation levels.
■ When the ComfoHood** is switched on the ComfoHood**
ventilation settings can be set x-% higher than the
corresponding ‘normal’ ventilation levels.
1% 99% 10%
** Only available on the ComfoAir350Luxe and ComfoAir550Luxe.
All manuals and user guides at all-guides.com

EN - 8
CE certification
Zehnder Group Nederland B.V.
Lingenstraat 2 • 8028 PM Zwolle-NL
T [phone] • F [phone]
Company register Zwolle 05022293
EEC declaration of conformity
Machine description Heat recovery units: ComfoAir 160, 200, 350, 550 series
Complies with the following directives Machinery Directive (2006/42/EEC)
Low Voltage Directive (2006/95/EEC)
EMC Directive (2004/108/EEC)
Zwolle, 15-01-2014
Zehnder Group Nederland B.V.
O. Schulte,
Director Production Zwolle
3 CE certification and warranty
Warranty conditions
The unit is covered by a manufacturer’s warranty for
a period of 24 months after fitting up to a maximum
of 30 months after the date of manufacture. Warranty
claims may only be submitted for material faults and/
or construction faults arising during the warranty
period. In the case of a warranty claim, the unit
must not be dismantled without written permission
from the manufacturer. Spare parts are only covered
by the warranty, if they were supplied by the
manufacturer and have been installed by an
approved installer.
The warranty becomes invalid if:
The guarantee period has elapsed;
The device is used without filters;
Parts are used that have not been supplied by the
manufacturer;
Non-authorised changes or modifications have
been made to the unit.
Installation has not been carried out
according to the applicable regulations;
The defects are due to incorrect connection,
inexpert use, or contamination of the system;
On-site (dis)assembly costs are not covered by the
terms of the warranty. This also applies to normal
wear and tear. Zehnder retains the right to change
the construction and/or configuration of its products
at any time without being obliged to alter previously
delivered products.
Liability
The unit has been designed and manufactured for
use in balanced ventilation systems incorporating
Zehnder heat recovery systems. Any other
application is seen as inappropriate use and can
result in damage to the unit or personal injury, for
which the manufacturer cannot be held liable. The
manufacturer is not liable for any damage originating
from:
Non-compliance with the safety, operating and
maintenance instructions in this document;
The use of components not supplied or
recommended by the manufacturer.
Responsibility for the use of such
components lies entirely with the installer;
Normal wear and tear.
End of useful life
Consult with the supplier about what should be
done with the unit at the end of its useful life. If
the unit cannot be returned to the supplier, avoid
disposing of it with the domestic waste, and ask
your local council about the options for recycling
the components or processing the materials in an
environmentally friendly manner.
Furthermore, do not dispose of batteries from the
wireless (RF) switches with the normal waste, but
bring them to the specially designated disposal
locations.
All manuals and user guides at all-guides.com

9 - EN

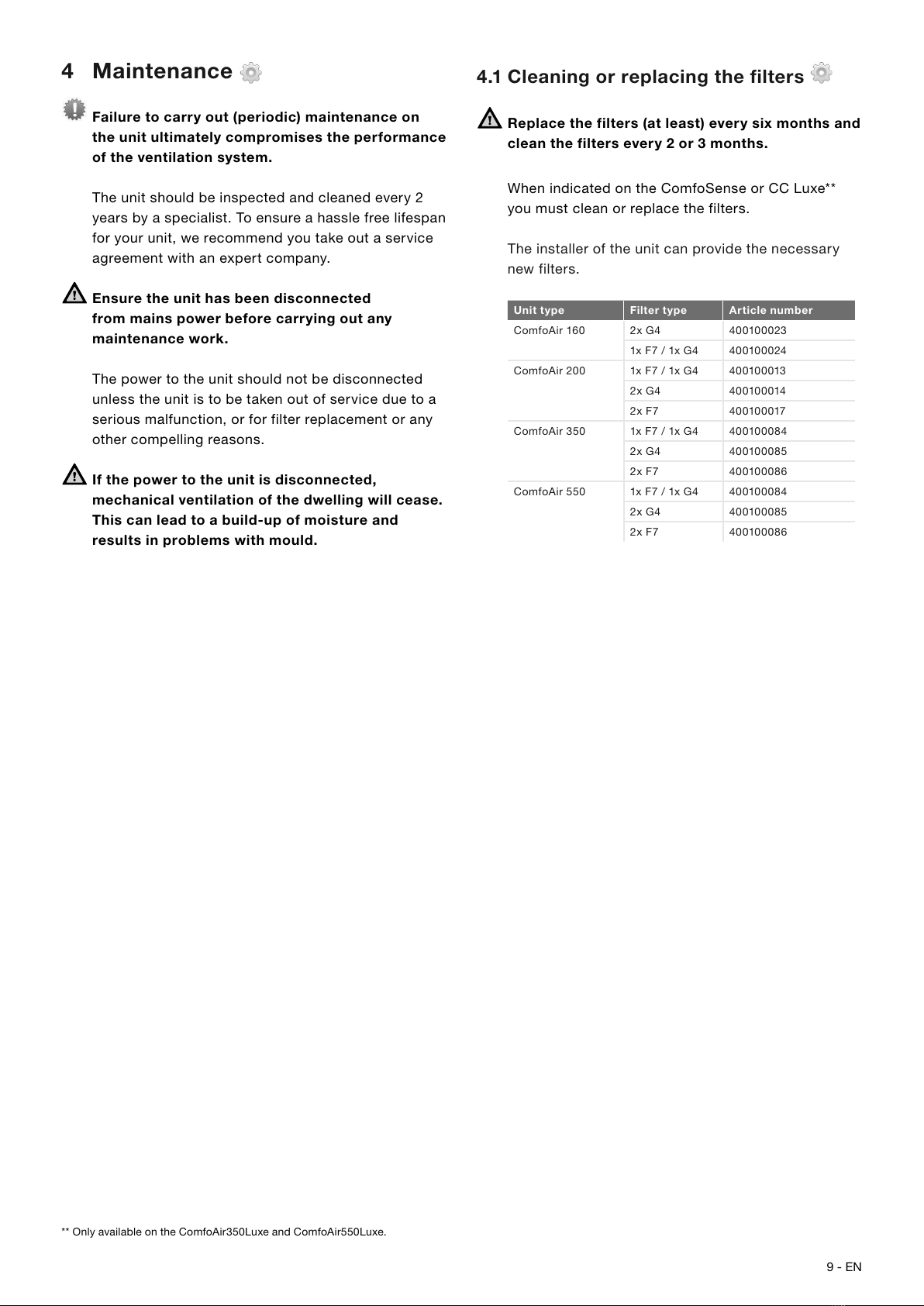

4 Maintenance
Failure to carry out (periodic) maintenance on
the unit ultimately compromises the performance
of the ventilation system.
The unit should be inspected and cleaned every 2
years by a specialist. To ensure a hassle free lifespan
for your unit, we recommend you take out a service
agreement with an expert company.
Ensure the unit has been disconnected
from mains power before carrying out any
maintenance work.
The power to the unit should not be disconnected
unless the unit is to be taken out of service due to a
serious malfunction, or for filter replacement or any
other compelling reasons.
If the power to the unit is disconnected,
mechanical ventilation of the dwelling will cease.
This can lead to a build-up of moisture and
results in problems with mould.
4.1 Cleaning or replacing the filters
Replace the filters (at least) every six months and
clean the filters every 2 or 3 months.
When indicated on the ComfoSense or CC Luxe**
you must clean or replace the filters.
The installer o f the unit can provide the necessary
new filters.
Unit type Filter type Article number
ComfoAir 160 2x G4 400100023
1x F7 / 1x G4 400100024
ComfoAir 200 1x F7 / 1x G4 400100013
2x G4 400100014
2x F7 400100017
ComfoAir 350 1x F7 / 1x G4 400100084
2x G4 400100085
2x F7 400100086
ComfoAir 550 1x F7 / 1x G4 400100084
2x G4 400100085
2x F7 400100086
** Only available on the ComfoAir350Luxe and ComfoAir550Luxe.
All manuals and user guides at all-guides.com

EN - 10
4.1.1 Replacing the internal filters
Action Explanation
1
1
2
Reset the filter error as mentioned in the manual
of the ComfoSense or CC Luxe**.
2Disconnect the power from the unit.
3
A
ComfoAir 160
A
ComfoAir 200
Remove the handles (A) from the unit.
A
A
ComfoAir 350
AA
ComfoAir 550
4
B
ComfoAir 160/200 ComfoAir 350/550
Remove the dirty filters (B) from the unit.
5Install the clean filter back into the unit and
reconnect the power.
When using the unit for the first time, it
is recommended to replace the filters
(and clean the valves) first. During the
construction phase the ventilation system
could have become dirty with building
dust.
** Only available on the ComfoAir350Luxe and ComfoAir550Luxe.
All manuals and user guides at all-guides.com

11 - EN

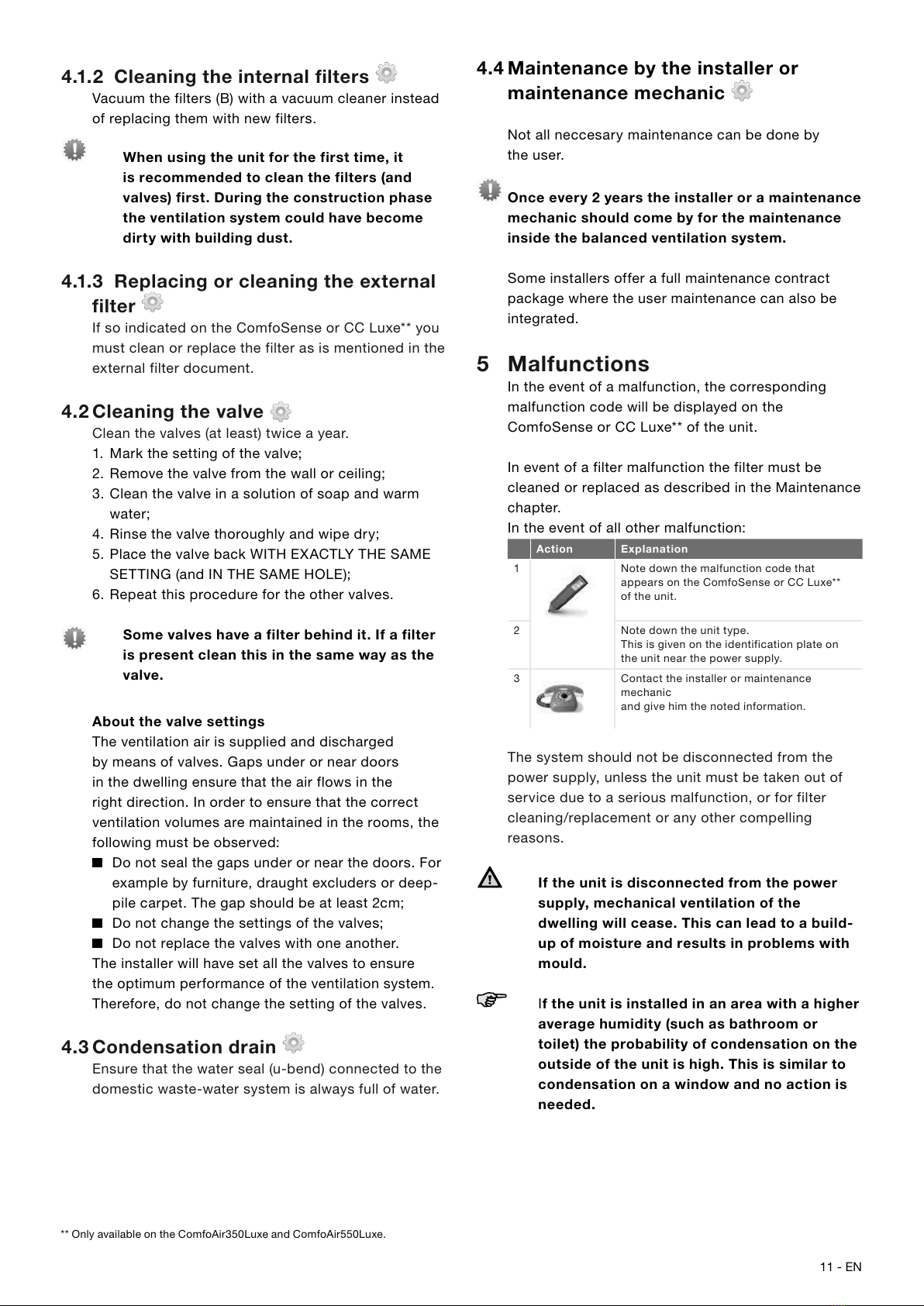

4.1.2 Cleaning the internal filters
Vacuum the filters (B) with a vacuum cleaner instead
of replacing them with new filters.
When using the unit for the first time, it
is recommended to clean the filters (and
valves) first. During the construction phase
the ventilation system could have become
dirty with building dust.
4.1.3 Replacing or cleaning the external
filter
4.1.3 Replacing or cleaning the external
If so indicated on the ComfoSense or CC Luxe** you
must clean or replace the filter as is mentioned in the
external filter document.
4.2 Cleaning the valve
Clean the valves (at least) twice a year.
1. Mark the setting of the valve;
2. Remove the valve from the wall or ceiling;
3. Clean the valve in a solution of soap and warm
water;
4. Rinse the valve thoroughly and wipe dry;
5. Place the valve back WITH EXACTLY THE SAME
SETTING (and IN THE SAME HOLE);
6. Repeat this procedure for the other valves.
Some valves have a filter behind it. If a filter
is present clean this in the same way as the
valve.
About the valve settings
The ventilation air is supplied and discharged
by means of valves. Gaps under or near doors
in the dwelling ensure that the air flows in the
right direction. In order to ensure that the correct
ventilation volumes are maintained in the rooms, the
following must be observed:
Do not seal the gaps under or near the doors. For
example by furniture, draught excluders or deep-
pile carpet. The gap should be at least 2cm;
Do not change the settings of the valves;
Do not replace the valves with one another.
The installer will have set all the valves to ensure
the optimum performance of the ventilation system.
Therefore, do not change the setting of the valves.
4.3 Condensation drain
Ensure that the water seal (u-bend) connected to the
domestic waste-water system is always full of water.
4.4 Maintenance by the installer or
maintenance mechanic
Not all neccesary maintenance can be done by
the user.
Once every 2 years the installer or a maintenance
mechanic should come by for the maintenance
inside the balanced ventilation system.
Some installers offer a full maintenance contract
package where the user maintenance can also be
integrated.
5 Malfunctions
In the event of a malfunction, the corresponding
malfunction code will be displayed on the
ComfoSense or CC Luxe** of the unit.
In event of a filter malfunction the filter must be
cleaned or replaced as described in the Maintenance
chapter.
In the event of all other malfunction:
Action Explanation
1Note down the malfunction code that
appears on the ComfoSense or CC Luxe**
of the unit.
2Note down the unit type.
This is given on the identification plate on
the unit near the power supply.
3Contact the installer or maintenance
mechanic
and give him the noted information.
The system should not be disconnected from the
power supply, unless the unit must be taken out of
service due to a serious malfunction, or for filter
cleaning/replacement or any other compelling
reasons.
If the unit is disconnected from the power
supply, mechanical ventilation of the
dwelling will cease. This can lead to a build-
up of moisture and results in problems with
mould.
I f the unit is installed in an area with a higher
average humidity (such as bathroom or
toilet) the probability of condensation on the
outside of the unit is high. This is similar to
condensation on a window and no action is
needed.
** Only available on the ComfoAir350Luxe and ComfoAir550Luxe.
All manuals and user guides at all-guides.com

EN - 12
I Installation/test report
Date Address
Work instruction Town/city
Commissioning
party Project type
Installed by Residence
type
Gemeten door Unit type
Return
Room Position Required
[m3/h]
Tested [m3/h] Type valve Settings valve Settings unit
Kitchen P30
Bathroom P31
Toilet P32
…P33
…
…
Total:
Supply
Room Position Required
[m3/h]
Tested [m3/h] Type valve Settings valve Settings unit
Living room P34
Bedroom 1 P35
Bedroom 2 P36
Bedroom 3 P37
…
…
…
Total:
Pressure
Measured Supply
[Pa]
Return
[Pa]
Press pressure
Suction pressure
Total:
All manuals and user guides at all-guides.com

13 - EN
II Maintenance log
2 or 3 months after installation:
Activity Y1 Y2 Y3 Y4 Y5 Y6 Y7
Clean the filters
6 months after installation:
Activity Y1 Y2 Y3 Y4 Y5 Y6 Y7
Replace the filters
Clean the valves
9 months after installation:
Activity Y1 Y2 Y3 Y4 Y5 Y6 Y7
Clean the filters
12 months after installation:
Activity Y1 Y2 Y3 Y4 Y5 Y6 Y7
Replace the filters
Clean the valves
Inspect and clean the condensation drain
Inspect and clean the air ducts
Inspect and clean the casing of the unit
Inspect and clean the heat exchanger
Inspect and clean the fans
Inspect and clean the pre heater filter
Date Activity Initials
All manuals and user guides at all-guides.com

EN - 14

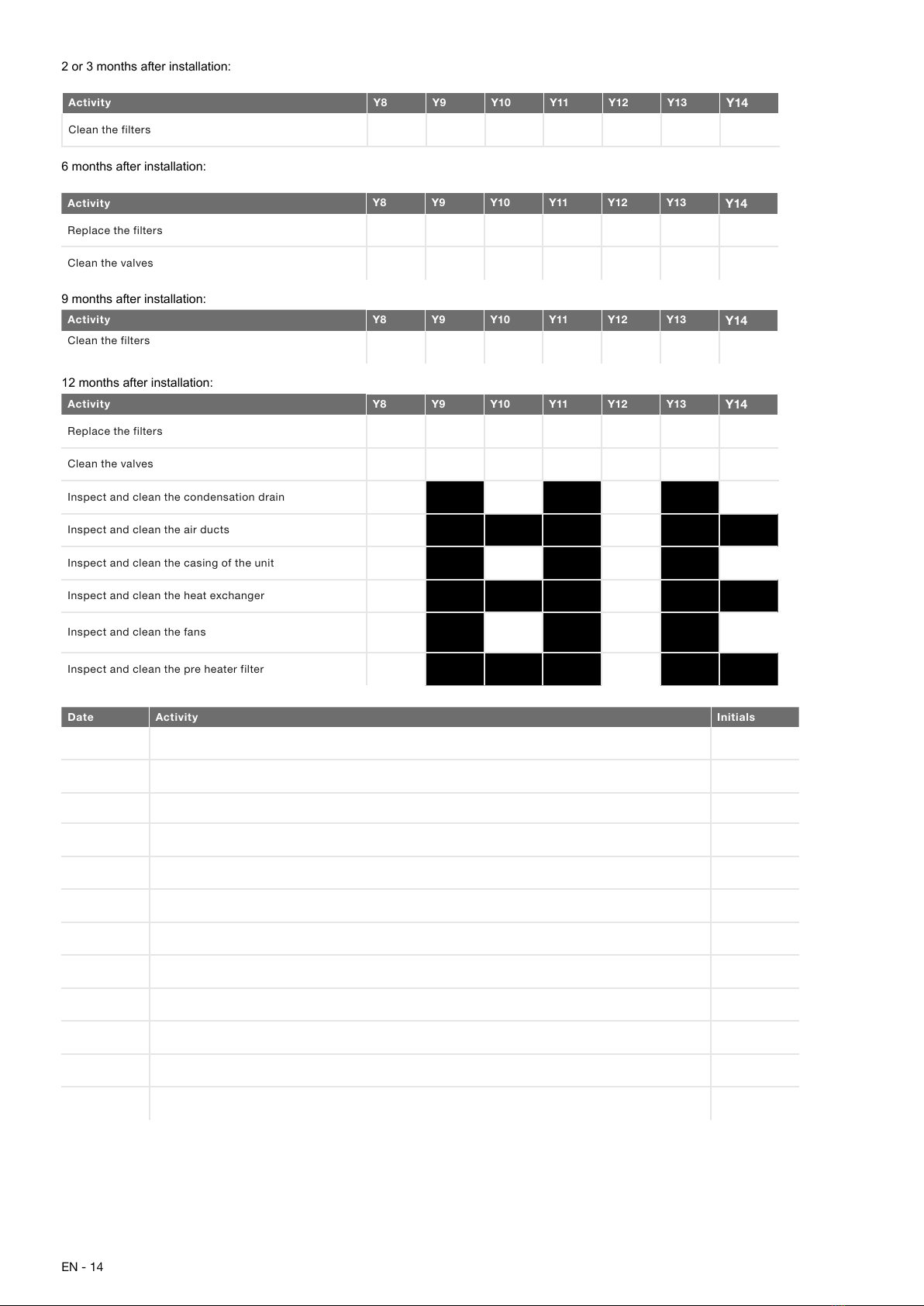

2 or 3 months after installation:
Activity Y8 Y9 Y10 Y11 Y12 Y13 Y14
Clean the filters
6 months after installation:
Activity Y8 Y9 Y10 Y11 Y12 Y13 Y14
Replace the filters
Clean the valves
9 months after installation:
Activity Y8 Y9 Y10 Y11 Y12 Y13 Y14
Clean the filters
12 months after installation:
Activity Y8 Y9 Y10 Y11 Y12 Y13 Y14
Replace the filters
Clean the valves
Inspect and clean the condensation drain
Inspect and clean the air ducts
Inspect and clean the casing of the unit
Inspect and clean the heat exchanger
Inspect and clean the fans
Inspect and clean the pre heater filter
Date Activity Initials
All manuals and user guides at all-guides.com

15 - EN
All manuals and user guides at all-guides.com

Zehnder Group Nederland B.V.
Lingenstraat 2 · 8028 PM · Postbus 621 · 8000 AP Zwolle
T [phone] · F [phone]
[e-mail] ∙ www.zehnder.nl
ZGNL-Manual_40002051, V0117, EN, Subject to change
All manuals and user guides at all-guides.com
