1. PURPOSE
Promix-SM132 series electromechanical mortise locks with a ball locking mechanism
(hereinafter referred to as the locks) are intended for locking retail space and office furniture
which can be opened remotely by supplying DC power voltage by means of switches (buttons) or
controllers of access monitoring and control systems, audio and video intercoms, code panels or
other devices.
2. LABELING
The label attached to the lock body contains the following information:
1. Lock model
2. Nominal supply voltage
3. Nominal consumed current
4. Date of manufacture and QCD mark
5. Identification number
6. Manufacturer’s website
Promix-SM132.10
Supply voltage:
0–12V
Design:
1 –normally closed

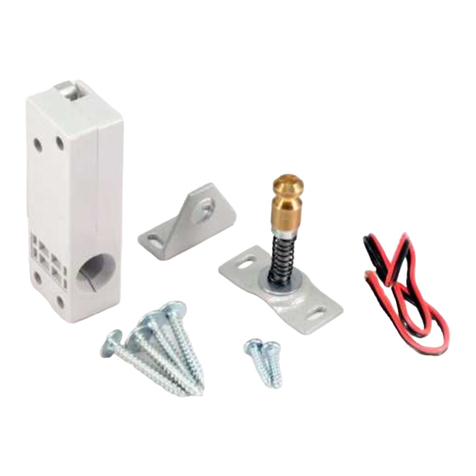

3. SCOPE OF DELIVERY
1 –Promix-SM132 lock
1 pc.
2 –Promix-AD.DB.26 latch
1 pc.
3 –Self-tapping screw 2.5х16
(countersunk)
4 pcs.
4
manufacturing engineering center
An example of information
layout on the label
MADE IN
RUSSIA
ELECTROMECHANICAL LOCK
1
5, 6
2, 3

Promix-SM132
2
4. DESIGN AND PRINCIPLE OF OPERATION
Locks are manufactured with a normally-closed design (hereinafter referred to as NC). NC
lock is in the closed state when no voltage is supplied and in the open state when power is
supplied to the lock.
5. TECHNICAL DATA
5.1 OPERATING CONDITIONS
The lock operation environment must be explosion-safe, free of current-conducting dust or
gases that cause metal corrosion and destroying insulation of current conductors and electric
elements, free of current-carrying dust or water vapor, and preventing ingress of water, steam,
fuel and lubricants.
Climatic operating conditions: У3.1 as per GOST 15150-69 with extended temperature range:
 Ambient temperature: -30 to +50 °С;
 Relative air humidity: not higher than 98 % at 25 °С or lower temperatures without moisture
condensation and hoar-frost formation;
 Installation indoors or outdoors excluding ingress of moisture, dust, dirt,etc. inside the lock.
5.2 TECHNICAL DATA
Modification
Promix-SM132.10
Design
normally closed
DC supply voltage U, V
12±2
Current consumed, А
0.1 (at 12V)
Availability of sensors
-
Supply pulse width (max.), s
not rated
Fig. 2. Promix-SM.132 lock overall and mounting
dimensions
Fig. 1. Promix-AD.DB.26 latch overall and mounting
dimensions

Promix-SM132
3
See operating voltage range in clause 5.2. Avoid supply of increased voltage.
Ensure a reliable electric contact. To prevent short-circuit, insulate places of
connection.
Minimum pause between
pulses, s
not rated
Lock weight ( max. ), kg
0.02
Latch holding force ( min. ), kg
100
6. INSTALLATION AND CONNECTION
6.1 LOCK AND LATCH MOUNTING
1. Install the latch in the area designedfor installation.
2. Insert the latch into the lock and fix the lock so that the latch entersit until click.
3. Connect the lock (see cl. 6.2) and function test by applying supply voltage. The lock must
unlock the latch. Open the door so that the latch disengages with the lock.
4. If the latch is not unlocked when power is supplied, push the door in the area of lock fixation
and apply voltage. Then adjust the latch length providing for the necessary free play and
alignment.
6.2 CONNECTING PROCEDURE
The lock operation is controlled by supplying and blocking power. For this purpose a controller
(control board) or a switch (button) is generally used. The controller is mounted in accordance
with its certificate.
Connect the lock power wires adhering to the following polarity:
White –positive pole of the power supply;
Black –negative pole of the power supply;
Reverse voltage supply does not ensure lock operability, but it does not cause its failure.
Example of the lock connection to the remote control system Promix-RDS.
7. FEATURES OF INSTALLATION AND
OPERATION
1) The possibility of using the locks for access restriction to retail and office furniture and the
place of installation are determined by the installation organization on the basis of the
design features and the mounting method, furniture criticality level, the purpose of the access
restriction regime and other factors (the presence of security providers, video surveillance,
etc.).
2) To prevent door deformation, it isrecommended to installthe lock in the area of the handle.
3) When mounting the lock and the latch, it is necessary to ensure their coaxial alignment within
Lock
Controller Promix-CR.RX
Promix-CR.TX
RCU
~220V

Promix-SM132
4
The lock does not need lubrication!
the latch free movement allowance.
4) When the door is closed, the latch must be inserted all the way into the lock. The lock may fail
to open when the door is in “tension” condition, i.e., an external force for opening is applied.
8. POTENTIAL MALFUNCTIONS
Malfunctions and problems
Remedies
The lock does not open when supply
voltage is applied
Check polarity and conformity of the lock supply voltage
to the required value.
Check integrity of the lock power circuit.
Close the door tightly and press on it at the latch
fastening place, and apply voltage to the lock. If the lock
does not open, apply elevated DC voltage of 20–30 V
for a short period of time.
After opening of the lock, adjust the latch length.
Excessive free play of the latch while
the lock is in the closed state
Decrease the latch bar length. To do this, fix the latch
support with a wrench, loosen the latch nut, screw in
the bar, tighten the latch nut.
A large clearance between the door
and the base as the door is closed
(the latch stops against the inside of
the lock)
The lock does not block the latch
Check the distance between the latch and the lock; if
necessary, increase the latch length.
9. MAINTENANCE
Maintenance of the lock is performed at least once every two monthsand includes:
 Visual inspection of the lock to check the reliability of the fastening. If necessary, tighten
the fasteners of the lock and the latch.
 Check the latch length. If the latch bar abuts against the lock and this leads to non-tight
door closing, or if the latch is not fixed by the lock when the door is closed, adjust the latch
length.
10. STORAGE AND TRANSPORTATION
Prior to putting into operation, the locks must be stored in the manufacturer’s packing, in
rooms with an ambient temperature of -30 to +50 °С and a relative humidity not higher than 98 %
at 25ºС С in compliance with storage conditions as per GOST 15150-69.
Locks transportation conditions must comply with group C as per GOST 23216-78 in terms of
exposure to mechanical factors, and Ж2 as per GOST 15150-69 in terms of exposure to climatic
factors.

Promix-SM132
5
The operation warranty period is 12 months from the date of sale but not
longer than 18 months from the day of acceptance by the manufacturer’s QCD.
Faulty products are accepted for repair only together with the latch, on the
obligatory condition that factory labels are retained on the product body.
To improve product quality the manufacturing plant reserves the right to make
modifications to the product design without prior notice.
11. SAFETY REQUIREMENTS
The design of the locksensures safety of personnel involved in mounting and maintenance.
Due to low DC supply voltage, the products correspond to class III as per GOST 12.2.007.0-
75 and are electrically safe.
Fire safety of the locks is ensured by use of non-combustible or hardly combustible materials,
and low supply voltage.
12. DISPOSAL
The product is not hazardous for human life and health or for the environment; disposal after
its service life is performed without taking any special measures for environment protection.
13. WARRANTY LIABILITIES
The manufacturer, ETC PROMIX LLC, warrants conformity of Promix-SM420 locks to
requirements of current Technical Specifications provided that transportation, storage, installation
and operation rules established in this Manual are followed.
Within the warranty period ETC PROMIX LLC undertakes to repair defective products free of
charge. Expenses for transporting the product to the place of repair and back will be borne by the
Buyer.
Warranty liabilities do not cover any defects and damages caused by:
 Improper maintenance by the Buyer;
 Use of the product under conditions that do not comply with the operation requirements;
 Mechanical damages or disassembly of the products bythe Buyer;
 Non-observance of the transportation and storage rules.
On expiration of the warranty service period, the manufacturer provides after-warranty service
on a contractualbasis.

Promix-SM132
6
14. ACCEPTANCE AND PACKING
CERTIFICATE
Promix-SM420 electromechanical lock in quantity of ____ pieces (1 pc. by default) bearing the
manufacturing date and QCD mark on the body, was manufactured and accepted in compliance
with Specifications, obligatory requirements of state standards and current technical
documentation, recognized as fit foroperation and packed by ETC PROMIXLLC.
Engineering and Production Center PROMIX LLC
Russia, 214030, Smolensk, Krasninskoe sh., 35, lit. A
Phone: [phone]
www.promix-center.com
facebook.com/promixcenter
[e-mail]
