Translation of the Original
Operating Instructions
Super STS/E Jig Saw
Foreword
Dear Customer,
The PROXXON Super STS/E Jig Saw is an easy-
to-use but nonetheless high-performance device,
which produces excellent cutting results.
This instructionmanual covers:
•Safety regulations
•Operation and maintenance
•Spare parts list.
Please read carefully.
The use of this instruction manual
•makes it easier,tobecome familiarised with the
device,
•prevents faults due to improper operation
•and increases the service life of the device.
Keep this instruction manual in an easily accessi-
ble place.
The instruction manual must be read before, and
observed during operation of the device.
PROXXON is not liable for the safe functioning of
the device:
•inthe case of non-designated use or for pur-
poses
•other than those specified in the instruction
manual,
•ifthe safety regulations are not observed.
Warranty claims are invalid in the case of:
•improper operation,
•insufficient maintenance.
In the interests of your safety,please always
observe the safety regulations.
Use original PROXXON spare parts only.
We reserve the right to make further alterations
for the purpose of technical progress.
We wish you every success with your device.
Use indoors only
Protection class II device
Please do not dispose offthe machine!
Risk of injury!
Never work without dust
protection mask and safety
glasses. Some dusts have a
hazardous effect! Materials containing asbestos
may not be machined!
WARNING!
Read all safety warnings and instruc-
tions. Failure to follow all safety warn-
ings and instructions listed below may
result in electric shock, fire and/or serious injury.
KEEP ALL SAFETY WARNINGS AND INSTRUC-
TIONS FOR THE FUTURE !
Key
1Speed control knob
2ON/OFF switch
3Handle
4Connection lead
5Saw plate
6Scale
7Saw blade
8Parallel stop
9Piston with saw blade mount
Scope of delivery
1pc. STS/E jig saw
1pc. Storage case
1pc. Operating instructions
1pc. Safety guidelines
2pcs. Jig saw blades of special steel, ground
and side set teeth (teeth division 1.5
mm). For cutting all types of wood, fibre-
glass sheets and soft plastics.
2pcs. Jig saw blades of HSS steel, ground and
wavy set teeth (teeth division 1.06 mm).
For cutting of steel, non-ferrous metal,
GRP,pressed materials, resin bonded
fabric, Plexiglas and insulation material.
GB

-9-
1pc. Allen key (for changing saw blade)
1pc. Allen key (for table adjustment)
Description of the machine
We have developed ajig saw for especially high
requirements concerning sawing precision and
performance that is not only distinguished by its
versatility but is also suitable for cutting curves in
12 mm thick wood.
Straight cuts are no problem either: the machine
is equipped with an adjustable limit stop which is
guided along the tool edge, enabling accurate
parallel cuts. And because the saw table can also
be rotated alongthe longitudinal axle, mitre cuts
up to 45° are also possible.
The device head consists of precisely machined
die-cast zinc. It contains areduction gear for the
drive of the saw blade. The jig saw is powered by
an especially high quality and quiet direct current
motor.The speed can be preselected via elec-
tronic control: the correct of number of strokes is
then always set
Technical data
Dimensions, weight:
Length: 230 mm
Weight: 530 g
Motor:
Voltage: 230 volts, 50/60 Hz
Power consumption: 80 Watt, KB 5
Rational speed: 2000 -4500 min-1
Vibration: <2,5 m/s2
Noise emission: LPA87dB(A)
LWA100 dB(A)
General measuring
uncertainty: K=3 dB
Please note that the sound and vibration meas-
urements in particular have been performed with
PROXXON bits and cutters. When using third-
party brands we cannot guarantee compliance
with the statements given here!
Clamping and changing saw blades
Danger!
Injury hazard
Disconnect the mains plug before changing tools.
Note:
•Donot work with damaged or worn bits and cut-
ters! Make sure the sanding discs are in perfect
condition!
•When storing the bits and cutters, make sure
they are reliably protected from damage!
1. Loosen clamp screw using the Allen key 1pro-
vided (Fig. 2).
2. Insert saw blade (2) into slot in the saw blade
mount and re-tighten clamp screw.
Important
The saw blade must be located in the groove of
the support roller.
Setting the mitre angle
Danger!
Injury hazard
Disconnect the mains plug before proceeding.
1. Loosen clamp screw using the Allen key 1
(Fig. 3).
2. Adjust the saw plate (2) to the desired mitre
angle and re-tighten the clamp screw.
Setting the parallel stop
Danger!
Injury hazard
Disconnect the mains plug before changing tools.
1. Loosen clamp screw 1(Fig. 4) using the Allen
key provided
2. Adjust the stop (2) to the desired dimension
and re-tighten the clamp screw.
Note:
The stop can also be used for curved cuts. For
this purpose, position anail at the centre point of
the curve and use as axis for the stop. The scale
for curved cuts is on the back of the stop.

-10-
Working with the jig saw
Hold power tool by insulated gripping sur-
faces, when performing an operation where
the cutting accessory may contact hidden
wiring or its own cord. Cutting accessory con-
tacting a“live” wire may make exposed metal
partsofthe power tool “live” and could give the
operator an electric shock.
Affix and secure the work piece to astable
surface using clamps or another suitable
method. If you hold the work piece with your hand
only or up against your body,itwill be unstable
which may lead to aloss of control.
Activate the device with the switch 2(Fig. 5) and
set the number of strokes that correspond to the
work task at knob 1. Fundamentally speaking, the
following apply:
Soft materials: high number of strokes
coarse teeth
Hard materials: low number of strokes,
fine teeth
The jig saw can be easily guided by hand now.In
the interest of clean saw cuts and optimal sawing
performance, make sure the feed is adjusted to
suit the material. The basic principle here is: the
harder the material, the slower the feed!
When sawing metals, asmall amount of oil should
be applied to the cutting line.
Thin sheet steel should be appropriately clamped
to afixed supporting surface (e.g. plywood board):
This minimises and prevents vibrations and flexing.
When producing cut-outs, drill ahole that is suffi-
ciently large to allow the saw blade to be inserted.
Maintenance, cleaning and care
Attention:
Disconnect the mains plug prior to every
adjustment, maintenance measure or repair!
Note:
Every device is dirtied by dust when working.
Cleaning is therefore essential. To ensure along
service life, however,the machine should be
cleaned with asoft cloth or brush after each use.
Ensure all ventilation apertures are clear.
Mild soap or other suitable cleaning agent may be
used in this context. Solvents or cleaning agents
containing alcohol (e.g. petrol, cleaning alcohols,
etc.) should be avoided, since these can attack plas-
tic casings.Regularly lubricate reciprocating plunger
and support roller with several drops of engine oil,
after approx. 30 min. running time (Fig. 6).
Accessories
For more detailed information on accessories,
please request our device catalogue from the
address specified on the last page in the warranty
information.
Please note in general:
PROXXON bits and cutters have been designed
to work with our machines, which makes them
optimal for their use.
We will not assume any liability whatsoever for the
safe and proper function of our devices when
using third-party bits and cutters!
Service note
Please note: The mains power input may only be
replaced by our PROXXON Service Department
or aqualified specialist!
Disposal
Please do notdispose of the device in domestic
waste! Thedevice contains valuable substances
that can be recycled. If you have any questions
about this, please contact your local waste man-
agement enterprise or other corresponding
municipal facilities.

EC Declaration of Conformity
Name and address:
PROXXON S.A.
6-10, Härebierg
L-6868 Wecker
Product designation: STS/E
Article No.: 28530
In sole responsibility,wedeclare that this product
conforms to the following directives and norma-
tive documents:
EU EMC Directive 2014/30/EC
DIN EN 55014-1 /09.2016
DIN EN 55014-2 /01.2016
DIN EN 61000-3-2 /03.2015
DIN EN 61000-3-3 /03.2014
EU Machinery Directive 2006/42/EC
DIN EN 62841-1 /07.2016
DIN EN 62841-2-11/12.2016
Date: 01.02.2017
Dipl.-Ing. Jörg Wagner
PROXXON S.A.
Machine Safety Department
The CE document authorized agent is identical
with the signatory.
-11-

-52-

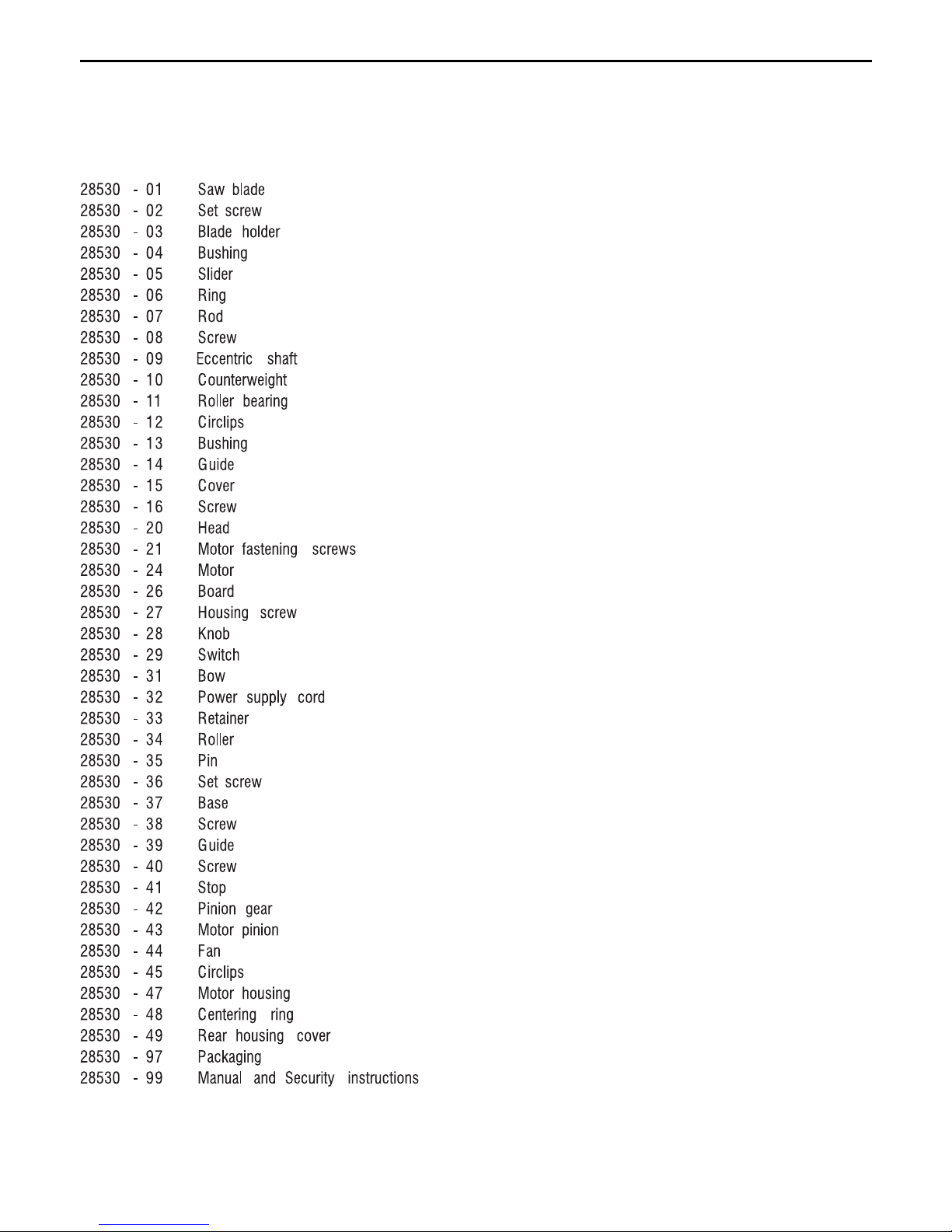

Spare Parts List
PROXXON STS/E
Art-No. 28530
Et.-Nr .: Description

-53-

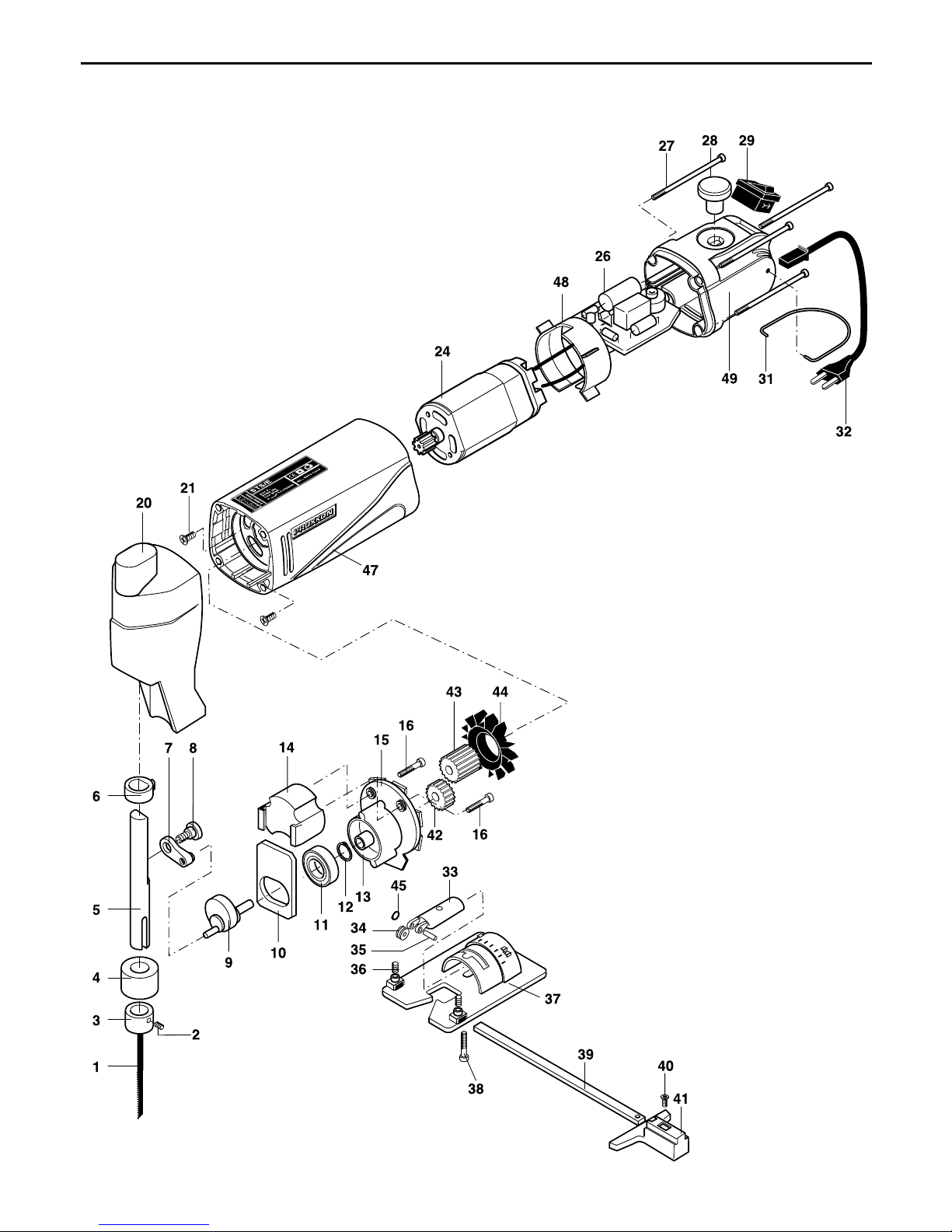

Ersatzteilbild

GB Service note
All PROXXON products are thoroughly inspected after
production. Should a defect occur nevertheless, please
contact the dealer from whom you purchased the
product. Only the dealer is responsible for handling all
legal warranty claims which refer exclusively to material
and manufacturer error.
Improper use, such as capacity overload, damage due to
outside influences and normal wear are excluded from
the warranty.
You will find further notes regarding "Service and Spare
Parts Management" at www.proxxon.com.
Art.-Nr.28530-99 PR 701717702,5 J
