PTZOptics PT-JOY-G4 User manual

A 4th-Generation Network or Serial Camera Controller
PT-JOY-G4
User Guide
V1.0

Thank You!
Thank you for selecting our joystick camera controller built to support both IP and serial communication.
As you read through this manual it will help identify the options you have for setting up the device,
connecting equipment as well as recommended configurations; as a result we recommend reading over
this guide prior to beginning any setup to have the best possible experience.
-The PTZOptics team
Using this guide to Get Started
We recommend that you read the entire user guide prior to any setup and please refer to the Table of
Contents when attempting to locate specific product information or setup instructions.
Copyright Notice
The entire contents of this manual / guide, whose copyright belongs to PTZOptics, may not be cloned, copied,
or translated in any way without the explicit permission of the company. The product specifications referred to
in this document are for reference only and as such are subject to updating at any time without prior notice.
Rev 1.0 9/20
i

What’s in the Box?
● PT-JOY-G4 joystick controller
● 12V 2A international power supply
● 8’ (2.4m) RS-232C / DB9 female to 8-pin mini-din male cable
● PTZOptics PT-JOY-G4 Quick Start Guide
Introducing the PT-JOY-G4
The PT-JOY-G4 is designed to provide in depth control of the PTZOptics and HuddleCamHD line of
cameras for use in production environments and more. With the ability to support either IP or Serial
control from a single controller, the PT-JOY-G4 presents itself as a flexible control solution.
When used via a Local Area Network (LAN), you can connect to cameras using TCP or UDP
communications to send PTZOptics VISCA over IP commands, with limited support for Sony VISCA
over IP capable cameras. If using the serial connections via RS-232, RS-485 or RS-422 you have
PTZOptics VISCA commands, Pelco-D, Pelco-P and limited Sony VISCA support.
Note using this with non PTZOptics or HuddleCamHD products may offer limited or no control
capabilities.
You can view the PTZOptics VISCA and VISCA over IP command libraries at
ptzoptics.com/downloads/
How to care for your PT-JOY-G4
Please read the recommendations below to ensure you do not damage the product or possibly void
your warranty.
● Keep the joystick away from rain and out of moist environments
● Do not remove any portions of the case, cover or interfaces
○ Removal may result in the risk of an electrical shock
○ Removal will void the manufacturer's warranty.
● Only use the product within the recommended temperature and humidity ranges
○ Operating temperature range: 14° ~ 122°F (-10° ~ +50°C)
○ Operating humidity range: 10 ~ 90% *Non-condensing
● Do not use any other power supply than the one originally supplied with the joystick.
● Keep the joystick and signal cables away from strong electromagnetic sources or abnormal and
unreliable control may be experienced
● If you need to clean the surface of the product please use a soft dry cloth.
○ If the joystick becomes extremely dirty, use a diluted neutral detergent to clean the
surface.
○ Do not use any type of solvents, which may damage the surface of the product.
In case of abnormal operation, please contact our support team at  [email protected]
Rev 1.0 9/20
ii

Table of Contents
Preface
i
Copyright Notice
i
What’s in the Box
ii
Introducing the PT-JOY-G4
ii
How to care for your PT-JOY-G4
ii
Table of Contents
iii
PT-JOY-G4 Overview
1
Top Down View & Layout
1
Button & Dial Descriptions
2
Rear Panel View & Layout
4
Technical Specifications
5
Preparing to use the Joystick
6
Installation and Setup
6
Power
6
Physically Connecting a Camera to the Controller
6
Network Setup
7
Serial Control Setup & Options
8
Adding a Camera
9
From the Joystick
9
From the Web Interface
10
Joystick OSD Menu Control
11
Operating the Camera
12
Pan, Tilt, & Zoom Operations
12
Setting and Calling Presets
12
Adjusting the Camera’s Image
13
Camera OSD Menu Control
14
Basic Mode
14
Matrix Mode
14
Joystick Web Interface
15
Device Management
15
Settings
16
Troubleshooting and Extras
17
Troubleshooting
17
Additional Information
18
Warranty
18
Certifications
18
Changelog
18
Rev 1.0 9/20
iii

PT-JOY-G4 Overview
Top Down View & Layout
1. Speed Control
Zoom / Pan / Tilt Speed dial
2. Exposure Control
Iris / Shutter dial
Exposure Mode cycle button
3. White Balance Control
Red Gain / Blue Gain dial
White Balance Mode cycle button
4. Camera OSD Control
5. Focus Control
Focus Near / Far dial
One Push Auto Focus button
6. Camera Select
7. Camera Control
Slow zoom control
Camera P/T/Z joystick controller
8. Controller OSD Setup button
9. Fine Tune Video Control
Backlight On / Off
One Push Trigger
Focus Lock / Unlock
10. Preset Control Buttons
11. Alpha-Numeric Keypad
Supporting quick save and recall for
preset #1 - 9
1
Rev 1.0 9/20

Button & Dial Descriptions
The below descriptions will describe the buttons and dials available on the controller.
1. Speed Control
The Speed Control section allows you to adjust the speed at which you pan, tilt, and zoom the camera.
a. [SPEED] Dial
Twist the Speed Control dial to increase or decrease the control speed.
Press the Speed Control dial in to cycle through zoom, pan, and tilt speeds.
Zoom Speed Range: 1 - 7
Pan Speed Range: 1 - 24
Tilt Speed Range: 1 - 20
2. Exposure Control
The Exposure Control section allows you to adjust the exposure settings of the camera.
a. [IRIS / SHUTTER] Dial
Twist the [IRIS / SHUTTER] dial to adjust the Iris / Shutter value.
Press the [IRIS / SHUTTER] dial in to toggle Iris and Shutter adjustment control.
b. [EXPOSURE MODE] Button
Press the [EXPOSURE MODE] button to cycle through Exposure modes.
Options include: Auto, Manual, Shutter Priority, Iris Priority, & Brightness Priority.
3. White Balance Control
The White Balance Control section allows you to adjust the exposure settings of the camera.
a. [R GAIN / B GAIN] Dial
Twist the [R GAIN / B GAIN] dial to adjust the Red Gain / Blue Gain value.
Press the [R GAIN / B GAIN] dial in to toggle red gain and blue gain adjustment control.
b. [WHITE BALANCE MODE] Button
Press the [WHITE BALANCE MODE] button to cycle through the White Balance Modes.
Options include: Auto, Indoor, Outdoor, One Push, & Manual.
4. Camera OSD Control
The Camera OSD Control section allows you to open and adjust the camera’s on screen display menu.
a. [OSD OPEN / CLOSE] Button
Press the OSD Open / Close button to open and close the on screen display menu.
Move the joystick up, down, left, and right to traverse the camera’s OSD menu.
b. [OSD ENTER] Button
Press the OSD Enter button to select an OSD menu option.
c. [OSD BACK] Button
Press the OSD Back button to go back an OSD menu option.
Refer to the Camera OSD Menu Control section of this guide for more information.
5. Focus Control
The Focus Control section allows you to adjust the focus value of the camera.
a. [NEAR / FAR FOCUS] Dial
Twist the [NEAR / FAR FOCUS] dial to focus the camera’s image on your scene.
Press the [NEAR / FAR FOCUS] dial in to toggle Auto Focus and Manual focus modes.
b. [ONE PUSH AUTO FOCUS] Button
Press the [ONE PUSH AUTO FOCUS] button to automatically focus the image on the scene
while staying in Manual Focus mode.
6. Camera Select
The Camera Select section allows you to select a camera to control.
2
Rev 1.0 9/20

a. [CAM ID] Button
The [CAM ID] button allows you to select any camera on the controller using the alpha-numeric
keypad.
b. [CAM #] Button
The [CAM #] button allows you to quickly select a camera to control.
Options include: 1 - 6
7. Camera Control
The Camera Control sections allow you to move the camera around the scene.
a. [FINE TUNE ZOOM] Dial
The [FINE TUNE ZOOM] dial allows you to finely zoom the camera in and out at the lowest
speed (1).
b. [JOYSTICK] Joystick Controller
The [JOYSTICK] allows you to pan, tilt, and zoom (twist) the camera. The control speed is
affected by the Speed Control dial.
8. Controller OSD Setup
The Controller OSD Setup allows you to adjust the settings of the controller.
a. [SETUP] Button
Press the [SETUP] button to open the joystick’s OSD menu.
Refer to the Joystick OSD Menu Control section of this guide for more information.
9. Fine Tune Video
The Fine Tune Video section allows you to quickly change the camera’s video settings.
a. [BACKLIGHT ON / OFF] Button
Press the [BACKLIGHT ON / OFF] button to toggle the camera’s backlight compensation.
b. [ONE PUSH TRIGGER] Button
Press the [ONE PUSH TRIGGER] button to trigger the camera to calculate the scene’s white
value.
c. [FOCUS LOCK / UNLOCK] Button
Press the [FOCUS LOCK / UNLOCK] button to lock or unlock the camera’s focus value from the
current position.
10. Preset Control
The Preset Control section allows you to set and call presets of the cameras.
a. [SET] Button
Press the [SET] button to set a camera preset. Use the alpha-numeric keypad to set a preset
number.
b. [Call] Button
Press the [CALL] button to call a camera preset. Use the alpha-numeric keypad to call a preset
number.
c. Quick set preset shortcut
Press and hold a number on the alpha-numeric keypad for 3+ seconds to set a camera preset in
the current location.
d. Quick call preset shortcut
Quickly press a number on the alpha-numeric keypad to call a camera preset.
Refer to the Setting and Recalling Presets section of this guide for more information.
11. Alpha-numeric Keypad
The alpha-numeric keypad allows you to use many of the controller features that require numbers and
letters.
3
Rev 1.0 9/20

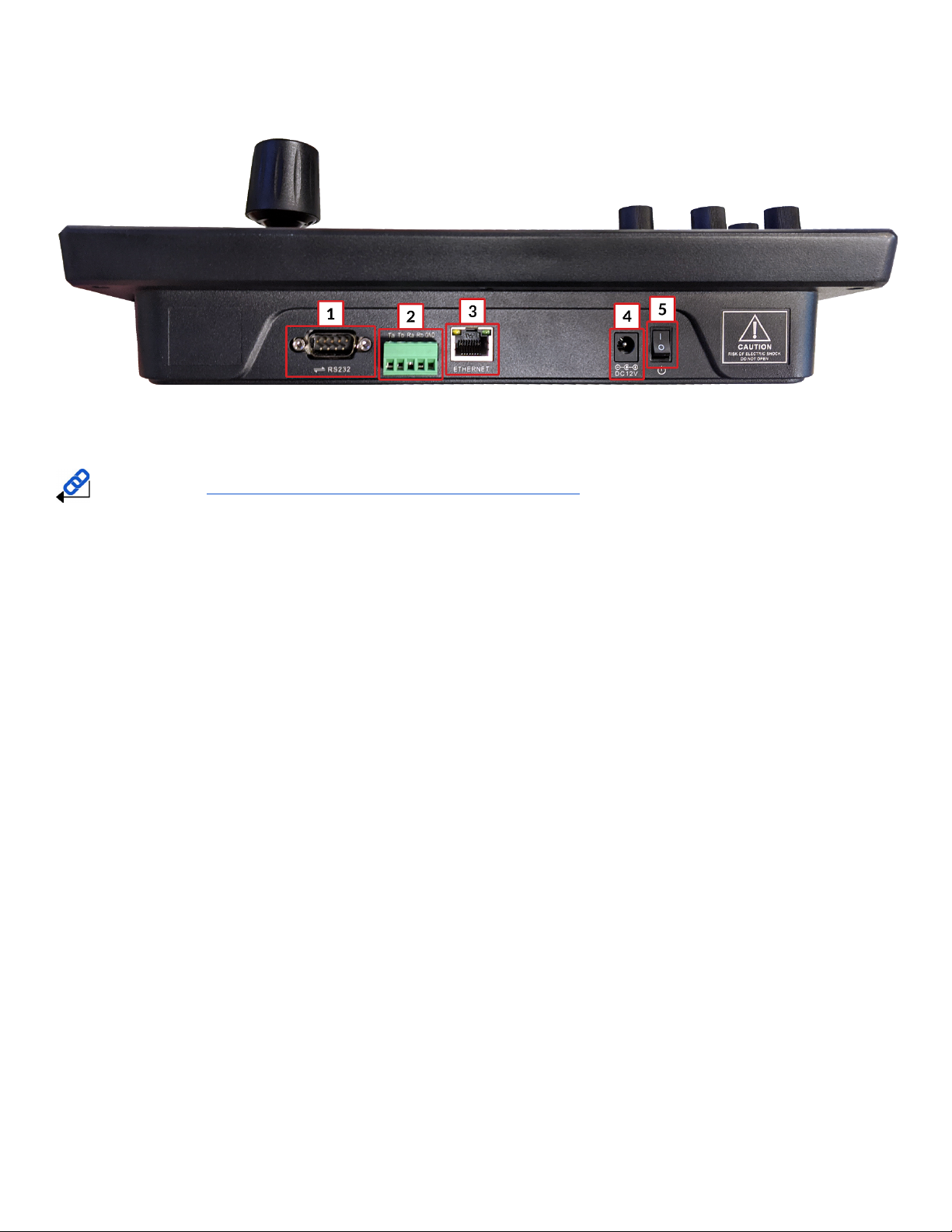

Rear Panel View & Layout
1. RS-232 Control Connection
2. RS-422 / RS-485 Control Connection
Refer to the Physically Connecting a Camera to the Controller section of this guide for more
information.
3. Ethernet / RJ-45 (PoE) Network Connection
Supports 802.3af PoE power
4. 12VDC Power Connection
5. Power Switch
4
Rev 1.0 9/20

Technical Specifications
Control Interfaces
Network: NIC (TCP and UDP)
Serial: RS-232 Full Duplex, RS-485 Semi Duplex, RS-422 Full Duplex
Protocols
PTZOptics VISCA and VISCA over IP
PELCO-D and PELCO-P via Serial Ports
Limited Sony VISCA and VISCA over IP support
Variable Baud Rate
1200 to 19200 bps
Maximum Cable
Distance*
Ethernet: 328 feet | 100 Meters
RS-232: 50 feet | 15 Meters
RS-485: 3,937 feet | 1200 Meters
RS-422: 50 feet | 15 Meters
Maximum Cameras
255 cameras via network | 7 cameras via serial VISCA
Power Voltage
12V DC
Power Consumption
6W
Power over Ethernet
802.3af
Working Temperature
14° F ~ 122° F (-10° C ~ +50° C)
Working Humidity
10% ~ 90% (non condensation)
Weight
4.45 lbs | 2.02 kg
Dimensions
11.938 W x 9.25 D x 2.188 H (4.25 H incl. joystick) in
303.23 W x 234.95 D x 55.58 H (107.95 H incl. joystick) mm
Shipping Weight
5.80 lbs | 2.63 kg
Box Dimensions
14 W x 8.75 D x 5.5 H in
355.6 W x 222.25 D x 139.7 H mm
Warranty
2 Year Manufacturer Warranty
*Using high quality certified cabling
5
Rev 1.0 9/20

Preparing to use the Joystick
Installation & Setup
Power
You can power your joystick using the included power supply or Power over Ethernet (802.3af).
After applying power make sure that the I/O switch is flipped to “I” for “On”.
Do not power the joystick controller using PoE and the power supply at the same time.
Physically Connecting a Camera to the Controller
To connect to a camera, you first need to decide which supported control method you need
Network Control: To control your camera(s) over a network, connect an ethernet cable
from your Local Area Network (LAN) to the controller and another one to the camera.
Afterwards, add the camera’s IP address to the joystick’s list of cameras and designate a
control address. *These steps are detailed in  the  Adding a Camera  section
Serial RS-232 Control: To control your camera(s) over a serial connection, use the
included RS-232C cable to connect the joystick and the camera. Then, designate a
control address for the camera. *These steps are detailed in  the  Adding a Camera
section
Serial RS-485 Control: To control your camera(s) over an RS-485 connection, see below.
● Joystick Ta - Pin 1 - Camera (+)
● Joystick Tb - Pin 2 - Camera (-)
● Joystick GND - Pin 5 - Camera (G) (If present. Some cameras won’t require ground)
Serial RS-422 Control: To control your camera(s) over an RS-422 connection, see below.
● Joystick Ta - Pin 1 - Camera (Rx-)
● Joystick Tb - Pin 2 - Camera (Rx+)
● Joystick Ra - Pin 3 - Camera (Tx-)
● Joystick Rb - Pin 4 - Camera (Tx+)
● Joystick GND - Pin 5 - Camera (G) (If present. Some cameras won’t require ground)
For a more in-depth guide to adding cameras to the joystick, check out the Adding a Camera section
6
Rev 1.0 9/20

Network Setup
The PT-JOY-G4 will dynamically obtain an IP address upon connection to your LAN. If your network is not able
to supply DHCP addresses you must assign a static IP address to the controller.
To set a static IP address, follow the steps below.
1. Obtain the IP address scheme of your network.
2. Connect your joystick to power and to your network.
3. Press the [SETUP] button, and move down to option 4. Network Connection.
4. Move the joystick left or right to “Static”, and press the [ENTER] key to set the static IP address.
5. Enter an available IP address similar to the IP address scheme of your network using the
alpha-numeric keypad.
6. Enter the Gateway and Subnet Mask of your network.
7. When all the fields are filled, press the [ENTER] key to restart the joystick with the assigned
static IP address.
For more information on methods to obtain your network information such as the IP address, Default
Gateway, and Subnet Mask refer to the following PTZOptics  Knowledge Base Article  .
Note that If any aspect of your network scheme only requires 1 or 2 digits (e.g. 192.168.1.150), you can
move the joystick right to advance to the next field.
7
Rev 1.0 9/20

Serial Control Setup & Options
To control cameras using serial communications, first review the above section marked “Physically Connecting
a Camera” to select the appropriate option for your setup.
Once you have selected a serial communications method, connect the appropriate cable to the joysticks
selected control port and then to the camera’s matching control input (RS-485 or RS-232)
To control multiple cameras using RS-232, you will need to utilize a “Daisy-Chain” setup, shown below
leveraging the camera’s RS-232 IN and RS-232 OUT.
Alternatively, you can utilize a “Home-Run” setup for RS-485 & RS-422, as shown below.
When you first boot up the joystick it will be in the IP mode.
To toggle between IP and Serial control, press and hold the joystick button for 3+ seconds.
8
Rev 1.0 9/20

Adding a Camera
From the Joystick
To add a camera to the joystick from using the OSD setup menu, follow the steps below.
1. Adding an IP camera
a. Press the [SETUP] button, and select option one (1) “Add Network Device” for IP
i. Fill out the Network Device fields to connect your camera.
1. Camera: Joystick Camera Address [CAM ID]. Options include 1 -
255.
2. Protocol: Options include VISCA (UDP), VISCA (TCP), and Sony
VISCA (UDP).
3. IP Add.: IP Address of Camera to Control
4. Port: Camera control port.
For PTZOptics and HuddleCamHD cameras, by default, the port assignments are 1259 for UDP control
and port 5678 for TCP control.
b. Once the above fields are filled, press the [ENTER] button to save the camera to
the controller.
2. Adding a Serial camera
a. Press the [SETUP] button, and select option two (2) “Add Serial Device”
b. Fill out the Serial Device fields to connect your camera.
i. Camera: Joystick Camera Address. Options include: 1 - 7.
ii. Protocol: Control protocol. Options include: VISCA, PELCO-D, &
PELCO-P
iii. Address: Camera control address. For best results, set Joystick &
Camera control address to the same value.
iv. Baud Rate: Baud rate. Options include: 1200, 2400, 4800, 9600, 19200,
38400, & 115200. For best results, use 9600.
c. Once the above fields are filled, press the [ENTER] button to save the camera to
the controller.
9
Rev 1.0 9/20

From the Web Interface
To add a camera to the controller from the web interface, follow the steps below.
1. Type the IP address displayed on the controllers OSD into a web browser to access the
web interface
2. Type in the login credentials to access the joysticks WebUI configuration page.
a. Default username: “admin”
b. Default password: (there is no password by default)
3. Click the pencil icon under the “Operate” column of the camera address you wish to
configure a camera for.
4. From here, fill out the information based on the deployed connection to the camera, with
your options detailed below.
● Network:
○Protocol: Options include: VISCA (UDP),
VISCA (TCP), & SONY VISCA (UDP)
○IP: Enter the IP address of your camera
○Port: Enter the control port of your camera
● Serial:
○Protocol: Options include: VISCA,
PELCO-D, & PELCO-P
○Baud Rate: Options include: 1200, 2400,
4800, 9600, 19200, 38400, & 115200
○Address: (Unchangeable) This address
matches the camera address at the top of
the window.
5. Once the above fields are filled, click the Save
button to finish adding the camera to the controller.
10
Rev 1.0 9/20

Joystick OSD Menu Control
1. Add Network Device
Refer to the Adding a Camera section of this guide for more information.
2. Add Serial Device
Refer to the Adding a Camera section of this guide for more information.
3. Device List
○ Move the joystick left or right to select Inquire or Delete.
From here, you can view current configurations or delete any camera from the Device
List.
○ Move the joystick up or down to traverse the menu by increments of 1.
Move the joystick left or right to traverse the menu by increments of 5.
4. Network Connection
Refer to the Network Setup section of this guide for more information.
5. Language
○ Move the joystick left or right to adjust the language.
Options include: English
6. Button Tone
○ Move the joystick left or right to select On or Off.
○ After making a selection, press the [ENTER] button to apply.
7. Restore Factory
○ Press the [ENTER] button to restore the joystick to factory default settings.
○ You will be prompted to confirm, press the [ENTER] key again to restore to factory
default, or press the [ESC] button to cancel.
Restoring the joystick to factory default settings will remove all cameras, set all control speeds back to
default, and reset network information.
8. System Info
○ Press the [ENTER] button to view the joystick’s system information. Includes: Software
Version, Hardware Version, Web Version, IP Address, Gateway, & Subnet Mask.
11
Rev 1.0 9/20

Operating the Camera
To begin remotely operating a camera, you will first need to use the Camera Select buttons to begin using the
controller. Once selected, you will have full remote operation of the camera from the controller.
Pan, Tilt, and Zoom Operation
The joystick supports variable speed pan / tilt / zoom control, which allows you to set the control speeds
prior to use.
You can adjust the control speed from the Speed Dial located on the top left corner of the joystick.
Once the control speeds are set to a comfortable value, you can use the joystick controller to move the
camera.
In addition to the joystick itself, you can use the Fine Tune Zoom Dial to zoom in and out at the slowest
possible speed.
Setting and Recalling Presets
Using the Quick Presets you can set and call presets 0 - 9 using the Alpha-Numeric keypad by
following the steps below.
Quick Presets:
1. Move the camera to the location you wish to set the preset.
2. Press and hold one of the Alpha-Numeric buttons for 3+ seconds to set the corresponding
preset.
3. To call a Quick Preset, tap one of the Alpha-Numeric buttons.
Alternatively, you can use the Set and Call buttons to set or call presets 0 - 255.
Set and Call:
1. Move the camera to the location you wish to set the preset.
2. Press the [SET] button.
3. Using the Alpha-Numeric keypad, type in a preset number to associate with the preset. Press
[ENTER] to save the preset.
4. To call a preset, press the [CALL] button, and type in a preset number. Press the [ENTER] key
to call the preset.
When using a PTZOptics camera, you can call a preset at a specific focus value by setting the preset
while in manual focus mode.
12
Rev 1.0 9/20

Adjusting the Camera’s Image
There are many options for adjusting the camera’s image which we will detail below
You can adjust Exposure & White Balance settings, Iris, Shutter, Red & Blue Gain, Focus, & Backlight
Compensation to achieve the desired image style and quality.
●Exposure Control: Use the [EXPOSURE MODE] button to cycle through the camera’s
Exposure modes. Options include: Manual Exposure, Shutter Priority, Iris Priority, Brightness
Priority, & Auto Exposure respectively.
You can use the [IRIS / SHUTTER] Dial to adjust the Iris and Shutter values. Press in the dial to
toggle between Iris and Shutter.
The camera will automatically change to Manual Exposure upon twisting the Iris / Shutter Dial.
●White Balance Control: Use the [WHITE BALANCE MODE] button to cycle through the
camera’s White Balance modes. Options include: Indoor White Balance, Outdoor White
Balance, One Push White Balance, Manual White Balance, & Auto White Balance respectively.
You can use the [R GAIN / B GAIN] Dial to adjust the Red & Blue Gain values.
Press the dial to toggle between Red Gain and Blue Gain.
The camera will automatically change to Manual White Balance upon twisting the R Gain / B Gain Dial.
When the camera is in One Push White Balance, you can press the [ONE PUSH TRIGGER] button
from the Fine Tune Video control section of the joystick to calibrate the white balance.
●Focus Control: Twist the [FOCUS] Dial towards Near or Far to focus the camera on a subject.
You can press down on the [FOCUS] Dial to toggle between AutoFocus and Manual Focus.
The [ONE PUSH AUTO FOCUS] button allows you to automatically focus the image on the
scene, without exiting the Manual Focus mode.
PTZOptics cameras will return to Auto Focus mode upon zooming in or out. You can lock the camera’s
focus from returning to Auto Focus mode by pressing the [FOCUS LOCK / UNLOCK] button. While the
focus is locked, you have full manual focus control from the [FOCUS] Dial. Press the [FOCUS LOCK /
UNLOCK] button again to return to normal focus control.
●Backlight Compensation: Press the [BACKLIGHT ON/OFF] button to enable or disable
Backlight Compensation.
13
Rev 1.0 9/20

Camera OSD Menu Control
To access the camera’s On Screen Display, OSD, menu and fine tune the camera, follow the steps
provided below.
1. Press the [OSD OPEN/CLOSE] button.
2. Move the joystick up or down to traverse the camera's OSD menu.
3. Press the [OSD ENTER] button to select a specific option.
4. Move the joystick left and right to adjust the settings.
5. Press the [OSD BACK] button to return to the previous window.
6. Press the [OSD OPEN/CLOSE] button again to close the camera's OSD menu.
PTZOptics cameras will automatically close their OSD Menu after 2 minutes 30 seconds of inactivity by
default.
Basic Mode
Basic Mode allows you to disable most of the capabilities of the SuperJoy and limit the control to the
joystick and/or calling presets.
1. Press the [BASIC MODE] button to enable Basic Mode with Joystick.
2. Press the [BASIC MODE] button again to enable Basic Mode without Joystick.
3. Press the [BASIC MODE] button again to disable Basic Mode.
Matrix Mode
Matrix Mode allows you to disable most of the capabilities of the SuperJoy and limit the controls to
calling presets 1 - 3 of cameras 1 - 3.
1. Press 1 - 3 on the alpha-numeric keypad to call camera 1 presets 1 - 3 respectively.
2. Press 4 - 6 on the alpha-numeric keypad to call camera 2 presets 1 - 3 respectively.
3. Press 7 - 9 on the alpha-numeric keypad to call camera 3 presets 1 - 3 respectively.
14
Rev 1.0 9/20

Joystick Web Interface
Device Management

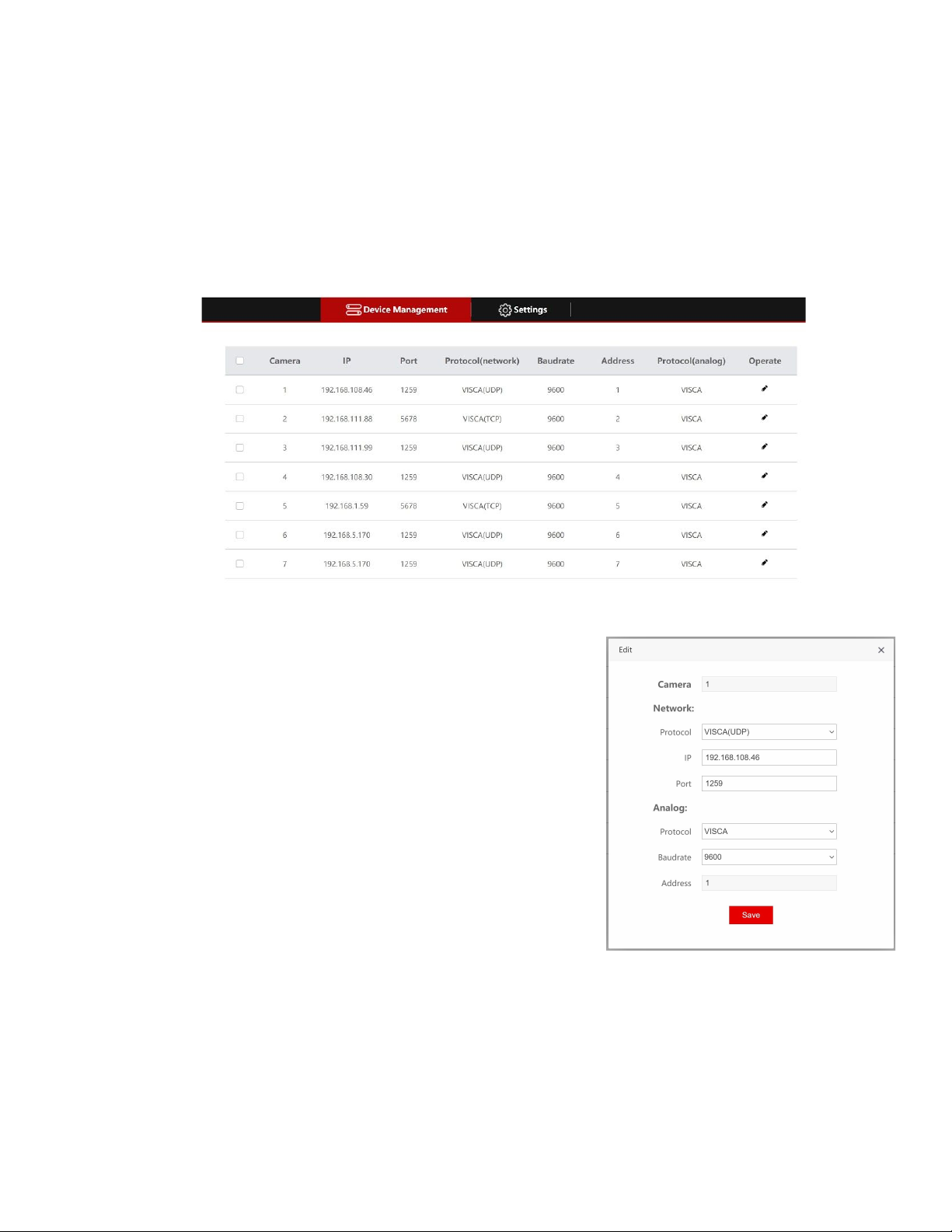

The Device Management page, available from the controllers web interface, allows you to define new
cameras and adjust already configured cameras.
Camera: Joystick control address.
Base options include: 1 - 7 (IP & Serial)
Expanded options include 1 - 255 (IP only)
IP: The IP address of the saved network camera.
Port: The control port of the saved network camera.
Protocol (Network): The control protocol of the saved network camera.
Baud Rate: The baud rate of the saved serial camera.
Address: The camera control address of the saved serial camera.
Protocol (Serial): The control protocol of the saved serial camera.
Operate: Click this pencil to edit the settings of the saved camera.
For more information on editing already configured cameras from the Device Management interface,
check out the Adding a Camera > From the Web Interface section.
15
Rev 1.0 9/20

Settings
The Settings interface allows you to adjust the configuration settings of the joystick.
Upgrade: Upgrade the joystick’s firmware to the latest version.
Factory Restore: Restores the joystick to factory default settings.
Restart: Restart the joystick.
Import: Import joystick settings from PC.
Export: Export joystick settings to PC.
Version: Displays the Hardware, Software, and Web firmware versions on the joystick.
Network: Allows configuration of the joystick’s network configuration (DHCP / Static IP).
Options include: DHCP or Static IP Address, Subnet Mask, Gateway, DNS1, & DNS2.
For more information on how to obtain an IP address, Default Gateway, & Subnet Mask, see the
following PTZOptics Knowledgebase Article:  Discovering your Network IP Information
16
Rev 1.0 9/20
